Description
Overview

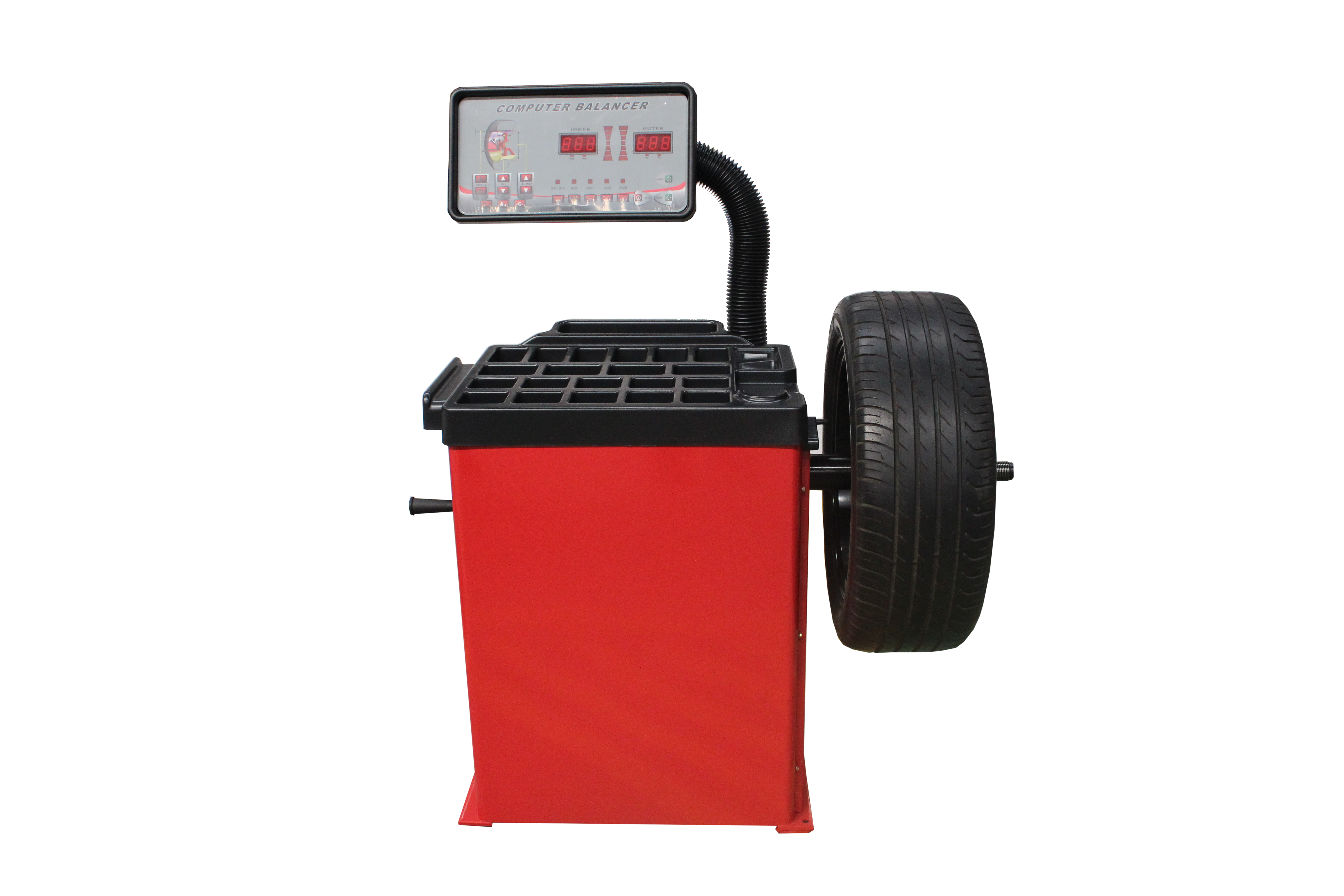

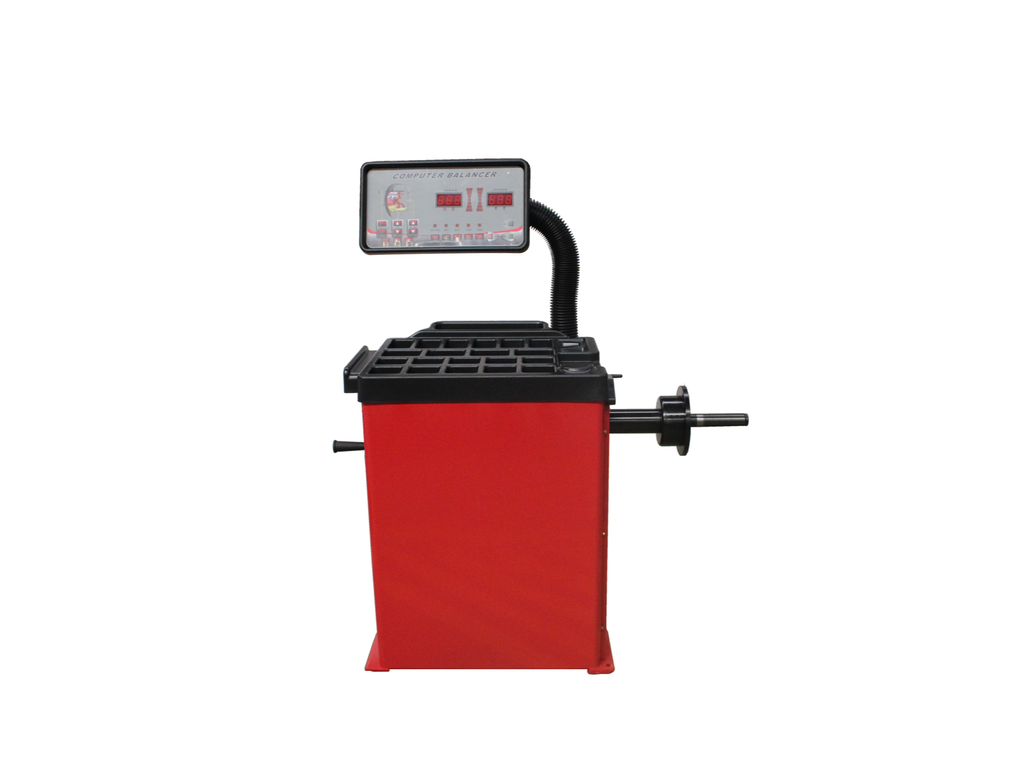

The Tuxedo WB-953-B is a wheel balancer in a no-hood configuration, built for general service and tire shops balancing car and motorcycle wheels in a compact footprint.
An LED touch-panel keypad with icon prompts guides the operator through every function, and the machine self-calibrates and self-diagnoses for repeatable accuracy. Manual distance and diameter entry supports static, dynamic, and three ALU modes, and multi-user operation lets two technicians work with separate settings. Without the hood, it tucks into tighter bays while keeping the same balancing capability. Browse more auto service equipment or the full Tuxedo Auto Equipment line.
Key Features
- No-hood design - Compact footprint for tighter bays.
- Car and motorcycle modes - Standard multi-mode balancing for both wheel types.
- LED touch-panel keypad - Icon-based controls with a retractable measurement indicator.
- Static, dynamic, and ALU modes - Three ALU modes plus static and dynamic for steel and alloy wheels.
- 36mm balancing shaft - Heavy duty shaft with Speed-Nut mounting, centering spring, and an electronic braking system.
Specifications
| Brand | Tuxedo Auto Equipment |
|---|---|
| Type | Wheel Balancer |
| Data Entry | Keypad |
| Max Wheel Diameter | 39 in |
| Rim Width | 1.5 to 20 in |
| Rim Diameter | 10 to 24 in |
| Max Wheel Weight | 150 lbs |
| Accuracy | 1 gram |
| Power | 110V, 15 Amp, Single Phase |
| Ship Weight | 305 lbs |
How It Compares
| Model | Hood | Max Wheel Diameter | Shaft |
|---|---|---|---|
| WB-953-B | No | 39 in | 36mm |
| WB-953 | Yes | 39 in | 36mm |
| WB-CB66-VE | Yes | 44 in | 40mm |
Key Facts
- Balances rims from 10 to 24 inches and wheels up to 39 inches overall.
- Standard car and motorcycle balancing modes with 1 gram accuracy.
- Runs on a standard 110V, 15 Amp, single-phase circuit.
Who It's For
This balancer fits general service shops and tire bays that want a compact, no-hood machine for car and motorcycle wheels on a standard wall circuit. Confirm a 110V circuit and bench or floor space before ordering.
What's Included
- WB-953-B wheel balancer, no hood
- 36mm balancing shaft with Speed-Nut and centering spring
- Standard cones and accessory storage pegs
- Installation and operation manual
Cone and adapter sets such as the WB-953-ADAPTER-B and WB-953-TASK are available and are sold separately.
Shipping and Freight
This balancer ships as an LTL freight shipment at roughly 305 pounds and usually requires a liftgate or dock to unload. Allow standard freight handling and transit, and use the Request a Freight Quote path so we can confirm access and a delivery address before scheduling.
About Tuxedo Auto Equipment
Tuxedo Distributors supplies automotive lifts, wheel service equipment, and collision repair tools to professional shops across North America, including the iDEAL line of commercial lifts and wheel service machines.
Frequently Asked Questions
What wheels does the WB-953-B balance?
Car and motorcycle wheels with rims from 10 to 24 inches and an overall diameter up to 39 inches.
Does it have a hood?
No. The WB-953-B is the no-hood version. The WB-953 includes the full wheel hood.
Can two operators use it?
Yes. Multi-user operation lets two technicians work with their own settings.
What power does it require?
A standard 110V, 15 Amp, single-phase circuit.
How accurate is it?
Balancing accuracy is 1 gram.
Talk to a Tuxedo specialist about power, space, and freight before you order. View the full Tuxedo Auto Equipment range.
