Description
Overview

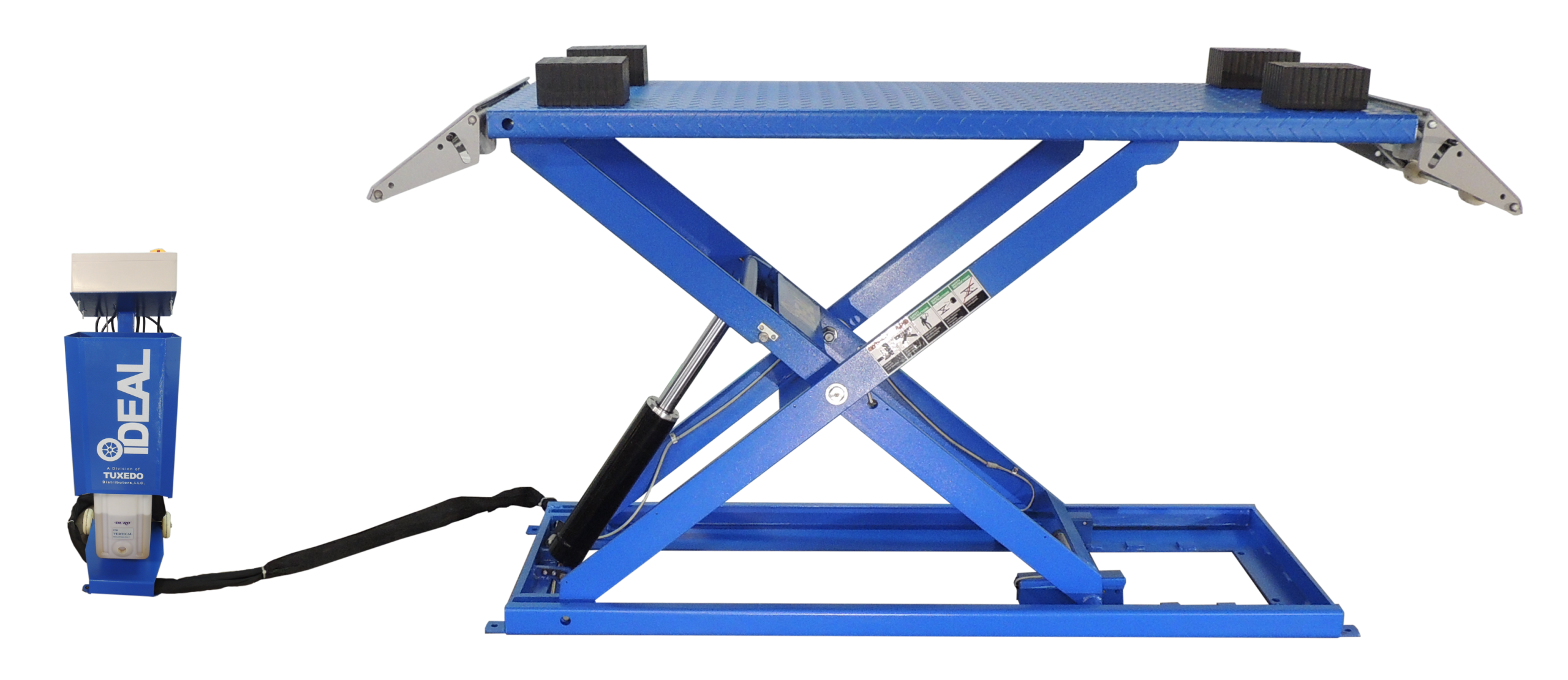

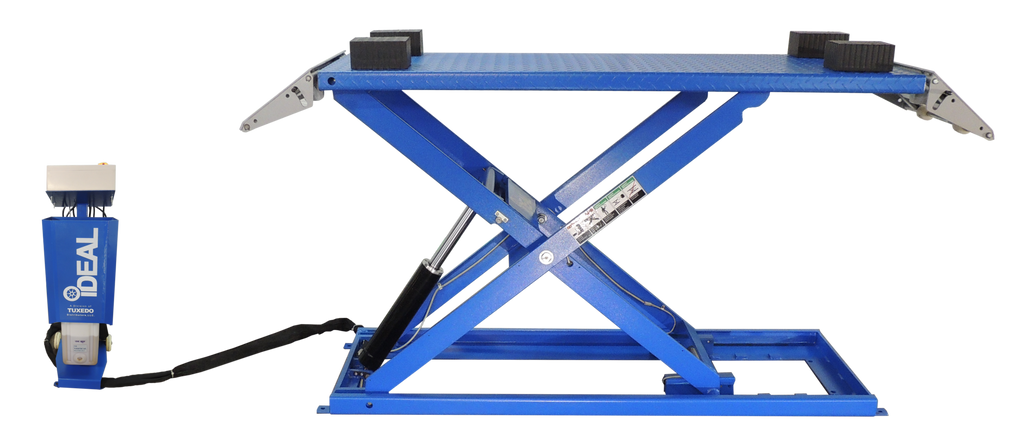

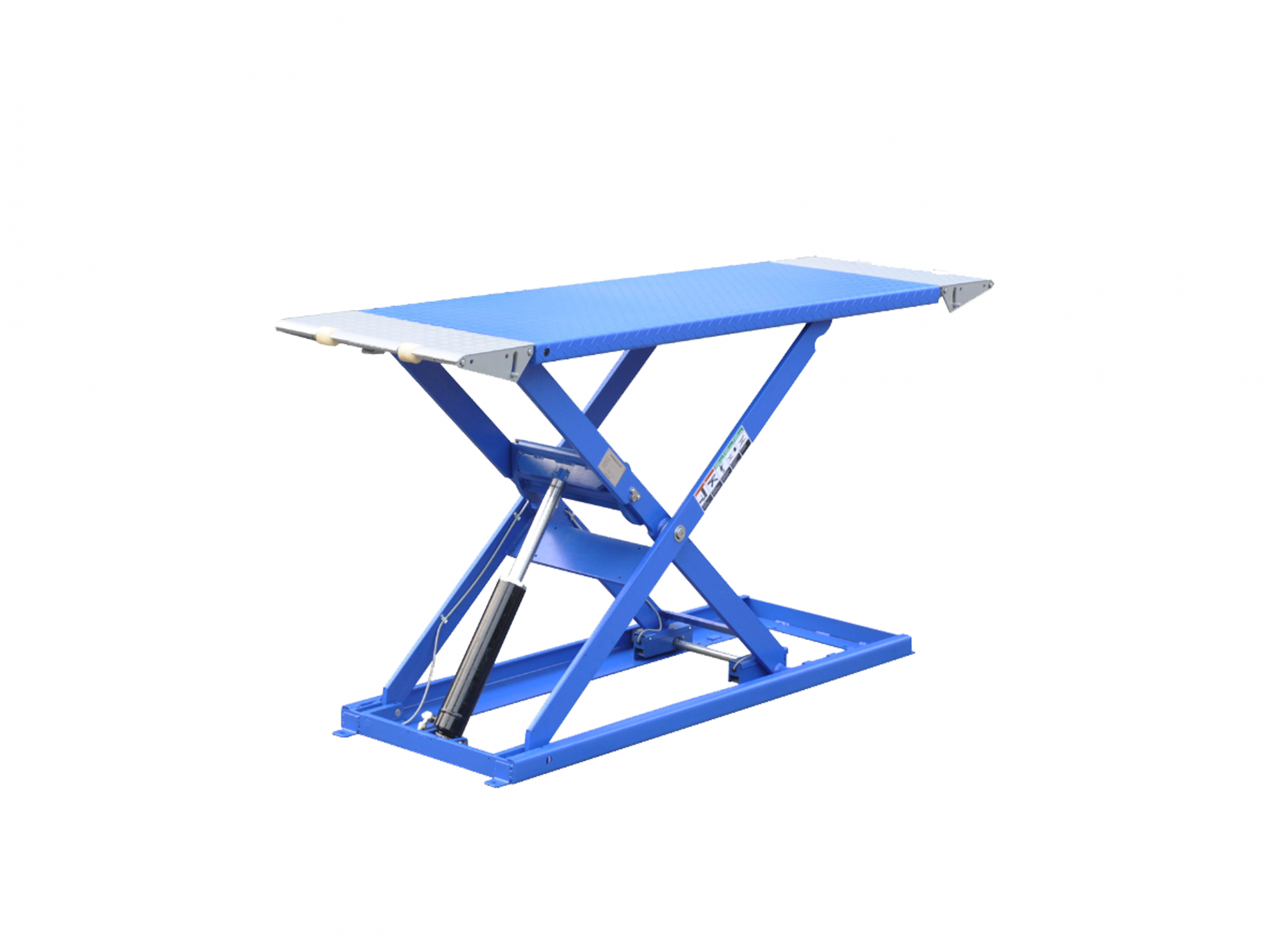

The iDEAL UF-2500EH-X is an electric hydraulic UTV frame lift rated at 2,500 pounds, built for powersport shops that want the wheels free for service.

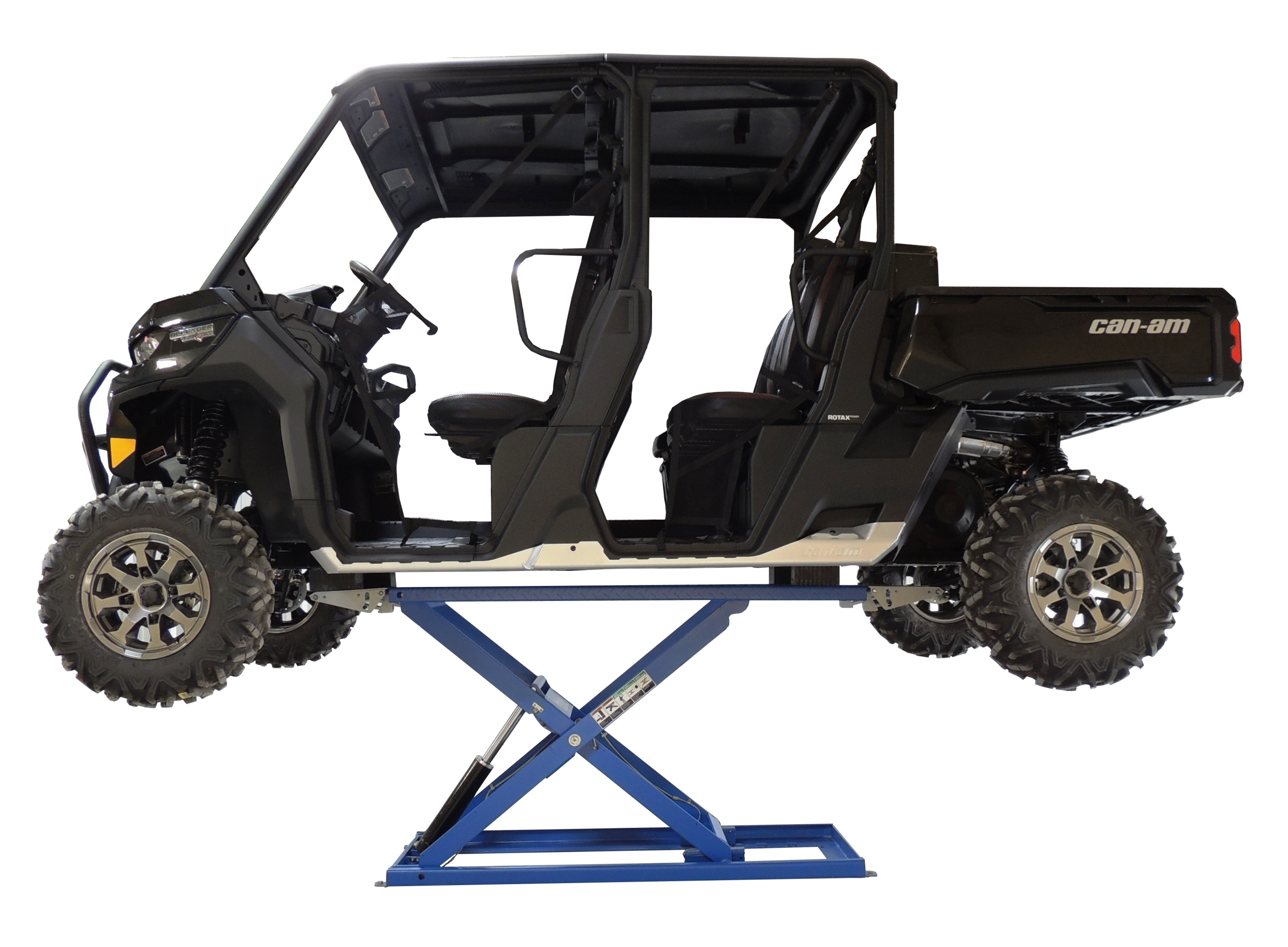

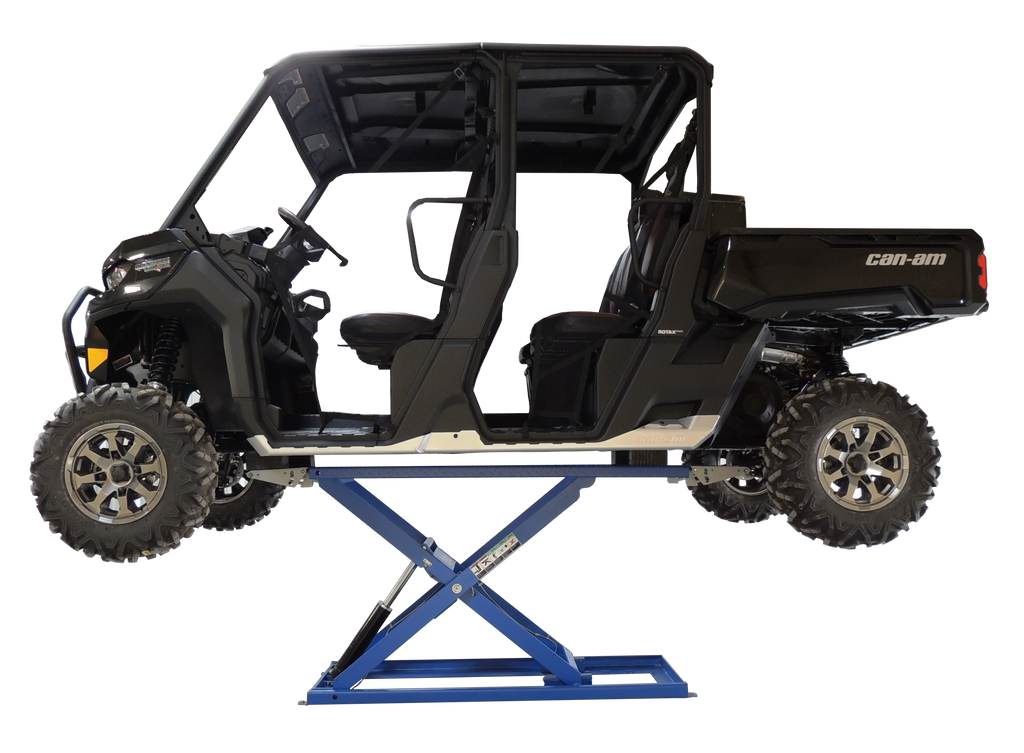

Instead of a full bench, it uses a narrow center platform that engages the frame and lifts the whole machine, from the largest UTVs to the smallest ATVs, while leaving the wheels hanging for tire, brake, and suspension work. The small footprint frees up floor space, and a 110V electric hydraulic power unit with an electro-magnetic lock release handles smooth, rapid lifts. Browse more auto service equipment or the full Tuxedo Auto Equipment line.
Key Features
- 2,500 lb capacity - Covers the largest UTVs down to small ATVs.
- Wheels-free design - Engages the frame so the wheels hang free for service.
- Small footprint - Narrow 24 inch platform frees up shop floor space.
- 43 in rise - Reaches 43 inches, or 49 inches with the rubber lift pads, with three locking positions.
- 110V electric hydraulic power - Smooth, rapid operation with an electro-magnetic lock release.
Specifications
| Brand | Tuxedo Auto Equipment (iDEAL) |
|---|---|
| Type | Electric Hydraulic UTV Frame Lift |
| Capacity | 2,500 lbs |
| Min Height | 4-3/4 in |
| Max Lifting Height | 43 in |
| Overall Length w/ Ramp | 67 to 88-7/8 in |
| Overall Width | 24 in |
| Platform Size (L x W) | 67 x 24 in |
| Lifting / Lowering Time | 25 sec / 25 sec |
| Power | 110V, 60Hz, Single Phase, 18A |
| Ship Weight | 740 lbs |
How It Compares
| Model | Type | Capacity | Wheels Free |
|---|---|---|---|
| UF-2500EH-X | Frame lift | 2,500 lbs | Yes |
| U-2200IEH-XR | UTV bench | 2,200 lbs | No |
| A-2200IEH-XR | ATV bench | 2,200 lbs | No |
Key Facts
- Rated capacity is 2,500 pounds with a wheels-free frame-engaging design.
- Reaches 43 inches, or 49 inches with the rubber lift pads.
- Runs on a standard 110V, 60Hz, single-phase, 18A circuit.
Who It's For
This lift fits powersport shops that service tires, brakes, and suspension and need the wheels off the platform. The narrow footprint suits tight shops. Confirm a 110V circuit before ordering.
What's Included
- UF-2500EH-X frame lift with center platform and hinged extensions
- 110V electric hydraulic power unit with control panel
- Portable or mounted pedestal stand with power unit cover and storage bin
- Four rubber contact lift pads, 4.75 by 6.5 inches
- Installation and operation manual
The WHLSTDKIT-UF2500EH-X wheel stand kit is available and is sold separately.
Shipping and Freight
This lift ships as an LTL freight shipment at roughly 740 pounds and usually requires a liftgate or dock to unload. Allow standard freight handling and transit, and use the Request a Freight Quote path so we can confirm access and a delivery address before scheduling.
About Tuxedo Auto Equipment
Tuxedo Distributors supplies automotive lifts, wheel service equipment, and collision repair tools to professional shops across North America, including the iDEAL line of commercial lifts and powersport service equipment.
Frequently Asked Questions
What does the UF-2500EH-X lift?
It is rated at 2,500 pounds and lifts everything from large UTVs to small ATVs.
What does wheels-free mean?
The lift engages the frame rather than the tires, so the wheels hang free for tire, brake, and suspension service.
How high does it lift?
43 inches, or 49 inches when the rubber lift pads are used.
What power does it require?
A standard 110V, 60Hz, single-phase, 18A circuit.
How does it differ from the U-2200IEH-XR?
The UF-2500EH-X is a narrow frame lift that leaves the wheels free. The U-2200IEH-XR is a full-width bench that the machine sits on with all four wheels.
Talk to a Tuxedo specialist about power, floor space, and freight before you order. View the full Tuxedo Auto Equipment range.
