Description
Overview

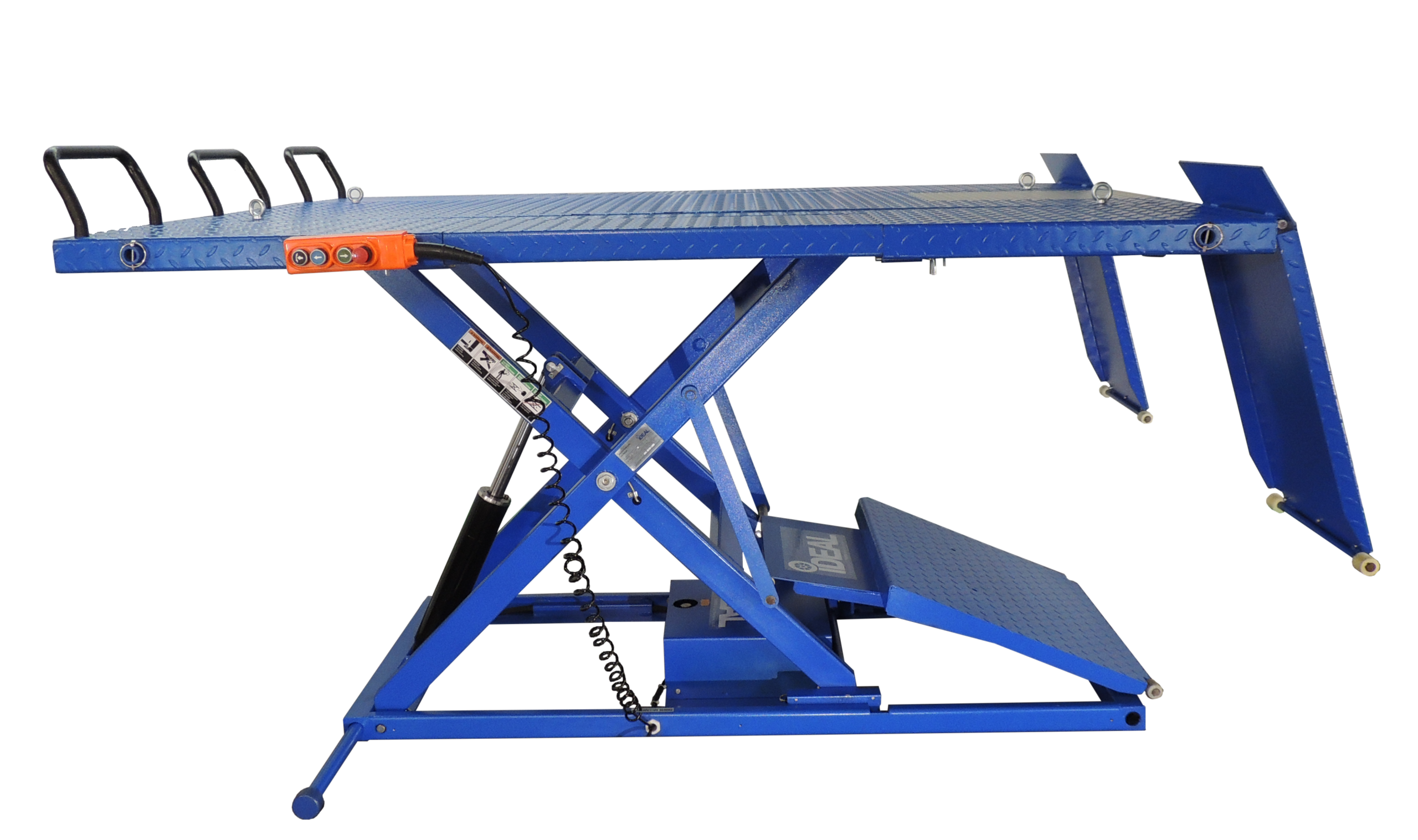

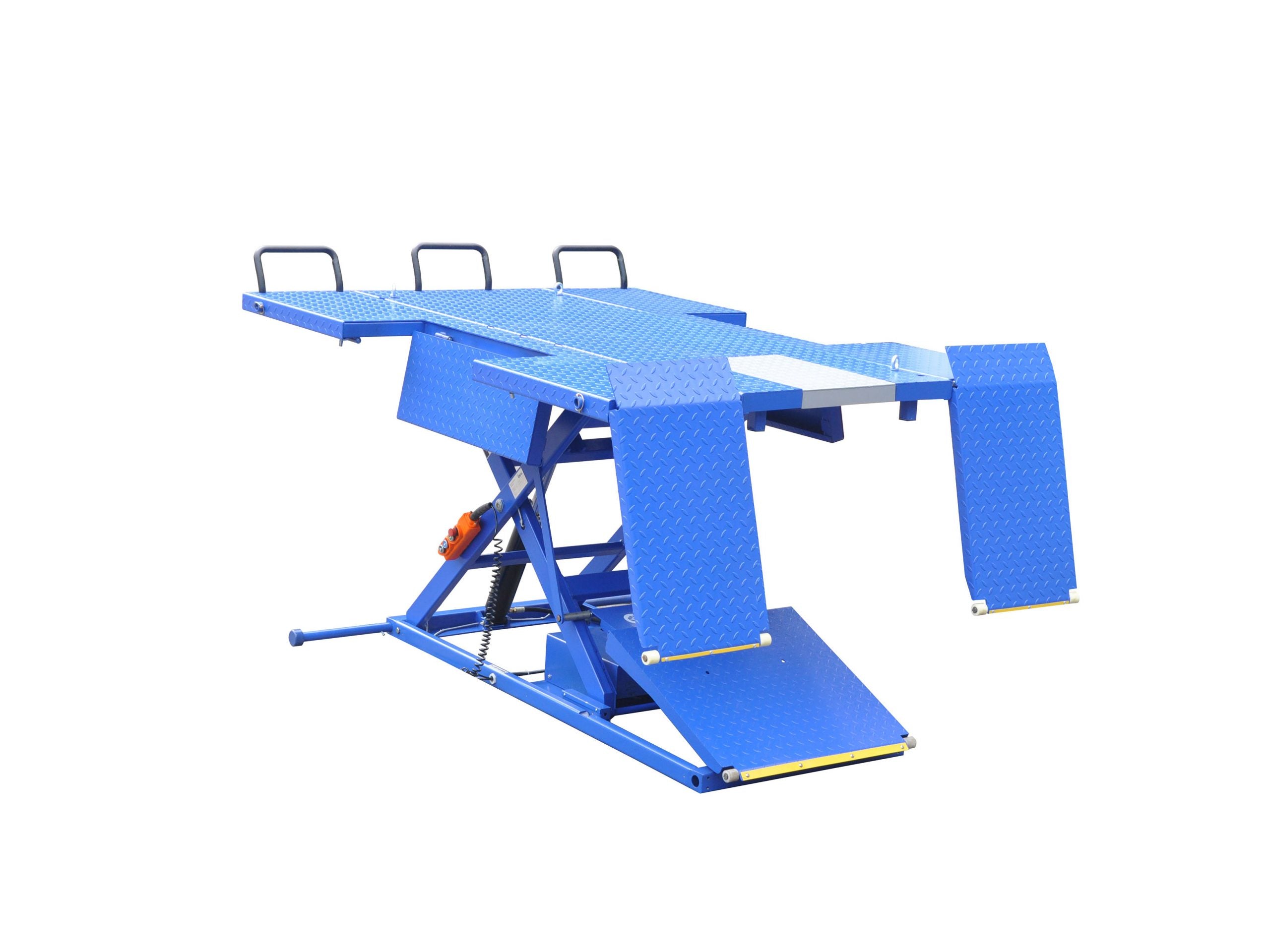

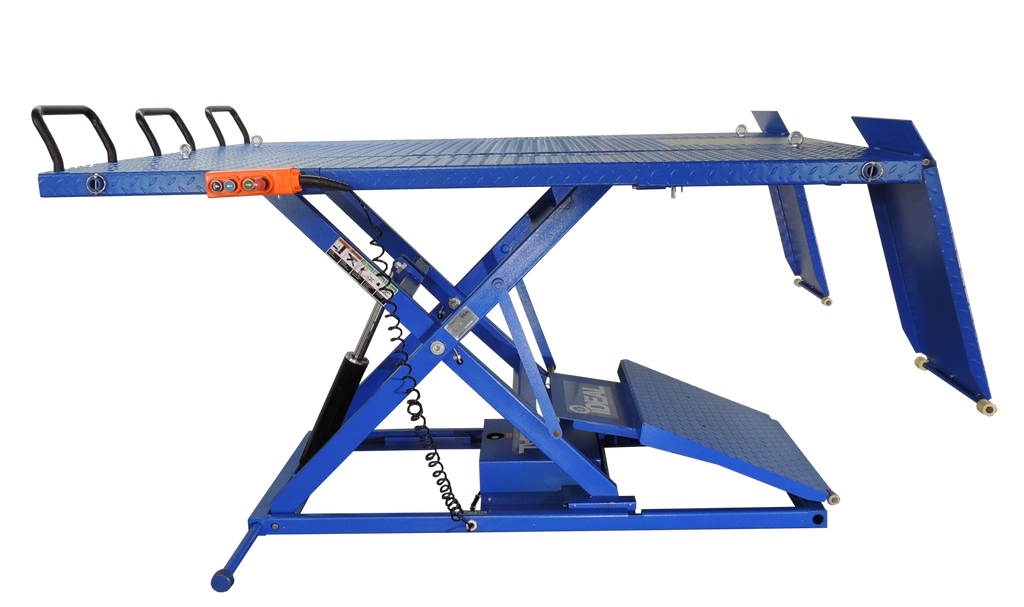

The iDEAL U-2200IEH-XR is an electric hydraulic UTV lift bench rated at 2,200 pounds, built for powersport shops that service side-by-sides and full-size UTVs at a comfortable working height.
It raises the machine on a wide bench platform with a full-width retractable ramp and side extensions with center drop panels, so the technician can reach the underside and the wheels without crawling. An integrated 110V electric hydraulic power unit, a hand-held remote pendant, and six locking positions make height changes quick and secure. Browse more auto service equipment or the full Tuxedo Auto Equipment line.
Key Features
- 2,200 lb capacity - Sized for full-size UTVs and side-by-sides.
- Full-width retractable ramp - Drive-on ramp retracts to clear the work area once the machine is loaded.
- 47-1/4 in rise - Brings the machine up to a comfortable service height with six locking positions.
- Integrated 110V power unit - Electric hydraulic power unit with a hand-held remote pendant and magnetic lock release.

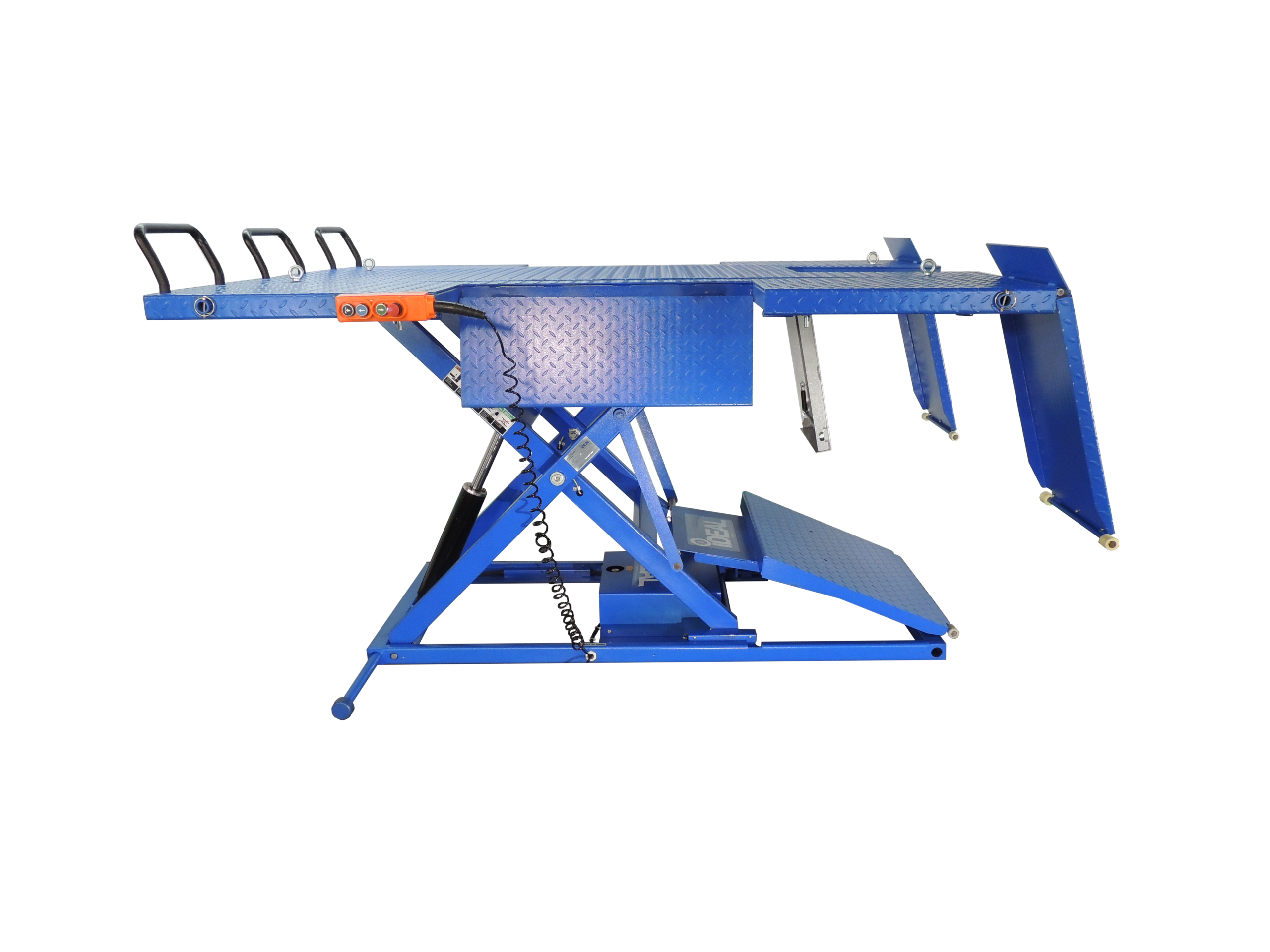

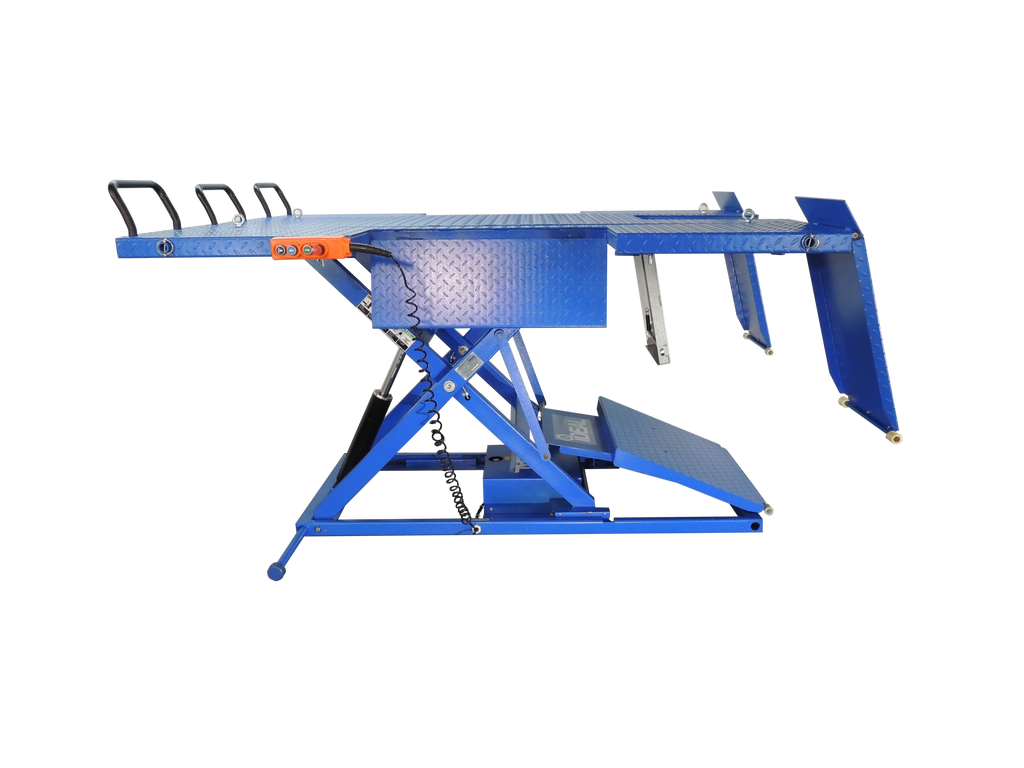

- Side extensions with drop panels - Center drop panels and a rear drop-down service panel open access to the underside.
Specifications
| Brand | Tuxedo Auto Equipment (iDEAL) |
|---|---|
| Type | Electric Hydraulic UTV Lift Bench |
| Capacity | 2,200 lbs |
| Min Height | 7 in |
| Max Lifting Height | 47-1/4 in |
| Overall Length w/ Ramp | 116-1/2 in |
| Overall Width | 65 in |
| Platform Size (L x W) | 88-5/8 x 65 in |
| Lifting / Lowering Time | 30 sec / 30 sec |
| Power | 110V, 60Hz, Single Phase, 18A |
How It Compares
| Model | Type | Capacity | Platform Width |
|---|---|---|---|
| U-2200IEH-XR | UTV bench | 2,200 lbs | 65 in |
| A-2200IEH-XR | ATV bench | 2,200 lbs | 50 in |
| UF-2500EH-X | UTV frame lift | 2,500 lbs | 24 in |
Key Facts
- Rated capacity is 2,200 pounds with a 47-1/4 inch maximum lifting height.
- Platform measures 88-5/8 by 65 inches with side extensions and center drop panels.
- Runs on a standard 110V, 60Hz, single-phase, 18A circuit.
Who It's For
This bench fits powersport dealers and service shops that work on full-size UTVs and side-by-sides and want them raised to a back-saving height. The platform is drilled to mount the optional M-VISE or M-CHOCK. Confirm a 110V circuit and floor space for the loading ramp before ordering.
What's Included
- U-2200IEH-XR UTV lift bench with platform and retractable ramp
- Integrated 110V electric hydraulic power unit
- Hand-held remote control pendant
- Stabilizer bar, wheel stops, and tie-down anchor eye bolts
- Installation and operation manual
The M-VISE, M-CHOCK, M-JACK, dolly wheel kit, and front extension are available and are sold separately.
Shipping and Freight
This lift ships as an oversize freight shipment and typically requires a forklift or dock to unload. Allow extended handling and transit, and use the Request a Freight Quote path so we can confirm access, liftgate needs, and a commercial delivery address before scheduling.
About Tuxedo Auto Equipment
Tuxedo Distributors supplies automotive lifts, wheel service equipment, and collision repair tools to professional shops across North America, including the iDEAL line of commercial lifts and powersport service equipment.
Frequently Asked Questions
What does the U-2200IEH-XR lift?
It is rated at 2,200 pounds, sized for full-size UTVs and side-by-sides.
How high does it raise the machine?
Maximum lifting height is 47-1/4 inches, with six locking positions.
What power does it require?
A standard 110V, 60Hz, single-phase, 18A circuit.
Does it have a loading ramp?
Yes. It uses a full-width retractable ramp that folds away once the machine is loaded.
How does it differ from the UF-2500EH-X?
The U-2200IEH-XR is a full-width bench that the machine sits on. The UF-2500EH-X is a narrow frame lift that engages the frame and leaves the wheels free.
Talk to a Tuxedo specialist about power, floor space, and freight before you order. View the full Tuxedo Auto Equipment range.
