Description
Overview

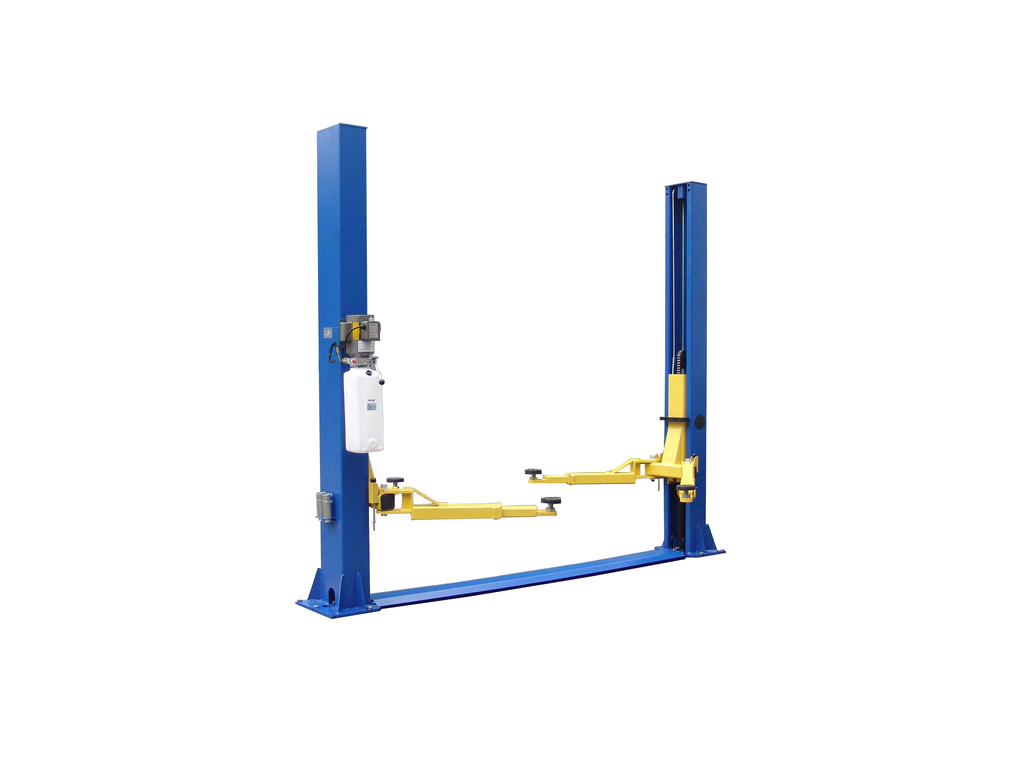

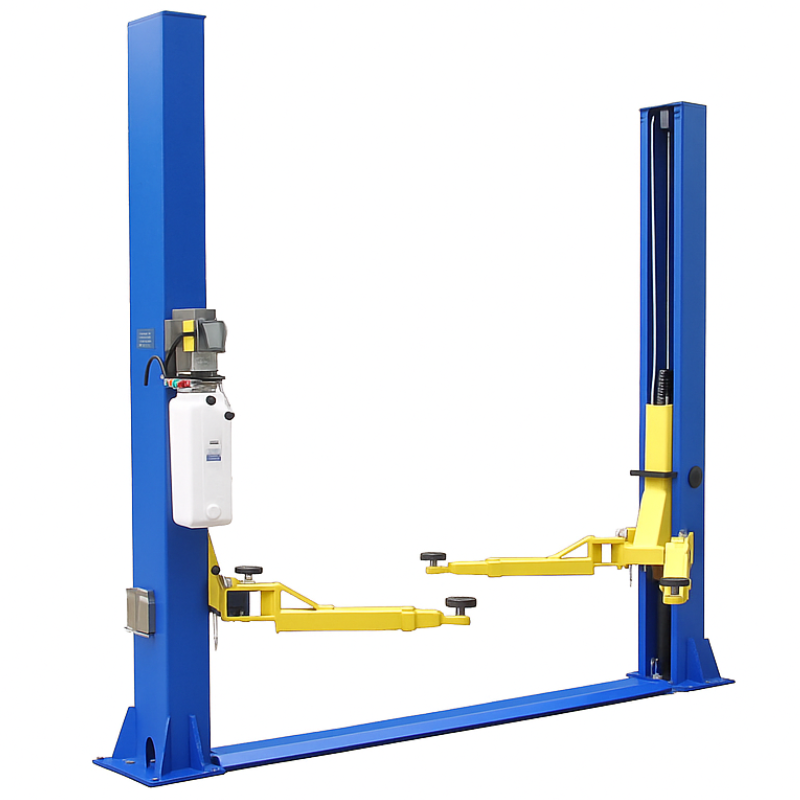

The Tuxedo TP9KFX is a two-post floor plate lift rated at 9,000 pounds, built for shops and home garages that need a capable lift under a lower ceiling.
The floor plate design routes the equalizer cables through a low ramp at the base, so the top of the bay stays clear for tall vehicles. Symmetric arms and chain drive cylinders give a balanced lift, and the dual-point lock release with an automatic arm restraint system keeps loads secure. Browse more auto service equipment or the full Tuxedo Auto Equipment line.
Key Features
- 9,000 lb capacity - Covers cars and light trucks at up to 2,250 pounds per arm.

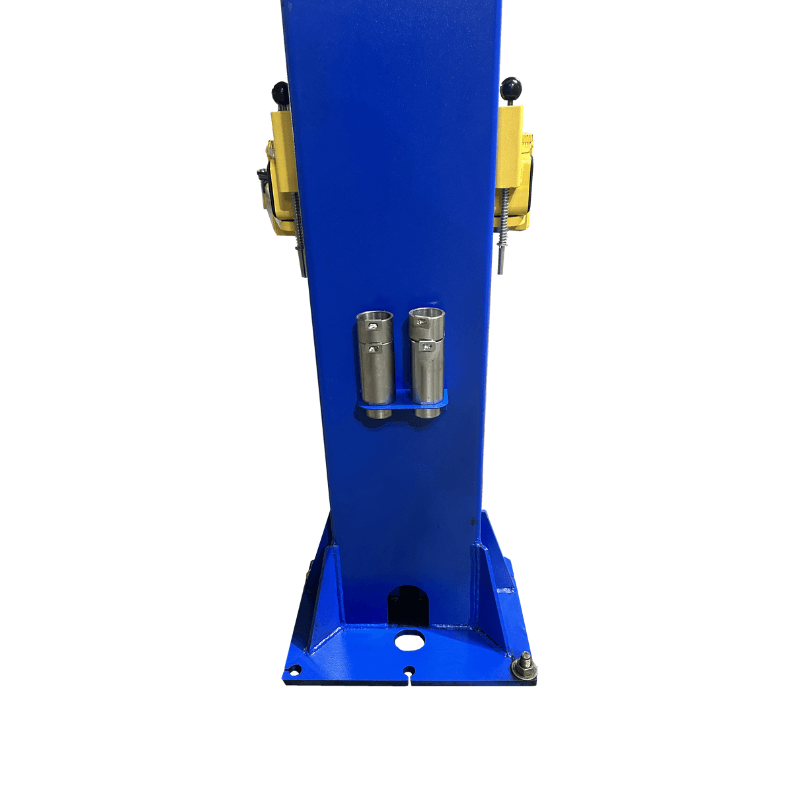

- Floor plate design - Base equalizer keeps the top of the bay open for tall vehicles.

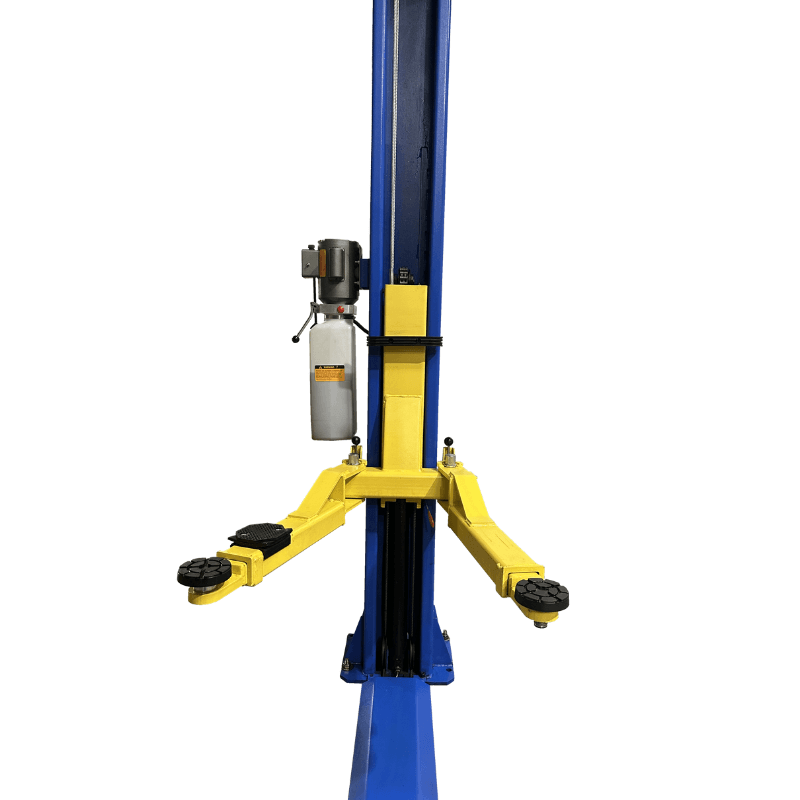

- Symmetric arms - Even arm reach front and rear for balanced loading.
- Chain drive cylinders - Chain-driven lift with dual-point lock release.

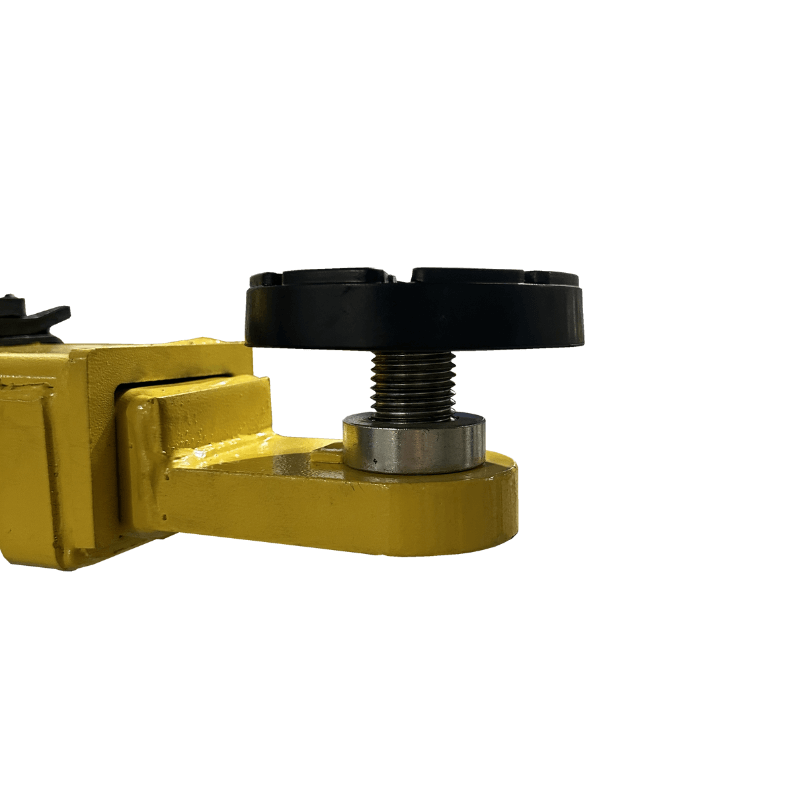

- Spin up lift pads - Low profile pads, internal hose routing, and stackable adapters included.
Specifications
| Brand | Tuxedo Auto Equipment |
|---|---|
| Type | Two-Post Floor Plate Lift |
| Capacity | 9,000 lbs |
| Arm Configuration | Symmetric |
| Max Lift Height | 72 in |
| Overall Height | 111-7/8 in |
| Width Overall w/ Power Unit | 134-5/8 in |
| Width Between Columns | 110-3/8 in |
| Drive Thru Clearance | 101 in |
| Max Load Per Arm | 2,250 lbs |
| Drive | Chain drive cylinders |
| Power | 220V, 20 Amp, Single Phase |
| Ship Weight | 1,270 lbs |
How It Compares
| Model | Capacity | Style | Arms |
|---|---|---|---|
| TP9KFX | 9,000 lbs | Floor plate | Symmetric |
| TP9KSCX | 9,000 lbs | Clear floor | Symmetric |
| TP9KACX | 9,000 lbs | Clear floor | Asymmetric |
Key Facts
- Rated capacity is 9,000 pounds, with a maximum 2,250 pounds per lifting arm.
- Overall height is 111-7/8 inches, sized for lower ceiling bays.
- Runs on a 220V, 20 Amp, single-phase circuit.
Who It's For
This lift fits independent shops and home garages with limited ceiling height that need a 9,000 pound two-post. The floor plate routes cables along the base, which keeps the overhead open. Confirm a 220V single-phase circuit and slab thickness before install.
What's Included
- TP9KFX two-post lift with two columns and four arms
- Chain drive cylinders and power unit
- Low profile spin up lift pads and stackable adapters
- Installation and operation manual
Spin-up pad accessory kits such as the TP9KX-SPNCA are available and are sold separately.
Shipping and Freight
This lift ships as an oversize freight shipment and typically requires a forklift or dock to unload. It ships at roughly 1,270 pounds. Allow extended handling and transit, and use the Request a Freight Quote path so we can confirm access, liftgate needs, and a commercial delivery address before scheduling.
About Tuxedo Auto Equipment
Tuxedo Distributors supplies automotive lifts, wheel service equipment, and collision repair tools to professional shops across North America, including the iDEAL line of commercial lifts and frame racks.
Frequently Asked Questions
What does the TP9KFX lift?
It is rated at 9,000 pounds, with a maximum of 2,250 pounds per arm.
What is a floor plate lift?
The equalizer cables run through a low plate at the base of the columns rather than overhead, which keeps the top of the bay open for taller vehicles.
What is the drive thru clearance?
Drive thru clearance is 101 inches between the columns.
What power does it require?
A 220V, 20 Amp, single-phase circuit.
How does it differ from the TP9KSCX?
The TP9KFX is a floor plate lift for lower ceilings, while the TP9KSCX is a clear floor lift with an overhead equalizer. Both are 9,000 pound symmetric lifts.
Talk to a Tuxedo specialist about power, slab, ceiling height, and freight before you order. View the full Tuxedo Auto Equipment range.
