Description
Overview

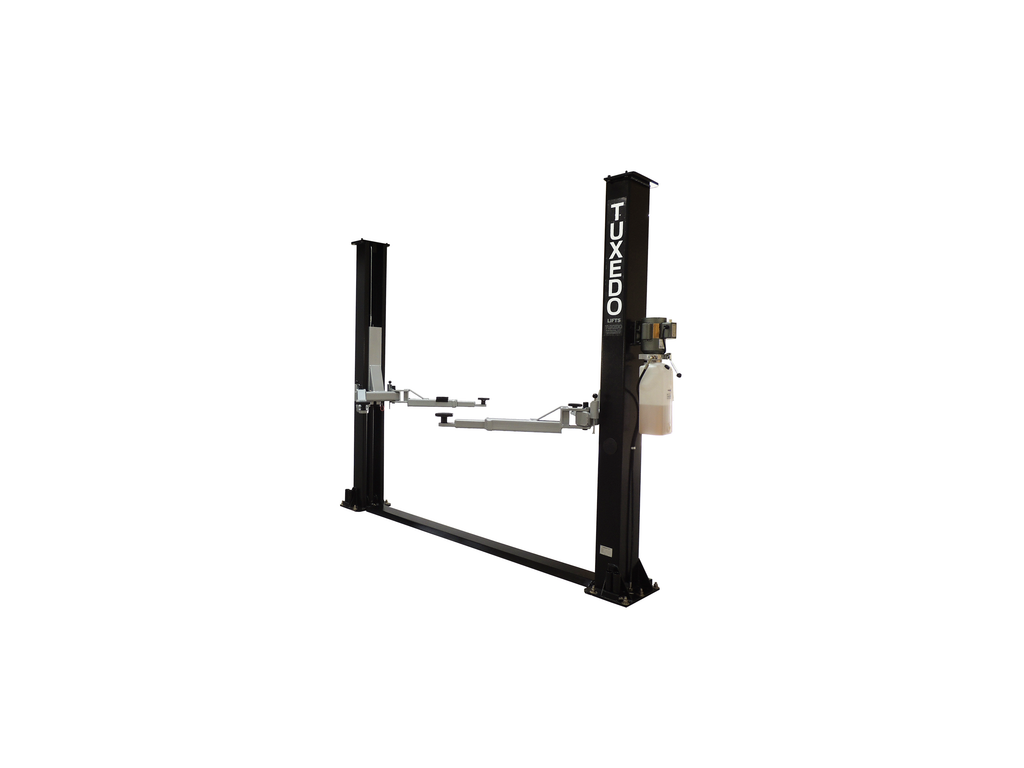

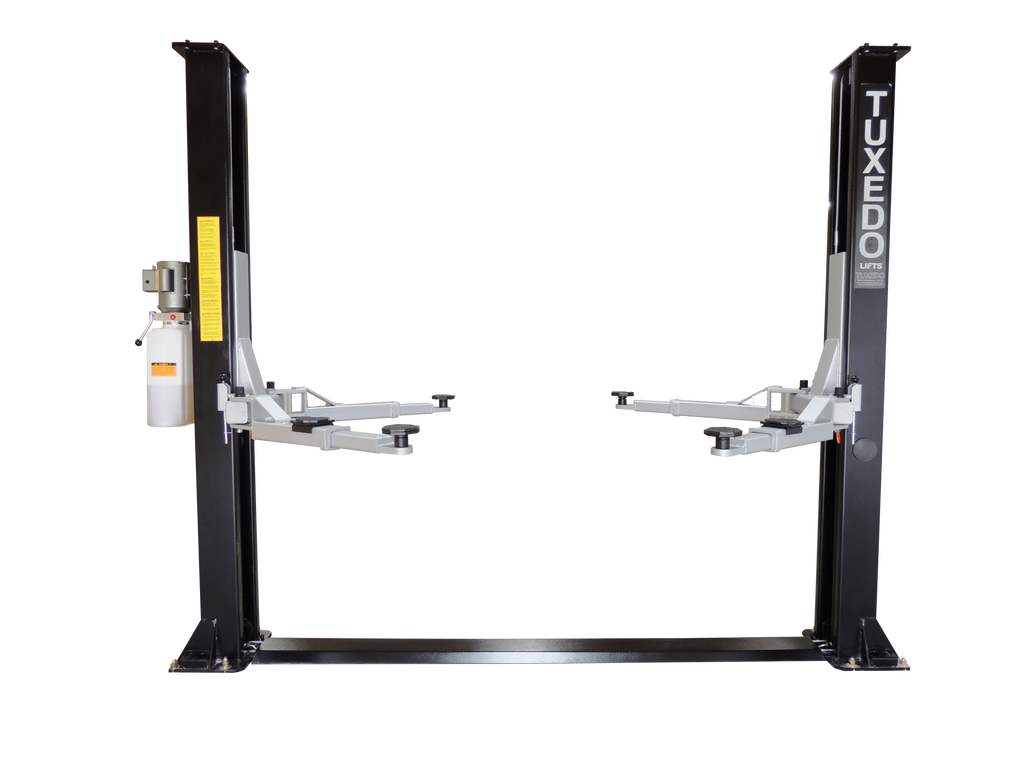

The Tuxedo TP9KF-TUX is a two-post floor plate lift rated at 9,000 pounds, finished in the standard Tuxedo black, for shops that want a strong lift under a lower ceiling.

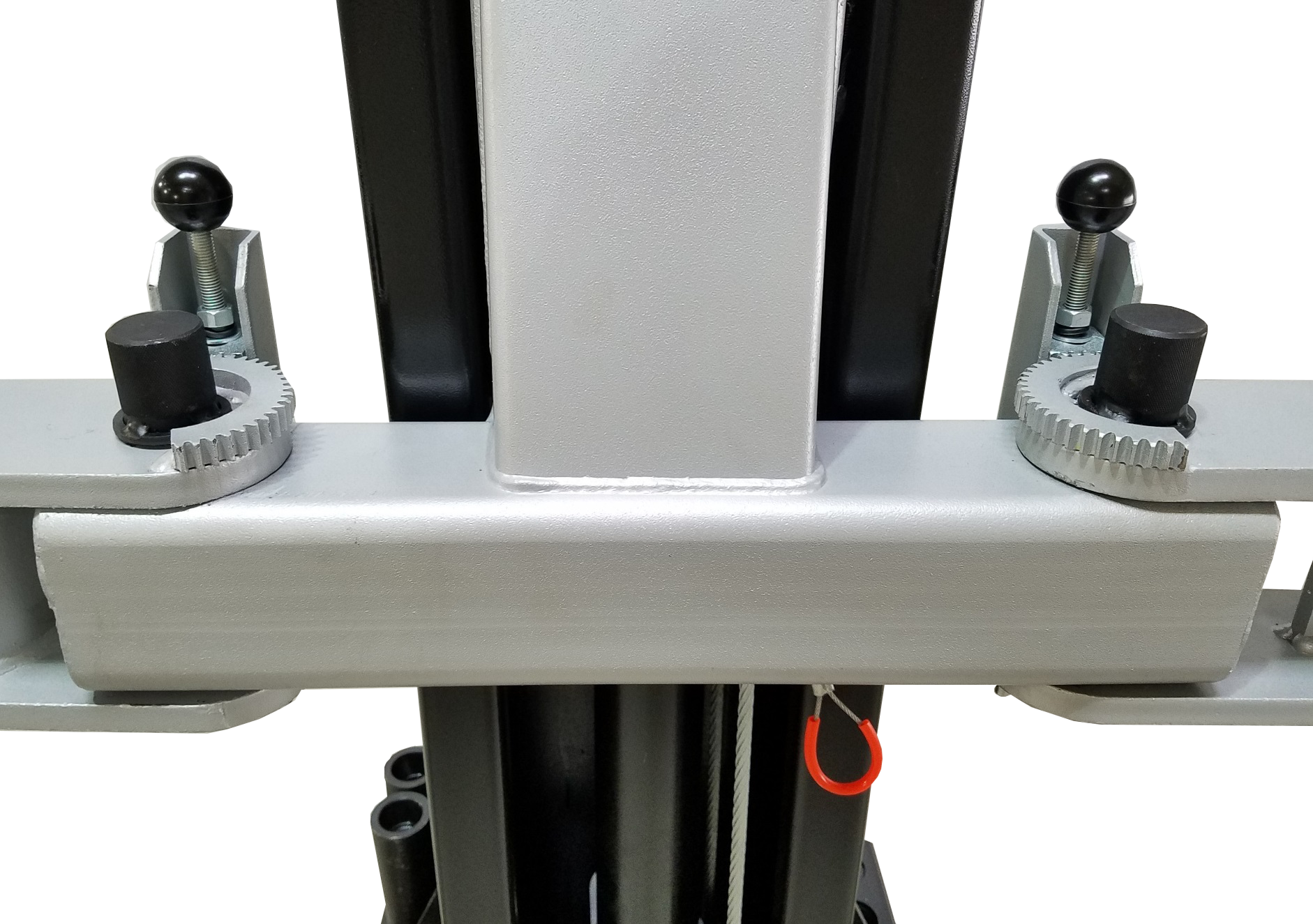

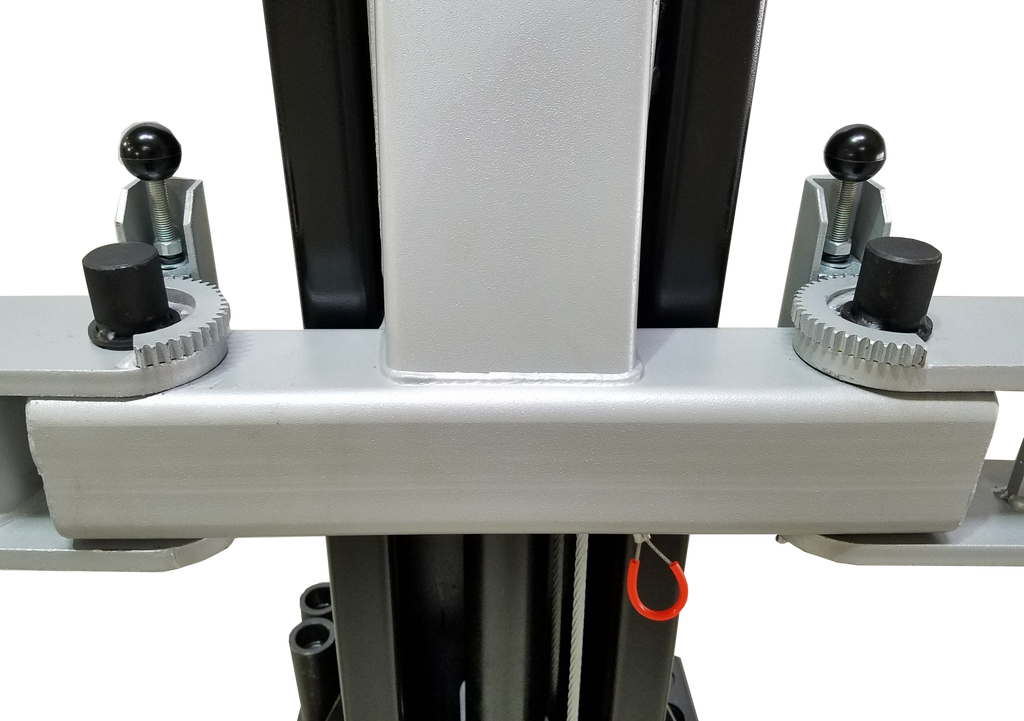

The floor plate design runs the equalizer cables through a low ramp at the base, which keeps the top of the bay open for taller vehicles. Symmetric arms and chain drive cylinders carry a balanced load, and the dual-point lock release with an automatic arm restraint system holds the vehicle securely. Browse more auto service equipment or the full Tuxedo Auto Equipment line.
Key Features
- 9,000 lb capacity - Covers cars and light trucks at up to 2,250 pounds per arm.
- Floor plate design - Base equalizer keeps the top of the bay open for tall vehicles.
- Symmetric arms - Even arm reach front and rear for balanced loading.
- Chain drive cylinders - Chain-driven lift with dual-point lock release.

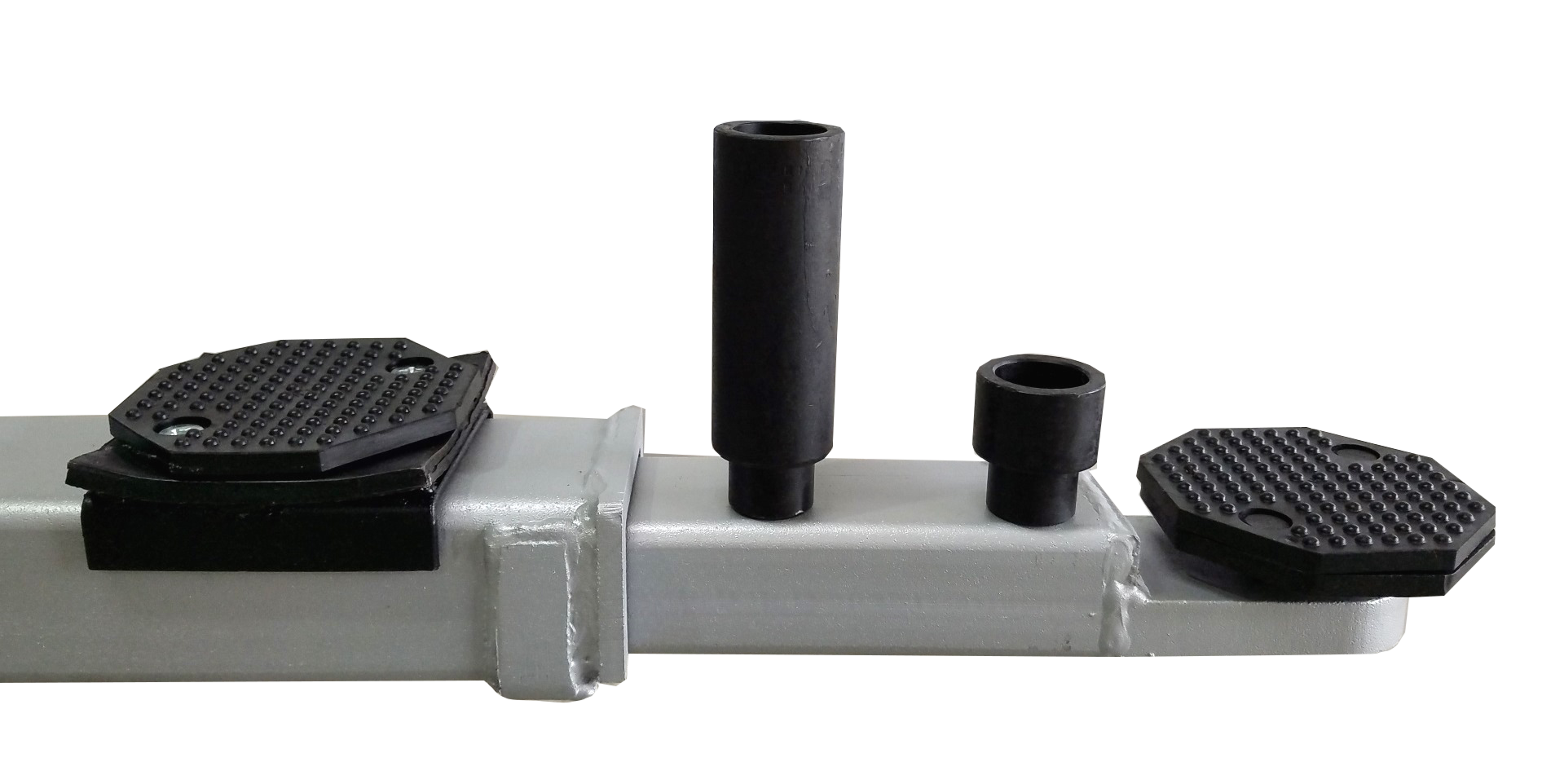

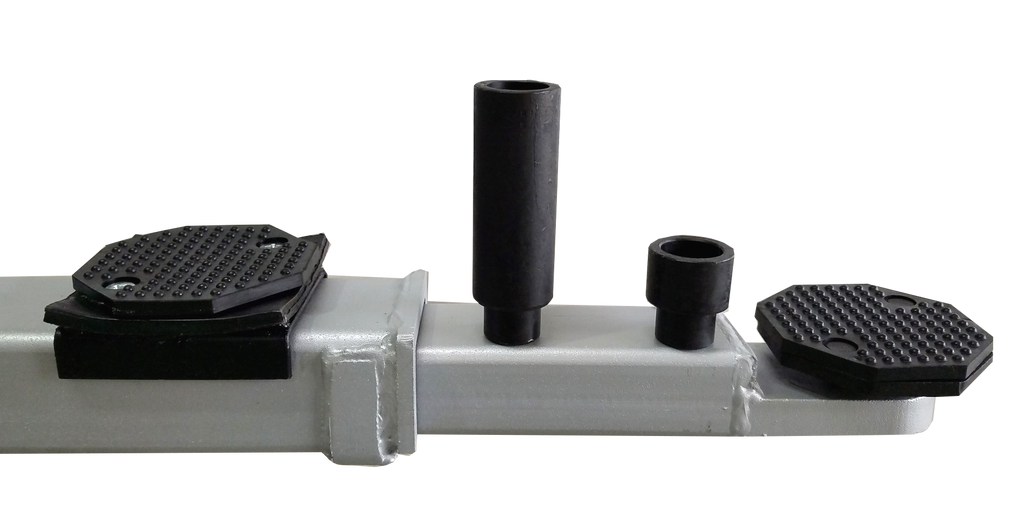

- Drop-in lift pads - Low profile pads with saddle pad adapters and stackable height adapters included.
Specifications
| Brand | Tuxedo Auto Equipment |
|---|---|
| Type | Two-Post Floor Plate Lift |
| Capacity | 9,000 lbs |
| Arm Configuration | Symmetric |
| Max Lift Height | 72 in |
| Overall Height | 112 in |
| Width Overall w/ Power Unit | 141 in |
| Width Between Columns | 110-3/8 in |
| Drive Thru Clearance | 101-11/16 in |
| Max Load Per Arm | 2,250 lbs |
| Drive | Chain drive cylinders |
| Power | 220V, 20 Amp, Single Phase |
| Ship Weight | 1,295 lbs |
How It Compares
| Model | Capacity | Style | Overall Height |
|---|---|---|---|
| TP9KF-TUX | 9,000 lbs | Floor plate | 112 in |
| TP9KFX | 9,000 lbs | Floor plate | 111-7/8 in |
| TP9KSCX | 9,000 lbs | Clear floor | 142-7/8 in |
Key Facts
- Rated capacity is 9,000 pounds, with a maximum 2,250 pounds per lifting arm.
- Overall height is 112 inches, sized for lower ceiling bays.
- Runs on a 220V, 20 Amp, single-phase circuit.
Who It's For
This lift fits independent shops and home garages with limited ceiling height that need a 9,000 pound two-post in Tuxedo black. The floor plate routes cables along the base, which keeps the overhead open. Confirm a 220V single-phase circuit and slab thickness before install.
What's Included
- TP9KF-TUX two-post lift with two columns and four arms
- Chain drive cylinders and power unit
- Low profile drop-in lift pads, saddle pad adapters, and stackable adapters
- Installation and operation manual
Cradle adapter accessories such as the TP9-CA are available and are sold separately.
Shipping and Freight
This lift ships as an oversize freight shipment and typically requires a forklift or dock to unload. It ships at roughly 1,295 pounds. Allow extended handling and transit, and use the Request a Freight Quote path so we can confirm access, liftgate needs, and a commercial delivery address before scheduling.
About Tuxedo Auto Equipment
Tuxedo Distributors supplies automotive lifts, wheel service equipment, and collision repair tools to professional shops across North America, including the iDEAL line of commercial lifts and frame racks.
Frequently Asked Questions
What does the TP9KF-TUX lift?
It is rated at 9,000 pounds, with a maximum of 2,250 pounds per arm.
What is a floor plate lift?
The equalizer cables run through a low plate at the base of the columns rather than overhead, which keeps the top of the bay open for taller vehicles.
What color is it?
It ships in the standard Tuxedo black finish.
What power does it require?
A 220V, 20 Amp, single-phase circuit.
How does it differ from the TP9KFX?
Both are 9,000 pound symmetric floor plate lifts. The TP9KF-TUX is the Tuxedo black version with saddle pad adapters, while the TP9KFX is the standard model.
Talk to a Tuxedo specialist about power, slab, ceiling height, and freight before you order. View the full Tuxedo Auto Equipment range.
