Description
Overview

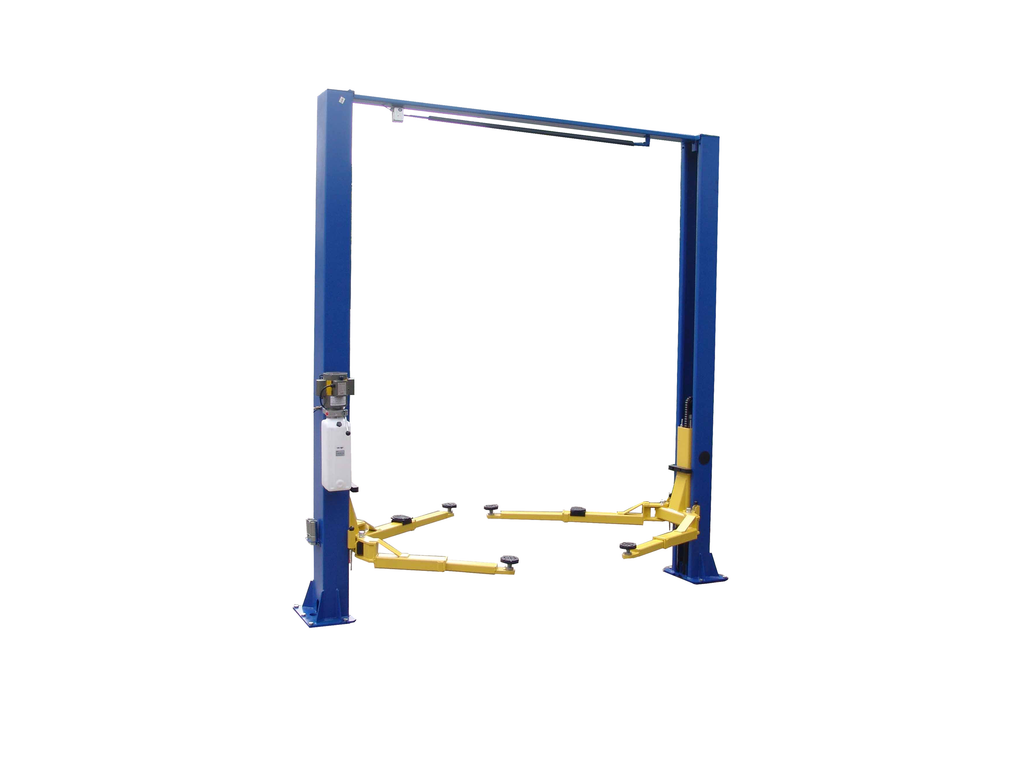

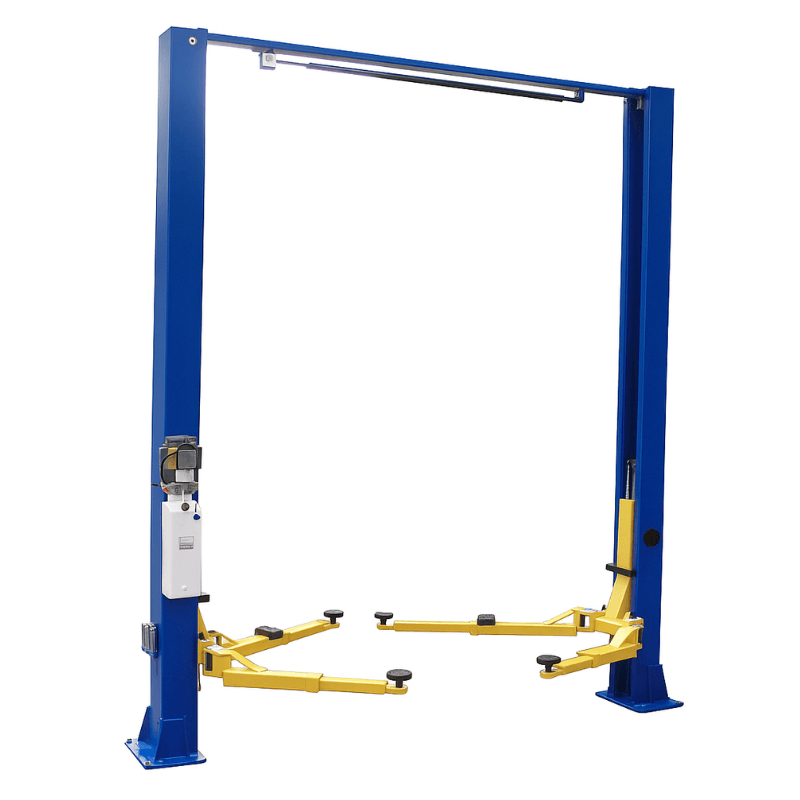

The Tuxedo TP9KACX is a two-post clear floor lift rated at 9,000 pounds with asymmetric arms, built for general service shops working on cars and light trucks.
The asymmetric arm layout and rotated columns let the technician open vehicle doors clear of the posts, which makes interior access easier on a busy bay. Chain drive cylinders and a dual-point lock release keep the columns synchronized, while the single-piece column and clear floor design keep the bay open underneath. Browse more auto service equipment or the full Tuxedo Auto Equipment line.
Key Features
- 9,000 lb capacity - Covers cars and light trucks at up to 2,250 pounds per arm.

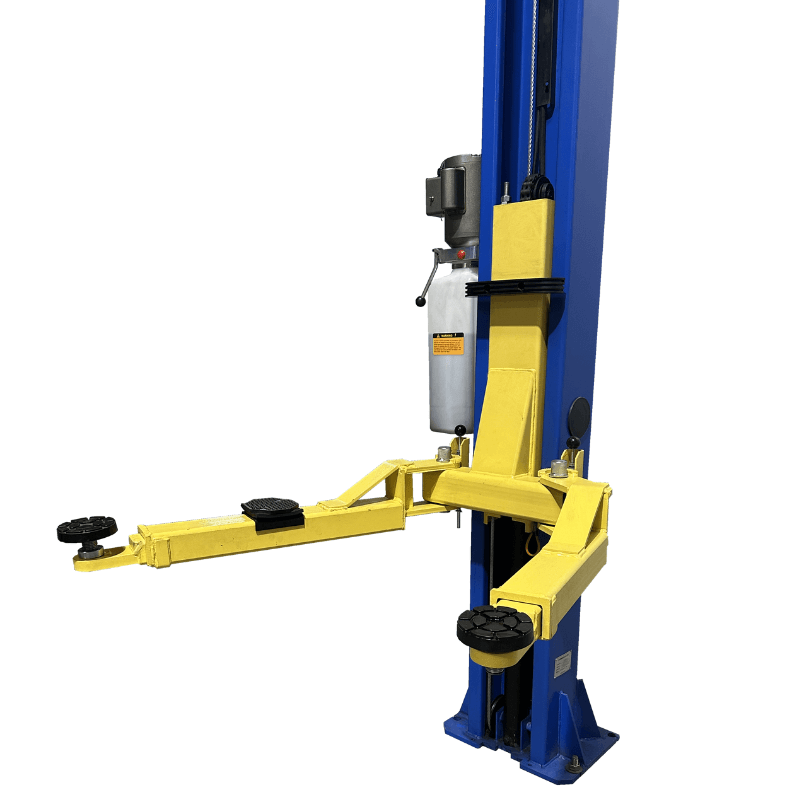

- Asymmetric arms - Rotated columns and uneven arm reach improve door clearance.
- Clear floor layout - Overhead equalizer keeps the bay floor open.
- Chain drive cylinders - Chain-driven lift with dual-point lock release.
- Single piece column - One-piece columns with internal hose routing and spin up lift pads.
Specifications
| Brand | Tuxedo Auto Equipment |
|---|---|
| Type | Two-Post Clear Floor Lift |
| Capacity | 9,000 lbs |
| Arm Configuration | Asymmetric |
| Max Lift Height | 72 in |
| Overall Height | 142-7/8 in |
| Width Overall w/ Power Unit | 138 in |
| Width Between Columns | 113-5/8 in |
| Drive Thru Clearance | 96 in |
| Max Load Per Arm | 2,250 lbs |
| Drive | Chain drive cylinders |
| Power | 220V, 20 Amp, Single Phase |
| Ship Weight | 1,370 lbs |
How It Compares
| Model | Capacity | Arms | Style |
|---|---|---|---|
| TP9KACX | 9,000 lbs | Asymmetric | Clear floor |
| TP9KSCX | 9,000 lbs | Symmetric | Clear floor |
| TP9KFX | 9,000 lbs | Symmetric | Floor plate |
Key Facts
- Rated capacity is 9,000 pounds, with a maximum 2,250 pounds per lifting arm.
- Asymmetric arms improve door clearance for car and light truck work.
- Runs on a 220V, 20 Amp, single-phase circuit.
Who It's For
This lift fits independent shops and tire bays doing everyday car and light truck service that want easy door clearance from an asymmetric two-post. Confirm a 220V single-phase circuit, slab thickness, and ceiling height before install.
What's Included
- TP9KACX two-post lift with two columns and four arms
- Chain drive cylinders and power unit
- Spin up lift pads, rubber door guards, and stackable adapters
- Installation and operation manual
Spin-up pad accessory kits such as the TP9KX-SPNCA are available and are sold separately.
Shipping and Freight
This lift ships as an oversize freight shipment and typically requires a forklift or dock to unload. It ships at roughly 1,370 pounds. Allow extended handling and transit, and use the Request a Freight Quote path so we can confirm access, liftgate needs, and a commercial delivery address before scheduling.
About Tuxedo Auto Equipment
Tuxedo Distributors supplies automotive lifts, wheel service equipment, and collision repair tools to professional shops across North America, including the iDEAL line of commercial lifts and frame racks.
Frequently Asked Questions
What does the TP9KACX lift?
It is rated at 9,000 pounds, with a maximum of 2,250 pounds per arm.
What does asymmetric mean here?

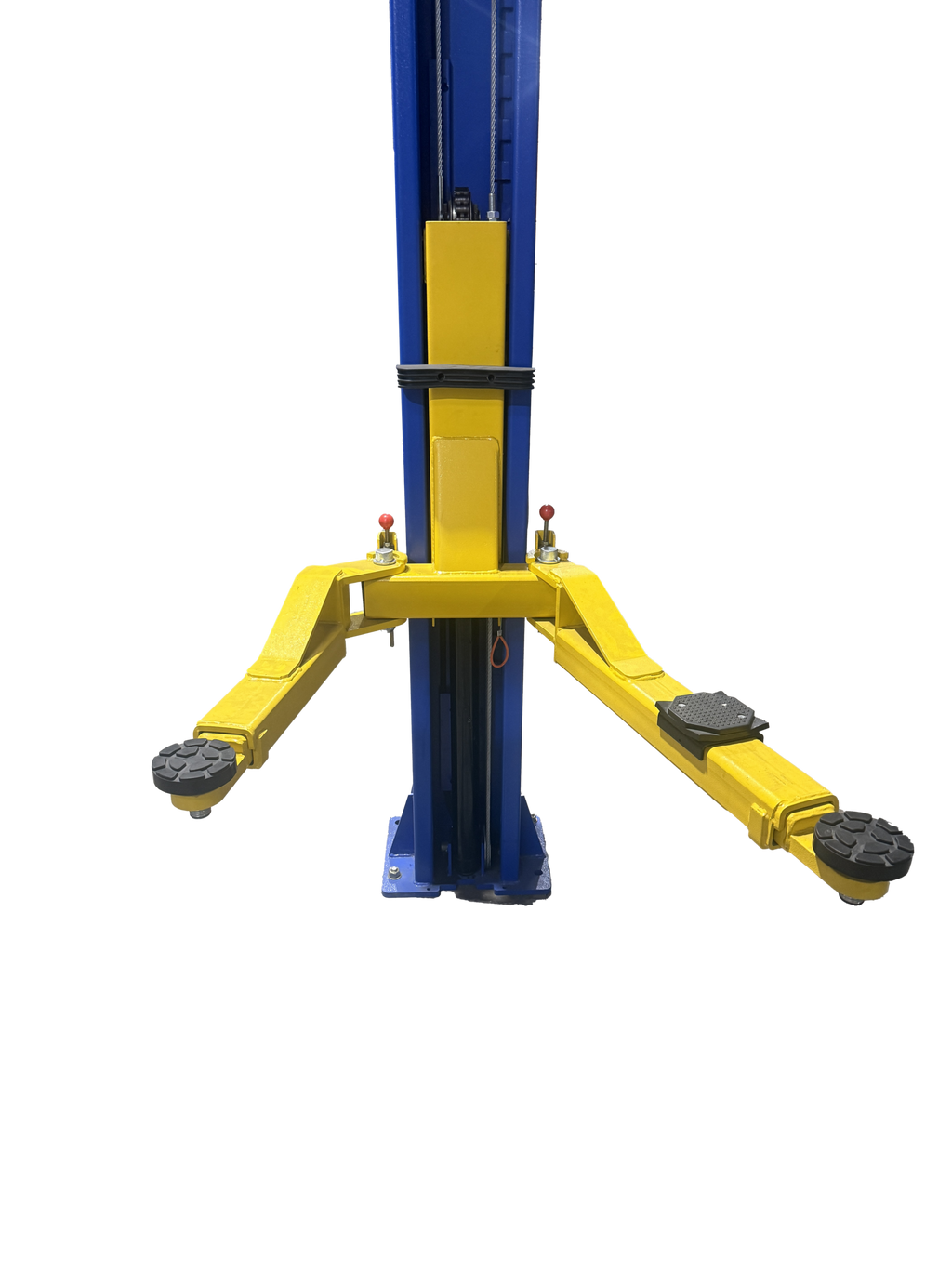

The columns are rotated and the front arms are shorter than the rear arms, which positions the vehicle for better door clearance.
What is the drive thru clearance?
Drive thru clearance is 96 inches between the columns.
What power does it require?
A 220V, 20 Amp, single-phase circuit.
How does it differ from the TP9KSCX?
Both are 9,000 pound clear floor lifts. The TP9KACX uses asymmetric arms for door clearance, while the TP9KSCX uses symmetric arms.
Talk to a Tuxedo specialist about power, slab, ceiling height, and freight before you order. View the full Tuxedo Auto Equipment range.
