Description
Overview

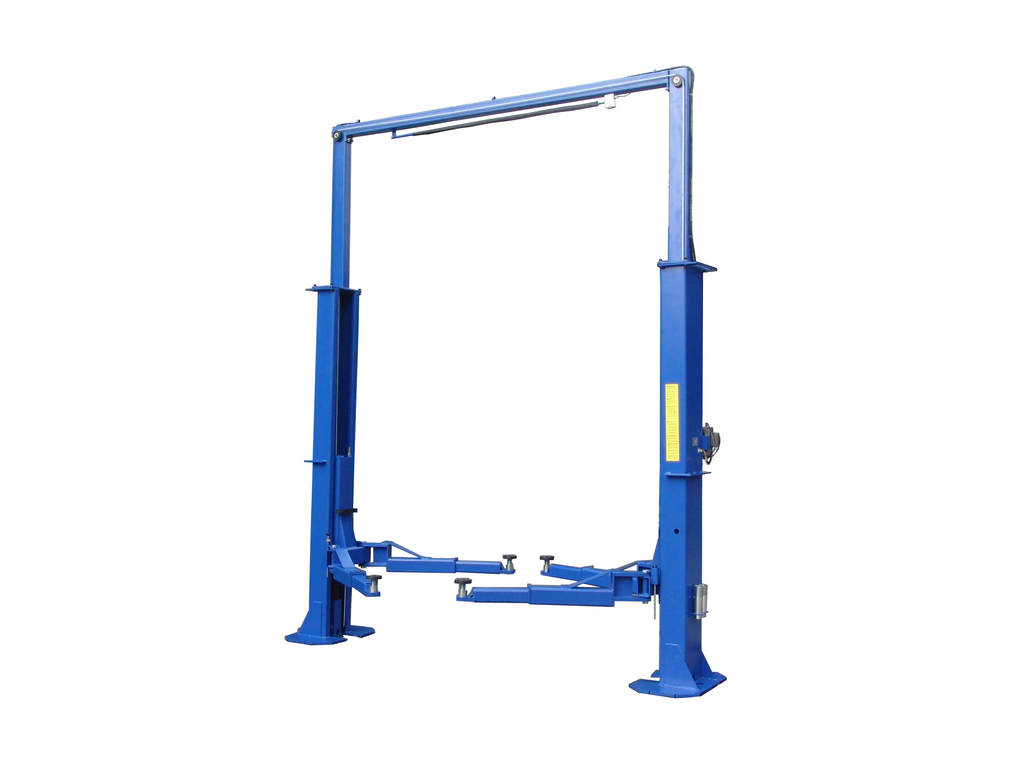

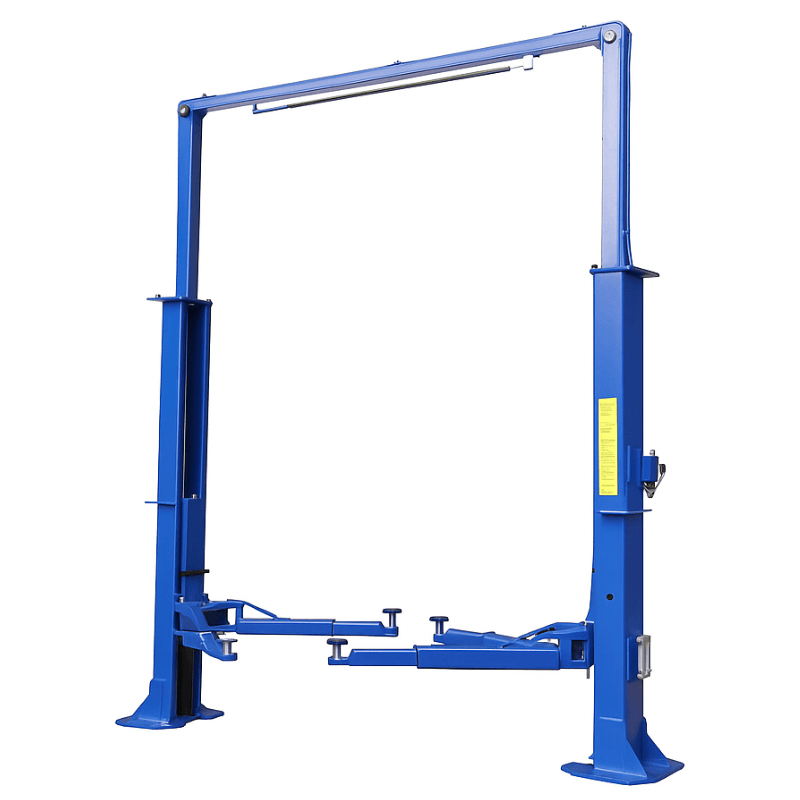

The Tuxedo TP15KCX is a two-post clear floor lift rated at 15,000 pounds for shops that service heavy-duty trucks, large vans, and dual-rear-wheel pickups.
Symmetric arms and chain drive cylinders carry up to 3,750 pounds per arm, and the dual-point lock release with an automatic arm restraint system keeps heavy loads secure. The clear floor design routes the equalizer overhead, so the bay stays open for transmission jacks and undercar service. Browse more auto service equipment or the full Tuxedo Auto Equipment line.
Key Features
- 15,000 lb capacity - Handles heavy-duty trucks and large vans at up to 3,750 pounds per arm.
- Symmetric arms - Even arm reach front and rear for balanced loading.

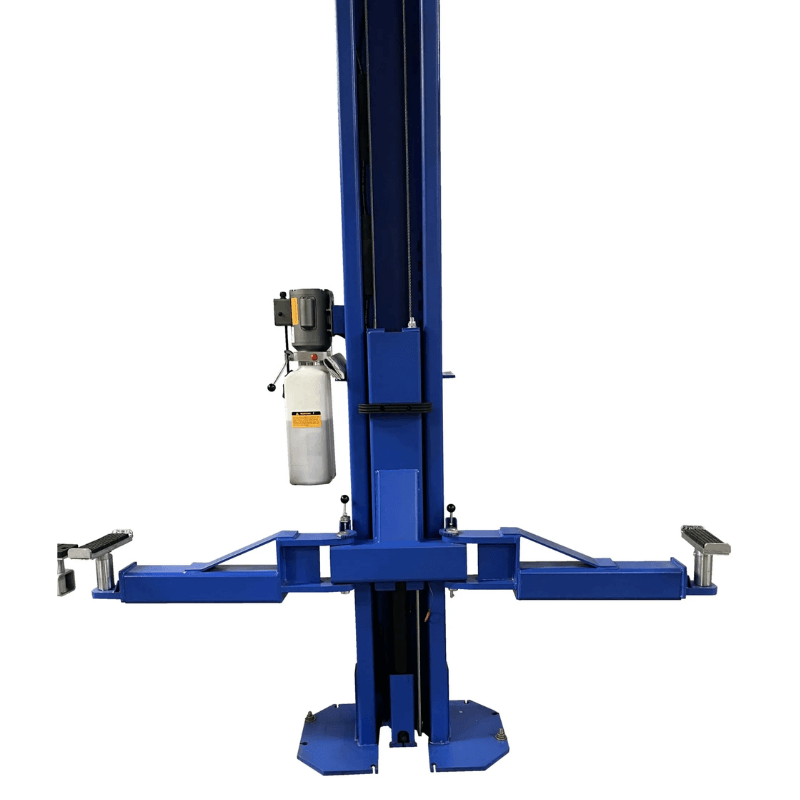

- Chain drive cylinders - Chain-driven lift with dual-point lock release.
- Clear floor layout - Overhead equalizer keeps the bay floor open.

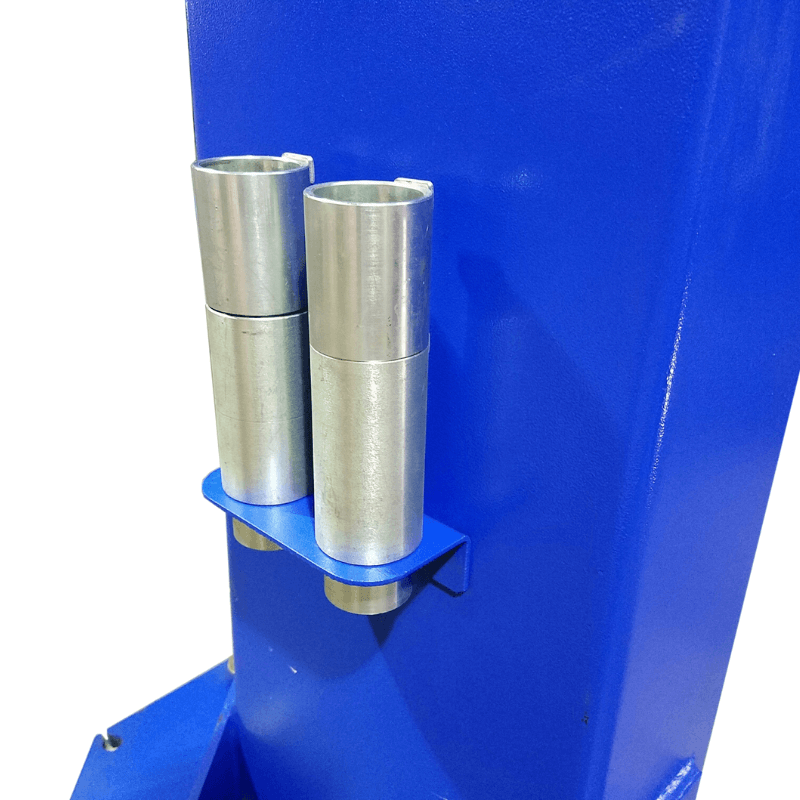

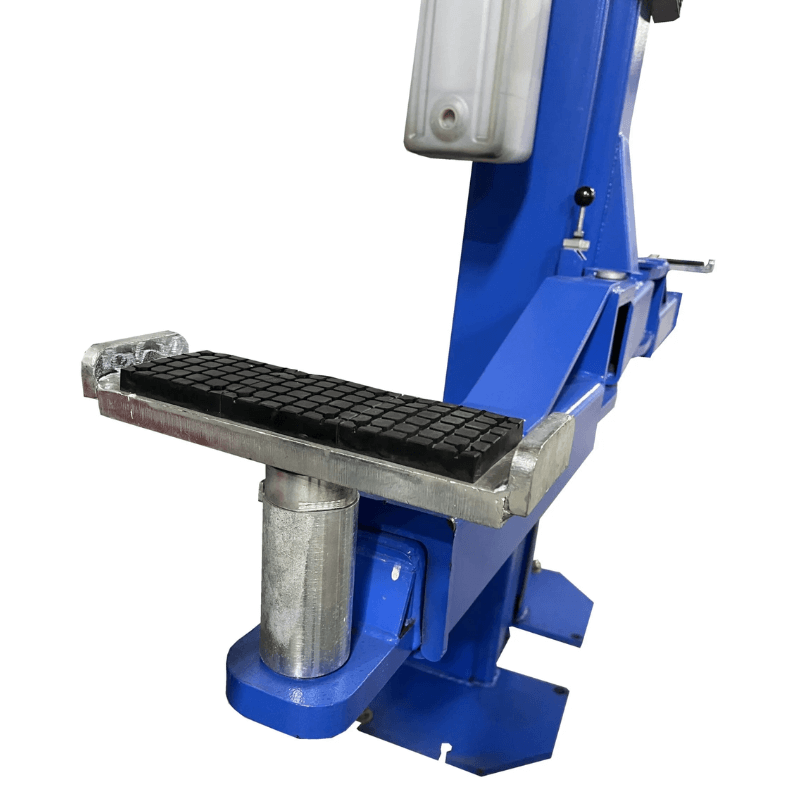

- Spin up lift pads - Internal hose routing, rubber door guards, and stackable adapters included.
Specifications
| Brand | Tuxedo Auto Equipment |
|---|---|
| Type | Two-Post Clear Floor Lift |
| Capacity | 15,000 lbs |
| Arm Configuration | Symmetric |
| Max Lift Height | 76-1/2 in |
| Overall Height | 179-3/8 in |
| Width Overall w/ Power Unit | 148-3/8 in |
| Width Between Columns | 120-3/4 in |
| Drive Thru Clearance | 109-3/8 in |
| Max Load Per Arm | 3,750 lbs |
| Drive | Chain drive cylinders |
| Power | 220V, 20 Amp, Single Phase |
| Ship Weight | 2,575 lbs |
How It Compares
| Model | Capacity | Max Per Arm | Overall Height |
|---|---|---|---|
| TP12KFX | 12,000 lbs | 3,000 lbs | 121-1/2 in |
| TP15KCX | 15,000 lbs | 3,750 lbs | 179-3/8 in |
| TP12KC-D | 12,000 lbs | 3,000 lbs | 165 in |
Key Facts
- Rated capacity is 15,000 pounds, with a maximum 3,750 pounds per lifting arm.
- Overall height is 179-3/8 inches, so confirm ceiling clearance before install.
- Runs on a 220V, 20 Amp, single-phase circuit.
Who It's For
This lift fits truck and fleet shops that service heavy-duty pickups, large vans, and dual-rear-wheel trucks needing a 15,000 pound two-post. Overall height is tall, so confirm ceiling height, a 220V single-phase circuit, and slab thickness before install.
What's Included
- TP15KCX two-post lift with two columns and four arms
- Chain drive cylinders and power unit
- Spin up lift pads, rubber door guards, and stackable adapters
- Installation and operation manual
Spin-up pad accessory kits such as the TP12KFX/15KCX-SPNCA are available and are sold separately.
Shipping and Freight
This lift ships as an oversize freight shipment and typically requires a forklift or dock to unload. It ships at roughly 2,575 pounds. Allow extended handling and transit, and use the Request a Freight Quote path so we can confirm access, liftgate needs, and a commercial delivery address before scheduling.
About Tuxedo Auto Equipment
Tuxedo Distributors supplies automotive lifts, wheel service equipment, and collision repair tools to professional shops across North America, including the iDEAL line of commercial lifts and frame racks.
Frequently Asked Questions
What does the TP15KCX lift?
It is rated at 15,000 pounds, with a maximum of 3,750 pounds per arm.
Is it a clear floor lift?
Yes. The equalizer runs overhead, so the bay floor stays open between the columns.
How tall is it?
Overall height is 179-3/8 inches. Confirm ceiling clearance before ordering.
What power does it require?
A 220V, 20 Amp, single-phase circuit.
How does it differ from the TP12KFX?
The TP15KCX is a higher 15,000 pound clear floor lift, while the TP12KFX is a 12,000 pound floor plate lift built for low ceilings.
Talk to a Tuxedo specialist about power, slab, ceiling height, and freight before you order. View the full Tuxedo Auto Equipment range.
