Description
Overview

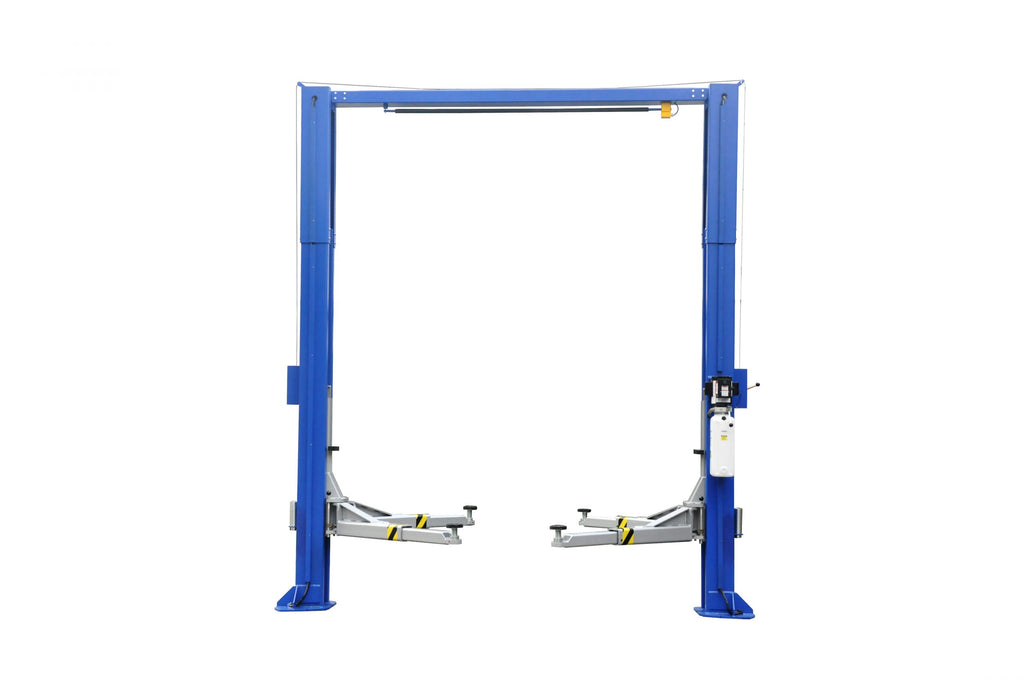

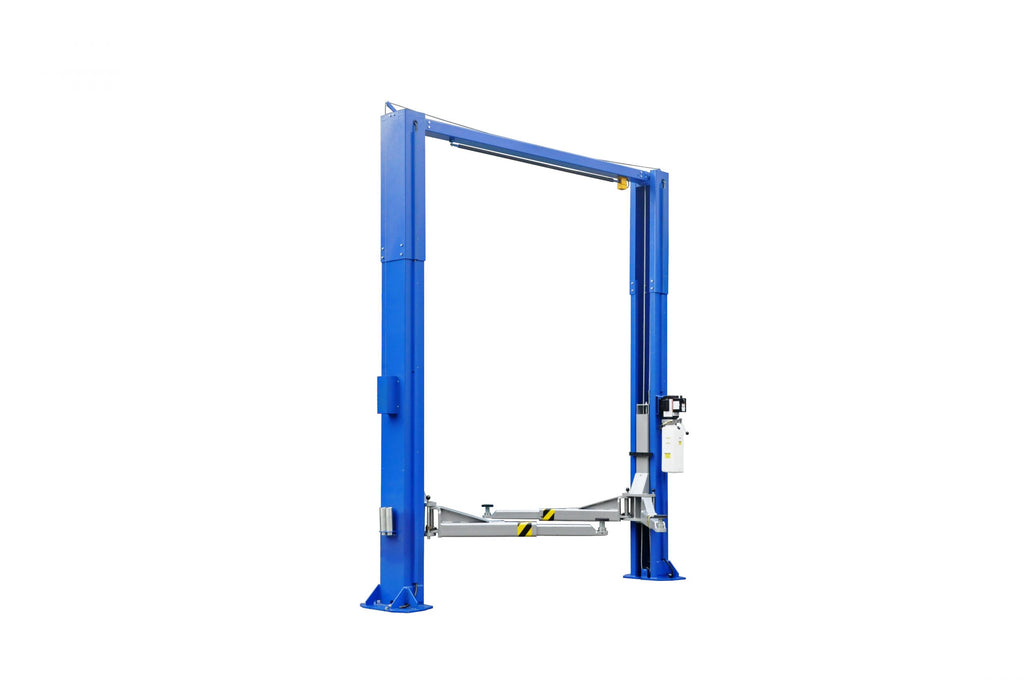

The iDEAL TP12KSC-DX is an ALI certified two-post clear floor lift rated at 12,000 pounds for shops that want third-party safety certification on a heavier-capacity lift.

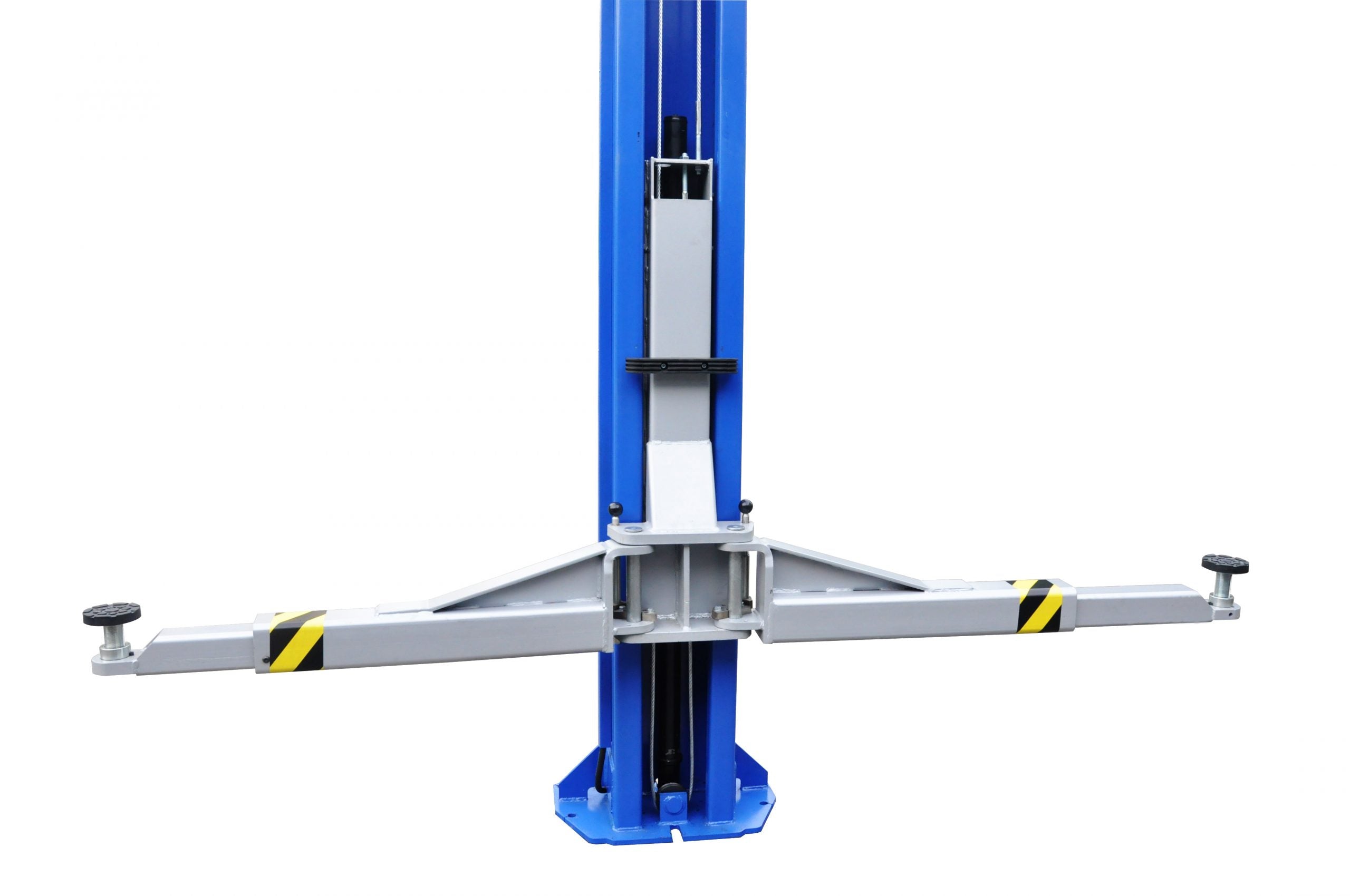

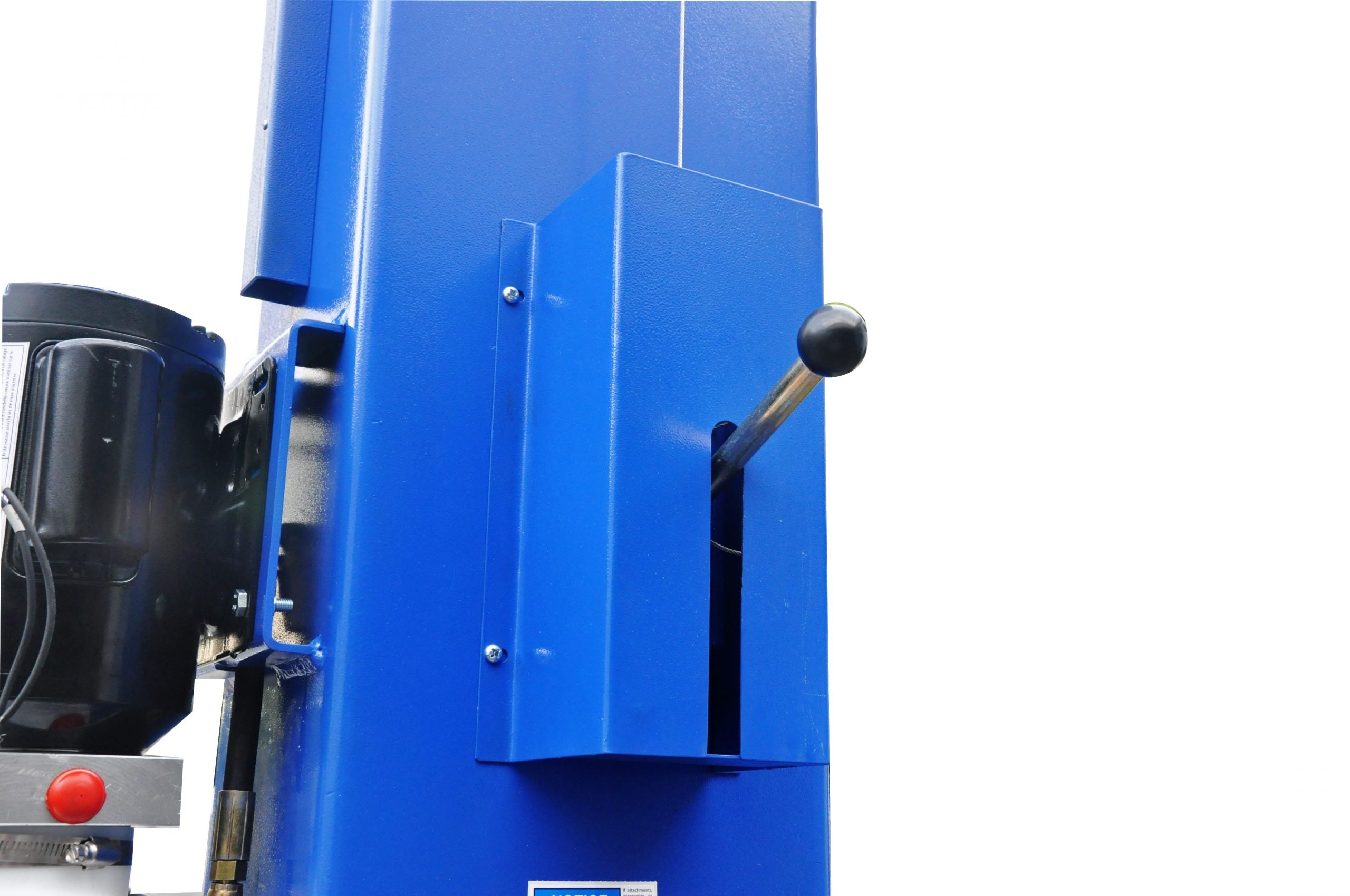

It uses symmetric arms, direct drive push cylinders, and a single-point lock release, with a Duro certified power unit carrying MET, UL, and CSA marks. The clear floor design routes the equalizer overhead, leaving the bay open for rolling jacks and undercar work. Browse more auto service equipment or the full Tuxedo Auto Equipment line.
Key Features
- ALI certified - Third-party certified to the ANSI/ALI lift safety standard.
- 12,000 lb capacity - Handles heavier trucks and vans at up to 3,000 pounds per arm.
- Direct drive push cylinders - Cylinder-driven lift with single-point lock release.
- Clear floor layout - Overhead equalizer keeps the bay floor open.
- Certified power unit - Duro power unit with MET, UL, and CSA certification.
Specifications
| Brand | Tuxedo Auto Equipment (iDEAL) |
|---|---|
| Type | Two-Post Clear Floor Lift |
| Capacity | 12,000 lbs |
| Certification | ALI Certified |
| Arm Configuration | Symmetric |
| Max Lift Height | 75 in |
| Overall Height | 168-1/2 in |
| Width Overall w/ Power Unit | 151-5/16 in |
| Width Between Columns | 122 in |
| Drive Thru Clearance | 109 in |
| Max Load Per Arm | 3,000 lbs |
| Drive | Direct drive push cylinders |
| Power | 220V, 20 Amp, Single Phase |
| Ship Weight | 2,295 lbs |
How It Compares
| Model | Capacity | ALI Certified | Drive |
|---|---|---|---|
| TP12KC-D | 12,000 lbs | No | Direct drive |
| TP12KSC-DX | 12,000 lbs | Yes | Direct drive |
| TP15KCX | 15,000 lbs | No | Chain drive |
Key Facts
- ALI certified to the ANSI/ALI automotive lift safety standard.
- Rated capacity is 12,000 pounds, with a maximum 3,000 pounds per arm.
- Runs on a 220V, 20 Amp, single-phase circuit.
Who It's For
This lift fits dealerships, fleet shops, and independents that require an ALI certified two-post in the 12,000 pound class. Confirm a 220V single-phase circuit, slab thickness, and ceiling height before install.
What's Included
- TP12KSC-DX two-post lift with two columns and four arms
- Direct drive cylinders and Duro certified power unit

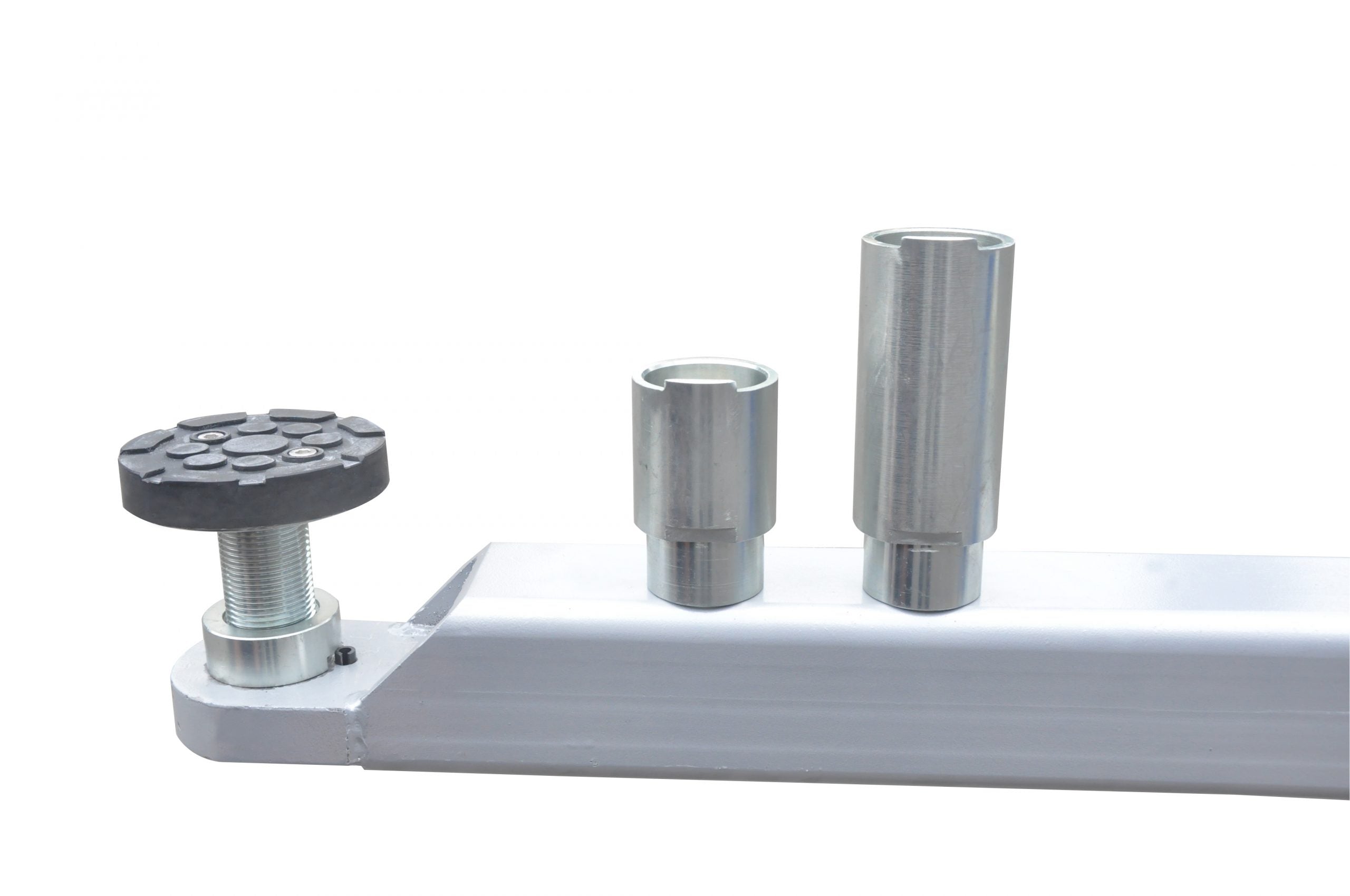

- Rubber door guards, spin up lift pads, and stackable adapters
- Installation and operation manual
Spin-up pad accessory kits such as the TP12SDX-SPNCA are available and are sold separately.
Shipping and Freight
This lift ships as an oversize freight shipment and typically requires a forklift or dock to unload. It ships at roughly 2,295 pounds. Allow extended handling and transit, and use the Request a Freight Quote path so we can confirm access, liftgate needs, and a commercial delivery address before scheduling.
About Tuxedo Auto Equipment
Tuxedo Distributors supplies automotive lifts, wheel service equipment, and collision repair tools to professional shops across North America, including the iDEAL line of commercial lifts and frame racks.
Frequently Asked Questions
Is the TP12KSC-DX ALI certified?
Yes. It is certified to the ANSI/ALI automotive lift safety standard.
What does it lift?
It is rated at 12,000 pounds, with a maximum of 3,000 pounds per arm.
Is it a clear floor lift?
Yes. The equalizer runs overhead, so the bay floor stays open between the columns.
What power does it require?
A 220V, 20 Amp, single-phase circuit.
How does it differ from the TP12KC-D?
Both are 12,000 pound direct drive clear floor lifts. The TP12KSC-DX adds ALI certification and a Duro certified power unit, while the TP12KC-D is the standard model.
Talk to a Tuxedo specialist about power, slab, ceiling height, and freight before you order. View the full Tuxedo Auto Equipment range.
