Description
Overview

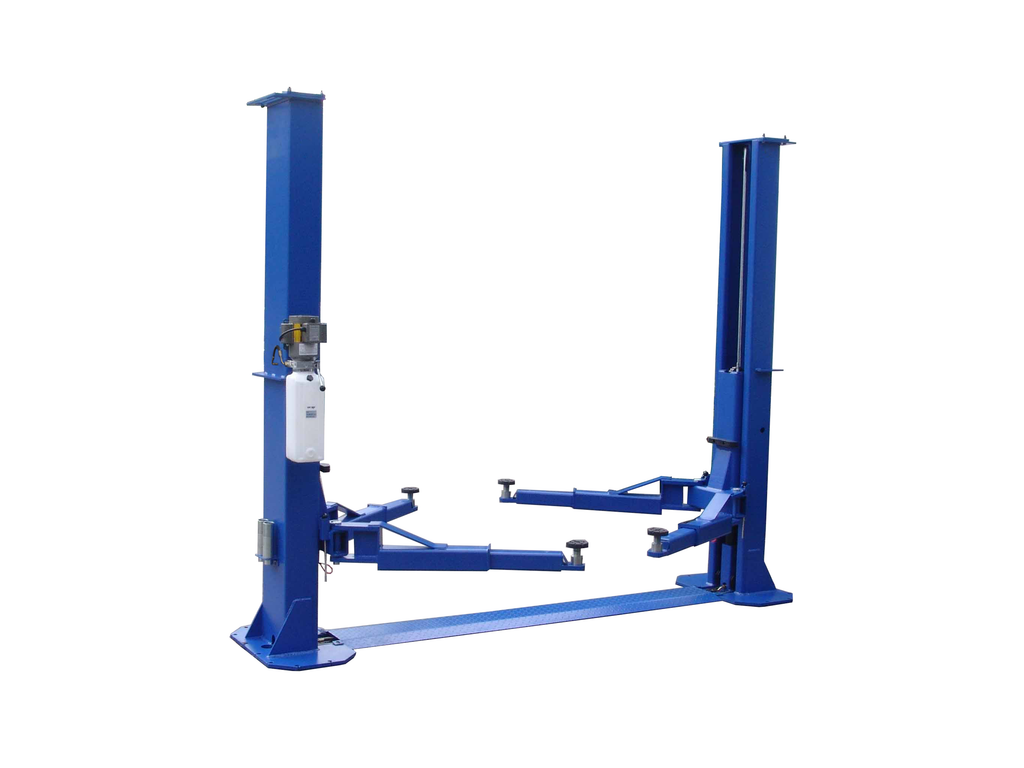

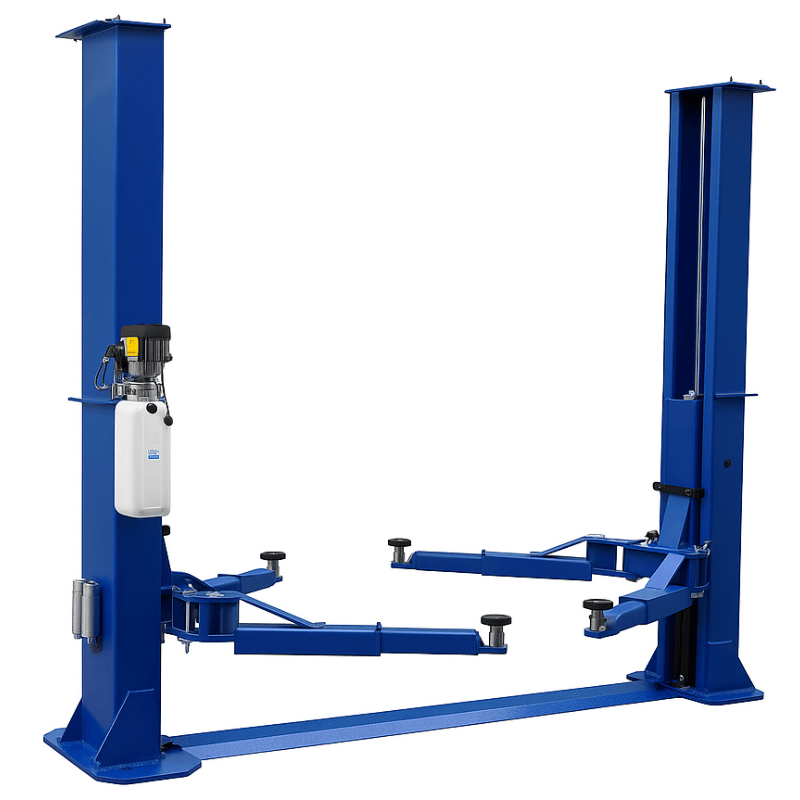

The Tuxedo TP12KFX is a two-post floor plate lift rated at 12,000 pounds for shops that want a strong lift without an overhead crossbar limiting roof clearance.

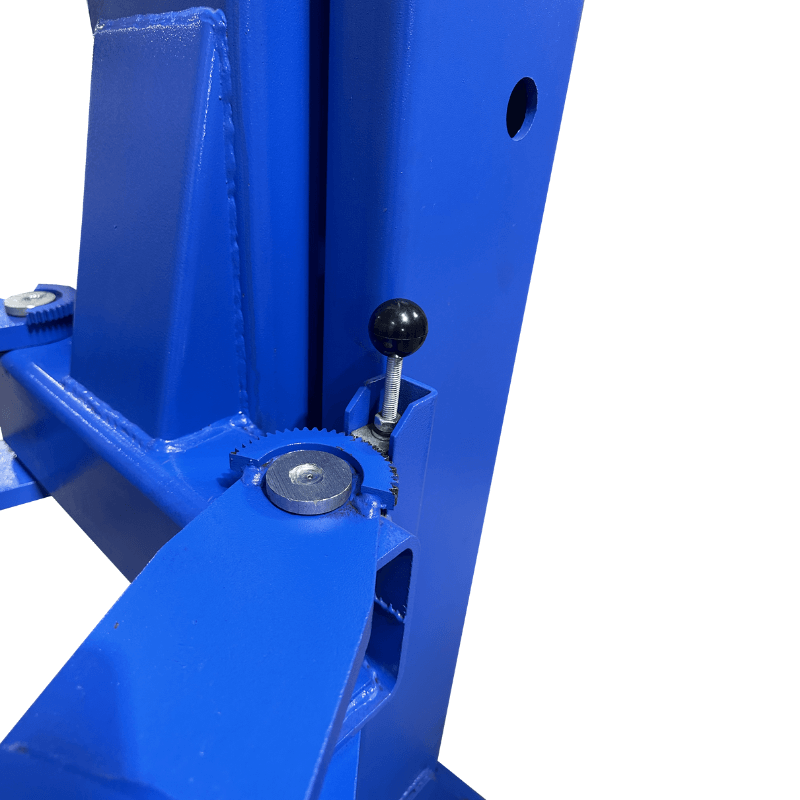

The floor plate design routes the equalizer cables through a low ramp at the base, so tall vehicles clear the top of the bay. Symmetric arms and chain drive cylinders deliver a balanced lift, and the dual-point lock release with an automatic arm restraint system keeps loads secure. Browse more auto service equipment or the full Tuxedo Auto Equipment line.
Key Features
- 12,000 lb capacity - Handles heavier trucks and vans at up to 3,000 pounds per arm.

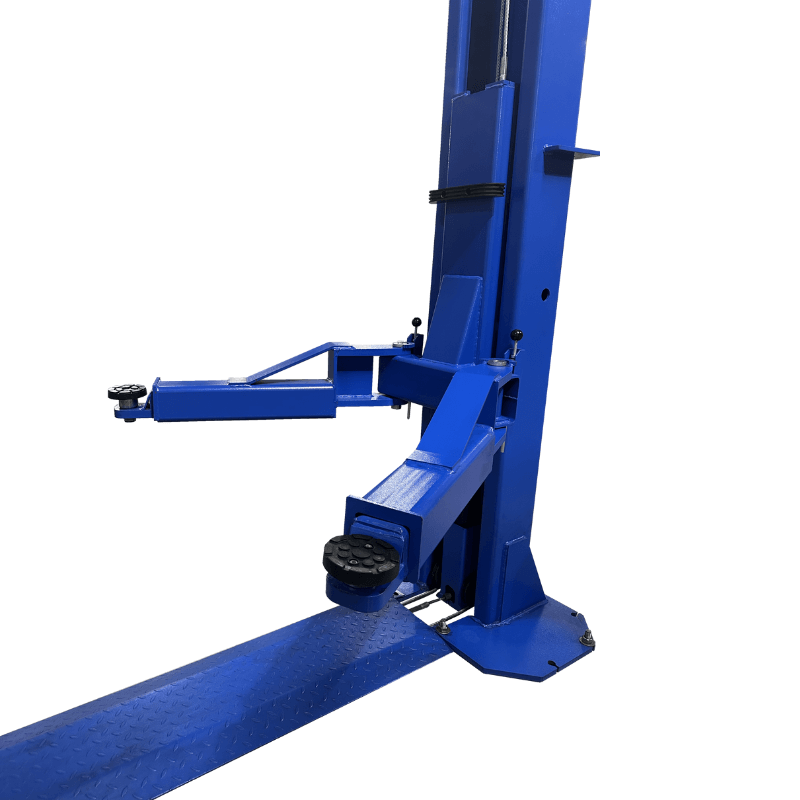

- Floor plate design - Base equalizer keeps the top of the bay open for tall vehicles.
- Symmetric arms - Even arm reach front and rear for balanced loading.
- Chain drive cylinders - Chain-driven lift with dual-point lock release.
- Spin up lift pads - Internal hose routing, rubber door guards, and stackable adapters included.
Specifications
| Brand | Tuxedo Auto Equipment |
|---|---|
| Type | Two-Post Floor Plate Lift |
| Capacity | 12,000 lbs |
| Arm Configuration | Symmetric |
| Max Lift Height | 76-1/2 in |
| Overall Height | 121-1/2 in |
| Width Overall w/ Power Unit | 147-7/8 in |
| Width Between Columns | 120-5/16 in |
| Drive Thru Clearance | 109 in |
| Max Load Per Arm | 3,000 lbs |
| Drive | Chain drive cylinders |
| Power | 220V, 20 Amp, Single Phase |
| Ship Weight | 2,460 lbs |
How It Compares
| Model | Capacity | Style | Overall Height |
|---|---|---|---|
| TP9KFX | 9,000 lbs | Floor plate | 111-7/8 in |
| TP12KFX | 12,000 lbs | Floor plate | 121-1/2 in |
| TP15KCX | 15,000 lbs | Clear floor | 179-3/8 in |
Key Facts
- Rated capacity is 12,000 pounds, with a maximum 3,000 pounds per lifting arm.
- Overall height is 121-1/2 inches, lower than a comparable clear floor lift.
- Runs on a 220V, 20 Amp, single-phase circuit.
Who It's For
This lift fits shops with limited ceiling height that still need a 12,000 pound two-post for trucks and vans. The floor plate routes cables along the base, which keeps the overhead open. Confirm a 220V single-phase circuit and slab thickness before install.
What's Included
- TP12KFX two-post lift with two columns and four arms
- Chain drive cylinders and power unit
- Spin up lift pads, rubber door guards, and stackable adapters
- Installation and operation manual
Spin-up pad accessory kits such as the TP12KFX/15KCX-SPNCA are available and are sold separately.
Shipping and Freight
This lift ships as an oversize freight shipment and typically requires a forklift or dock to unload. It ships at roughly 2,460 pounds. Allow extended handling and transit, and use the Request a Freight Quote path so we can confirm access, liftgate needs, and a commercial delivery address before scheduling.
About Tuxedo Auto Equipment
Tuxedo Distributors supplies automotive lifts, wheel service equipment, and collision repair tools to professional shops across North America, including the iDEAL line of commercial lifts and frame racks.
Frequently Asked Questions
What does the TP12KFX lift?
It is rated at 12,000 pounds, with a maximum of 3,000 pounds per arm.
What is a floor plate lift?
The equalizer cables run through a low plate at the base of the columns rather than overhead, which keeps the top of the bay open for taller vehicles.
What is the overall height?
Overall height is 121-1/2 inches.
What power does it require?
A 220V, 20 Amp, single-phase circuit.
How does it differ from the TP12KC-D?
The TP12KFX is a floor plate lift for low ceilings, while the TP12KC-D is a clear floor lift with an overhead equalizer. Both are rated at 12,000 pounds.
Talk to a Tuxedo specialist about power, slab, ceiling height, and freight before you order. View the full Tuxedo Auto Equipment range.
