Description
Overview

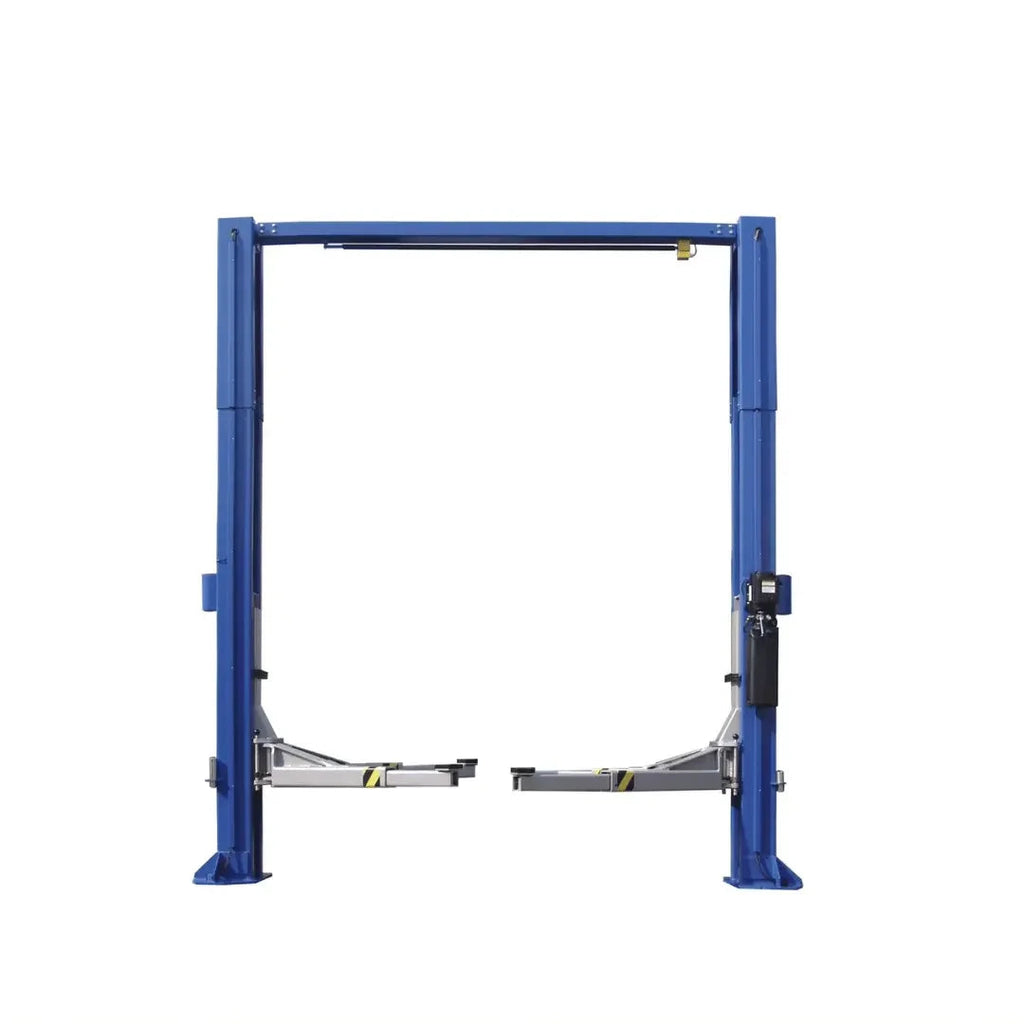

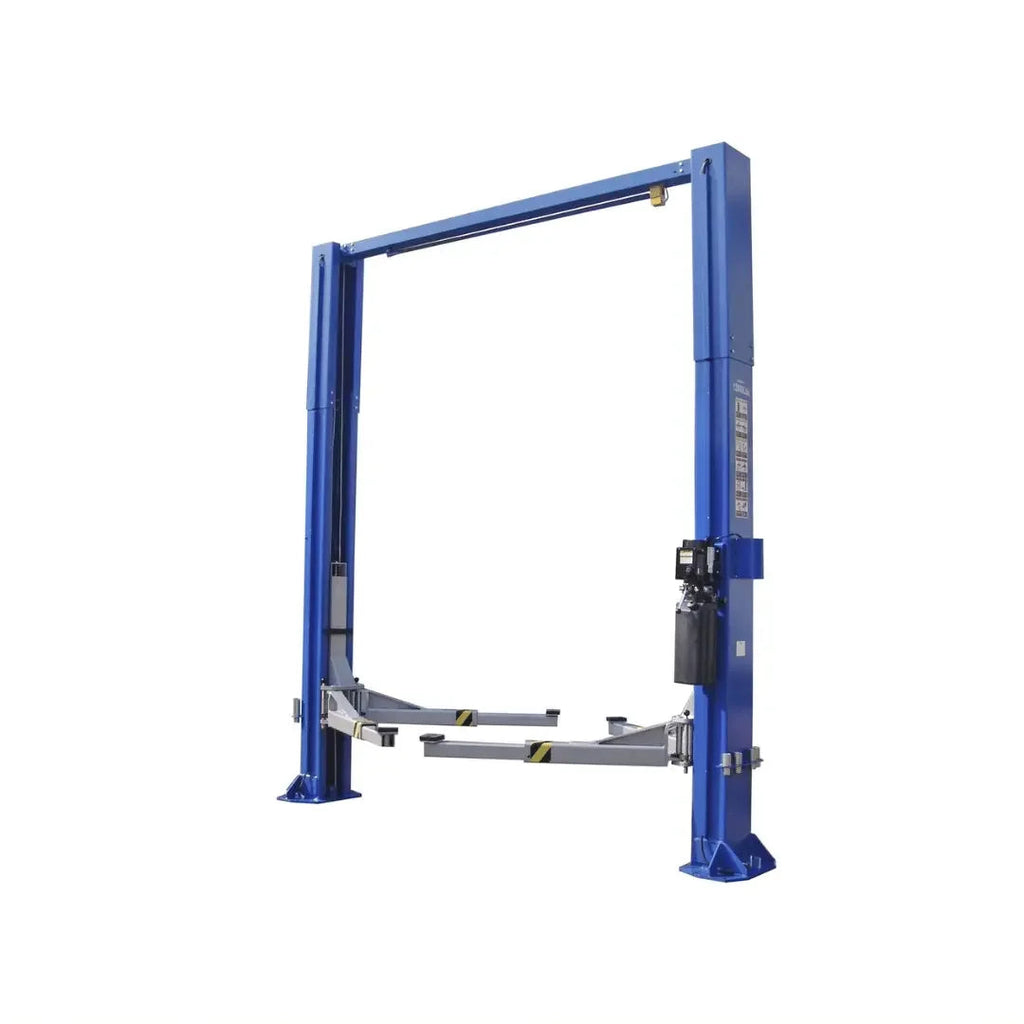

The Tuxedo TP12KC-D is a two-post clear floor lift rated at 12,000 pounds for shops that need to spot heavier trucks and vans without overhead obstructions.
Symmetric arms and direct drive push cylinders give a stable, balanced lift, while the single-point pneumatic lock release keeps both columns synchronized. The clear floor design routes the equalizer overhead, so technicians keep an open bay for rolling jacks and transmission work. Browse more auto service equipment or the full Tuxedo Auto Equipment line.
Key Features
- 12,000 lb capacity - Handles heavier trucks and vans at up to 3,000 pounds per arm.

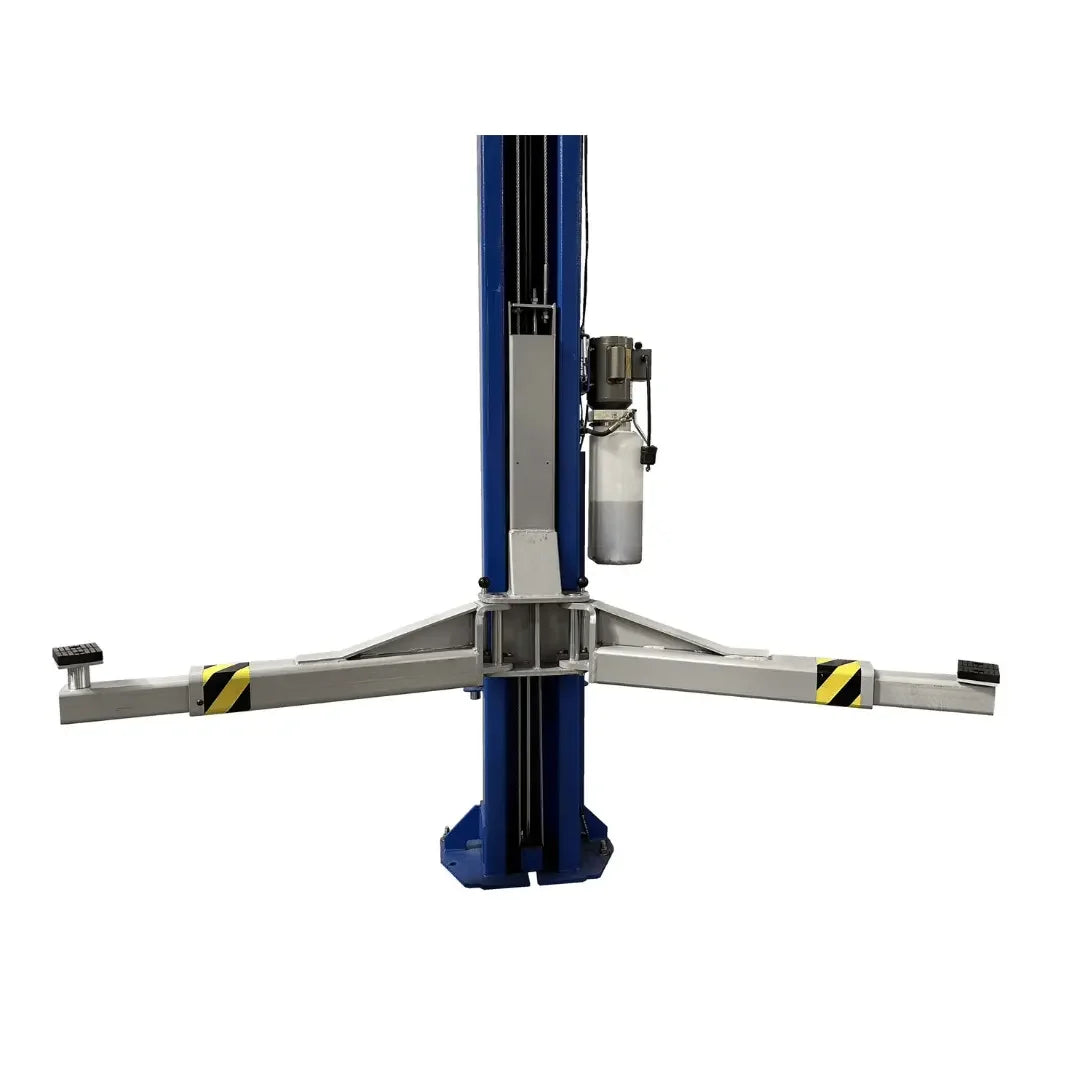

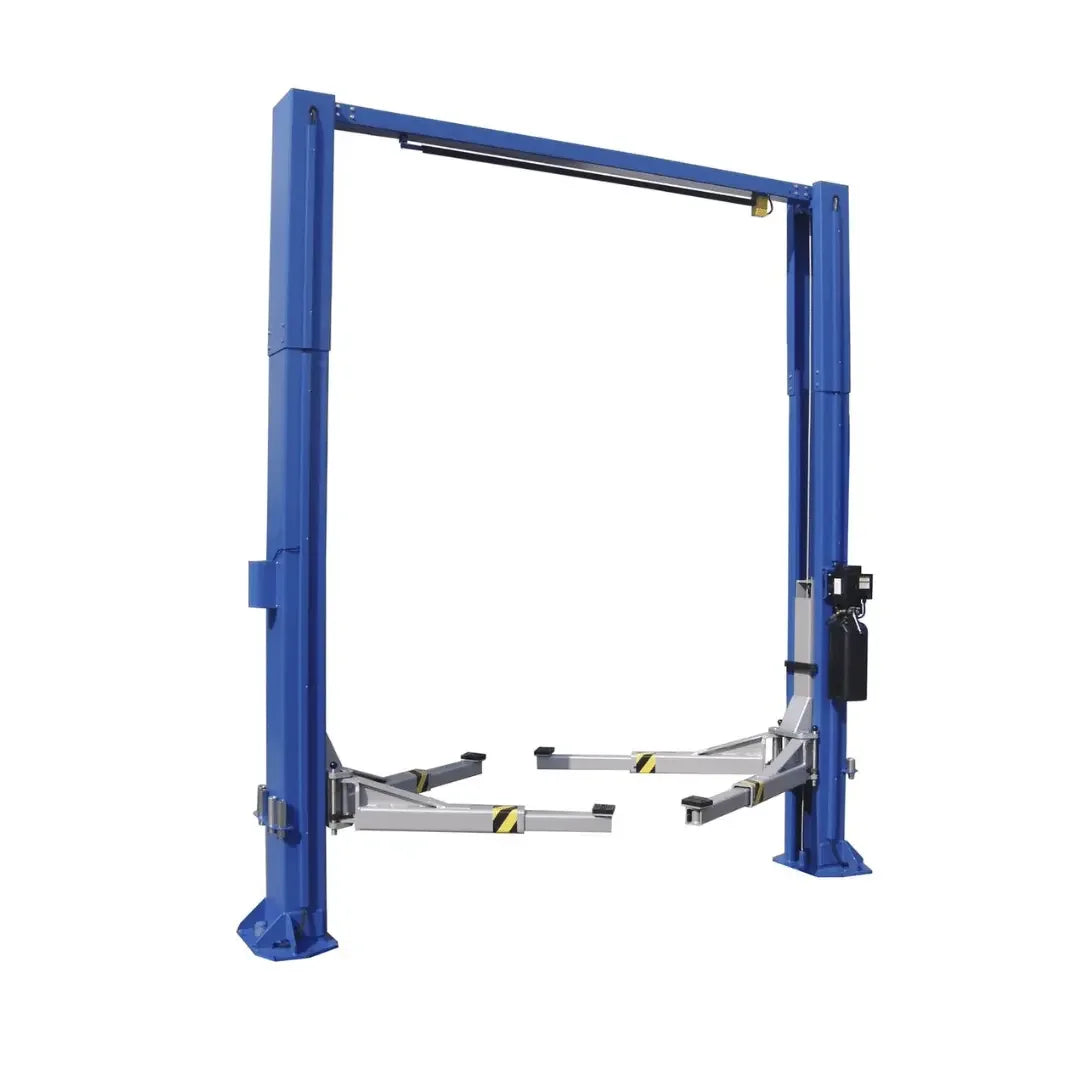

- Symmetric arms - Even front and rear arm reach for balanced loading.

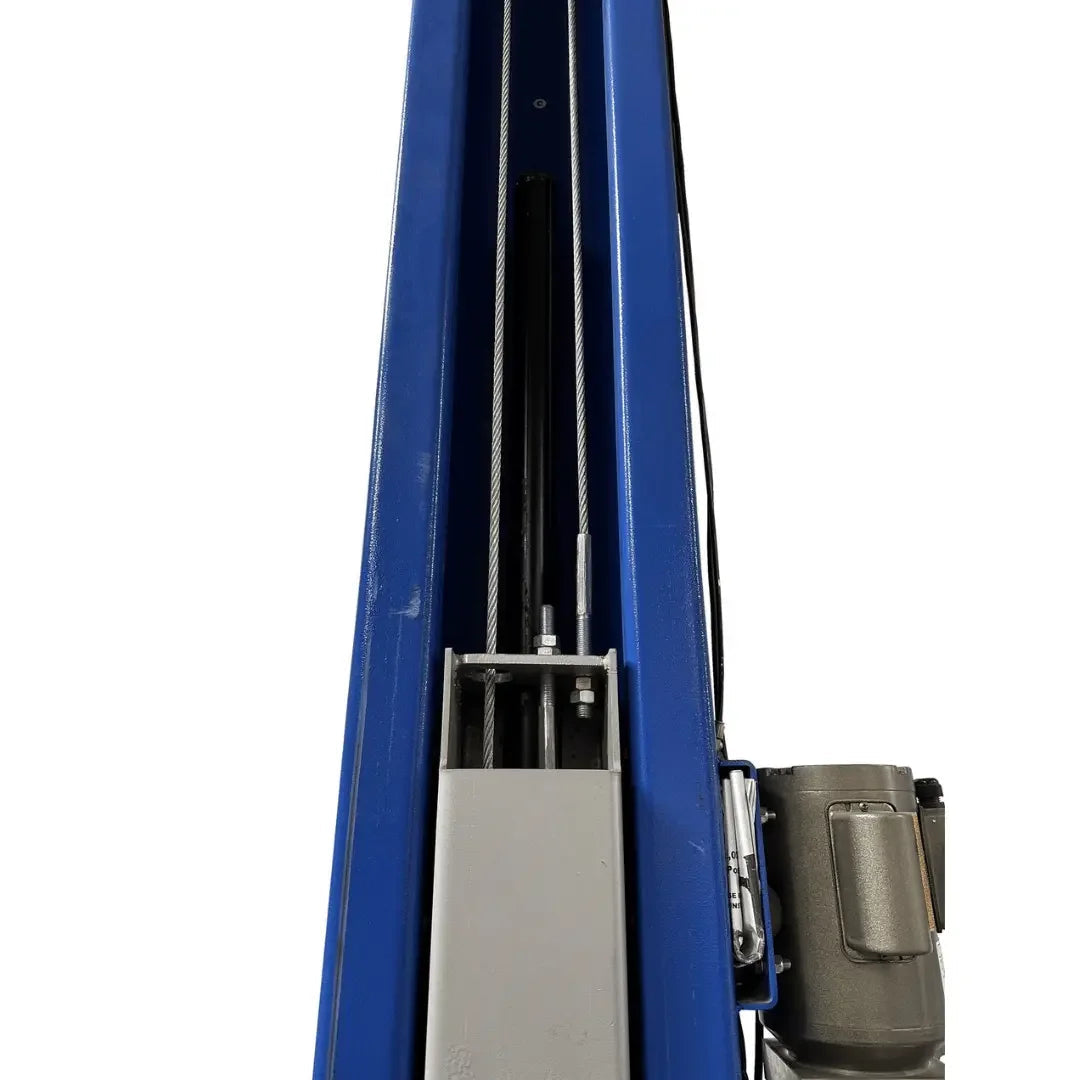

- Direct drive push cylinders - Cylinder-driven lift with single-point pneumatic lock release.
- Clear floor layout - Overhead equalizer keeps the bay floor open.

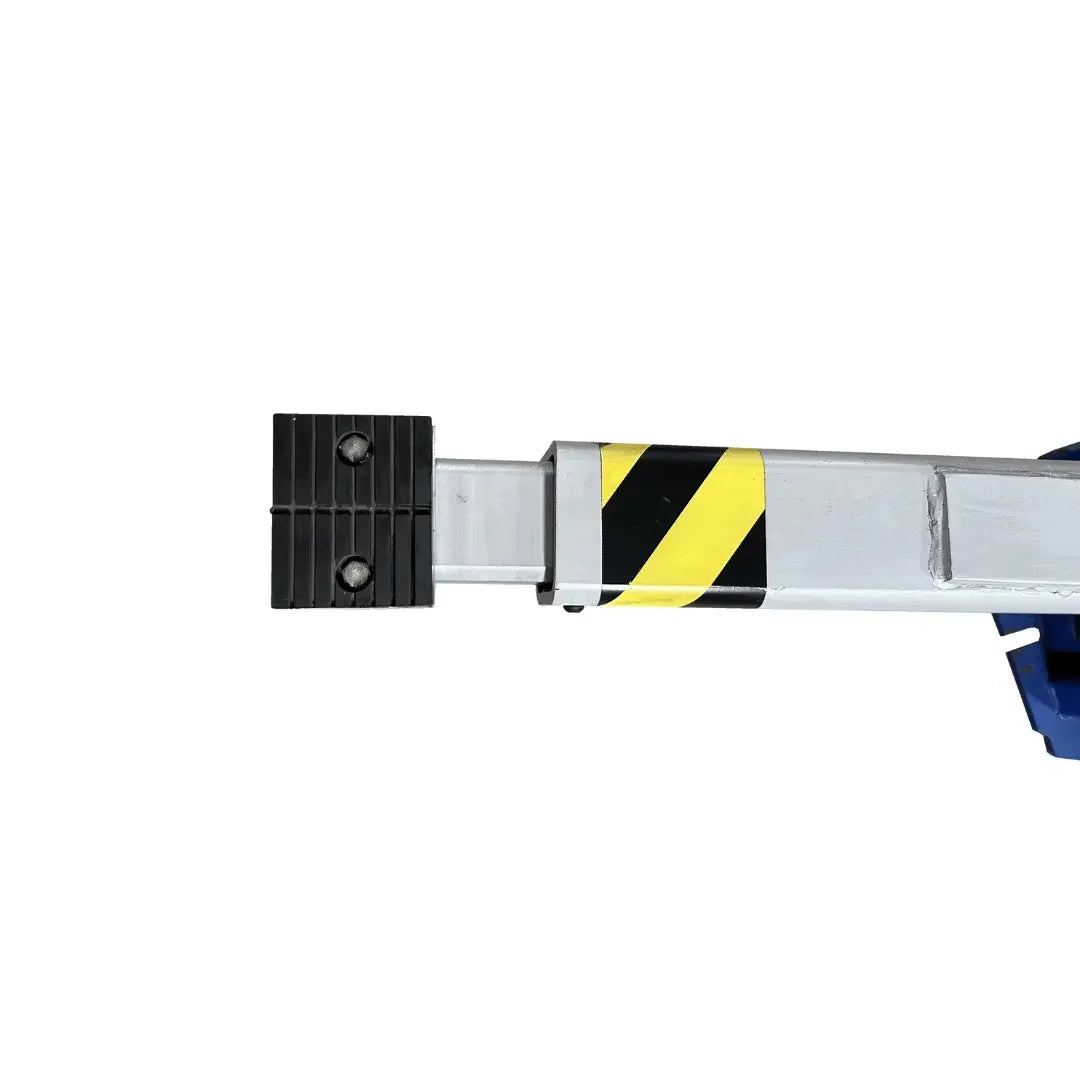

- Heavy duty arm restraints - Restraint system with drop-in lift pads and external hose guards.
Specifications
| Brand | Tuxedo Auto Equipment |
|---|---|
| Type | Two-Post Clear Floor Lift |
| Capacity | 12,000 lbs |
| Arm Configuration | Symmetric |
| Max Lift Height | 72 in |
| Overall Height | 165 in |
| Width Overall w/ Power Unit | 151 in |
| Width Between Columns | 122 in |
| Drive Thru Clearance | 109 in |
| Max Load Per Arm | 3,000 lbs |
| Drive | Direct drive push cylinders |
| Power | 220V, 20 Amp, Single Phase |
| Ship Weight | 2,295 lbs |
How It Compares
| Model | Capacity | Drive | Lock Release |
|---|---|---|---|
| TP11KC-DX | 11,000 lbs | Direct drive | Single point |
| TP12KC-D | 12,000 lbs | Direct drive | Single point |
| TP15KCX | 15,000 lbs | Chain drive | Dual point |
Key Facts
- Rated capacity is 12,000 pounds, with a maximum 3,000 pounds per lifting arm.
- Drive thru clearance is 109 inches between the columns.
- Runs on a 220V, 20 Amp, single-phase circuit.
Who It's For
This lift fits service shops and fleet bays that work on heavier trucks and vans and want a clear floor two-post in the 12,000 pound class. Confirm a 220V single-phase circuit, slab thickness, and ceiling height before install.
What's Included
- TP12KC-D two-post lift with two columns and four arms
- Direct drive cylinders and power unit
- Drop-in lift pads with stackable adapters and external hose guards
- Installation and operation manual
Spin-up pad adapter kits are available and are sold separately.
Shipping and Freight
This lift ships as an oversize freight shipment and typically requires a forklift or dock to unload. It ships at roughly 2,295 pounds. Allow extended handling and transit, and use the Request a Freight Quote path so we can confirm access, liftgate needs, and a commercial delivery address before scheduling.
About Tuxedo Auto Equipment
Tuxedo Distributors supplies automotive lifts, wheel service equipment, and collision repair tools to professional shops across North America, including the iDEAL line of commercial lifts and frame racks.
Frequently Asked Questions
What does the TP12KC-D lift?
It is rated at 12,000 pounds, with a maximum of 3,000 pounds per arm.
Is it a clear floor lift?
Yes. The equalizer runs overhead, so the bay floor stays open between the columns.
What is the drive thru clearance?
Drive thru clearance is 109 inches between the columns.
What power does it require?
A 220V, 20 Amp, single-phase circuit.
How does it differ from the TP12KSC-DX?
Both are 12,000 pound direct drive clear floor lifts. The TP12KSC-DX is the iDEAL, ALI certified version of this platform, while the TP12KC-D is the standard model.
Talk to a Tuxedo specialist about power, slab, ceiling height, and freight before you order. View the full Tuxedo Auto Equipment range.
