The Tuxedo TP11KC-DX is a two-post clear floor lift rated at 11,000 pounds for general service shops that work on a mix of cars, vans, and light trucks.

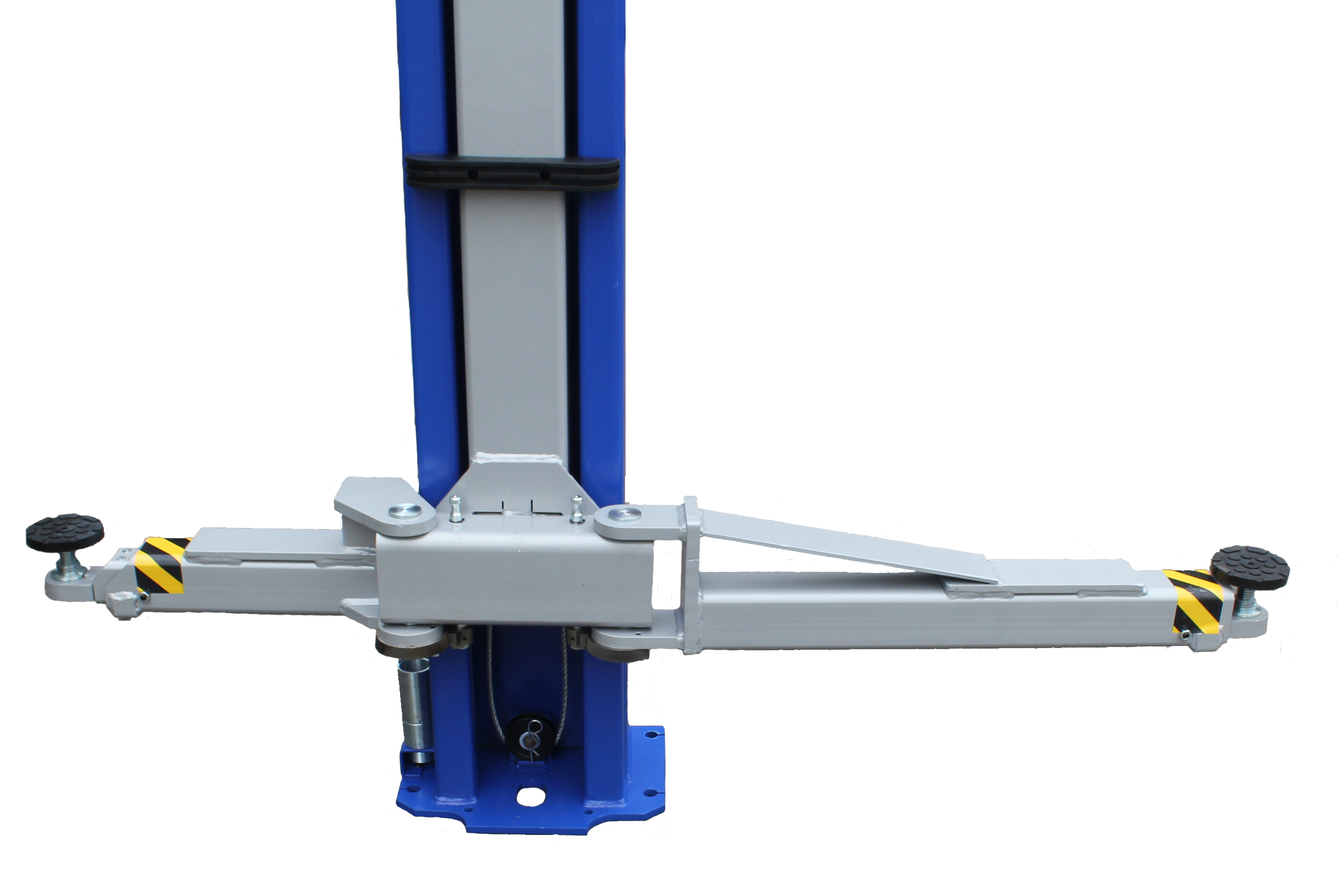

It uses a bi-symmetric arm design with three-stage front arms, so the technician can spot a wide range of vehicles and still open the doors against the rubber door guards. Direct drive pull cylinders and a single-point lock release keep the columns synchronized and the bay floor clear of overhead bars. Browse more auto service equipment or the full Tuxedo Auto Equipment line.
Key Features
- 11,000 lb capacity - Covers cars, vans, and most light trucks at up to 2,750 pounds per arm.

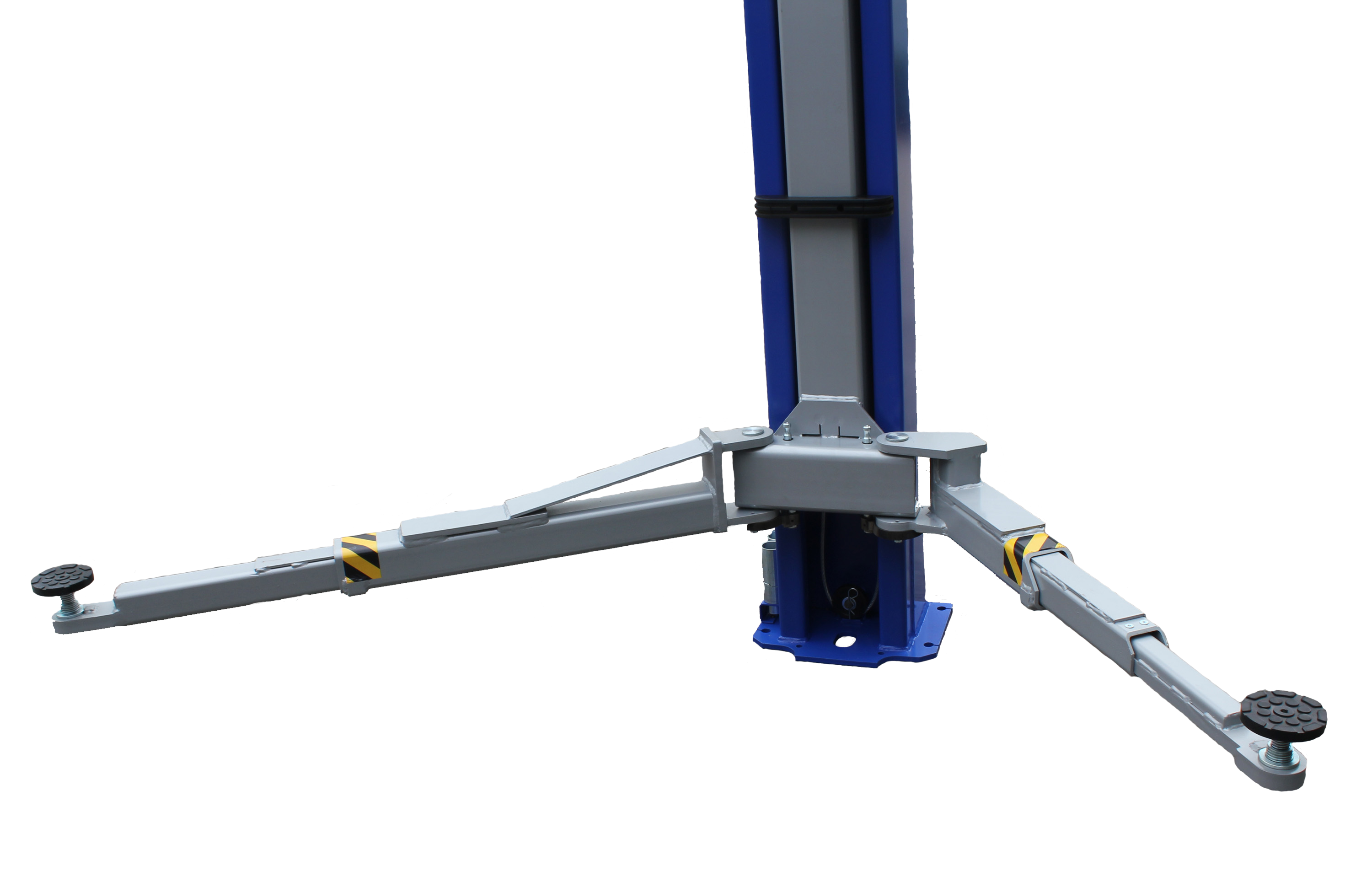

- Bi-symmetric arm design - Three-stage front arms and a flexible spotting range for varied wheelbases.
- Clear floor layout - Overhead equalizer keeps the bay floor open for rolling jacks and creepers.
- Direct drive pull cylinders - Cylinder-driven lift with a single-point lock release across both columns.
- Heavy duty arm restraints - Automatic restraint system with rubber door guards and spin-up low profile pads.
Specifications
| Brand | Tuxedo Auto Equipment |
|---|---|
| Type | Two-Post Clear Floor Lift |
| Capacity | 11,000 lbs |
| Arm Configuration | Asymmetric / Symmetric |
| Max Lift Height | 71 in |
| Overall Height | 144 in |
| Width Overall w/ Power Unit | 145-1/2 in |
| Width Between Columns | 116 in |
| Drive Thru Clearance | 104 in |
| Max Load Per Arm | 2,750 lbs |
| Drive | Direct drive pull cylinders |
| Power | 220V, 20 Amp, Single Phase |
| Ship Weight | 1,705 lbs |
How It Compares
| Model | Capacity | Drive | Lock Release |
|---|---|---|---|
| TP9KSCX | 9,000 lbs | Chain drive | Dual point |
| TP11KC-DX | 11,000 lbs | Direct drive | Single point |
| TP12KC-D | 12,000 lbs | Direct drive | Single point |
Key Facts
- Rated capacity is 11,000 pounds, with a maximum 2,750 pounds per lifting arm.
- Drive thru clearance is 104 inches between the columns.
- Runs on a 220V, 20 Amp, single-phase circuit.
Who It's For
This lift fits independent service shops and tire bays that want a clear floor two-post in the 11,000 pound class for everyday car, van, and light truck work. Confirm a 220V single-phase circuit, slab thickness, and ceiling height before install.
What's Included
- TP11KC-DX two-post lift with two columns and four arms
- Direct drive cylinders and power unit
- Rubber door guards and spin-up lift pads with stackable adapters
- Installation and operation manual
Spin-up pad accessory kits such as the TP11DX-SPNCA are available and are sold separately.
Shipping and Freight
This lift ships as an oversize freight shipment and typically requires a forklift or dock to unload. It ships at roughly 1,705 pounds. Allow extended handling and transit, and use the Request a Freight Quote path so we can confirm access, liftgate needs, and a commercial delivery address before scheduling.
About Tuxedo Auto Equipment
Tuxedo Distributors supplies automotive lifts, wheel service equipment, and collision repair tools to professional shops across North America, including the iDEAL line of commercial lifts and frame racks.
Frequently Asked Questions
What does the TP11KC-DX lift?
It is rated at 11,000 pounds, with a maximum of 2,750 pounds per arm.
Is it a clear floor lift?
Yes. It uses an overhead equalizer, so the bay floor stays open between the columns.
What is the drive thru clearance?
Drive thru clearance is 104 inches between the columns.
What power does it require?
A 220V, 20 Amp, single-phase circuit.
How does it differ from the TP12KC-D?
Both are direct drive clear floor lifts with single-point lock release. The TP12KC-D steps up to 12,000 pounds, while the TP11KC-DX is rated at 11,000 pounds with a bi-symmetric arm design.
Talk to a Tuxedo specialist about power, slab, ceiling height, and freight before you order. View the full Tuxedo Auto Equipment range.
