Description
Overview

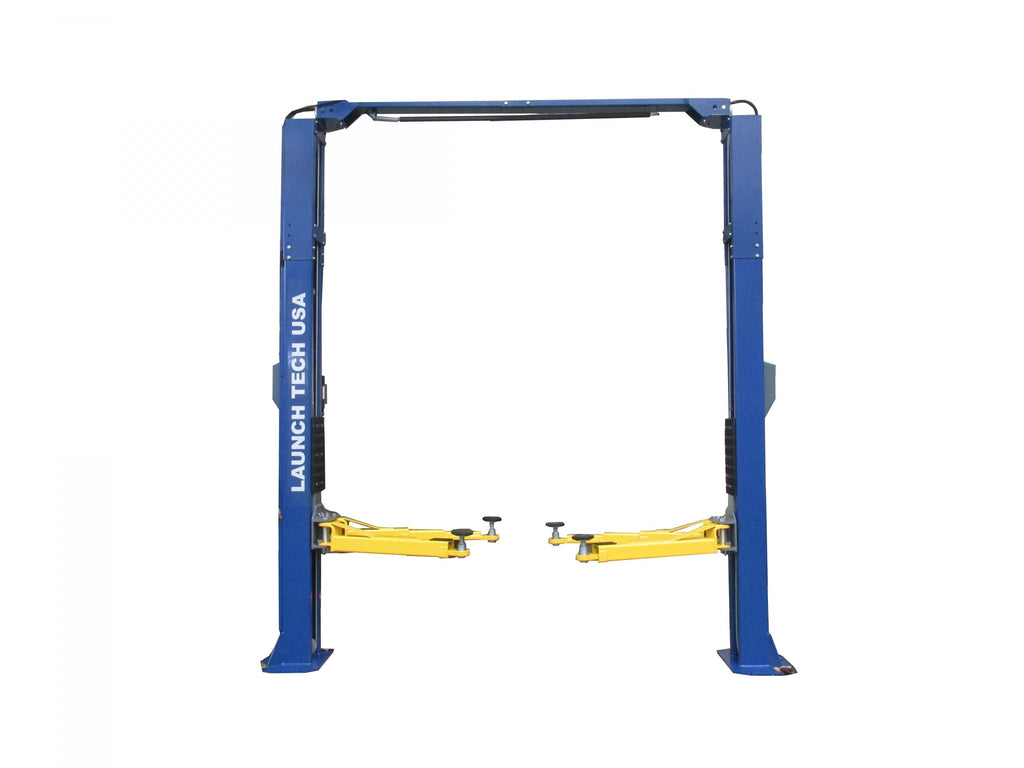

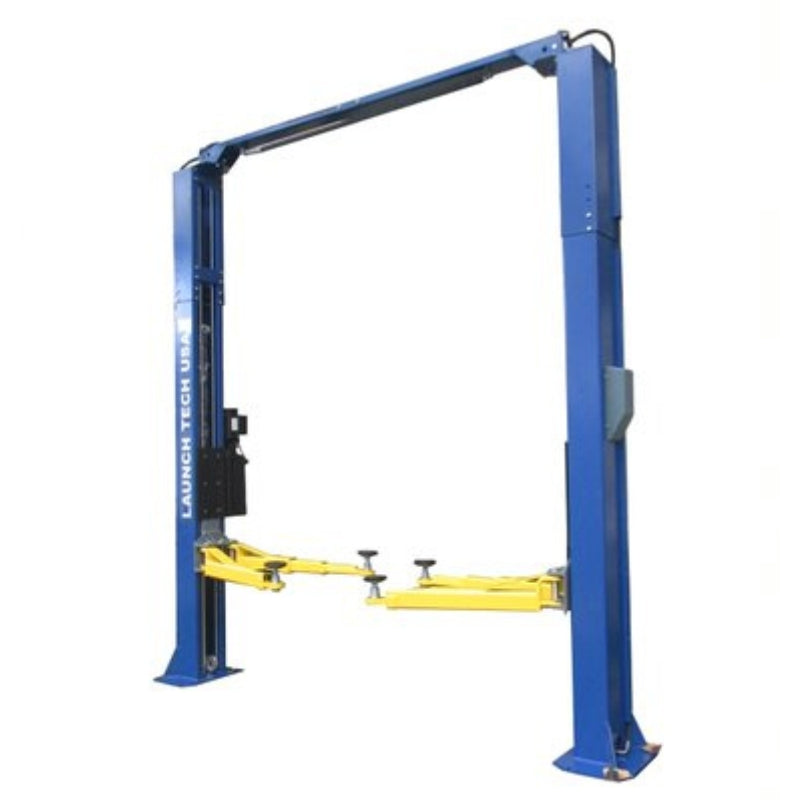

The Launch Tech USA TLT210-XT is an ALI certified, clear-floor two-post lift rated at 10,000 lbs, shown here in blue. It is built for general repair shops that need a reliable everyday bay lift with an open floor between the columns.
The clear-floor design routes the equalization line overhead, so there is no floor obstruction to trip over or drive across. Direct drive cylinders raise the load, a single-point lock release drops all locks together, and a heavy-duty arm restraint system keeps the arms set under load. Columns adjust for height and width and can run standard or rotated asymmetric, which lets the lift fit different bay layouts and vehicle types. Three-stage front arms reach low sports cars and longer wheelbases alike.
Key Features
- 10,000 lb capacity - ALI certified for cars, light trucks, and SUVs at 2,500 lbs max per arm.
- Clear-floor design - overhead equalization keeps the floor between columns open.
- Direct drive cylinders - drive the load directly for a smooth, even lift.
- Single-point lock release - releases all locks together for a controlled descent.
- Adjustable columns - height and width adjust, with standard or rotated asymmetric setup.
- Three-stage front arms - reach low and long vehicles, with double telescoping screw pads and stackable extensions.
Specifications
| Brand | Launch Tech USA (Tuxedo Distributors) |
|---|---|
| Type | Two-Post Clear-Floor Lift |
| Color | Blue |
| Capacity | 10,000 lbs |
| Configuration | Symmetric / Asymmetric |
| Certification | ALI / ETL Certified |
| Overall Height | 145-1/2" / 149" |
| Overall Width with Power Unit | Asymmetric 138", Symmetric 137" |
| Max Lift Height | 73" |
| Width Between Columns | 110" / 102" |
| Drive-Through Clearance | Asymmetric 88", Symmetric 98.4" |
| Min Pad Height | 4" |
| Max Load Per Arm | 2,500 lbs |
| Power | 208-230V, 60Hz, Single Phase |
| Ship Weight | 1,750 lbs |
How It Compares
| Model | Capacity | Configuration | Max Lift Height |
|---|---|---|---|
| TLT210-XT | 10,000 lbs | Symmetric / Asymmetric | 73" |
| TLT211-AS | 11,000 lbs | Asymmetric | 75-5/8" |
| TP10KAC-DX | 10,000 lbs | Bi-Symmetric | 71" |
Key Facts
- ALI and ETL certified at 10,000 lbs capacity, 2,500 lbs max per arm.
- Clear-floor design with overhead equalization keeps the bay floor open.
- Columns adjust for height and width and run standard or rotated asymmetric.
Who It's For
The TLT210-XT fits general repair shops, dealerships, and serious home garages that service cars, light trucks, and SUVs. It needs a 208-230V single-phase circuit and a slab and ceiling height that clear the overhead bar. Confirm slab thickness and ceiling height against the manufacturer install specs before ordering.
Shipping and Freight
This lift ships as freight (Oversize) at about 1,750 lbs. A forklift or loading dock is recommended for unloading. For residential or limited-access sites, request a liftgate and a freight quote, and inspect the crate before signing for it.
About Launch Tech USA
Launch Tech USA builds automotive lifts and diagnostic equipment for professional shops, distributed in this line through Tuxedo Distributors across North America.
Frequently Asked Questions
Is the TLT210-XT certified?
Yes. It is ALI and ETL certified at its 10,000 lb capacity, which many commercial shops require for their bay lifts.
Can it run symmetric and asymmetric?
Yes. The columns can run standard or rotated asymmetric, so you can set it up symmetric or asymmetric to suit the vehicles and bay you work in.
What power does it need?
It runs on 208-230V, 60Hz, single phase. Confirm the circuit is in place at the install location before delivery.
What slab and ceiling do I need?
It stands about 145-1/2" to 149" overall, so the ceiling must clear the overhead bar. Follow the manufacturer install manual for slab thickness and concrete requirements before anchoring.
How does it ship?
It ships as oversize freight at about 1,750 lbs. A forklift or dock is recommended; request a liftgate and a freight quote for limited-access delivery.
Need help confirming power, slab, and ceiling height for a two-post lift? Talk to a My Garage Direct specialist before you order.
