Description
Overview

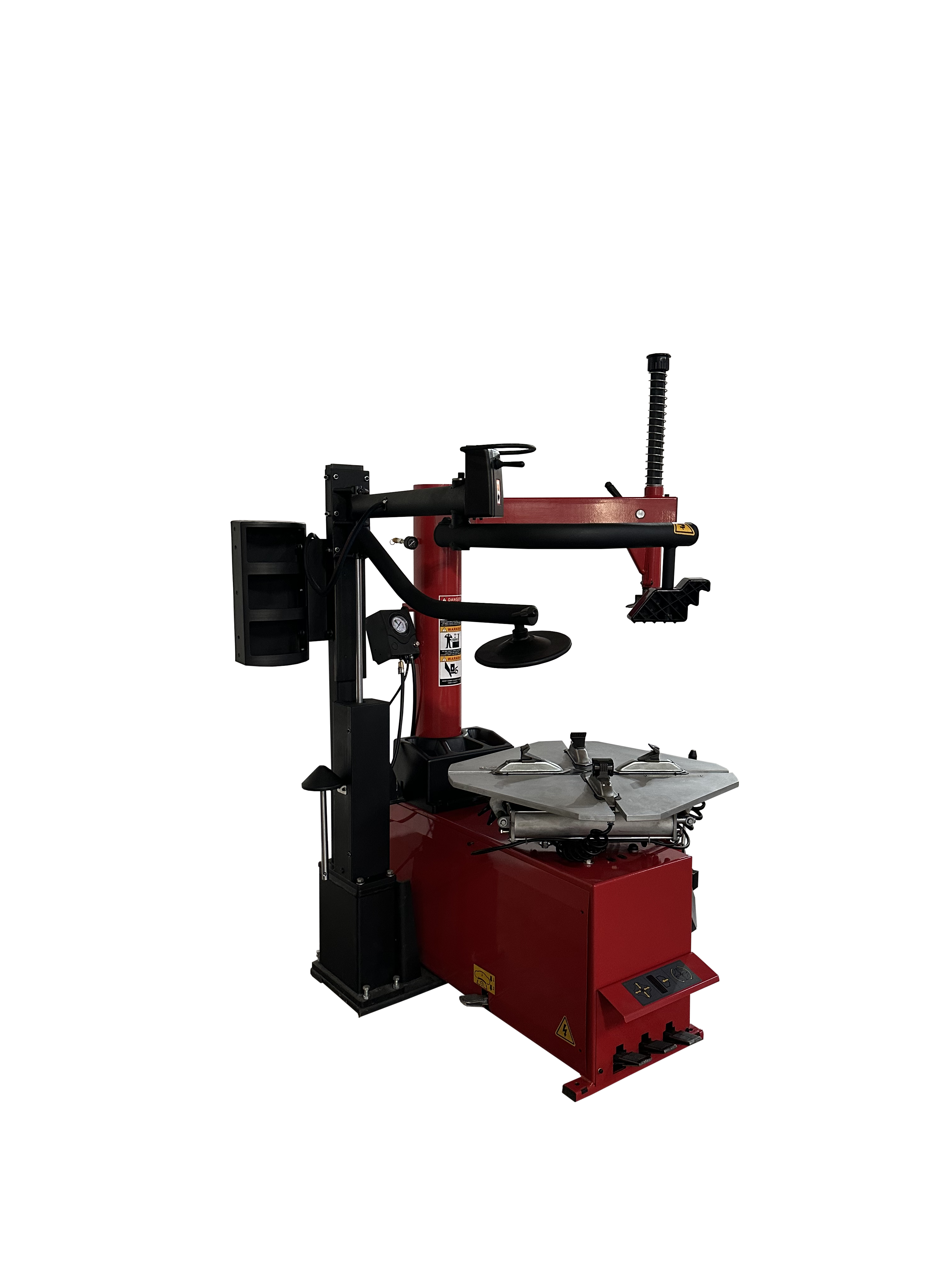

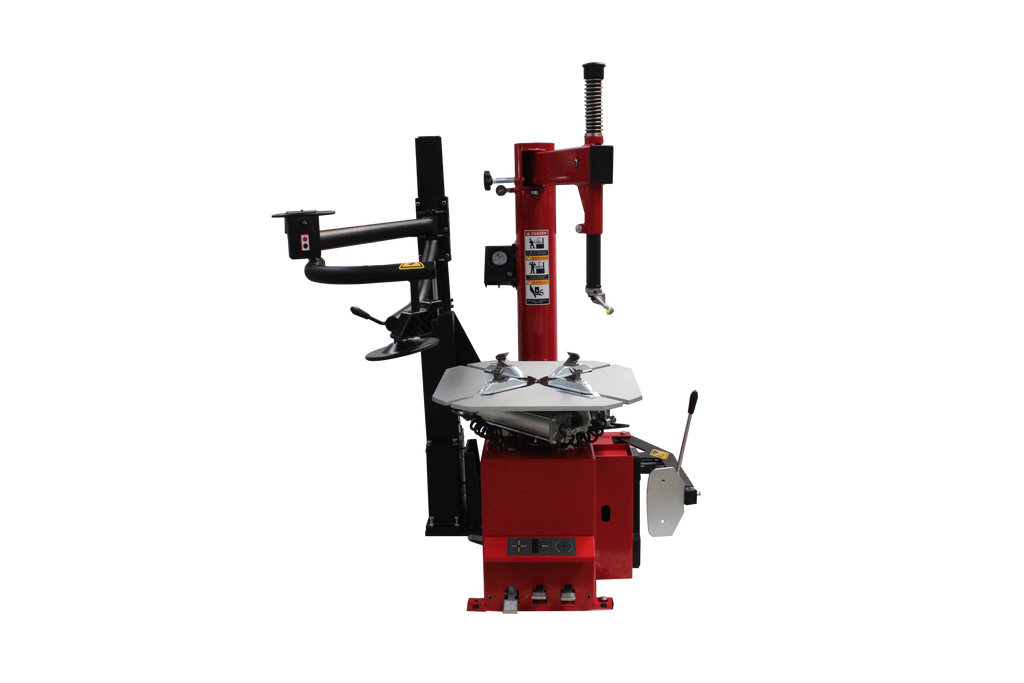

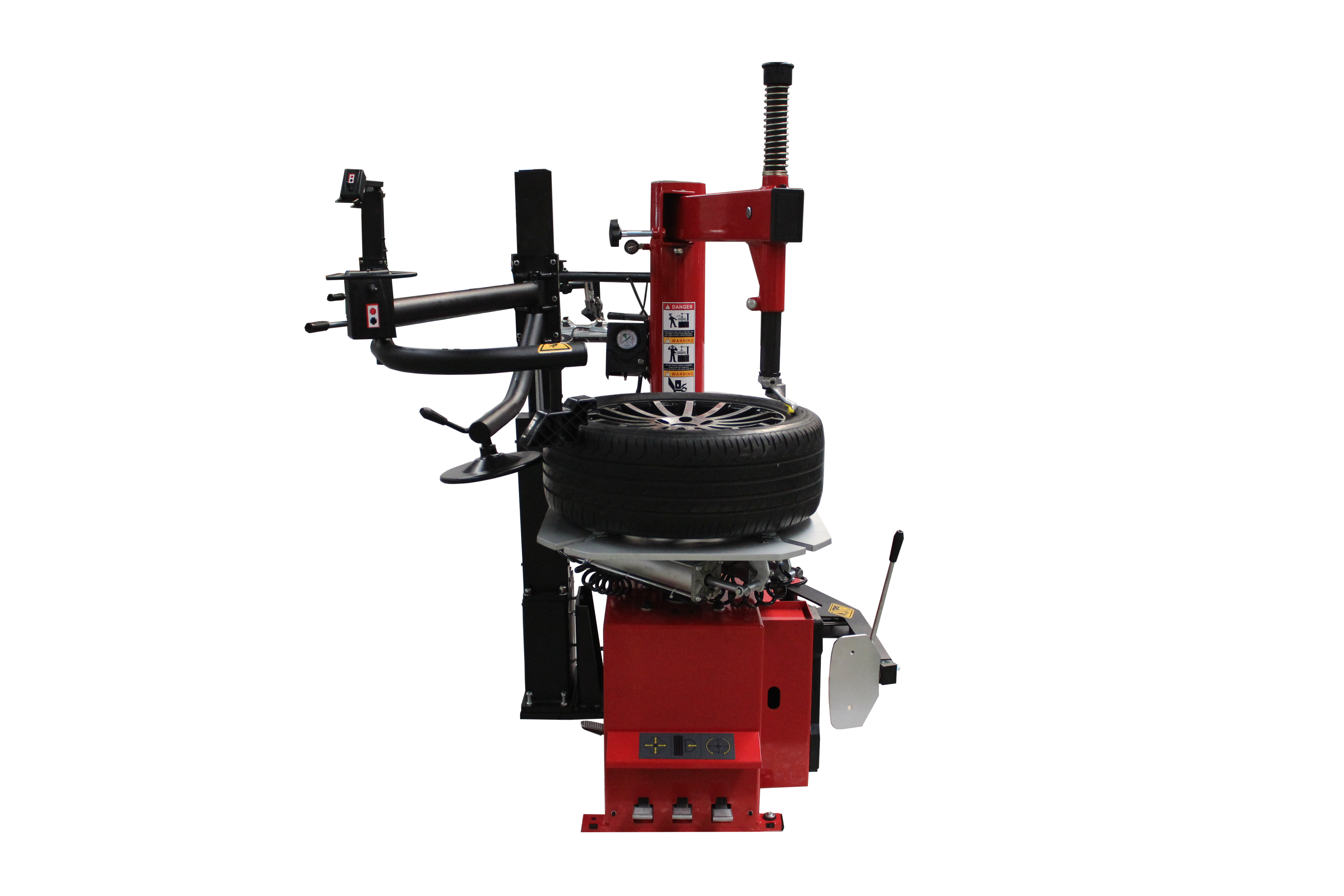

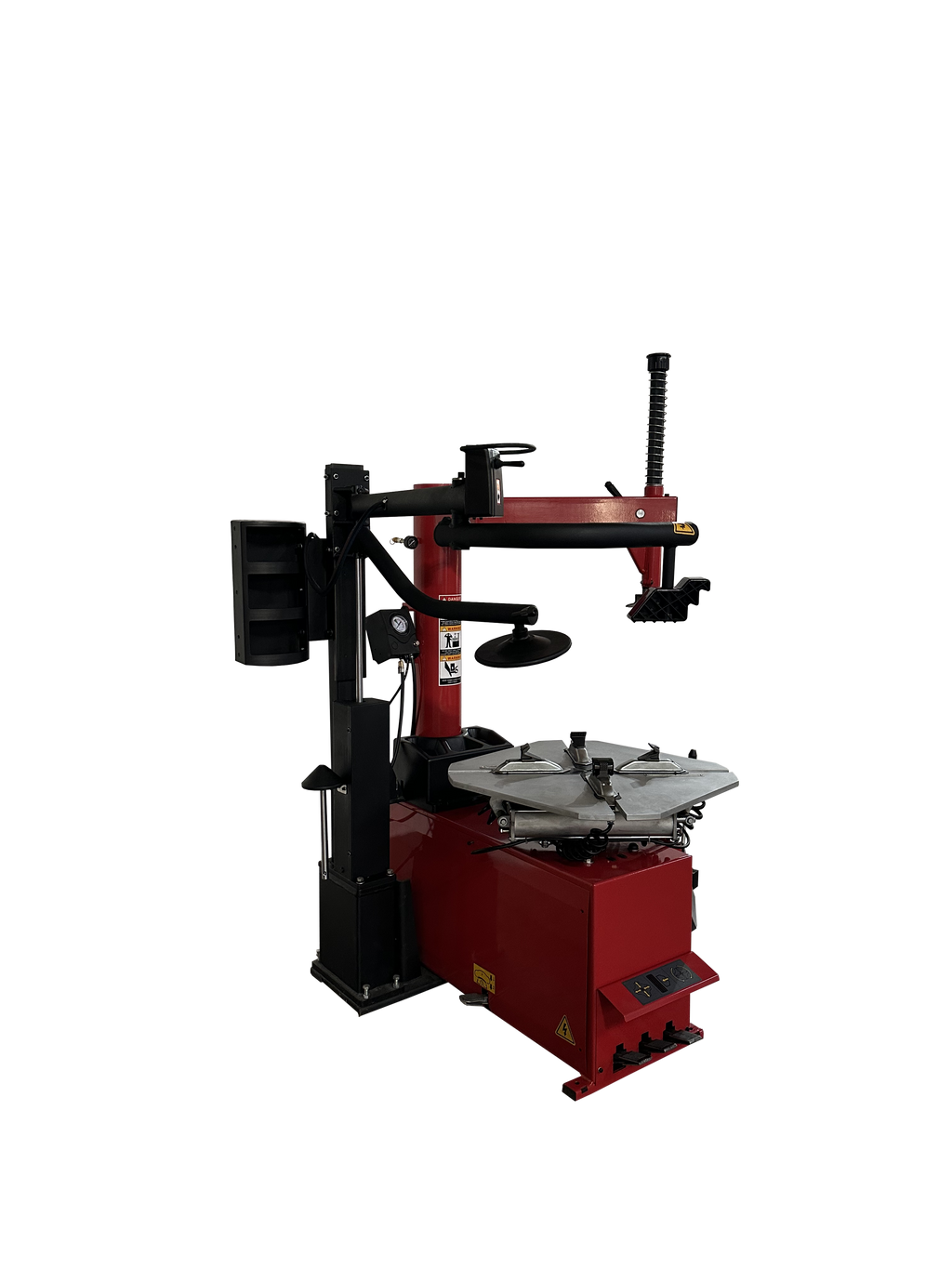

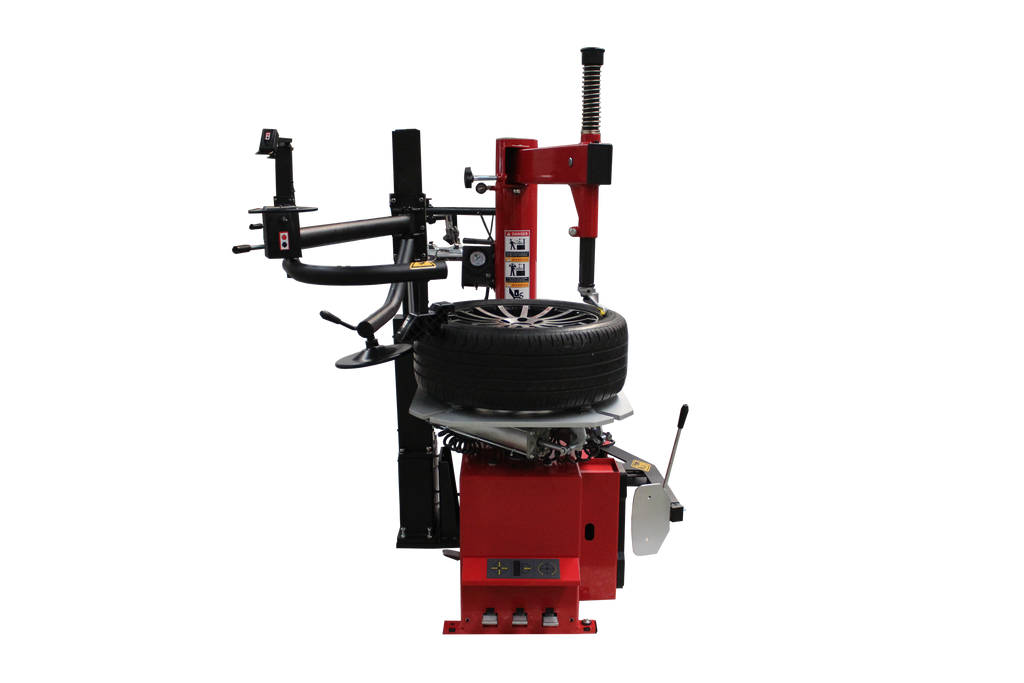

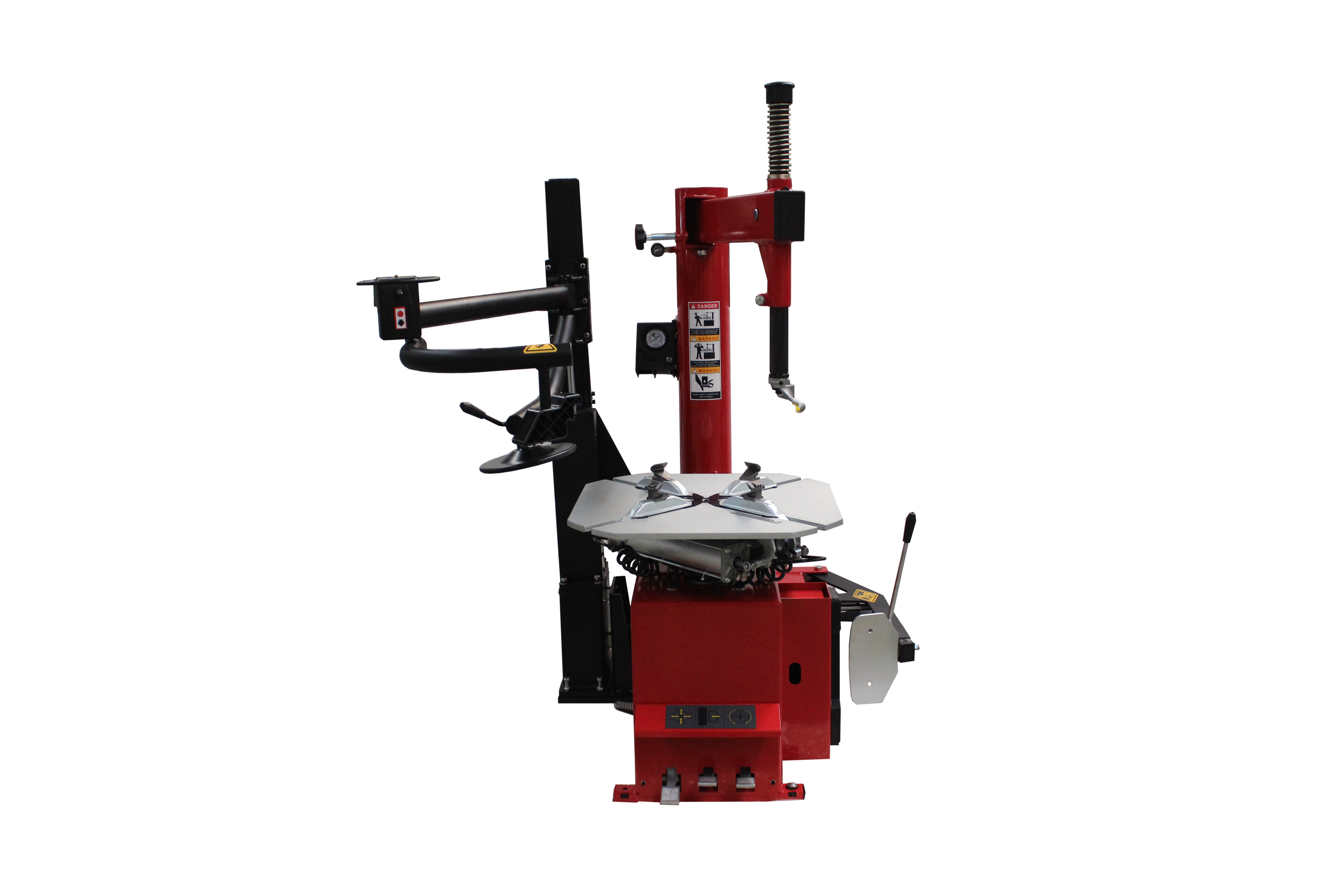

The Tuxedo TC-950-WPA is the TC-950 swing-arm tire changer fitted with a wheel press arm for low-profile tires. The press arm holds the bead down through the mount and demount, which makes stiff low-profile and run-flat tires manageable for a single technician.
The machine reaches wheels up to 47 inches in diameter and rim widths to 15 inches. Four pneumatic clamps on double-acting cylinders hold the rim, and a non-contact head keeps the machine off the rim surface to prevent scratching. Bead-seating inflation jets in the clamping jaws speed up safe inflation. A pressure regulator, oiler, and water separator come standard. This configuration ships in two boxes.
Key Features
- Integrated wheel press arm - holds the bead down so one technician can work low-profile and run-flat tires.
- 47 inch wheel capacity - handles larger-diameter wheels and rim widths to 15 inches.
- Four pneumatic clamps - double-acting cylinders hold the rim through the cycle.
- Non-contact head - the machine never touches the rim, removing a common source of wheel damage.
- Integrated bead-seating jets - inflation jets in the clamping jaws seat the bead quickly and safely.
- Conditioned air supply - pressure regulator, oiler, and water separator are standard.
Specifications
| Brand | Tuxedo Distributors |
|---|---|
| Type | Tire Changer with Press Arm |
| Tower Type | Swing arm |
| Max Wheel Diameter | 47" |
| Wheel Width | 3" to 15" |
| Inside Rim Clamp Range | 15" to 28" |
| Outside Rim Clamp Range | 13" to 24" |
| Working Pressure | 125 psi |
| Power | 110V, 15 Amp, Single Phase |
| Ship Weight | 880 lbs |
How It Compares
| Model | Press Arm | Max Wheel Diameter | Ship Weight |
|---|---|---|---|
| TC-950-WPA | Yes | 47" | 880 lbs |
| TC-950 | No | 47" | 640 lbs |
| TC-1300 | Assist arm | 41" | 975 lbs |
Key Facts
- The wheel press arm holds the bead down for low-profile and run-flat tires.
- Reaches wheels up to 47 inches in diameter with rim widths to 15 inches.
- The non-contact head removes the rim scratching common to bar-style mounting.
Who It's For
The TC-950-WPA fits tire shops and performance shops that change a high share of low-profile, run-flat, or stiff sidewall tires and want a one-person workflow on larger wheels. It needs a 110V, 15 amp circuit and shop air at 125 psi.
Shipping and Freight
This tire changer ships by freight (LTL) at about 880 lbs and arrives in two boxes. Plan for a forklift or a liftgate delivery, confirm both boxes are present, and inspect the crates before signing for them.
About Tuxedo
Tuxedo Distributors supplies tire changers, wheel balancers, and automotive lifts to professional shops across North America, with a wheel service line that scales from entry-level units up to truck-capable machines.
Frequently Asked Questions
What does the press arm do?
The wheel press arm holds the bead down during mount and demount, which lets one technician handle low-profile, run-flat, and stiff sidewall tires that would otherwise need a second person.
Is this the same base machine as the TC-950?
Yes. It is the TC-950 with the wheel press arm added, so it shares the 47 inch max wheel diameter, 15 to 28 inch inside clamp range, and non-contact head.
Does it ship in more than one box?
Yes. This configuration ships in two boxes. Confirm both are present at delivery before signing for the shipment.
What power and air does it need?
It runs on 110V, 15 amp single phase and needs shop air at 125 psi working pressure.
How does it ship?
It ships by LTL freight at roughly 880 lbs in two boxes. A forklift or liftgate makes unloading easier.
Not sure whether you need the press arm? Talk to a My Garage Direct specialist about your tire mix before you order.
