Description
Overview

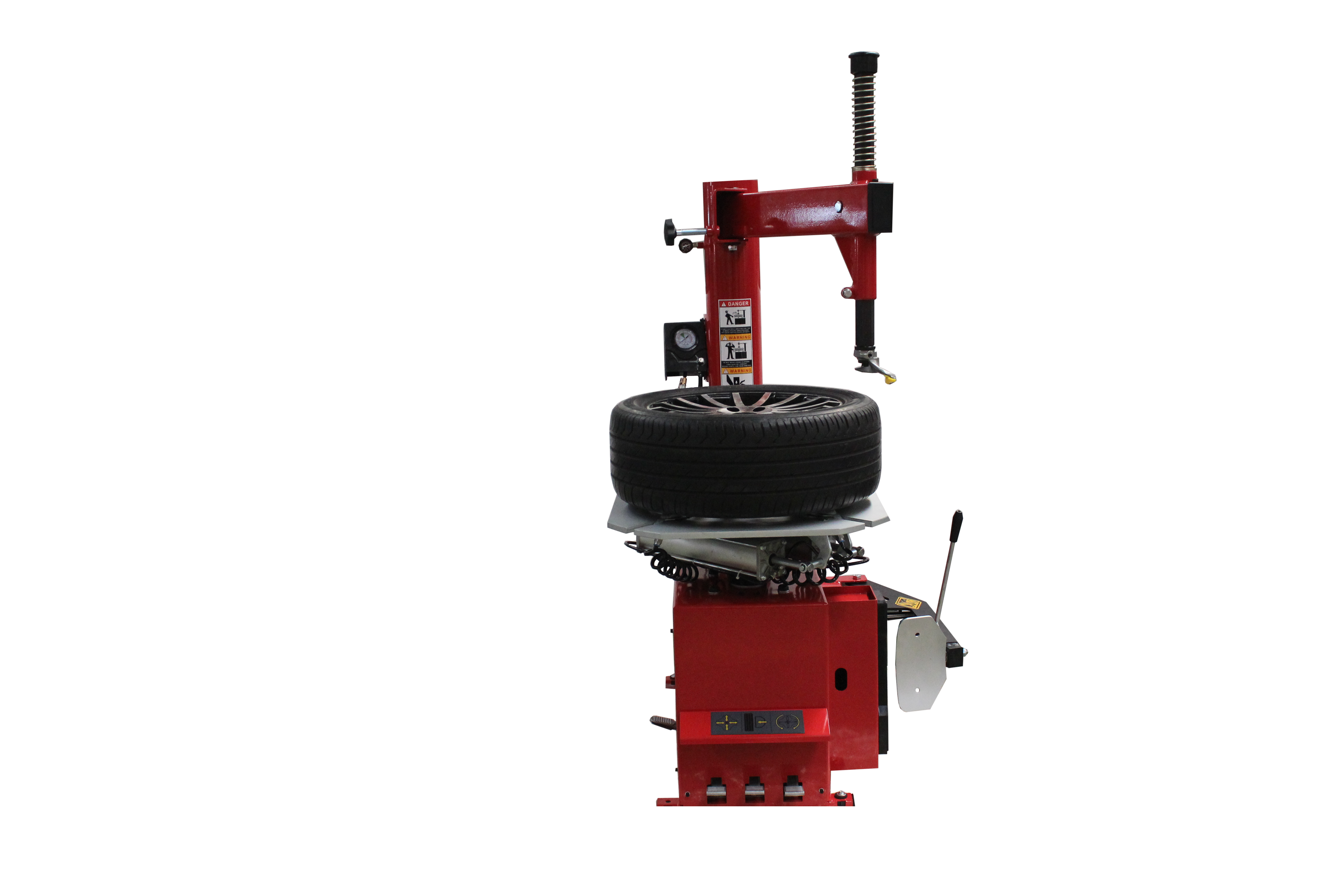

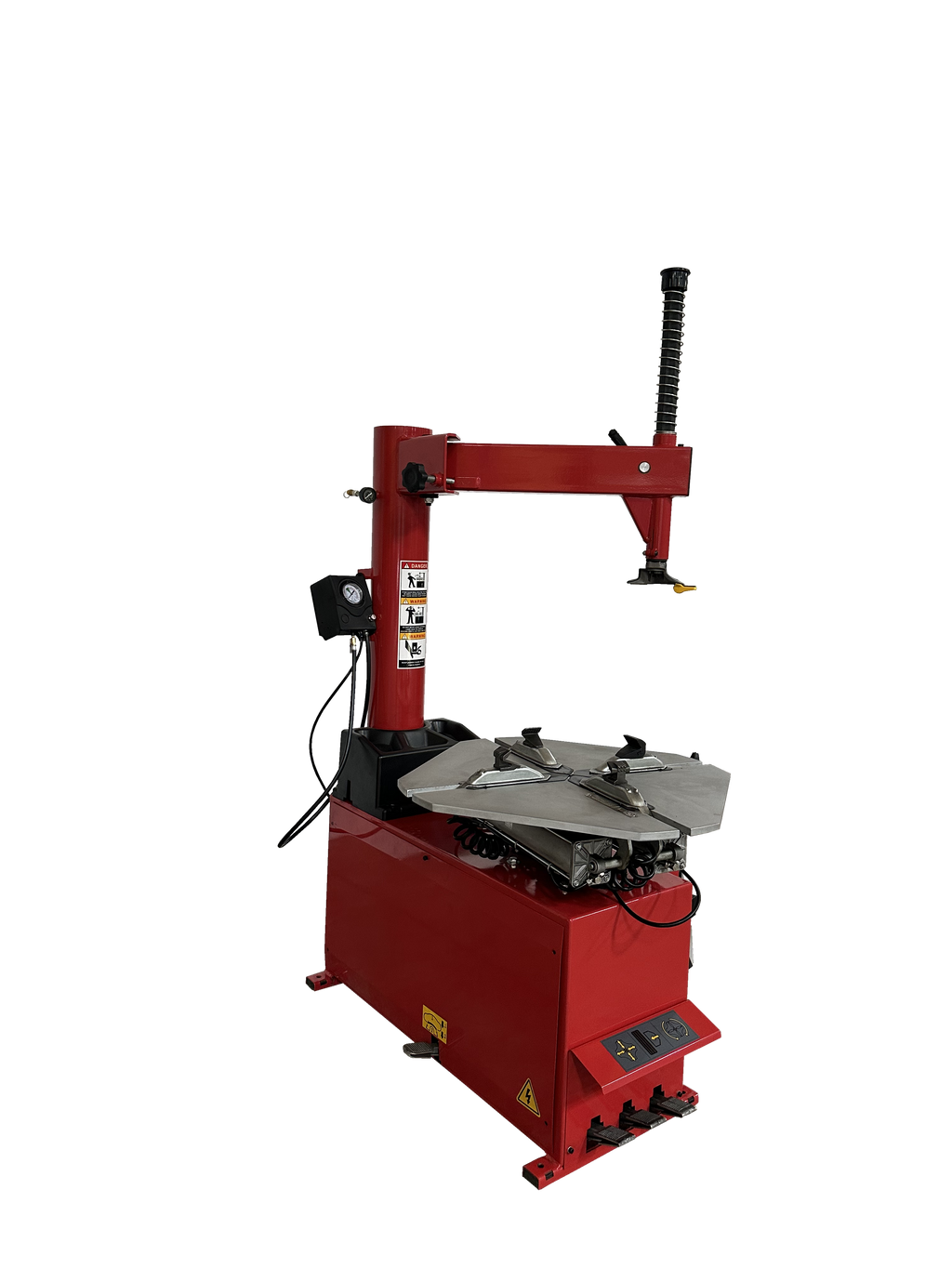

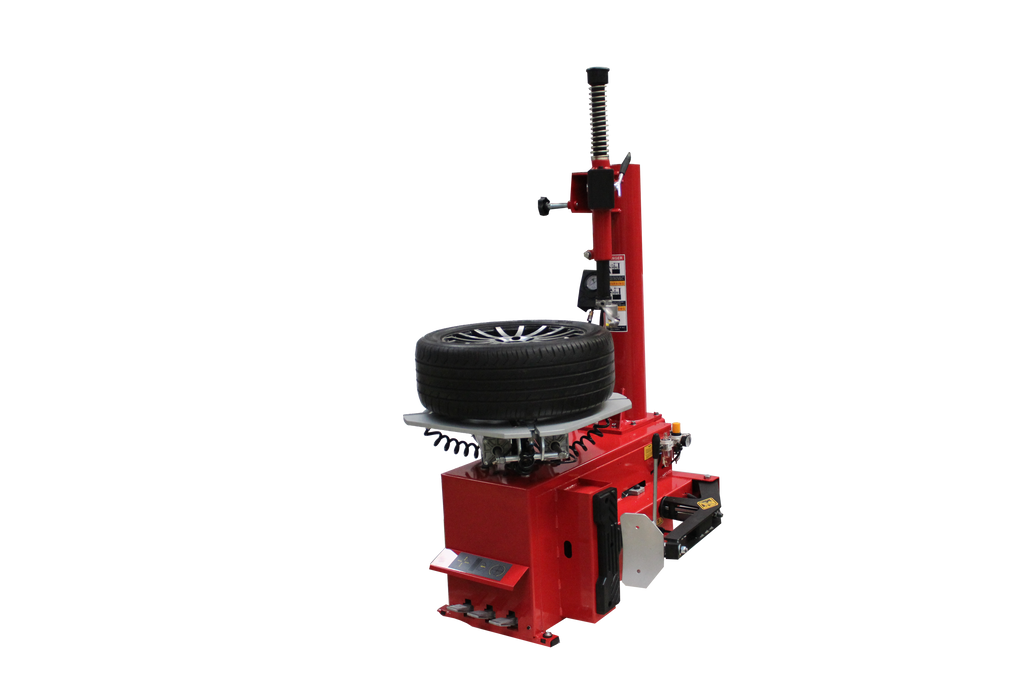

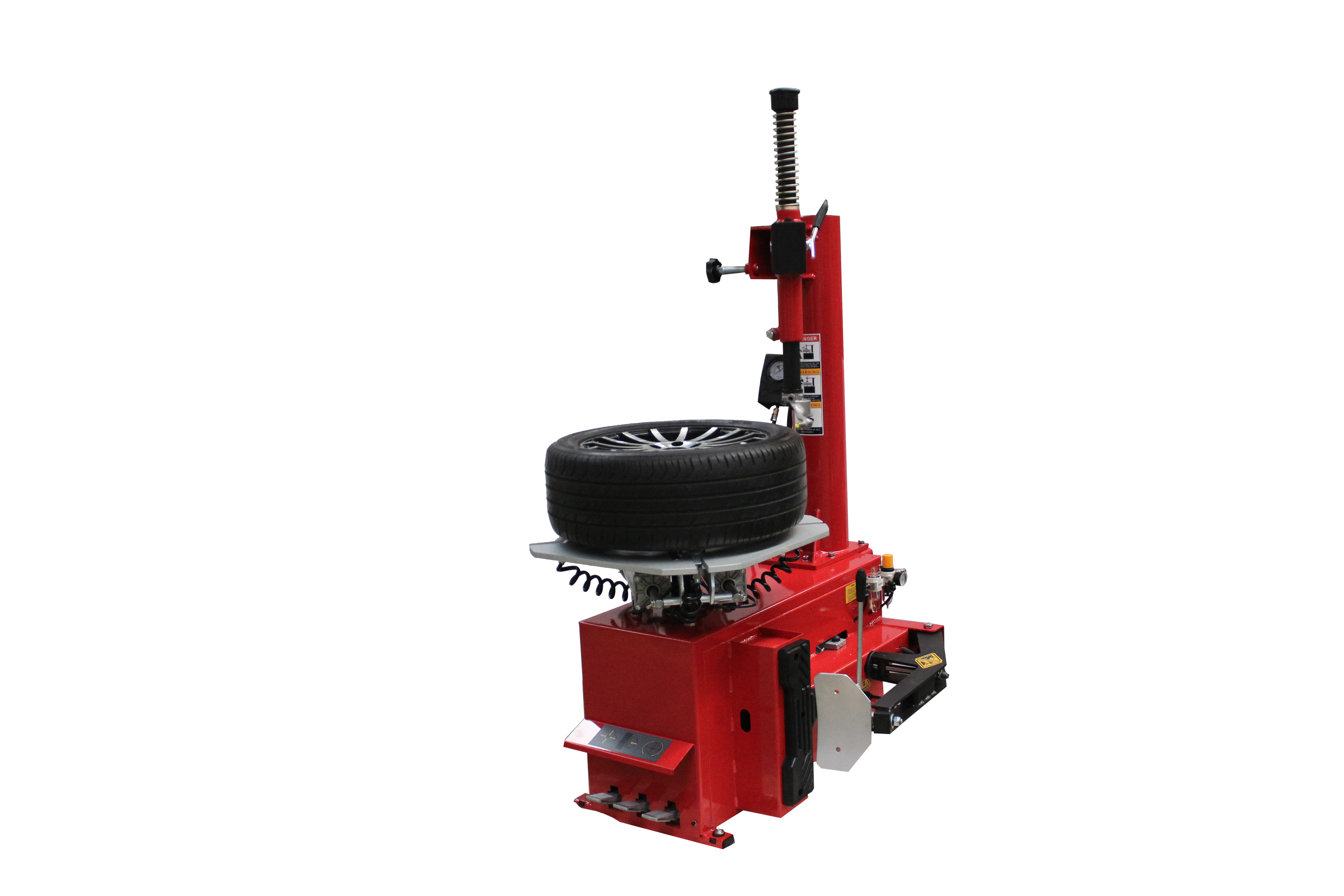

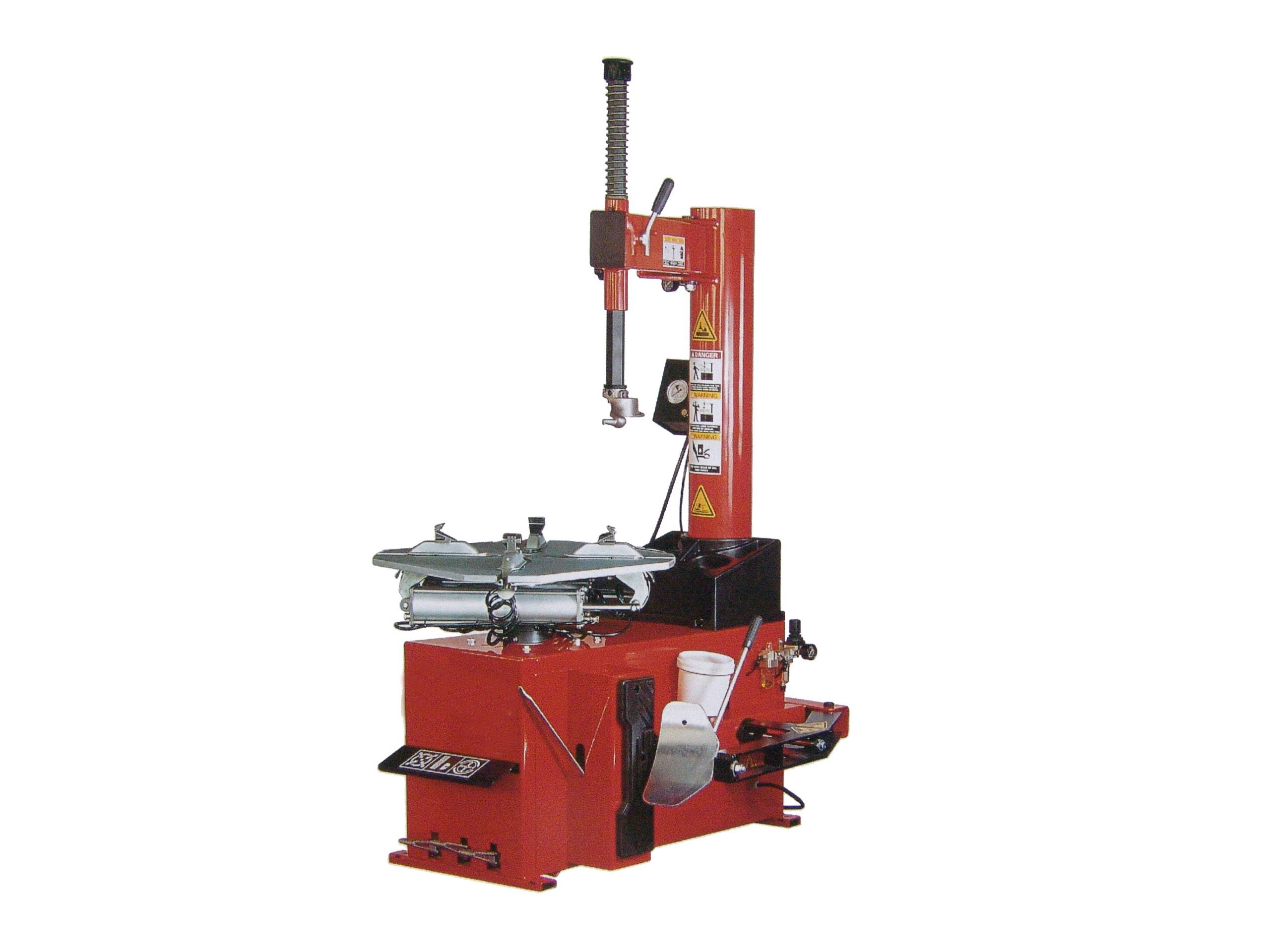

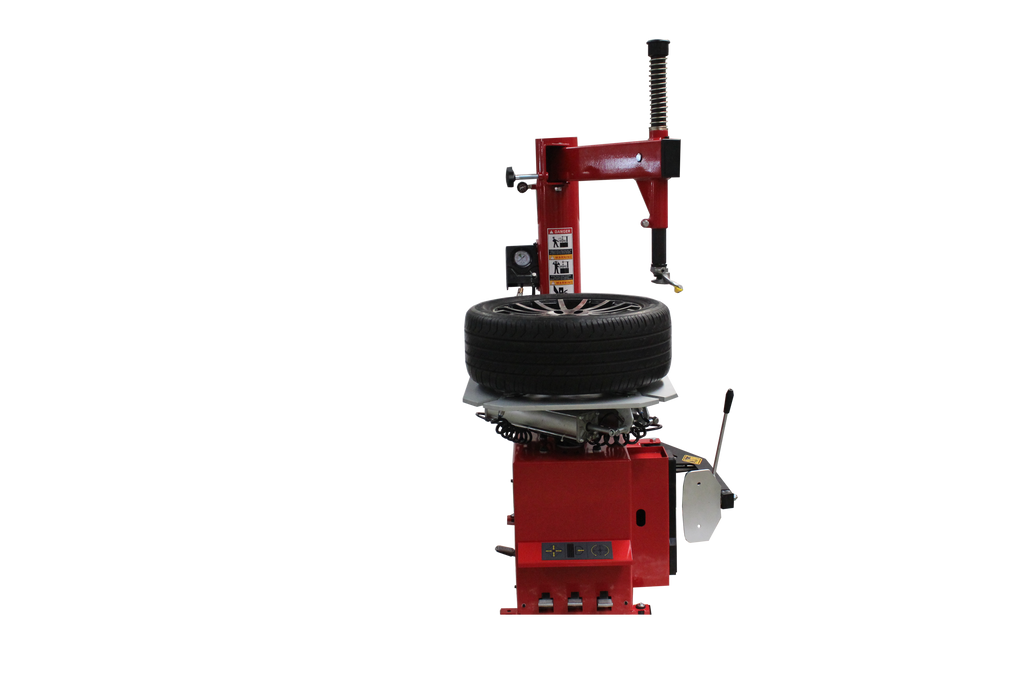

The Tuxedo TC-950 is a swing-arm tire changer sized for shops that handle larger-diameter and wider wheels alongside standard passenger work. It reaches wheels up to 47 inches in diameter and rim widths to 15 inches, with a non-contact head that protects the rim through every cycle.
Twin clamping cylinders give the extra force needed to hold difficult rims, and bead-seating inflation jets built into the clamping jaws make inflation quick and safe. The mount and demount head never contacts the rim, which removes a common source of accidental damage, and a large-diameter hex shaft keeps the tool rigid. A pressure limiter, water separator, and oiler come standard.
Key Features
- 47 inch wheel capacity - handles larger-diameter wheels and rim widths to 15 inches.

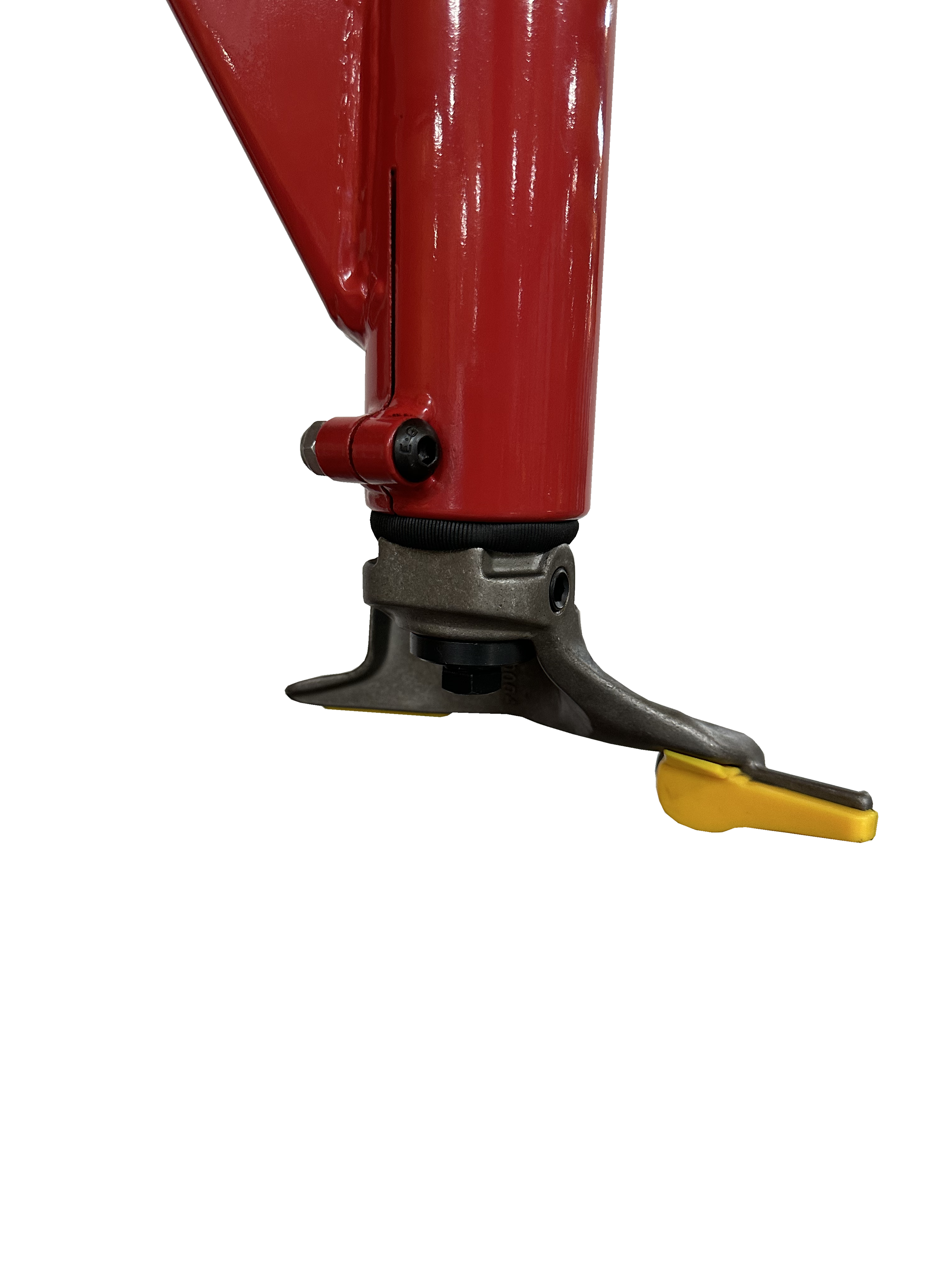

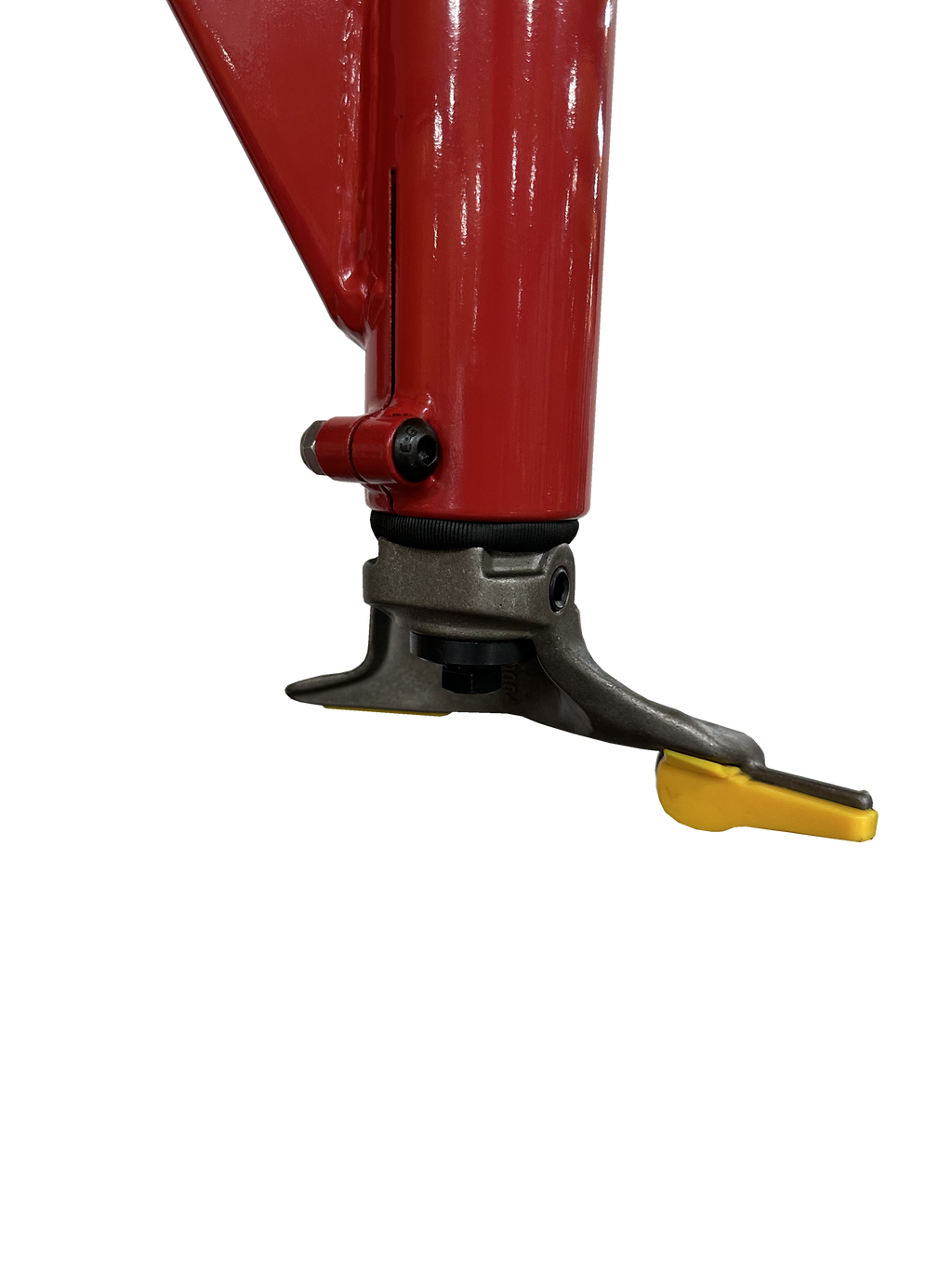

- Non-contact head - the machine never touches the rim, removing a common source of wheel damage.

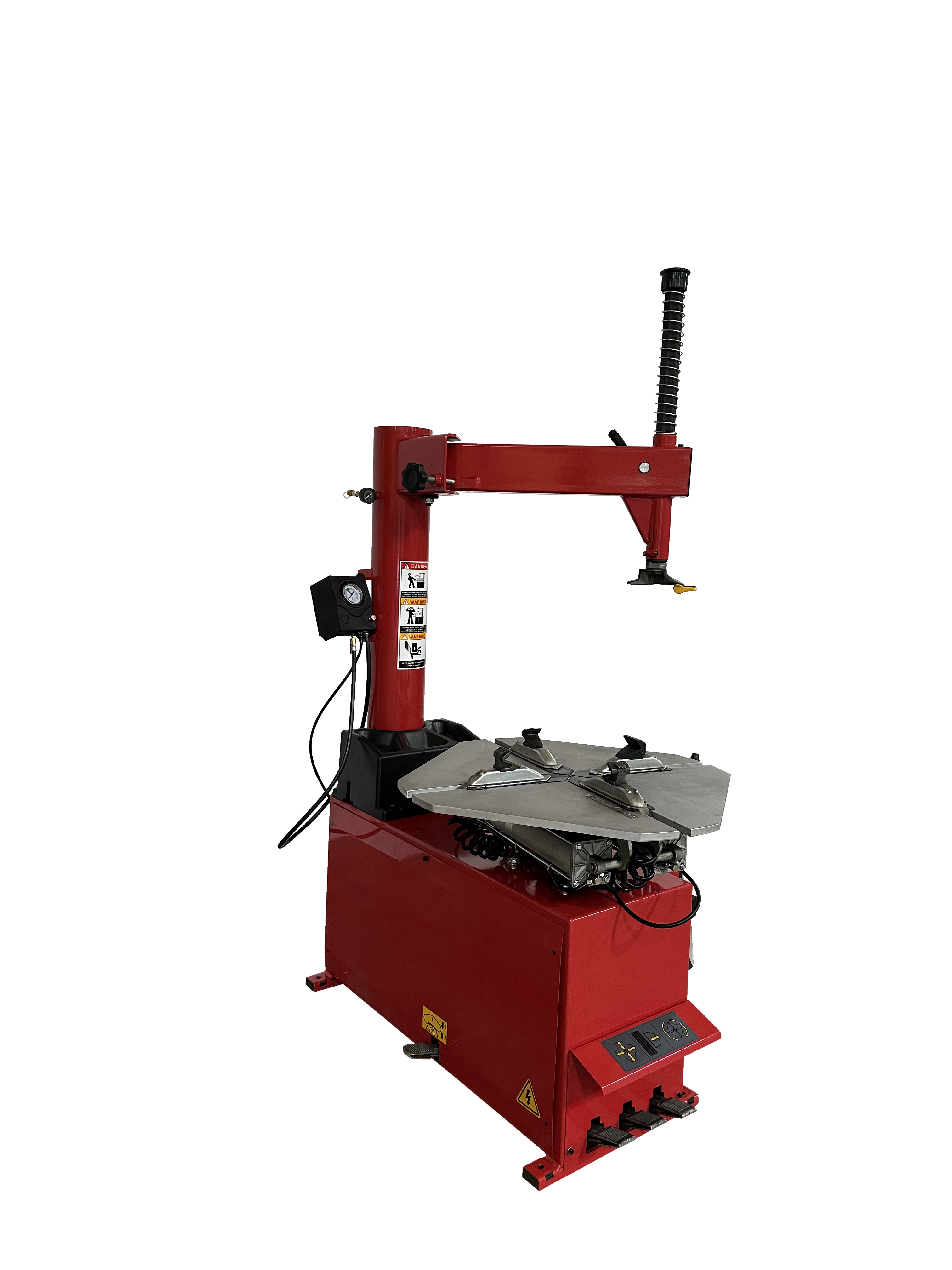

- Twin clamping cylinders - extra force holds the most difficult rims.
- Integrated bead-seating jets - inflation jets in the clamping jaws seat the bead quickly and safely.
- Large hex mount/demount shaft - added rigidity for consistent tool position.

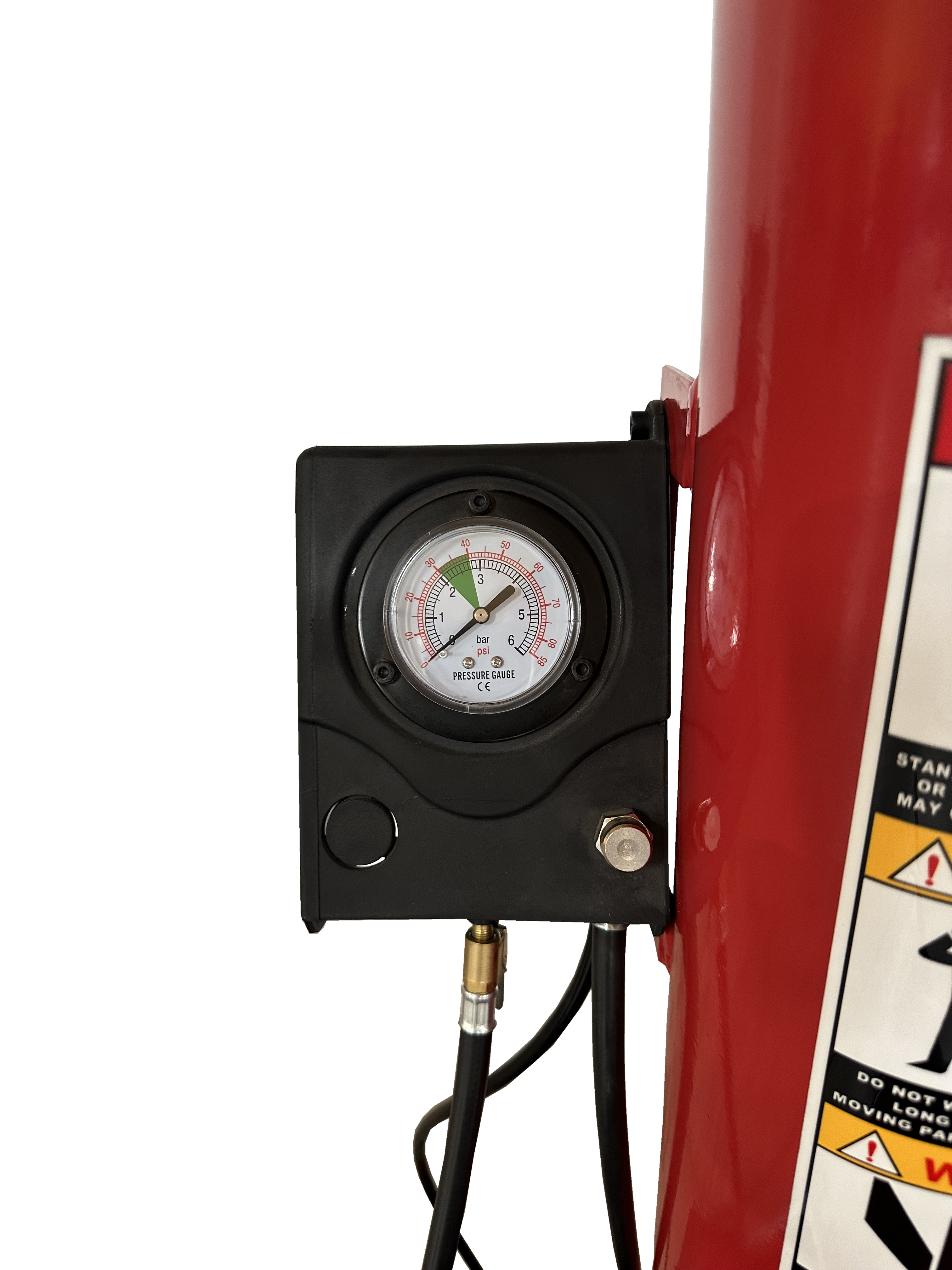

- Conditioned air supply - pressure limiter, water separator, and oiler are standard.
Specifications
| Brand | Tuxedo Distributors |
|---|---|
| Type | Tire Changer |
| Tower Type | Swing arm |
| Max Wheel Diameter | 47" |
| Wheel Width | 3" to 15" |
| Inside Rim Clamp Range | 15" to 28" |
| Outside Rim Clamp Range | 13" to 24" |
| Working Pressure | 125 psi |
| Power | 110V, 15 Amp, Single Phase |
| Ship Weight | 640 lbs |
How It Compares
| Model | Max Wheel Diameter | Press Arm | Ship Weight |
|---|---|---|---|
| TC-950 | 47" | No | 640 lbs |
| TC-950-WPA | 47" | Yes | 880 lbs |
| TC-530 | 38" | No | 560 lbs |
Key Facts
- Reaches wheels up to 47 inches in diameter with rim widths to 15 inches.
- Inside clamp range of 15 to 28 inches and outside range of 13 to 24 inches.
- The non-contact head removes the rim scratching common to bar-style mounting.
Who It's For
The TC-950 fits tire shops and general repair shops that service larger wheels, light trucks, and SUVs and want rim protection with strong clamping force. It needs a 110V, 15 amp circuit and shop air at 125 psi.
Shipping and Freight
This tire changer ships by freight (LTL) at about 640 lbs on a pallet. Plan for a forklift or a liftgate delivery, and inspect the crate before signing for it.
About Tuxedo
Tuxedo Distributors supplies tire changers, wheel balancers, and automotive lifts to professional shops across North America, with a wheel service line that scales from entry-level units up to truck-capable machines.
Frequently Asked Questions
What size wheels does the TC-950 handle?
It handles wheels up to 47 inches in diameter and rim widths from 3 to 15 inches, with a 15 to 28 inch inside clamp range and a 13 to 24 inch outside range.
Should I get the TC-950 or the TC-950-WPA?
The TC-950-WPA adds a press arm that holds the bead down on low-profile tires. If you change a high share of low-profile or run-flat tires, the press arm version saves effort. Otherwise the TC-950 covers most work.
Will it scratch finished wheels?
The mount and demount head is designed so the machine never contacts the rim, which removes a common source of accidental wheel damage.
What power and air does it need?
It runs on 110V, 15 amp single phase and needs shop air at 125 psi working pressure.
How does it ship?
It ships by LTL freight at roughly 640 lbs on a pallet. A forklift or liftgate makes unloading easier.
