Description
Overview
The Tuxedo TC-770-T is a heavy-duty truck tire changer for shops that service truck, tractor, and earth-mover wheels. A four-jaw rotating chuck with two speeds and a pressure-regulated hydraulic pump deliver the torque and grip that large commercial rims demand.
The four-jaw chuck centers and holds the rim while the two-speed drive matches the job, fast for setup and slow for the bead work. A quick-change mount and demount arm swaps tooling for different wheel types, and the control unit sits on a movable stand so the operator can position controls around the work. The TC-770-T handles wheels up to 64.5 inches in diameter and 31.5 inches wide, with an inside clamp range of 14 to 26 inches.
Key Features
- Four-jaw rotating chuck - centers and grips large commercial rims securely.
- Two-speed drive - fast speed for setup and slow speed for controlled bead work.

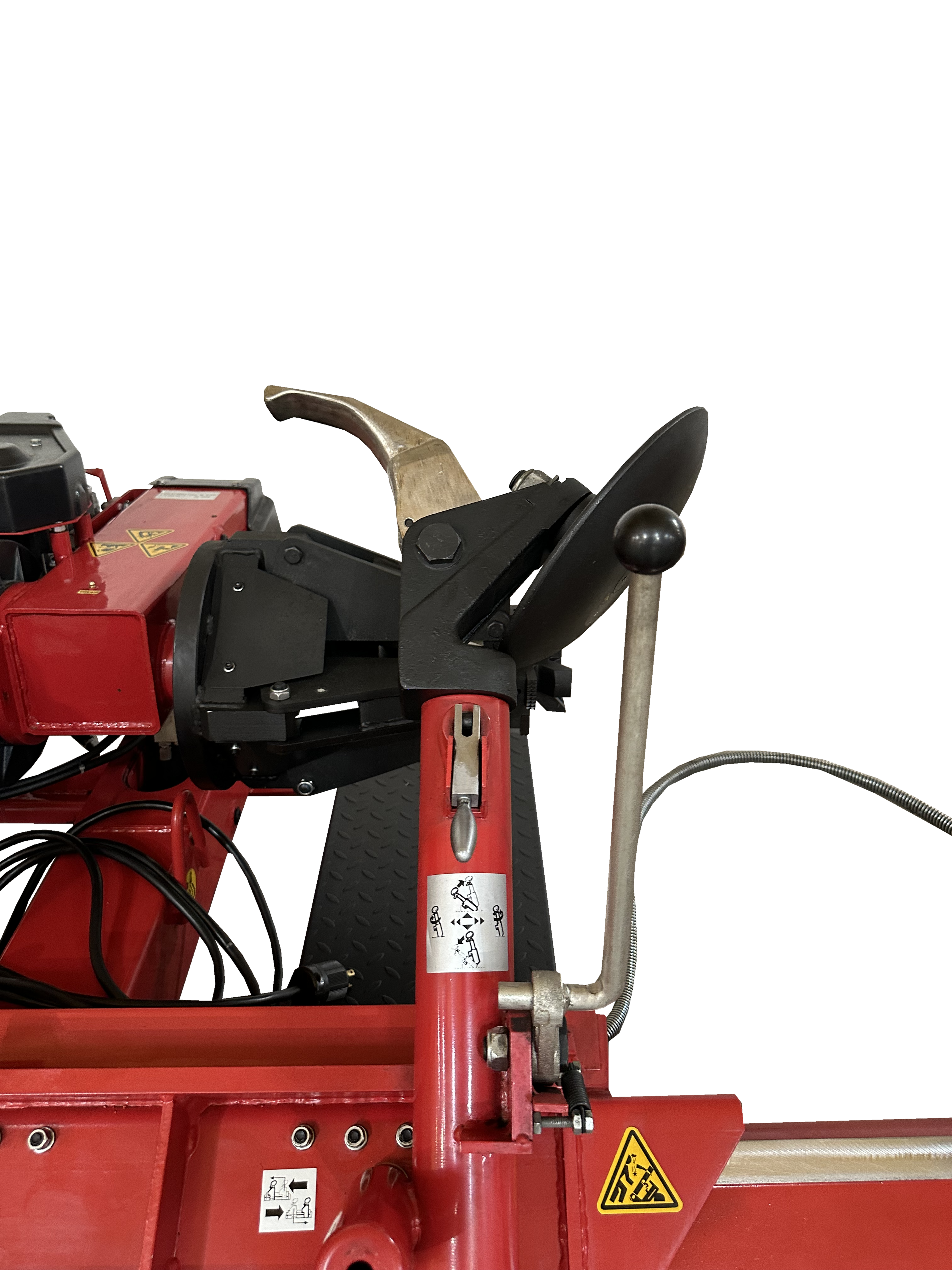

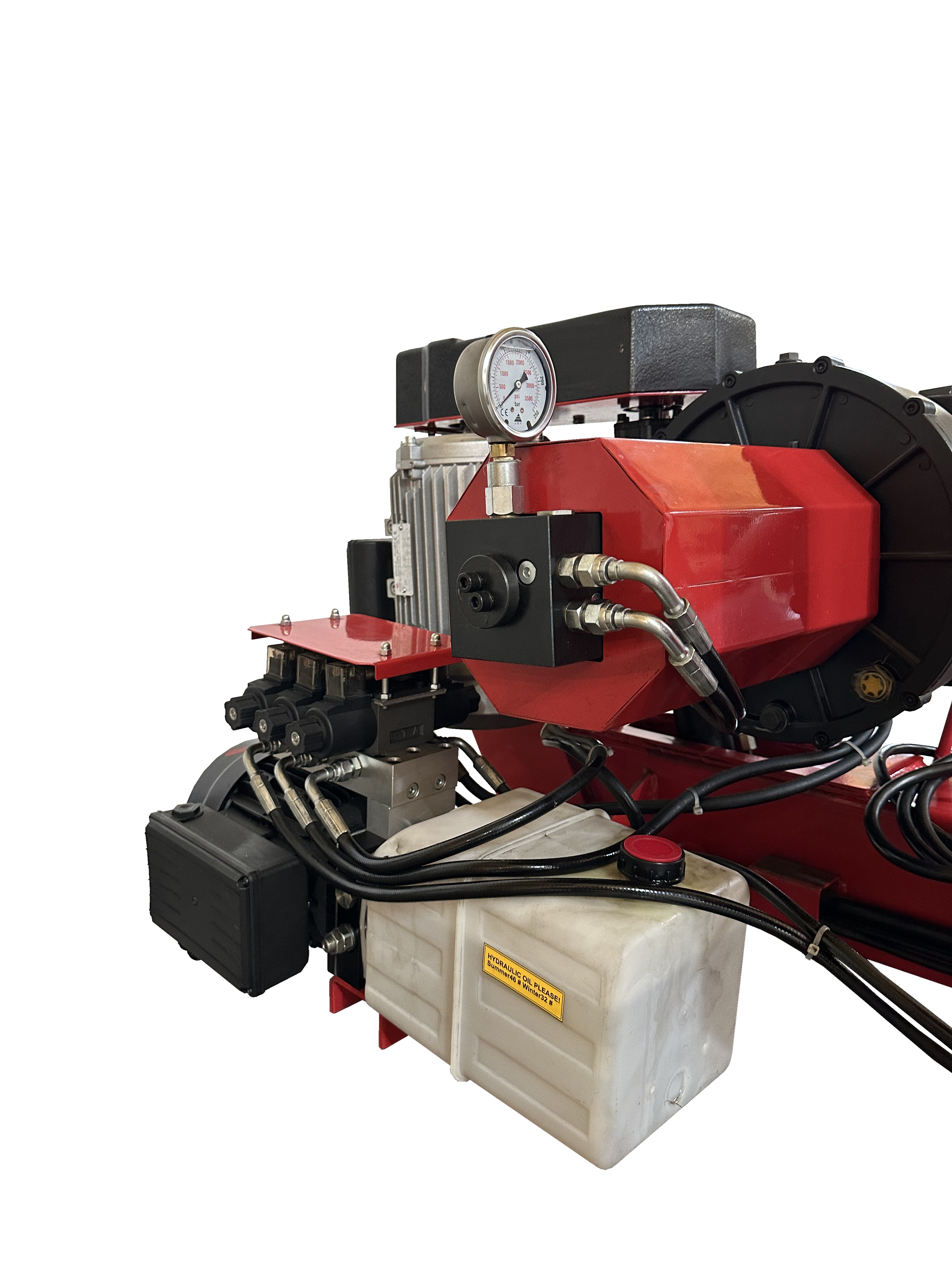

- Pressure-regulated hydraulic pump - delivers the force needed for truck and tractor tires.

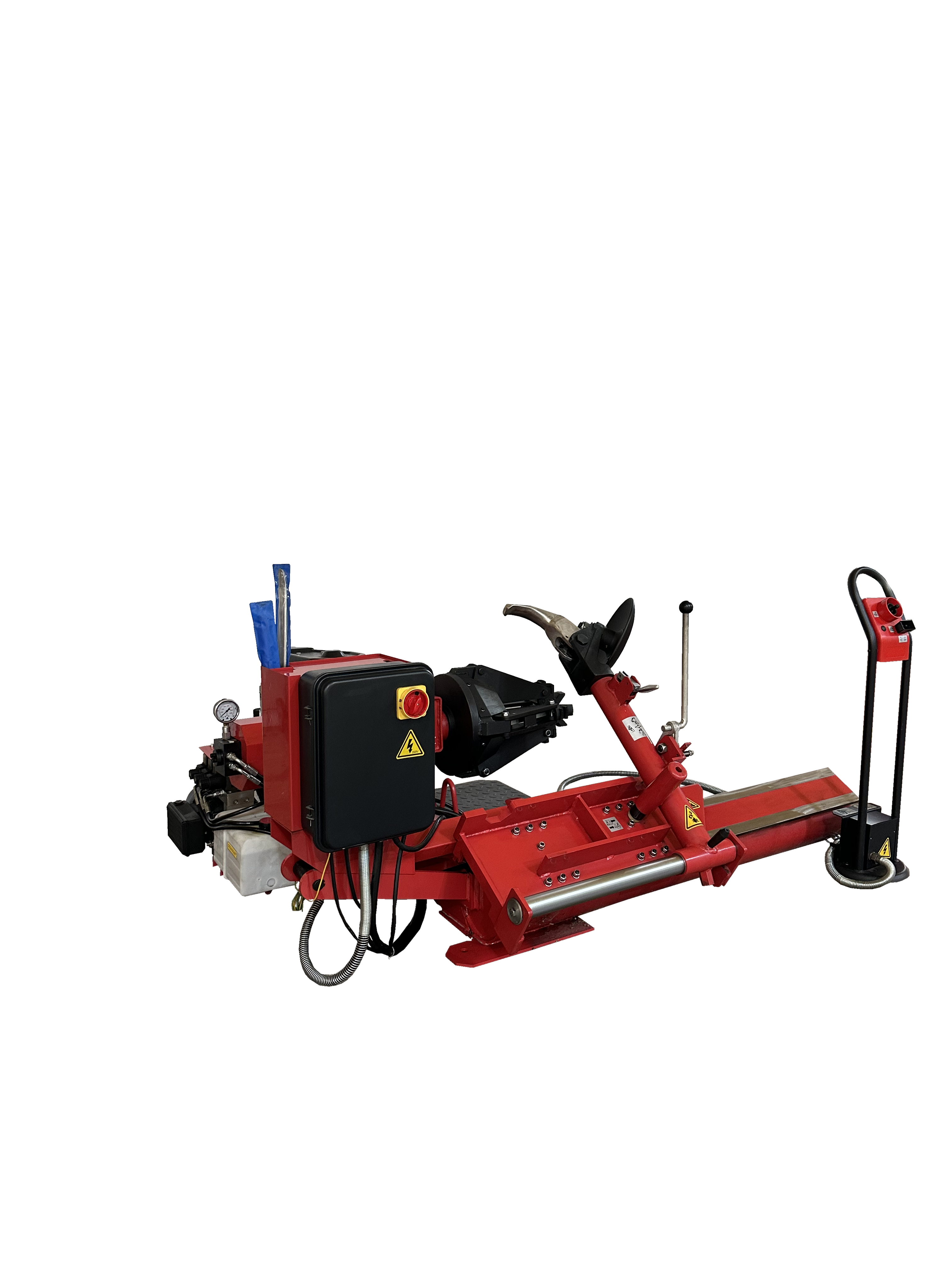

- Quick-change mount/demount arm - swaps tooling for different wheel types.
- Movable control stand - position the controls where the work is.
- 64.5 inch wheel capacity - handles wheels to 64.5 inches in diameter and 31.5 inches wide.
Specifications
| Brand | Tuxedo Distributors |
|---|---|
| Type | Truck Tire Changer |
| Chuck | Four-jaw rotating, two speeds |
| Max Wheel Diameter | 64.5" |
| Wheel Width | 31.5" |
| Inside Rim Clamp Range | 14" to 26" |
| Power | 220V, 20 Amp, Single Phase |
| Ship Weight | 1,690 lbs |
How It Compares
| Model | Type | Max Wheel Diameter | Power |
|---|---|---|---|
| TC-770-T | Truck / tractor / earth-mover | 64.5" | 220V 1PH |
| TC-950 | Passenger / light truck | 47" | 110V 1PH |
| TC-530 | Passenger / light truck | 38" | 110V 1PH |
Key Facts
- Handles wheels up to 64.5 inches in diameter and 31.5 inches wide.
- Four-jaw rotating chuck with two speeds and a pressure-regulated hydraulic pump.
- Runs on a 220V, 20 amp single-phase circuit.
Who It's For
The TC-770-T fits truck and fleet shops, agricultural shops, and heavy equipment operations that service large commercial wheels. It needs a 220V, 20 amp single-phase circuit and enough floor space and clearance to rotate large wheels safely.
Shipping and Freight
This truck tire changer ships as freight (Oversize) at about 1,690 lbs. A forklift or loading dock is recommended for unloading. For residential or limited-access sites, request a liftgate and a freight quote, and inspect the crate before signing for it.
About Tuxedo
Tuxedo Distributors supplies tire changers, wheel balancers, and automotive lifts to professional shops across North America, with wheel service equipment that scales from passenger-car machines up to heavy truck changers.
Frequently Asked Questions
What wheels can the TC-770-T service?
It is built for most truck, tractor, and earth-mover wheels, handling diameters up to 64.5 inches and widths up to 31.5 inches with an inside clamp range of 14 to 26 inches.
How does it grip large rims?
It uses a four-jaw rotating chuck that centers and holds the rim, with a two-speed drive and a pressure-regulated hydraulic pump for controlled torque.
What power does it require?
It runs on 220V, 20 amp, single phase. Confirm the circuit is in place at the install location before delivery.
Can I change tooling for different wheels?
Yes. The quick-change mount and demount arm lets you swap tooling to match different wheel types.
How does it ship?
It ships as oversize freight at about 1,690 lbs. A forklift or dock is recommended; request a liftgate and a freight quote for limited-access delivery.
Need help confirming power and floor space for a truck changer? Talk to a My Garage Direct specialist before you order.
