Description
Overview

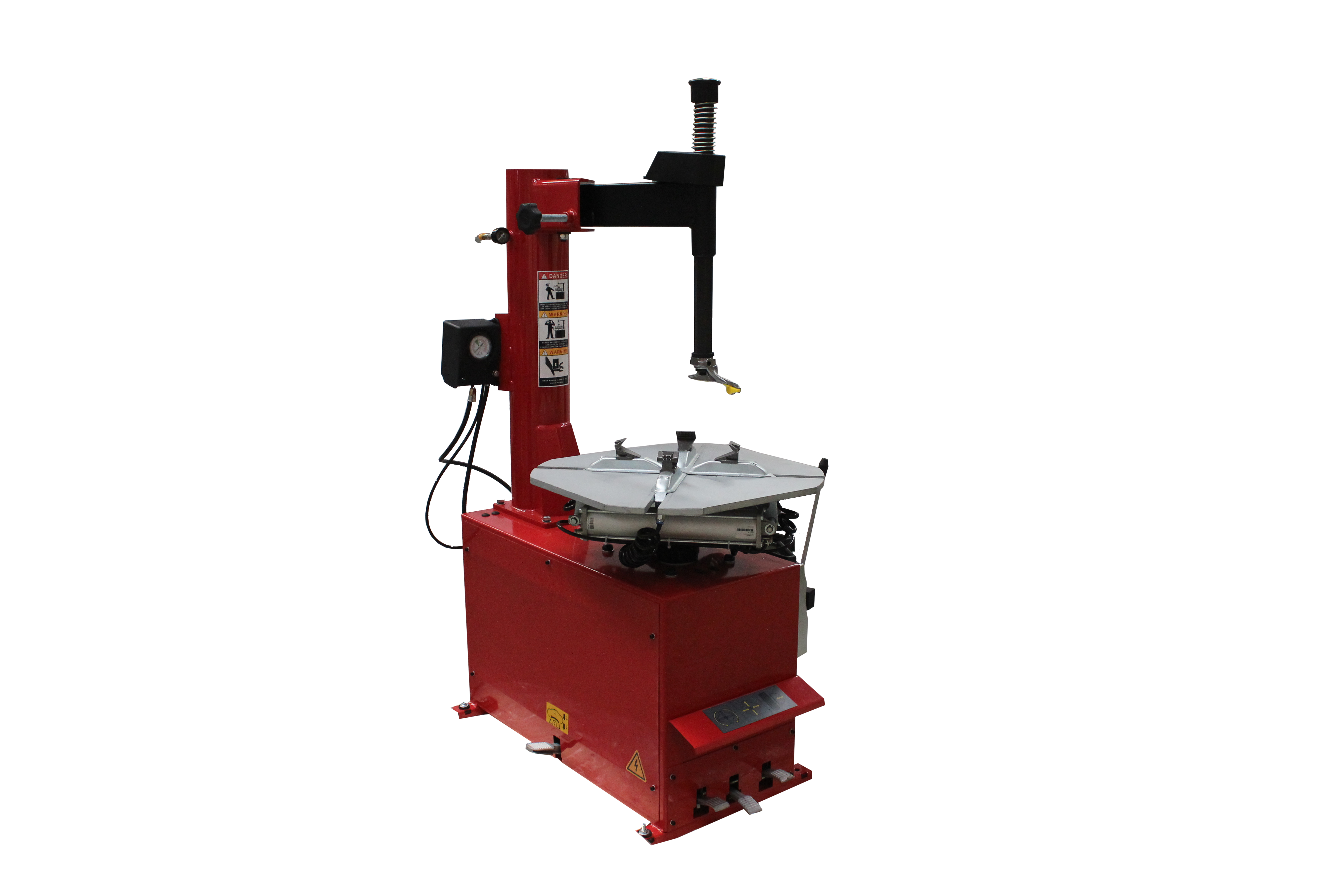

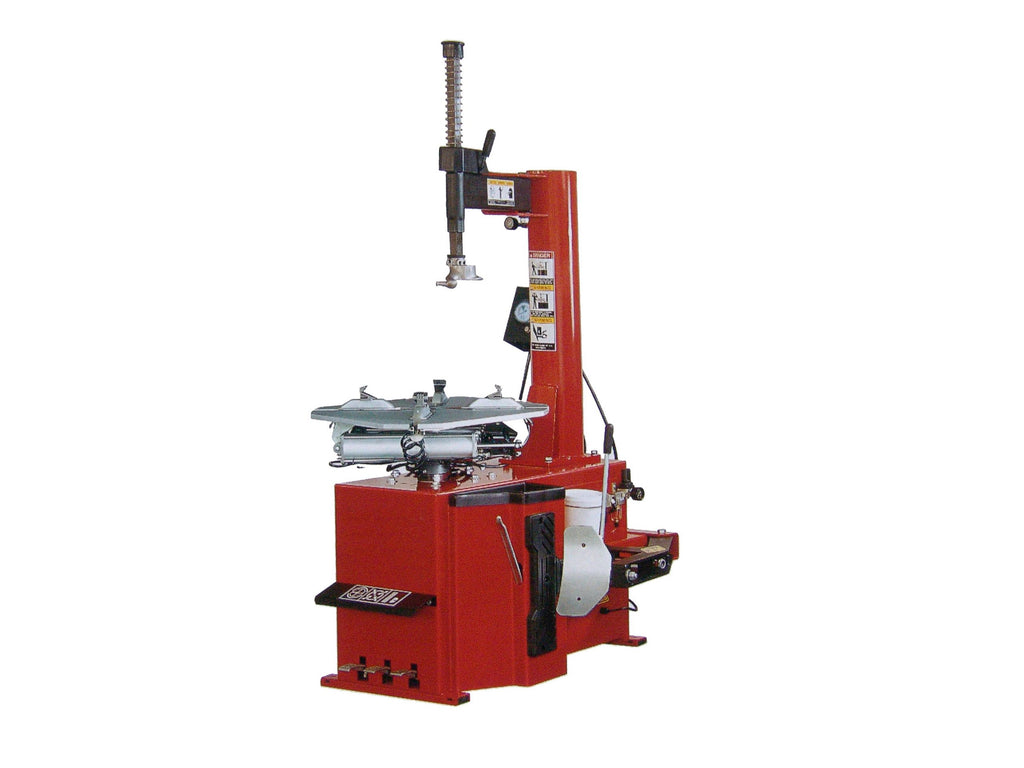

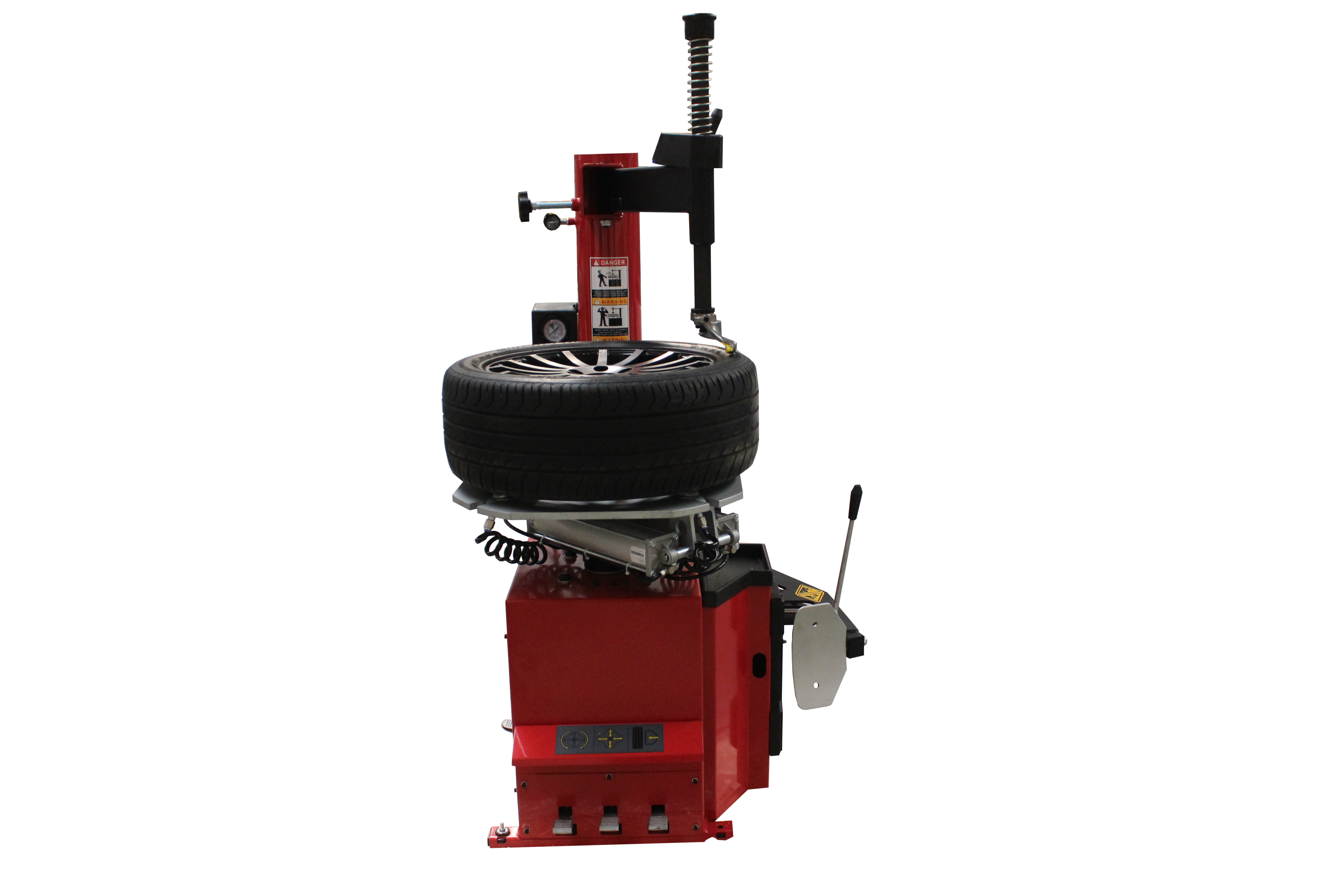

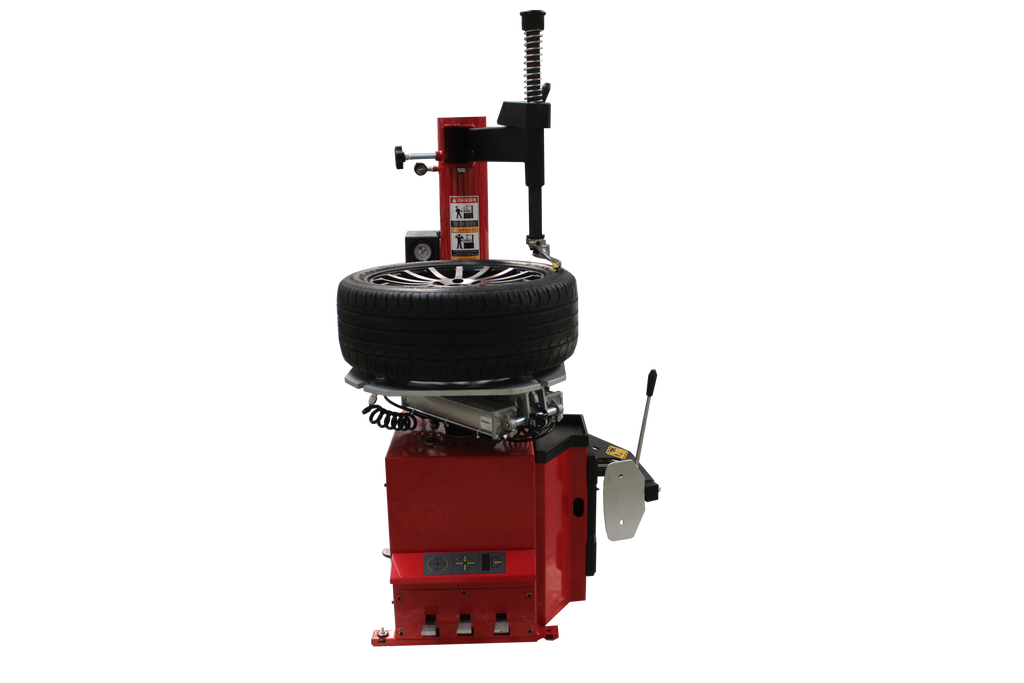

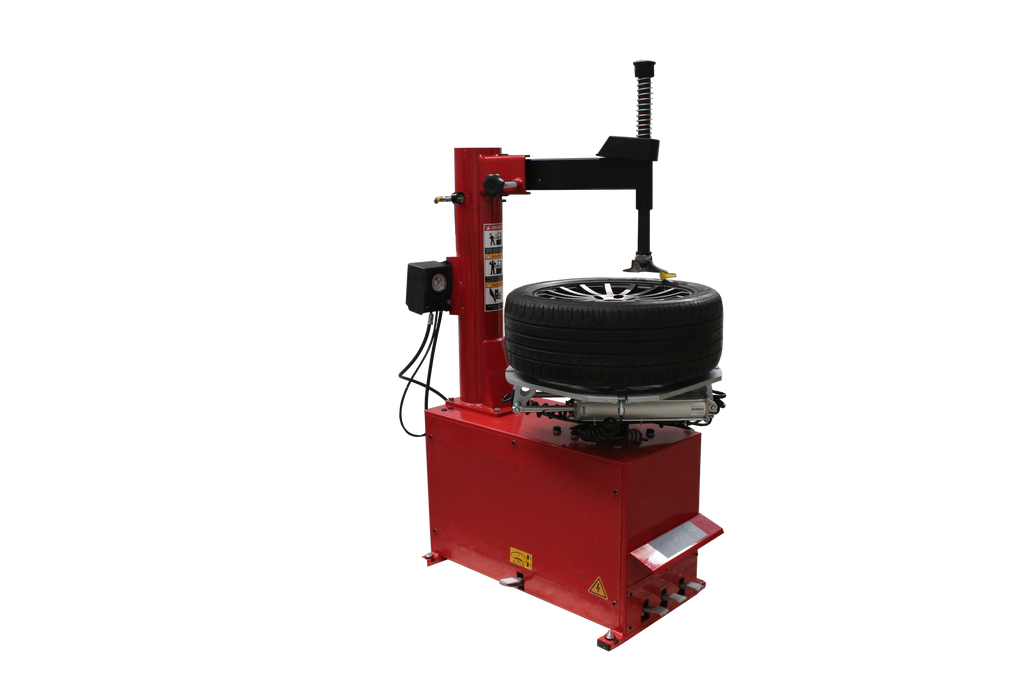

The Tuxedo TC-530 is a swing-arm tire changer for shops that want a step up in clamping power and rim protection over an entry-level machine. It handles passenger-car and light-truck wheels with twin clamping cylinders and a non-contact head that never touches the rim.

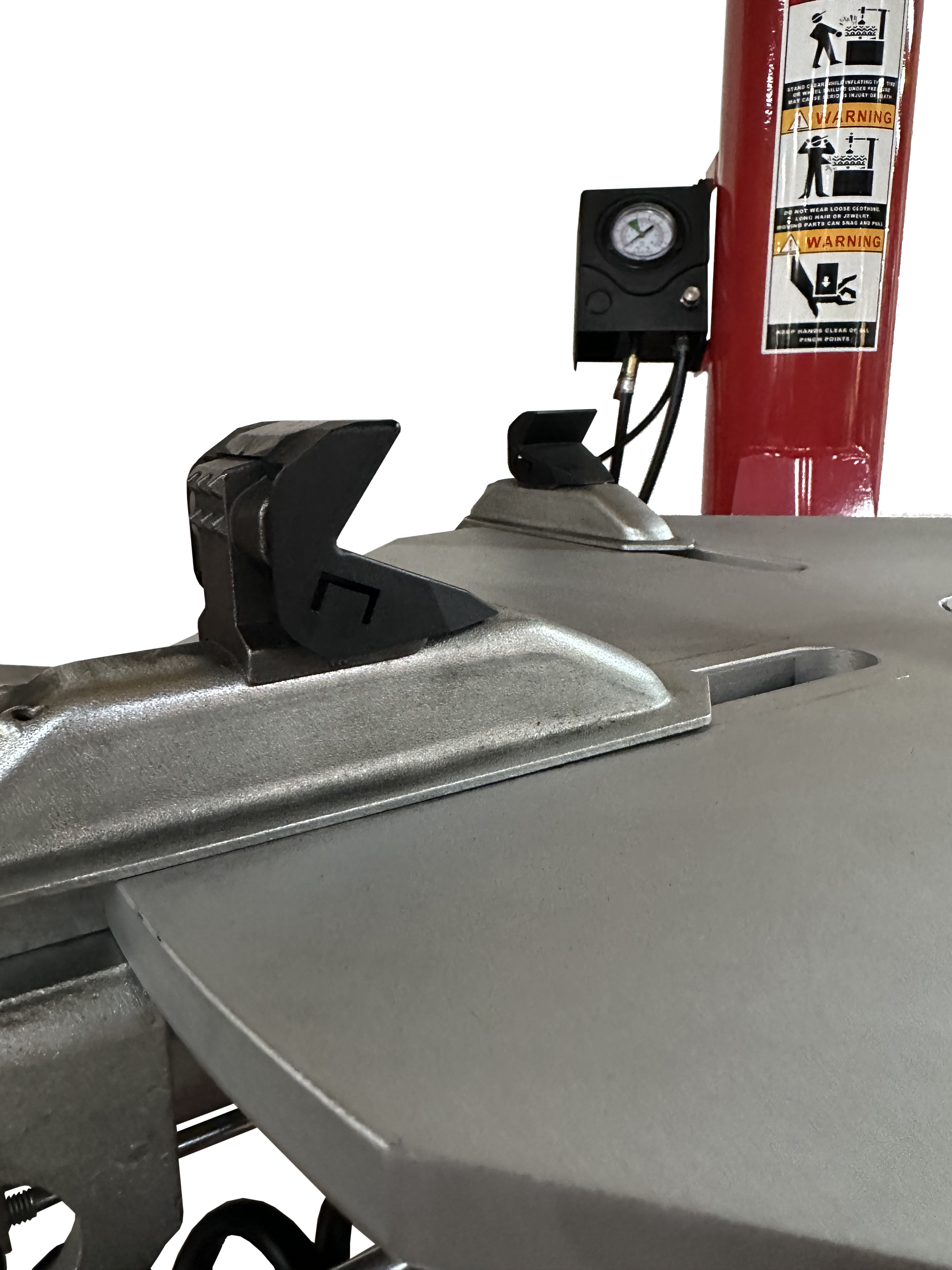

The mount and demount head works the bead without contacting the rim, which eliminates the accidental scratching that comes from bar-style heads. Twin clamping cylinders give extra force for difficult rims, and bead-seating inflation jets built into the clamping jaws speed up safe inflation. A large-diameter hex mount and demount shaft adds rigidity. The TC-530 changes wheels up to 38 inches in diameter with rim widths from 3 to 12 inches.
Key Features
- Non-contact head - the machine never touches the rim, which removes a common source of wheel damage.

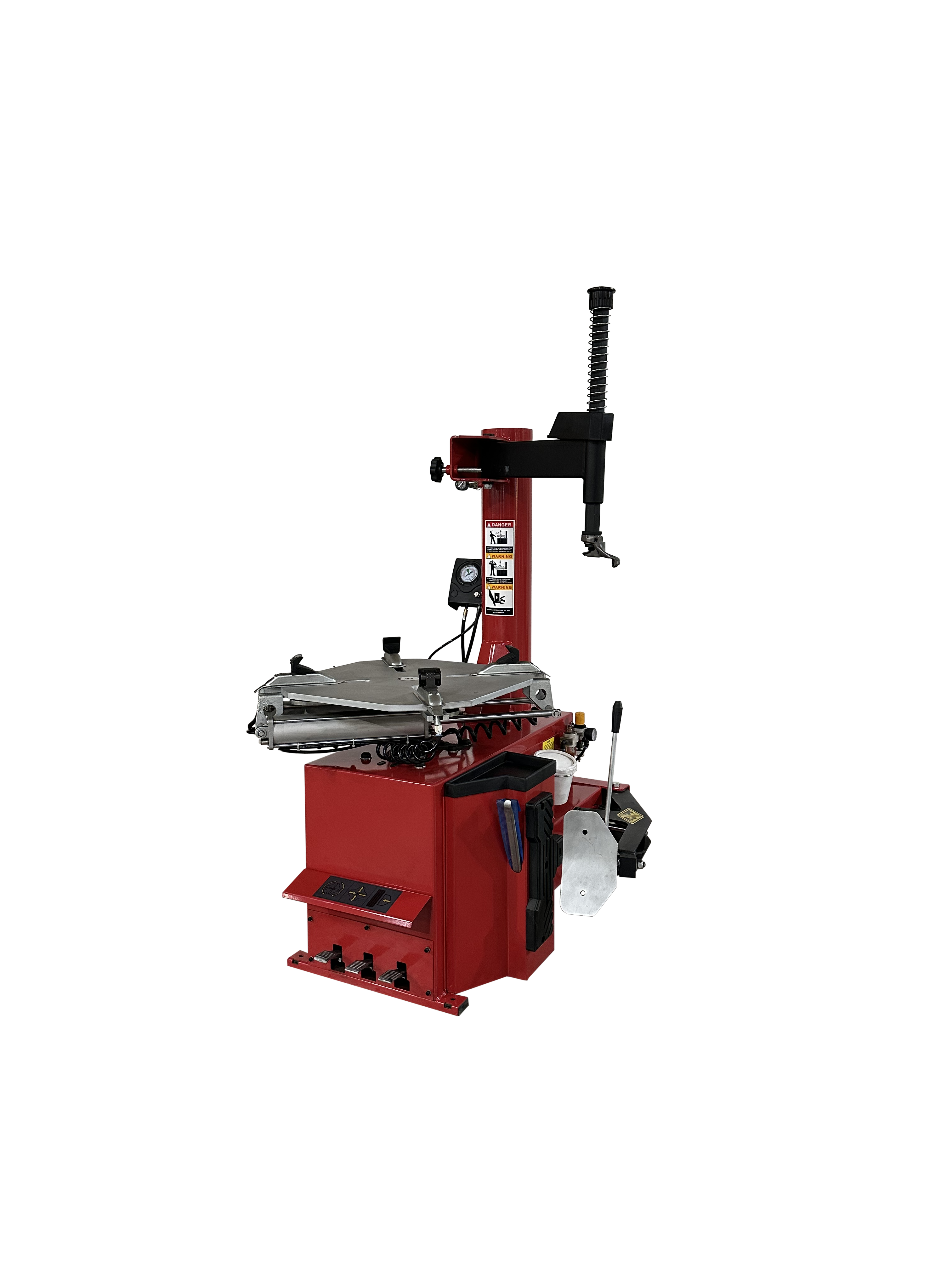

- Twin clamping cylinders - extra clamping power holds the most difficult rims.
- Integrated bead-seating jets - inflation jets in the clamping jaws seat the bead quickly and safely.
- Large hex mount/demount shaft - added rigidity for consistent tool position.
- Side-mounted bead breaker - positioned for fast, repeatable bead breaking.
- Conditioned air supply - pressure limiter, water separator, and oiler are standard.
Specifications
| Brand | Tuxedo Distributors |
|---|---|
| Type | Tire Changer |
| Tower Type | Swing arm |
| Max Wheel Diameter | 38" |
| Wheel Width | 3" to 12" |
| Inside Rim Clamp Range | 12" to 23" |
| Outside Rim Clamp Range | 10" to 20" |
| Working Pressure | 125 psi |
| Power | 110V, 15 Amp, Single Phase |
| Ship Weight | 560 lbs |
How It Compares
| Model | Max Wheel Diameter | Inside Clamp Range | Rim Width |
|---|---|---|---|
| TC-530 | 38" | 12" to 23" | 3" to 12" |
| TC-430 | 38" | 12" to 21" | 3" to 11" |
| TC-950 | 47" | 15" to 28" | 3" to 15" |
Key Facts
- The non-contact head removes the rim scratching common to bar-style mounting.
- Inside clamp range of 12 to 23 inches with a 38 inch max wheel diameter.
- Bead-seating jets are integrated into the clamping jaws for quick, safe inflation.
Who It's For
The TC-530 fits independent shops and tire shops that change a steady volume of passenger-car and light-truck wheels and want rim protection plus extra clamping power. It needs a 110V, 15 amp circuit and shop air at 125 psi.
Shipping and Freight
This tire changer ships by freight (LTL) at about 560 lbs on a pallet. Plan for a forklift or a liftgate delivery, and inspect the crate before signing for it.
About Tuxedo
Tuxedo Distributors supplies tire changers, wheel balancers, and automotive lifts to professional shops across North America, with a wheel service line that runs from entry-level swing-arm units up to truck-capable machines.
Frequently Asked Questions
Will the TC-530 scratch my wheels?
The mount and demount head is designed so the machine never contacts the rim, which removes a common source of accidental wheel damage.
What size wheels does it handle?
It handles wheels up to 38 inches in diameter and rim widths from 3 to 12 inches, with a 12 to 23 inch inside clamp range and a 10 to 20 inch outside range.
How does it seat the bead?
Bead-seating inflation jets are built into the clamping jaws to seat the bead quickly and safely during inflation.
What power and air does it need?
It runs on 110V, 15 amp single phase and needs shop air at 125 psi working pressure.
How does it ship?
It ships by LTL freight at roughly 560 lbs on a pallet. A forklift or liftgate makes unloading easier.
Want help choosing between the TC-430 and TC-530? Talk to a My Garage Direct specialist about your wheel mix before you order.
