Description
Overview

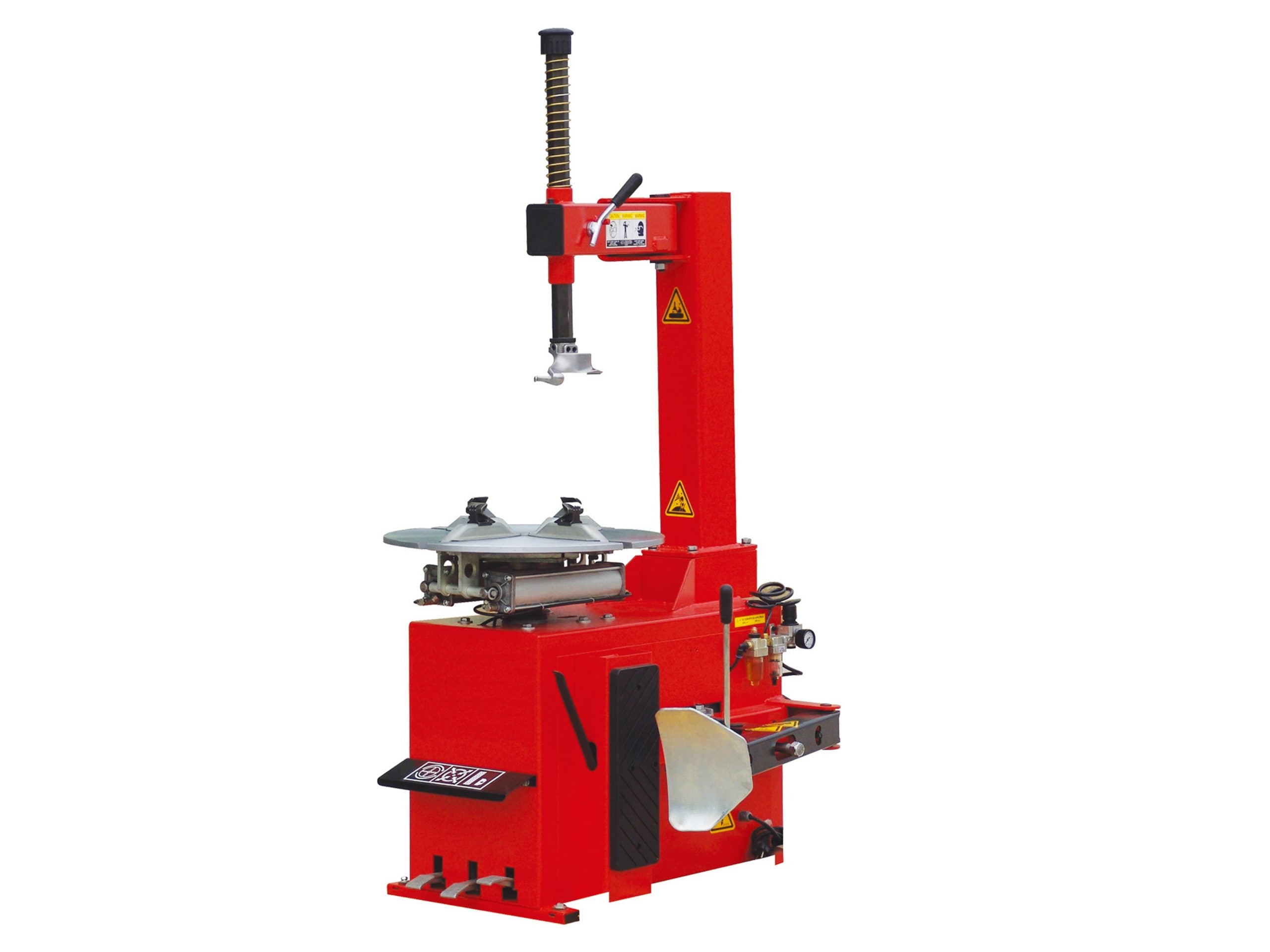

The Tuxedo TC-430 is an entry-level swing-arm tire changer for shops that want a dependable passenger-car and light-truck machine without paid extras. The mount and demount tool is operated manually while pneumatic clamps and a side-mounted bead breaker handle the heavy work.
Four pneumatic clamps run on double-acting cylinders to hold the rim through the cycle, and the inside clamp range of 12 to 21 inches covers common car and light-truck wheels. A water separator, lubricator, and air pressure regulator come standard, so the air supply is conditioned at the machine. The TC-430 changes wheels up to 38 inches in diameter with rim widths from 3 to 11 inches.
Key Features
- Swing-arm design - straightforward layout for everyday passenger-car and light-truck work.

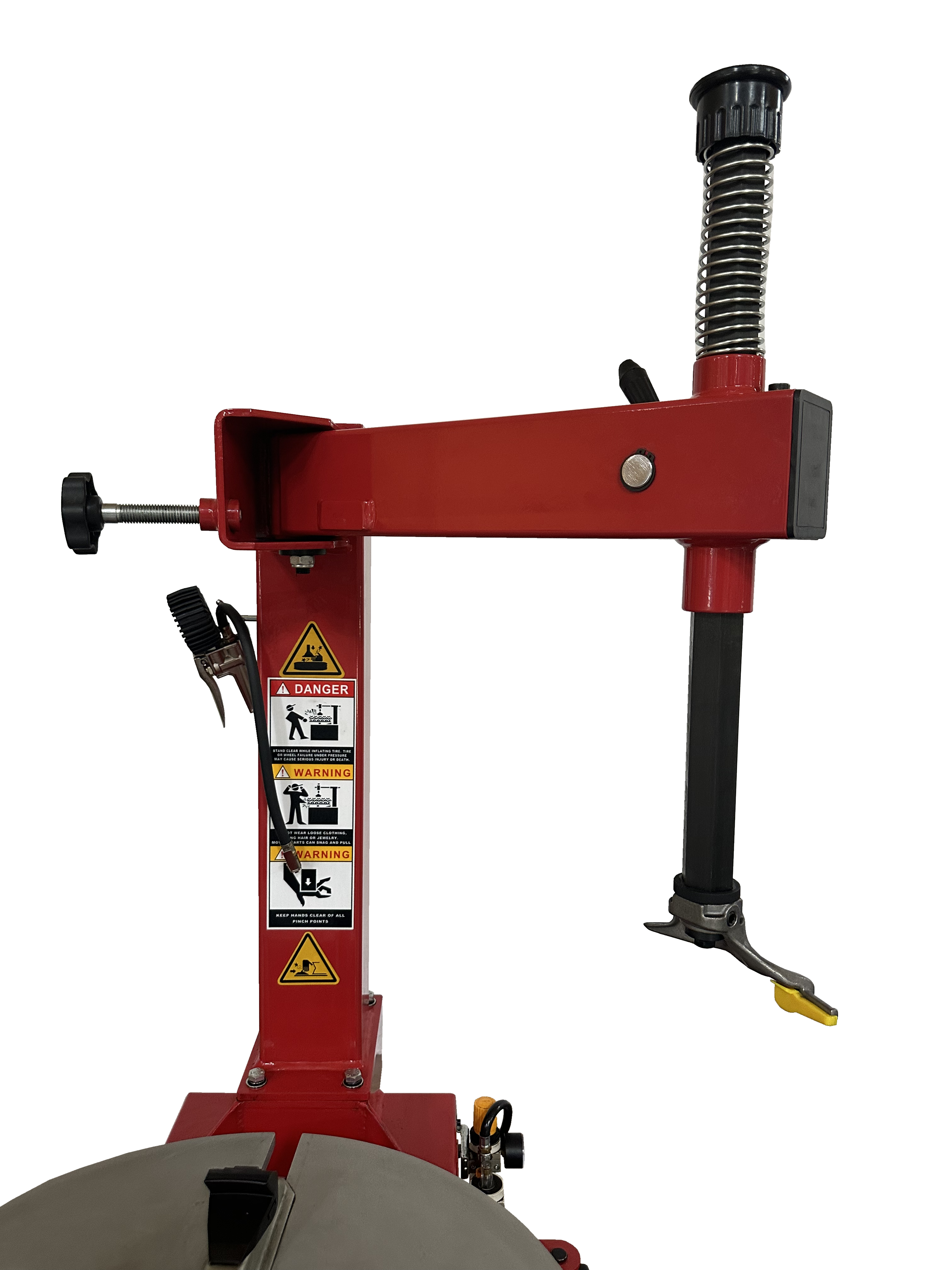

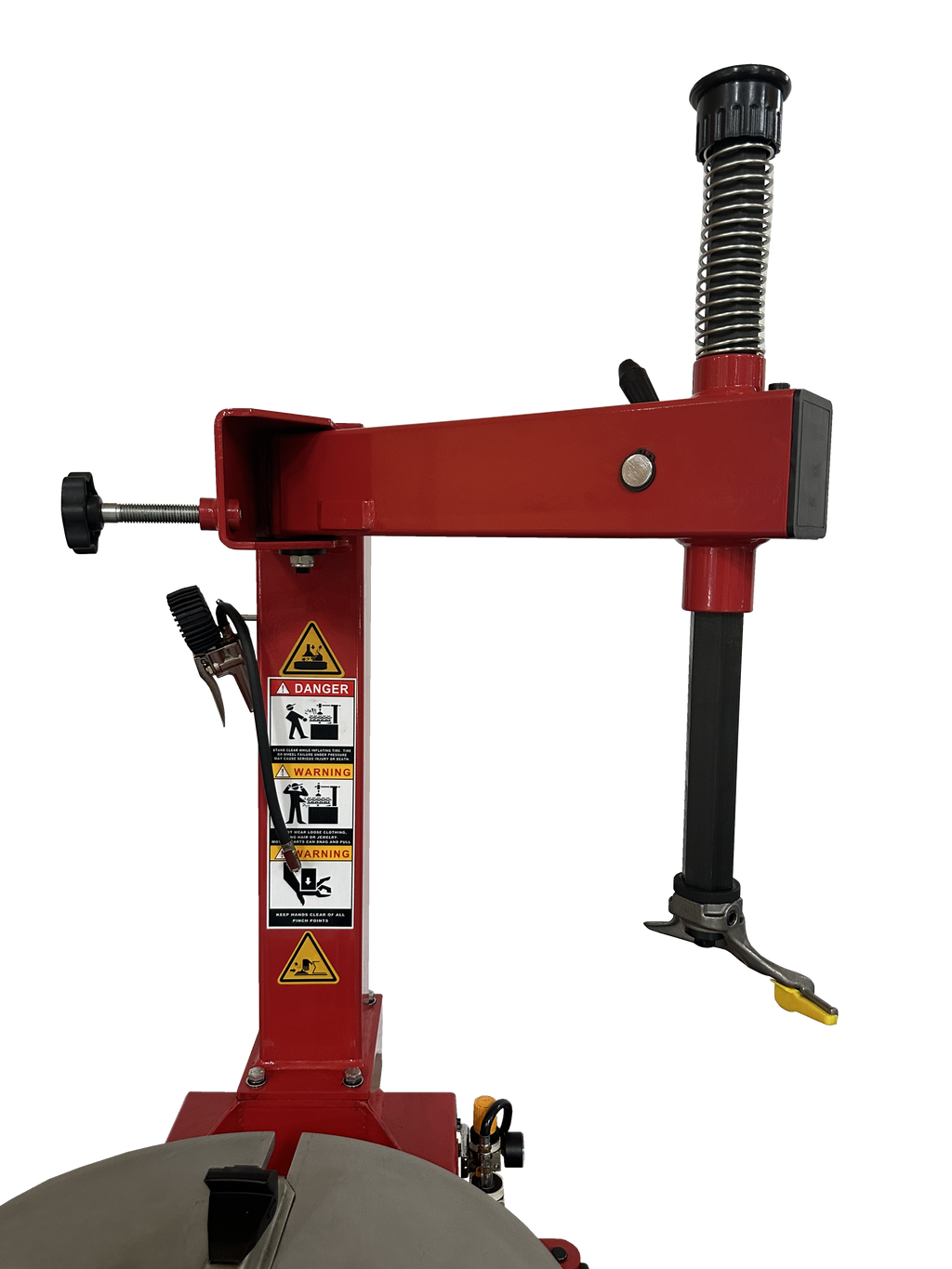

- Manual mount and demount tool - operator controls the head directly for full feel on each tire.

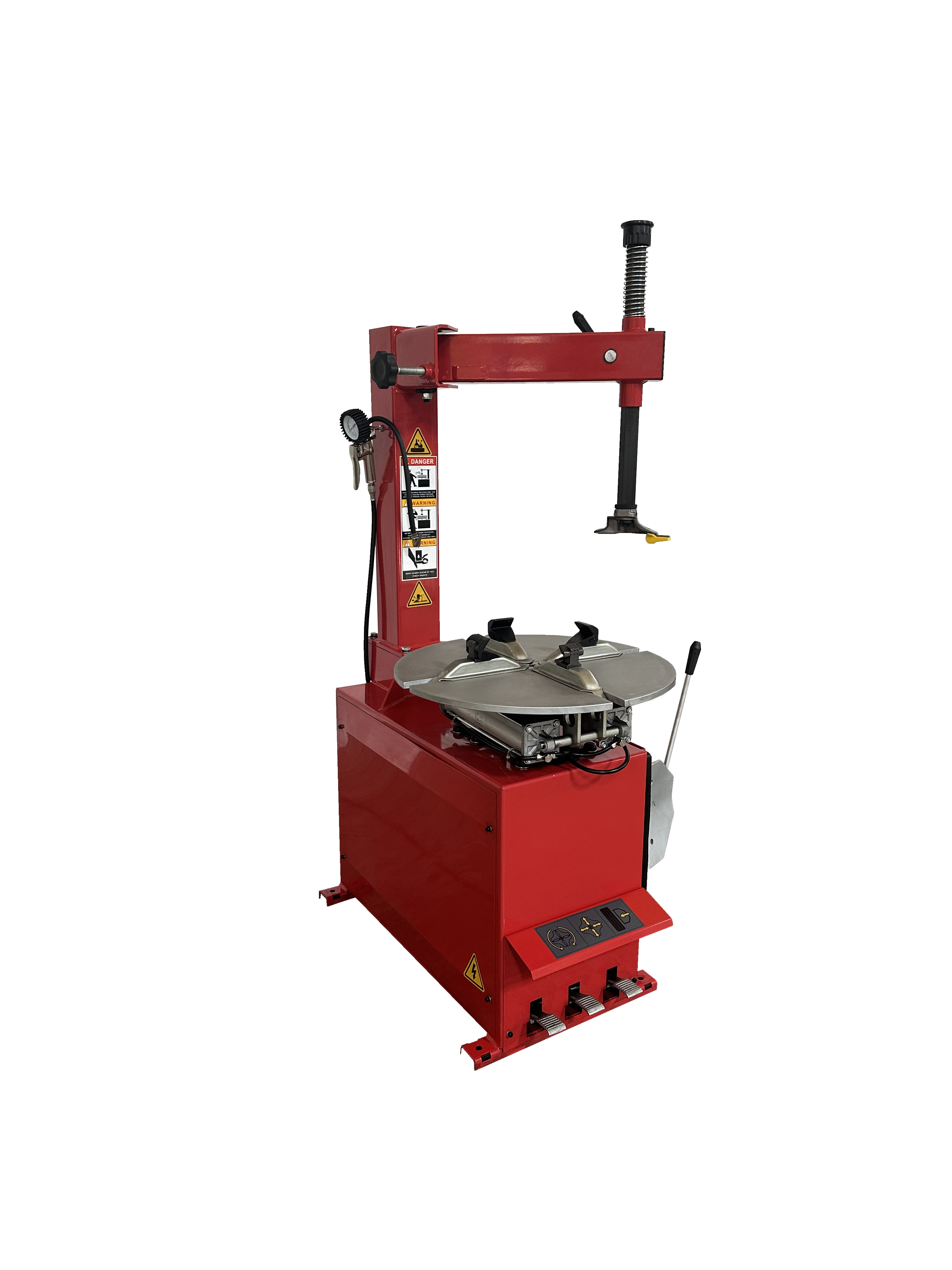

- Four pneumatic clamps - double-acting cylinders hold the rim through the cycle.
- Side-mounted bead breaker - frees the bead before mounting and demounting.

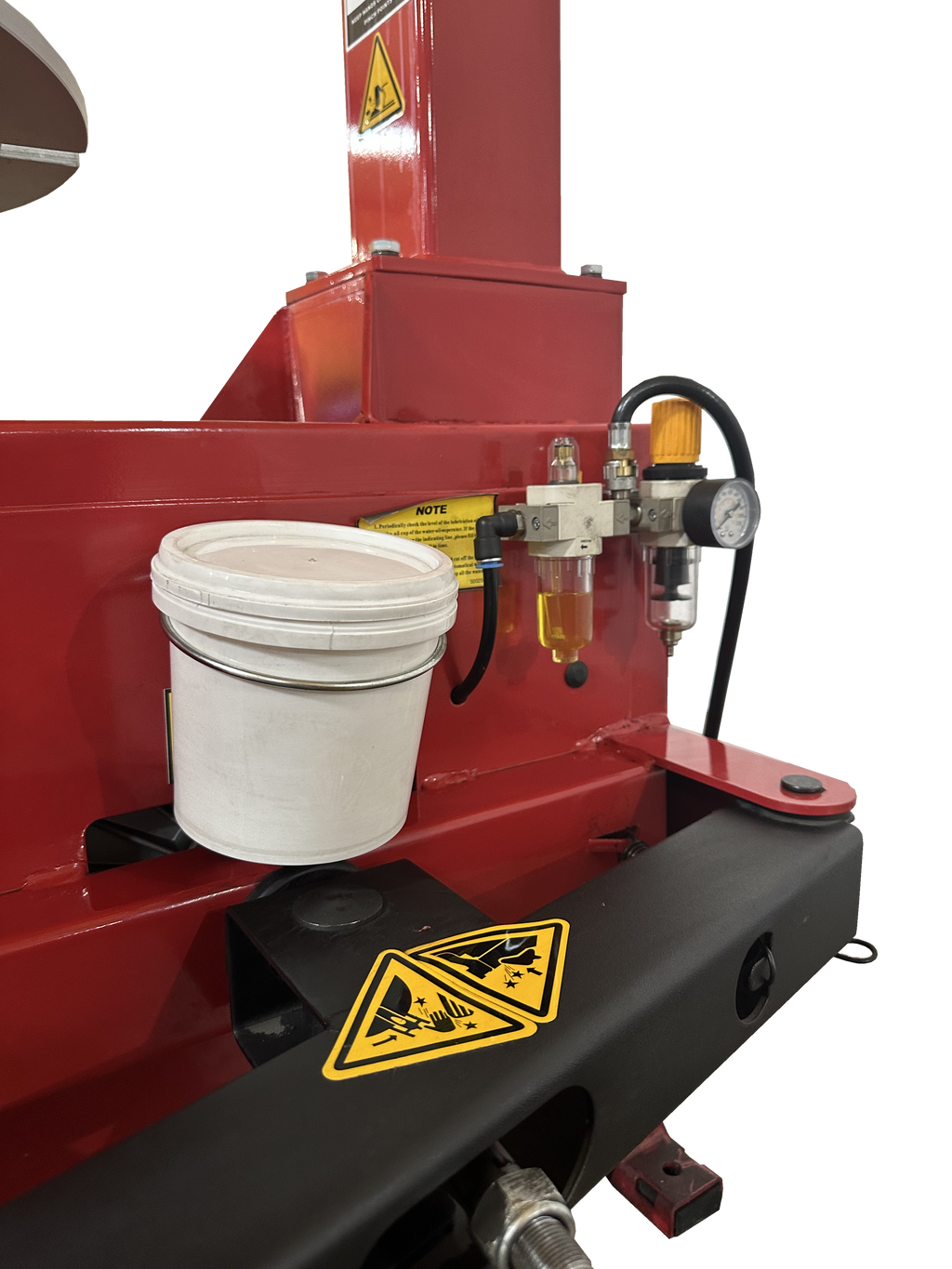

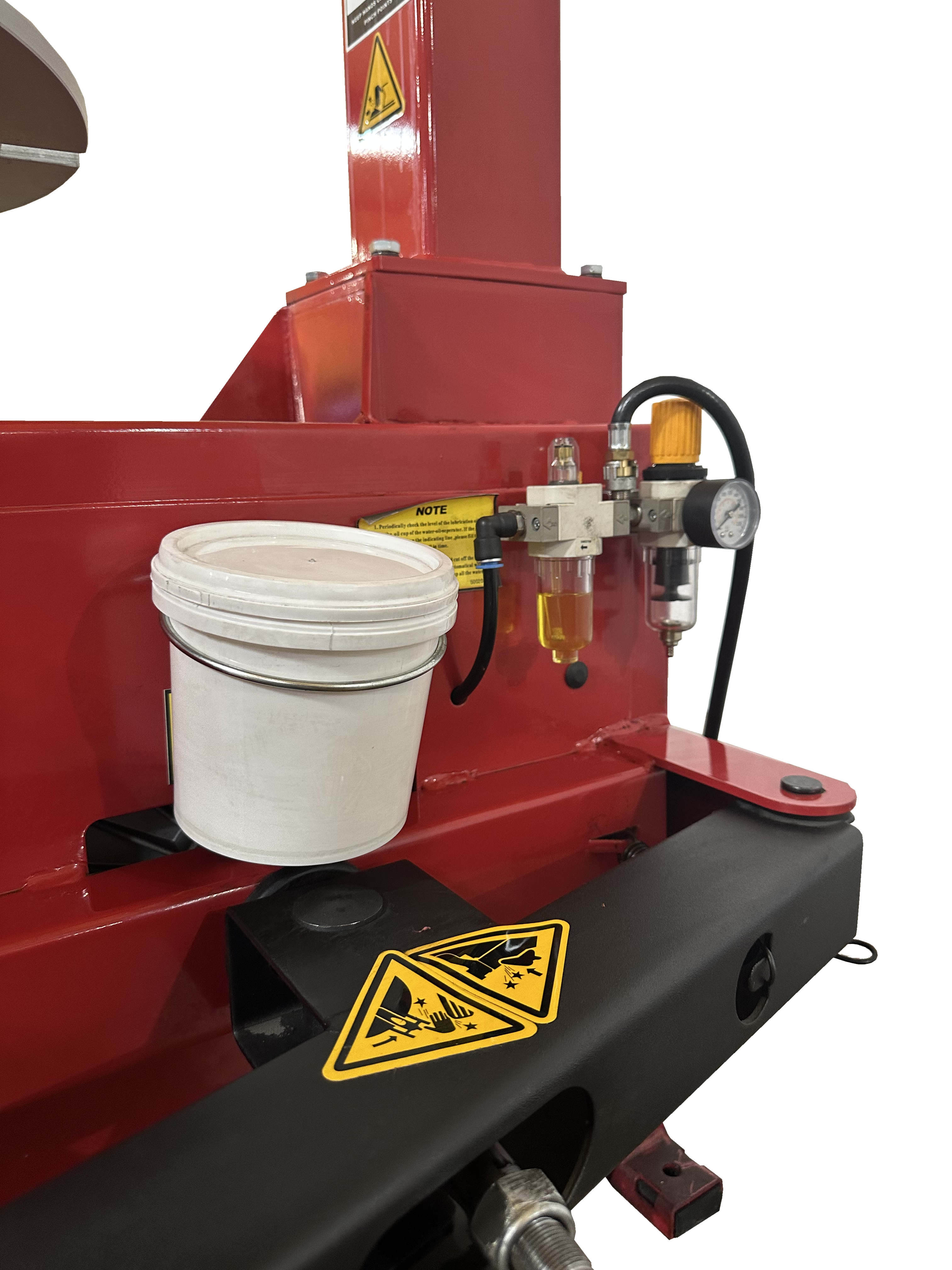

- Conditioned air supply - water separator, lubricator, and pressure regulator are included.
- 38 inch wheel capacity - rim widths from 3 to 11 inches with a 12 to 21 inch inside clamp range.
Specifications
| Brand | Tuxedo Distributors |
|---|---|
| Type | Tire Changer |
| Tower Type | Swing arm |

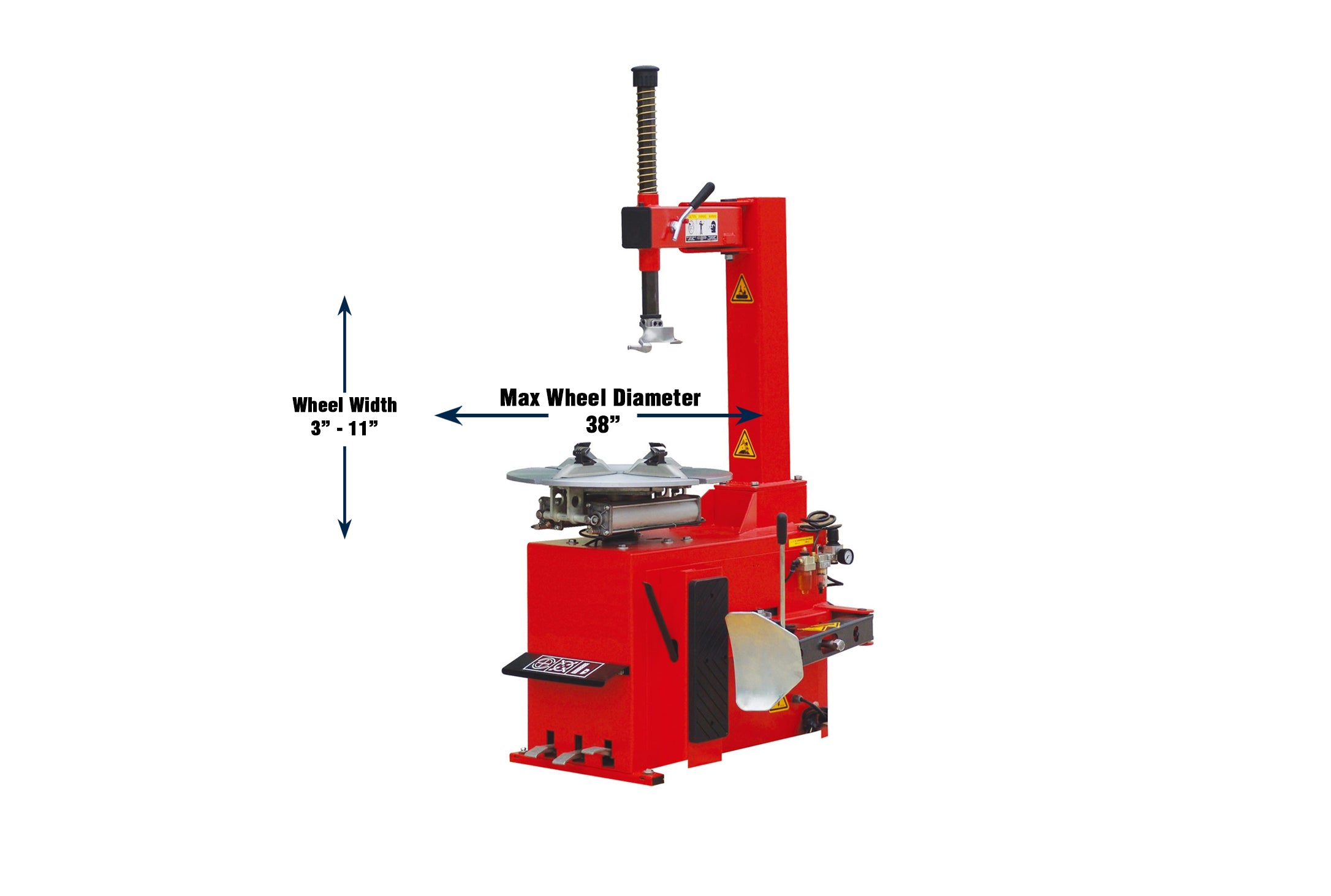

| Max Wheel Diameter | 38" |
| Wheel Width | 3" to 11" |
| Inside Rim Clamp Range | 12" to 21" |
| Outside Rim Clamp Range | 10" to 18" |
| Working Pressure | 125 psi |
| Power | 110V, 15 Amp, Single Phase |
| Ship Weight | 460 lbs |
How It Compares
| Model | Max Wheel Diameter | Inside Clamp Range | Rim Width |
|---|---|---|---|
| TC-430 | 38" | 12" to 21" | 3" to 11" |
| TC-530 | 38" | 12" to 23" | 3" to 12" |
| TC-950 | 47" | 15" to 28" | 3" to 15" |
Key Facts
- Inside clamp range of 12 to 21 inches covers common car and light-truck rims.
- Handles wheels up to 38 inches in diameter and 11 inches wide.
- Ships with a water separator, lubricator, and air pressure regulator.
Who It's For
The TC-430 fits independent shops, used car lots, and home garages that change a moderate volume of passenger-car and light-truck tires and want a no-frills machine. It needs a 110V, 15 amp circuit and shop air at 125 psi.
Shipping and Freight
This tire changer ships by freight (LTL) at about 460 lbs on a pallet. Plan for a forklift or a liftgate delivery, and inspect the crate before signing for it.
About Tuxedo
Tuxedo Distributors supplies tire changers, wheel balancers, and automotive lifts to professional shops across North America, with a wheel service line that runs from entry-level swing-arm units up to truck-capable machines.
Frequently Asked Questions
What size wheels does the TC-430 handle?
It handles wheels up to 38 inches in diameter with rim widths of 3 to 11 inches. The inside clamp range is 12 to 21 inches and the outside range is 10 to 18 inches.
How is it different from the TC-530?
The TC-530 adds a wider inside clamp range of 12 to 23 inches, twin clamping cylinders, and a non-contact head that never touches the rim. The TC-430 is the more economical machine for moderate volume.
What power and air does it need?
It runs on 110V, 15 amp single phase and needs shop air at 125 psi working pressure.
Does it condition the air supply?
Yes. A water separator, lubricator, and air pressure regulator are included as standard.
How does it ship?
It ships by LTL freight at roughly 460 lbs on a pallet. A forklift or liftgate makes unloading easier.
