Description
Overview

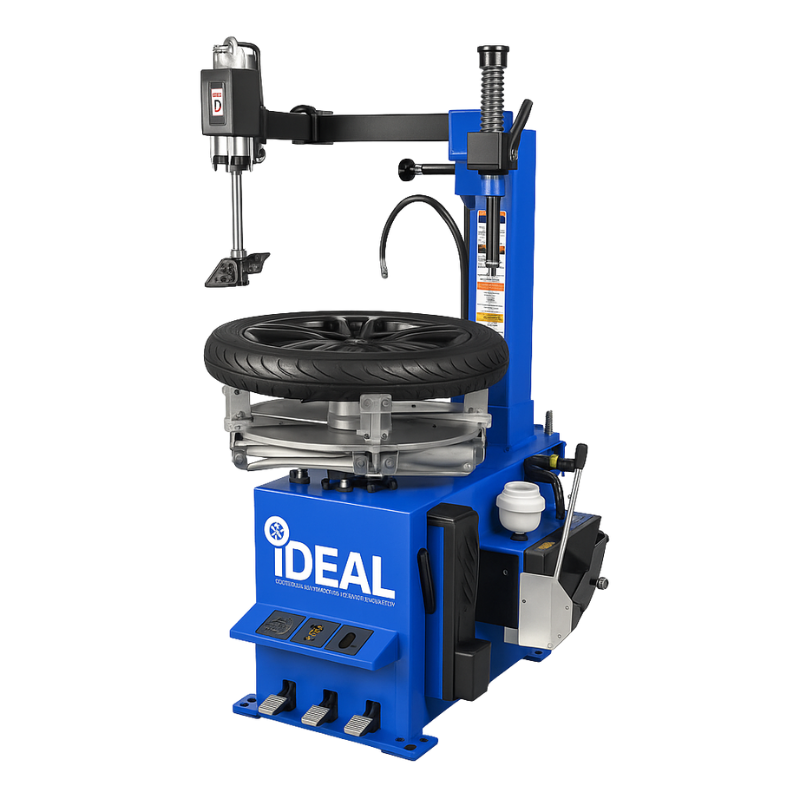

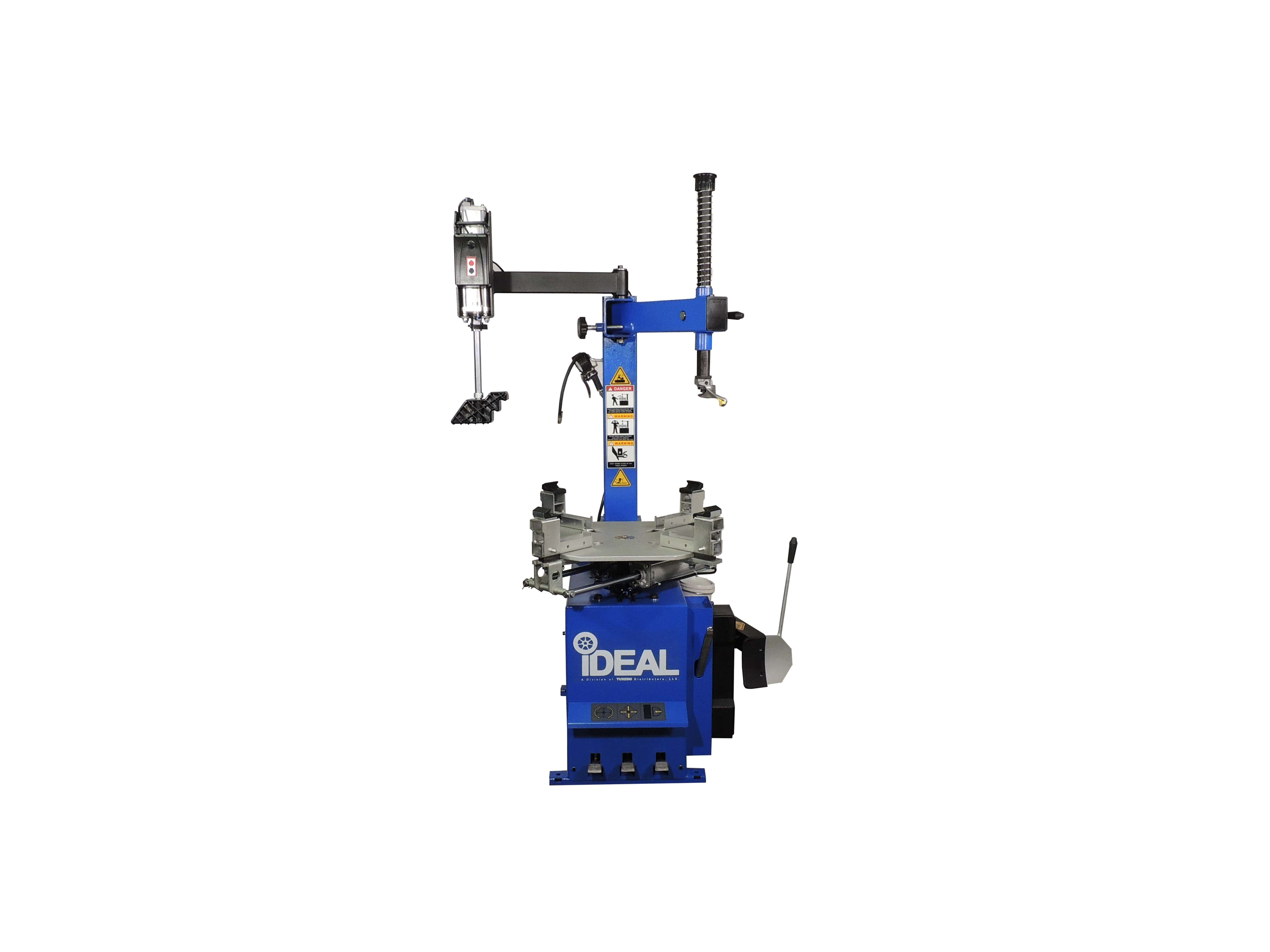

The iDEAL TC-400M-B-PL230-K is a Pro-Series power sport tire changer fitted with a pneumatic assist arm. It pairs the TC-400M-B-IDEAL changer with a press-and-hold arm, so a single technician can manage stiff and low-profile motorcycle and ATV tires without a second set of hands.
The swing-arm changer uses four adjustable plastic clamps and double-acting pneumatic cylinders across an outside rim clamping range of 6 to 24 inches. A bead breaker rated at 5,500 lbs of force frees stubborn beads, electric table rotation powers the turntable, and the assist arm holds the bead down through the demount. A regulator, oiler, and water trap condition the shop air supply.
Key Features

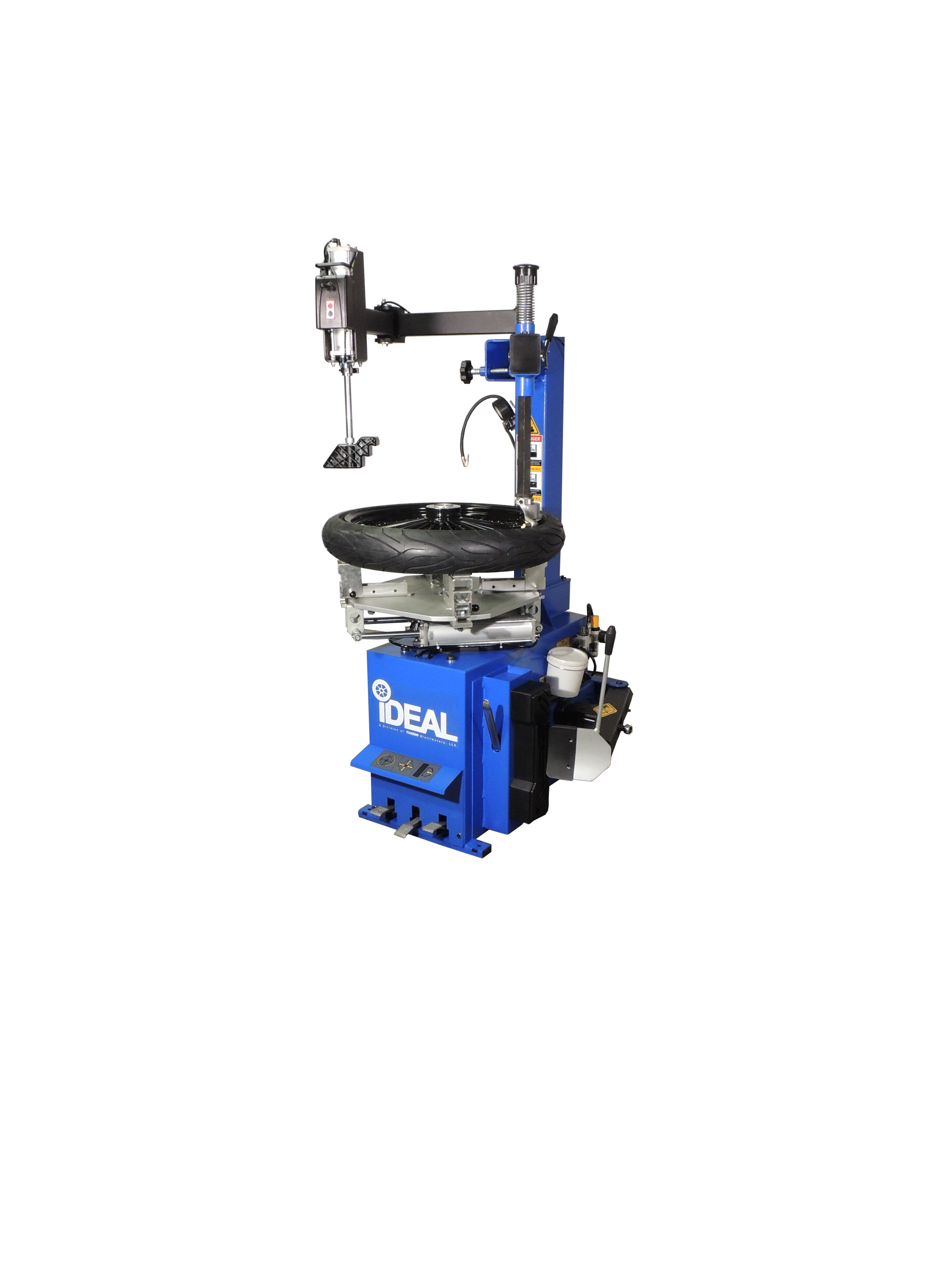

- Integrated assist arm - presses and holds the bead so one technician can work stiff power sport tires.
- iDEAL Pro-Series changer - swing-arm base built for motorcycle, ATV, and small-diameter rims.
- Plastic clamps - four adjustable clamps protect wheel finishes from scratching.
- 5,500 lb bead breaker - frees the bead on tight power sport tires.
- Electric table rotation - powered turntable keeps both hands free.
- Conditioned air supply - regulator, oiler, and water trap are included.
Specifications
| Brand | iDEAL (Tuxedo Distributors) |
|---|---|
| Type | Power Sport Tire Changer with Assist Arm |
| Tower Type | Swing arm |
| Max Wheel Diameter | 37" |
| Max Wheel Width | 10" |
| Outside Rim Clamp Range | 6" to 24" |
| Bead Breaker Force | 5,500 lbs |
| Working Pressure | 125 psi |
| Power | 110V, 15 Amp, Single Phase |
| Ship Weight | 530 lbs |
How It Compares
| Model | Assist Arm | Bead Breaker Force | Ship Weight |
|---|---|---|---|
| TC-400M-B-PL230-K | Yes | 5,500 lbs | 530 lbs |
| TC-400M-B-IDEAL | No | 5,500 lbs | 470 lbs |
| TC-400M-B | No | Not published | 470 lbs |
Key Facts
- The assist arm presses and holds the bead for single-technician demounts.
- Bead breaker rated at 5,500 lbs of force for tight power sport beads.
- Outside rim clamping range of 6 to 24 inches covers most motorcycle wheels.
Who It's For
The TC-400M-B-PL230-K fits motorcycle shops and power sport dealers that change a high share of stiff or low-profile bike tires and want a one-person workflow. It needs a 110V, 15 amp circuit and shop air at 125 psi.
Shipping and Freight
This tire changer ships by freight (LTL) at about 530 lbs on a pallet. Plan for a forklift or a liftgate delivery, and inspect the crate before signing for it.
About iDEAL
iDEAL is the Pro-Series line distributed by Tuxedo Distributors, supplying wheel service and shop equipment to professional shops across North America.
Frequently Asked Questions
What does the assist arm add?
The pneumatic assist arm presses and holds the bead during demount, which lets one technician handle stiff or low-profile power sport tires that would otherwise need a second person.
Is this the same base machine as the TC-400M-B-IDEAL?
Yes. It is the TC-400M-B-IDEAL changer with the assist arm added, so it shares the 6 to 24 inch clamp range, 37 inch max wheel diameter, and 5,500 lb bead breaker.
Will it scratch finished wheels?
The four adjustable clamps use plastic contact surfaces to protect the wheel finish during clamping.
What power and air does it need?
It runs on 110V, 15 amp single phase and needs shop air at 125 psi working pressure.
How does it ship?
It ships by LTL freight at roughly 530 lbs on a pallet. A forklift or liftgate makes unloading easier.
Not sure whether you need the assist arm? Talk to a My Garage Direct specialist about your tire mix before you order.
