Description
Overview

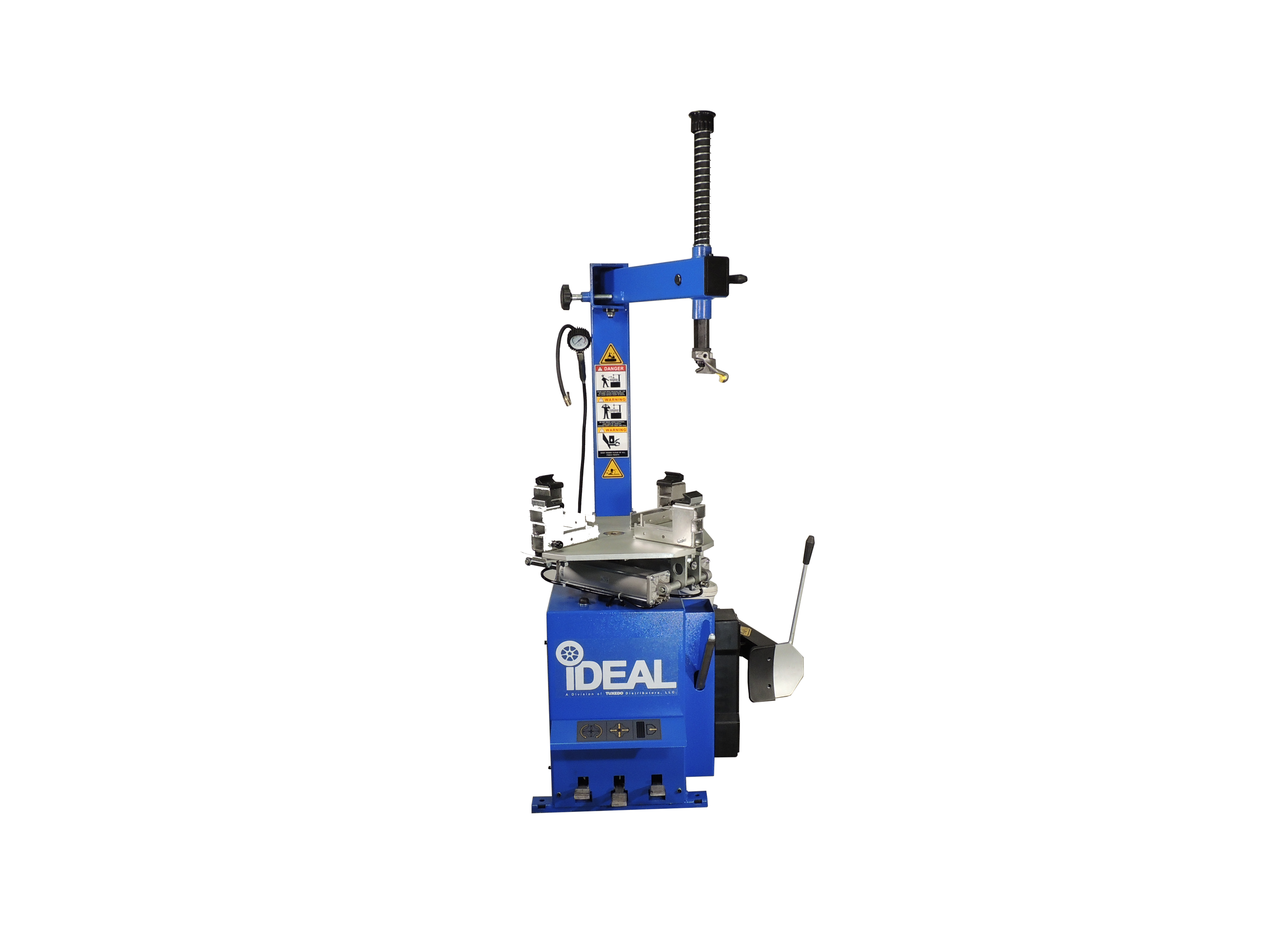

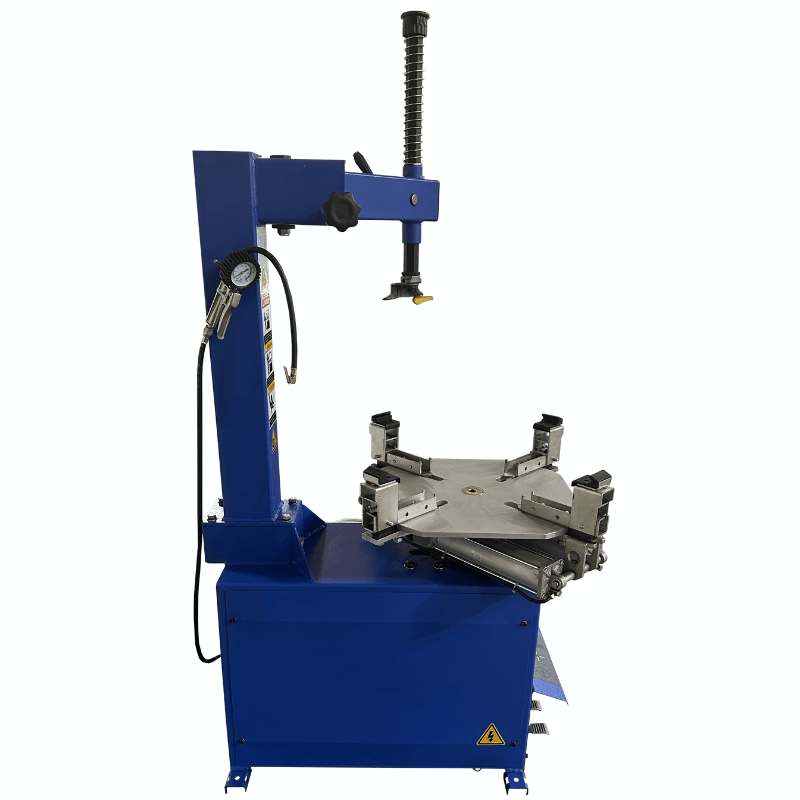

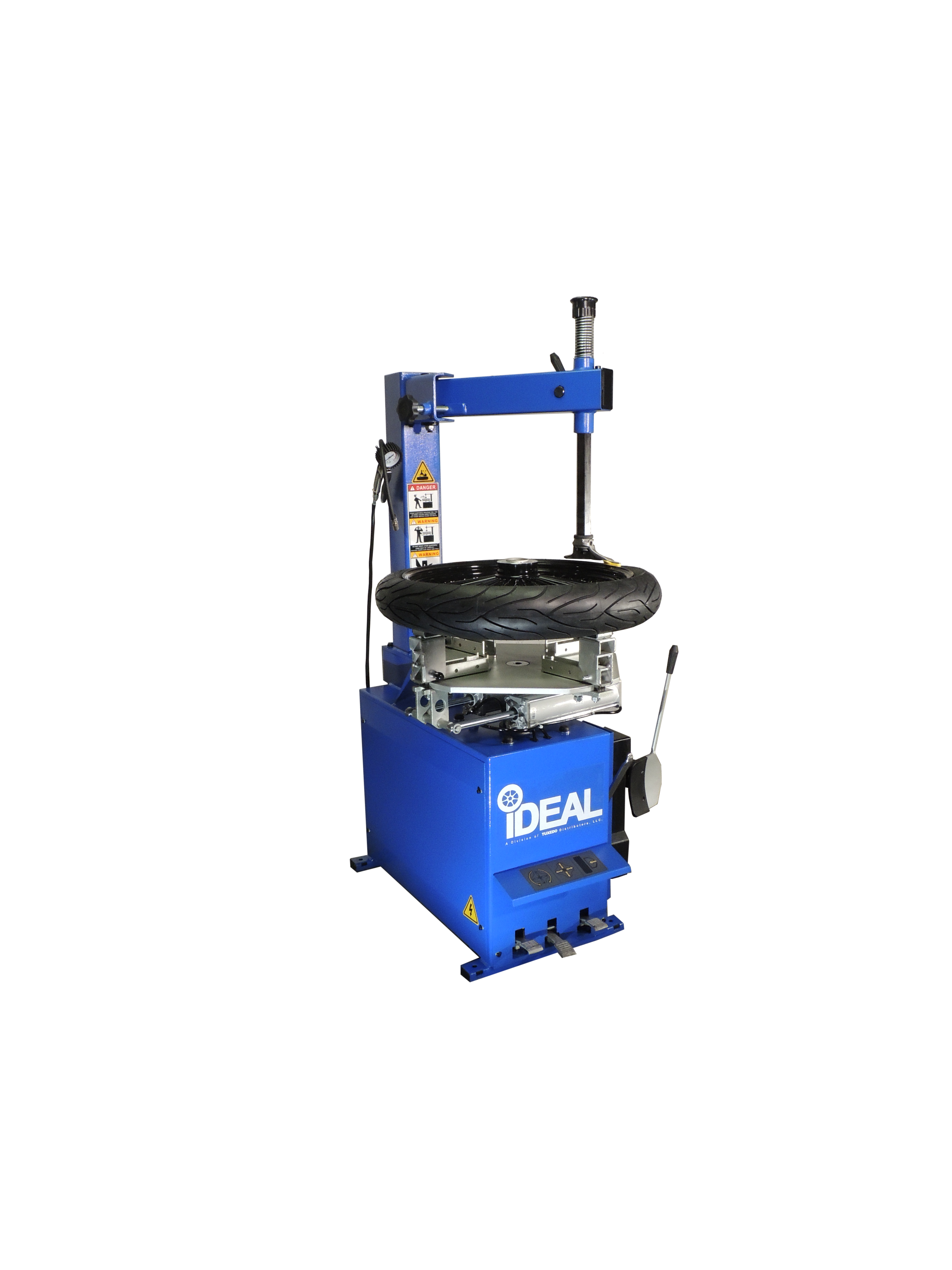

The iDEAL TC-400M-B-IDEAL is a Pro-Series power sport tire changer for motorcycle, ATV, and small-diameter wheels. It runs a swing-arm layout with four adjustable plastic clamps and double-acting pneumatic cylinders, so the machine holds bike rims securely while protecting the finish.
The clamps cover an outside rim clamping range of 6 to 24 inches, which spans most motorcycle and power sport wheels. A bead breaker rated at 5,500 lbs of force frees stubborn beads, electric table rotation keeps both hands on the tool, and a handheld inflation gun seats the tire. A regulator, oiler, and water trap are included to condition the shop air supply.
Key Features
- iDEAL Pro-Series build - power sport changer for motorcycle, ATV, and small-diameter rims.

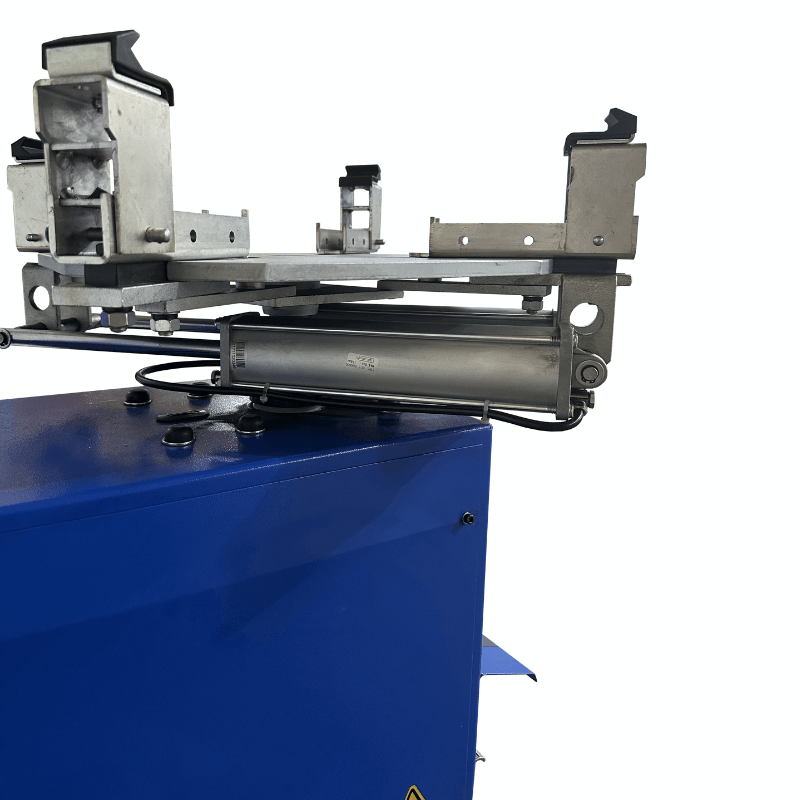

- Plastic clamps - four adjustable clamps protect wheel finishes from scratching.
- 5,500 lb bead breaker - frees the bead on tight power sport tires.
- Electric table rotation - powered turntable keeps both hands free during mount and demount.
- Handheld inflation gun - seats the bead with the air supply you have on hand.
- Conditioned air supply - regulator, oiler, and water trap are included.
Specifications
| Brand | iDEAL (Tuxedo Distributors) |
|---|---|
| Type | Power Sport Tire Changer |
| Tower Type | Swing arm |
| Max Wheel Diameter | 37" |
| Max Wheel Width | 10" |
| Outside Rim Clamp Range | 6" to 24" |
| Bead Breaker Force | 5,500 lbs |
| Working Pressure | 125 psi |
| Power | 110V, 15 Amp, Single Phase |
| Ship Weight | 470 lbs |
How It Compares
| Model | Bead Breaker Force | Assist Arm | Ship Weight |
|---|---|---|---|
| TC-400M-B-IDEAL | 5,500 lbs | No | 470 lbs |
| TC-400M-B-PL230-K | 5,500 lbs | Yes | 530 lbs |
| TC-400M-B | Not published | No | 470 lbs |
Key Facts
- Bead breaker rated at 5,500 lbs of force for tight power sport beads.
- Outside rim clamping range of 6 to 24 inches covers most motorcycle wheels.
- Plastic clamps and electric table rotation protect finishes and keep both hands free.
Who It's For
The TC-400M-B-IDEAL fits motorcycle shops, power sport dealers, and general shops that want a finish-friendly, finished-wheel-safe changer for bike and ATV tires. It needs a 110V, 15 amp circuit and shop air at 125 psi.
Shipping and Freight
This tire changer ships by freight (LTL) at about 470 lbs on a pallet. Plan for a forklift or a liftgate delivery, and inspect the crate before signing for it.
About iDEAL
iDEAL is the Pro-Series line distributed by Tuxedo Distributors, supplying wheel service and shop equipment to professional shops across North America.
Frequently Asked Questions
How is the IDEAL version different from the base TC-400M-B?
The iDEAL Pro-Series version publishes a 5,500 lb bead breaker rating and adds finish-protecting plastic clamps, electric table rotation, and a handheld inflation gun. Both share the 6 to 24 inch outside clamp range and 37 inch max wheel diameter.
Will it scratch finished wheels?
The four adjustable clamps use plastic contact surfaces to protect the wheel from scratching during clamping.
What power and air does it need?
It runs on 110V, 15 amp single phase and needs shop air at 125 psi working pressure.
Can I add an assist arm later?
The assist arm version is sold as the TC-400M-B-PL230-K. If you change a high share of low-profile or stiff power sport tires, consider that configuration.
How does it ship?
It ships by LTL freight at roughly 470 lbs on a pallet. A forklift or liftgate makes unloading easier.
