Description
Overview

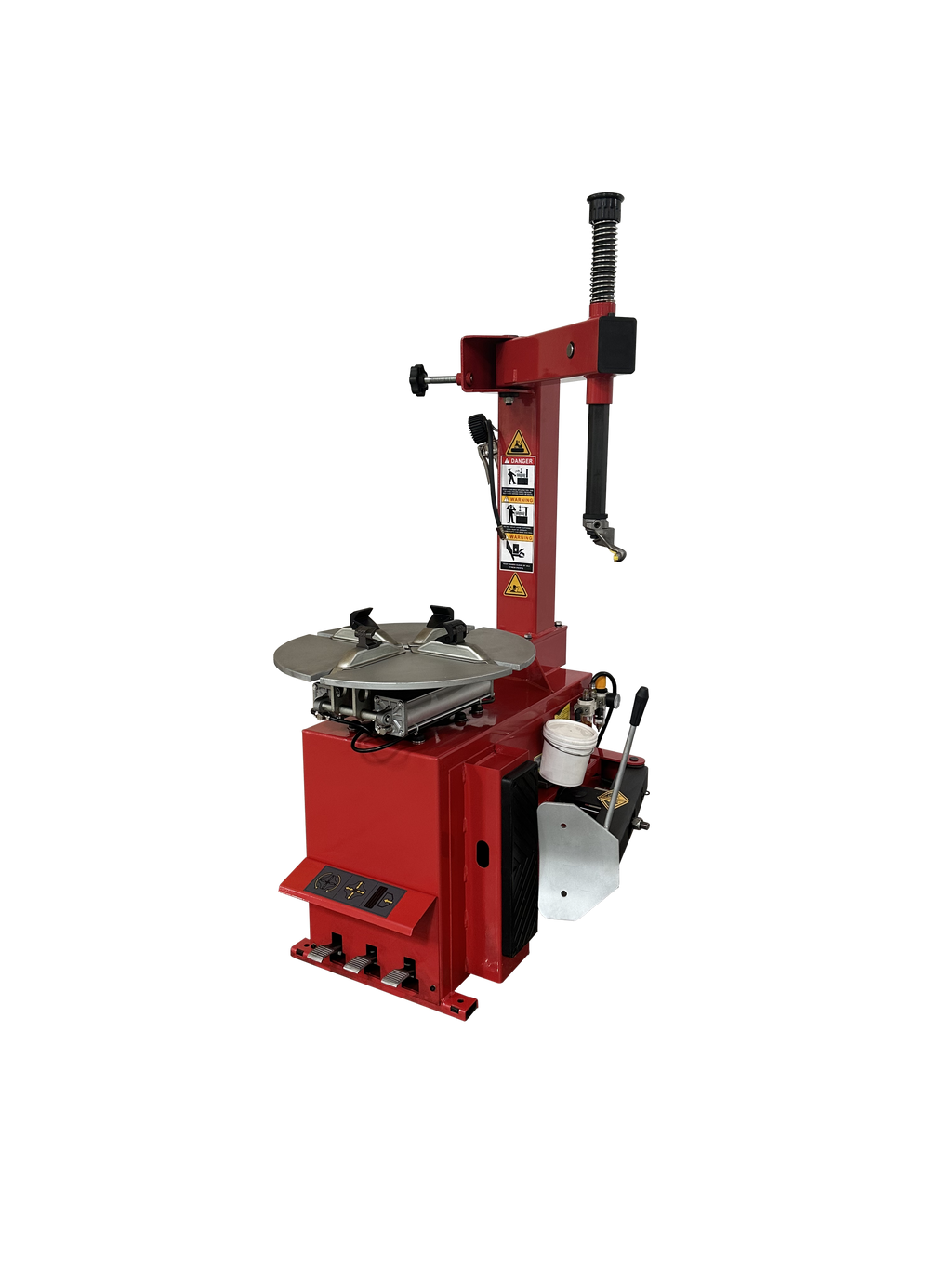

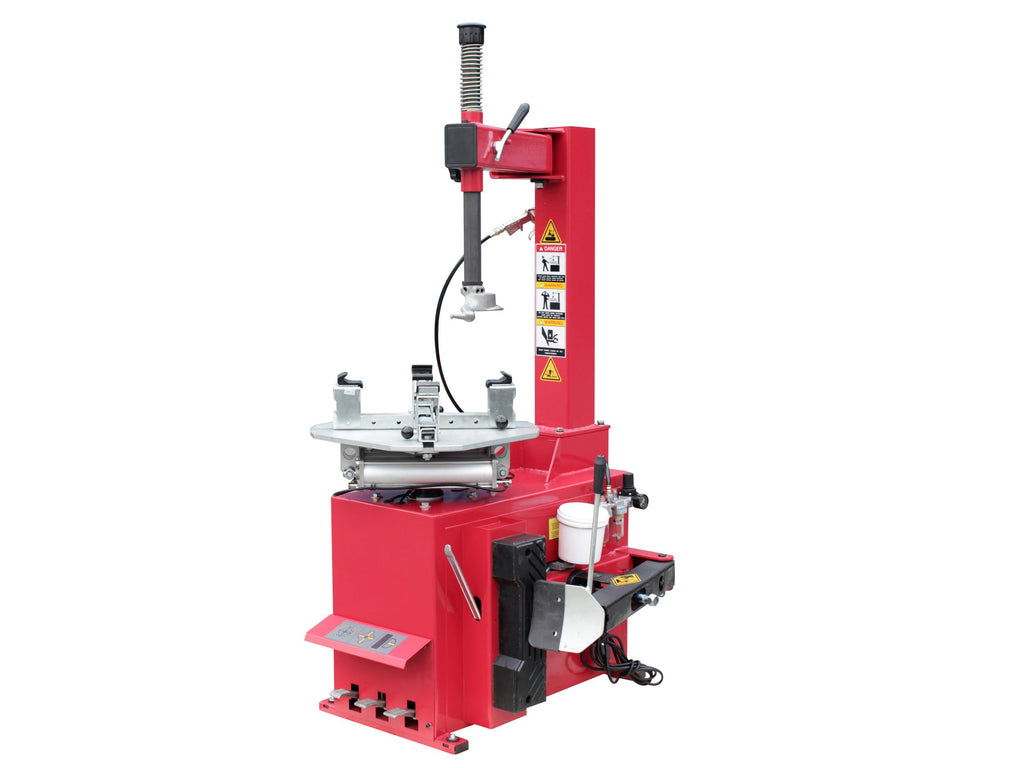

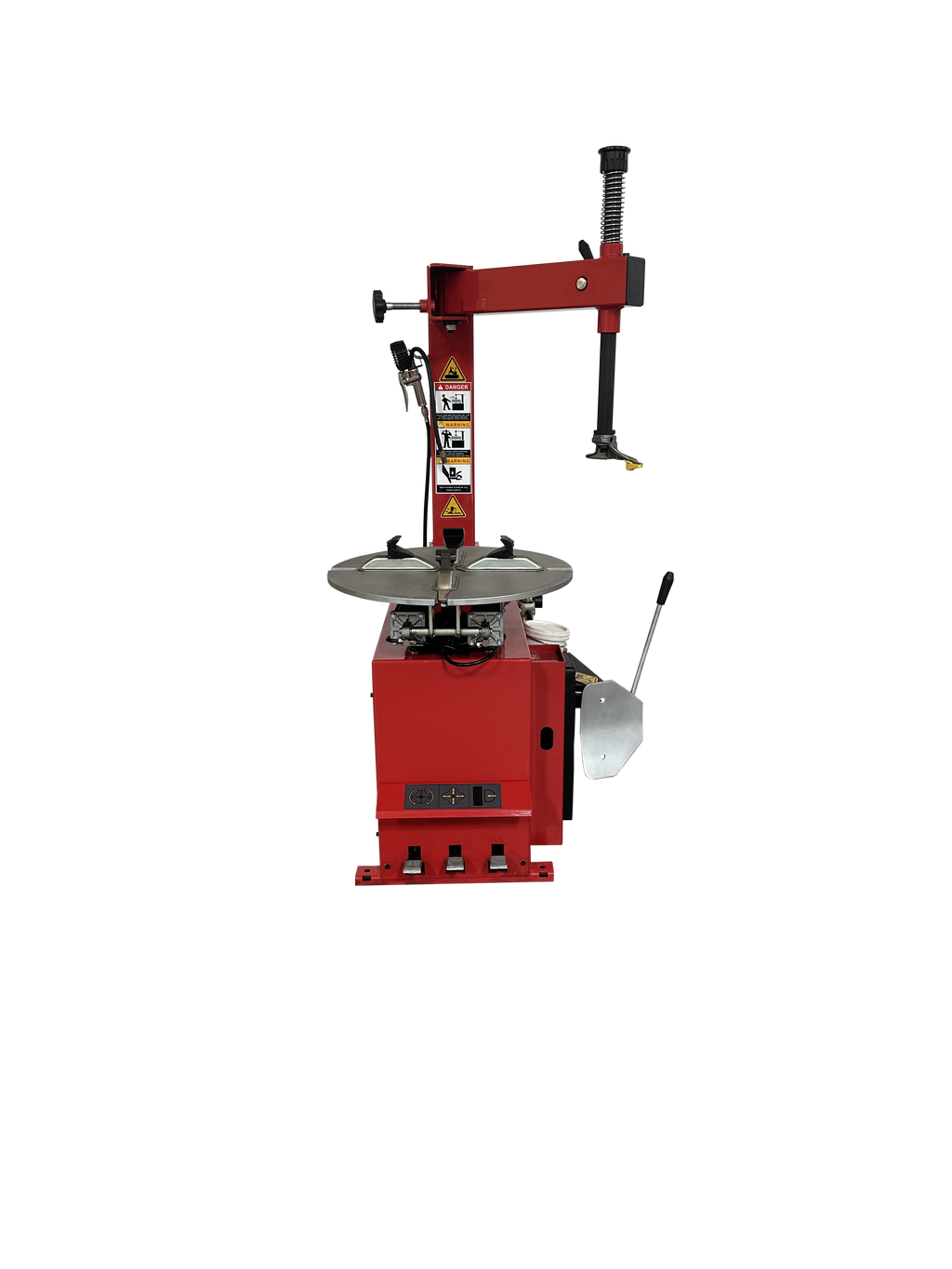

The Tuxedo TC-400M-B is a power sport tire changer built for motorcycle, ATV, and small-diameter wheels. It uses a swing-arm layout with four adjustable clamps and double-acting pneumatic cylinders, so a shop can mount and demount bike tires that a passenger-car changer struggles to hold.

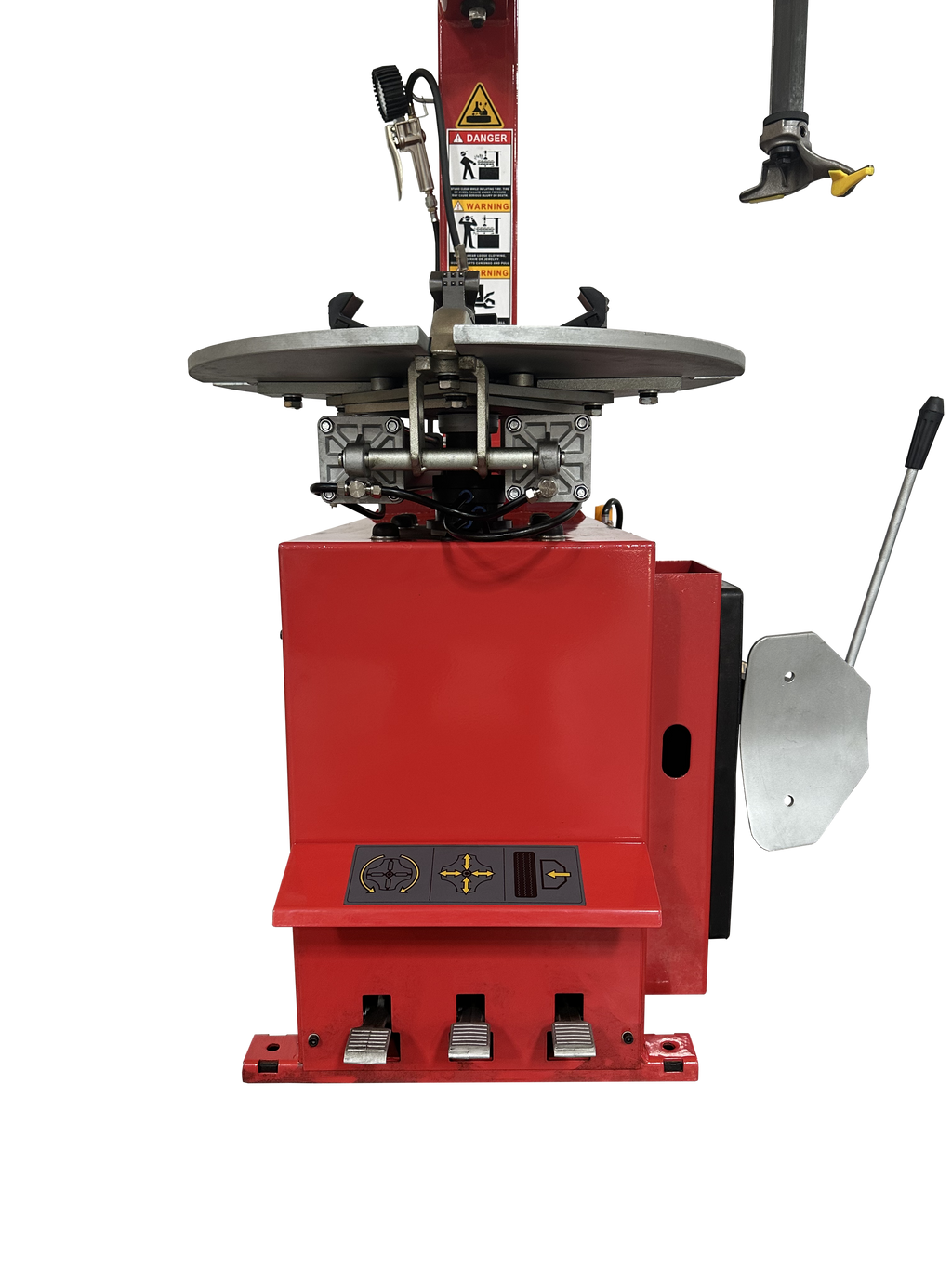

The four self-centering clamps cover an outside rim clamping range of 6 to 24 inches, which spans most motorcycle and power sport rims. A side-mounted bead breaker frees stubborn beads, and electric table rotation keeps both hands on the tool. The package includes a water separator, lubricator, and air pressure regulator, so the air supply is conditioned before it reaches the machine.
Key Features
- Built for power sport wheels - sized for motorcycle, ATV, and small-diameter rims.

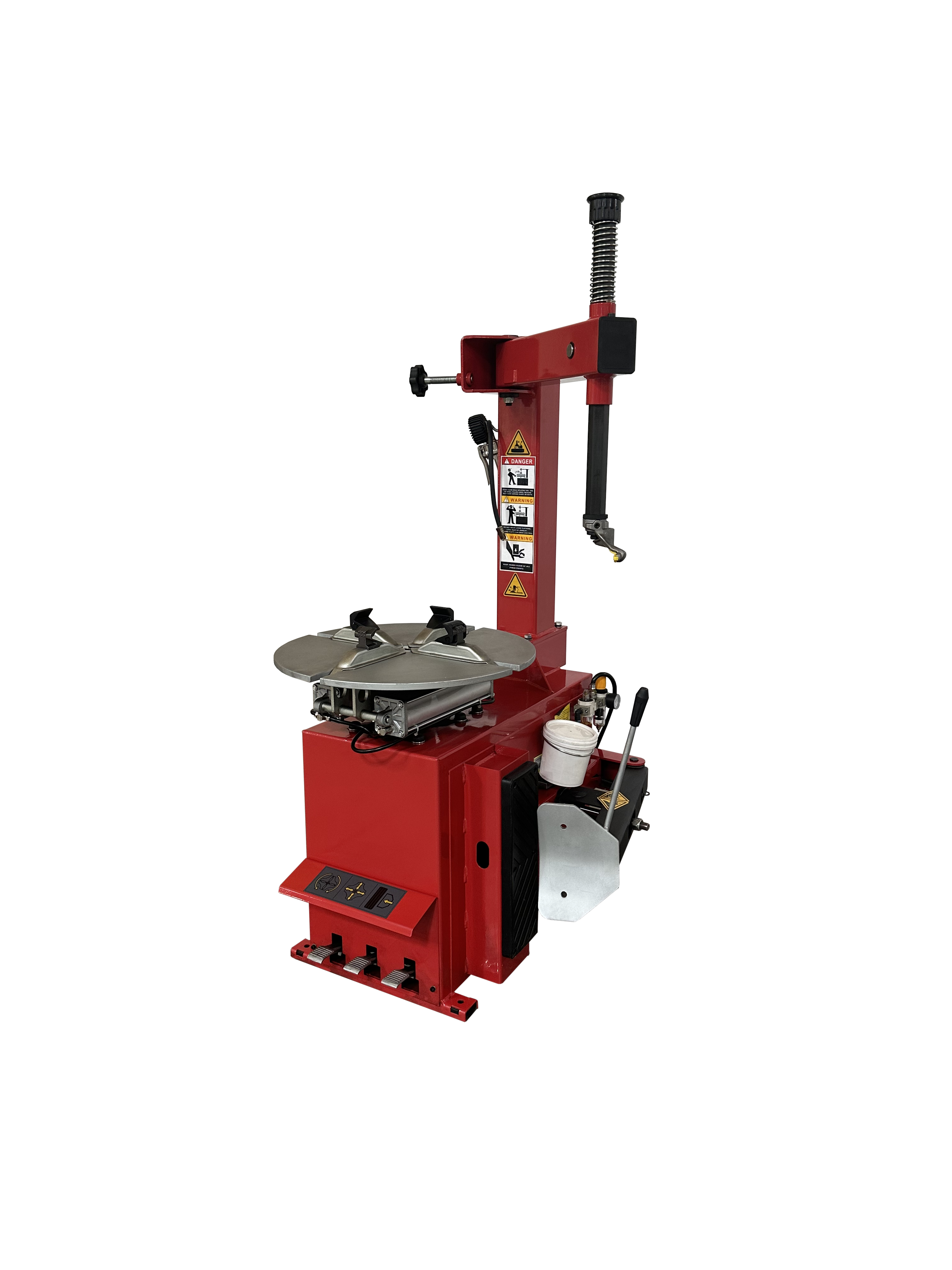

- Four adjustable clamps - cover an outside rim clamping range of 6 to 24 inches.
- Double-acting pneumatic cylinders - deliver firm, repeatable clamping force.

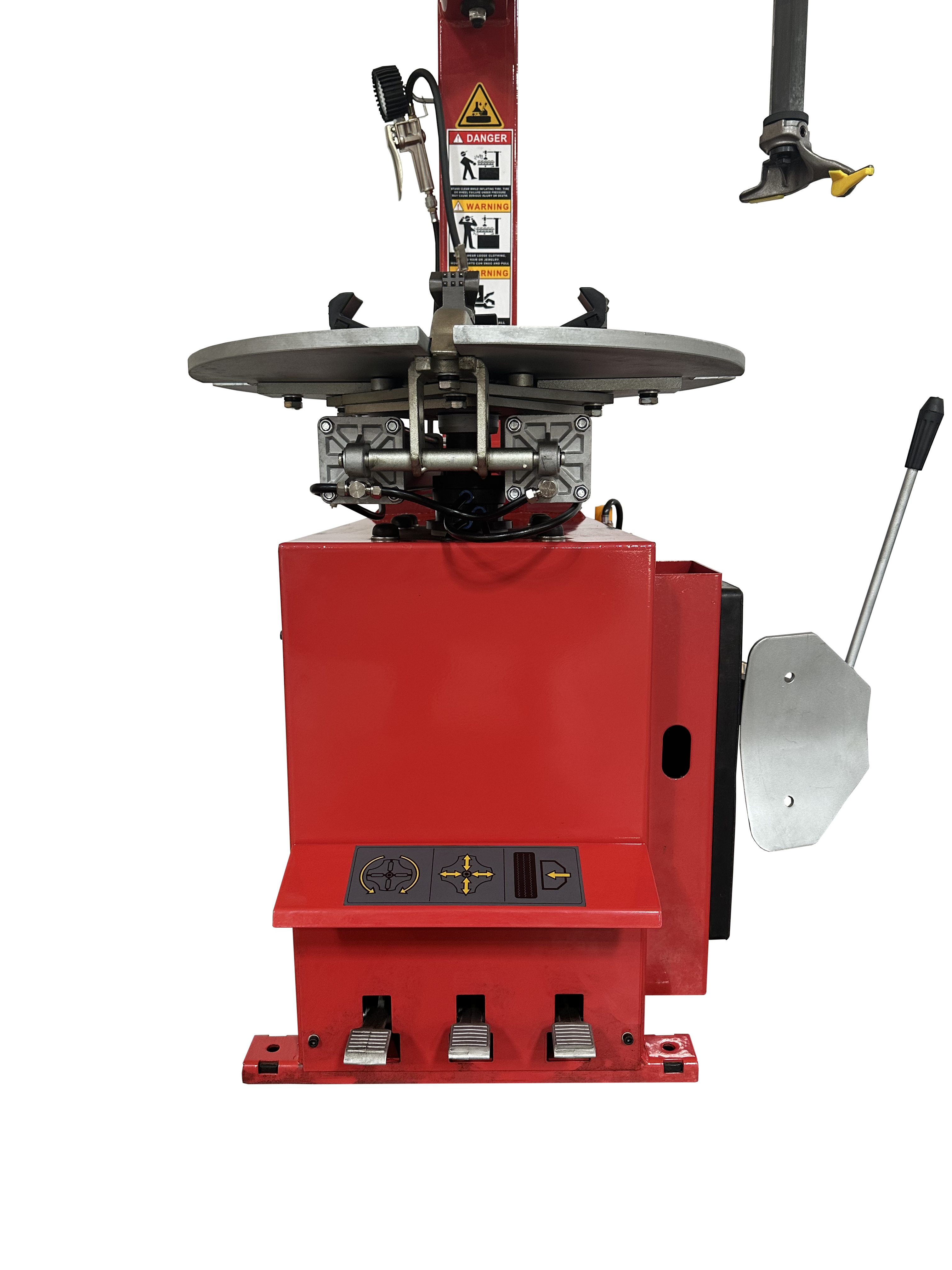

- Side-mounted bead breaker - frees the bead on tight power sport tires.
- Conditioned air supply - water separator, lubricator, and pressure regulator are included.

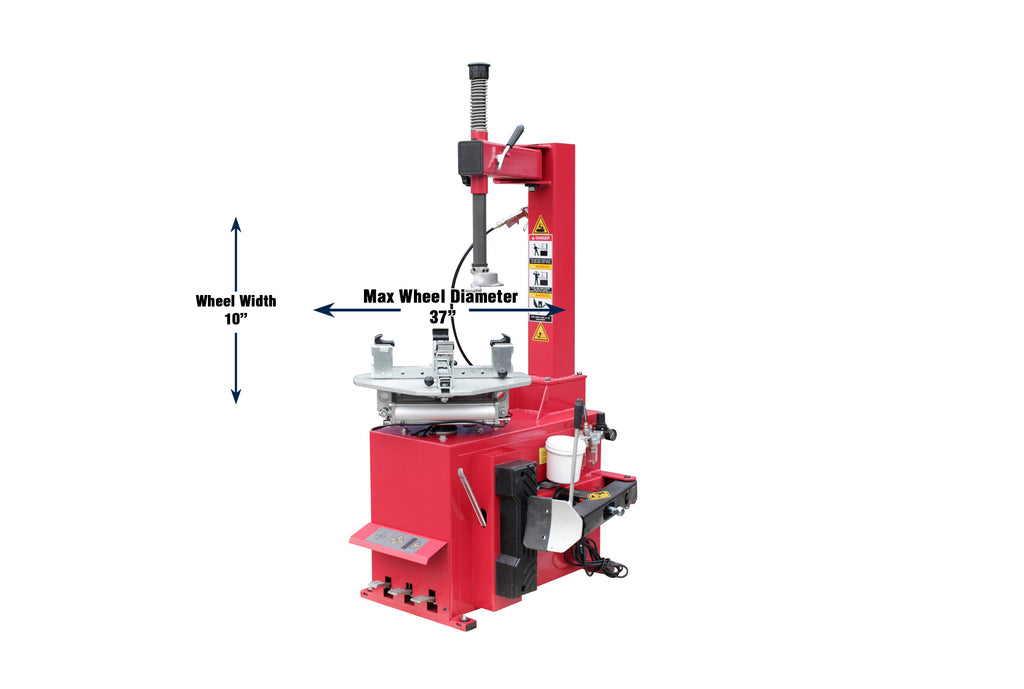

- 37 inch wheel capacity - handles wheels up to 37 inches in diameter and 10 inches wide.
Specifications
| Brand | Tuxedo Distributors |
|---|---|
| Type | Power Sport Tire Changer |

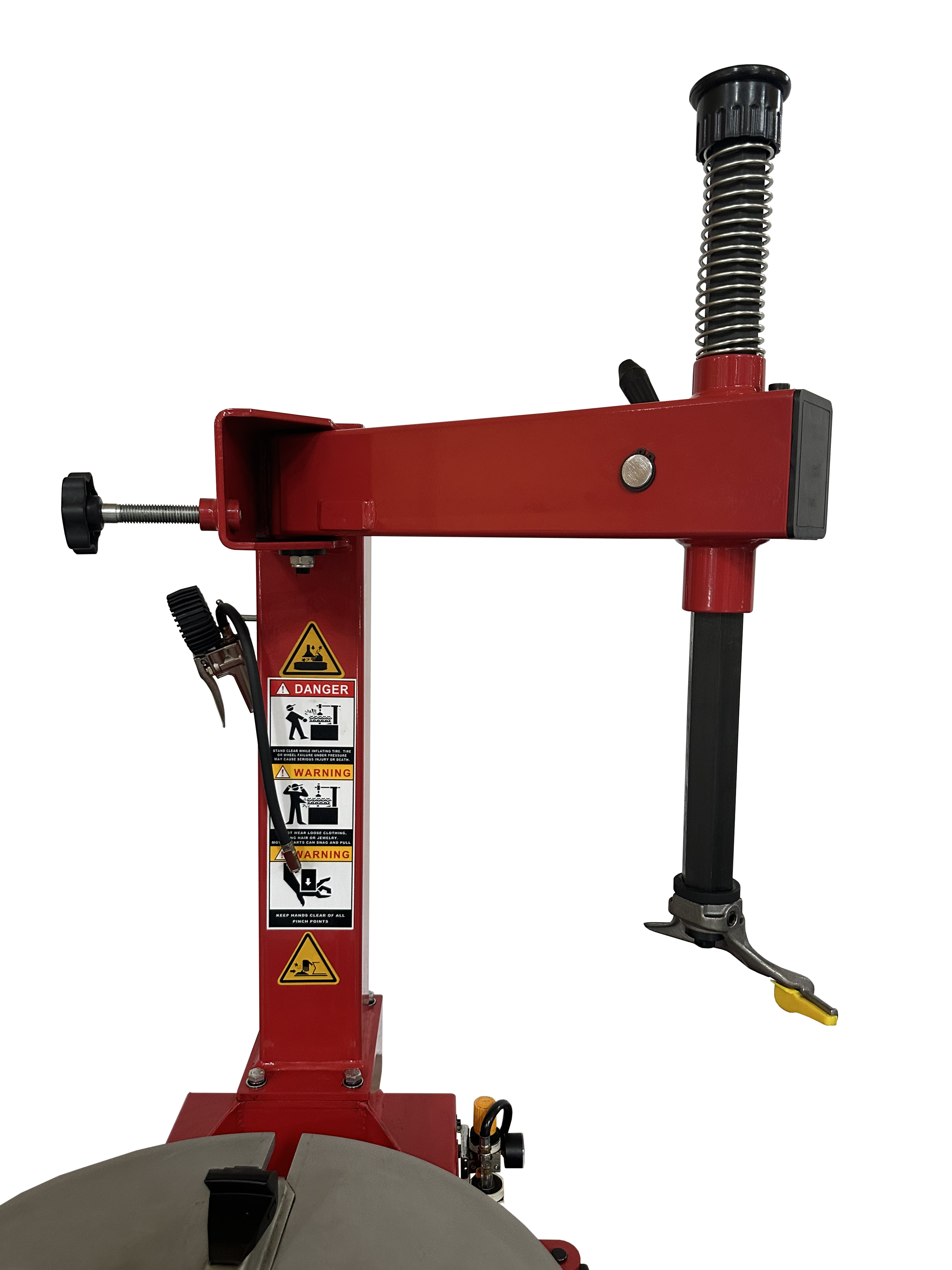

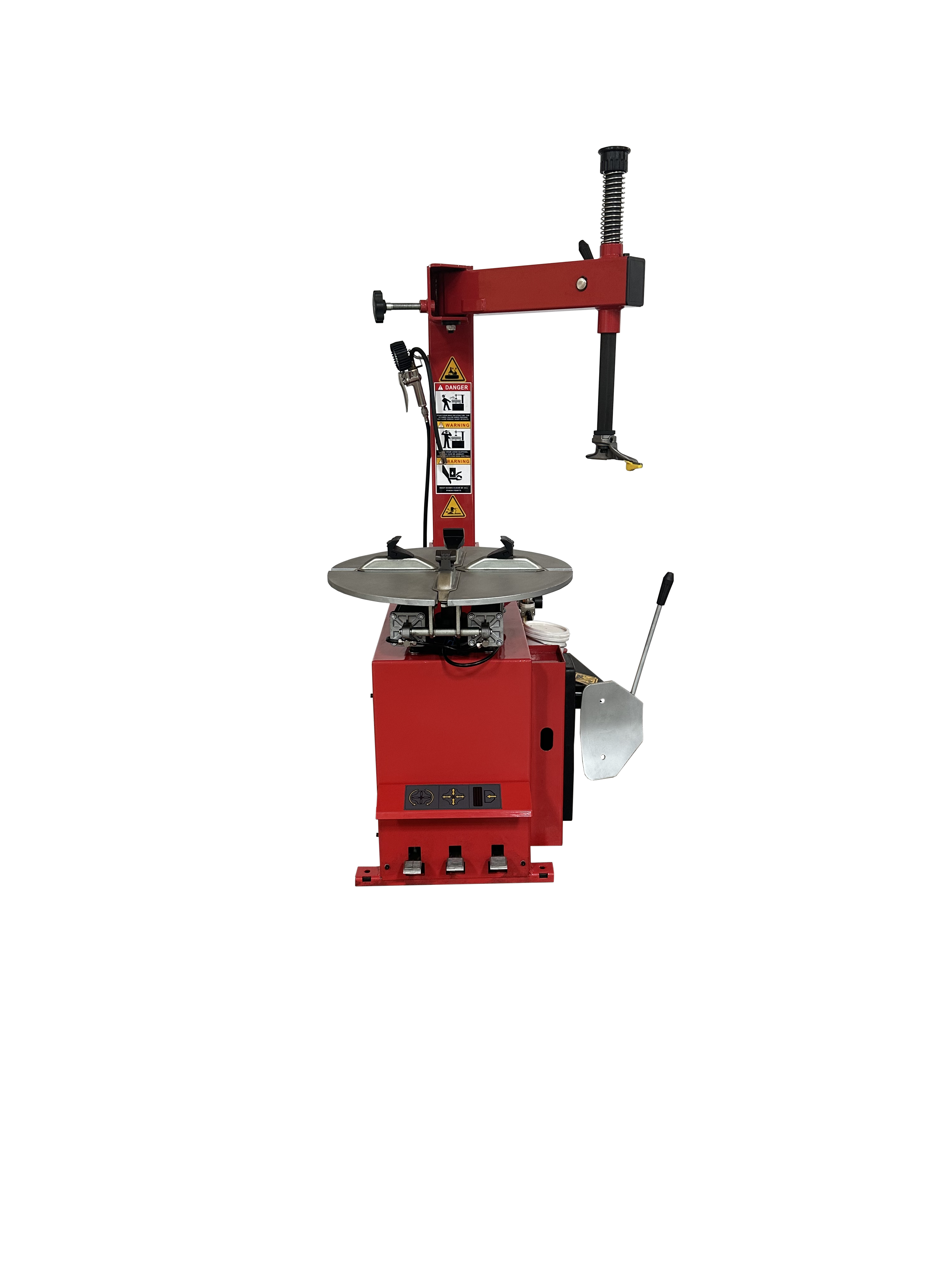

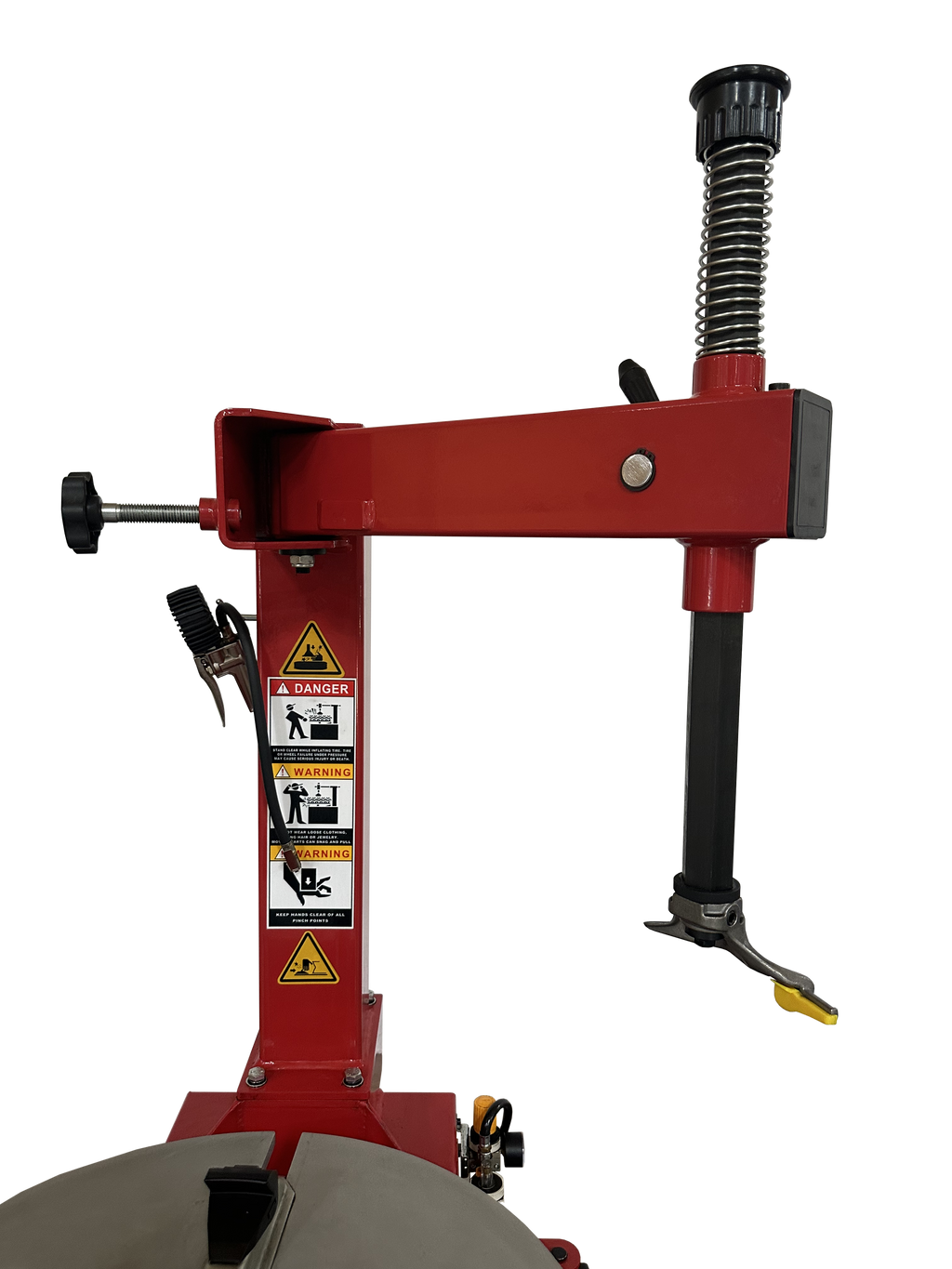

| Tower Type | Swing arm |
| Max Wheel Diameter | 37" |
| Wheel Width | 10" |
| Outside Rim Clamp Range | 6" to 24" |
| Working Pressure | 125 psi |
| Power | 110V, 15 Amp, Single Phase |
| Ship Weight | 470 lbs |
How It Compares
| Model | Type | Outside Clamp Range | Assist Arm |
|---|---|---|---|
| TC-400M-B | Power sport | 6" to 24" | No |
| TC-400M-B-IDEAL | iDEAL power sport | 6" to 24" | No |
| TC-400M-B-PL230-K | iDEAL power sport | 6" to 24" | Yes |
Key Facts
- Outside rim clamping range of 6 to 24 inches covers most motorcycle and power sport wheels.
- Handles wheels up to 37 inches in diameter and 10 inches wide.
- Ships with a water separator, lubricator, and air pressure regulator.
Who It's For
The TC-400M-B fits motorcycle shops, power sport dealers, and general shops that service bike and ATV tires alongside cars. It needs a 110V, 15 amp circuit and shop air at 125 psi.
Shipping and Freight
This tire changer ships by freight (LTL) at about 470 lbs on a pallet. Plan for a forklift or a liftgate delivery, and inspect the crate before signing for it.
About Tuxedo
Tuxedo Distributors supplies tire changers, wheel balancers, and automotive lifts to professional shops across North America, with a dedicated power sport wheel service line for motorcycle and ATV work.
Frequently Asked Questions
What wheels is the TC-400M-B made for?
It is designed for motorcycle, ATV, and small-diameter power sport wheels, with an outside rim clamping range of 6 to 24 inches and a max wheel diameter of 37 inches.
Does it include air conditioning components?
Yes. A water separator, lubricator, and air pressure regulator are included so the shop air is conditioned before it reaches the machine.
What power and air does it need?
It runs on 110V, 15 amp single phase and needs shop air at 125 psi working pressure.
How does it break the bead?
It uses a side-mounted bead breaker, and the four clamps run on double-acting pneumatic cylinders for firm, repeatable clamping.
How does it ship?
It ships by LTL freight at roughly 470 lbs on a pallet. A forklift or liftgate makes unloading easier.
