Description
Overview

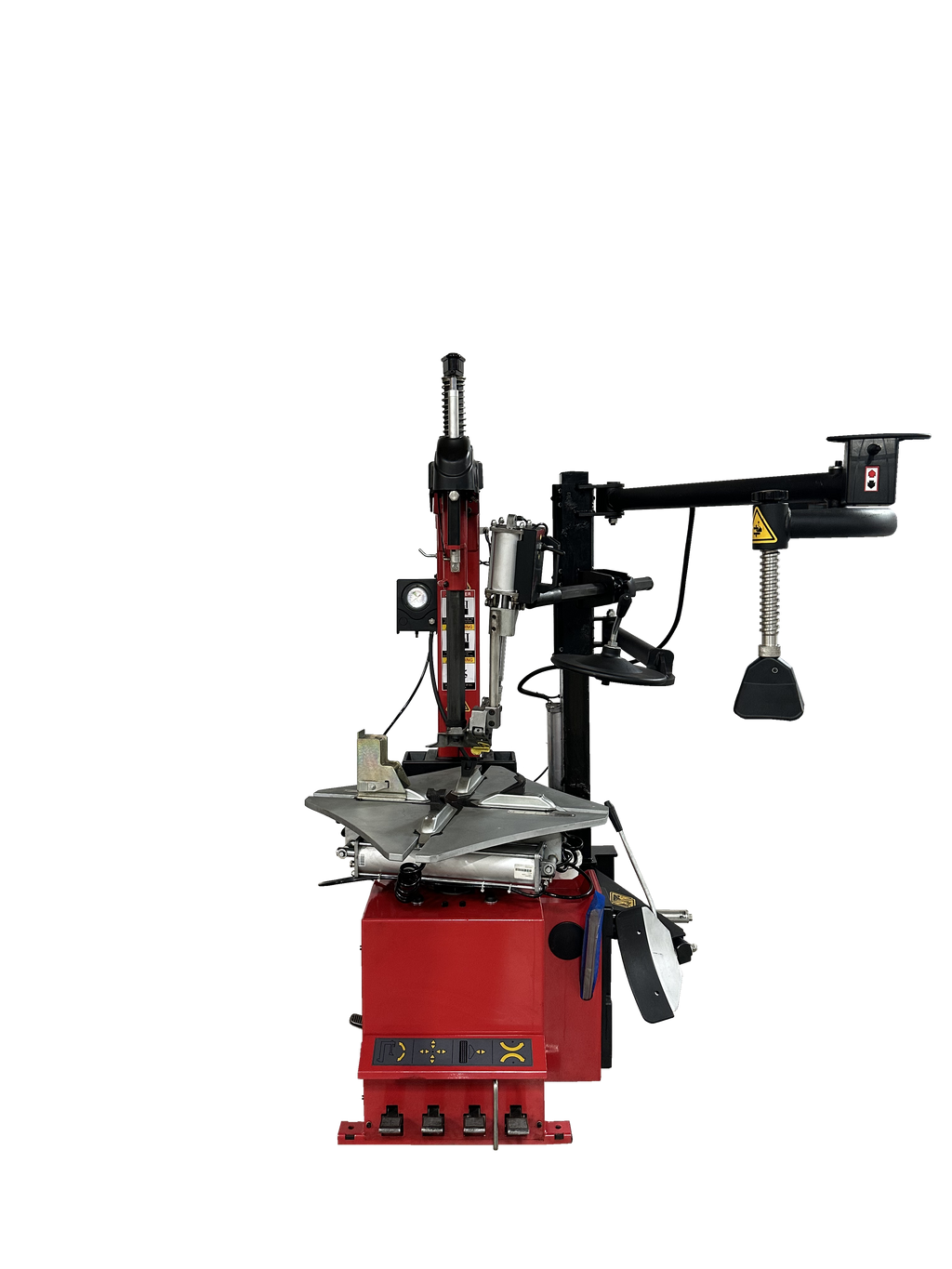

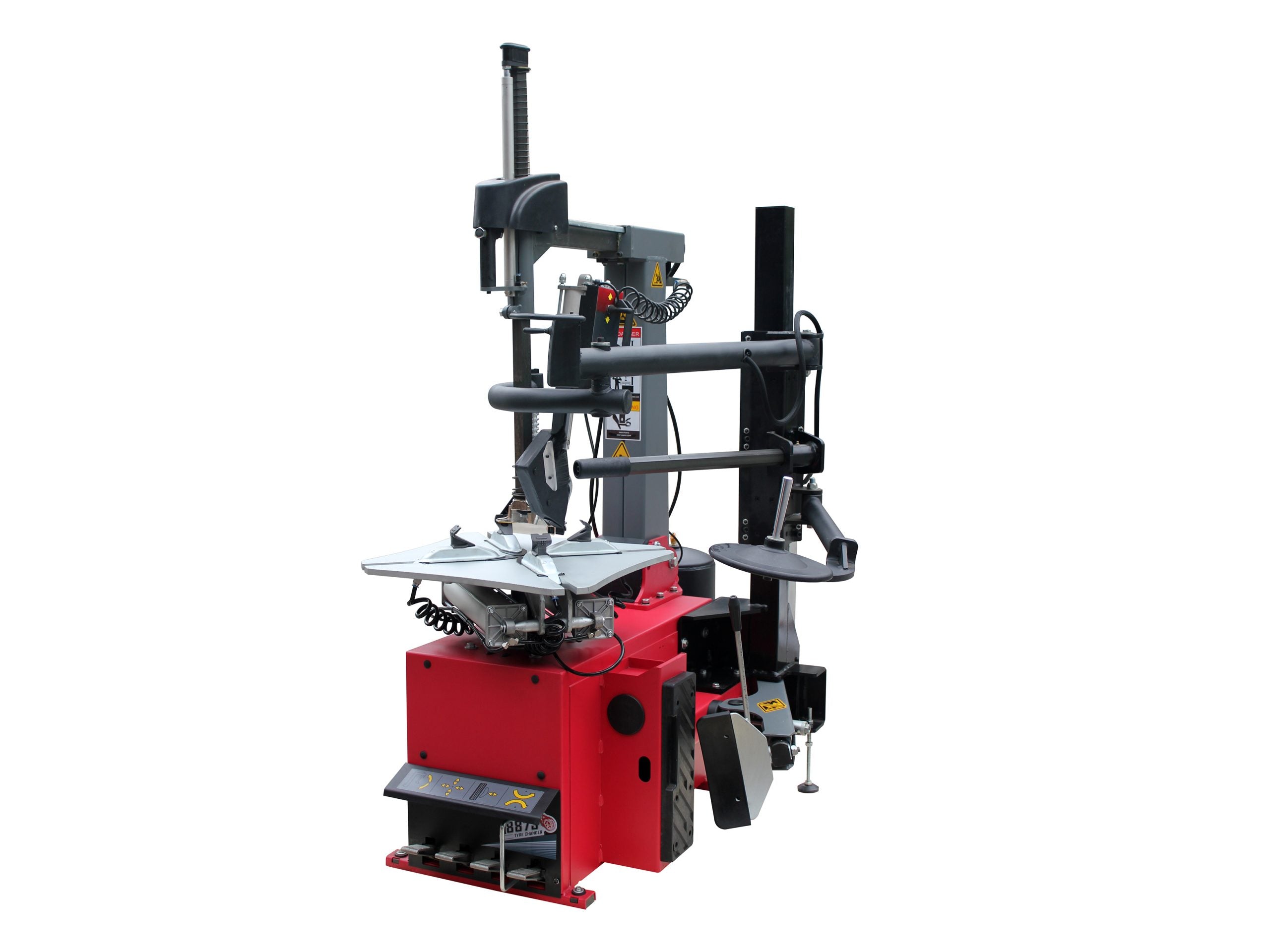

The Tuxedo TC-1300 is a leverless, tilt-back tire changer built for shops that run a steady mix of standard and low-profile wheels. The leverless mount and demount head removes the pry bar from the process, which protects rims and speeds up each cycle.
A tilt-back column swings the tower out of the way for loading and gives the operator room to work. The three-function assist arm holds the bead down on stubborn low-profile tires, while a pneumatic locking hex shaft keeps the mount and demount head set where you want it. Four self-centering clamps with dual bead-blaster jets seat the bead fast. The TC-1300 handles wheels up to 41 inches in diameter and rim widths from 3 to 15 inches.
Key Features

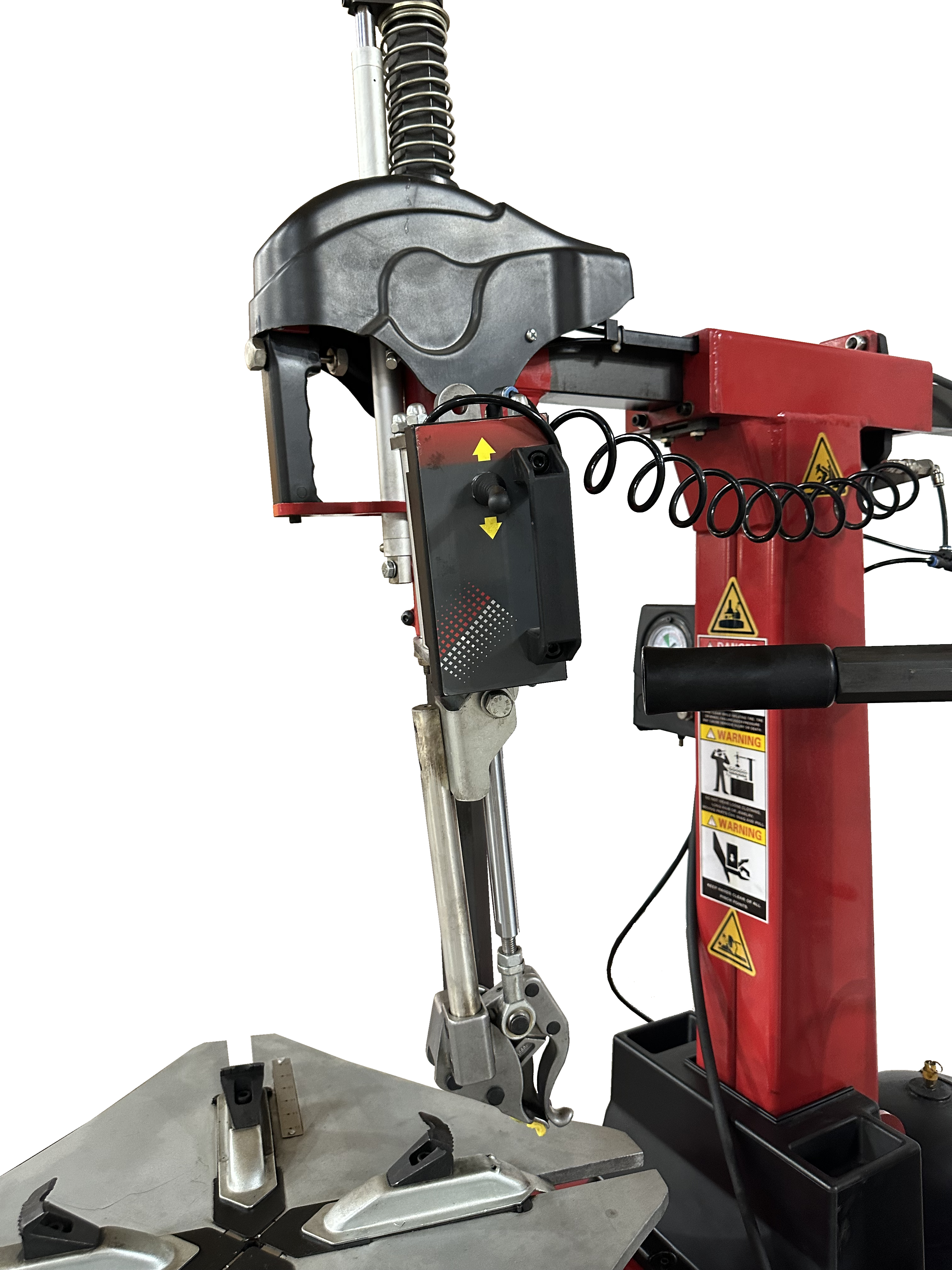

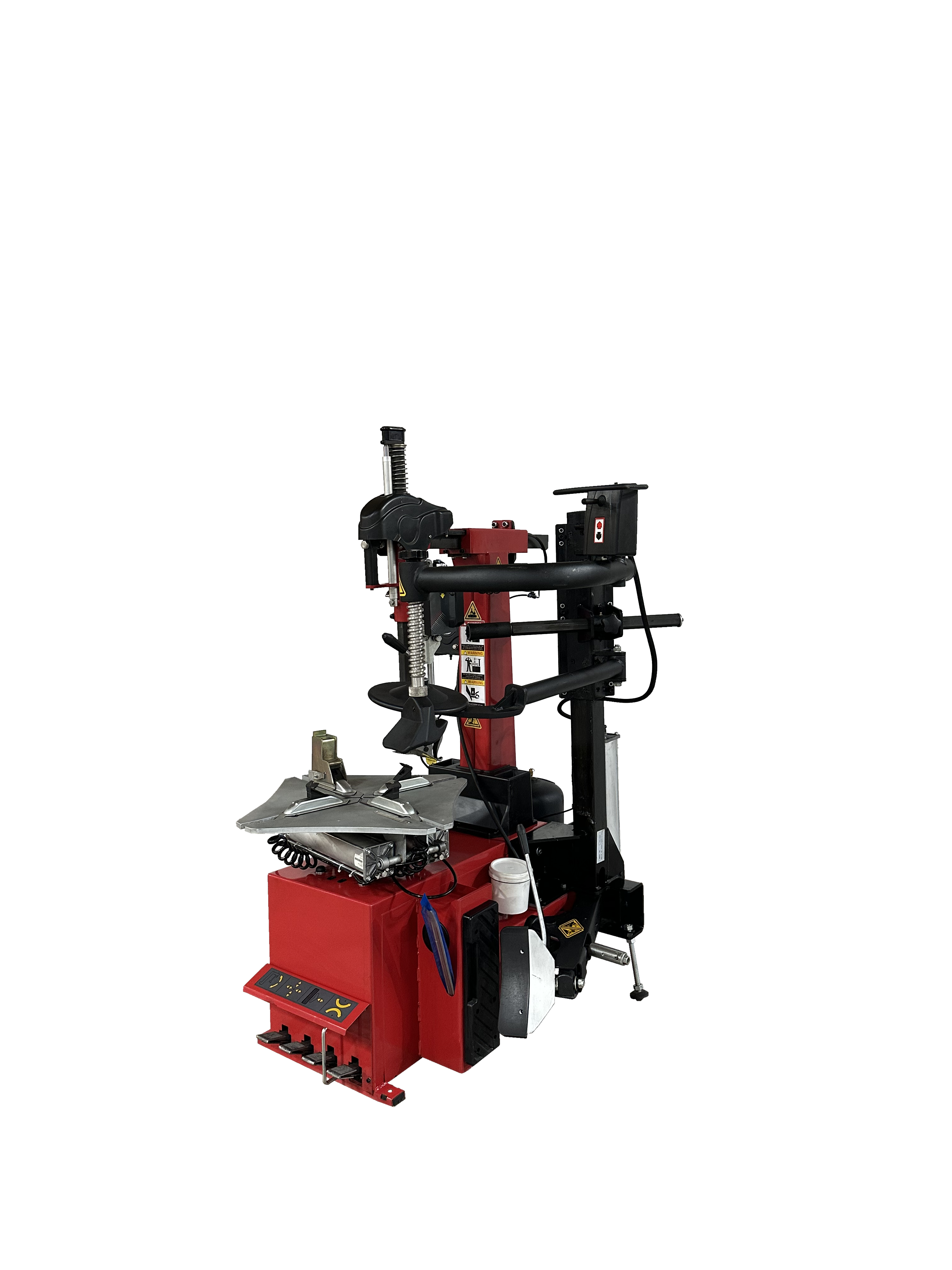

- Leverless mount and demount head - works the bead without a pry bar to cut down on rim and tire damage.

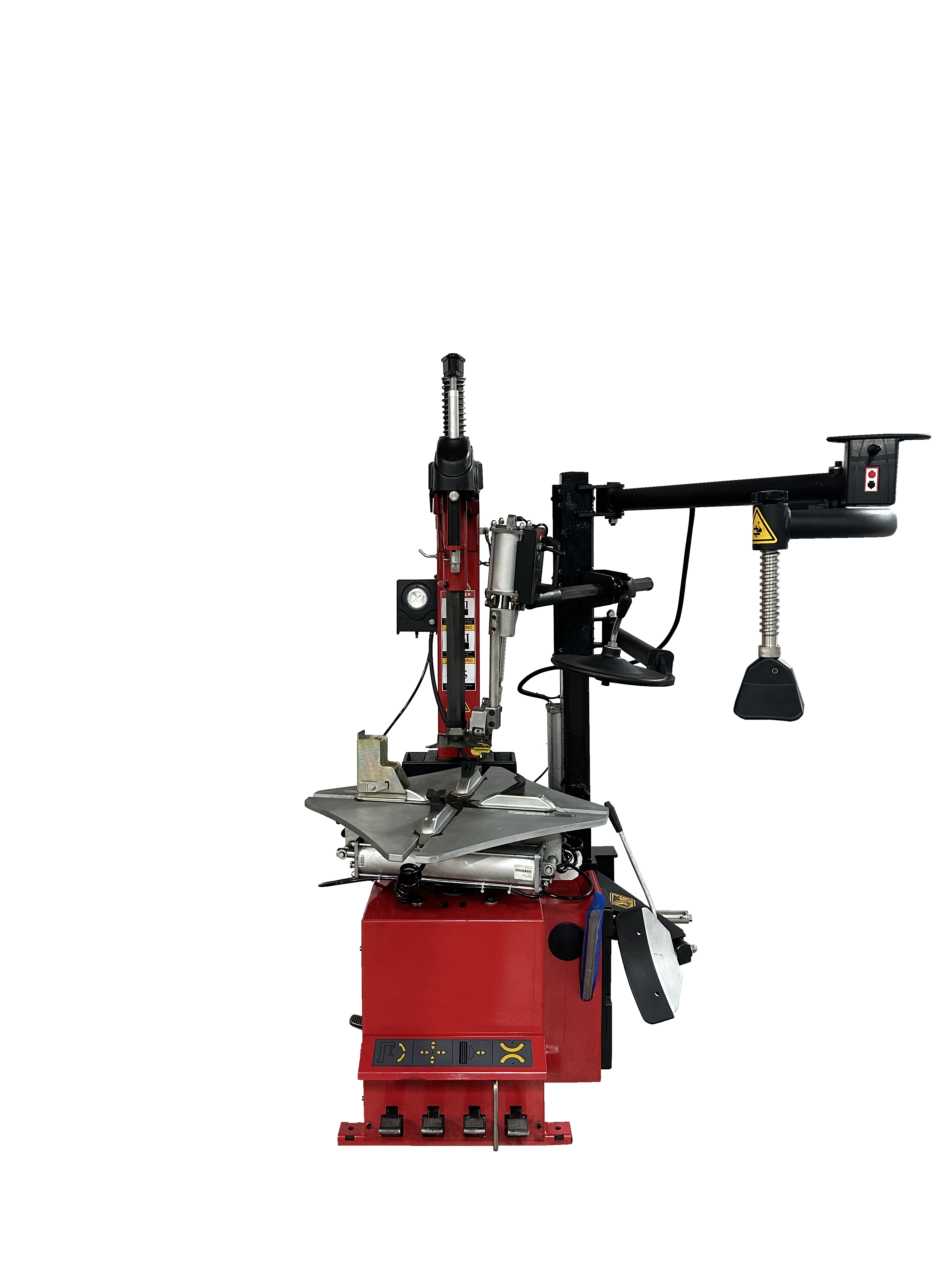

- Tilt-back column - swings clear for loading and opens up the work area around the wheel.
- Three-function assist arm - presses and holds the bead for dismounting low-profile tires.
- Pneumatic locking hex shaft - locks the tool head reliably during operation.

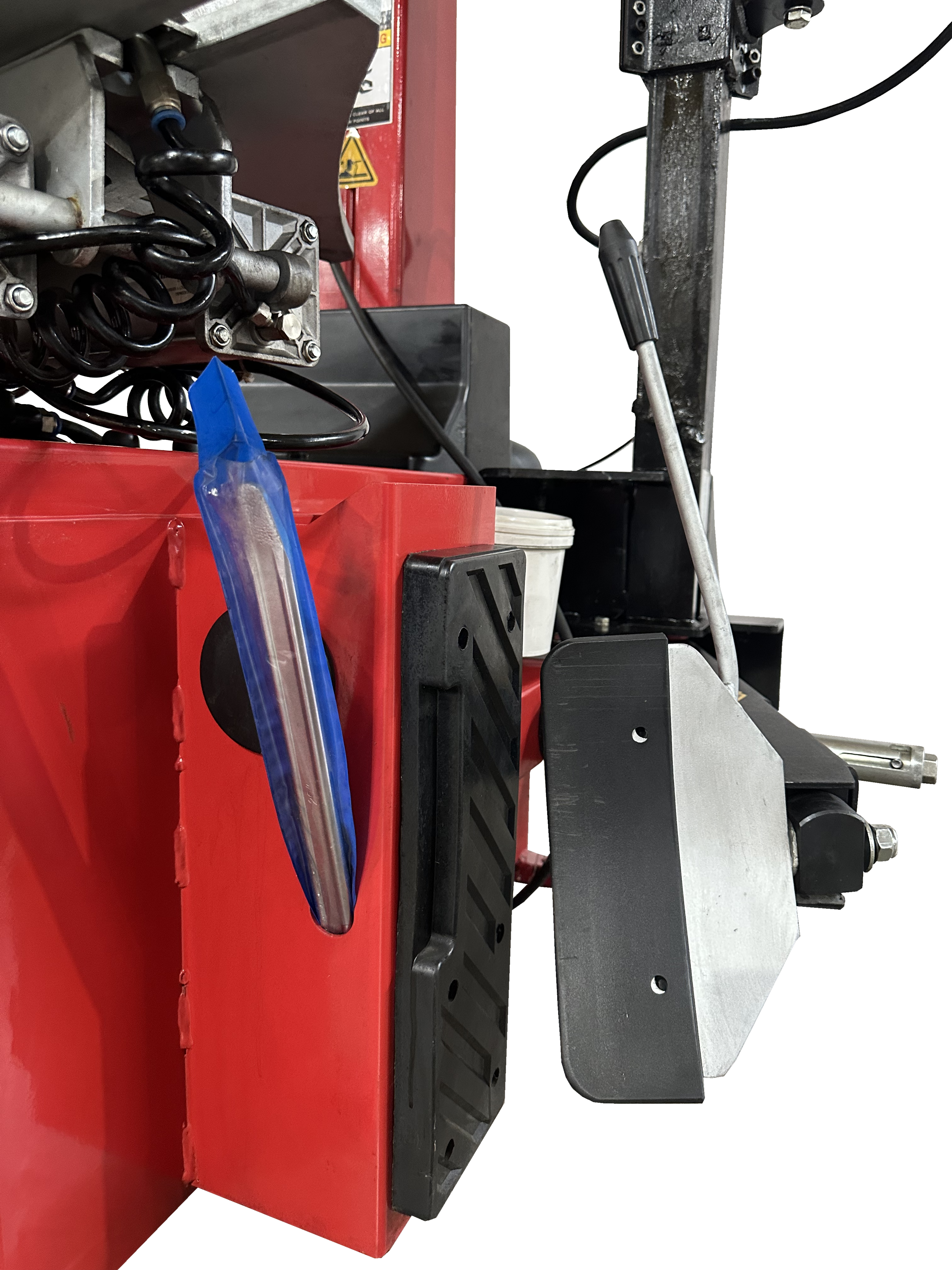

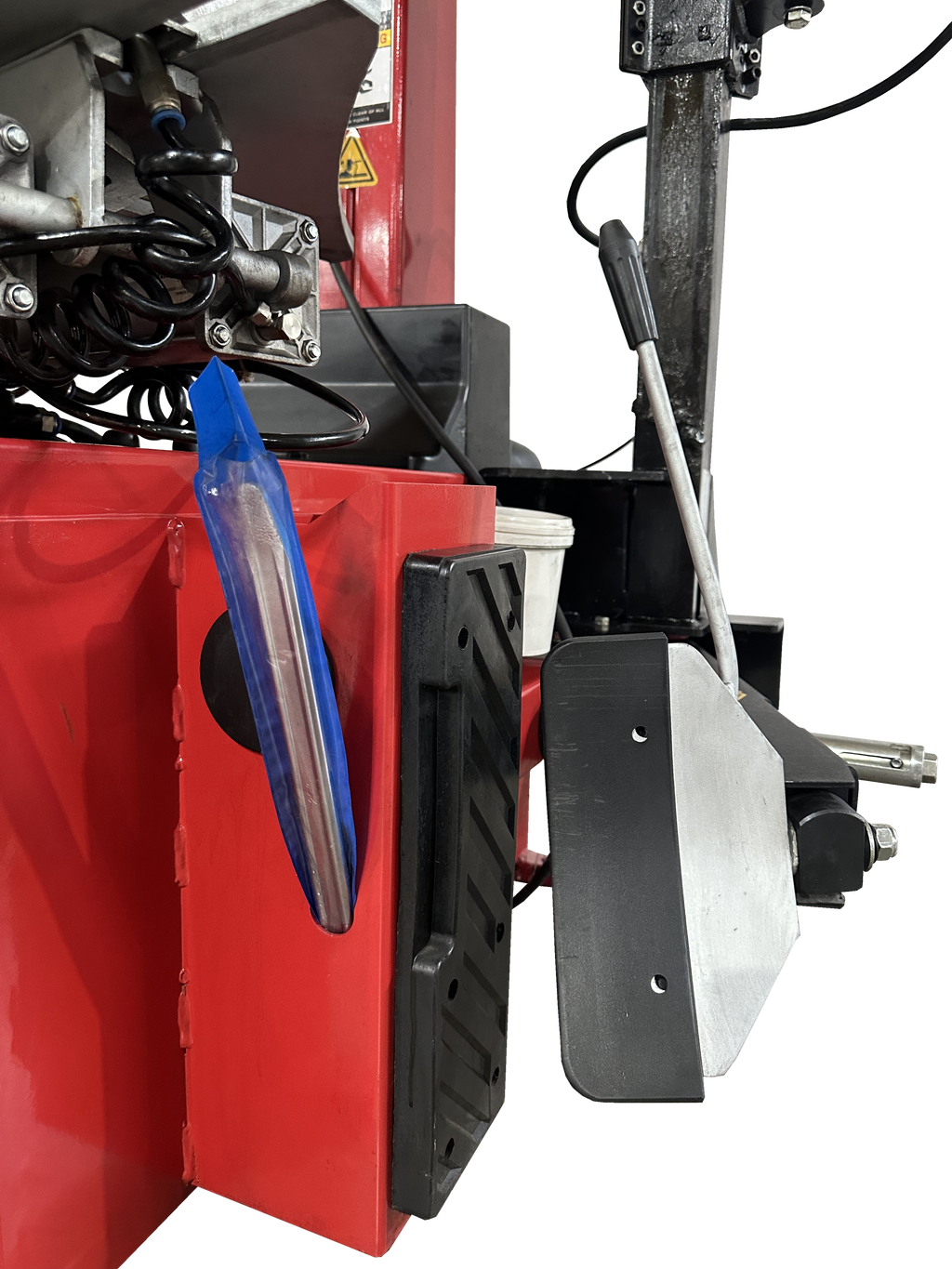

- Dual bead-blaster jets - inflation jets built into all four clamps seat the bead quickly.
- 41 inch wheel capacity - handles rim widths from 3 to 15 inches with an inside clamp range of 13 to 26 inches.
Specifications
| Brand | Tuxedo Distributors |
|---|---|
| Type | Tire Changer |
| Tower Type | Tilt-back, leverless |
| Max Wheel Diameter | 41" |
| Wheel Width | 3" to 15" |
| Inside Rim Clamp Range | 13" to 26" |
| Outside Rim Clamp Range | 11" to 24" |
| Working Pressure | 125 psi |
| Power | 110V, 15 Amp, Single Phase |
| Ship Weight | 975 lbs |
How It Compares
| Model | Tower Type | Max Wheel Diameter | Rim Width |
|---|---|---|---|
| TC-1300 | Tilt-back, leverless | 41" | 3" to 15" |
| TC-950 | Swing arm | 47" | 3" to 15" |
| TC-530 | Swing arm | 38" | 3" to 12" |
Key Facts
- Leverless head reduces rim contact compared with traditional bar mounting.
- Handles wheels up to 41" in diameter and rim widths to 15".
- Runs on a standard 110V, 15 amp circuit with 125 psi shop air.
Who It's For
The TC-1300 fits tire shops, general repair bays, and performance shops that change a high share of low-profile and larger-diameter wheels and want to limit rim damage. It needs a 110V, 15 amp circuit and a shop air supply at 125 psi.
Shipping and Freight
This tire changer ships by freight (LTL) at about 975 lbs. It arrives on a pallet, so plan for a forklift or a liftgate delivery. Inspect the crate on arrival and note any damage on the delivery receipt before signing.
About Tuxedo
Tuxedo Distributors supplies tire changers, wheel balancers, and automotive lifts to professional shops across North America, with a wheel service line that spans entry-level swing-arm units up to leverless and truck-capable machines.
Frequently Asked Questions
What size wheels does the TC-1300 handle?
It handles wheels up to 41" in diameter with rim widths from 3 to 15 inches. The inside clamp range is 13 to 26 inches and the outside clamp range is 11 to 24 inches.
What makes a leverless changer better for low-profile tires?
The leverless head works the bead without a pry bar, which reduces contact with the rim edge. The three-function assist arm holds the bead down so tight low-profile tires come off without fighting them.
What power and air does it require?
It runs on 110V, 15 amp single phase and needs shop air at 125 psi working pressure.
Does it seat beads on its own?

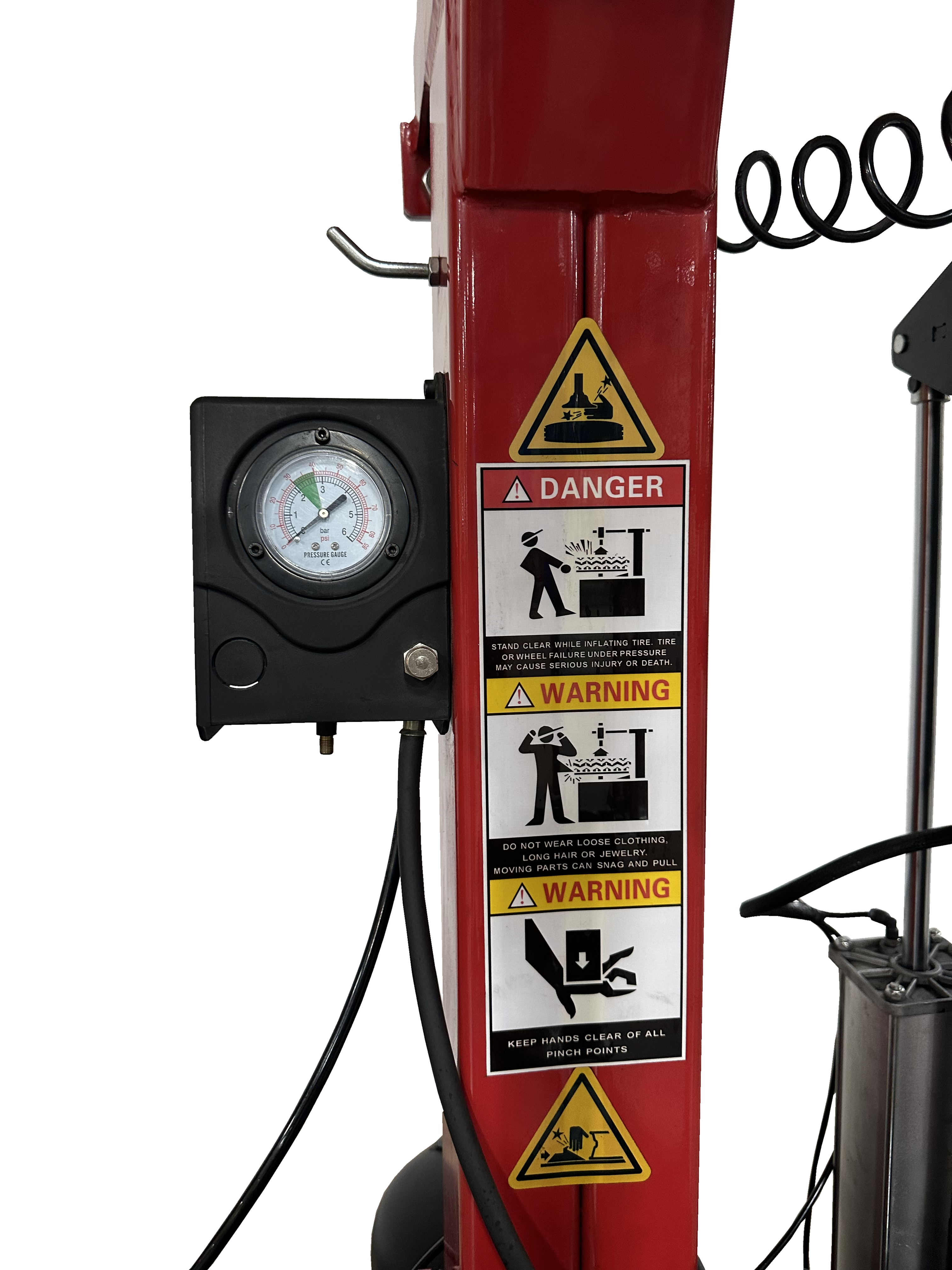

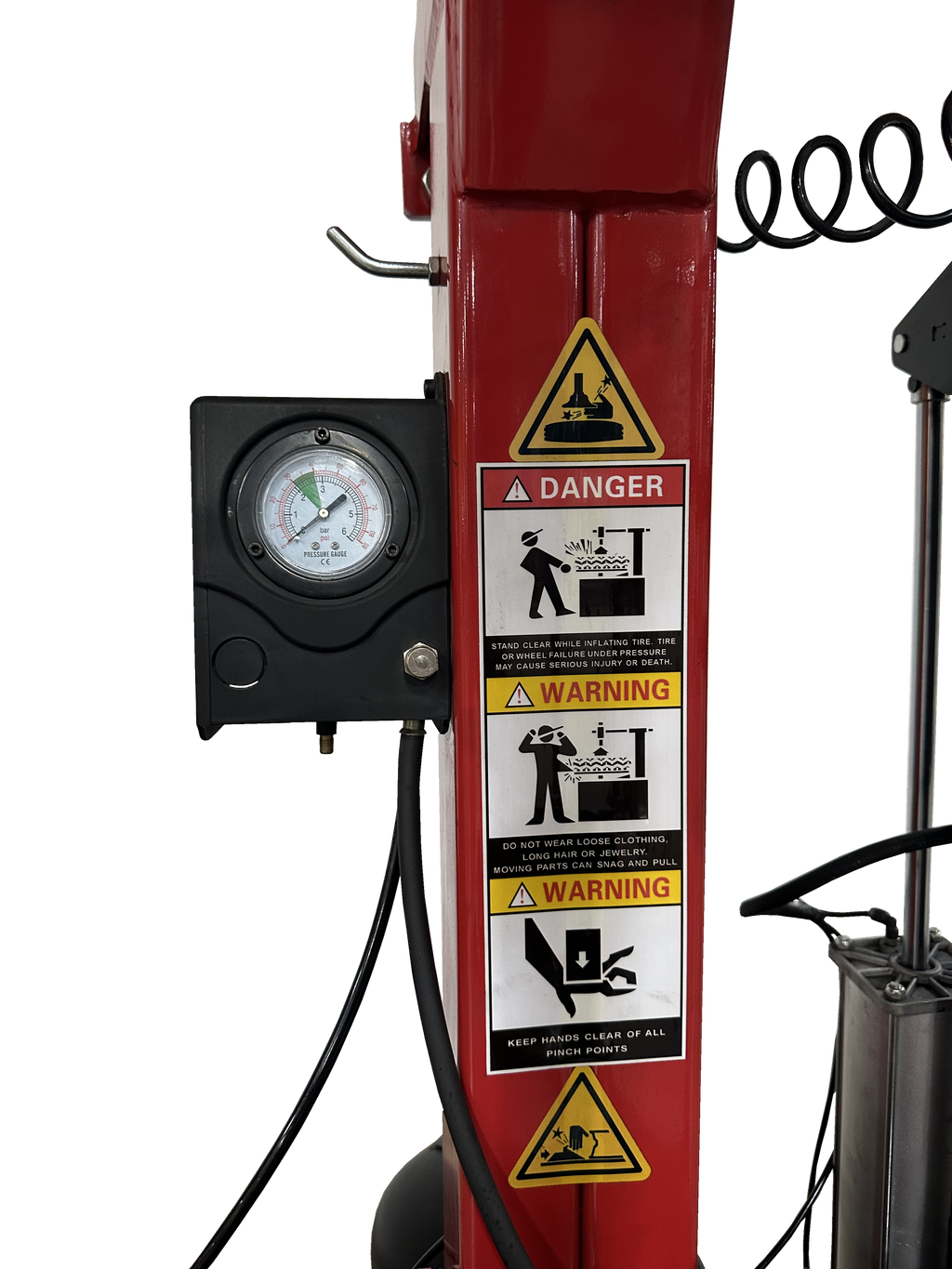

Yes. Dual bead-blaster jets are built into all four clamps to seat beads quickly, and the unit includes an inflation hose and air gauge.
How does it ship?
It ships by LTL freight at roughly 975 lbs on a pallet. A forklift or liftgate makes unloading easier.
