Description
Overview

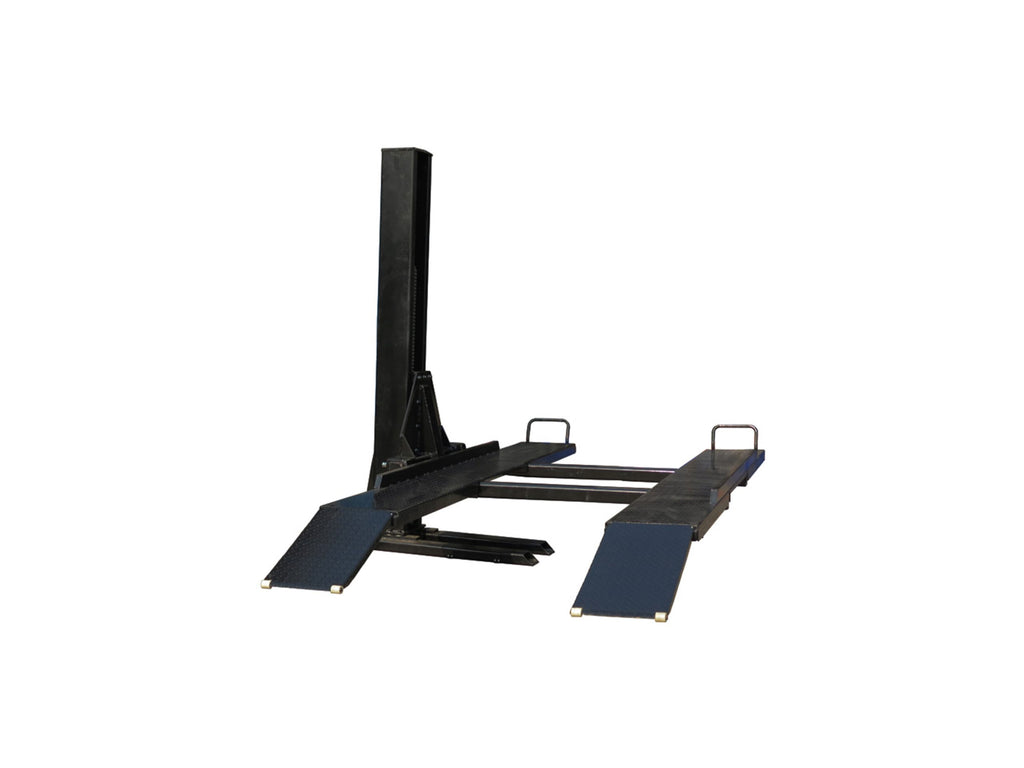

The Tuxedo SP-6K-SS is a single-column storage lift rated at 6,000 lbs. It is built for shops, dealerships, and home garages that need to stack one vehicle over another or free up floor space without committing to a full two-post bay.
A single post keeps the footprint tight, so multiple units fit into a row along a wall or down the center of a building. The runways carry the vehicle on a 19-position mechanical lock ladder, and a commercial-grade hydraulic cylinder with heavy-duty leaf chain handles the load. The DURO electric over hydraulic power unit runs on a standard 115V, 20 amp single-phase circuit, so no special service is required for most installations.
Key Features
- 6,000 lb capacity - rated for cars, small trucks, and SUVs in storage or service duty.
- Single-column design - minimal footprint lets you place multiple units side by side for dense parking.
- Reversible mounting - the post can be set to lift from the left or right side to suit the bay layout.

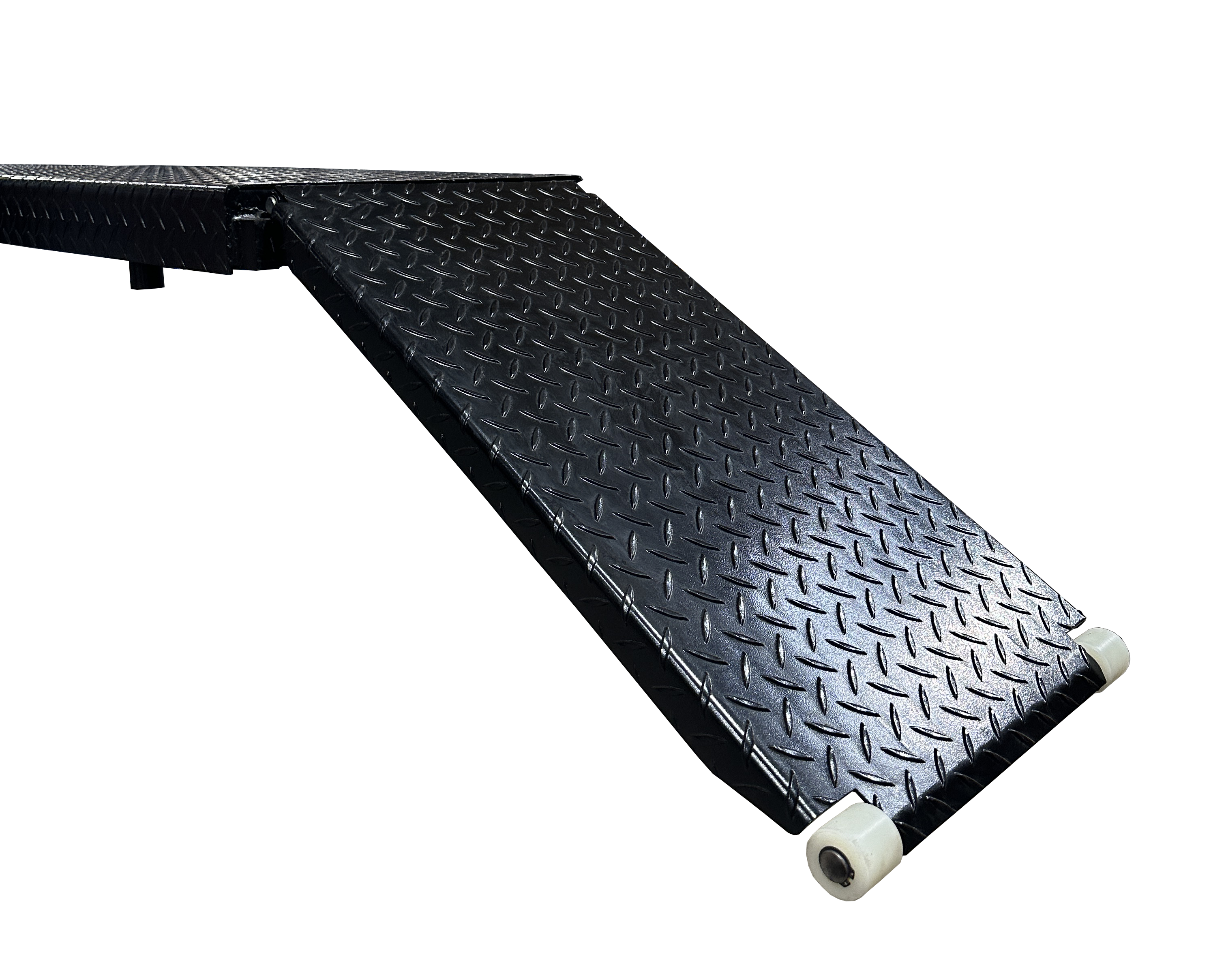

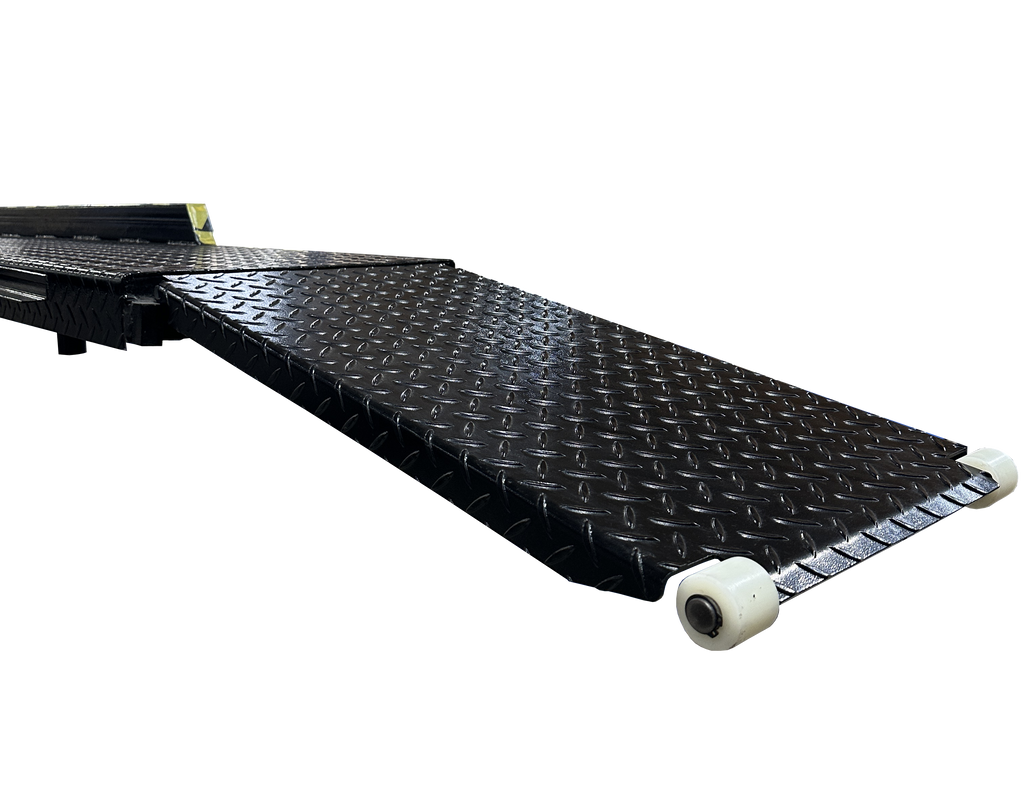

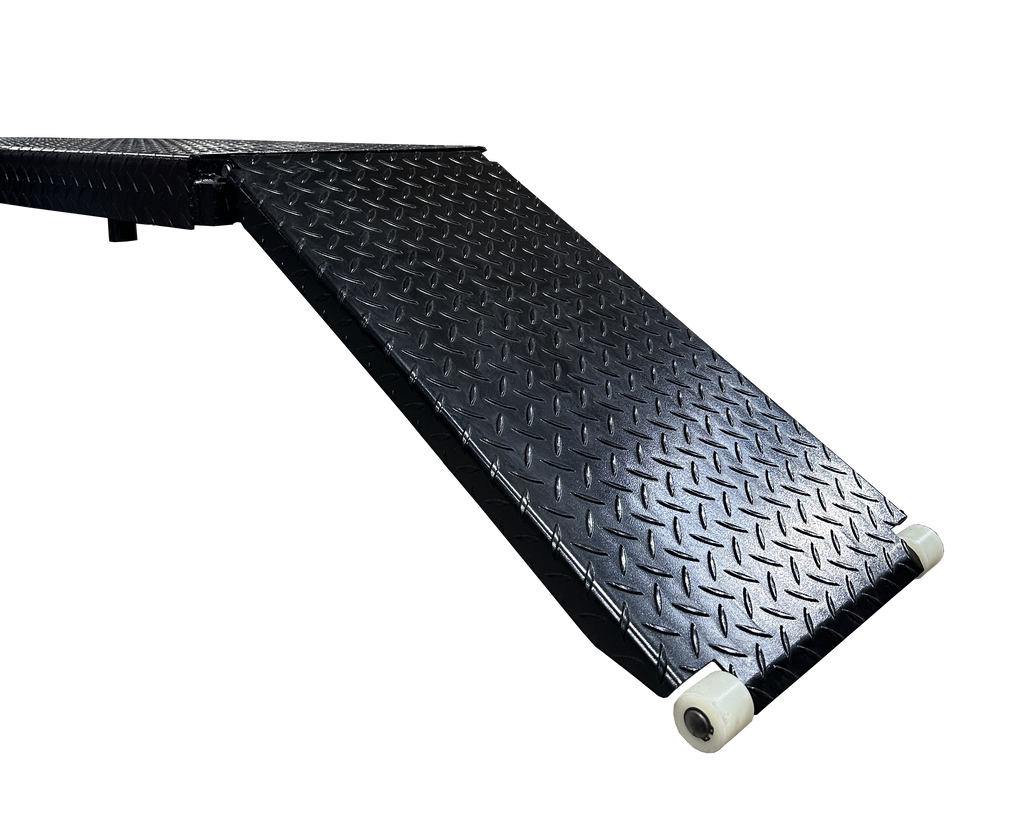

- Low-profile approach ramps - load vehicles with low ground clearance without scraping.
- 19-position lock ladder - mechanical locks hold the runways at the working or storage height you set.
- DURO electric over hydraulic power unit - commercial cylinder and heavy-duty leaf chain on a 115V single-phase circuit.
Specifications
| Brand | Tuxedo Distributors |
|---|---|
| Type | Single-Column Storage Lift |
| Capacity | 6,000 lbs |
| Overall Length with Ramp | 188" |
| Overall Width (outside base plates) | 112-3/16" |
| Overall Height | 110-1/4" |
| Lifting Height | 81-3/16" |
| Length of Runways | 152" |
| Width of Runways | 18-7/8" |
| Max Clearance Under Track | 77-3/16" |
| Base Plate Size | 52" x 39" |
| Lock Positions | 19 |
| Power | 115V, 20 Amp, Single Phase |
| Ship Weight | 2,610 lbs |
How It Compares
| Model | Type | Capacity | Power |
|---|---|---|---|
| SP-6K-SS | Single-column storage, fixed | 6,000 lbs | 115V 1PH |
| MSC-6KLP | Single-column, mobile low-profile | 6,000 lbs | 115V 1PH |
| SC-2K | Single-post platform storage | 2,000 lbs | 115V 1PH |
Key Facts
- Lifting height of 81-3/16" stacks one vehicle clear of another below.
- The 19-position lock ladder lets you park at multiple set heights.
- Runs on a standard 115V, 20 amp single-phase circuit, no three-phase service needed.
Who It's For
This lift fits collectors, home garages, dealerships, and shops that want a second-vehicle storage spot or a single service position in a compact footprint. Confirm ceiling height clears the 110-1/4" overall height plus the vehicle on top before ordering. A standard 115V, 20 amp circuit at the post location is required.
Shipping and Freight
This lift ships by freight (Oversize) at roughly 2,610 lbs on a crate. Plan for a commercial delivery with a forklift or dock, or request a liftgate and a freight quote for residential delivery. Inspect the crate before signing for it and note any damage on the delivery receipt.
About Tuxedo
Tuxedo Distributors supplies automotive lifts and wheel service equipment to professional shops and serious home garages across North America, with a product line that spans single-column, two-post, four-post, and scissor lifts.
Frequently Asked Questions
What can the SP-6K-SS lift?
It is rated at 6,000 lbs, which covers most cars, small trucks, and SUVs for storage or service. Always confirm the vehicle weight is under the rated capacity.
Can it lift from either side?
Yes. The lift can be installed to raise the vehicle from the left or right side, which helps you fit it to the bay layout and stack vehicles efficiently.
What power does it need?
It runs on 115V, 20 amp, single phase. A standard dedicated circuit at the post location is enough for most installs.
How much ceiling height do I need?
The lift stands 110-1/4" overall. For stacked storage, add the height of the vehicle parked on top plus clearance to your ceiling before you buy.
How does it ship?
It ships as freight at about 2,610 lbs. A forklift or loading dock makes unloading easier; request a liftgate and a freight quote if you are receiving it at a residence.
Questions on shop fit, ceiling clearance, or freight? Talk to a My Garage Direct specialist before you order.
