Description
Overview

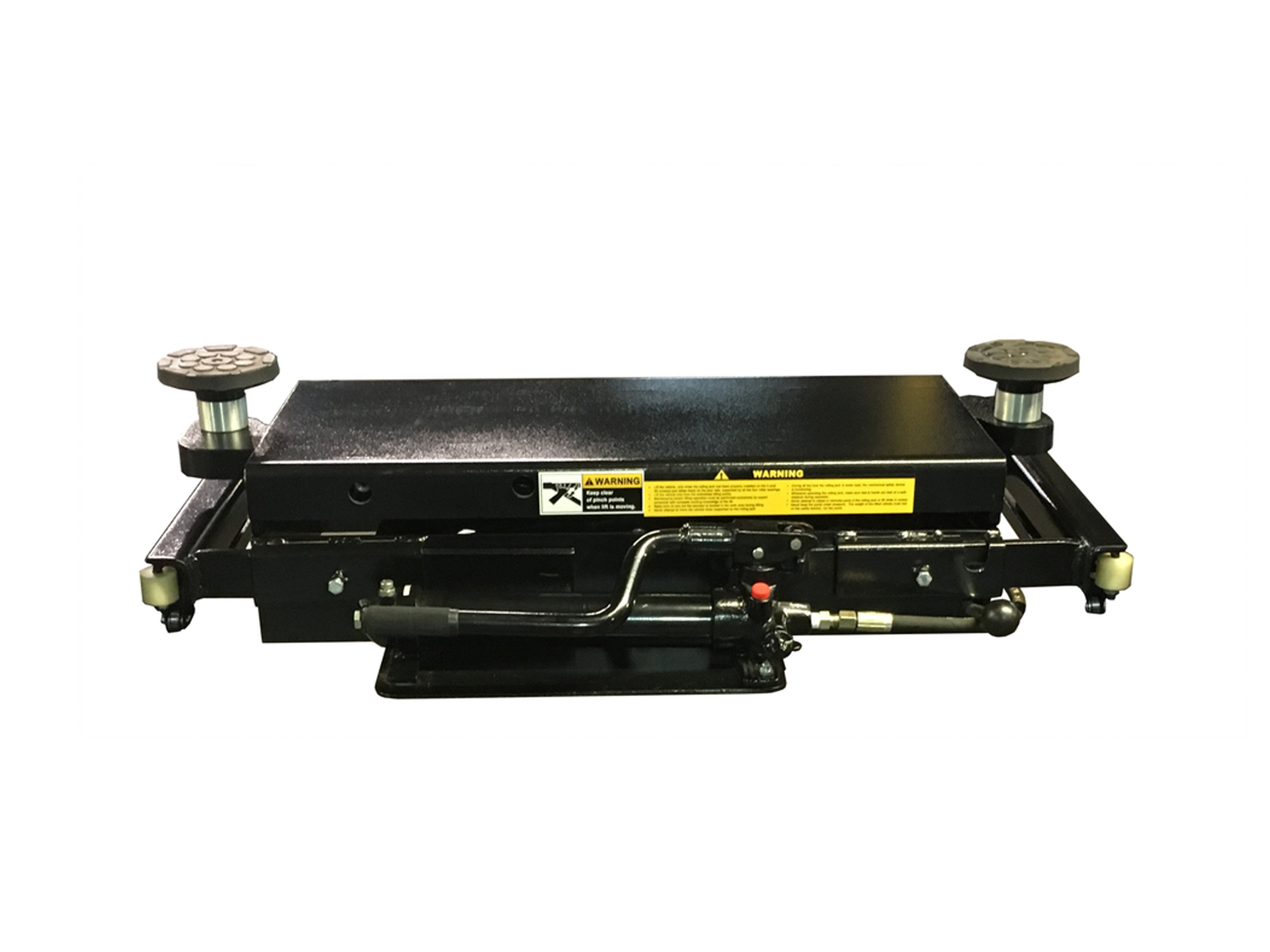

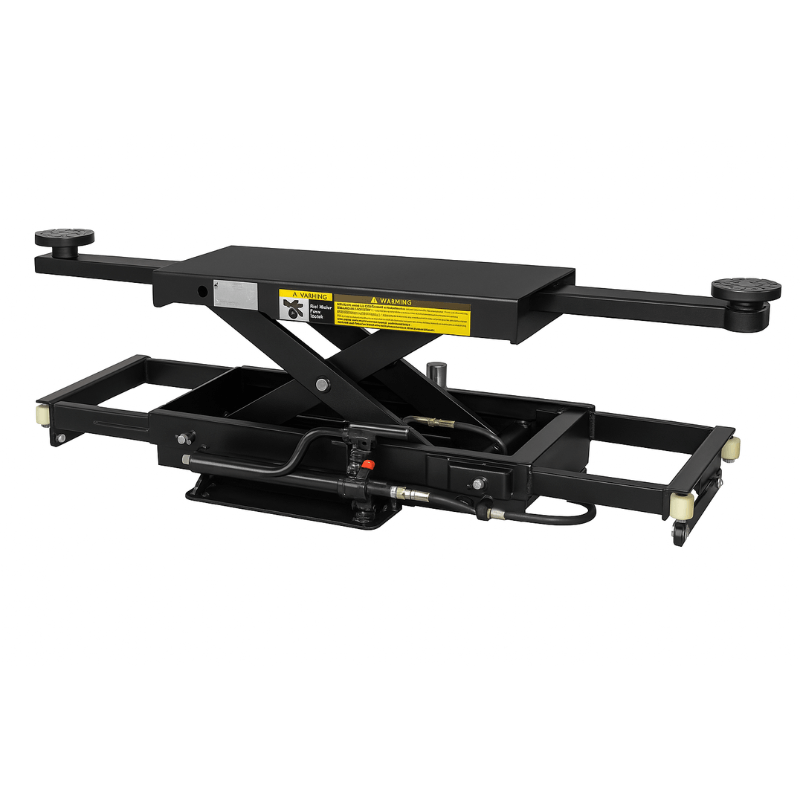

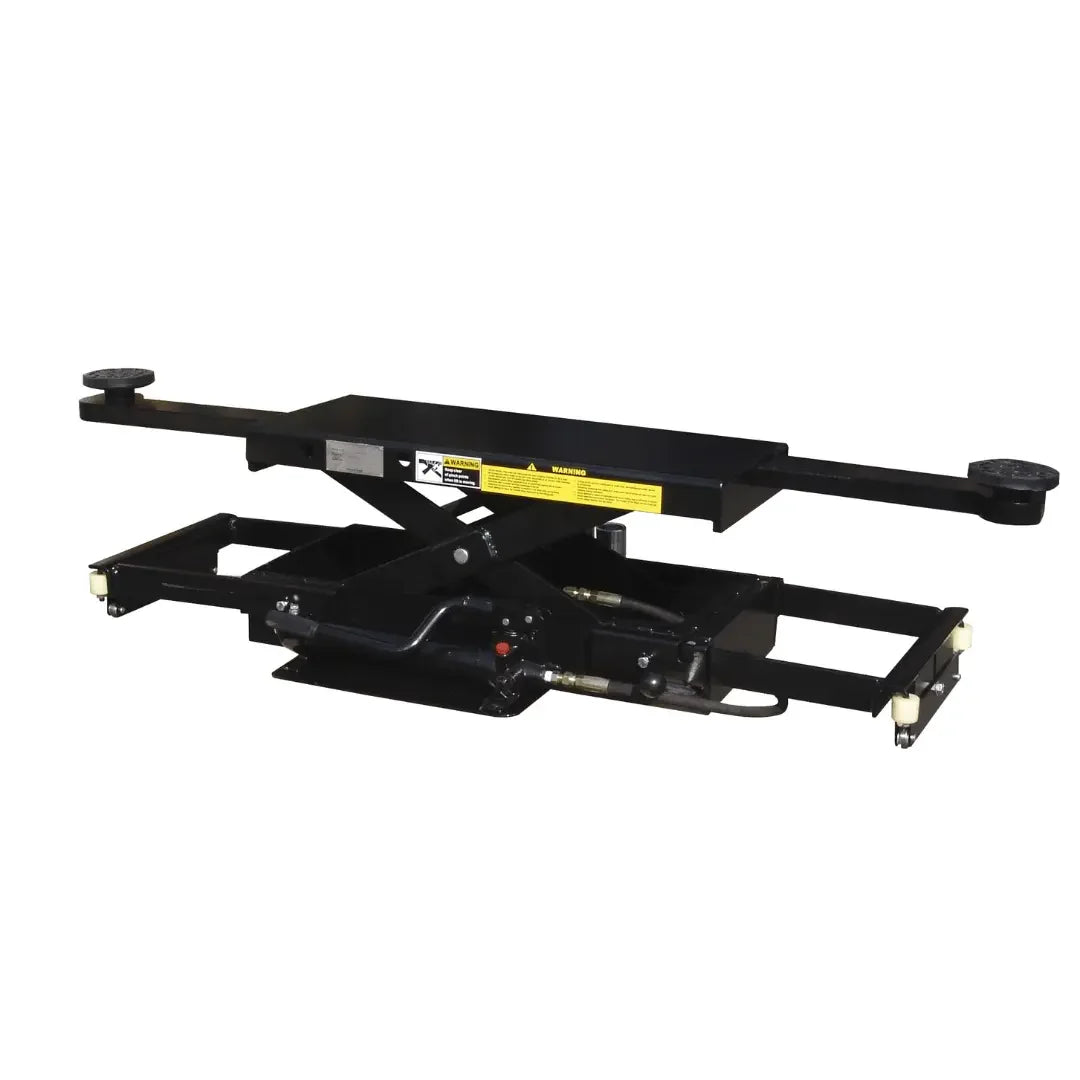

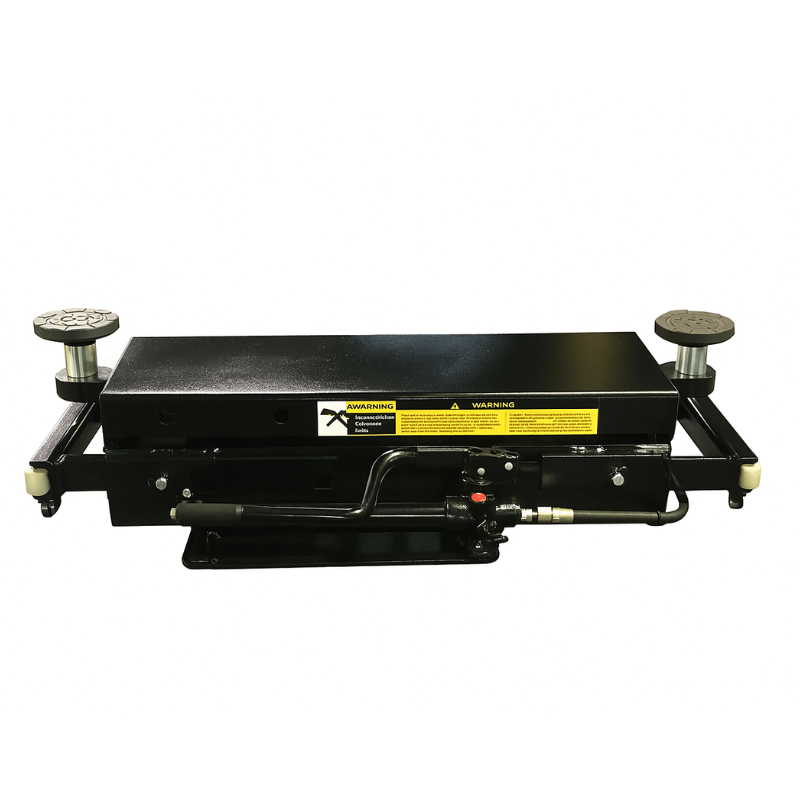

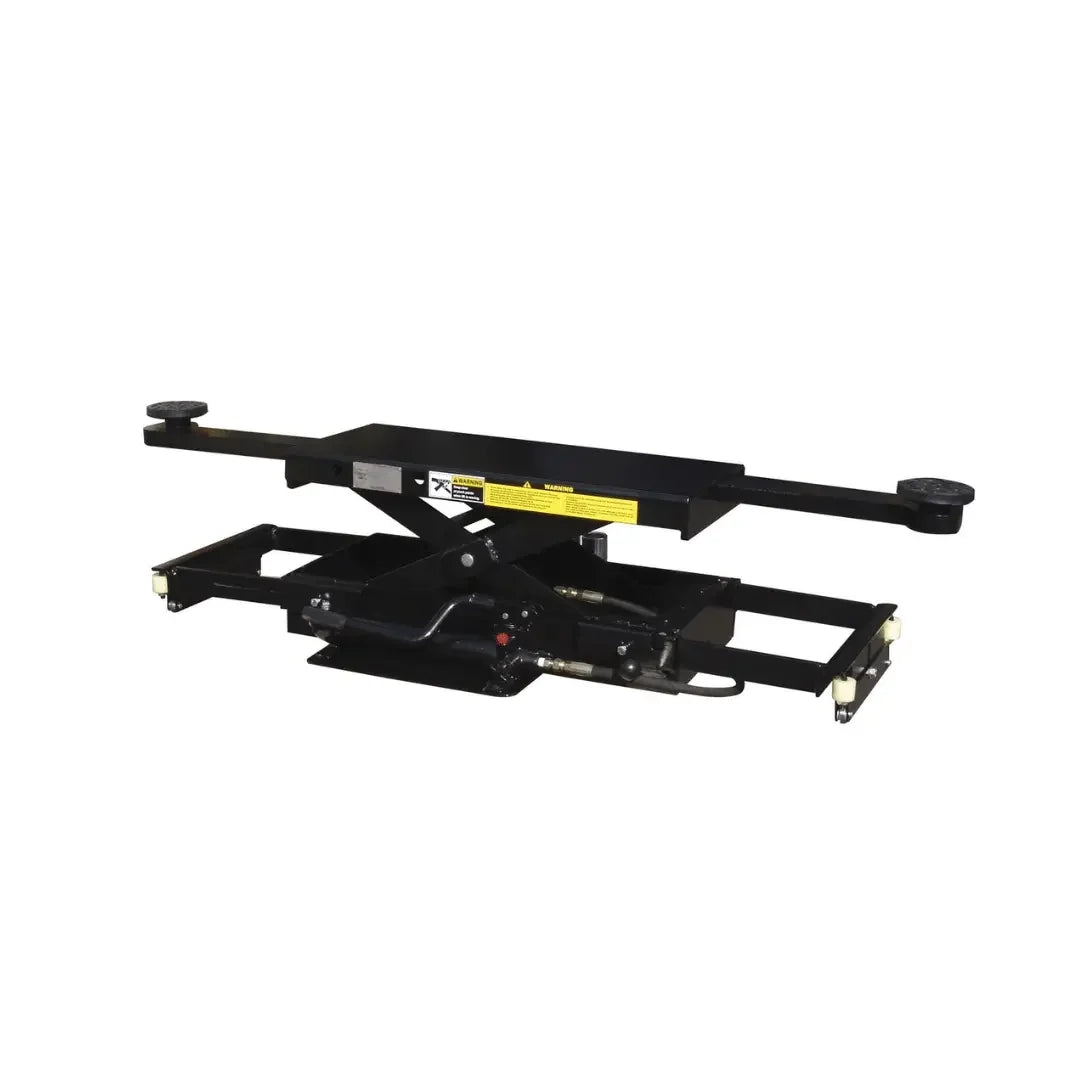

The iDEAL RJ-45 is a 4,500 lb rolling jack that runs on the rails of a four-post lift. It uses a hand pump, so no shop air is needed, and raises the wheels off the runways for brake, tire, and suspension work.
For a shop without an air drop near the lift, the hand-pump RJ-45 is the simple answer to wheels-free service. At 4,500 lb it covers passenger cars and many heavy-duty pickups, and the low-profile body slides smoothly on spring-loaded rollers.
Key Features
- 4,500 lb capacity - covers passenger cars and many heavy-duty pickups.
- Hand pump operation - no shop air required.
- 3 safety lock positions - holds the load at set heights.
- Spring-loaded rollers - positive jack rail contact for smooth travel.
- Adjustable width - fits most four-post lifts.
- Included extensions - 1-1/2 in and 5 in pad extensions (set of two each).
Specifications
| Brand | Tuxedo Auto Equipment (iDEAL) |
|---|---|
| Type | Rolling Bridge Jack (lift accessory) |
| Max Capacity | 4,500 lb |
| Operation | Hand pump (no air) |
| Lift Height | 3.75 in to 11.00 in |
| With 1-1/2 in Extension | 5.25 in to 12.50 in |
| With 5 in Extension | 8.75 in to 16.00 in |
| Arm Extension | 34.25 in to 57.48 in |
| Base Adjustability | 33.90 in to 49.60 in |
| Weight | 363 lb |
How It Compares
| Model | Capacity | Operation |
|---|---|---|
| RJ-45 | 4,500 lb | Hand pump (no air) |
| RAJ-6K | 6,000 lb | Air / hydraulic |
| RAJ-8K | 8,000 lb | Air / hydraulic, dual air bags |
Key Facts
- 4,500 lb capacity with a hand pump, no air drop needed.
- Lift height 3.75 in to 11.00 in, up to 16.00 in with the 5 in extension.
- Three safety lock positions and adjustable width for most four-post lifts.
Who It's For
Shops and home garages with a four-post lift and no convenient air drop that still want wheels-free service. Confirm your lift's runway width and rail height before ordering.
What's Included
- RJ-45 rolling jack
- 1-1/2 in pad extensions (set of two)
- 5 in pad extensions (set of two)
- Hand pump
Shipping and Freight
This jack ships LTL freight at 363 lb. Plan for a liftgate or dock for unloading. Use the Request a Quote path for current price and a delivery window.
About Tuxedo Auto Equipment
Tuxedo Auto Equipment supplies vehicle lifts, tire and wheel service machines, paint booths, and shop equipment to independent shops, dealerships, and serious home garages across North America. The iDEAL line covers shop build-outs from a single bay to a full collision center.
Frequently Asked Questions
Does it need shop air?
No. The RJ-45 uses a hand pump, so it works without an air line at the lift.
What can it lift?
At 4,500 lb it handles passenger cars and many heavy-duty pickup trucks.
Will it fit my lift?
The width adjusts from 33.90 in to 49.60 in to fit most four-post lifts. Confirm your runway spacing before ordering.
How high does it lift?
From 3.75 in to 11.00 in on its own, and up to 16.00 in with the included 5 in extension.
Talk to a Tuxedo Auto Equipment specialist to confirm fit. Browse more auto service equipment for lift accessories.
