Description
Overview

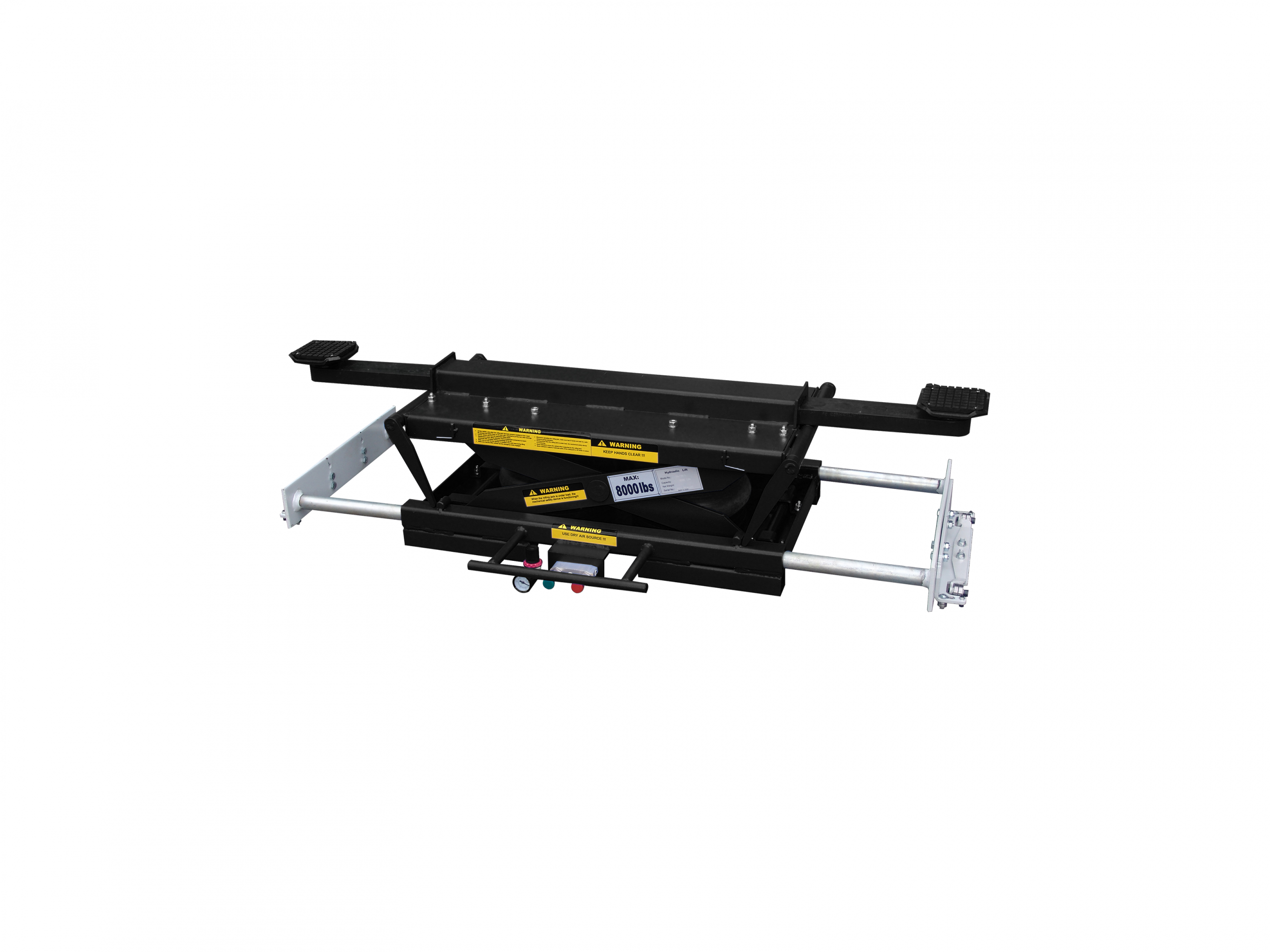

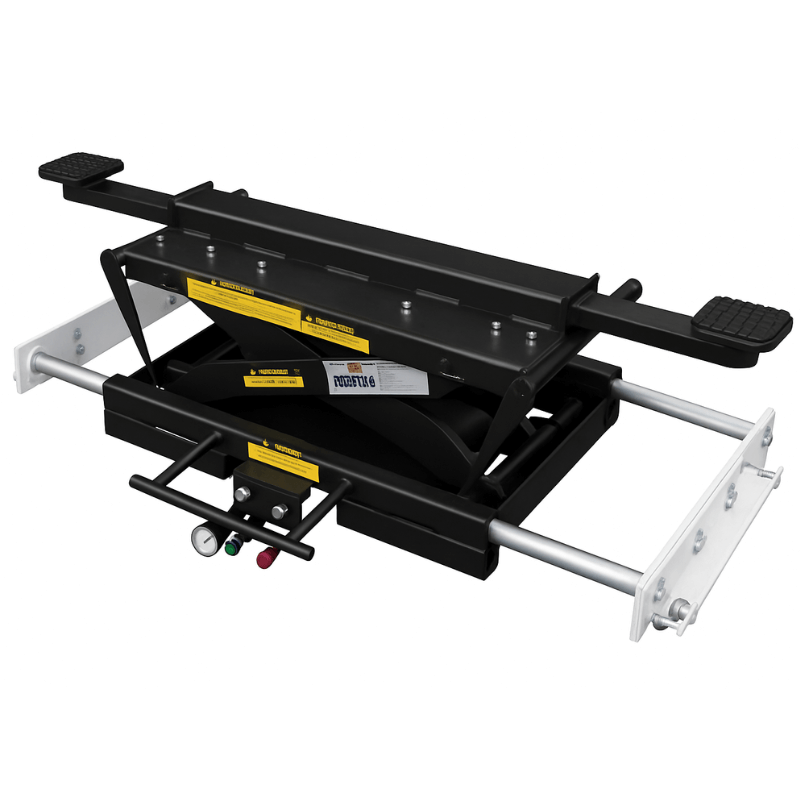

The iDEAL RAJ-8K-H is a 8,000 lb rolling bridge jack that runs on the rails of a four-post lift. It lets a tech raise the wheels off the runways for brake, tire, and suspension work without moving the vehicle off the lift.
A rolling jack turns a four-post drive-on lift into a wheels-free service platform. The high mount roller body design fits high-position jack rails, and the spring-loaded roller bearings keep positive rail contact as the jack rolls along the runway.
Key Features
- 8,000 lb capacity - rated to raise the vehicle off the four-post runways.
- Spring-loaded roller body - dual precision roller bearings and side guide wheels for smooth travel.
- Telescoping support arms - adjust to fit a range of lift runway widths.
- High Mount configuration - matched to high-position jack rails.
- Air / hydraulic operation with dual air bags - for controlled lifting.
- Stackable pad adaptors - reach high frame points with included height adaptors.
Specifications
| Brand | Tuxedo Auto Equipment (iDEAL) |
|---|---|
| Type | Rolling Bridge Jack (lift accessory) |
| Lift Capacity | 8,000 lb |
| Mount | High Mount |
| Operation | Air / hydraulic operation with dual air bags |
| Required Power | 100 to 125 PSI, 10 to 20 CFM |
| Lifting Height | 6-9/16 in to 14-7/8 in (pad adaptor) |
| Support Arms | 38-3/8 in to 60 in (roller body center) |
| Ship Weight | 426 lb |
| Crate Size | 43 x 29 x 12 in (L x W x H) |
How It Compares
| Model | Capacity | Operation |
|---|---|---|
| RJ-45 | 4,500 lb | Hand pump (no air) |
| RAJ-6K | 6,000 lb | Air / hydraulic |
| RAJ-8K | 8,000 lb | Air / hydraulic, dual air bags |
Key Facts
- Rated to lift 8,000 lb on the rail.
- High Mount roller body for high-position jack rails.
- Air / hydraulic operation with dual air bags with telescoping support arms.
- Runs on 100 to 125 PSI shop air at 10 to 20 CFM.
Who It's For
Shops running iDEAL or compatible four-post lifts that need wheels-free service on the rails. Confirm your lift's jack rail height and runway width so the high mount roller body and telescoping arms line up.
Shipping and Freight
This jack ships LTL freight in a wooden crate. Plan for a liftgate or dock for unloading. Use the Request a Quote path for current price and a delivery window.
About Tuxedo Auto Equipment
Tuxedo Auto Equipment supplies vehicle lifts, tire and wheel service machines, paint booths, and shop equipment to independent shops, dealerships, and serious home garages across North America. The iDEAL line covers shop build-outs from a single bay to a full collision center.
Frequently Asked Questions
How much will it lift?
This model is rated to lift 8,000 lb on the rail.
What is the difference between high mount and low mount?
The roller body bracket height is set for the position of your lift jack rails. High mount fits high-position rails and low mount fits low-position rails.
Will it fit my four-post lift?
The telescoping support arms adjust to a range of runway widths. Confirm your jack rail height and runway spacing against the model before ordering.
How does it ship?
It ships by LTL freight in a wooden crate. Plan for dock or liftgate unloading.
