Description
Overview

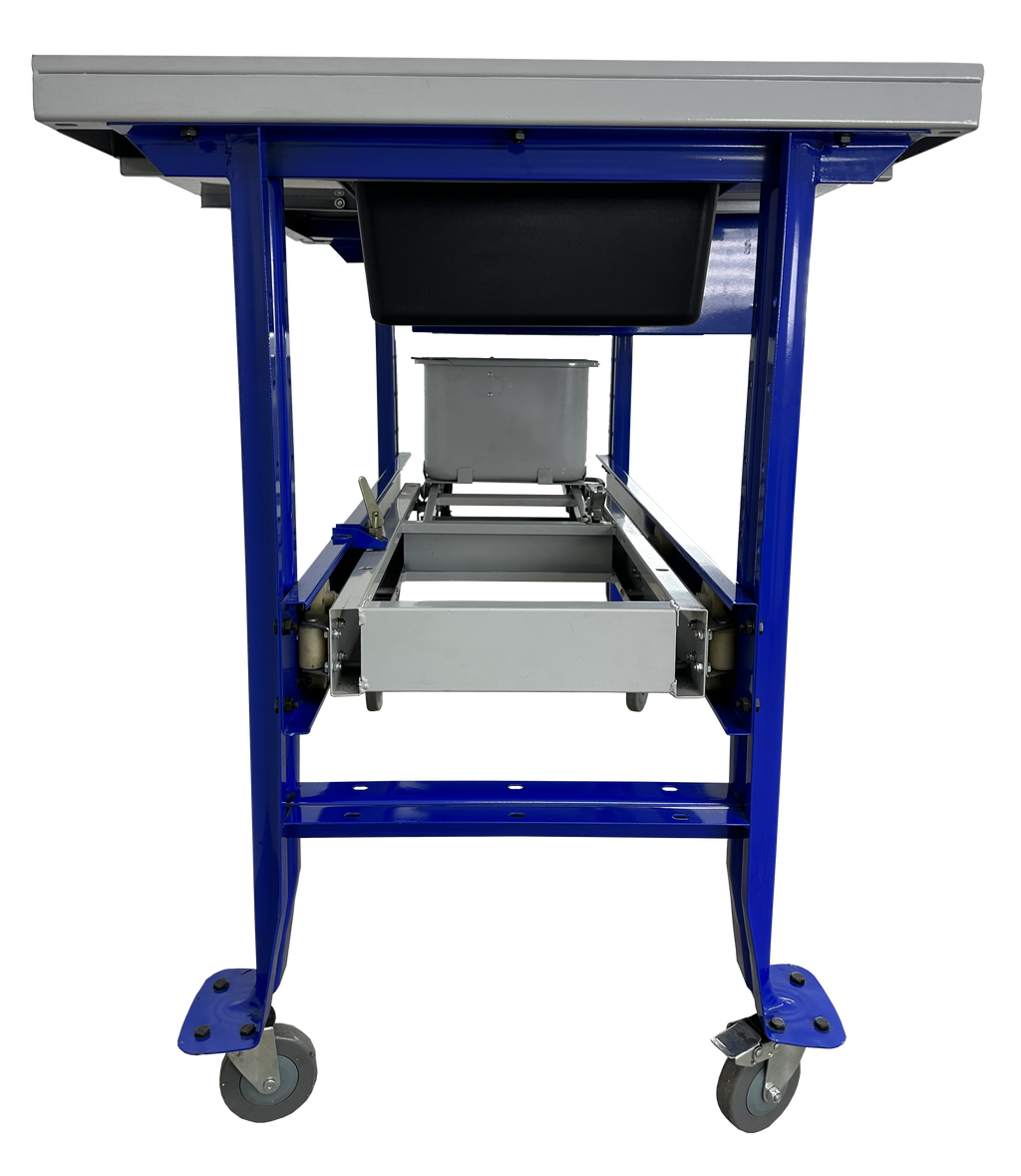

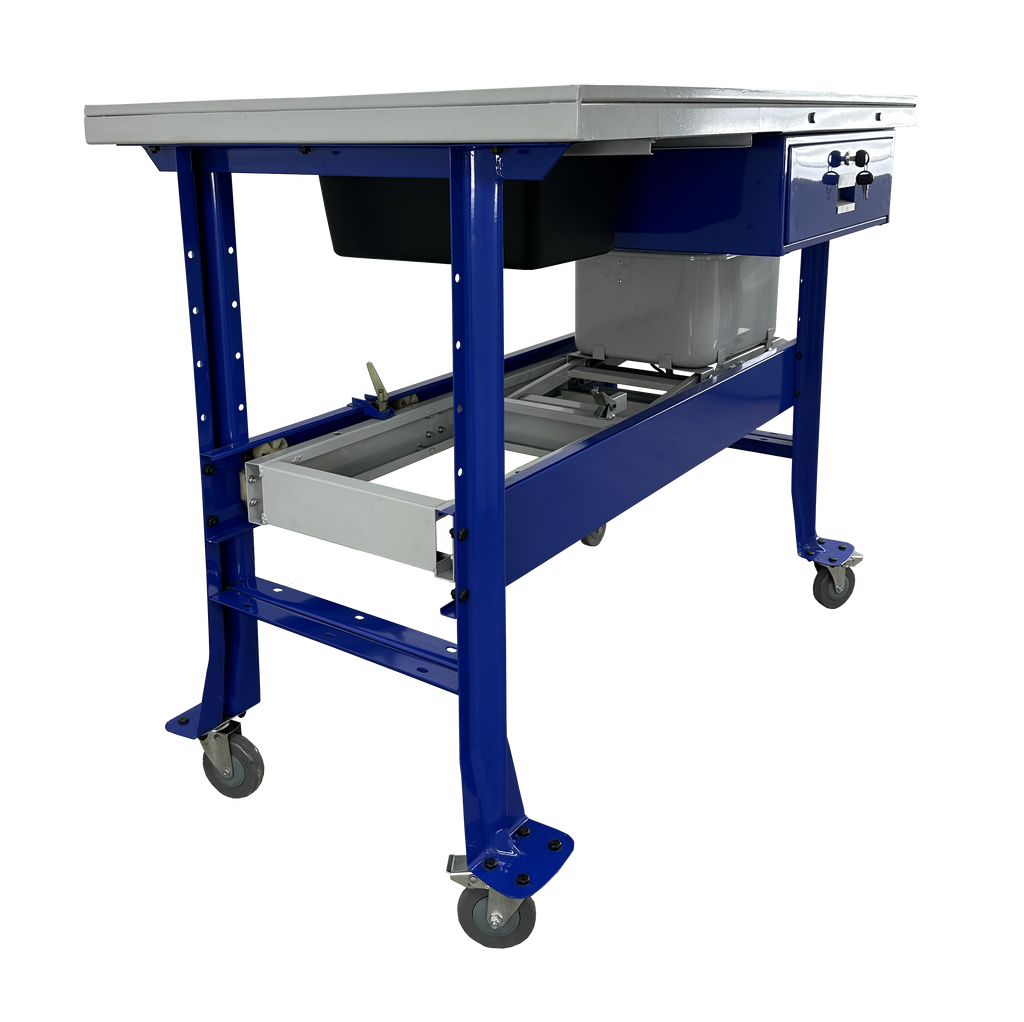

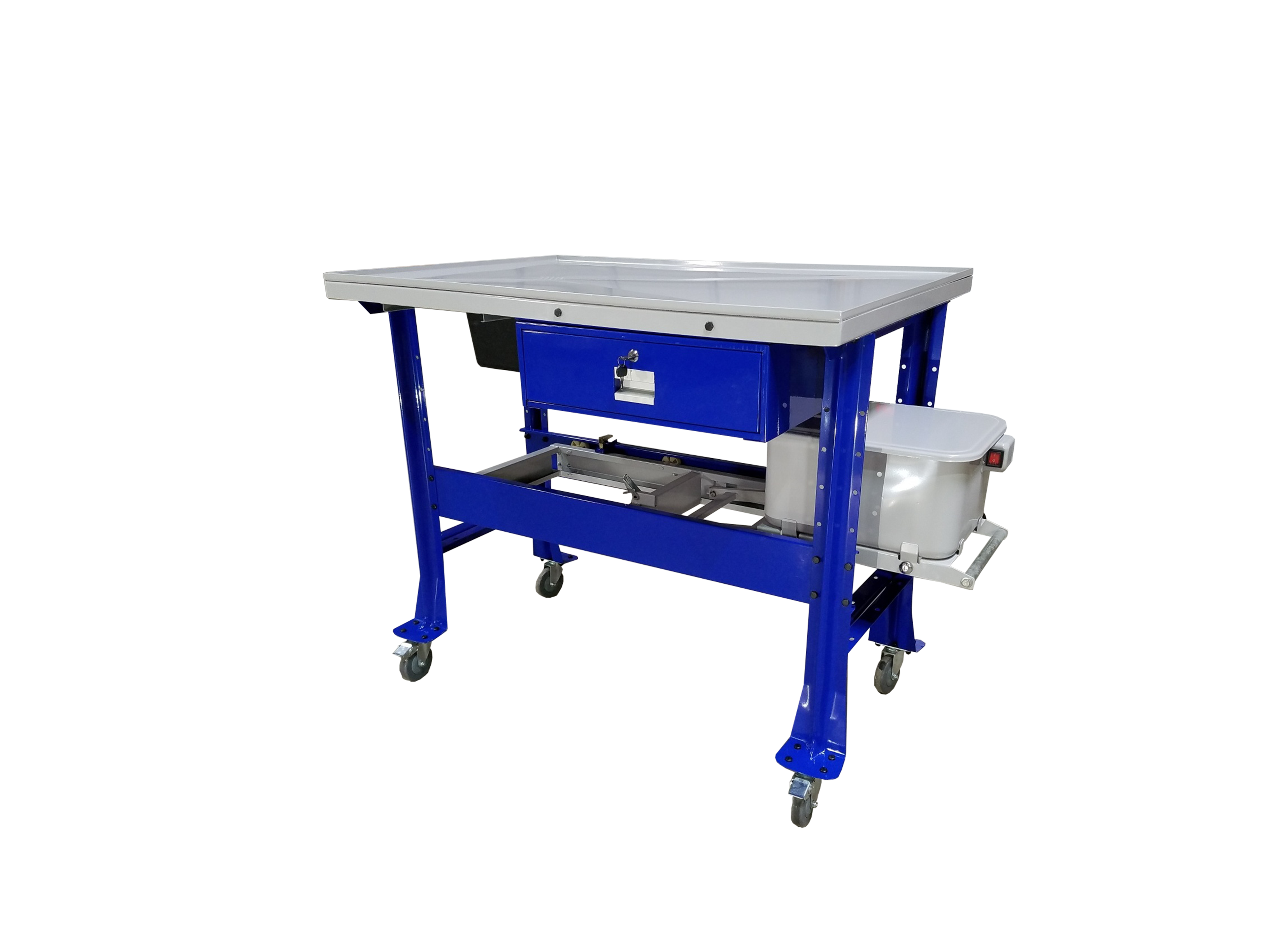

The iDEAL PTDT-PW-1000 is a premium tear down table with an integrated 3.5 gallon parts washer. It gives a shop a dedicated surface for engine, transmission, and component tear-downs with fluid capture and parts cleaning built in.
A tear-down station keeps oil and solvent off the main bench and off the floor. The table drains into a catch basin, the retractable parts washer handles the cleaning step, and a lockable drawer keeps fasteners and small parts in one place. Heavy steel construction supports up to 1,000 pounds.
Key Features
- 1,000 lb capacity - heavy-duty steel construction for engine and driveline work.

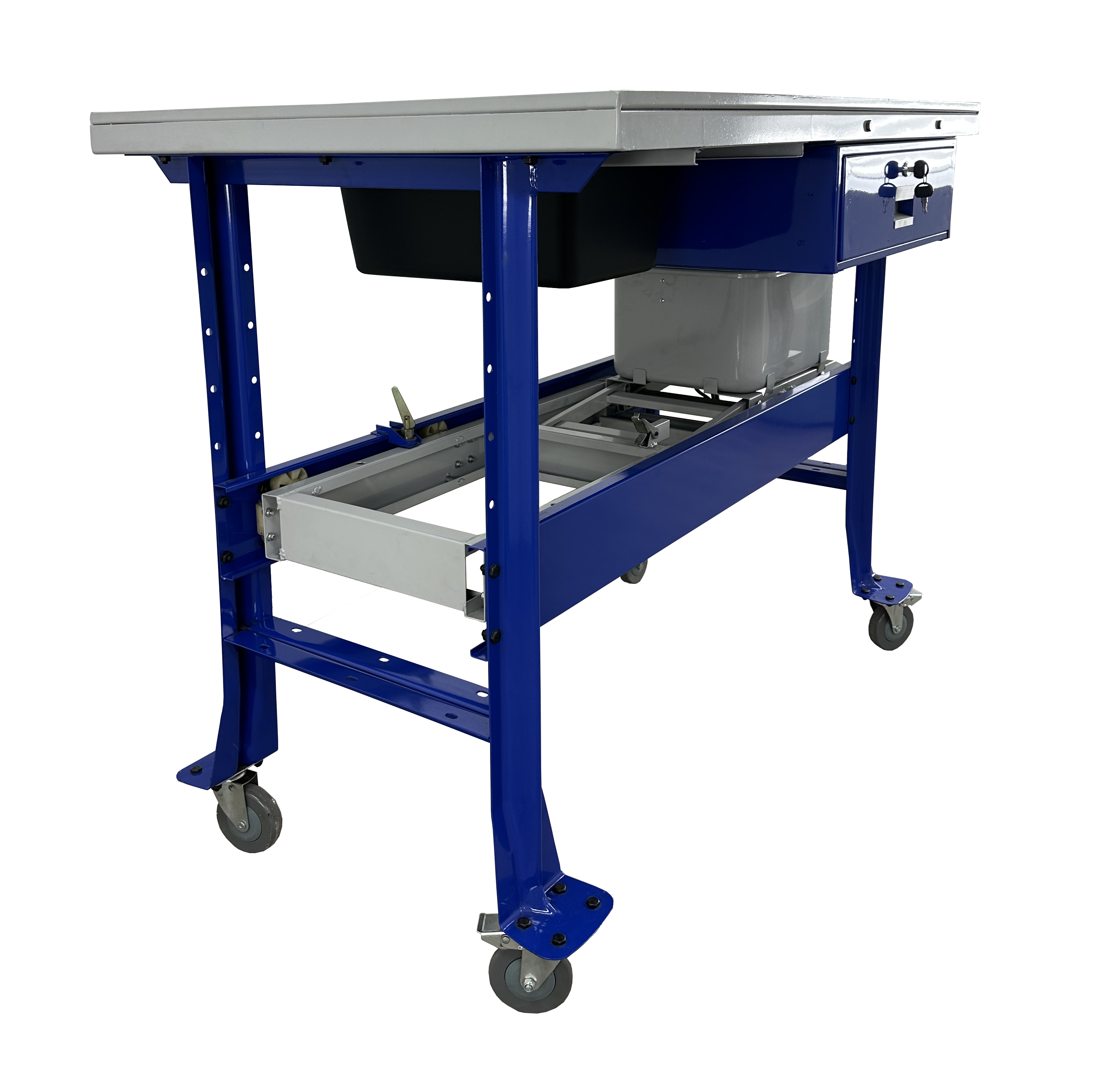

- Retractable 3.5 gallon parts washer - 110 VAC unit pulls out when needed and tucks away after.
- Integrated drain and catch basin - 3 gallon fluid basin captures oil and solvent.
- Large work top - 46.8 in W x 31.5 in L surface for tear-downs.

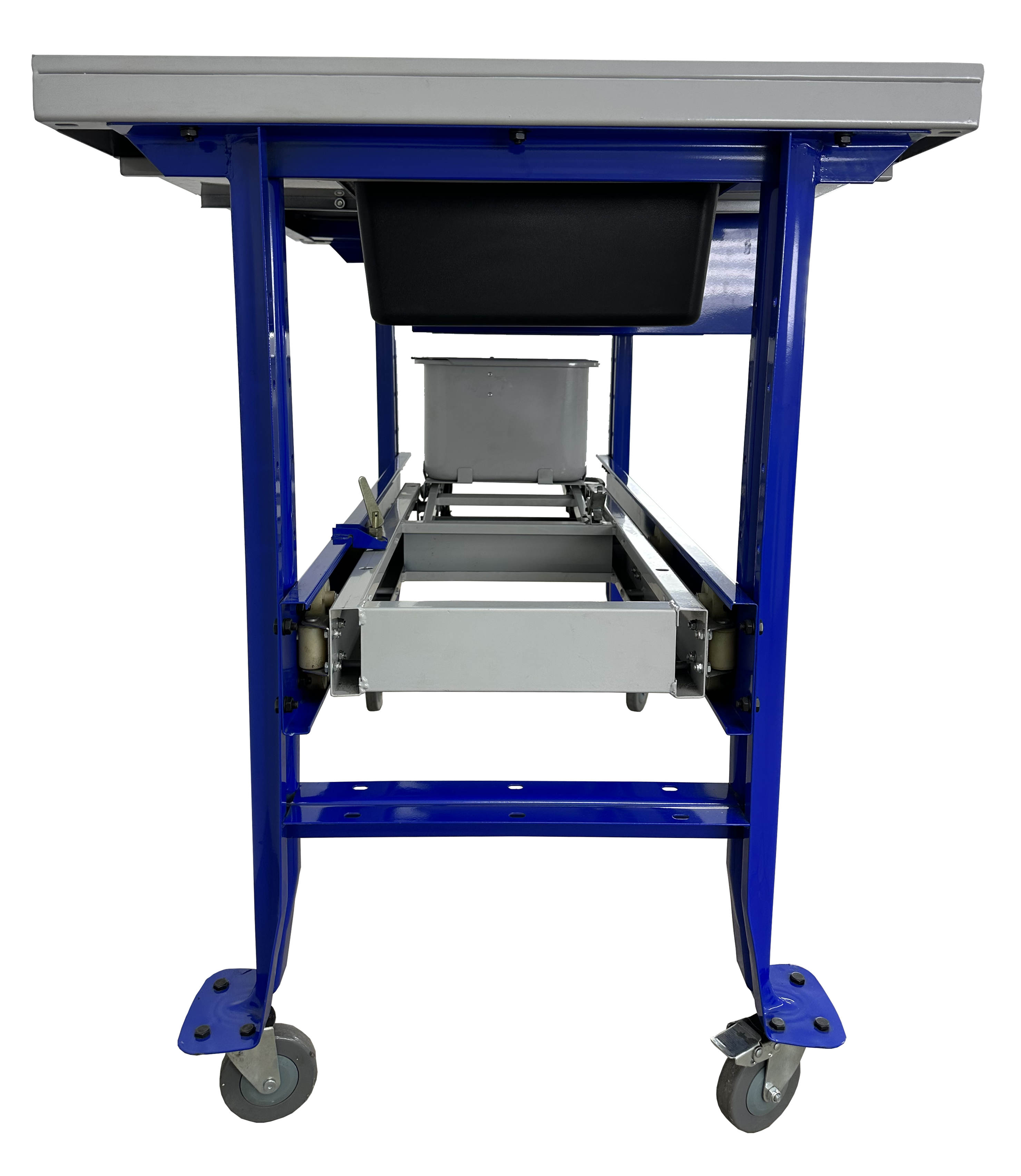

- Lockable storage drawer - keeps fasteners and small parts secured.

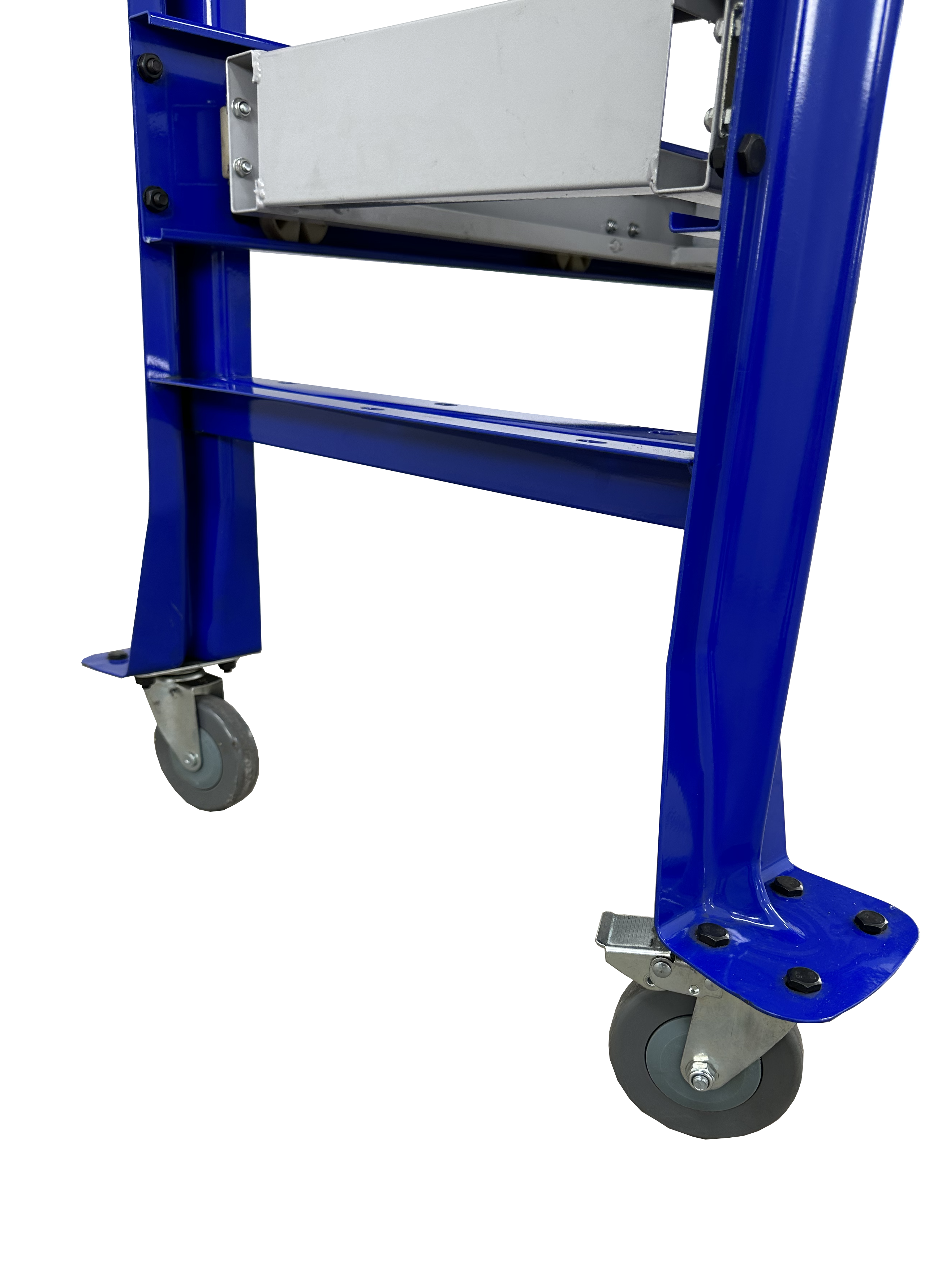

- 4 inch swivel casters - two locking, for mobility and a stable working position.
Specifications
| Brand | Tuxedo Auto Equipment (iDEAL) |
|---|---|
| Type | Tear Down Table with Parts Washer |
| Support Capacity | 1,000 lb |
| Overall Size | 47 in W x 32 in L x 41 in H |
| Work Top Area | 46.8 in W x 31.5 in L |
| Storage Cabinet | 19 in W x 19 in L x 5 in H |
| Steel Thickness | 2.38 mm (0.093 in) |
| Fluid Basin | 9 in W x 15 in L x 6 in H, 3 gallon |
| Parts Washer | 13 in W x 17 in L x 8.5 in H, 3.5 gallon |
| Parts Washer Power | 110 VAC |
| Ship Weight | 213 lb (5 pieces) |
How It Compares
| Model | Capacity | Parts Washer |
|---|---|---|
| PTDT-PW-1000 | 1,000 lb | Retractable 3.5 gallon, 110 VAC |
| PTDT-1000 | 1,000 lb | Catch basin only |
Key Facts
- 1,000 lb support capacity on 0.093 inch steel.
- Retractable 3.5 gallon parts washer runs on standard 110 VAC.
- 3 gallon fluid basin with integrated table drain.
Who It's For
Independent shops, powersports shops, and serious home garages that want a dedicated tear-down and cleaning station instead of working over the main bench. Ships flat in five pieces for bolt-together assembly.
What's Included
- Tear down table frame and work top
- Retractable 3.5 gallon parts washer (110 VAC)
- Fluid catch basin
- Lockable storage drawer
- 4 inch swivel casters (two locking)
- Assembly hardware and manual
Shipping and Freight
This table ships LTL freight at 213 lb in five pieces. Plan for a liftgate or dock for unloading and allow time for bolt-together assembly.
About Tuxedo Auto Equipment
Tuxedo Auto Equipment supplies vehicle lifts, tire and wheel service machines, paint booths, and shop equipment to independent shops, dealerships, and serious home garages across North America. The iDEAL line covers shop build-outs from a single bay to a full collision center.
Frequently Asked Questions
How much weight does the table hold?
The table is rated to support 1,000 pounds on heavy-duty steel construction.
What power does the parts washer need?
The 3.5 gallon parts washer runs on standard 110 VAC, so it plugs into a normal shop outlet.
Does it have fluid capture?
Yes. The work top drains into a 3 gallon catch basin to keep oil and solvent off the floor.
Does it ship assembled?
It ships in five pieces for easy bolt-together assembly at 213 lb total.
Questions on fit or freight? Talk to a Tuxedo Auto Equipment specialist. Browse more auto service equipment to round out your shop.
