Description
Overview

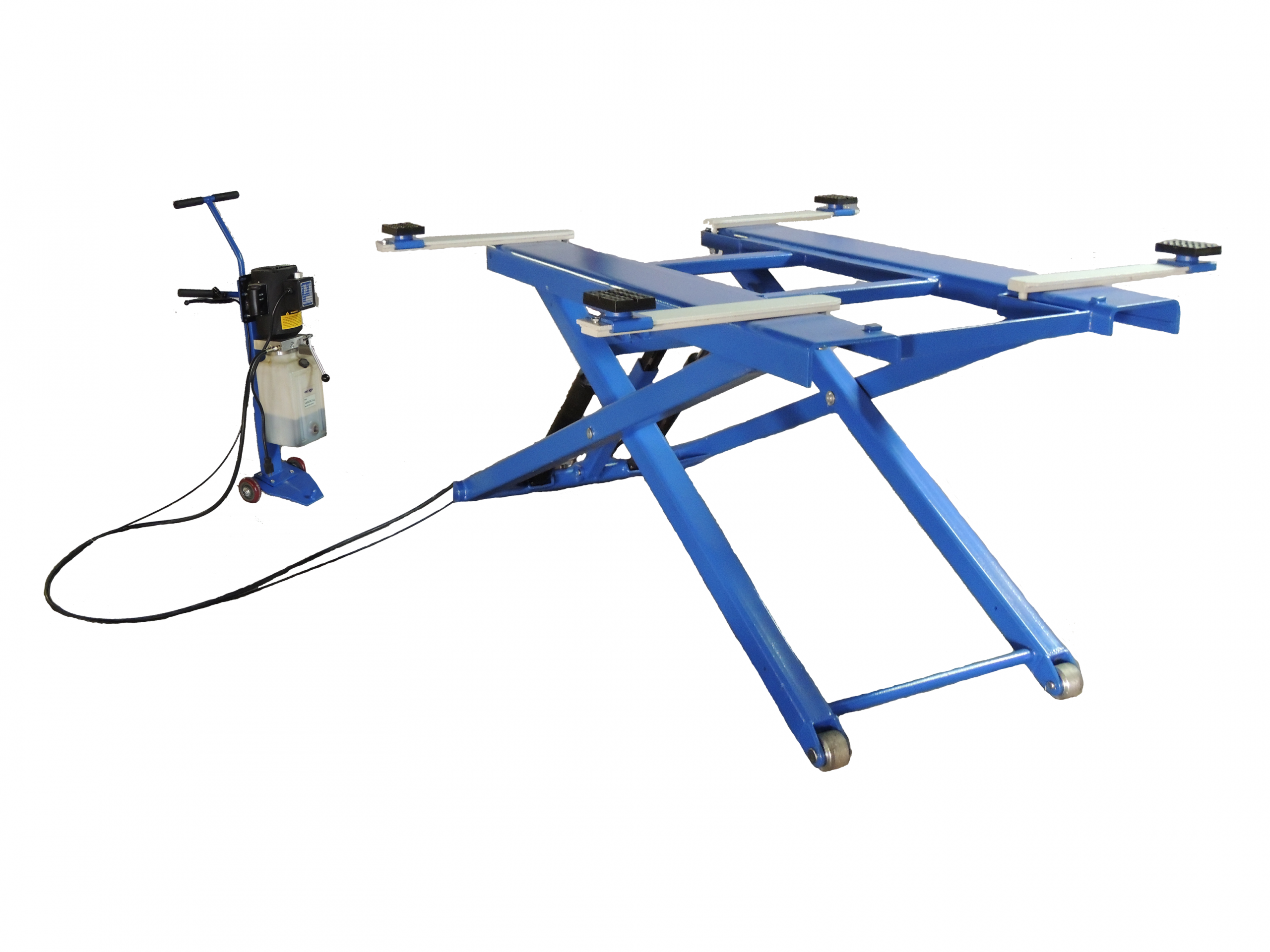

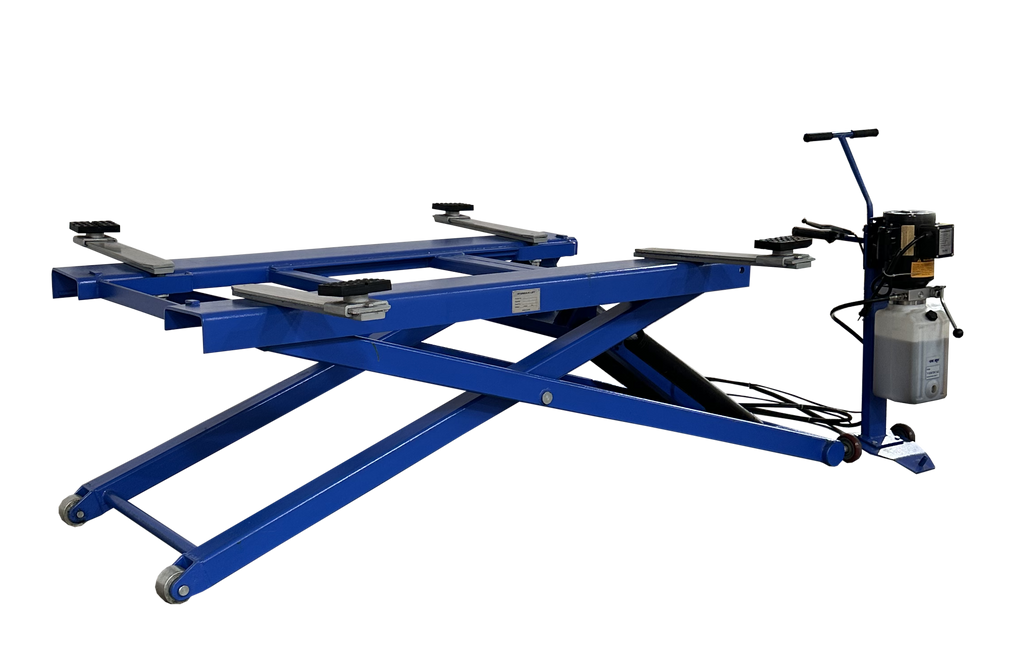

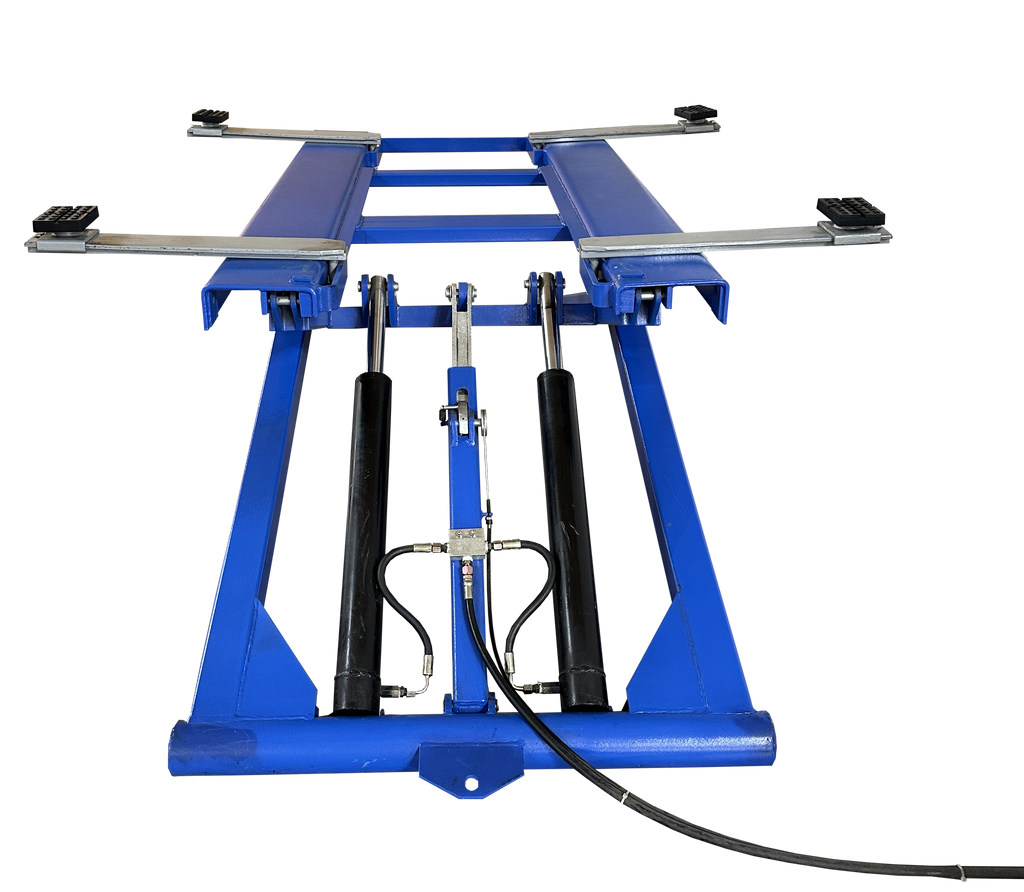

The Tuxedo MR6K-48X is a 6,000 lb capacity mid rise scissor lift that raises to 48.5 inches, the tallest rise in the portable mid rise line. Extended adjustable lift arms and a wide pad range fit a broad range of wheelbases.
The higher 48.5 inch rise gives a technician more room to work under the vehicle than a standard mid rise, while the portable dolly-mounted power unit keeps it flexible across bays. A single-point lock release lowers the lift in one motion.
Key Features
- 6,000 lb capacity - cars and light trucks for general under-vehicle service.
- 48.5 inch lift height - the tallest rise in the portable mid rise line, 54 inches with adapters.

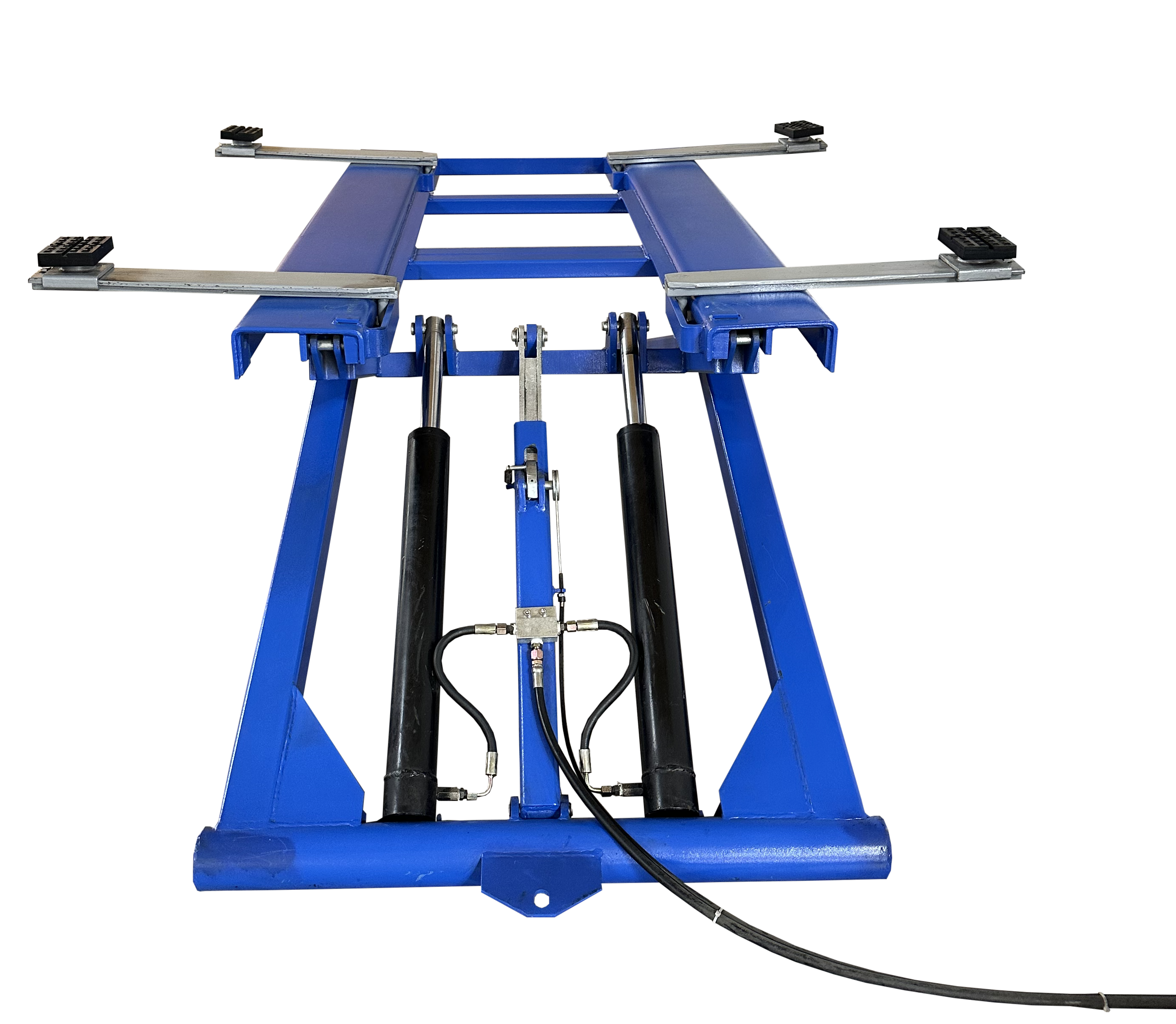

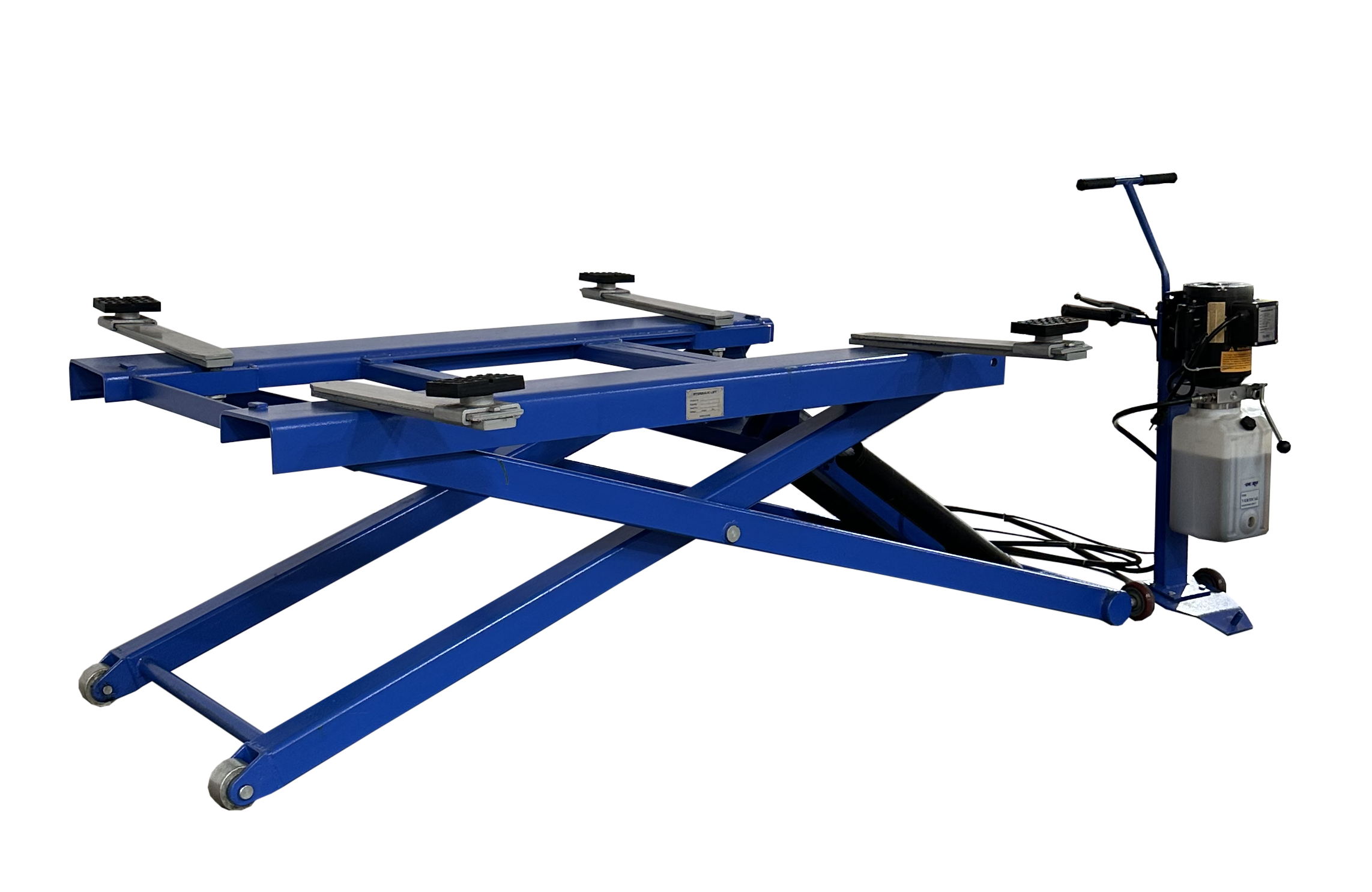

- Extended adjustable lift arms - pad length adjusts from 24 to 83 inches for varied wheelbases.

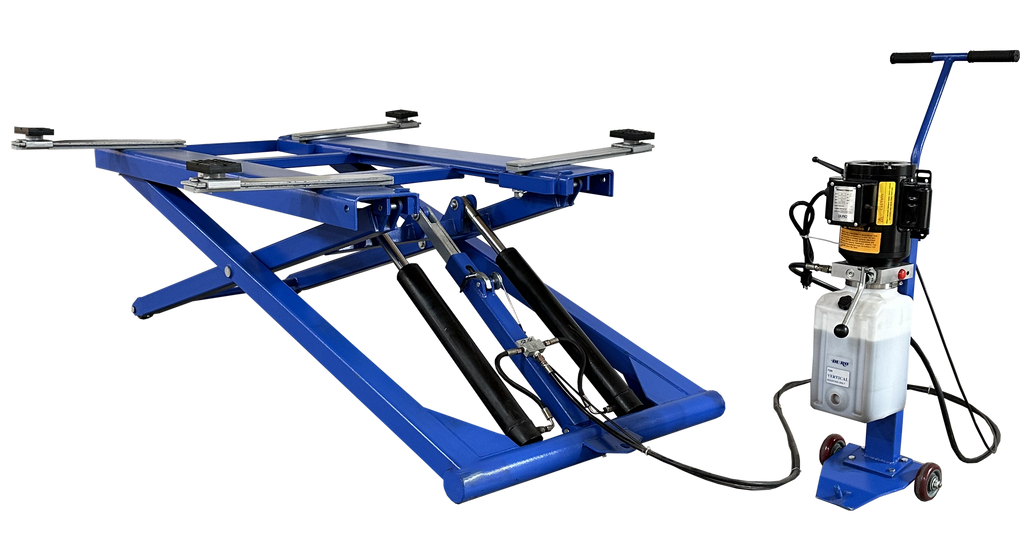

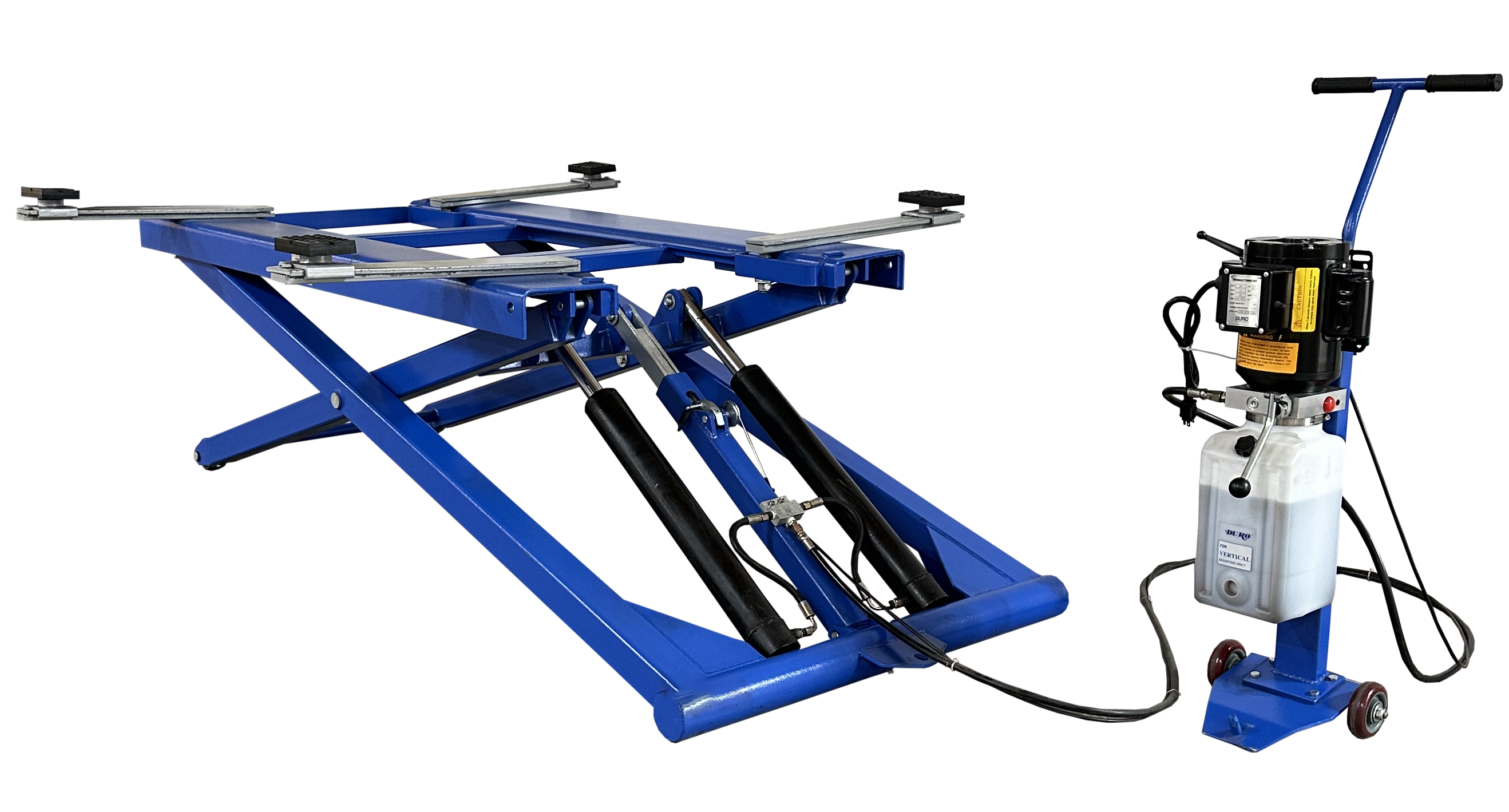

- Portable design - dolly-mounted power unit moves between bays.
- Single point lock release - controlled lowering from one point.
- Durable rubberized lift pads - protect contact points on the vehicle.
Specifications
| Brand | Tuxedo Auto Equipment |
|---|---|
| Type | Mid Rise Scissor Lift |
| Capacity | 6,000 lbs |
| Lifting Height | 48.5" |
| Lifting Height with Adapters | 54" |
| Min. Pad Height | 7" |
| Overall Length | 96.5" |
| Overall Width | 39.625" to 62" |
| Pad Length | 24" min / 83" max |
| Power | 115V, 15 Amp, Single Phase |
| Ship Weight | 945 lbs |
How It Compares
| Model | Type | Capacity | Lift Height |
|---|---|---|---|
| LR-26-PAD | Low Rise Pad | 6,000 lb | 26" |
| MR6K-38 | Mid Rise Scissor | 6,000 lb | 38" |
| MR6K-48X | Mid Rise Scissor | 6,000 lb | 48.5" |
Key Facts
- Capacity is 6,000 lbs.
- Lifting height is 48.5 inches, or 54 inches with adapters.
- Runs on a standard 115V, 15 amp single-phase circuit.
Who It's For
This lift fits an auto service shop that wants the tallest portable mid rise lift for more under-vehicle clearance. It runs on a standard 115V outlet, so it does not require a dedicated 220V circuit.
What's Included
- Mid rise scissor lift with extended adjustable arms
- Dolly mounted power unit
- Rubberized lift pads
- Owner and operation documentation

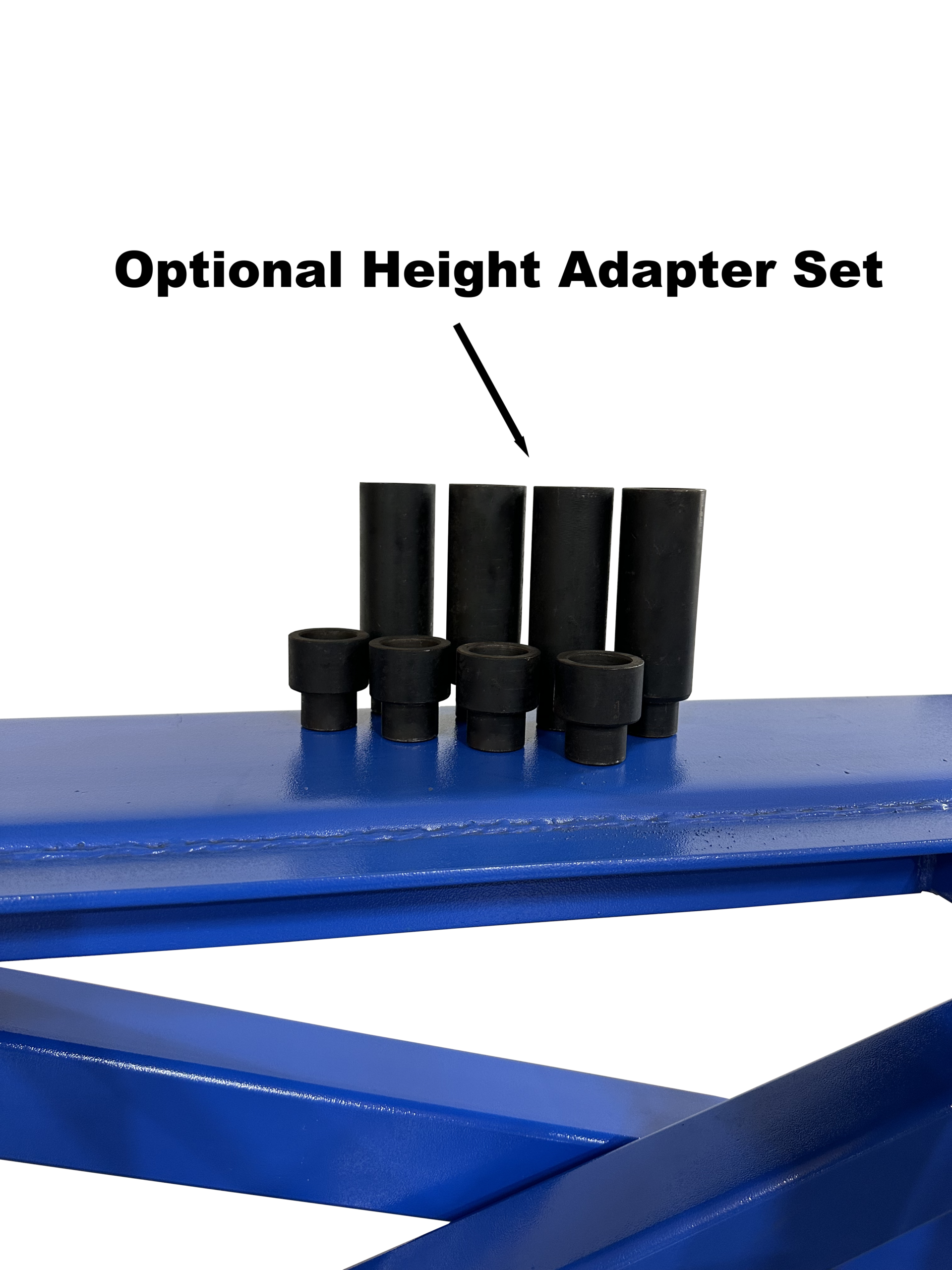

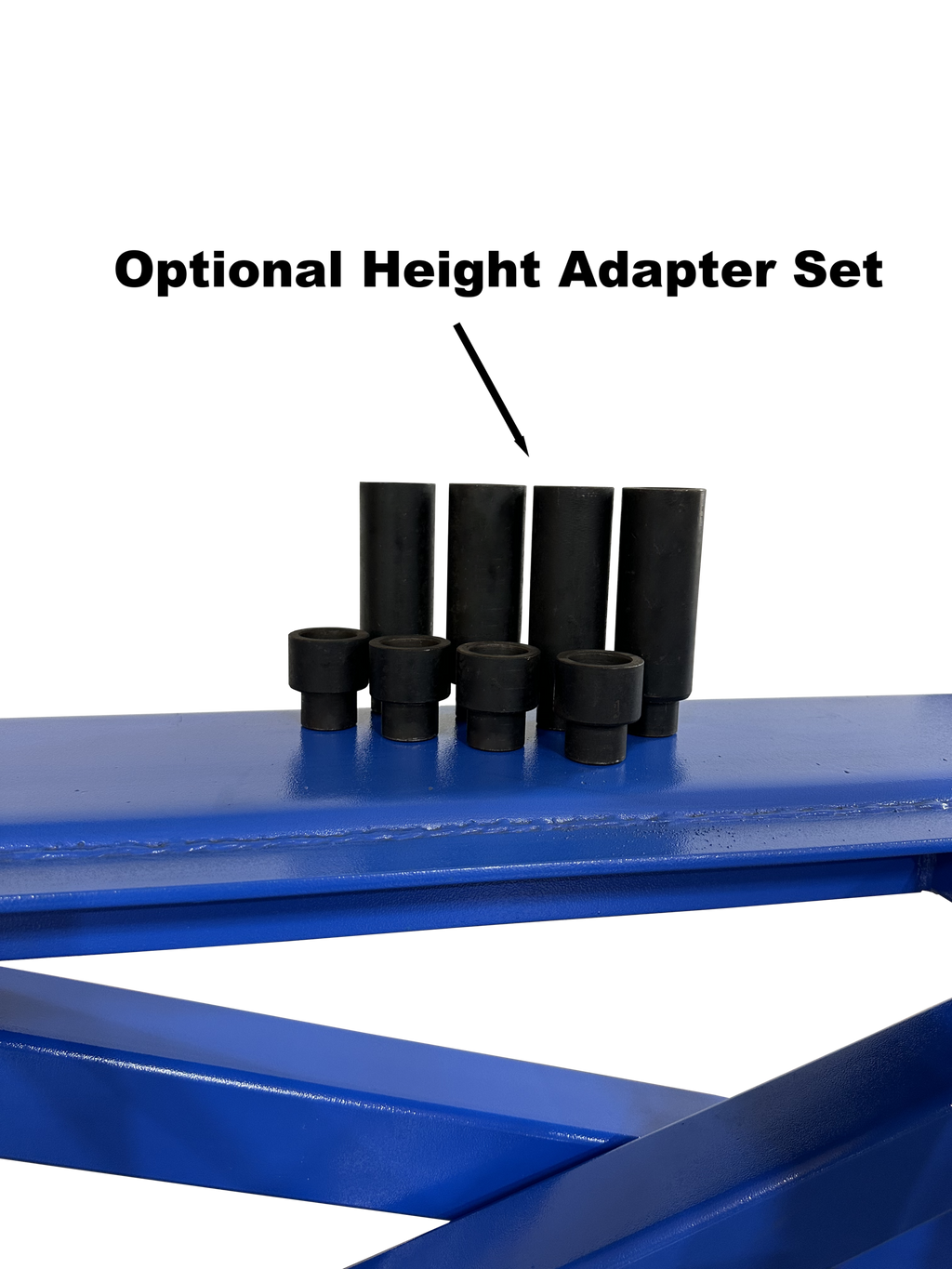

An optional height adapter set is available separately.
Shipping and Freight
This lift ships as LTL freight. A liftgate or dock helps at delivery. Contact us for a freight quote before ordering.
About Tuxedo Auto Equipment
Tuxedo Distributors supplies automotive lifts, tire and wheel equipment, and collision tools to shops across North America under the Tuxedo and iDEAL lines.
Frequently Asked Questions
How high does the MR6K-48X lift?
It raises to 48.5 inches, or 54 inches with the optional height adapters.
What power does it need?
It runs on a standard 115V, 15 amp single-phase circuit.
What range of vehicles fit the arms?
The extended adjustable arms give a pad length from 24 to 83 inches, covering a wide range of wheelbases.
How does it ship?
It ships as LTL freight. A liftgate or dock helps at delivery. Reach out for a freight quote before ordering.
Talk to a specialist about power and shop fit before you order. See the full auto service lineup for related lifts.
