Description
Overview

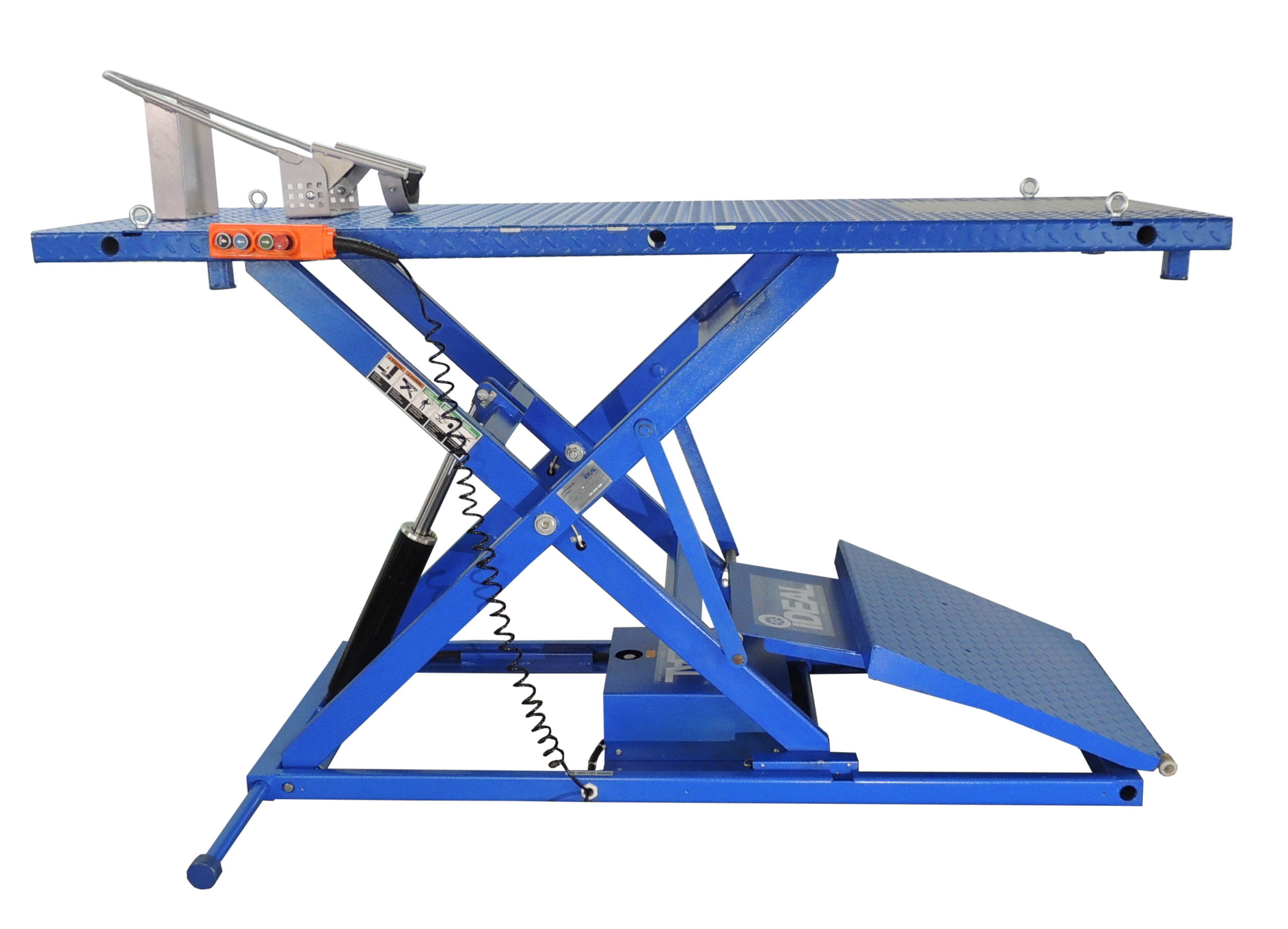

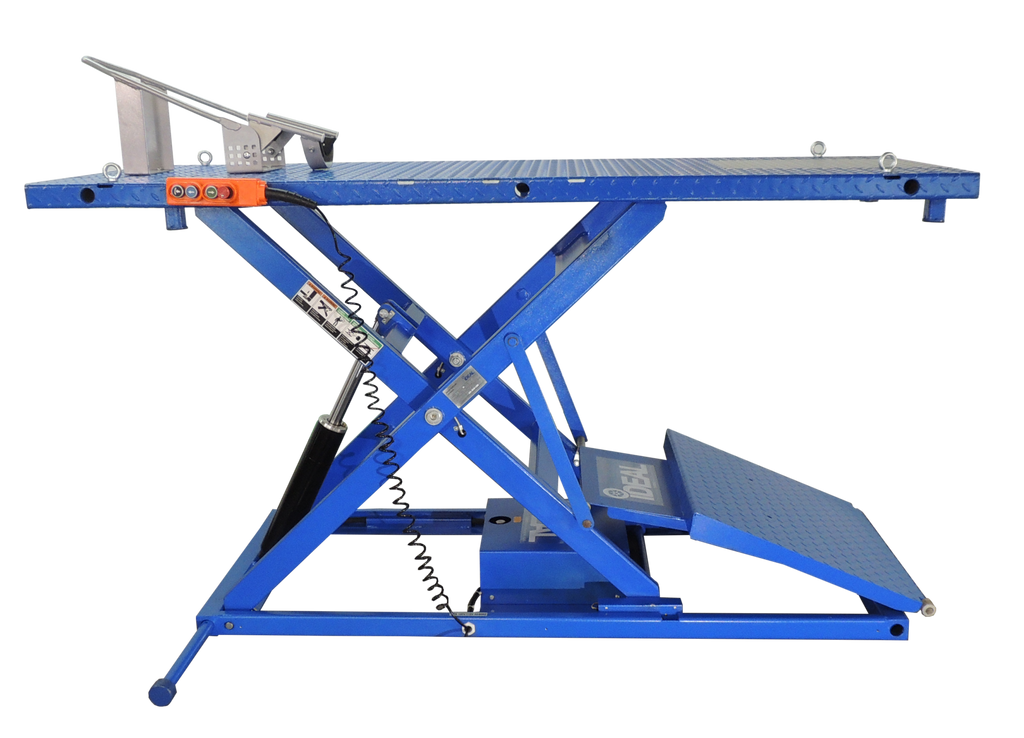

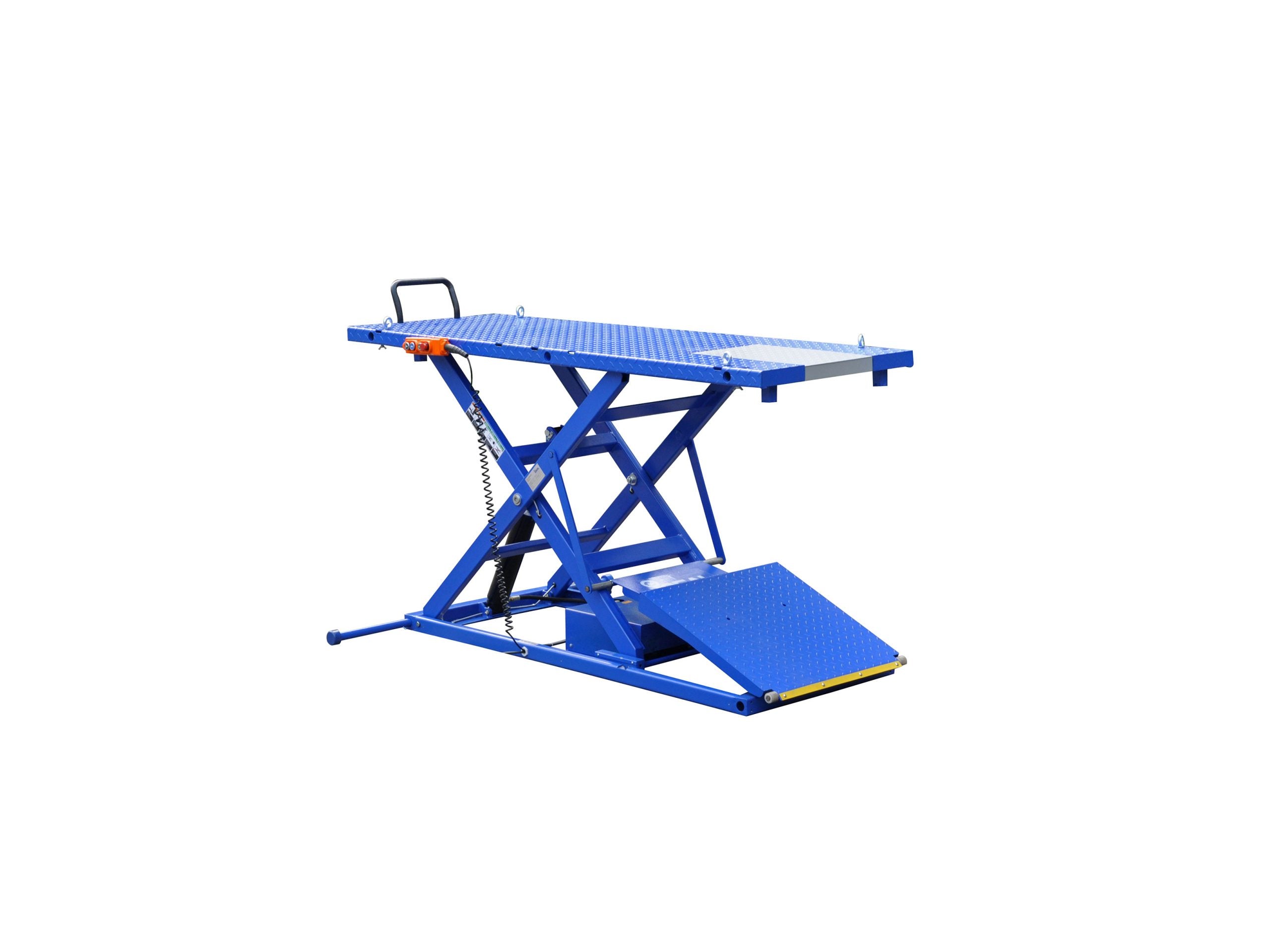

The Tuxedo M-2200IEH-XR is a 2,200 lb capacity electric and hydraulic motorcycle lift bench that raises to 47.25 inches. An integrated 110V power unit and a full-width retractable ramp system set it apart from air-powered tables.
This is the top of the power sport line, sized for shops running heavier bikes and trikes. A hand-held remote pendant controls the lift, the magnetic lock release holds at six positions, and the rear drop-down service panel opens up wheel and drivetrain access.
Key Features
- 2,200 lb capacity - the highest in the power sport line for heavier bikes and trikes.
- 47.25 inch rise - tall working height for full standing access.
- Integrated 110V electric and hydraulic power unit - no separate air supply required.

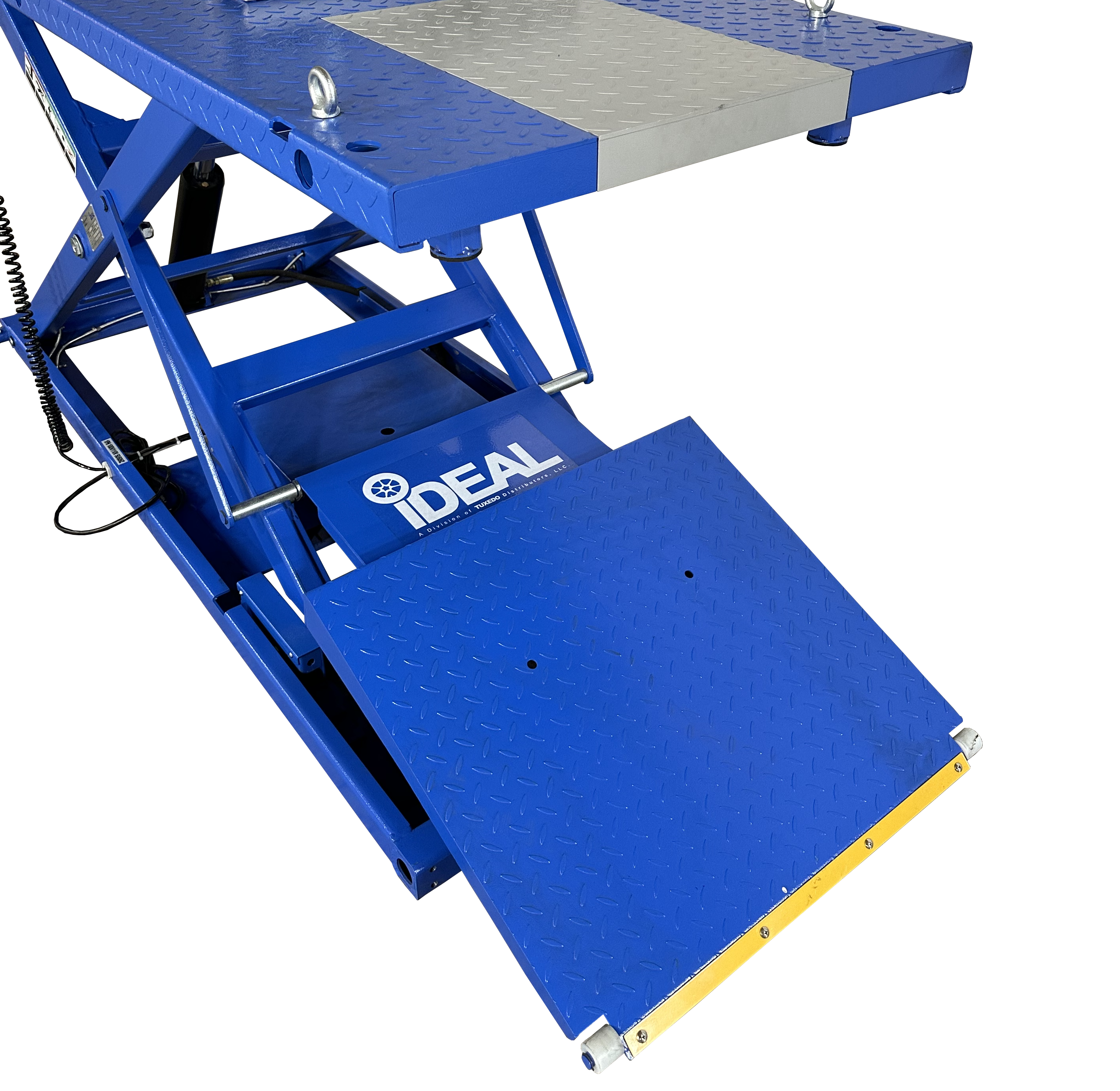

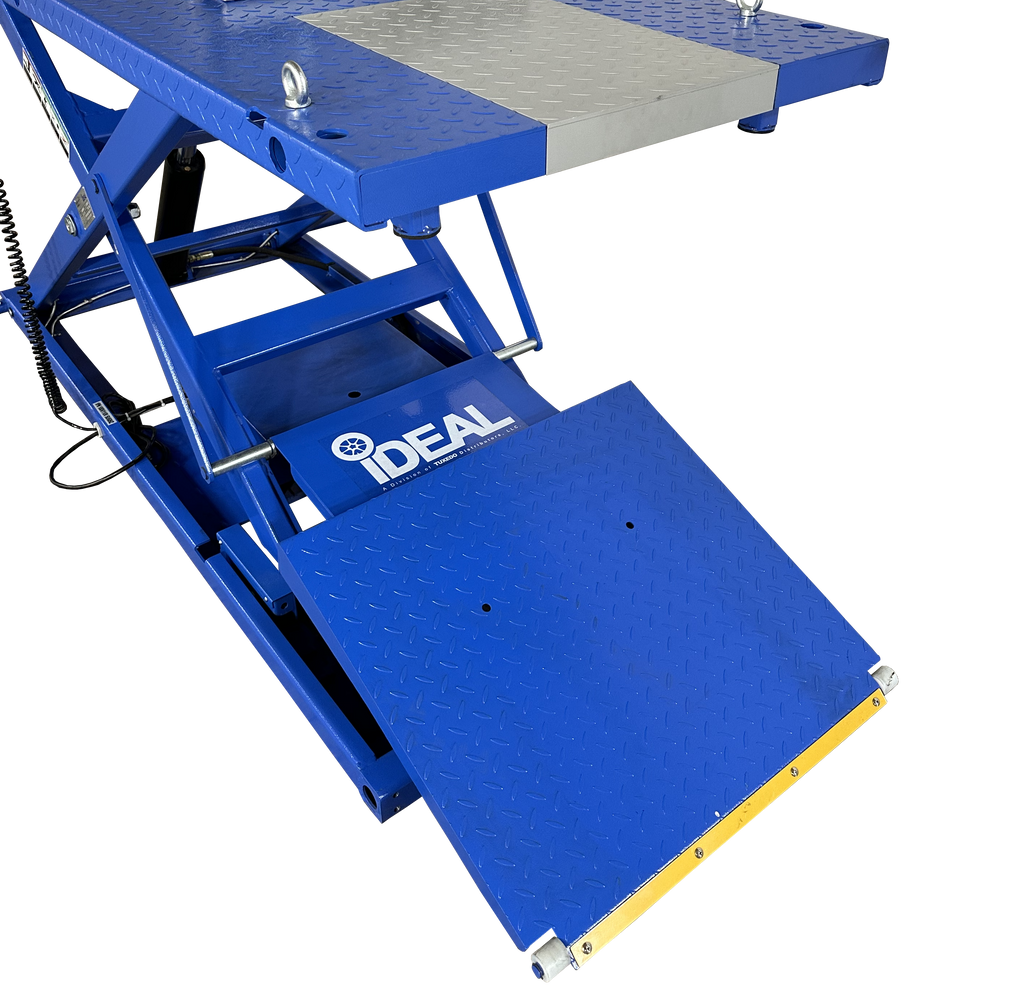

- Full-width retractable ramp system - loads the vehicle, then retracts out of the way.
- Hand-held remote pendant - operate the lift from a step back.
- Magnetic lock release, six positions - holds the platform at the height you set.
Specifications
| Brand | Tuxedo Auto Equipment |
|---|---|
| Type | Electric / Hydraulic Motorcycle Lift Bench |
| Capacity | 2,200 lbs |
| Max Lifting Height | 47.25" |
| Min. Height | 7" |
| Overall Length with Ramp | 116.5" |
| Overall Width | 58" |
| Platform Size | 88.6" x 31.5" |
| Lifting Time | 30 sec |
| Power | 110V, 60Hz, Single Phase, 18A |
| Ship Weight | 788 lbs |
How It Compares
| Model | Capacity | Max Height | Power |
|---|---|---|---|
| M-1000C | 1,000 lb | 30" | Air |
| M-1500C-HR | 1,500 lb | 38.5" | Air/Hydraulic |
| M-2200IEH-XR | 2,200 lb | 47.25" | 110V Electric/Hydraulic |
Key Facts
- Capacity is 2,200 lbs.
- Maximum lifting height is 47.25 inches.
- Runs on a 110V, 60Hz single-phase, 18 amp circuit.
Who It's For
This lift fits a powersport and auto service shop running heavier motorcycles and trikes that wants electric and hydraulic operation. It runs on a 110V, 18 amp circuit, so plan for the dedicated outlet.
What's Included
- Electric and hydraulic motorcycle lift bench
- Full-width retractable ramp
- Hand-held remote control pendant
- Stabilizer bar and wheel stop

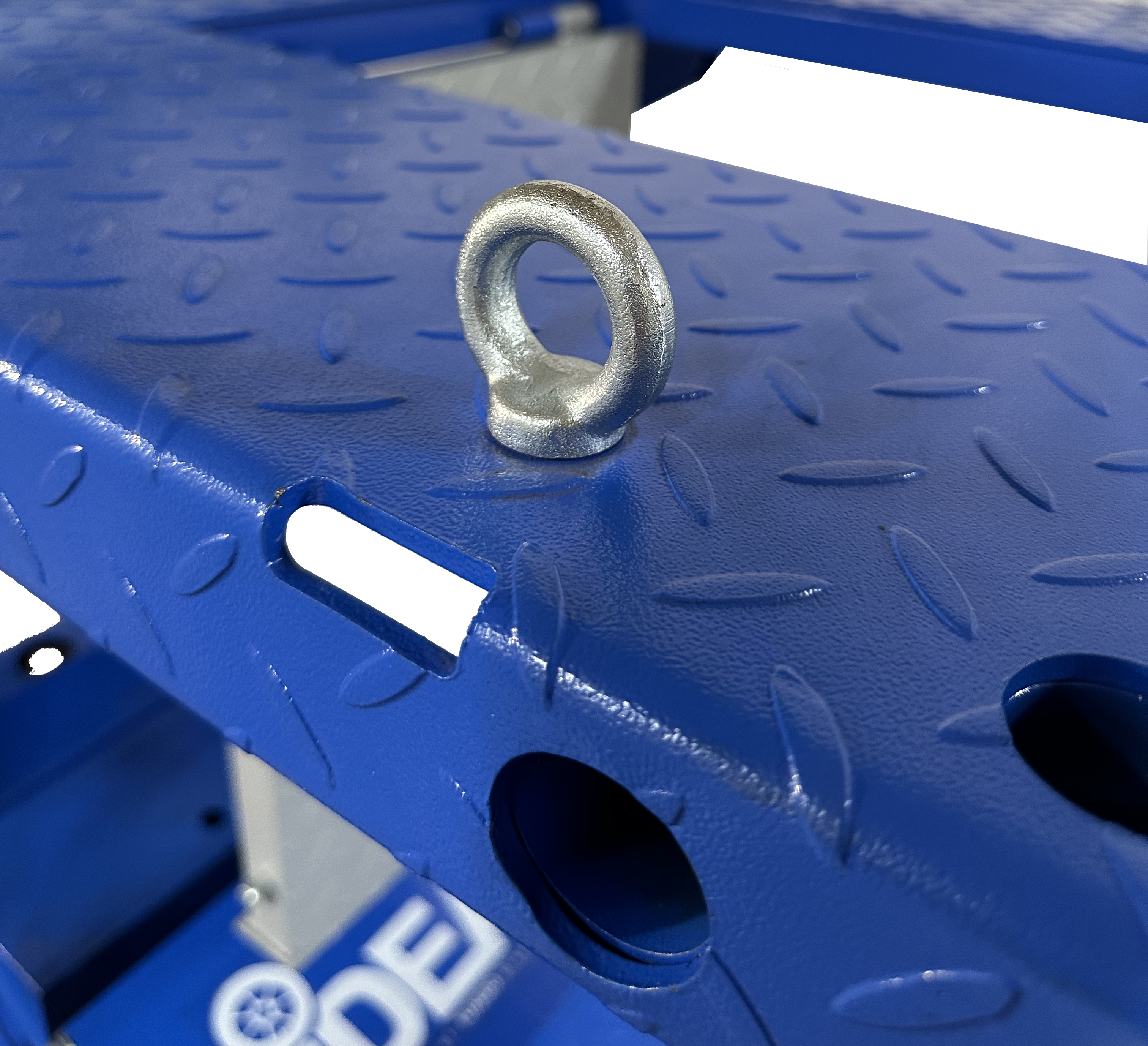

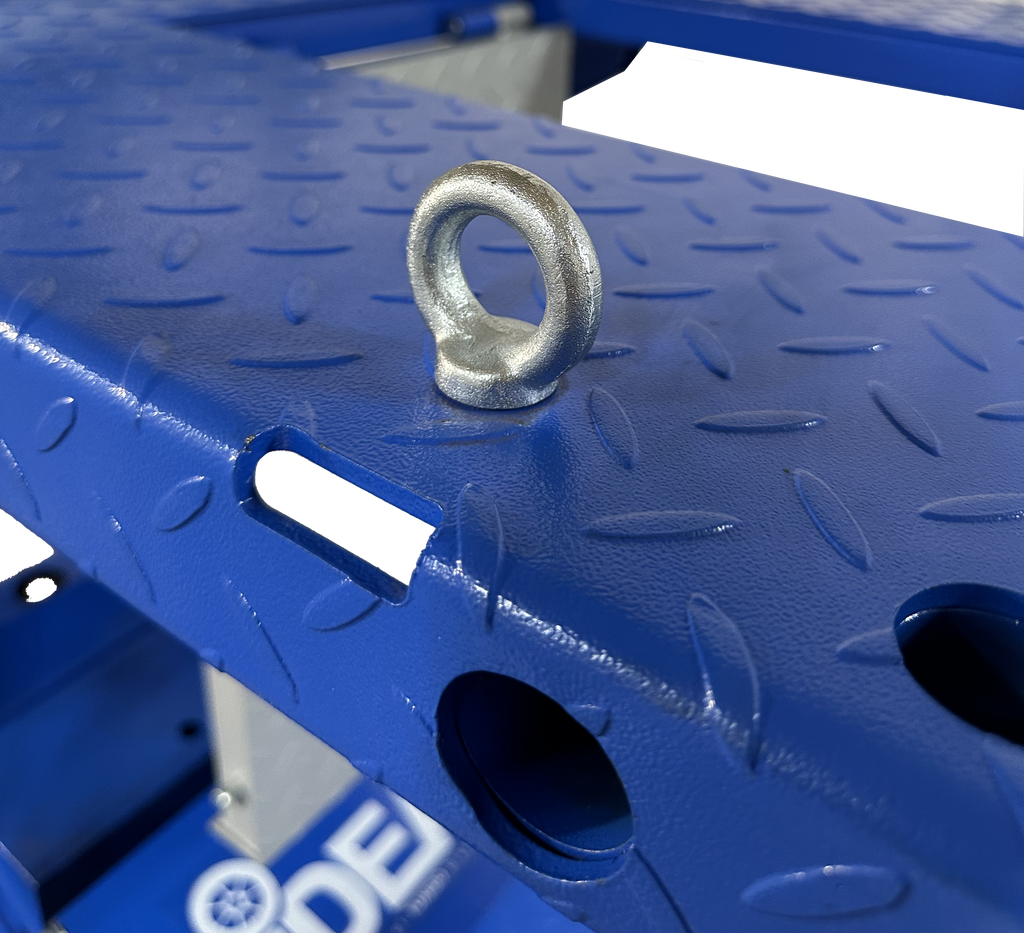

- Tie-down anchor eye bolts
- Owner and operation documentation
The platform is designed to mount the optional M-VISE or M-CHOCK, sold separately, along with trike and front extension kits.
Shipping and Freight
This lift ships as LTL freight. A liftgate or dock helps at delivery. Contact us for a freight quote before ordering.
About Tuxedo Auto Equipment
Tuxedo Distributors supplies automotive lifts, tire and wheel equipment, and powersport tables to shops across North America under the Tuxedo and iDEAL lines.
Frequently Asked Questions
What power does the M-2200IEH-XR need?
It runs on a 110V, 60Hz single-phase, 18 amp circuit through its integrated electric and hydraulic power unit. No separate air supply is needed.
How is the ramp different?
It uses a full-width retractable ramp system that loads the vehicle, then retracts out of the way for service.
What can it lift?
It carries up to 2,200 lbs, the highest in the line, and suits heavier motorcycles and trikes with the optional trike kit.
How does it ship?
It ships as LTL freight. A liftgate or dock helps at delivery. Reach out for a freight quote before ordering.
