Description
Overview

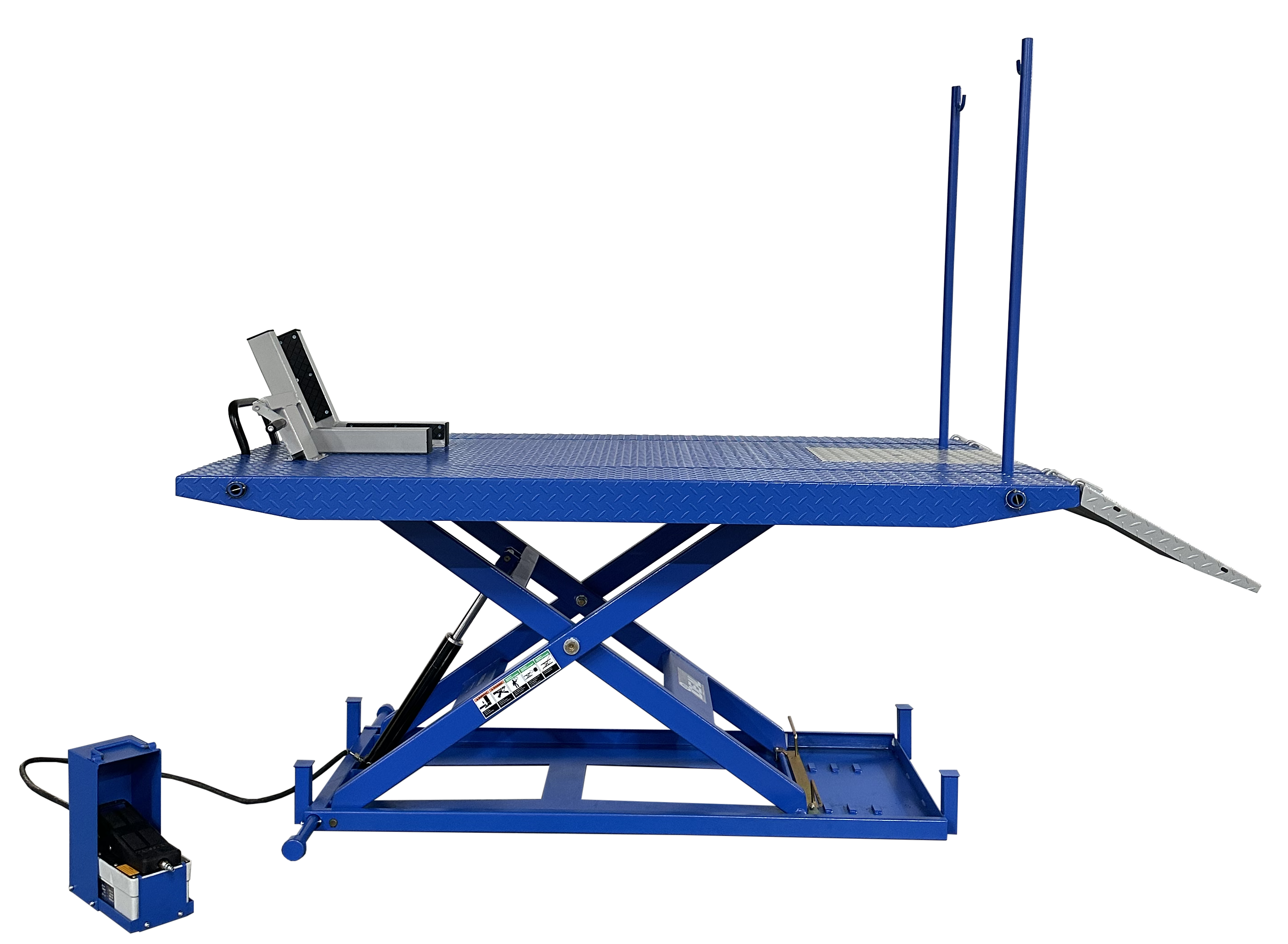

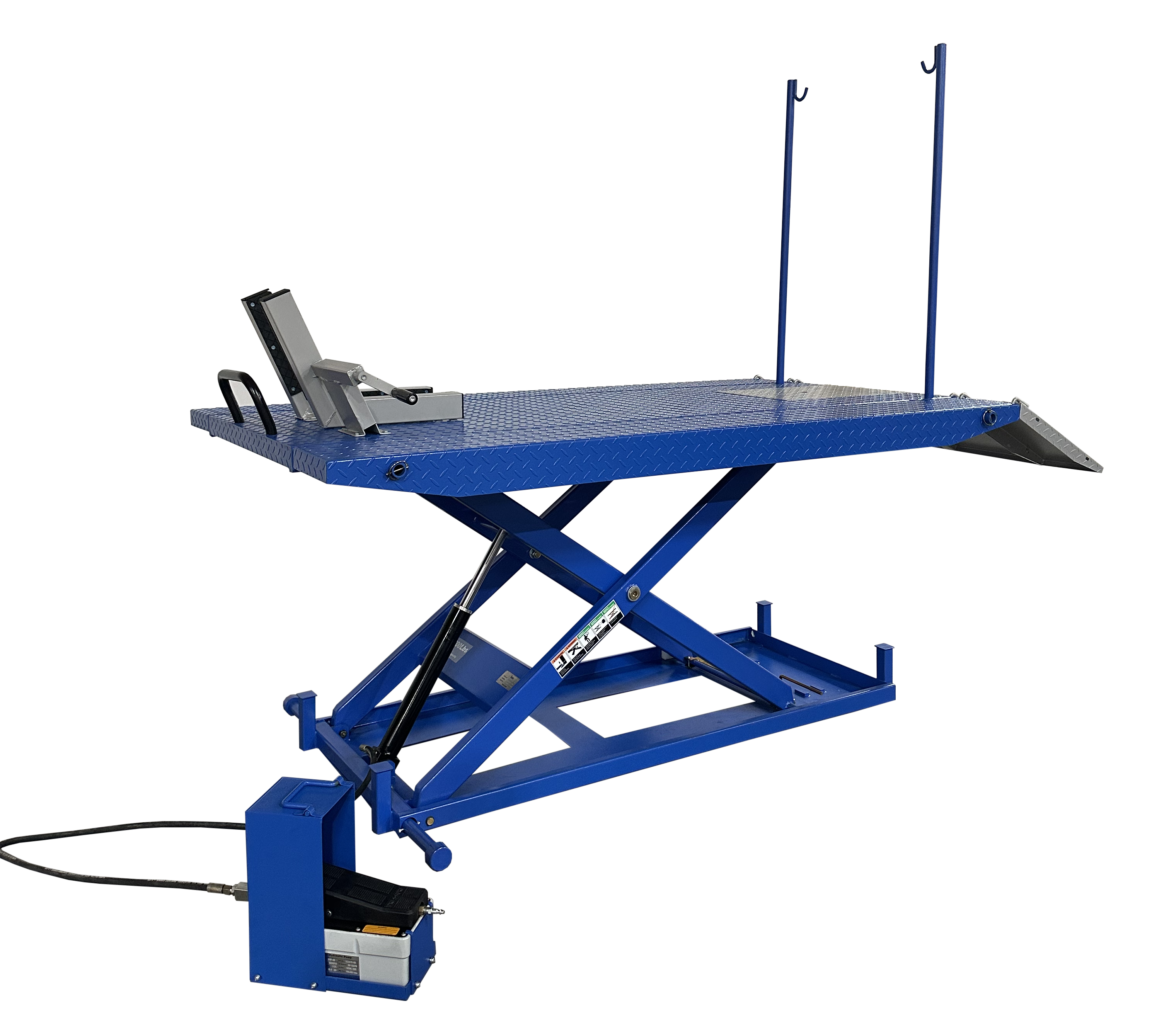

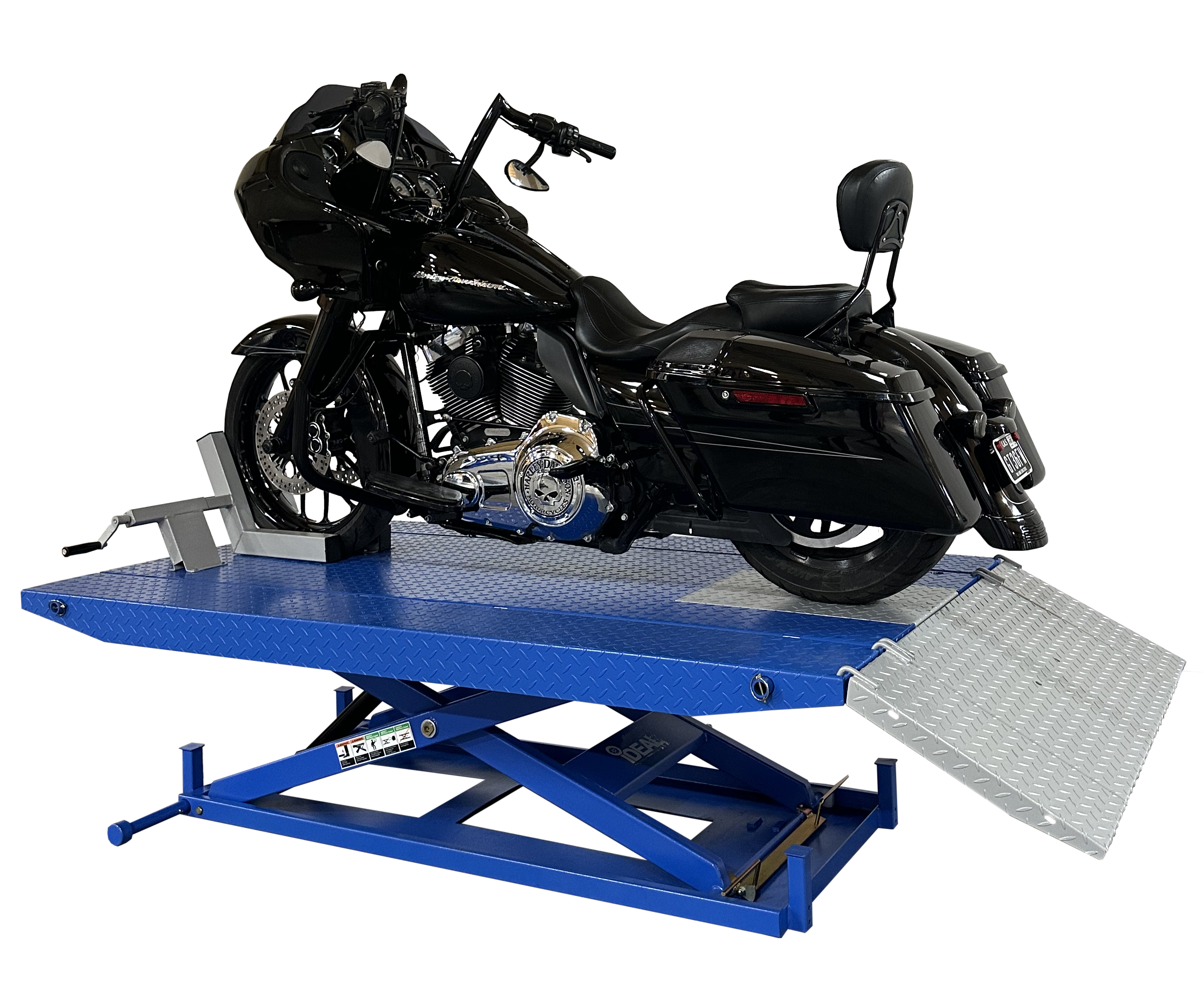

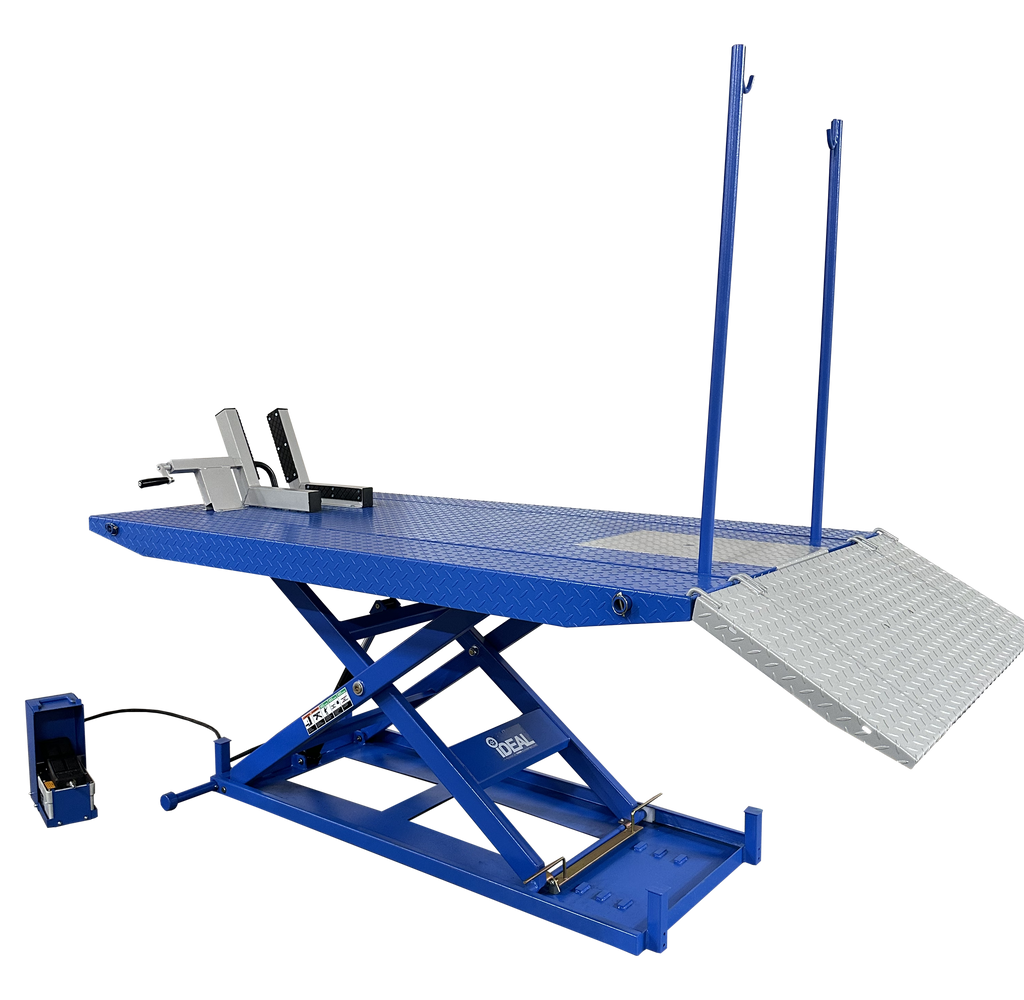

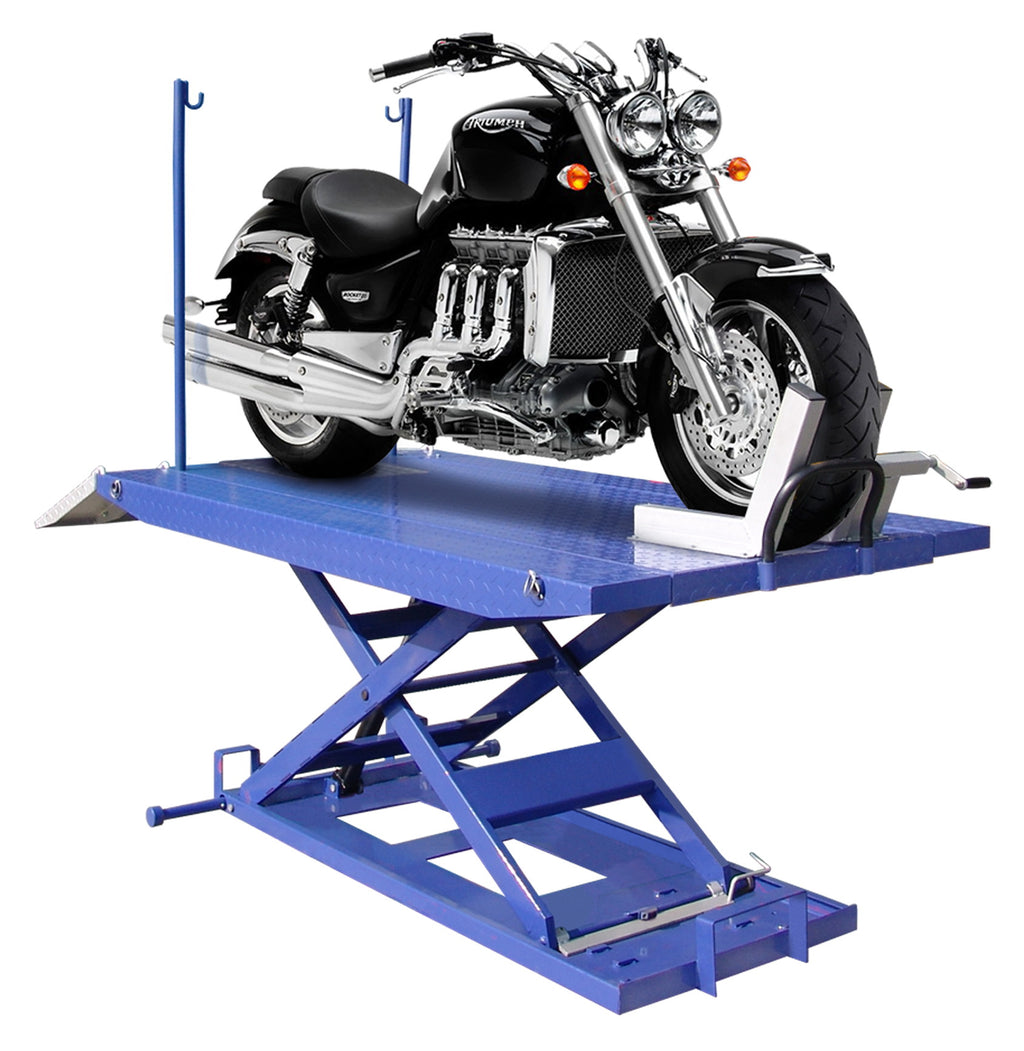

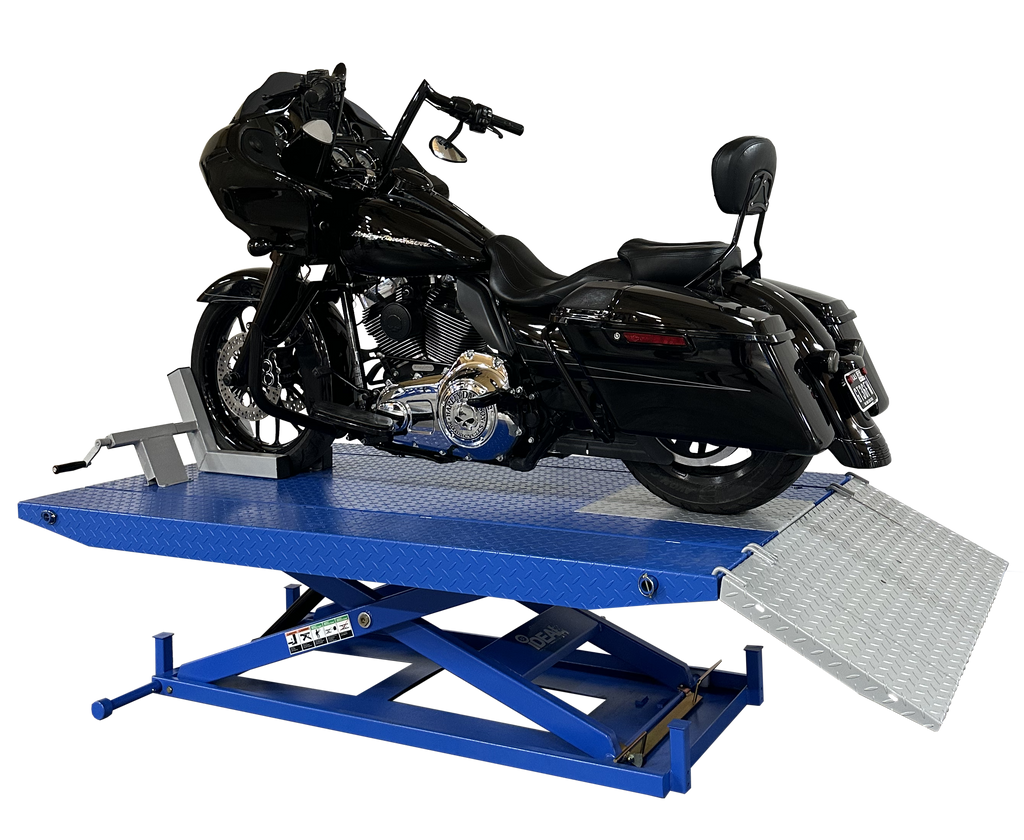

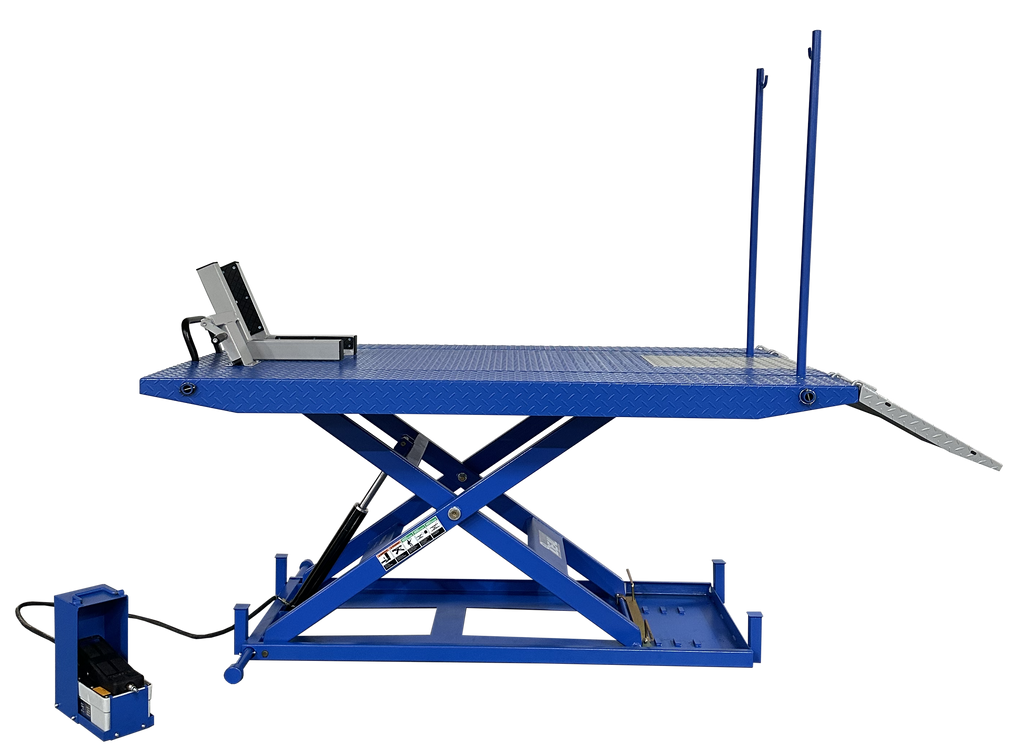

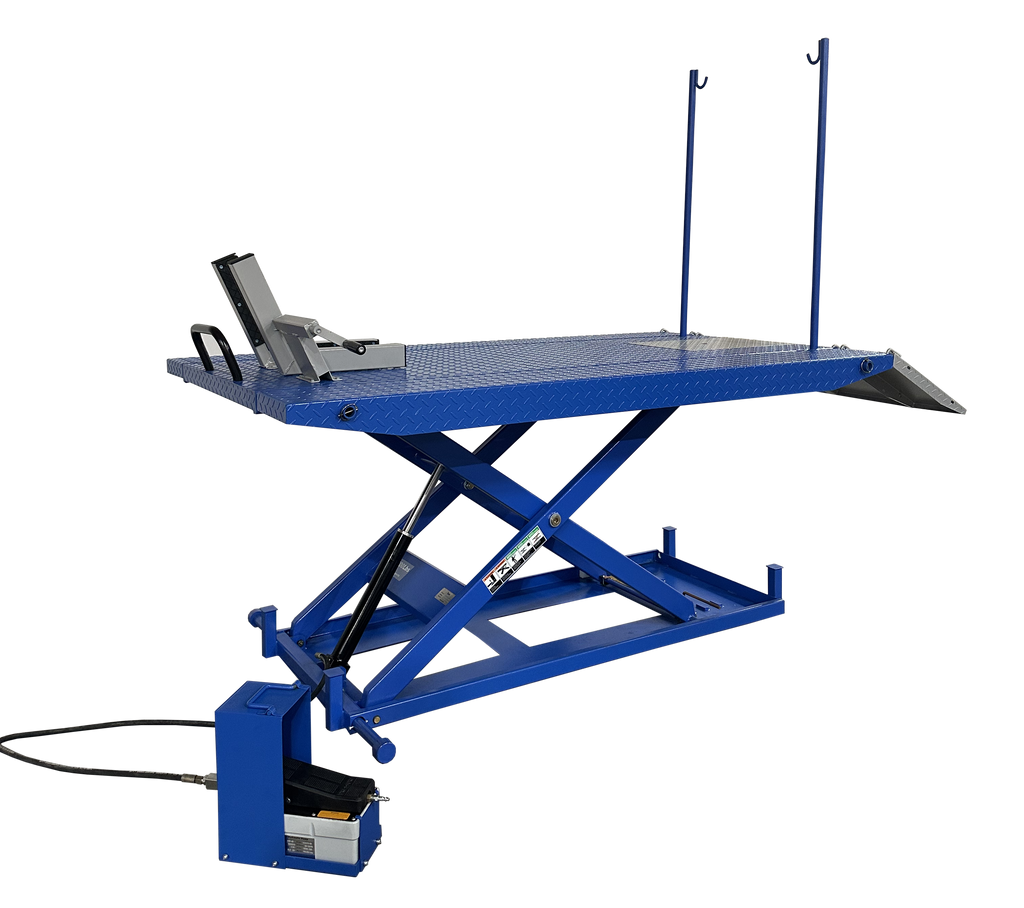

The Tuxedo M-1500C-HR is a 1,500 lb capacity high rise motorcycle lift that raises to 38.5 inches on an air over hydraulic pump. It serves motorcycles, ATVs, snowmobiles, jet skis, and similar power sport vehicles, with side extensions and a vise standard.
The taller 38.5 inch working height brings the vehicle up to a back-friendly level, and the extra-large platform supports the full bike. Air over hydraulic operation lifts heavier loads than a straight pneumatic table.
Key Features
- 1,500 lb capacity - heavier motorcycles, ATVs, and similar power sport vehicles.
- 38.5 inch high rise - brings the vehicle to a comfortable working level.
- Air over hydraulic pump - lifts heavier loads than a pneumatic-only table.
- Side extensions standard - widen the deck for support and access.
- Vise standard - holds wheels and parts at the table.
- Extra-large platform - 88.5 by 50 inch deck for full-vehicle support.
Specifications
| Brand | Tuxedo Auto Equipment |
|---|---|
| Type | High Rise Motorcycle Lift |
| Capacity | 1,500 lbs |
| Max Lifting Height | 38.5" |
| Min. Height | 6.75" |
| Overall Length with Ramp | 109.5" |
| Overall Width | 50" |
| Platform Size | 88.5" x 50" |
| Power | Air over hydraulic |
| Ship Weight | 810 lbs |
How It Compares
| Model | Capacity | Max Height | Power |
|---|---|---|---|
| M-1000C | 1,000 lb | 30" | Air |
| M-1500C-HR | 1,500 lb | 38.5" | Air/Hydraulic |
| M-2200IEH-XR | 2,200 lb | 47.25" | 110V Electric/Hydraulic |
Key Facts
- Capacity is 1,500 lbs.
- Maximum lifting height is 38.5 inches.
- Runs on an air over hydraulic pump.
Who It's For
This lift fits a powersport and auto service shop servicing heavier motorcycles and ATVs that wants a higher working height. It runs on an air over hydraulic pump fed by shop air.
What's Included
- High rise motorcycle lift table with ramp
- Side extensions
- Vise
- Owner and operation documentation
A wheel jack is available separately.
Shipping and Freight
This lift ships as LTL freight. A liftgate or dock helps at delivery. Contact us for a freight quote before ordering.
About Tuxedo Auto Equipment
Tuxedo Distributors supplies automotive lifts, tire and wheel equipment, and powersport tables to shops across North America under the Tuxedo and iDEAL lines.
Frequently Asked Questions
How is the M-1500C-HR different from the M-1000C?
It carries 1,500 lbs versus 1,000 lbs, rises to 38.5 inches versus 30 inches, and uses an air over hydraulic pump for the heavier load. Side extensions and a vise come standard.
What does it run on?
It uses an air over hydraulic pump fed by shop air.
What can it lift?
It carries up to 1,500 lbs and is built for motorcycles, ATVs, snowmobiles, jet skis, and similar power sport vehicles.
How does it ship?
It ships as LTL freight. A liftgate or dock helps at delivery. Reach out for a freight quote before ordering.
Talk to a specialist about air supply and shop fit before you order. See the full auto service lineup for related lifts.
