Description
Overview

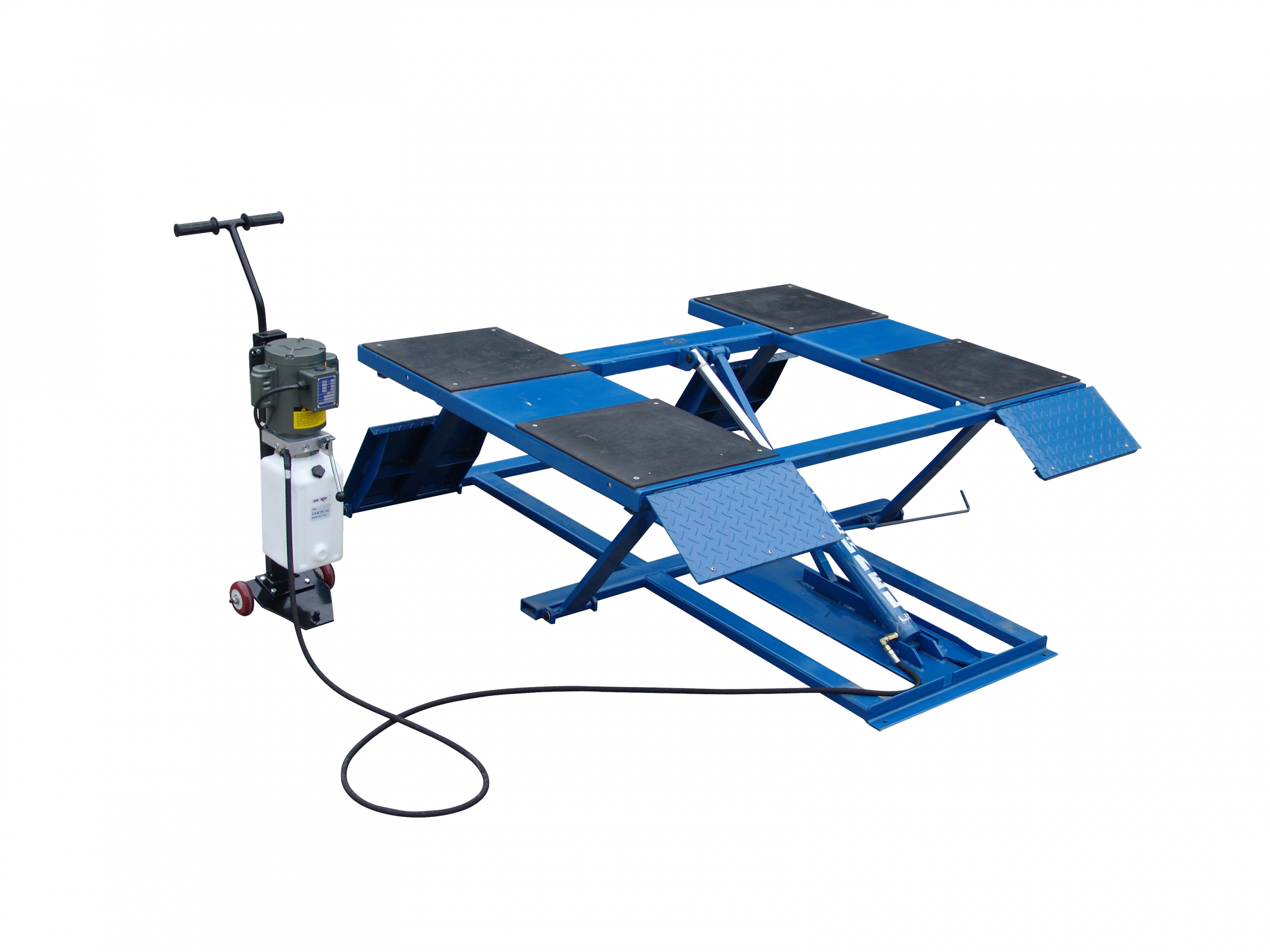

The Tuxedo LR-26-PAD is a 6,000 lb capacity low rise pad lift built for tire, wheel, and quick-service work. It raises to 26 inches and drops to a 3 inch drive-over height, so a technician can roll a vehicle on and lift without ramps in the way.
The low drive-over profile and portable dolly-mounted power unit make this a flexible bay lift for shops that service wheels and brakes all day. An automatic safety lock holds the platform at height while the technician works underneath.
Key Features
- 6,000 lb capacity - handles cars and light trucks for tire and wheel service.
- 3 inch drive-over height - low profile lets a vehicle roll on without ramp clutter.
- 26 inch lift, 30 inch with adapters - working height for wheel and brake jobs.
- Automatic safety lock - mechanical lock holds the platform during service.

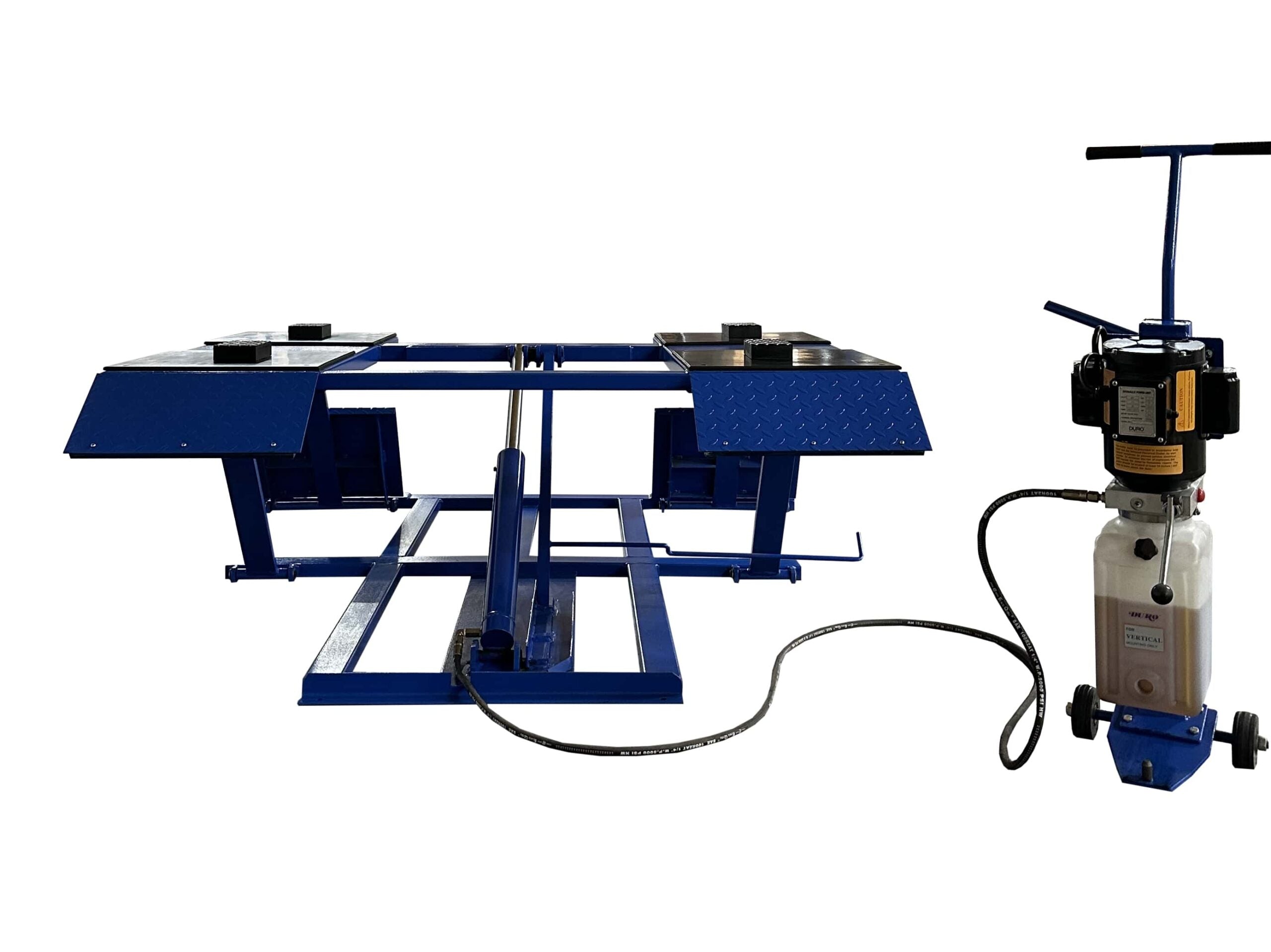

- Dolly mounted power unit - move the lift between bays as work demands.
- Rubber spacer blocks included - set contact points for different vehicles.
Specifications
| Brand | Tuxedo Auto Equipment |
|---|---|
| Type | Low Rise Pad Lift (Scissor) |
| Capacity | 6,000 lbs |
| Lifting Height | 26" |
| Lifting Height with Adapters | 30" |
| Min. Pad Height | 3" |
| Overall Length | 86" |
| Overall Width | 73" |
| Width Between Runways | 35" |
| Pad Length | 52" |
| Power | 115V, 15 Amp, Single Phase |
| Ship Weight | 955 lbs |
How It Compares
| Model | Type | Capacity | Lift Height |
|---|---|---|---|
| LR-26-PAD | Low Rise Pad | 6,000 lb | 26" |
| MR6K-38 | Mid Rise Scissor | 6,000 lb | 38" |
| MR6K-48X | Mid Rise Scissor | 6,000 lb | 48.5" |
Key Facts
- Capacity is 6,000 lbs.
- Drive-over height is 3 inches.
- Runs on a standard 115V, 15 amp single-phase circuit.
Who It's For
This lift fits a tire and auto service shop doing high-volume wheel and brake work. It runs on a standard 115V outlet, so it does not need a dedicated 220V circuit.
What's Included
- Low rise pad lift platform
- Dolly mounted power unit
- Rubber spacer blocks
- Owner and operation documentation
The MR6K-38-SUV frame lifting kit is available separately.
Shipping and Freight
This lift ships as LTL freight. A liftgate or dock helps at delivery. Contact us for a freight quote before ordering.
About Tuxedo Auto Equipment
Tuxedo Distributors supplies automotive lifts, tire and wheel equipment, and collision tools to shops across North America under the Tuxedo and iDEAL lines.
Frequently Asked Questions
What power does the LR-26-PAD need?
It runs on a standard 115V, 15 amp single-phase circuit, so no dedicated 220V service is required.
How low does it sit for drive-on?
The minimum pad height is 3 inches, low enough to roll most vehicles on without ramps.
Is it a fixed or portable lift?
The power unit is dolly mounted, so the lift can be moved between bays.
Can it be used for frame lifting?
An optional MR6K-38-SUV frame lifting kit is available to extend it for frame contact.
Talk to a specialist about power and shop fit before you order. See the full auto service lineup for related lifts.
