Description
Overview

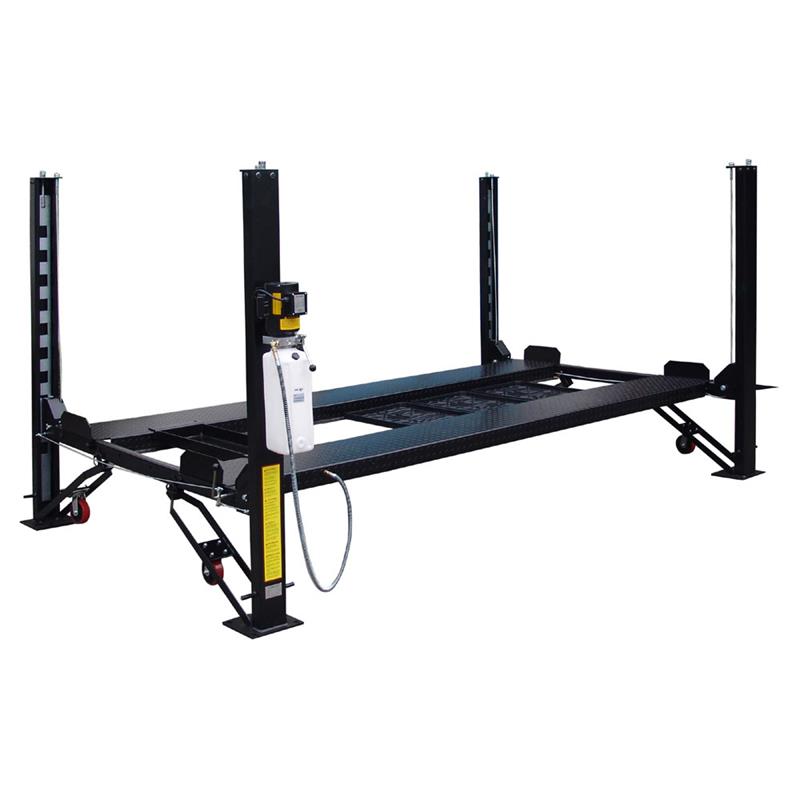

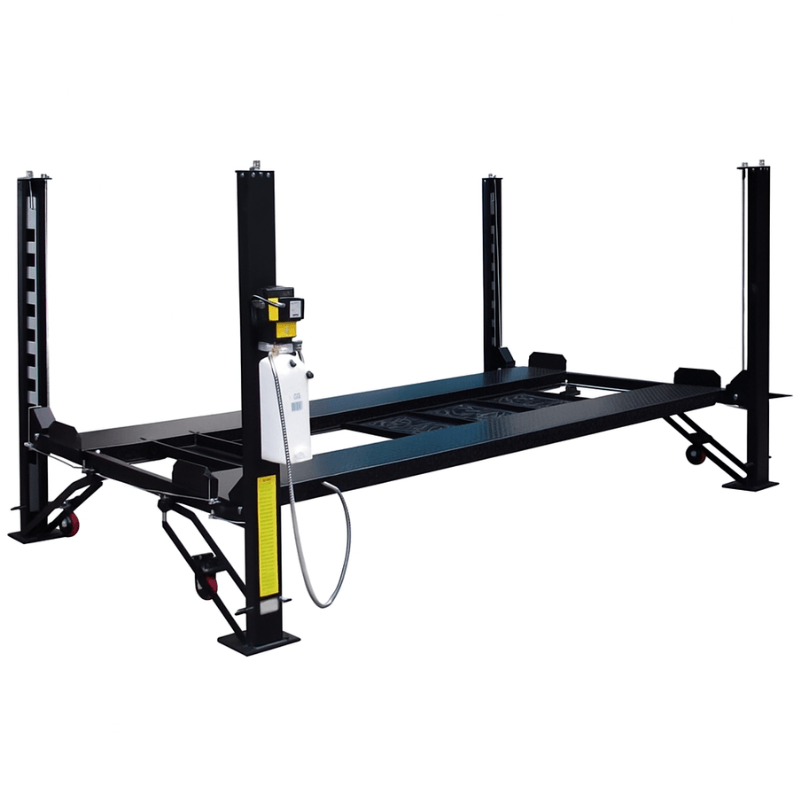

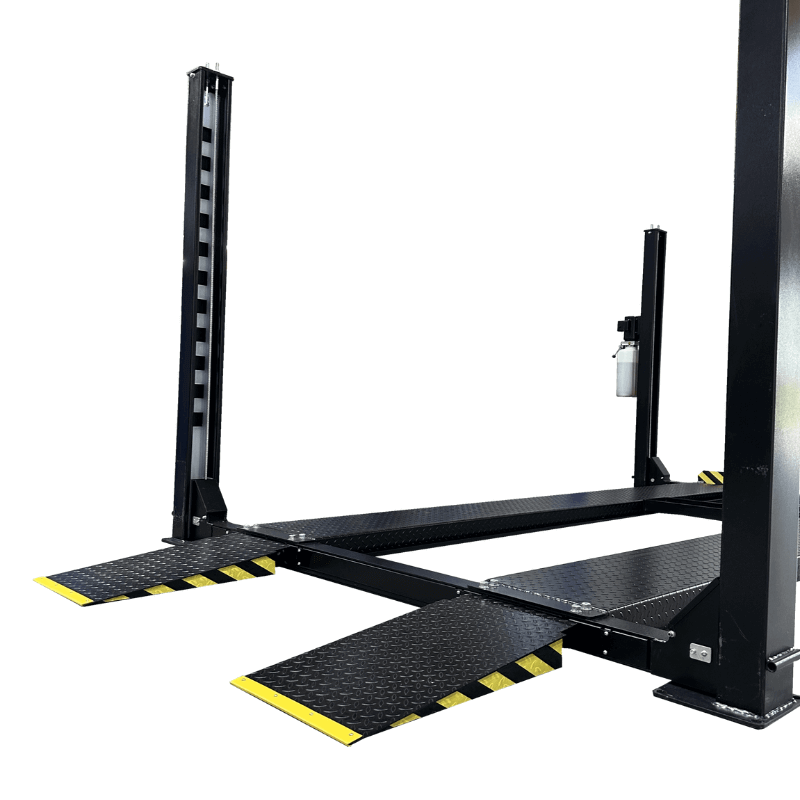

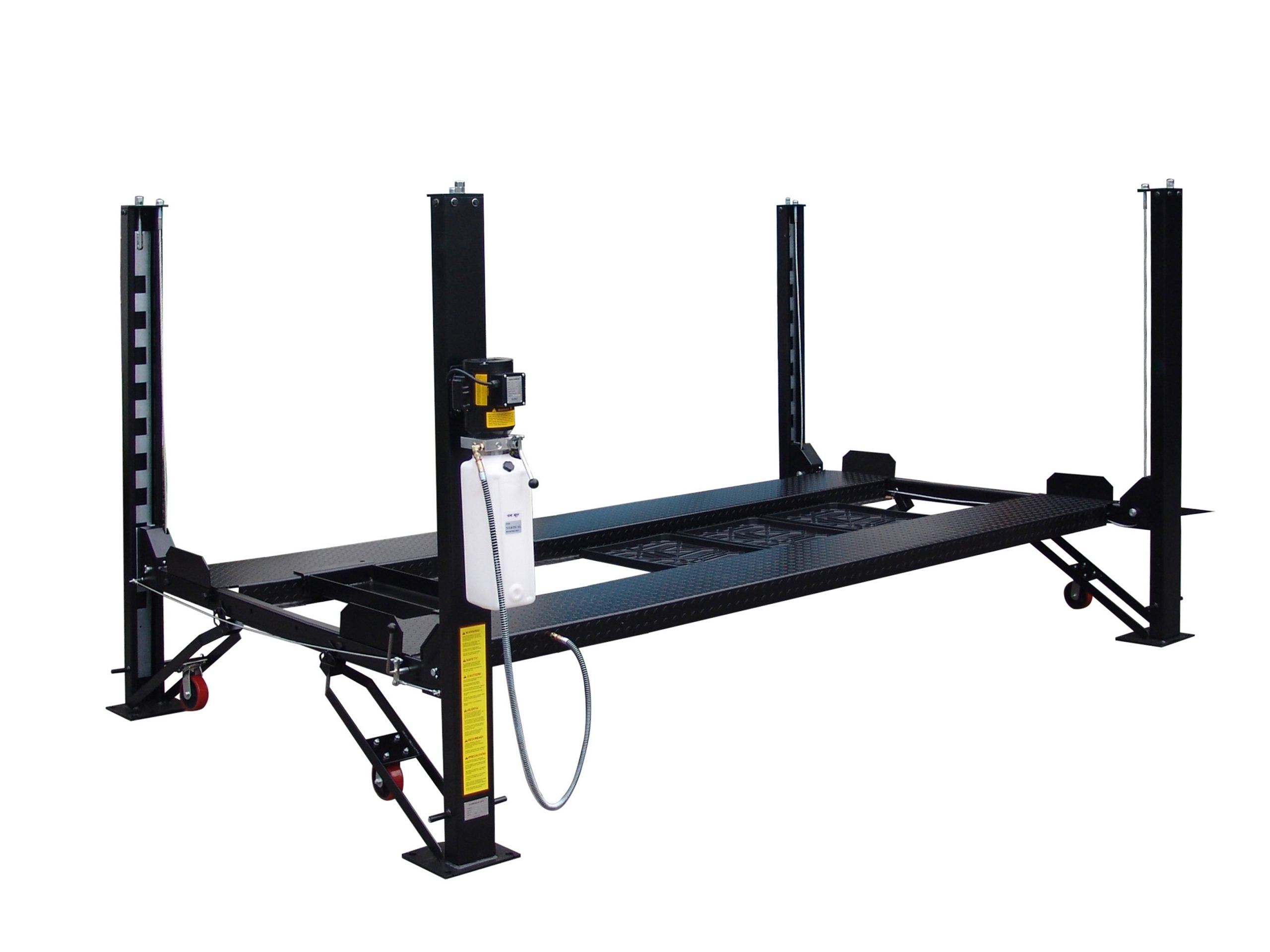

The Tuxedo FP8K-DX-XLT is a deluxe, extended four-post storage lift rated at 8,000 pounds, built for larger garages and full-size trucks.
The XLT version adds extended lift height and length over the standard deluxe, reaching an 82-1/4 inch lifting height with a 78 inch clearance under the runways, so a full-size truck can sit under a stored vehicle. It is cable driven with slack cable safety and ships with drip trays, a jack tray, and a poly caster kit so the lift can be rolled when empty. Browse more auto service equipment or the full Tuxedo Auto Equipment line.
Key Features
- 8,000 lb capacity - Stores full-size trucks and SUVs.
- Extended height and length - 82-1/4 in lifting height and 78 in clearance under the track.
- Cable driven - 3/8 in cable with slack cable safety.
- Includes trays and casters - Drip trays, jack tray, and poly caster kit are included.
- 12 lock positions - Single-point manual lock release with adjustable stops.
- 115V power - Runs from a standard household circuit.
Specifications
| Brand | Tuxedo Auto Equipment |
|---|---|
| Type | Four-Post Storage Lift, Deluxe Extended |
| Capacity | 8,000 lbs |
| Drive | Cable driven |
| Overall Length w/ Ramp | 222-1/2 in |
| Overall Width (Outside Base Plates) | 109-3/8 in |
| Overall Height | 94 in |
| Lifting Height | 82-1/4 in |
| Lock Positions | 12 |
| Power | 115V, 20 Amp, Single Phase |
| Ship Weight | 1,800 lbs |
Who It's For
This lift fits larger residential garages and enthusiasts storing full-size trucks who want the extended height and the included trays and caster kit. Confirm garage ceiling clears the 94 inch overall height before ordering.
What's Included
- FP8K-DX-XLT four-post storage lift with columns and runways
- Cable lift system and power unit
- Drip trays and jack tray
- Poly caster kit
- Steel approach ramps and installation manual
Shipping and Freight
This lift ships as an oversize freight shipment and typically requires a forklift or dock to unload. It ships at roughly 1,800 pounds. Allow extended handling and transit, and use the Request a Freight Quote path so we can confirm access, liftgate needs, and a commercial delivery address before scheduling.
About Tuxedo Auto Equipment
Tuxedo Distributors supplies automotive lifts, wheel service equipment, and collision repair tools to professional shops across North America, including the iDEAL line of commercial lifts and frame racks.
Frequently Asked Questions
What does the FP8K-DX-XLT store?
It is rated at 8,000 pounds and is sized for full-size trucks and SUVs.
How is the XLT different from the standard deluxe?
The XLT adds extended lift height and length, reaching an 82-1/4 inch lifting height and 78 inch clearance under the track.
Does it include trays and casters?
Yes. Drip trays, a jack tray, and a poly caster kit are included.
Will it fit my garage?
The overall height is 94 inches. Confirm your ceiling clears that before ordering.
What power does it need?
A standard 115V, 20 Amp, single-phase circuit.
Talk to a Tuxedo specialist about garage fit and freight before you order. View the full Tuxedo Auto Equipment range.
