Description
Overview

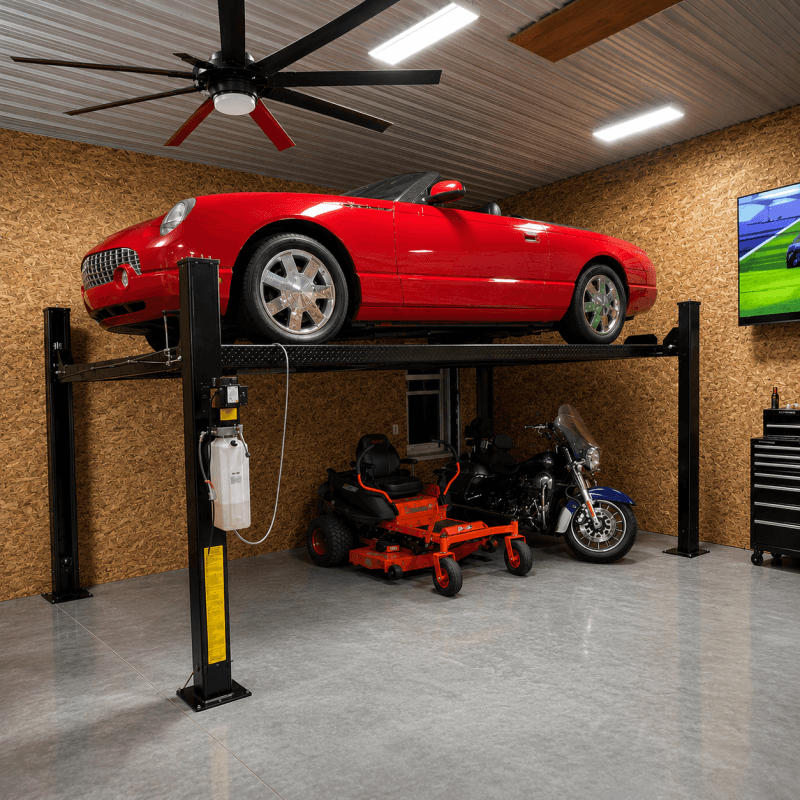

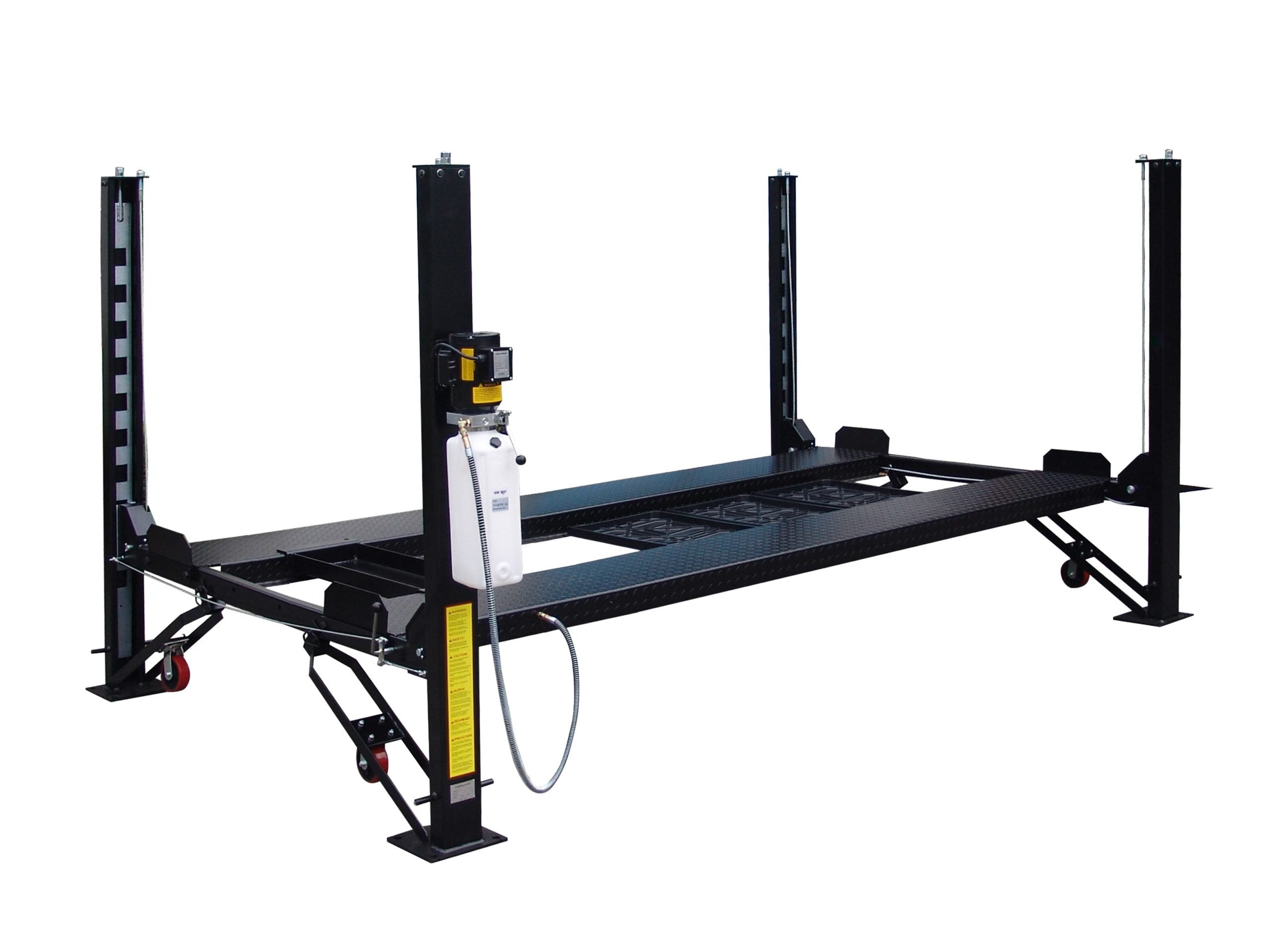

The Tuxedo FP8K-DX is a deluxe four-post storage lift rated at 8,000 pounds that parks a second vehicle in one bay and fits most residential garages.
It is cable driven with a single-point manual lock release, adjustable locking positions, and slack cable safety, and it runs on a standard 115V circuit. The deluxe version ships with drip trays, a jack tray, and a poly caster kit so the empty lift can be rolled across the floor. Browse more auto service equipment or the full Tuxedo Auto Equipment line.
Key Features
- 8,000 lb capacity - Stores most cars, trucks, and SUVs.
- Cable driven - 3/8 in cable with slack cable safety.
- Fits most residential garages - 86 in overall height with a 74-3/4 in lifting height.
- Includes trays and casters - Drip trays, jack tray, and poly caster kit are included.
- 10 lock positions - Single-point manual lock release with adjustable stops.
- 115V power - Runs from a standard household circuit.
Specifications
| Brand | Tuxedo Auto Equipment |
|---|---|
| Type | Four-Post Storage Lift, Deluxe |
| Capacity | 8,000 lbs |
| Drive | Cable driven |
| Overall Length w/ Ramp | 207-5/16 in |
| Overall Width (Outside Base Plates) | 103-1/2 in |
| Overall Height | 86 in |
| Lifting Height | 74-3/4 in |
| Lock Positions | 10 |
| Power | 115V, 20 Amp, Single Phase |
| Ship Weight | 1,705 lbs |
Who It's For
This lift fits home garages and enthusiasts who want to double up vehicle parking with the trays and caster kit included. Confirm garage ceiling clears the 86 inch overall height before ordering.
What's Included
- FP8K-DX four-post storage lift with columns and runways
- Cable lift system and power unit
- Drip trays and jack tray
- Poly caster kit
- Steel approach ramps and installation manual
Shipping and Freight
This lift ships as an oversize freight shipment and typically requires a forklift or dock to unload. It ships at roughly 1,705 pounds. Allow extended handling and transit, and use the Request a Freight Quote path so we can confirm access, liftgate needs, and a commercial delivery address before scheduling.
About Tuxedo Auto Equipment
Tuxedo Distributors supplies automotive lifts, wheel service equipment, and collision repair tools to professional shops across North America, including the iDEAL line of commercial lifts and frame racks.
Frequently Asked Questions
What does the FP8K-DX store?
It is rated at 8,000 pounds and stores most cars, trucks, and SUVs.
How is it different from the basic FP8K-B?
The deluxe FP8K-DX includes drip trays, a jack tray, and a poly caster kit, which the basic model does not.
How is it different from the XLT?
The standard FP8K-DX uses the 86 inch height and 74-3/4 inch lifting height, while the XLT adds extended height and length.
Will it fit my garage?
The overall height is 86 inches. Confirm your ceiling clears that before ordering.
What power does it need?
A standard 115V, 20 Amp, single-phase circuit.
Talk to a Tuxedo specialist about garage fit and freight before you order. View the full Tuxedo Auto Equipment range.
