Description
Overview

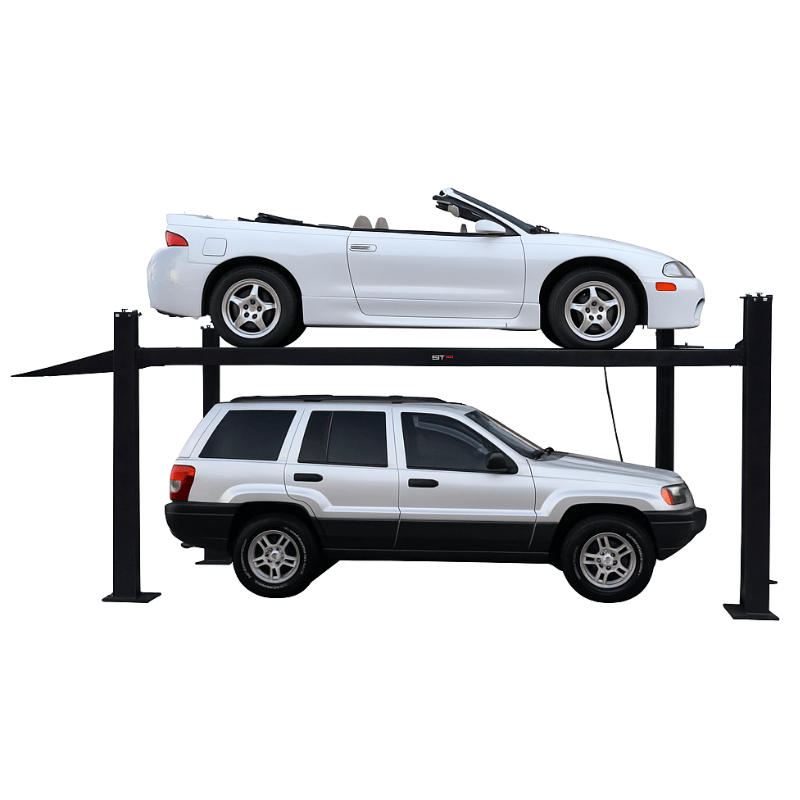

The Tuxedo FP8K-B is a basic four-post storage lift rated at 8,000 pounds, sized to park a second vehicle in the space of one and to fit most residential garages.
It is cable driven with a single-point manual lock release, adjustable locking positions, and slack cable safety, and it runs on a standard 115V circuit. The FP8K-B is the entry model in the storage line and ships without the caster kit, drip trays, and jack tray that come on the deluxe versions. Browse more auto service equipment or the full Tuxedo Auto Equipment line.
Key Features
- 8,000 lb capacity - Stores most cars, trucks, and SUVs.
- Cable driven - 3/8 in cable with slack cable safety.
- Fits most residential garages - 86 in overall height with a 74-3/4 in lifting height.
- 115V power - Runs from a standard household circuit.
- 10 lock positions - Single-point manual lock release with adjustable stops.
- Steel approach ramps - Drive-on ramps included.
Specifications
| Brand | Tuxedo Auto Equipment |
|---|---|
| Type | Four-Post Storage Lift, Basic |
| Capacity | 8,000 lbs |
| Drive | Cable driven |
| Overall Length w/ Ramp | 207-5/16 in |
| Overall Width (Outside Base Plates) | 103-1/2 in |
| Overall Height | 86 in |
| Lifting Height | 74-3/4 in |
| Lock Positions | 10 |
| Power | 115V, 20 Amp, Single Phase |
| Ship Weight | 1,545 lbs |
Who It's For
This lift fits home garages and enthusiasts who want to double up vehicle parking or gain under-car access at the lowest entry point in the storage line. Confirm garage height clears the 86 inch overall height before ordering.
What's Included
- FP8K-B four-post storage lift with columns and runways
- Cable lift system and power unit
- Steel approach ramps
- Installation and operation manual
This basic model does not include a caster kit, drip trays, or a jack tray. Those come on the deluxe FP8K-DX models or are sold separately.
Shipping and Freight
This lift ships as an oversize freight shipment and typically requires a forklift or dock to unload. It ships at roughly 1,545 pounds. Allow extended handling and transit, and use the Request a Freight Quote path so we can confirm access, liftgate needs, and a commercial delivery address before scheduling.
About Tuxedo Auto Equipment
Tuxedo Distributors supplies automotive lifts, wheel service equipment, and collision repair tools to professional shops across North America, including the iDEAL line of commercial lifts and frame racks.
Frequently Asked Questions
What does the FP8K-B store?
It is rated at 8,000 pounds and stores most cars, trucks, and SUVs.
Will it fit a home garage?
The overall height is 86 inches. Confirm your garage ceiling clears that before ordering.
What power does it need?
A standard 115V, 20 Amp, single-phase circuit.
Does it come with casters and trays?
No. The basic FP8K-B ships without the caster kit, drip trays, and jack tray. Those are included on the deluxe models or sold separately.
Is it cable or chain driven?
Cable driven with a 3/8 inch cable and slack cable safety.
Talk to a Tuxedo specialist about garage fit and freight before you order. View the full Tuxedo Auto Equipment range.
