Description
Overview

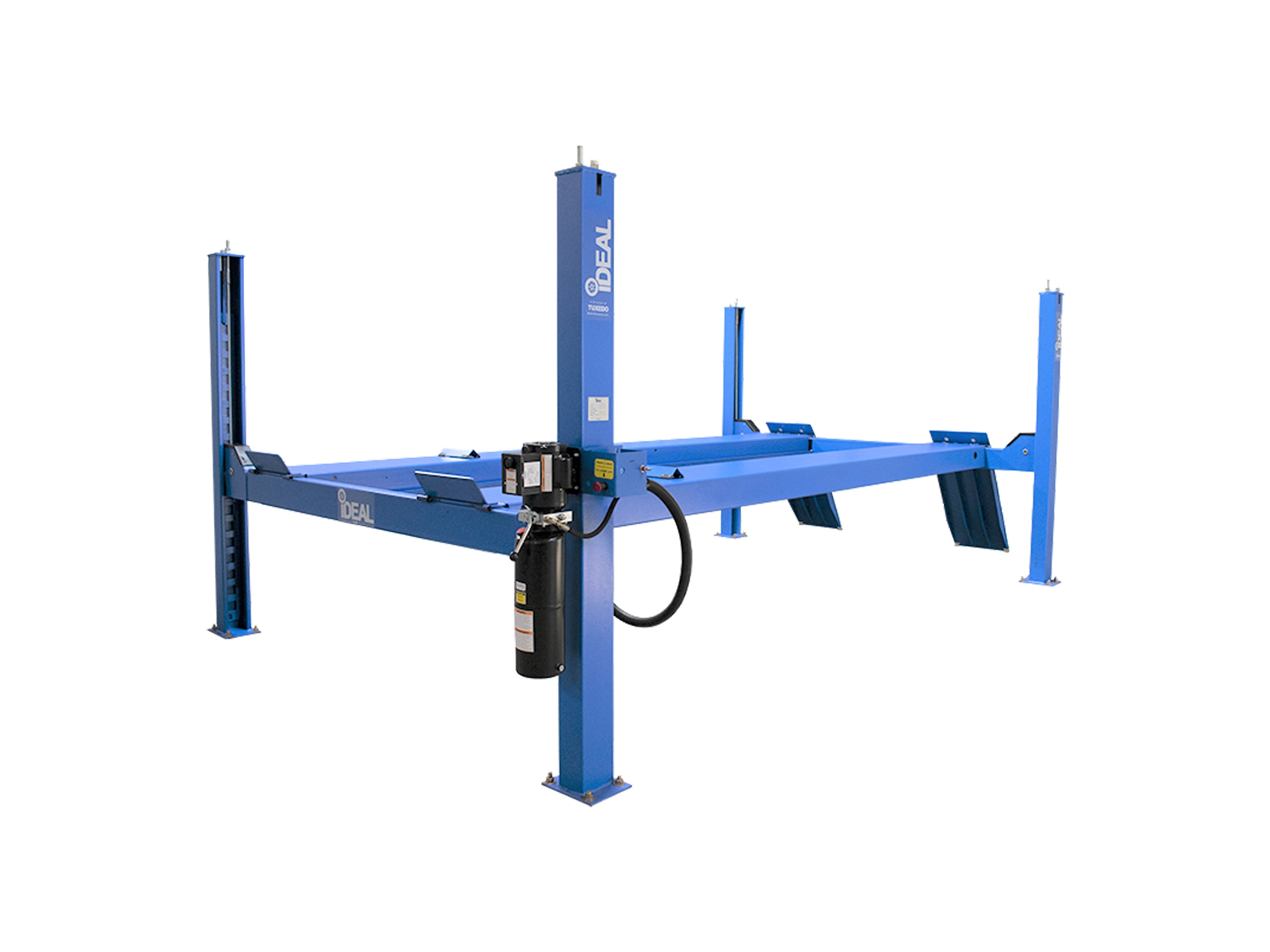

The Tuxedo iDEAL FP14KC-X is a commercial four-post service lift rated at 14,000 pounds, set up for high-throughput service bays.
It runs a cable lift system with 18 locking height positions and a single-point pneumatic lock release, on 20 inch wide runways with narrow and wide mounting positions. The closed-front design and adjustable lock stops make leveling and daily use straightforward, and it handles a 182.5 inch maximum wheelbase. The FP14KC-X also serves as the base lift for the matching bolt-on alignment kit. Browse more auto service equipment or the full Tuxedo Auto Equipment line.
Key Features
- 14,000 lb capacity - Commercial service platform for trucks and vans.
- Cable lift system - Slack cable safety devices across all posts.
- 182.5 in max wheelbase - Fits long-wheelbase vehicles.

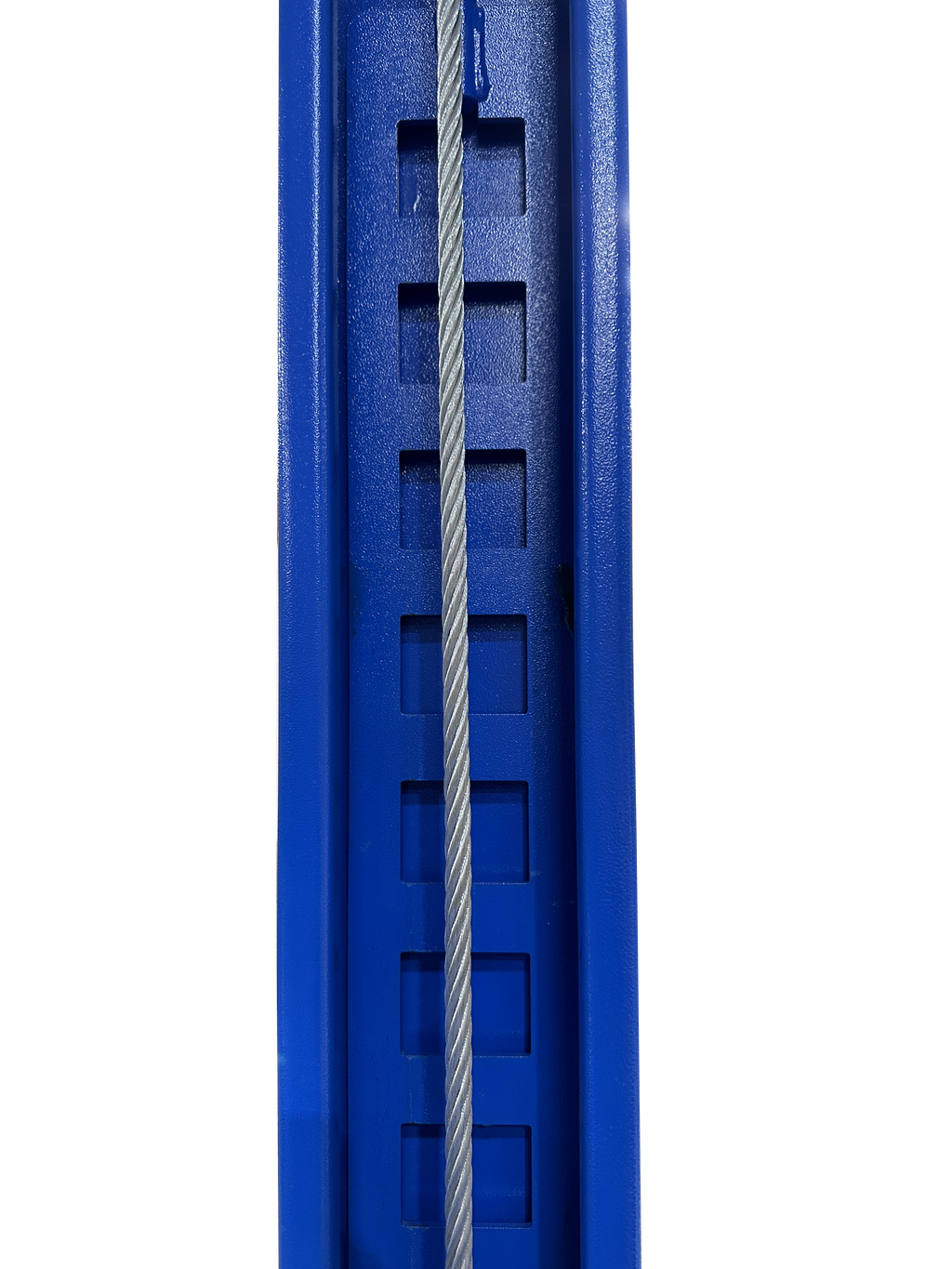

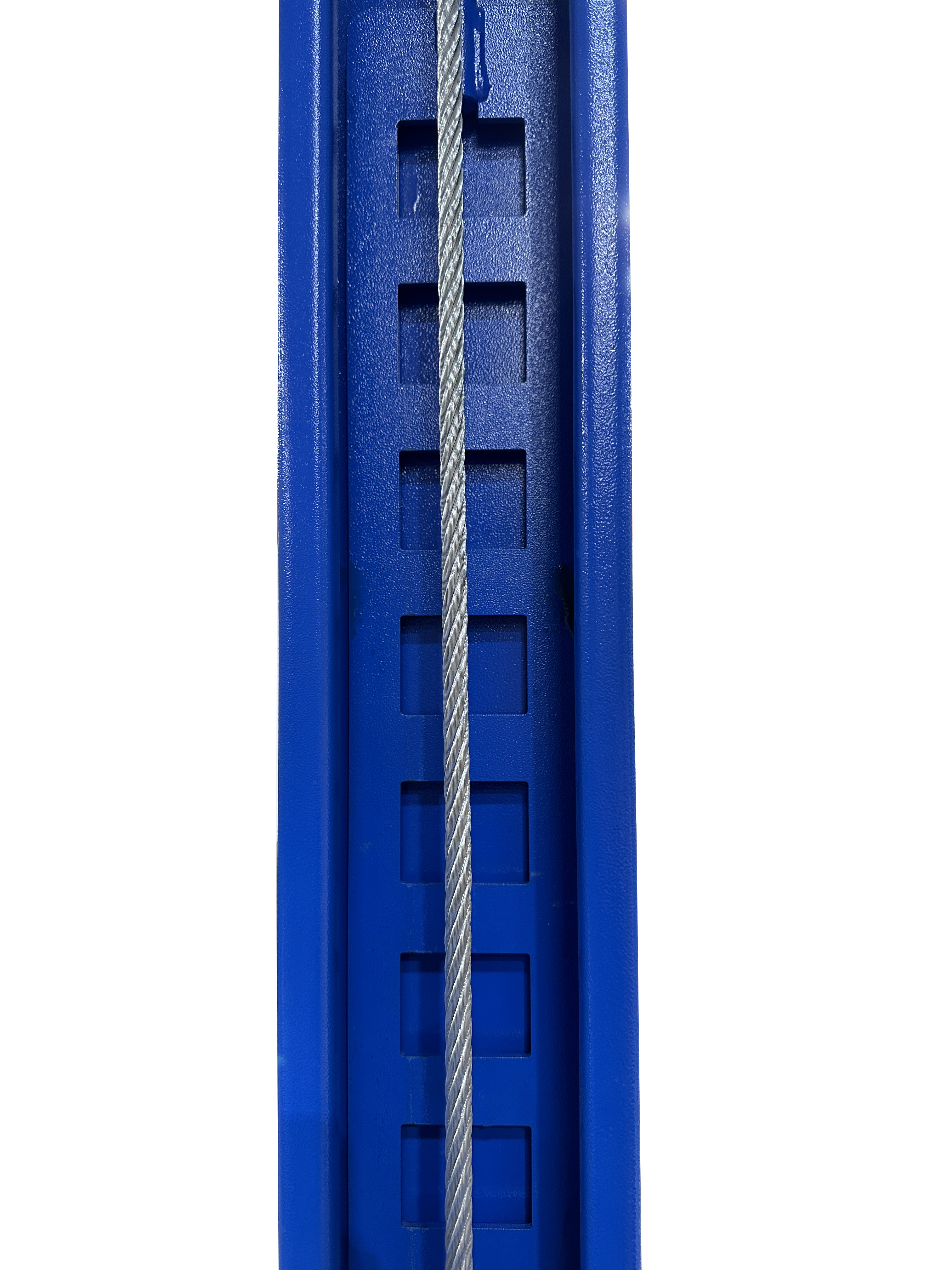

- 18 locking positions - Single-point pneumatic lock release with adjustable lock stops for leveling.
- 20 in wide runways - Narrow and wide mounting positions for different track widths.

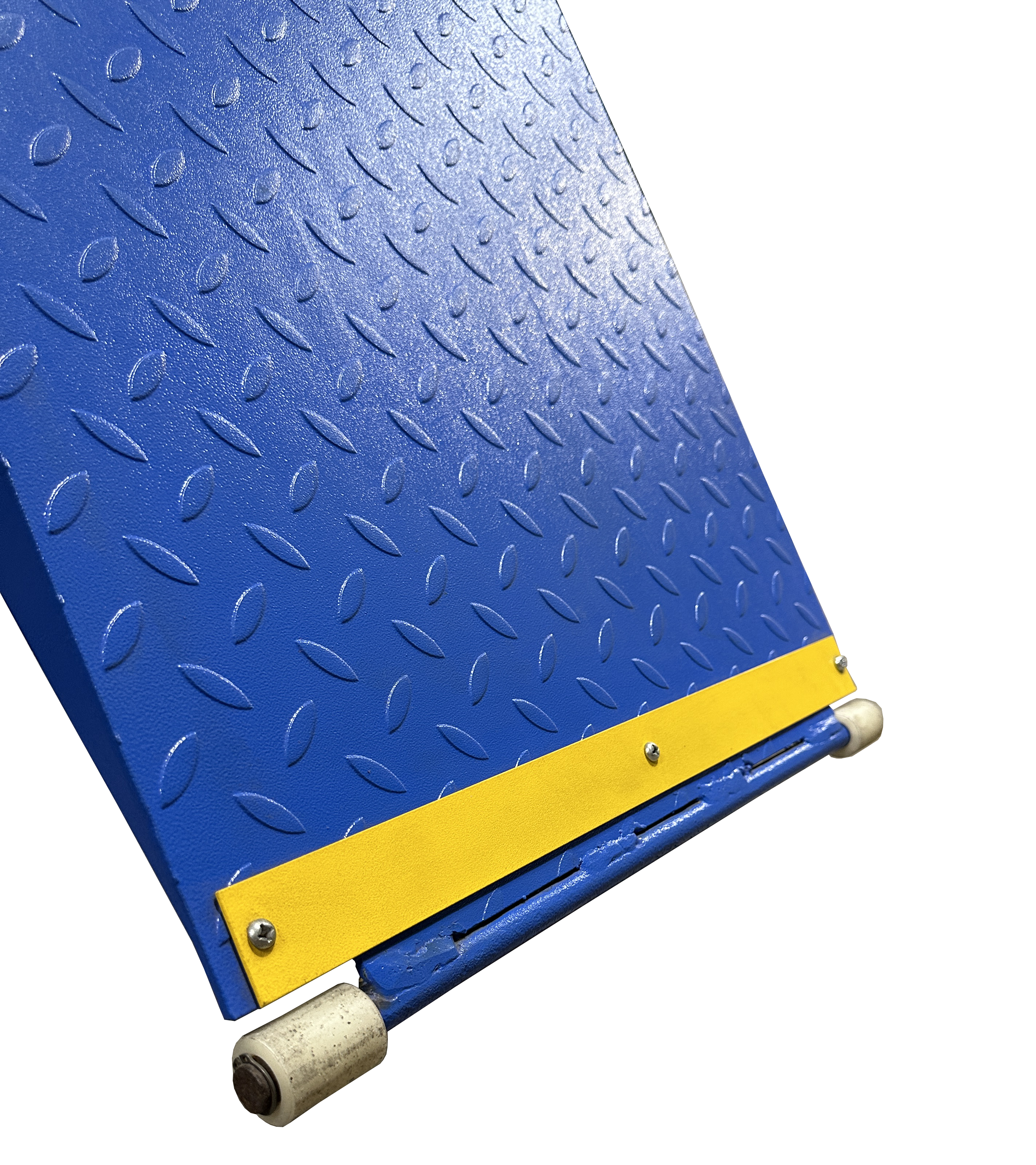

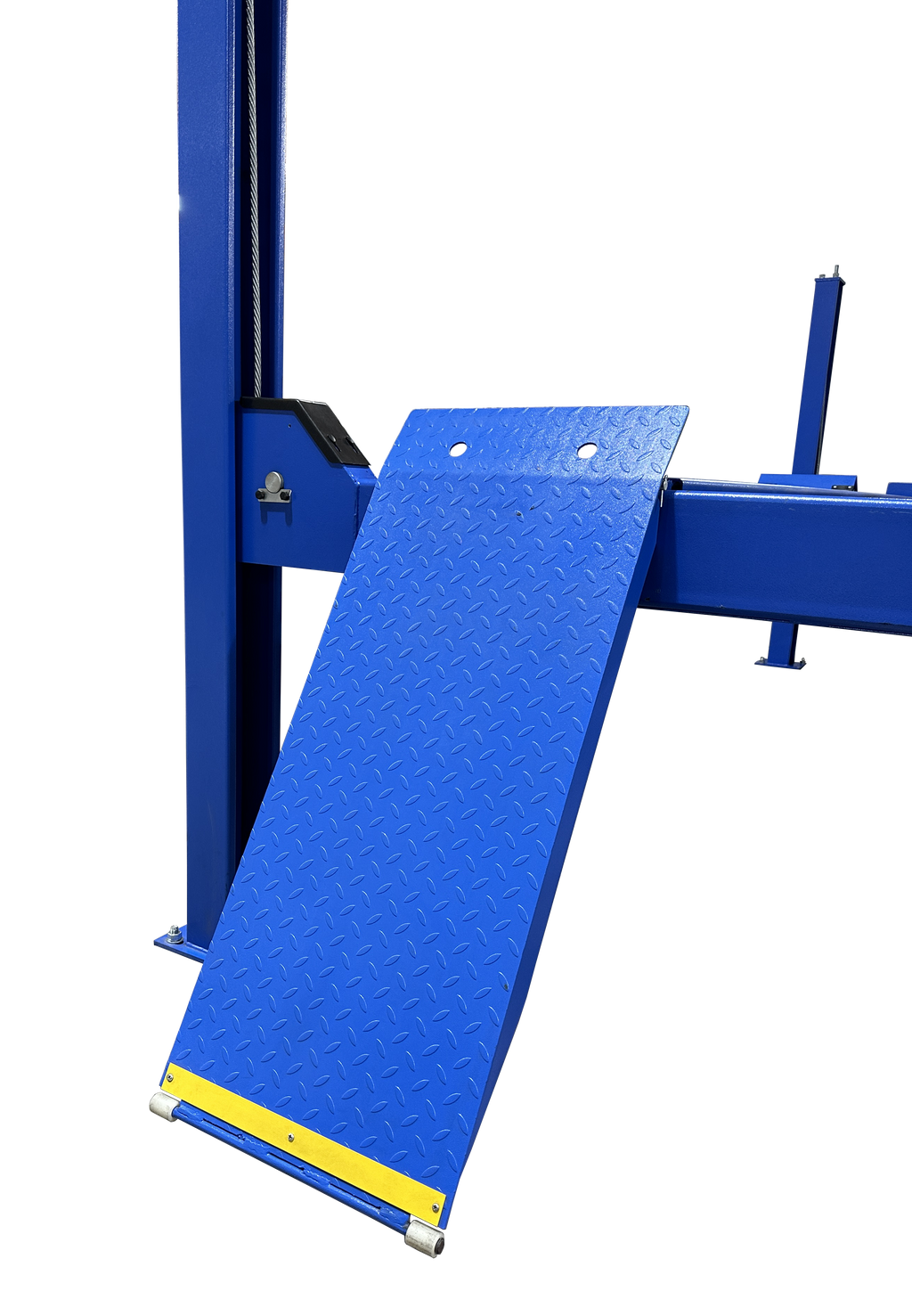

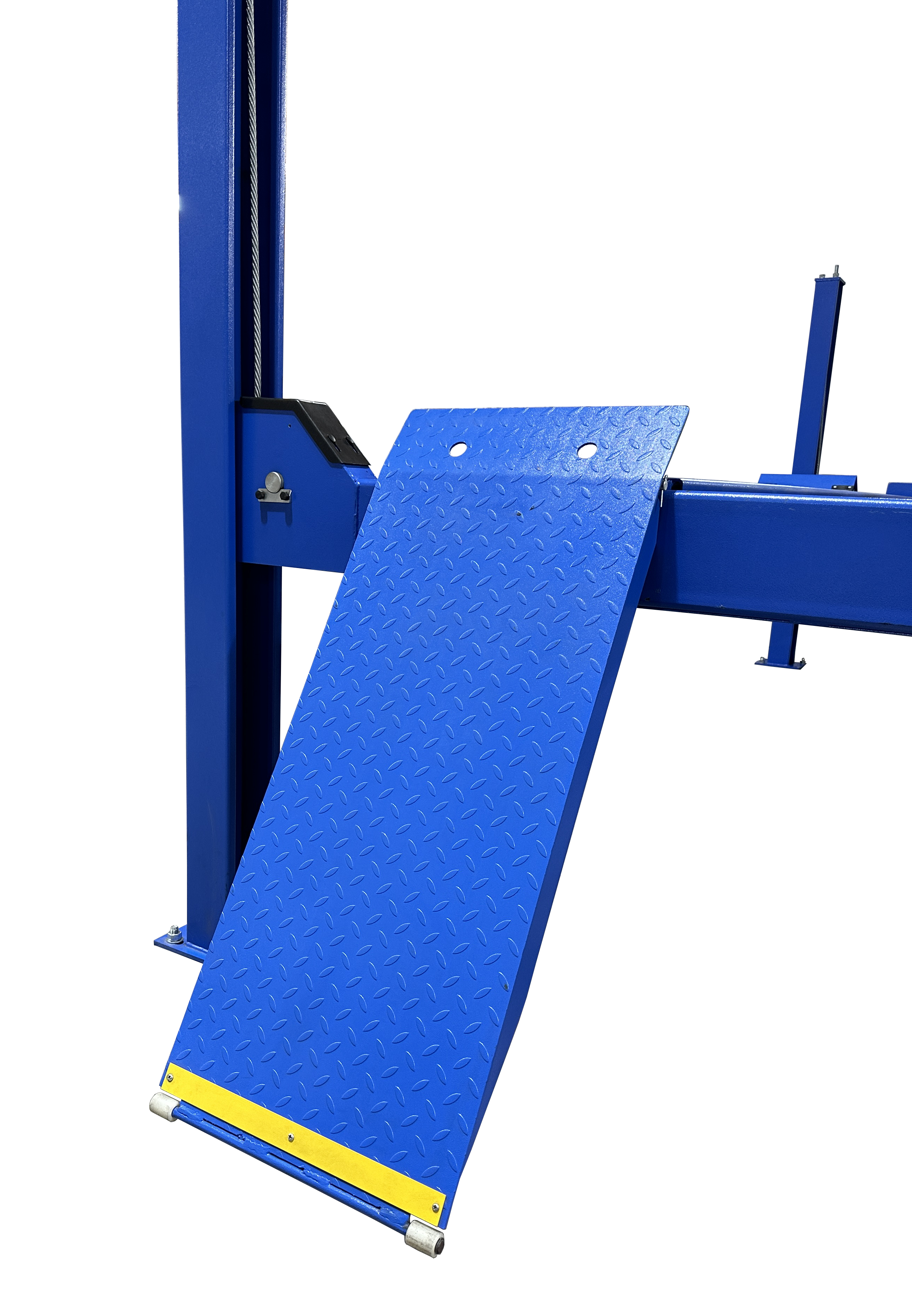

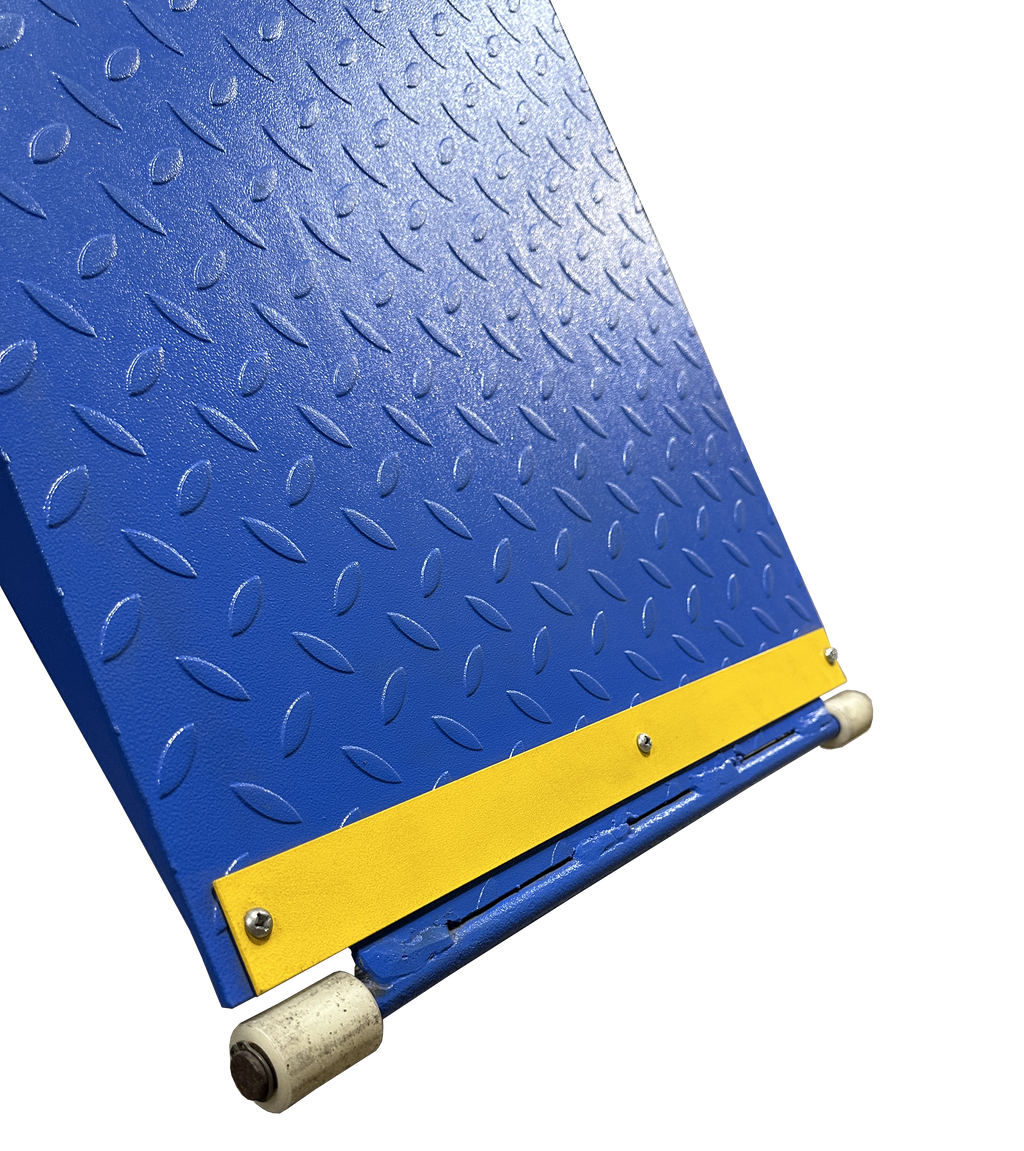

- Self-chocking ramps - Approach ramps with nylon rollers, plus one pair of wheel chocks.
Specifications
| Brand | Tuxedo Auto Equipment (iDEAL) |
|---|---|
| Type | Four-Post Service Lift, Closed Front |
| Capacity | 14,000 lbs |
| Drive | Cable driven |
| Max Wheelbase | 182.5 in |
| Locking Positions | 18 |
| Runway Width | 20 in |
| Ship Weight | 2,740 lbs |
Who It's For
This lift fits busy commercial service bays that want a 14,000 pound four-post platform and the option to add alignment capability later through the bolt-on kit. Confirm power and ceiling height before install.
What's Included
- iDEAL FP14KC-X four-post lift with columns and runways
- Cable lift system and power unit
- Self-chocking approach ramps with nylon rollers
- Wheel chocks (one pair)
- Installation and operation manual
The bolt-on alignment kit is sold separately.
Shipping and Freight
This lift ships as an oversize freight shipment and typically requires a forklift or dock to unload. It ships at roughly 2,740 pounds. Allow extended handling and transit, and use the Request a Freight Quote path so we can confirm access, liftgate needs, and a commercial delivery address before scheduling.
About Tuxedo Auto Equipment
Tuxedo Distributors supplies automotive lifts, wheel service equipment, and collision repair tools to professional shops across North America, including the iDEAL line of commercial lifts and frame racks.
Frequently Asked Questions
What does the FP14KC-X lift?
It is a 14,000 pound commercial four-post service lift.
Is it cable or chain driven?
It is cable driven with slack cable safety devices.
What is the maximum wheelbase?
182.5 inches.
Can I add alignment to it?
Yes. The FP14KC-X is the base lift for the matching bolt-on alignment kit, which is sold separately.
How many lock positions?
18 locking height positions with a single-point pneumatic lock release.
Talk to a Tuxedo specialist about the alignment kit, power, and freight before you order. View the full Tuxedo Auto Equipment range.
