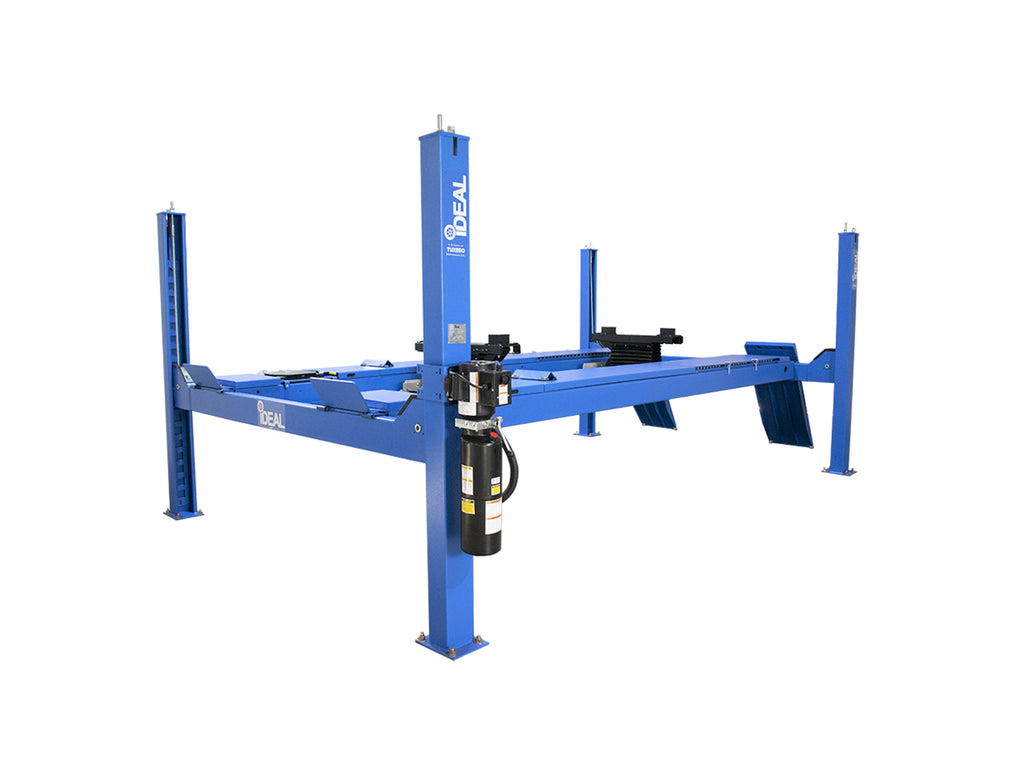

The Tuxedo iDEAL FP14KAC-X is a commercial four-post alignment lift rated at 14,000 pounds, built for shops that run wheel alignments as a regular revenue line.
It uses a cable lift system with an extended rise height and a bolt-on runway alignment kit. The platform carries full-width rear wheel slip plates and two turntable positions with spacer covers, so it converts cleanly between alignment and general service work. It supports a 166.7 inch alignment wheelbase and a 182.5 inch service wheelbase, with 18 locking height positions. Browse more auto service equipment or the full Tuxedo Auto Equipment line.
Key Features
- 14,000 lb capacity - Commercial alignment and service platform.

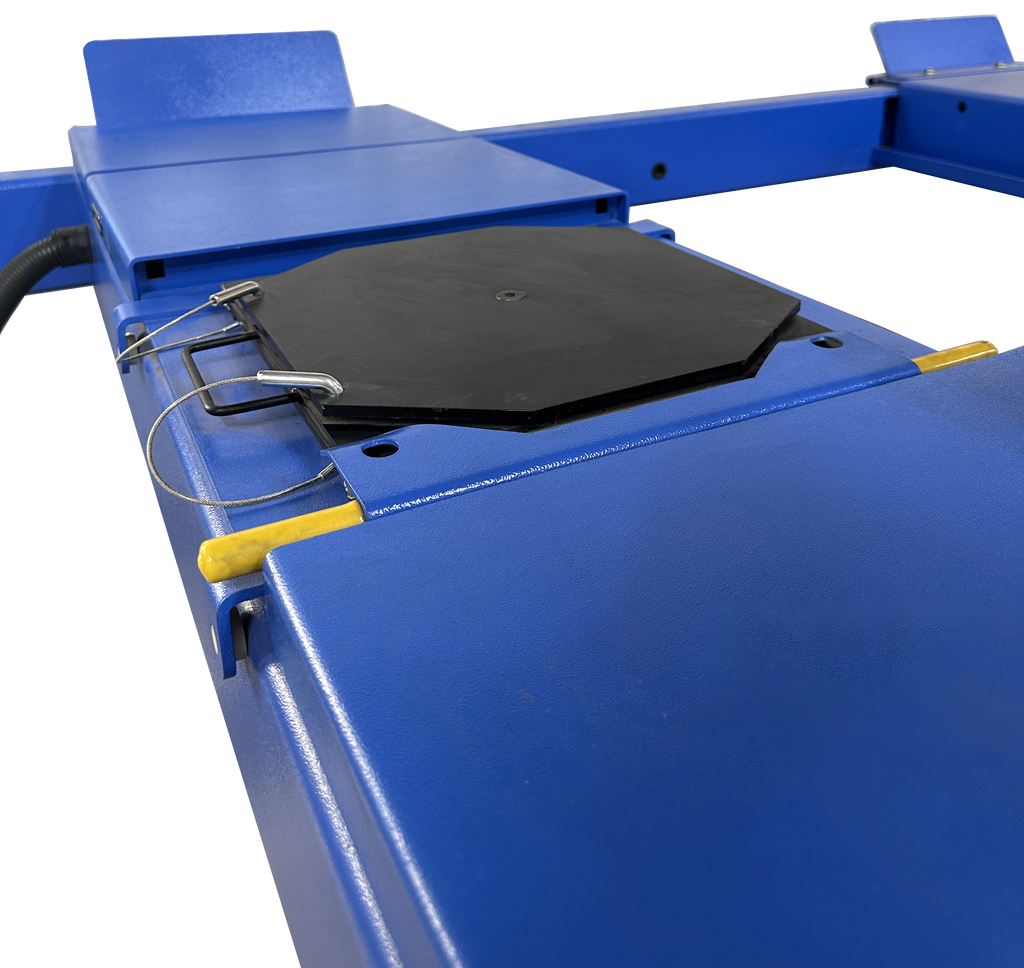

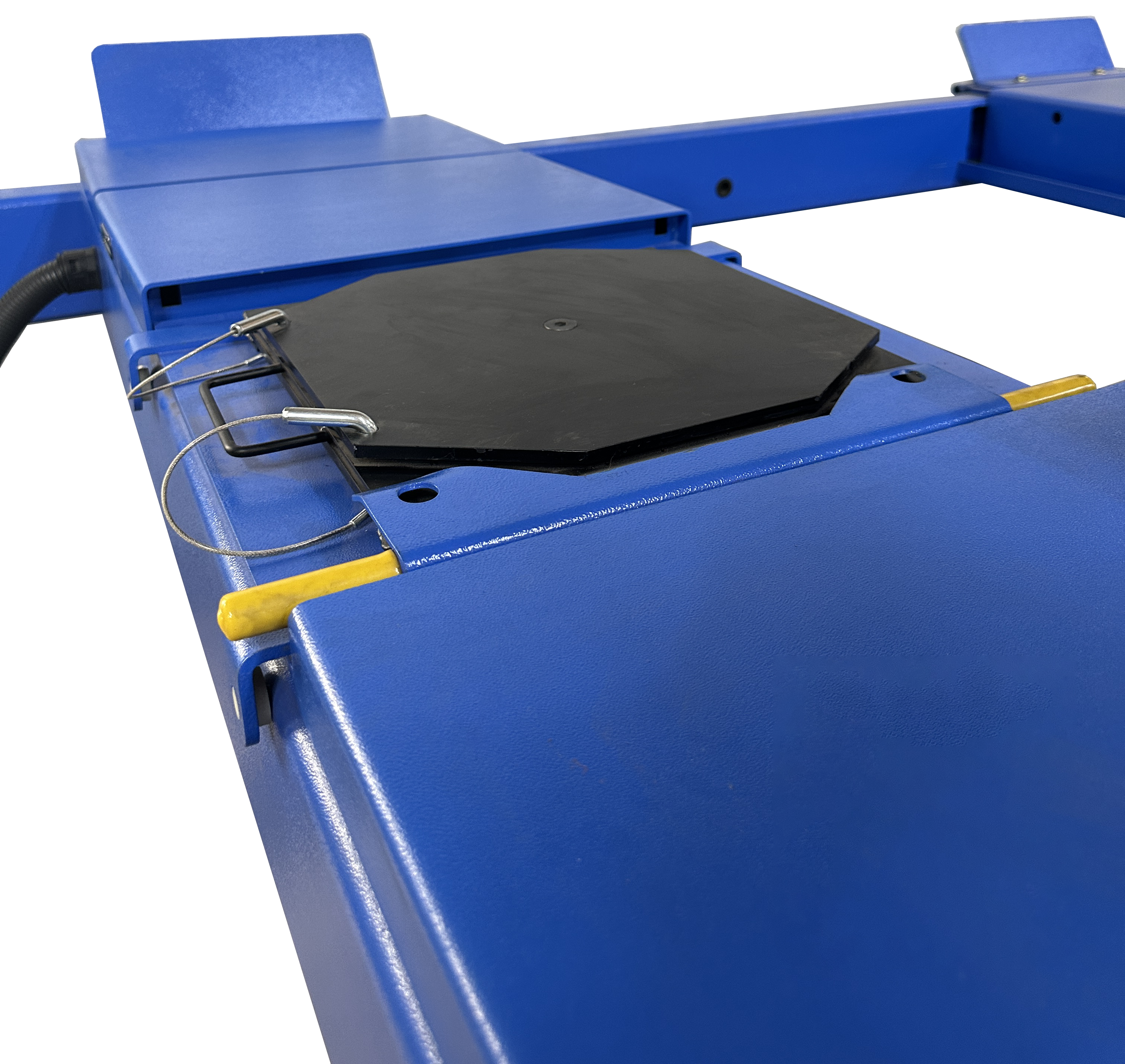

- Bolt-on alignment kit - Full-width rear slip plates and two turntable positions with spacer covers.
- 166.7 in alignment wheelbase - 157 in on four-wheel work, with a 182.5 in max service wheelbase.
- 18 locking positions - Single-point pneumatic lock release with adjustable lock stops for leveling.
- Cable lift system - Slack cable safety devices and self-chocking approach ramps with nylon rollers.
- Dual runway positions - Narrow and wide mounting positions on 20 in wide runways.
Specifications
| Brand | Tuxedo Auto Equipment (iDEAL) |
|---|---|
| Type | Four-Post Alignment Lift |
| Capacity | 14,000 lbs |
| Drive | Cable driven |
| Max Alignment Wheelbase | 166.7 in (2 wheel), 157 in (4 wheel) |
| Max Service Wheelbase | 182.5 in |
| Locking Positions | 18 |
| Runway Width | 20 in |
| Ship Weight | 3,891 lbs |
Who It's For
This lift fits commercial shops running alignments daily that want a four-post platform with the alignment kit, slip plates, and turntable positions built in. Plan for an alignment system, and confirm power and ceiling height before install.
What's Included
- iDEAL FP14KAC-X four-post lift with columns and runways
- Bolt-on runway alignment kit with rear slip plates and turntable spacer covers
- Self-chocking approach ramps with nylon rollers
- Wheel chocks (one pair)

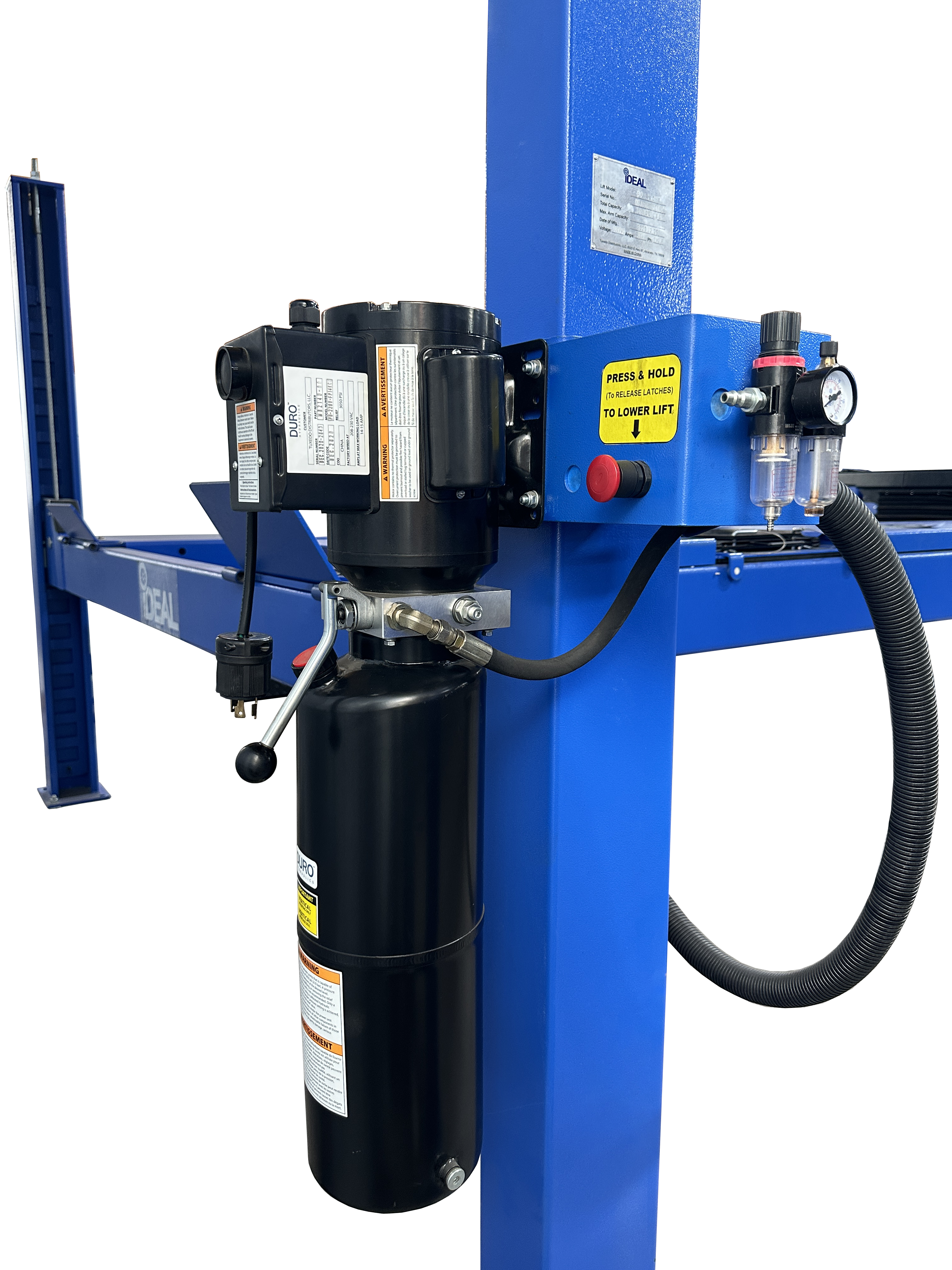

- Power unit and installation manual
Turntables and the alignment measuring system are sold separately.
Shipping and Freight
This lift ships as an oversize freight shipment and typically requires a forklift or dock to unload. It ships at roughly 3,891 pounds. Allow extended handling and transit, and use the Request a Freight Quote path so we can confirm access, liftgate needs, and a commercial delivery address before scheduling.
About Tuxedo Auto Equipment
Tuxedo Distributors supplies automotive lifts, wheel service equipment, and collision repair tools to professional shops across North America, including the iDEAL line of commercial lifts and frame racks.
Frequently Asked Questions
What does the FP14KAC-X lift?
It is a 14,000 pound commercial four-post alignment lift.
Does it include the alignment kit?
Yes. It includes the bolt-on runway alignment kit with full-width rear slip plates and two turntable positions with spacer covers.
What wheelbase does it support?
Up to 166.7 inches for two-wheel alignment, 157 inches for four-wheel alignment, and 182.5 inches for general service.
How many lock positions does it have?
18 locking height positions with a single-point pneumatic lock release.
Are turntables included?
No. The turntables and the alignment measuring system are sold separately.
