Description
Overview

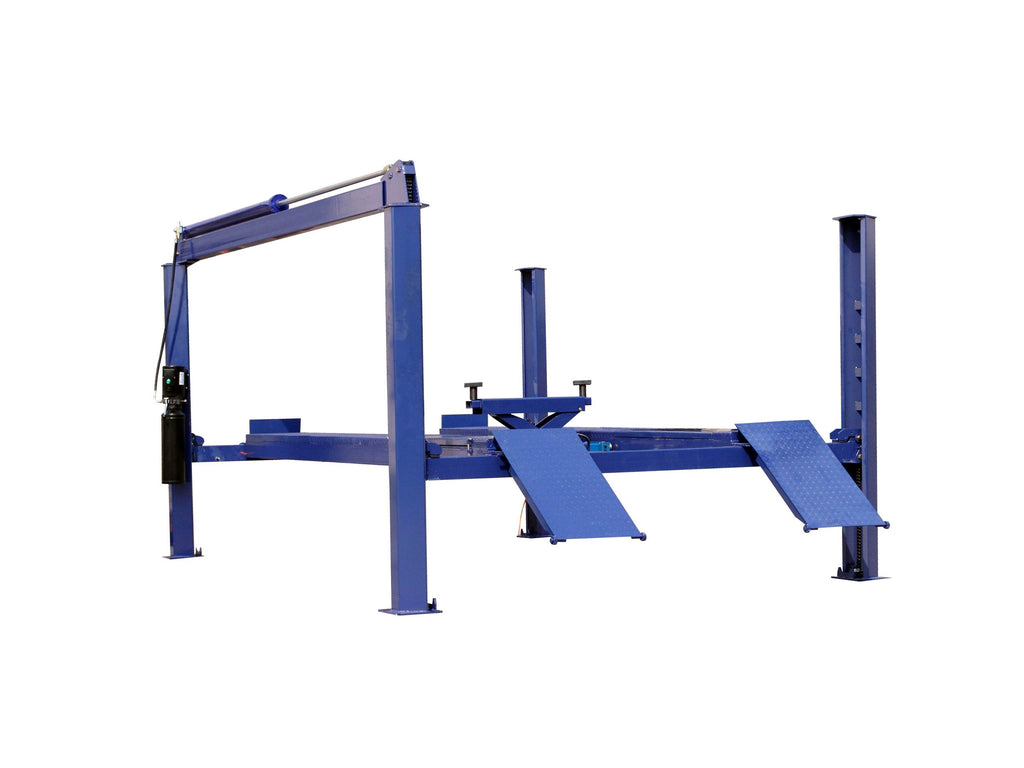

The Tuxedo FP14KA is a four-post alignment lift rated at 14,000 pounds for shops that perform wheel alignments alongside general service.
It is chain driven with a single-point pneumatic lock release and is alignment capable, handling up to 167 inches of two-wheel alignment wheelbase and 152 inches on four-wheel work. Turntables and rolling jacks mount to support the alignment setup and are sold separately. Browse more auto service equipment or the full Tuxedo Auto Equipment line.
Key Features
- 14,000 lb capacity - Heavy duty alignment and service platform.
- Alignment capable - 167 in max two-wheel and 152 in max four-wheel alignment wheelbase.

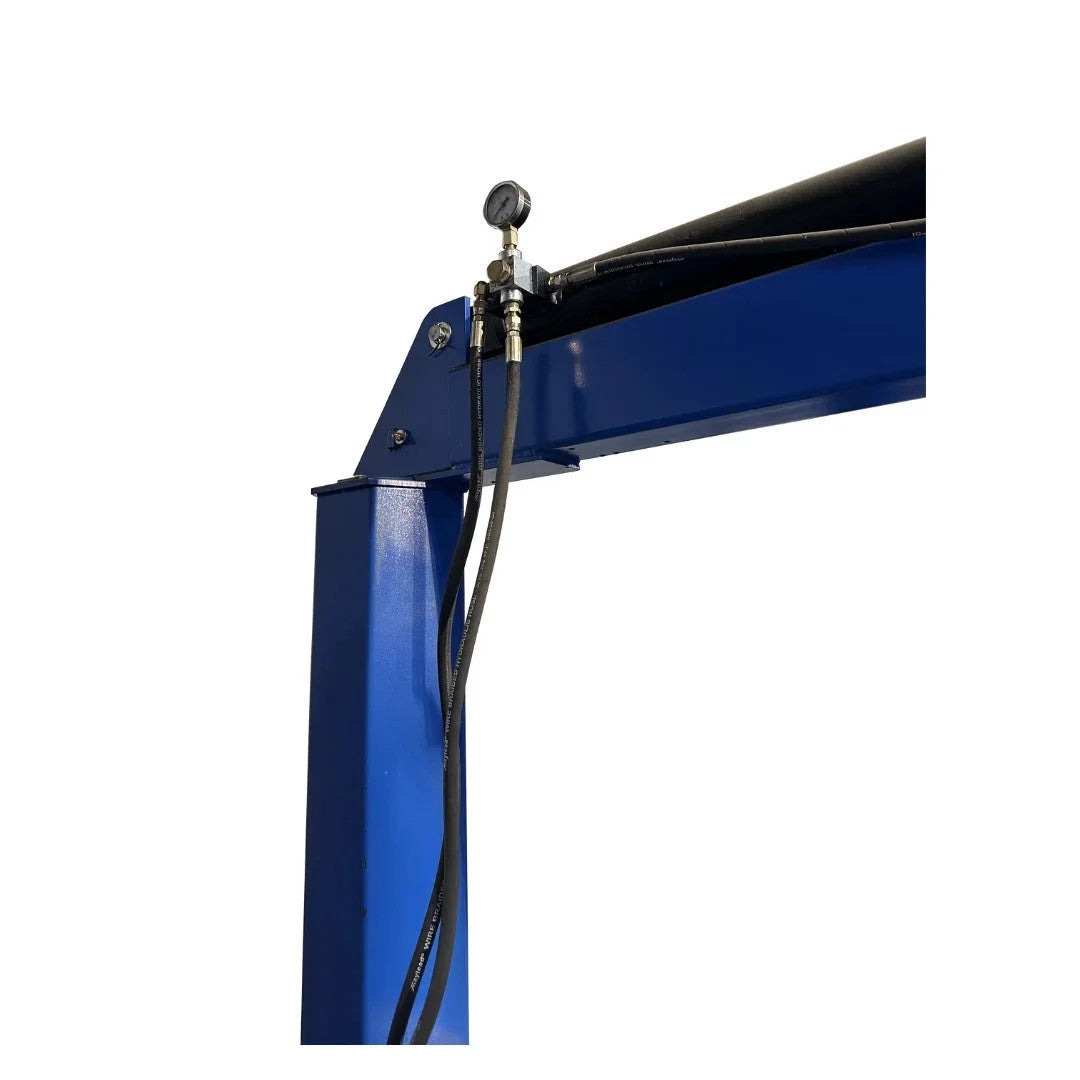

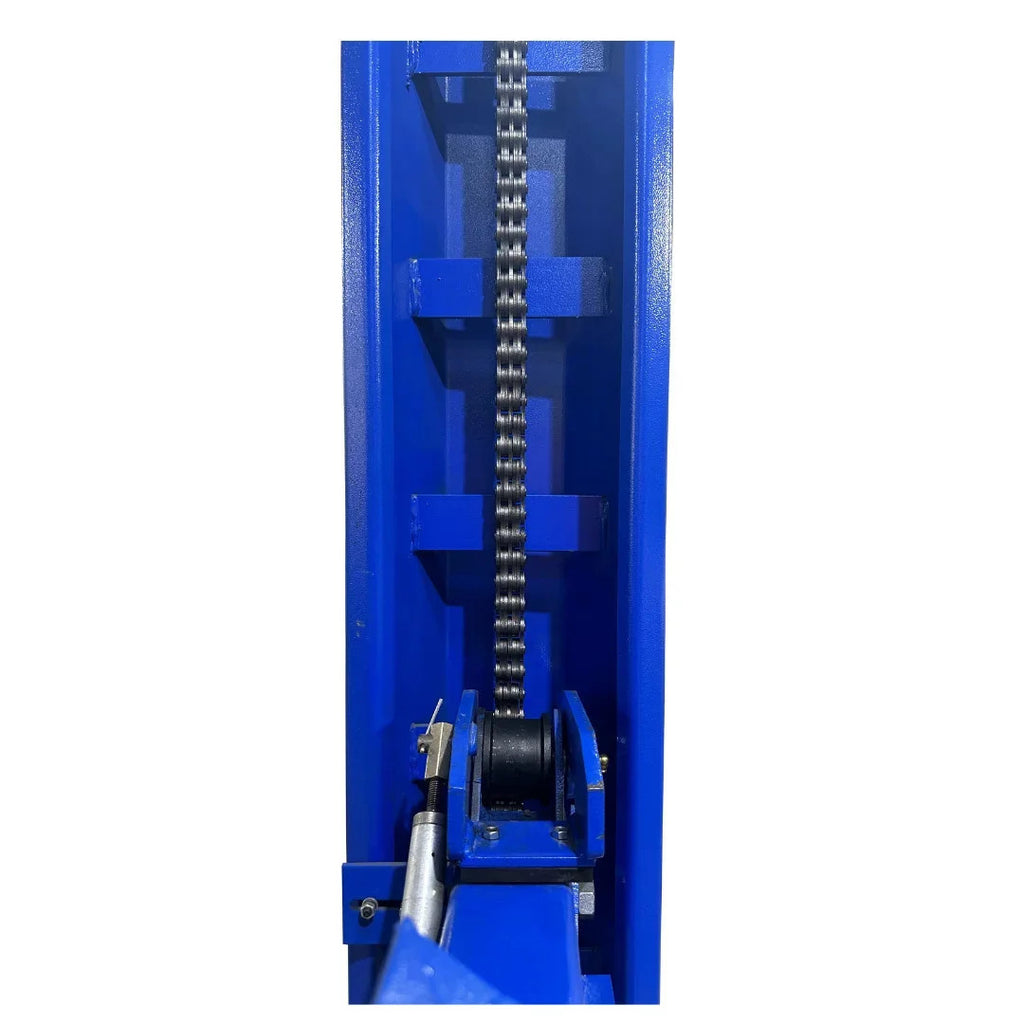

- Chain driven - Chain lift system with single-point pneumatic lock release.
- Powder coat finish - Durable finish on columns and runways.
- Turntable ready - Accepts turntables and rolling jacks, sold separately.
Specifications
| Brand | Tuxedo Auto Equipment |
|---|---|
| Type | Four-Post Alignment Lift |
| Capacity | 14,000 lbs |
| Drive | Chain driven |
| Overall Length w/ Ramp | 237 in |
| Overall Width (Outside Base Plates) | 123 in |
| Lifting Height | 67 in |
| Max Alignment Wheelbase | 167 in (2 wheel), 152 in (4 wheel) |
| Power | 220V, 20 Amp, Single Phase |
| Ship Weight | 3,240 lbs |
Who It's For
This lift fits service shops adding alignment capacity for trucks and vans. Plan for turntables, rolling jacks, and an alignment system, and confirm a 220V single-phase circuit and ceiling height before install.
What's Included
- FP14KA four-post alignment lift with columns and runways
- Chain lift system and power unit

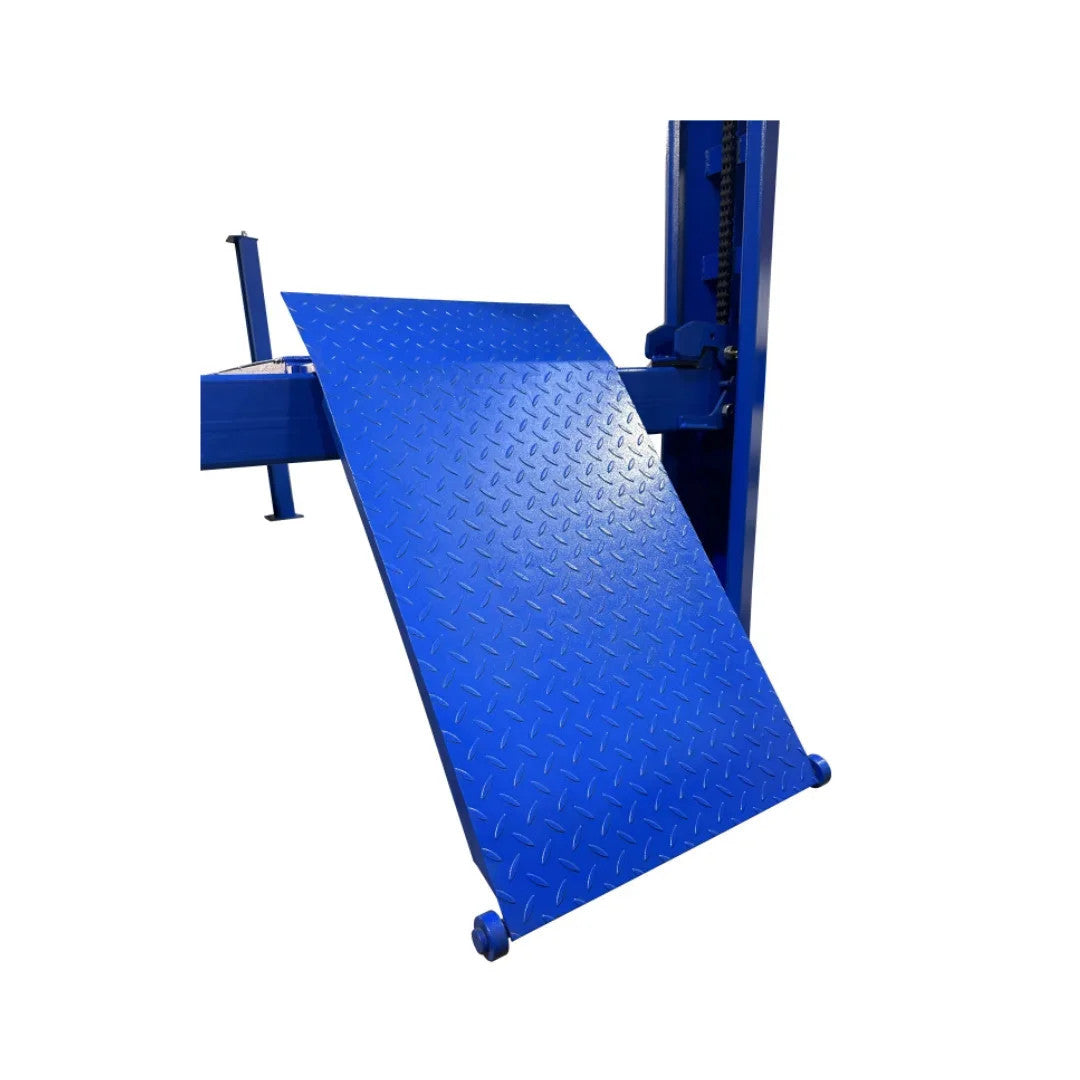

- Approach ramps
- Installation and operation manual
Turntables and rolling jacks are sold separately.
Shipping and Freight
This lift ships as an oversize freight shipment and typically requires a forklift or dock to unload. It ships at roughly 3,240 pounds. Allow extended handling and transit, and use the Request a Freight Quote path so we can confirm access, liftgate needs, and a commercial delivery address before scheduling.
About Tuxedo Auto Equipment
Tuxedo Distributors supplies automotive lifts, wheel service equipment, and collision repair tools to professional shops across North America, including the iDEAL line of commercial lifts and frame racks.
Frequently Asked Questions
What is the FP14KA rated to lift?
It is a 14,000 pound four-post alignment lift.
What alignment wheelbase does it support?
Up to 167 inches on two-wheel alignment and 152 inches on four-wheel alignment.
Are turntables included?
No. Turntables and rolling jacks are sold separately.
Is it chain or cable driven?
It is chain driven with a single-point pneumatic lock release.
What power does it need?
A 220V, 20 Amp, single-phase circuit.
