Description
Overview

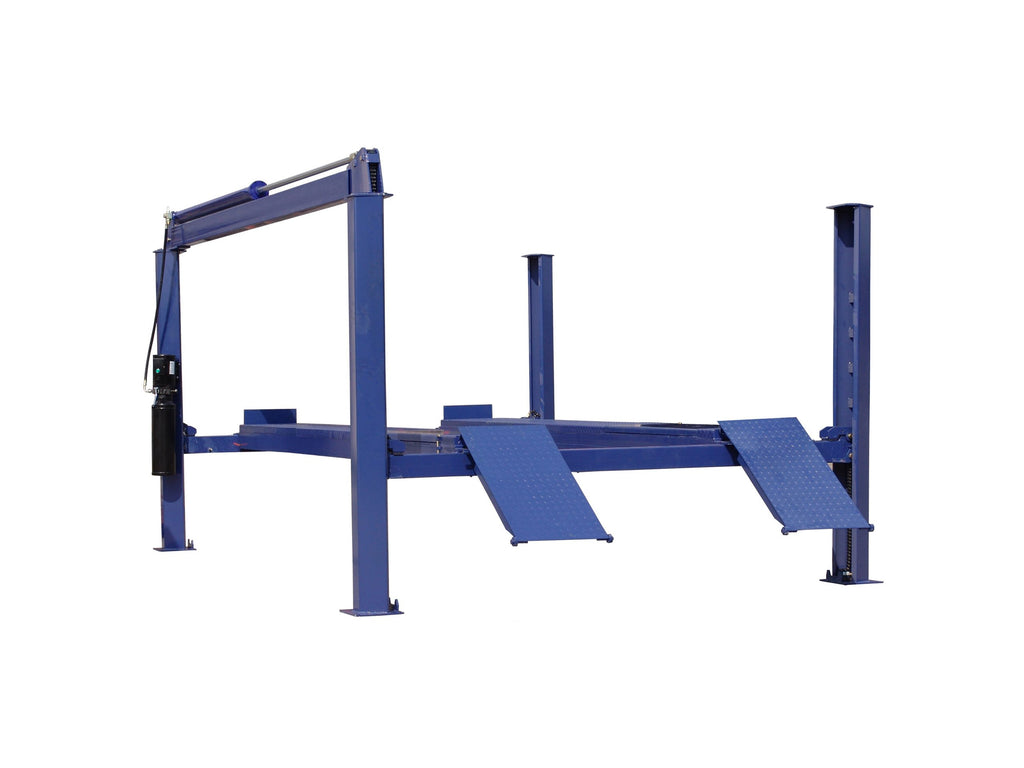

The Tuxedo FP14K is a four-post service lift rated at 14,000 pounds for shops that service heavier trucks and vans.
It is chain driven with a single-point pneumatic lock release and handles wheelbases up to 192 inches. The open four-post layout keeps roof clearance unobstructed and gives the technician a stable drive-on platform. Browse more auto service equipment or the full Tuxedo Auto Equipment line.
Key Features
- 14,000 lb capacity - Handles heavier trucks, vans, and light commercial vehicles.

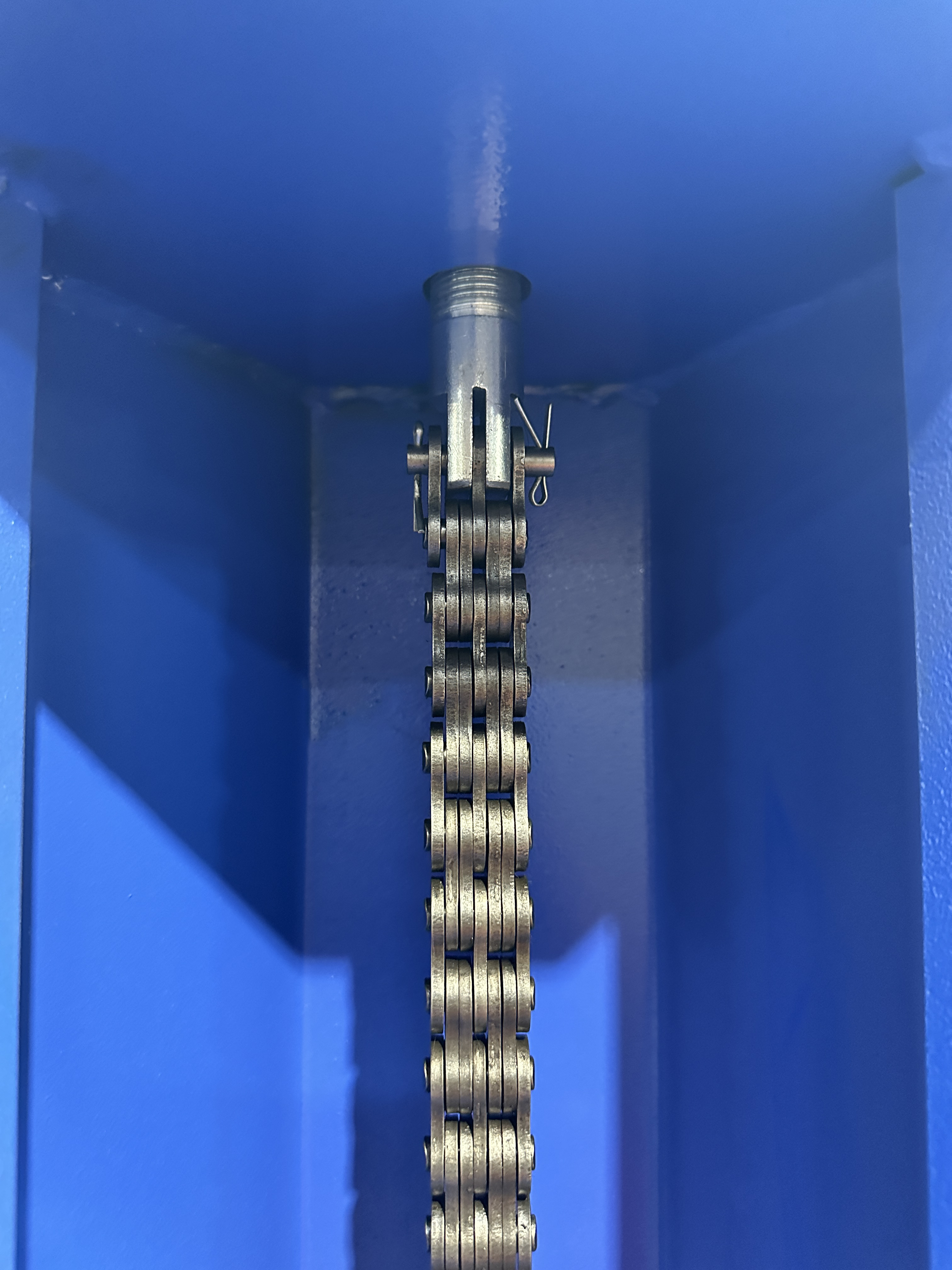

- Chain driven - Chain lift system rather than cable.
- 192 in max wheelbase - Fits long-wheelbase vehicles.

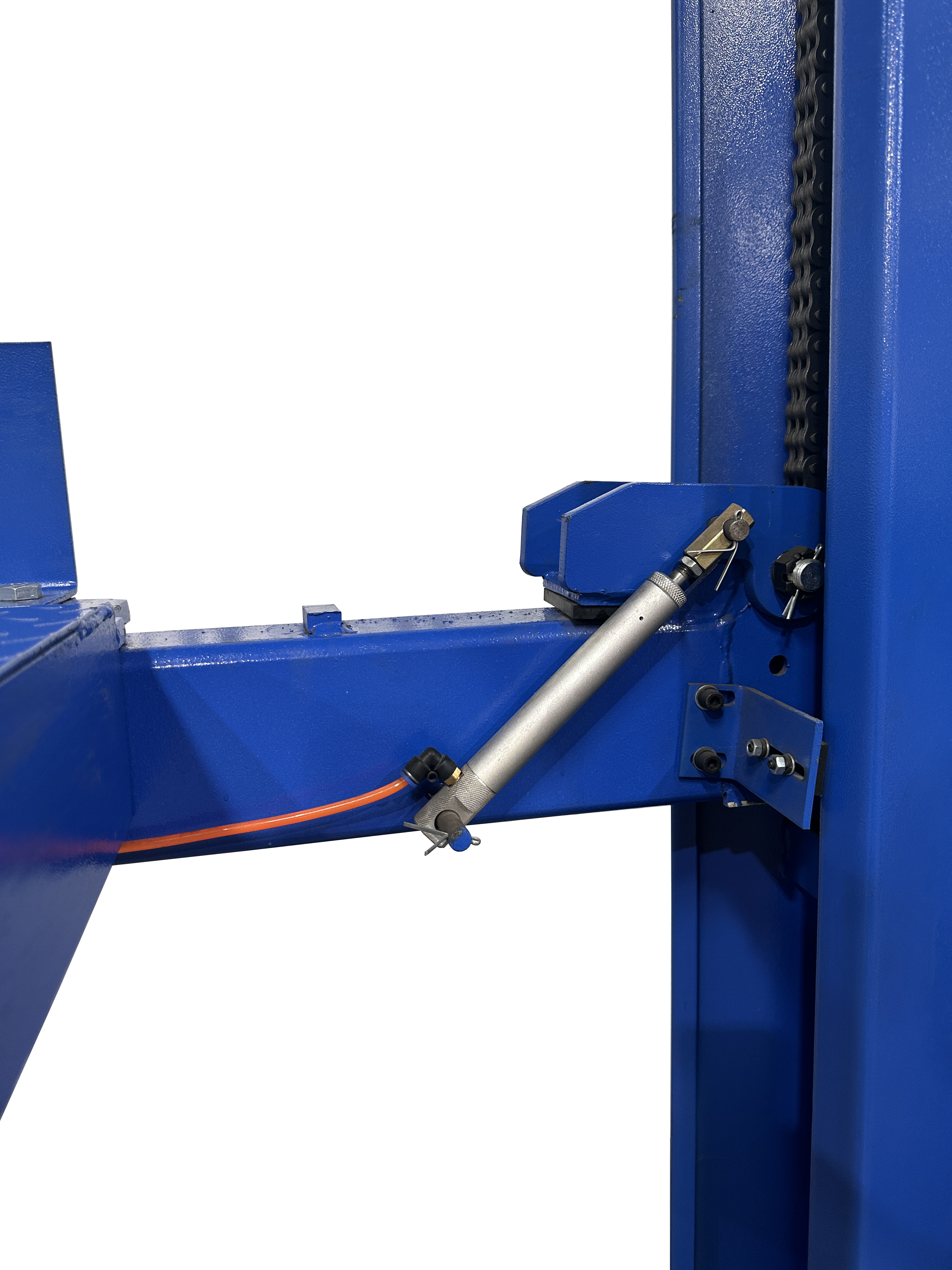

- Single-point pneumatic lock release - One air-released lock across all four posts.
- Powder coat finish - Durable finish on columns and runways.
Specifications
| Brand | Tuxedo Auto Equipment |
|---|---|
| Type | Four-Post Service Lift |
| Capacity | 14,000 lbs |
| Drive | Chain driven |
| Overall Length w/ Ramp | 237 in |
| Overall Width (Outside Base Plates) | 123 in |
| Lifting Height | 65-1/4 in |
| Max Wheelbase (2 wheel) | 192 in |
| Power | 220V, 20 Amp, Single Phase |
| Ship Weight | 2,615 lbs |
Who It's For
This lift fits service shops and fleet bays working on heavier trucks and vans that need a 14,000 pound four-post platform with a long wheelbase. Confirm a 220V single-phase circuit and ceiling height before install.
What's Included
- FP14K four-post lift with four columns and runways
- Chain lift system and power unit
- Approach ramps
- Installation and operation manual
Rolling air jacks such as the RAJ-6K and RAJ-8K are available as accessories and are sold separately.
Shipping and Freight
This lift ships as an oversize freight shipment and typically requires a forklift or dock to unload. It ships at roughly 2,615 pounds. Allow extended handling and transit, and use the Request a Freight Quote path so we can confirm access, liftgate needs, and a commercial delivery address before scheduling.
About Tuxedo Auto Equipment
Tuxedo Distributors supplies automotive lifts, wheel service equipment, and collision repair tools to professional shops across North America, including the iDEAL line of commercial lifts and frame racks.
Frequently Asked Questions
What does the FP14K lift?
It is rated at 14,000 pounds as a four-post service lift.
Is it chain or cable driven?
The FP14K is chain driven with a single-point pneumatic lock release.
What is the maximum wheelbase?
Up to 192 inches on the two-wheel measurement.
What power does it require?
A 220V, 20 Amp, single-phase circuit.
How is it different from the FP12K-K?
The FP14K is a higher 14,000 pound capacity, is chain driven, and fits a longer 192 inch wheelbase, while the FP12K-K is a 12,000 pound cable-driven lift.
