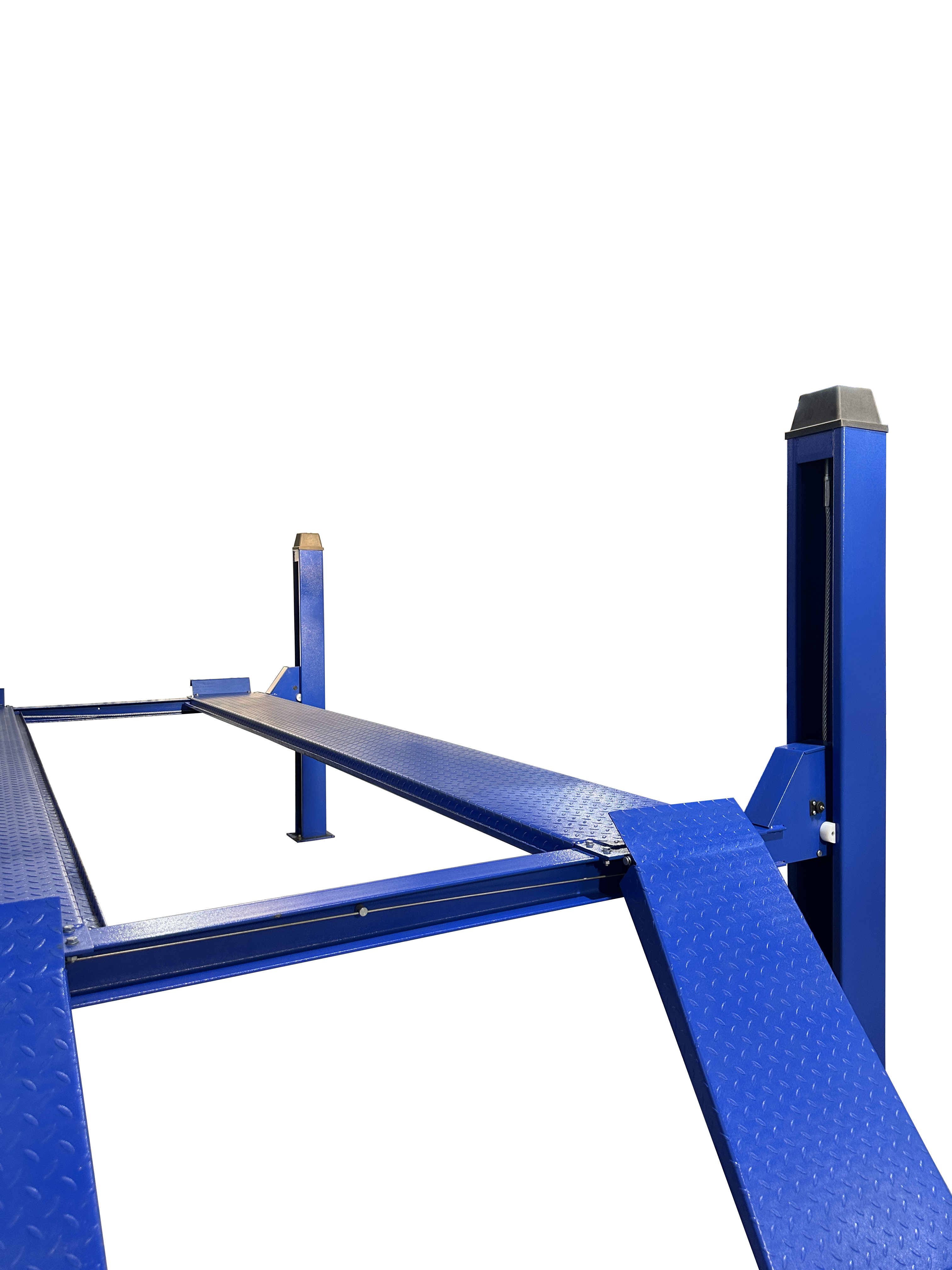

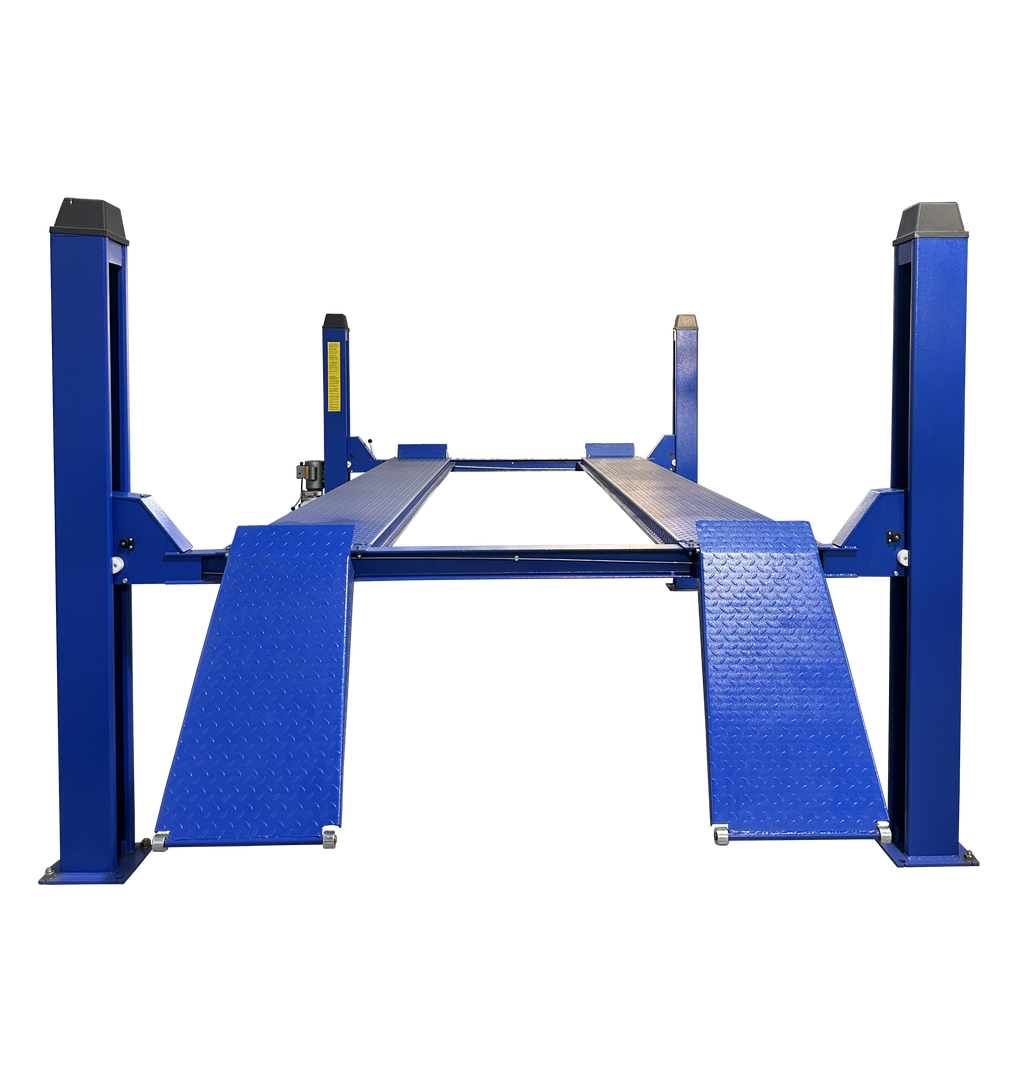

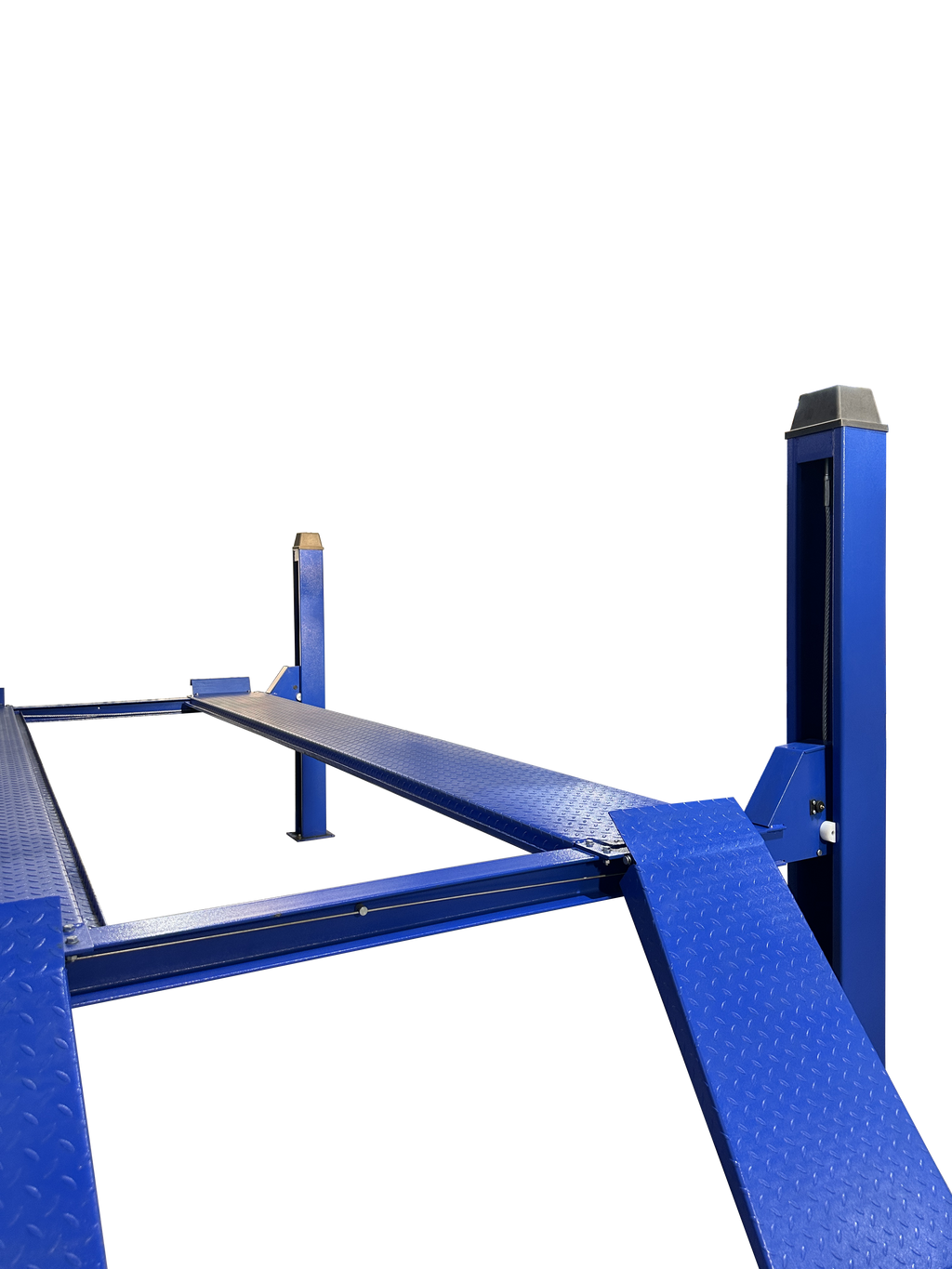

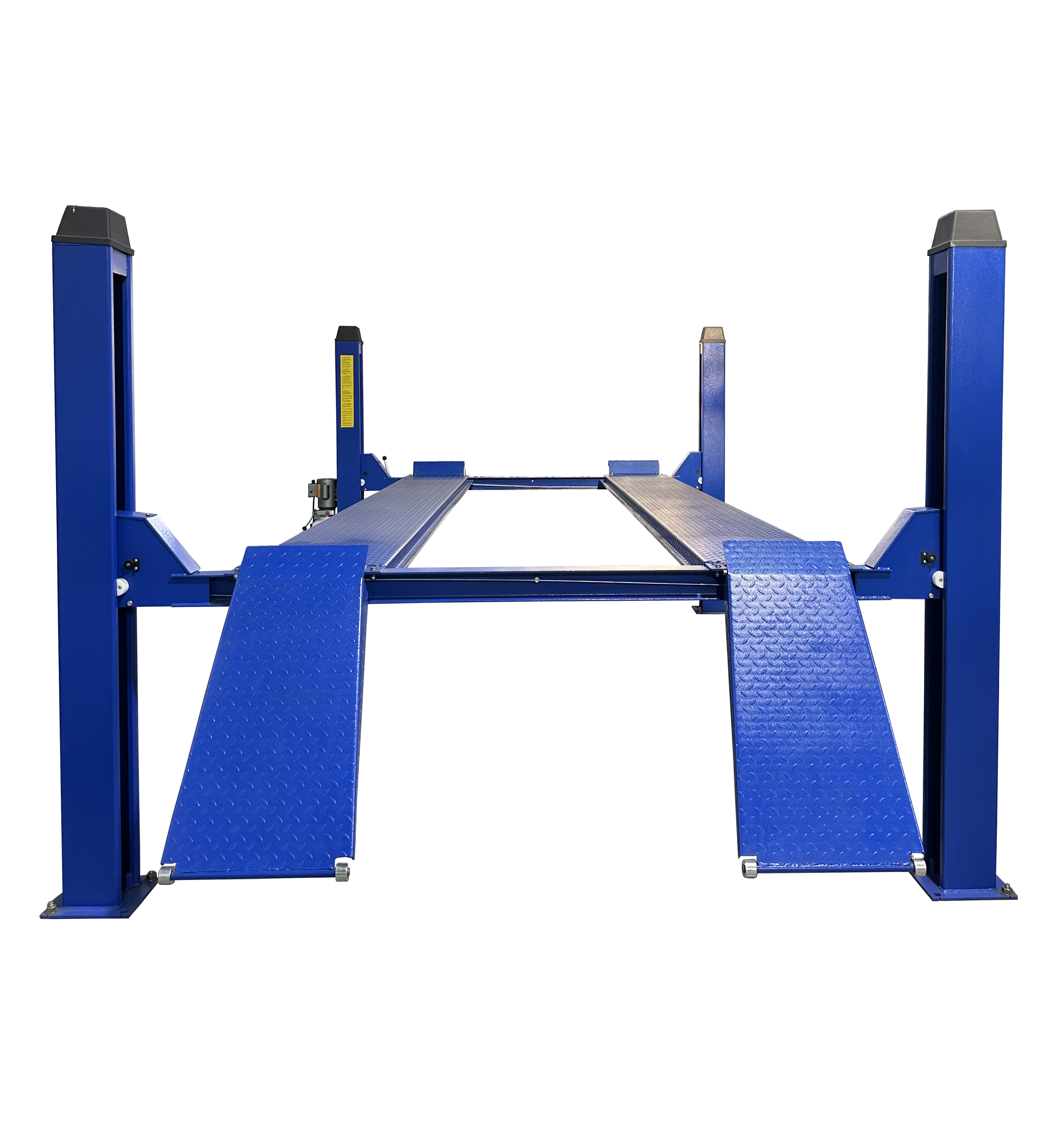

The Tuxedo FP12K-K is a four-post service lift rated at 12,000 pounds for general service work on cars, trucks, and light commercial vehicles.
It is cable driven with a single-point manual lock release and adjustable locking positions, and it handles wheelbases up to 176 inches with no overhead obstructions to limit roof clearance. A slack cable safety holds the load if a cable goes loose. Browse more auto service equipment or the full Tuxedo Auto Equipment line.
Key Features
- 12,000 lb capacity - Sized for service work on full-size trucks and light commercial vehicles.

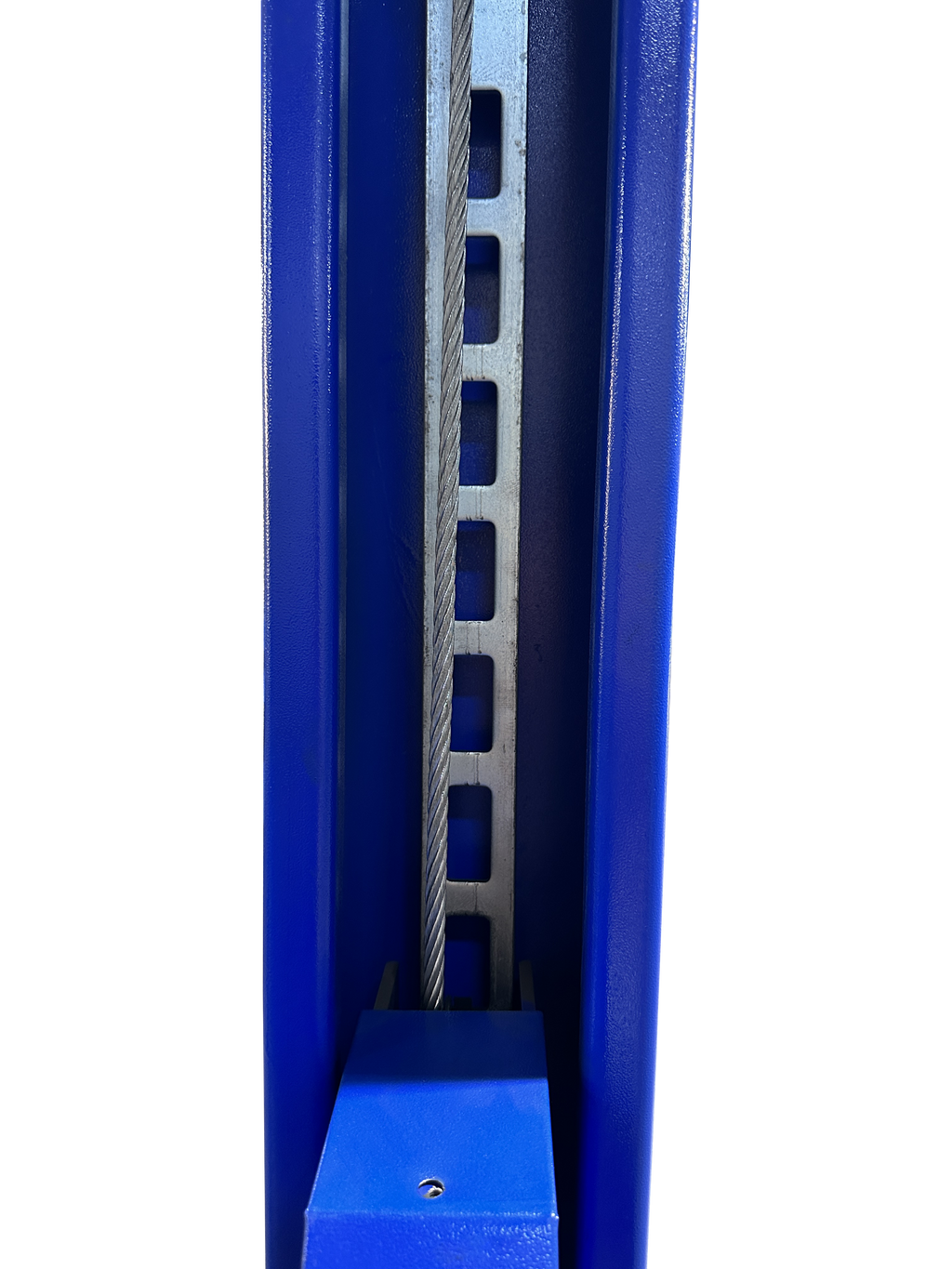

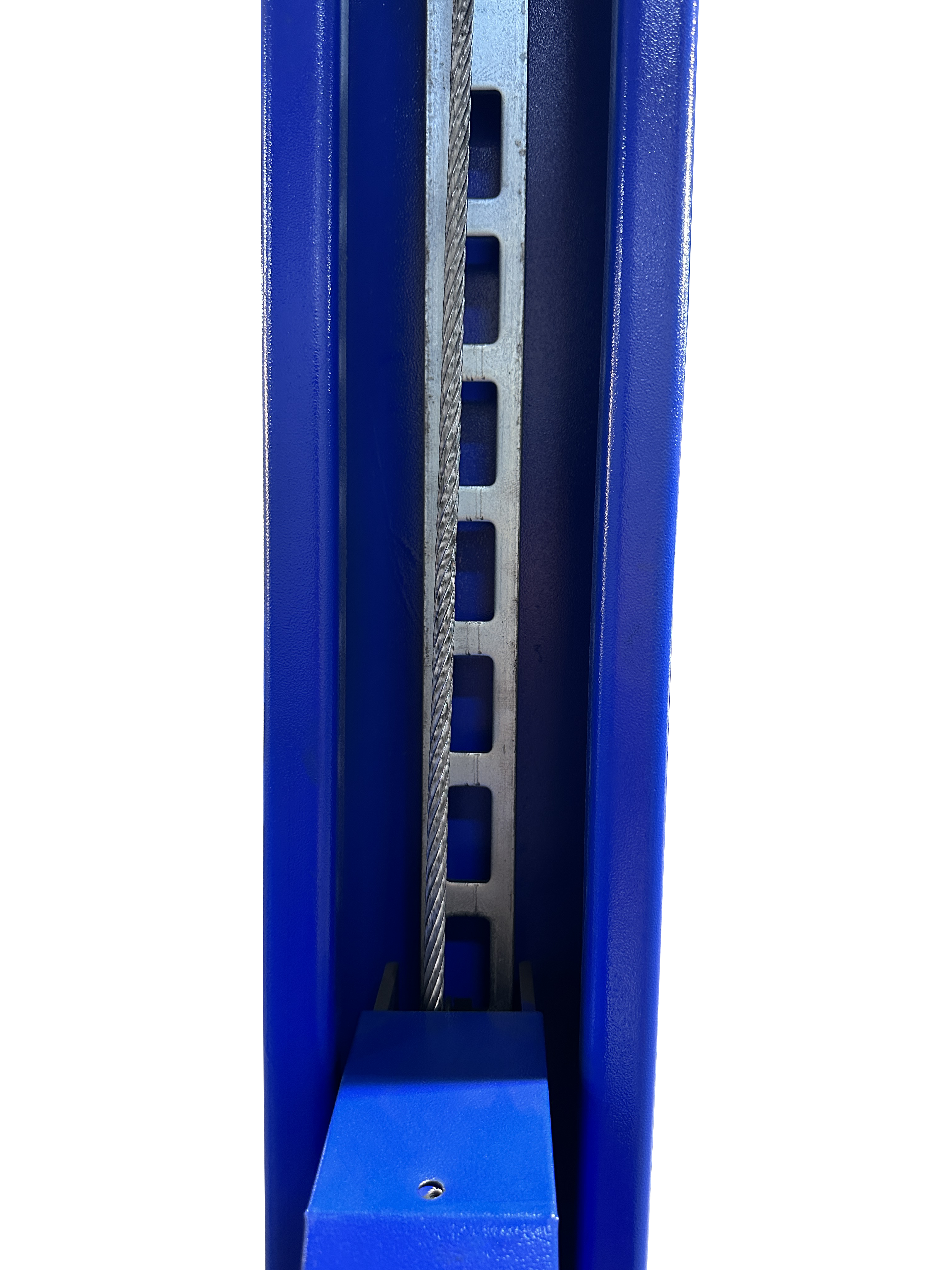

- Cable driven - Cable lift system with a 7/16 in cable diameter.
- 176 in max wheelbase - Accommodates long-wheelbase vehicles on the runways.

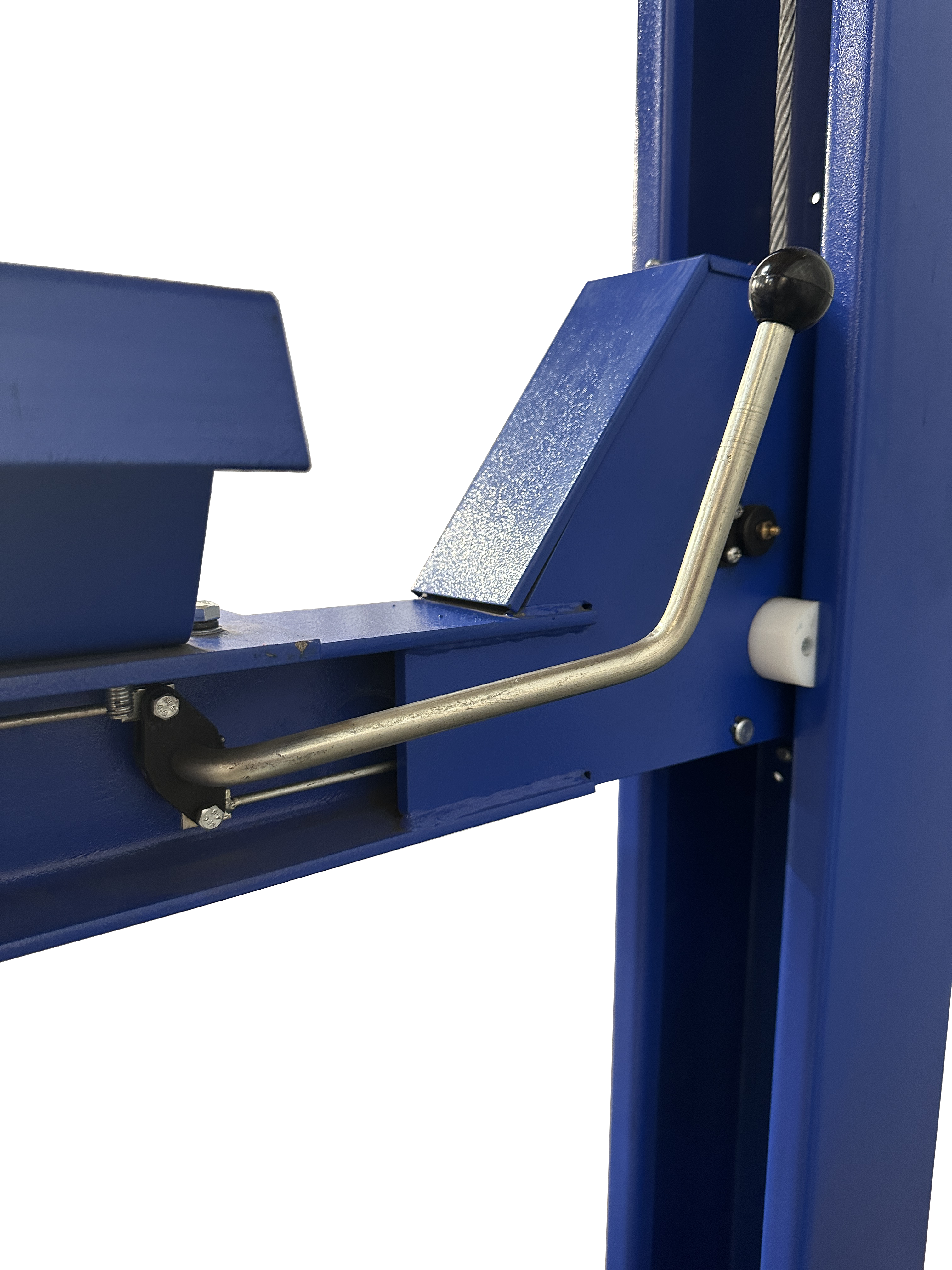

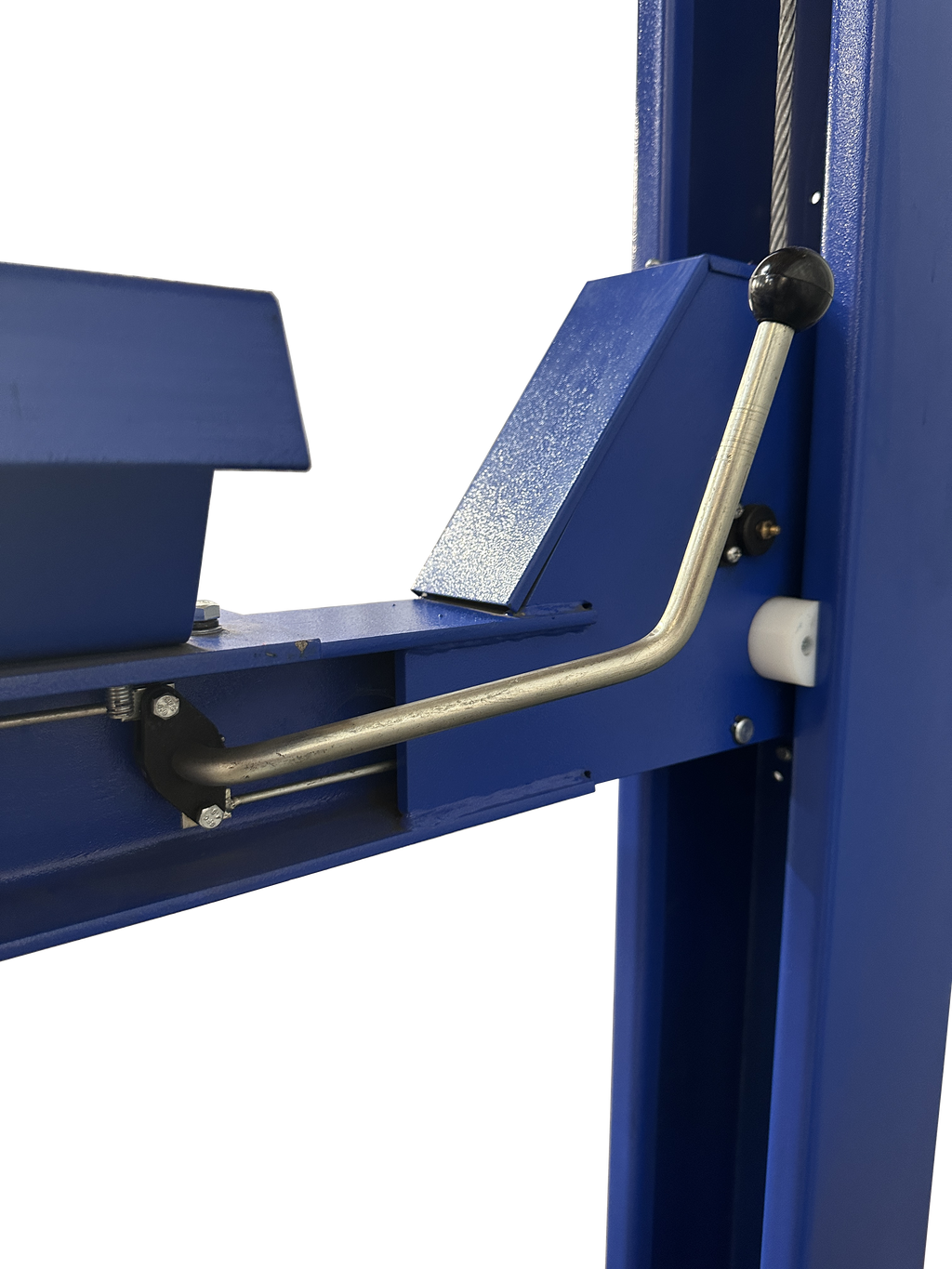

- Single-point lock release - One manual release with adjustable locking positions.
- Slack cable safety - Engages if a cable loses tension.
- No overhead obstructions - Open top keeps roof clearance unrestricted.
Specifications
| Brand | Tuxedo Auto Equipment |
|---|---|
| Type | Four-Post Service Lift |
| Capacity | 12,000 lbs |
| Drive | Cable driven |
| Overall Length w/ Ramp | 232-1/2 in |
| Overall Width (Outside Base Plates) | 123 in |
| Lifting Height | 67-1/2 in |
| Max Wheelbase (2 wheel) | 176 in |
| Power | 220V, 20 Amp, Single Phase |
| Ship Weight | 2,255 lbs |
Who It's For
This lift suits general service shops and fleet bays that work on full-size trucks and need a long-wheelbase four-post platform. Confirm a 220V single-phase circuit and adequate ceiling height before install.
What's Included
- FP12K-K four-post lift with four columns and runways
- Cable lift system and power unit
- Approach ramps
- Installation and operation manual
Rolling air jacks such as the RAJ-6K and RAJ-8K are available as accessories and are sold separately.
Shipping and Freight
This lift ships as an oversize freight shipment and typically requires a forklift or dock to unload. It ships at roughly 2,255 pounds. Allow extended handling and transit, and use the Request a Freight Quote path so we can confirm access, liftgate needs, and a commercial delivery address before scheduling.
About Tuxedo Auto Equipment
Tuxedo Distributors supplies automotive lifts, wheel service equipment, and collision repair tools to professional shops across North America, including the iDEAL line of commercial lifts and frame racks.
Frequently Asked Questions
What is the FP12K-K rated to lift?
It carries 12,000 pounds and is a four-post service lift.
Is it cable or chain driven?
It is cable driven with a 7/16 inch cable and a slack cable safety device.
What is the longest wheelbase it fits?
Up to 176 inches on the two-wheel measurement.
What power does it need?
A 220V, 20 Amp, single-phase circuit.
Can I add a rolling jack?
Yes. The RAJ-6K and RAJ-8K rolling air jacks fit the lift and are sold separately.
