Description
Overview

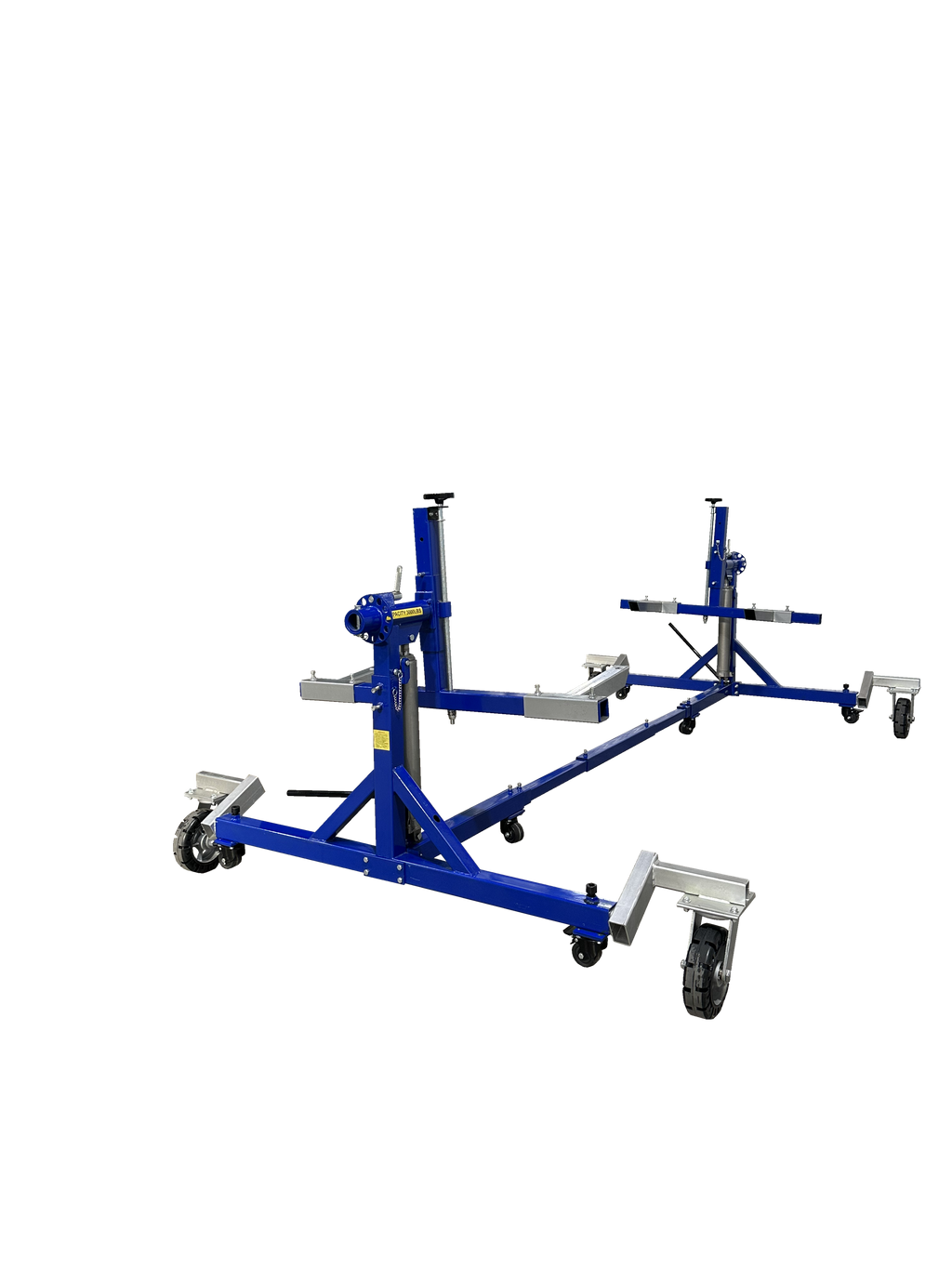

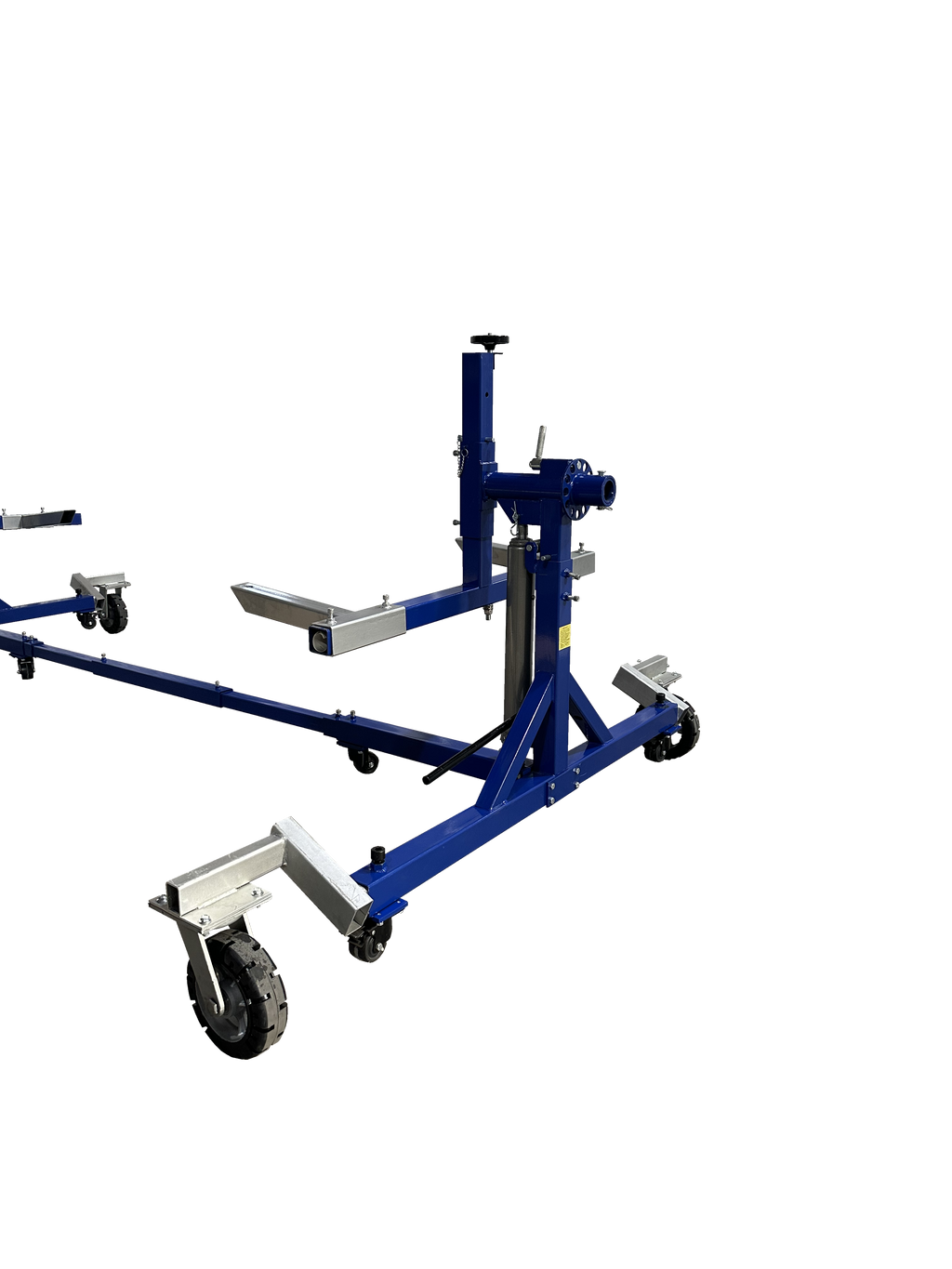

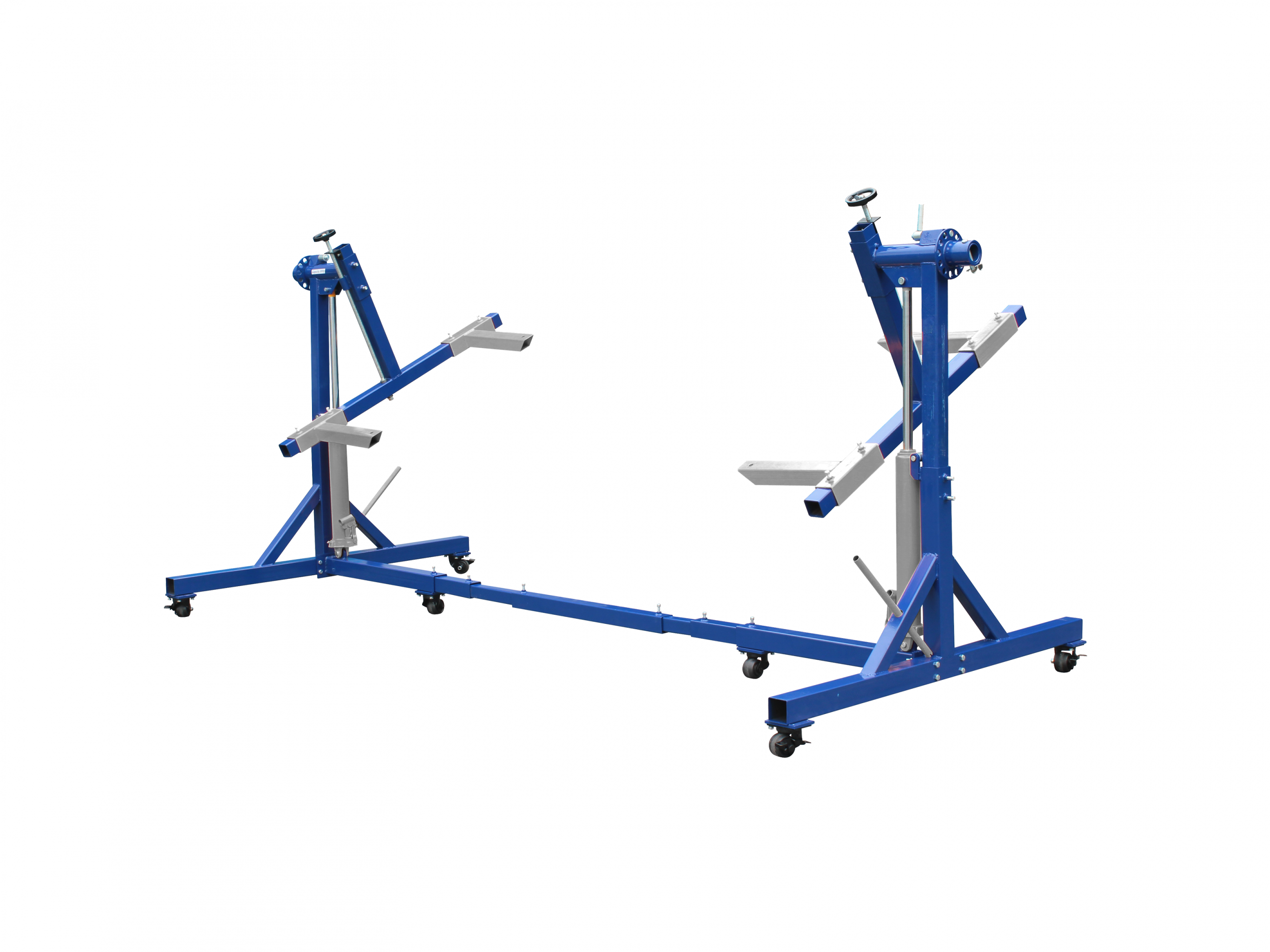

The Tuxedo CR-3000 is a car rotator, also called a rotisserie, that mounts a vehicle body and turns it through a full 360 degrees so the underside and panels are reachable without crawling.
It is rated at 3,000 pounds and locks securely at any angle, with two 6,000 pound jacks that set the working height and a three-piece telescoping center bar that extends to 21 feet 6 inches. Six phenolic resin swivel casters let the loaded unit be repositioned. Browse more collision and body equipment or the full Tuxedo Auto Equipment line.
Key Features
- Full 360-degree rotation - Turns the body to any angle and locks it there for panel, floor, and underbody work.
- 3,000 lb capacity - Heavy duty balancing system carries a full unibody or frame.

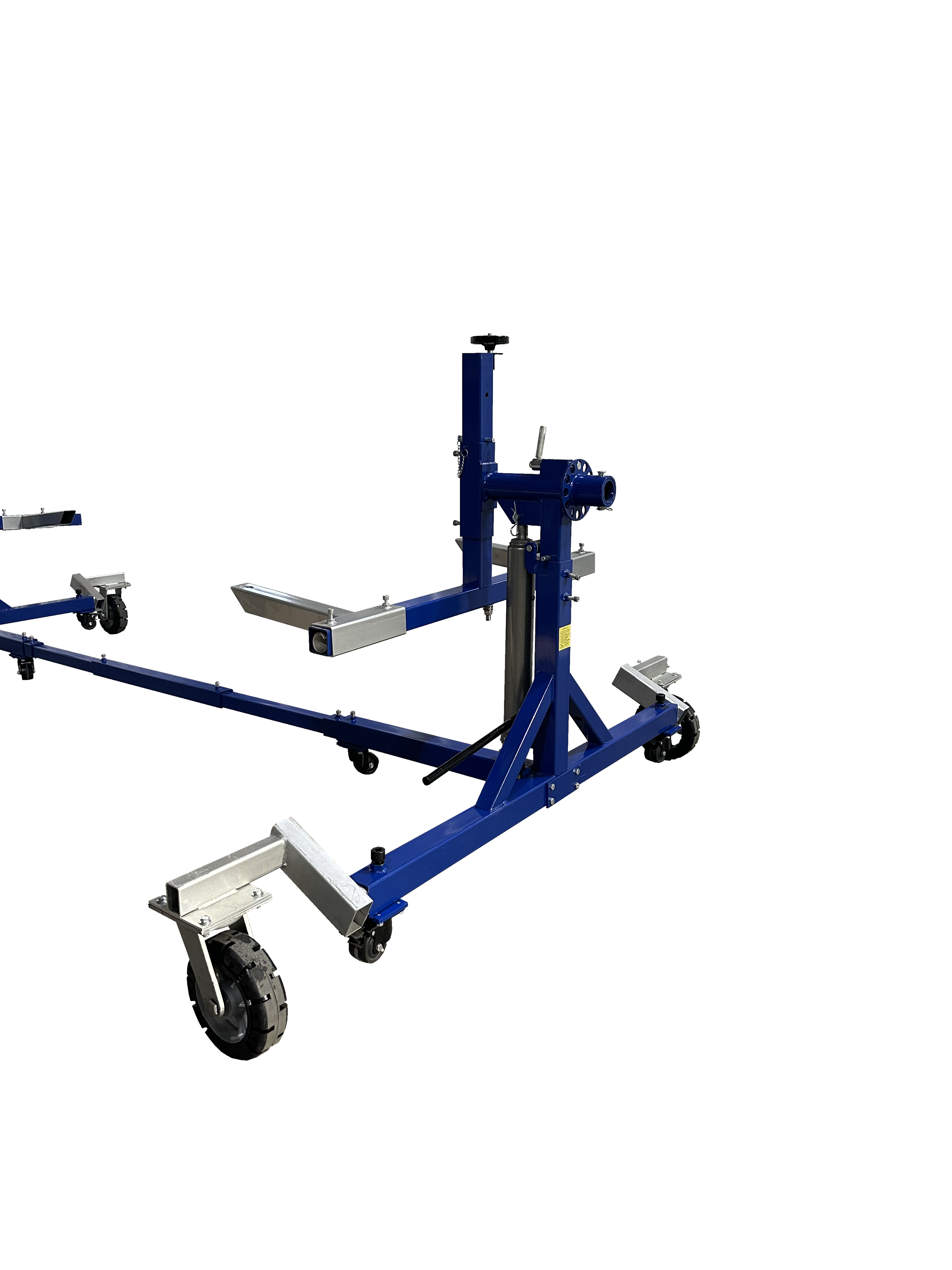

- Two 6,000 lb jacks - Set and adjust the working height under load.
- Telescoping center bar - Three-piece bar adjusts out to 21 ft 6 in to fit different wheelbases.

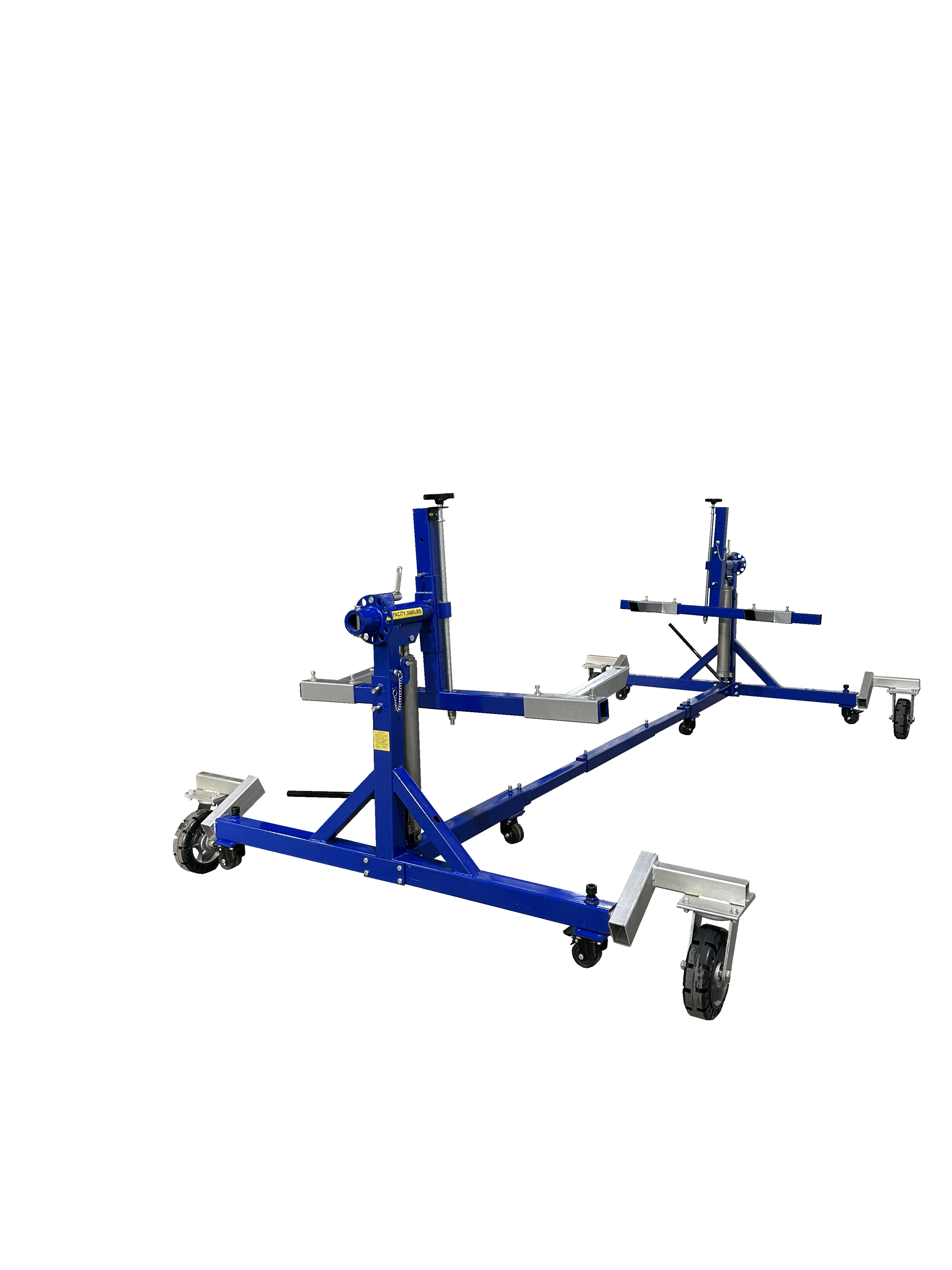

- Four 16 in mounting arms - Adapt to factory mounting points on the body.
- Six swivel casters - Phenolic resin casters move the loaded rotator around the shop.

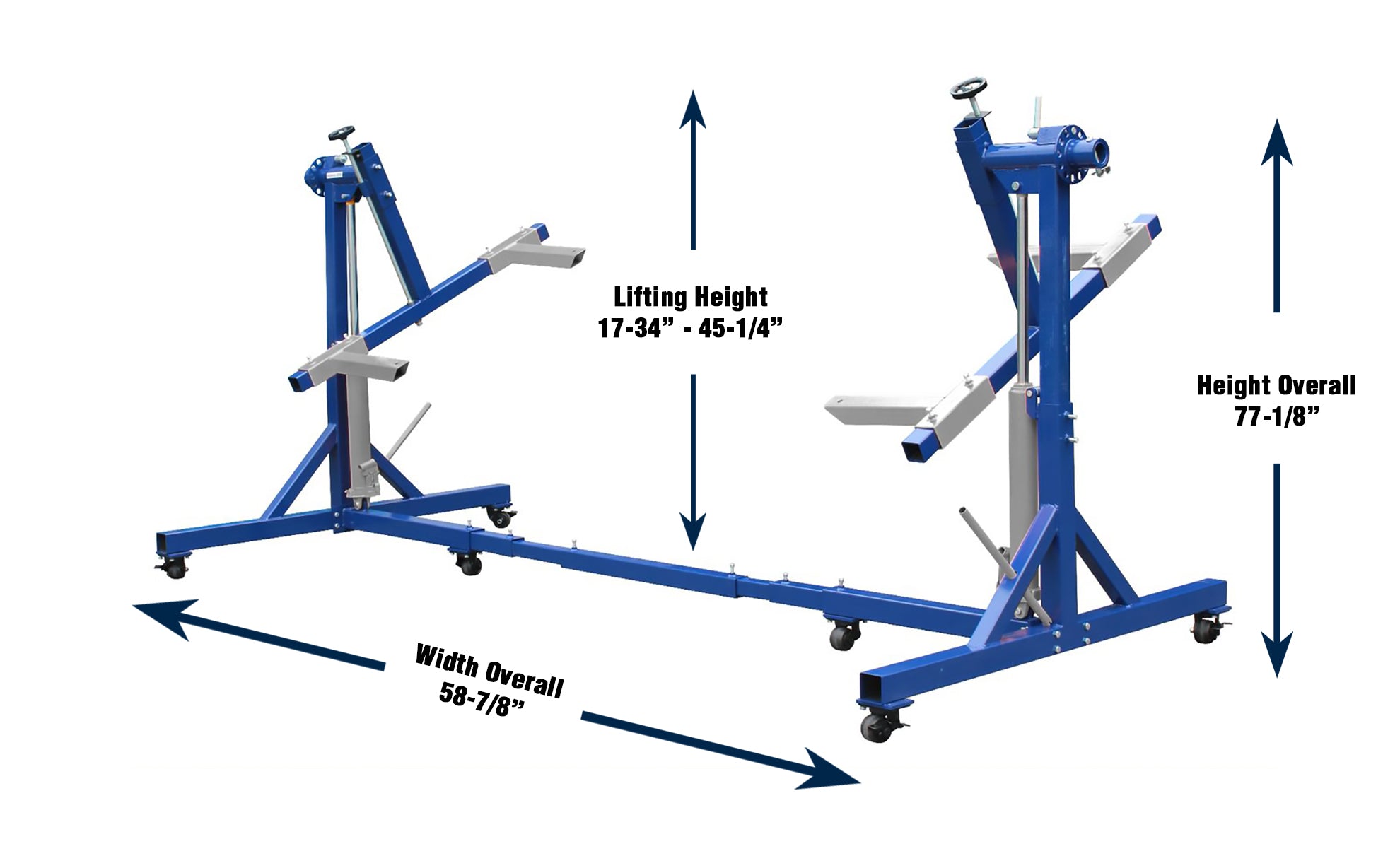

Specifications
| Brand | Tuxedo Auto Equipment |
|---|---|
| Type | Car Rotator / Rotisserie |
| Capacity | 3,000 lbs |
| Overall Width | 58-7/8 in |
| Overall Height | 77-1/8 in |
| Overall Length | 258-1/4 in |
| Lifting Height | 17-3/4 in to 45-1/4 in |
| Ship Weight | 410 lbs |
Who It's For
This rotisserie fits restoration and collision shops doing floor pan, frame, and underbody work where rotating the body to a comfortable angle saves hours over working overhead or on the floor.
What's Included
- CR-3000 car rotator with balancing system
- Two 6,000 lb jacks
- Four 16 in mounting arms
- Three-piece telescoping center bar
- Six phenolic resin swivel casters
- Owner manual
Vehicle-specific mounting brackets are available as accessories and are sold separately.
Shipping and Freight
This rotator ships LTL freight at roughly 410 pounds. Allow standard handling plus transit, and request a liftgate for non-dock delivery.
About Tuxedo Auto Equipment
Tuxedo Distributors supplies automotive lifts, wheel service equipment, and collision repair tools to professional shops across North America, including the iDEAL line of commercial lifts and frame racks.
Frequently Asked Questions
How much weight can the CR-3000 turn?
It is rated at 3,000 pounds and locks securely at any angle.
Does it rotate fully?
Yes. It is fully adjustable through 360 degrees of rotation.
How does it set working height?
Two 6,000 pound capacity jacks raise and lower the unit through a 17-3/4 to 45-1/4 inch lifting range.
Will it fit different wheelbases?
The three-piece telescoping center bar adjusts out to 21 feet 6 inches, and four 16 inch mounting arms adapt to the body.
Can I move it once a body is mounted?
Yes. Six phenolic resin swivel casters let the loaded rotator be repositioned around the shop.
Talk to a Tuxedo specialist about mounting brackets and freight before you order. View the full Tuxedo Auto Equipment range.
