Description
Overview

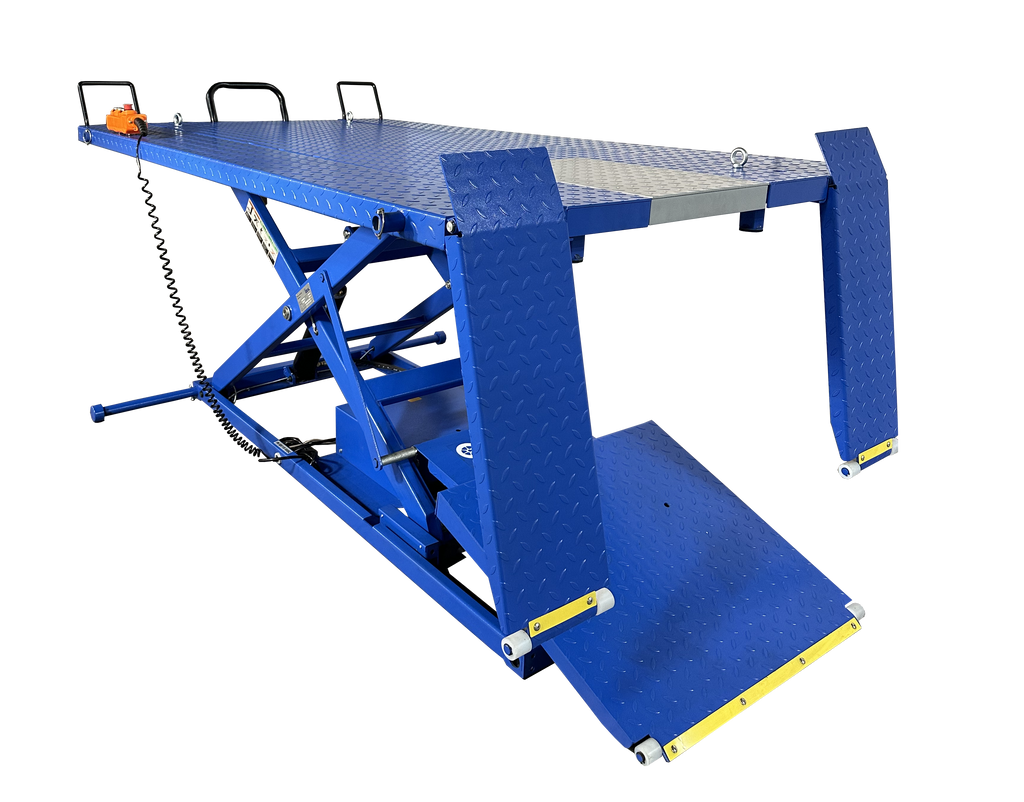

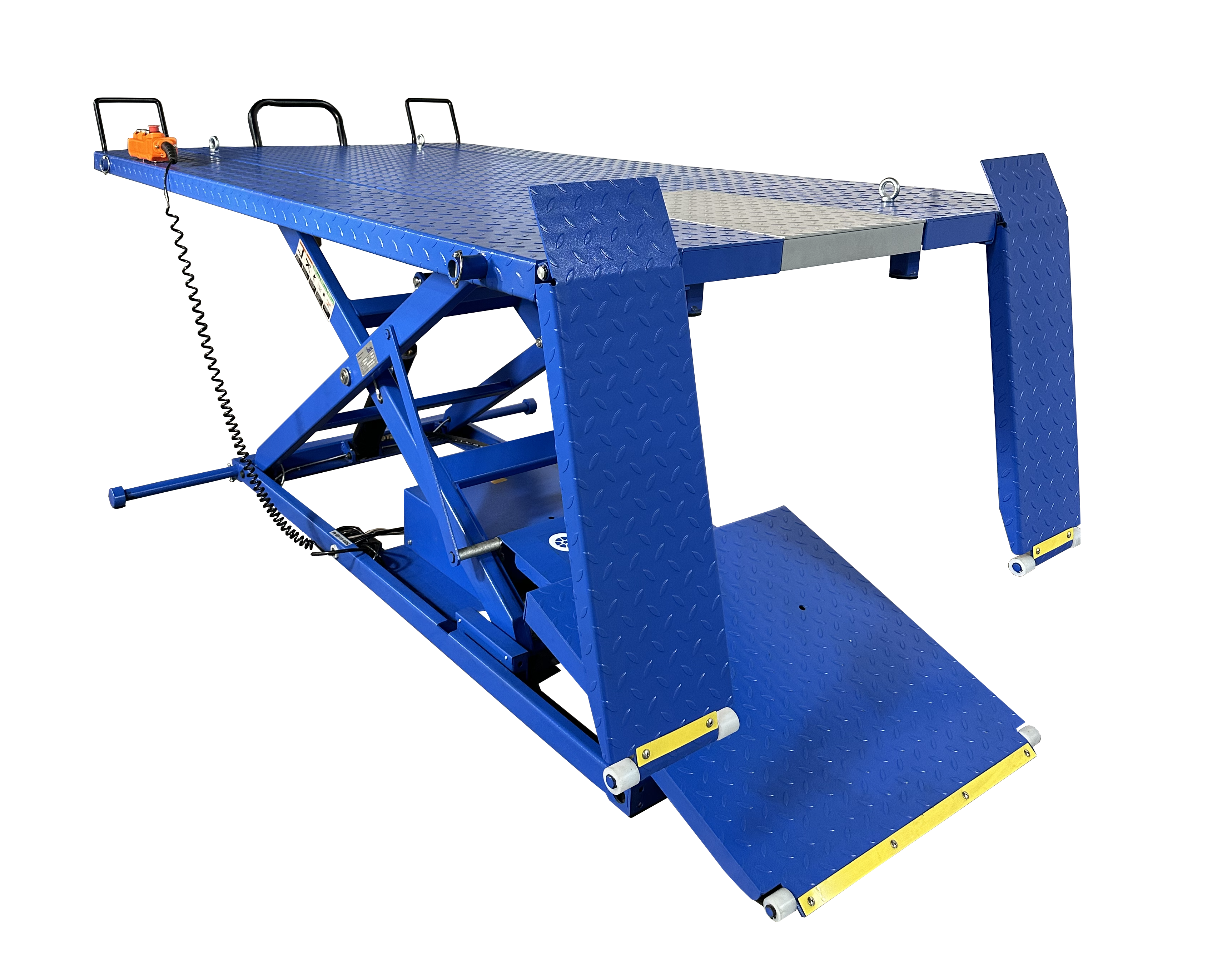

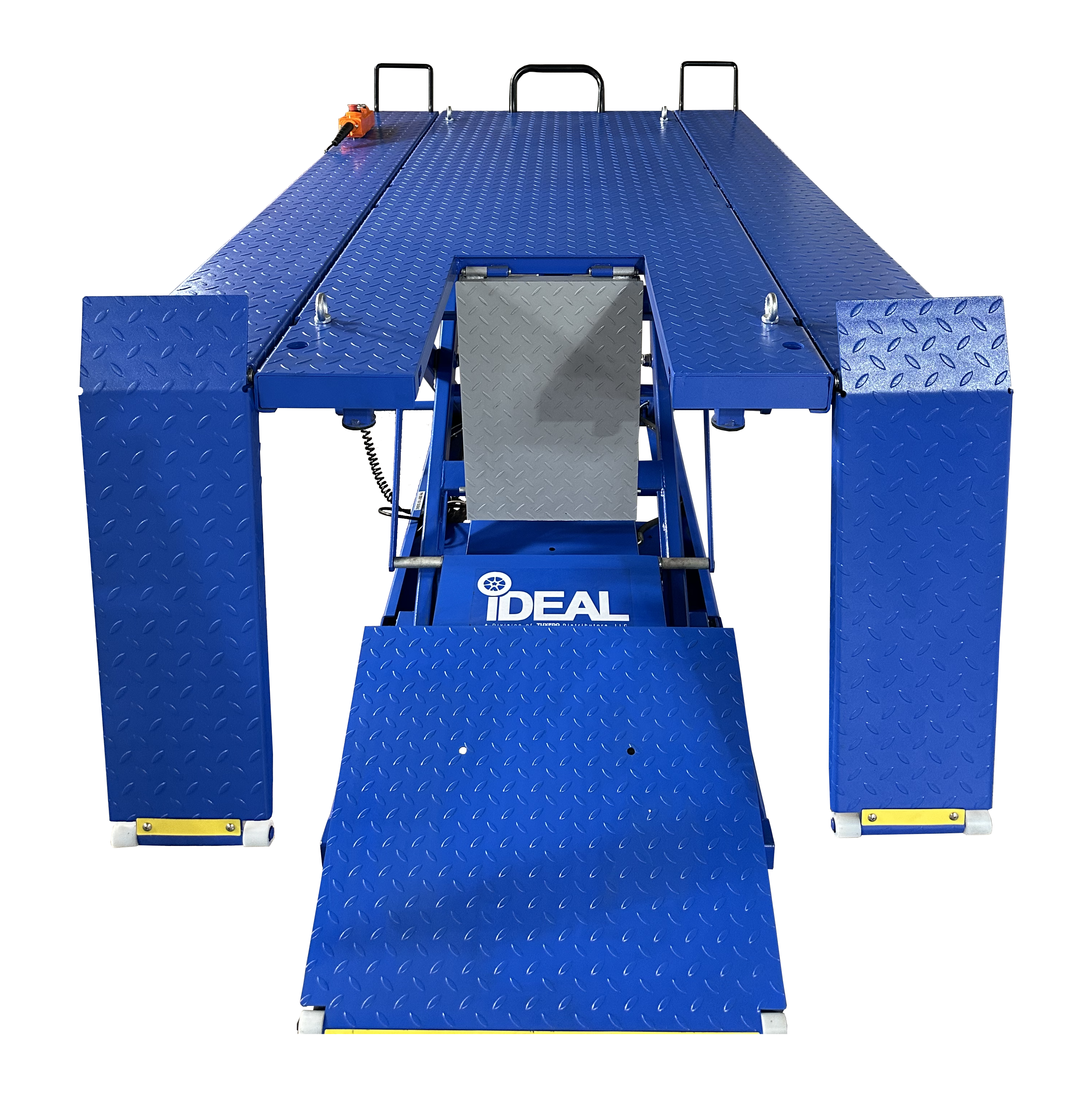

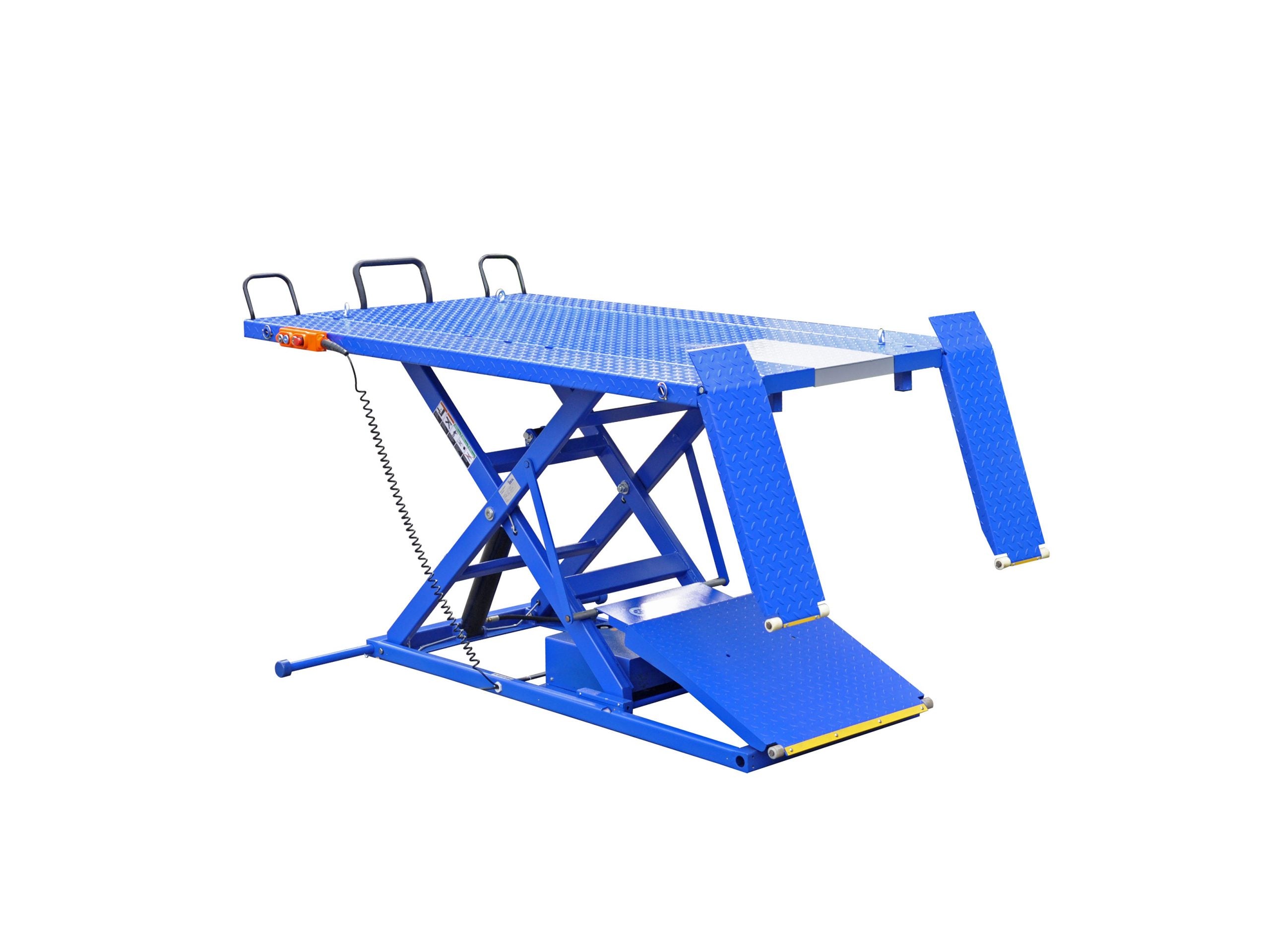

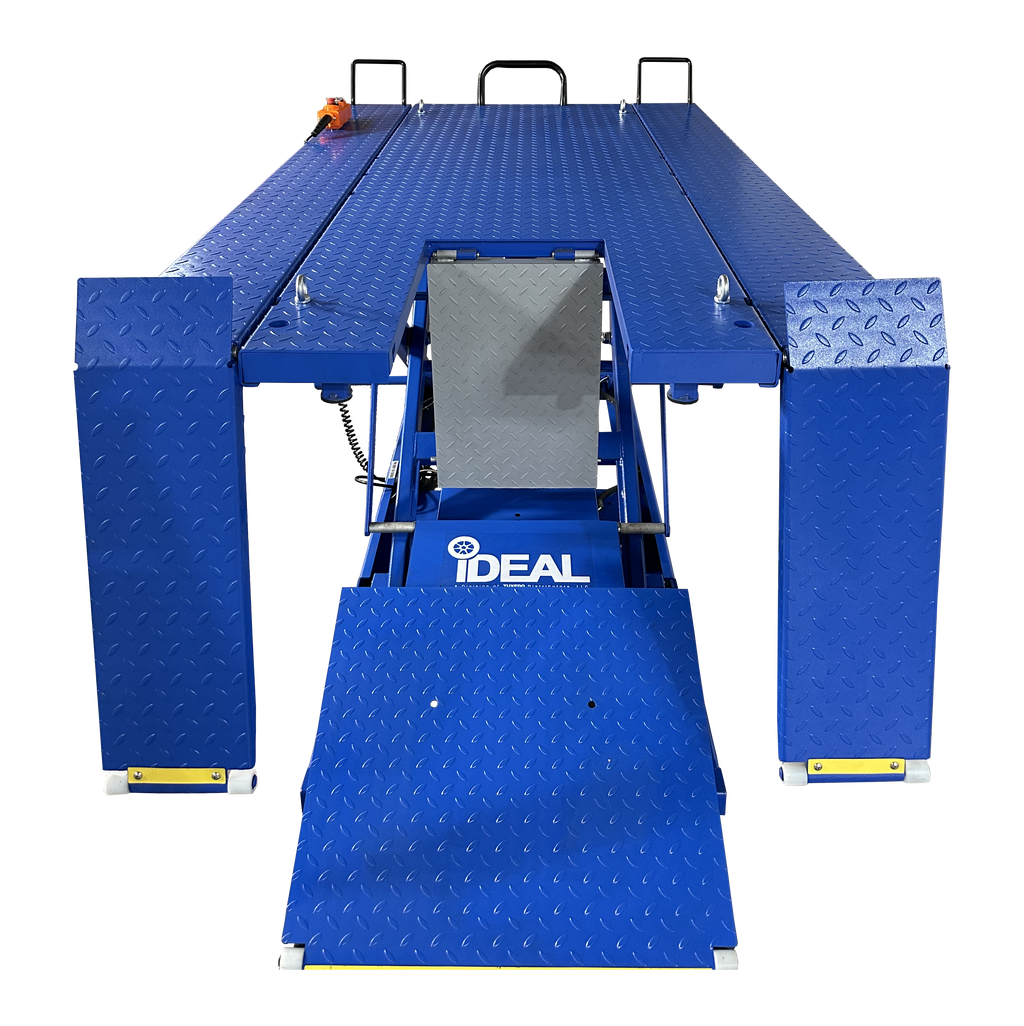

The Tuxedo A-2200IEH-XR is an electric hydraulic ATV lift bench built for powersport service work that needs the machine raised to a comfortable working height.
It carries a 2,200 pound capacity and rises to 47 inches on a 50 by 88.6 inch platform, so a technician can work seated or standing instead of bent over the floor. The integrated 110 volt power unit runs from a standard wall outlet, and the full-width retractable ramp folds away once the unit is loaded to free up the work area. See more auto service equipment or the rest of the Tuxedo Auto Equipment line.
Key Features
- 2,200 lb capacity - Handles ATVs, side-by-sides, and similar powersport machines.
- 47 in rise height - Brings the work up to a serviceable height for seated or standing work.

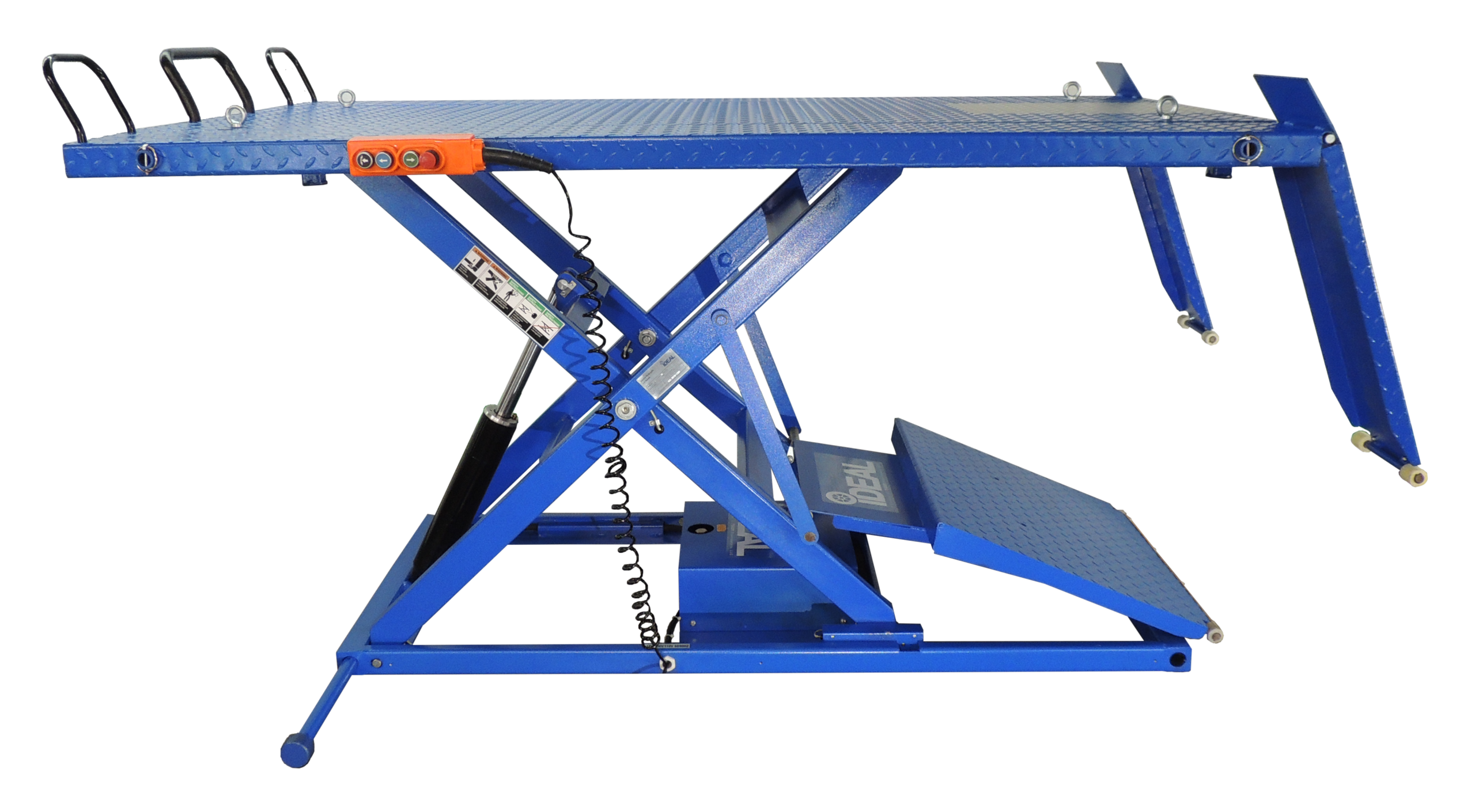

- Full-width retractable ramp - Folds out of the way after loading to clear the working area.
- 110V integrated power unit - Electric hydraulic drive runs from a standard outlet with a hand-held remote pendant.
- Six locking positions - Magnetic lock release with mechanical safety stops at multiple heights.
- Tie-down and stabilizer hardware - Wheel stops, stabilizer bar, and tie-down anchor eye bolts secure the load.
Specifications
| Brand | Tuxedo Auto Equipment |
|---|---|
| Type | Powersport / ATV Lift Bench |
| Capacity | 2,200 lbs |
| Rise Height | 47 in |
| Platform Size | 50 in x 88.6 in |
| Power | 110V, Single Phase |
| Locking Positions | Six |
| Ship Weight | 953 lbs |
Who It's For
This bench suits powersport dealers and independent shops servicing ATVs and side-by-sides that want the unit lifted to working height without a full vehicle lift. It runs on a standard 110V circuit.
What's Included
- A-2200IEH-XR lift bench with integrated electric hydraulic power unit
- Full-width retractable approach ramp
- Hand-held remote control pendant
- Stabilizer bar, wheel stops, and tie-down anchor eye bolts
- Owner manual
Optional M-VISE, M-CHOCK, and M-JACK accessories mount to the platform and are sold separately.
Shipping and Freight
This unit ships LTL freight at roughly 953 pounds. Allow standard handling time plus transit. Request a liftgate for locations without a dock, and confirm a commercial or residential delivery address when you order.
About Tuxedo Auto Equipment
Tuxedo Distributors supplies automotive lifts, wheel service equipment, and collision repair tools to professional shops across North America, including the iDEAL line of commercial lifts and frame racks.
Frequently Asked Questions
What can the A-2200IEH-XR lift?
It is rated at 2,200 pounds and is designed for ATVs, side-by-sides, and similar powersport machines.
How high does it raise?
The platform rises to 47 inches and locks at six positions through a magnetic lock release.
Does it need special power?
No. The integrated electric hydraulic power unit runs on 110V from a standard wall outlet.
Is the ramp removable?
The full-width ramp is retractable and folds away after the machine is loaded to clear the work area.
Can I add a wheel vise or jack?
Yes. The platform is designed to mount the optional M-VISE or M-CHOCK, and an M-JACK is available. These are sold separately.
Talk to a Tuxedo specialist about shop fit and freight before you order. View the full Tuxedo Auto Equipment range.
