Description
Overview

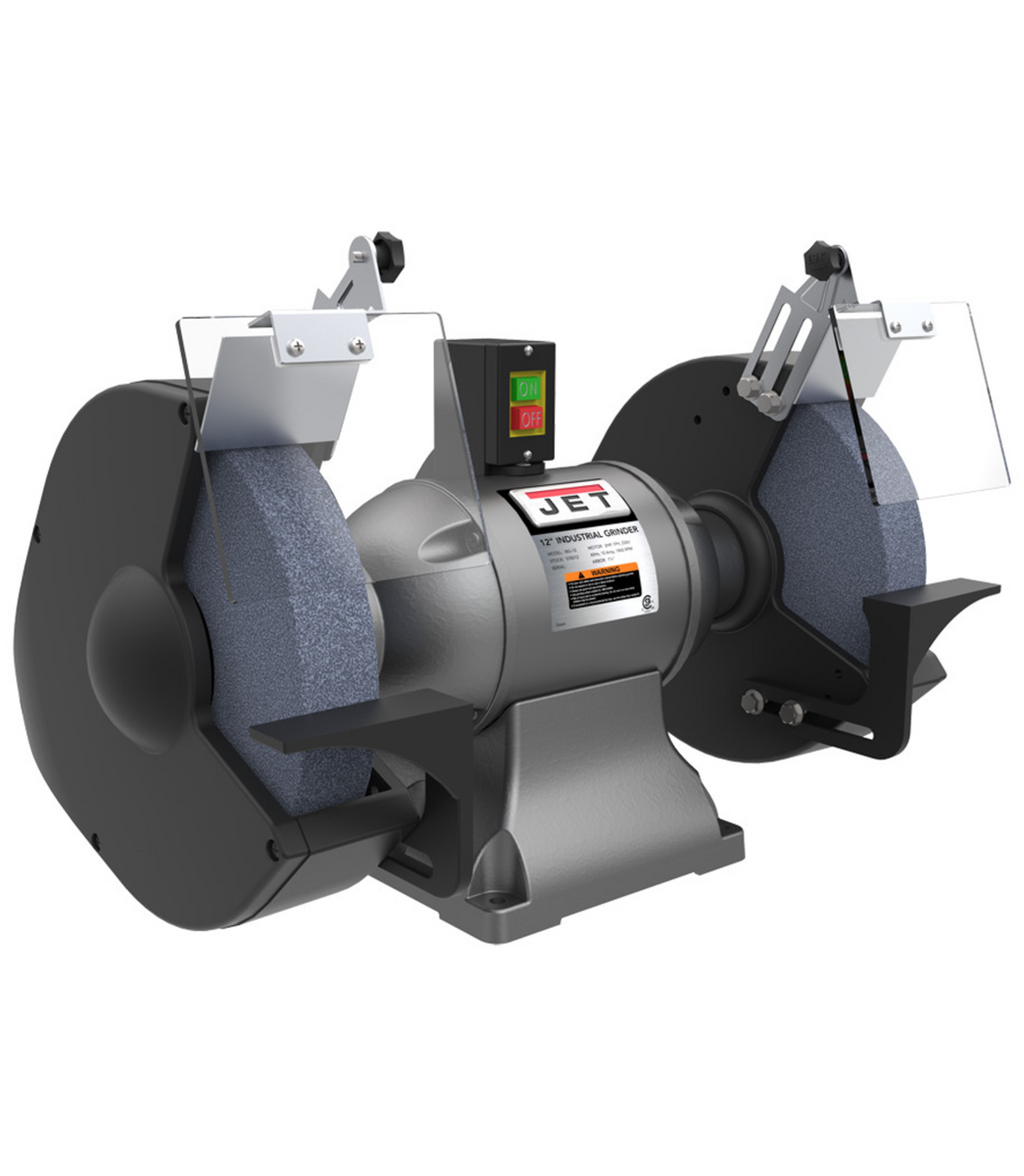

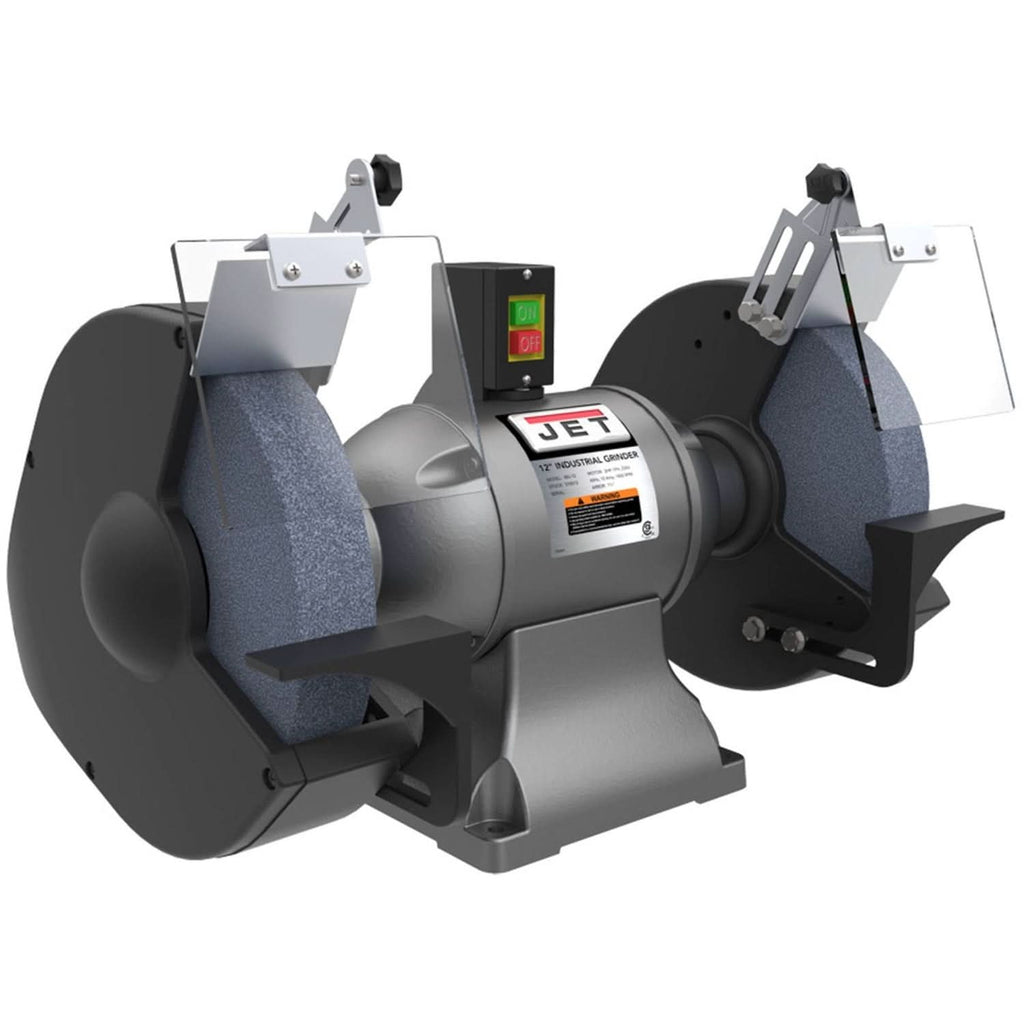

The JET IBG-12 is a 12-inch industrial bench grinder built for the high-volume demands of busy metal shops. Its heavy-duty capacitor motor and cast construction drive a pair of vitrified wheels for grinding, sharpening, and smoothing.
The grinder ships with fine and coarse vitrified wheels and runs on sealed bearings for maintenance-free service. Adjustable tool rests and safety shields support precise, repeatable work, and the predrilled base mounts to a bench or stand. It is CSA/CUS certified and OSHA compliant, and it belongs in the fabrication and metalworking grinding and finishing lineup from JET.
Key Features
- 12 inch wheels - Runs 12 x 2 inch fine and coarse vitrified wheels in grits 36 and 60.
- Heavy-duty motor - Capacitor-start motor rated 230V at 10 amps for steady grinding under load.
- Sealed bearings - Sealed bearings provide maintenance-free operation.
- Adjustable tool rests - Adjustable tool rests and safety shields support precise, safe work.
- 1-1/4 in shaft - Heavy 1-1/4 inch shaft diameter for stable, true wheel rotation.
- Certified - CSA/CUS certified and OSHA compliant for professional shops.
Specifications
| Brand | JET |
|---|---|
| Type | Industrial Bench Grinder |
| Model | IBG-12 |
| Wheel Diameter | 12 x 2 in |
| Wheel Grits | 36 and 60 |
| Shaft Diameter | 1-1/4 in |
| Dust Port Size | 2-1/2 in |
| Power | 230V (10 Amp) |
| Overall Dimensions | 27 x 18 x 18 in |
| Net Weight | 238 lb |
| Shipping Weight | 272 lb |
| Warranty | 2 Year |
How It Compares
| Model | Type | Wheel / Output | Net Weight |
|---|---|---|---|
| IBG-12 | Bench grinder | 12 x 2 in wheels | 238 lb |
| IBG-12SSB | Industrial buffer | 12 in buffing wheels | 86 lb |
| JDCS-505 | Dust collector stand | 472 CFM | 86 lb |
Key Facts
- Runs 12 x 2 in vitrified wheels in grits 36 and 60.
- 230V motor rated 10 amps.
- 1-1/4 in shaft on sealed bearings.
- CSA/CUS certified and OSHA compliant.
- Backed by a 2 year JET warranty.
Who It's For
The IBG-12 fits metal fabrication shops, weld shops, and tool rooms that grind and sharpen heavily and need a large, durable bench grinder. It is rated 230V, so confirm your circuit before install. Pair it with the JDCS-505 stand for dust collection.
Shipping and Freight
The IBG-12 ships as LTL freight at about 272 pounds. Plan for a commercial dock or liftgate, and request a freight quote for residential or limited-access delivery.
About JET
JET has built metalworking and woodworking machinery for professional and serious shops for decades, and backs its industrial tools with a multi-year warranty.
Frequently Asked Questions
What wheels does the IBG-12 use?
It runs 12 x 2 inch fine and coarse vitrified wheels in grits 36 and 60 on a 1-1/4 inch shaft.
What power does it need?
It is rated 230V and draws about 10 amps, so confirm your circuit before install.
Is it certified?
Yes. It is CSA/CUS certified and OSHA compliant.
Can I add dust collection?
Yes. It has a 2-1/2 inch dust port, and the JET JDCS-505 stand pairs as a dust collector base.
How does it ship?
It ships as LTL freight at about 272 pounds, so plan for a dock or liftgate delivery.
Talk to a specialist about power, mounting, and freight before ordering. See the full JET grinding and finishing lineup.
