Description
Overview

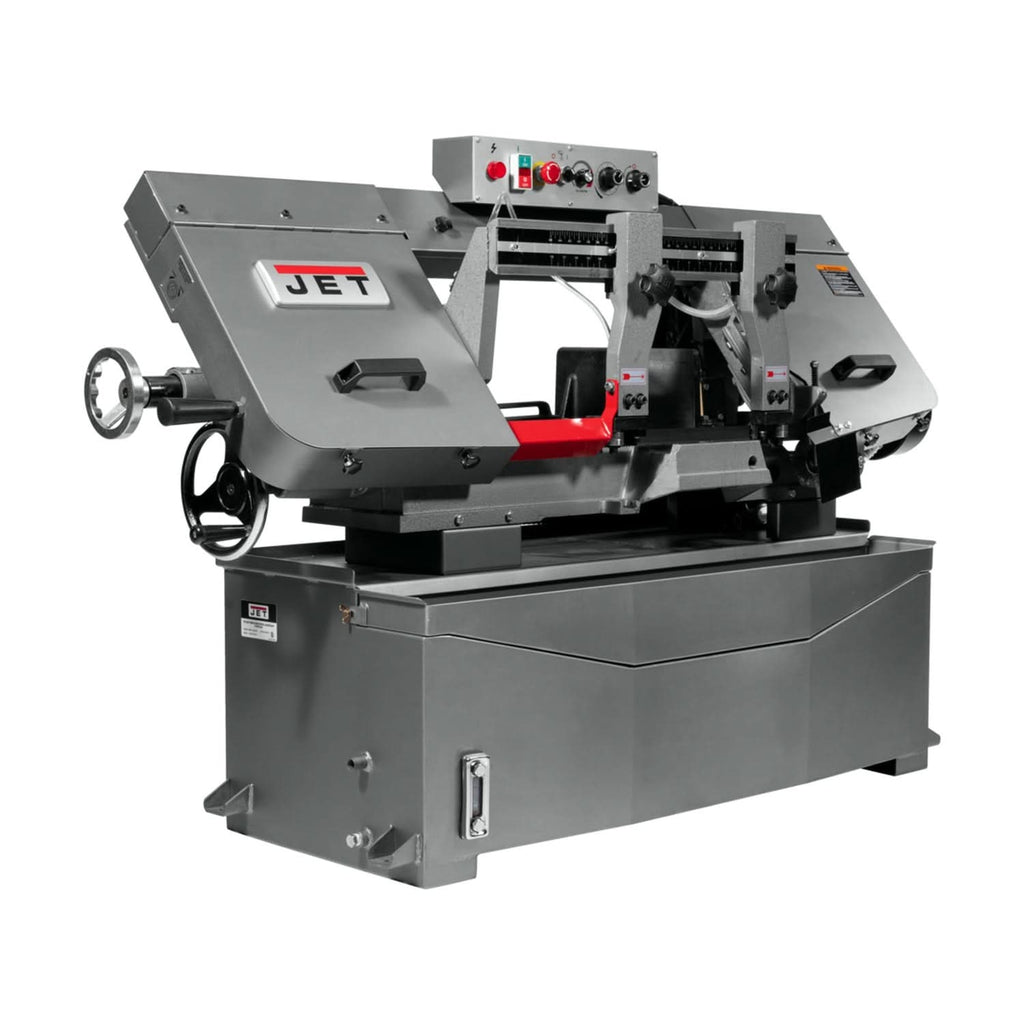

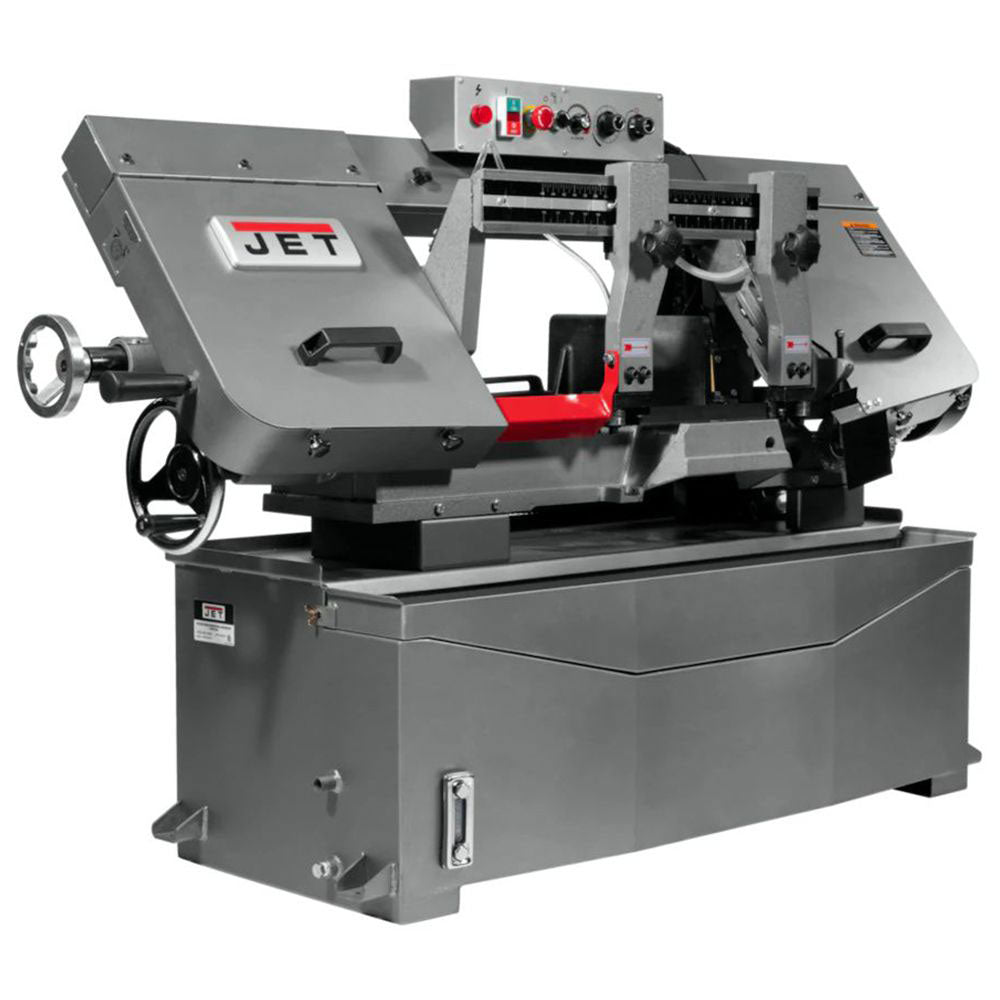

The JET HBS-1018EVS is a 10-inch by 18-inch electronic variable speed horizontal bandsaw built for production cutoff in busy fabrication and machine shops. Electronic speed control, a coolant system, and carbide blade guides keep it cutting accurately through long runs.
Blade speed is electronically controlled from 82 to 330 SFPM, so the operator matches speed to material without belt changes. Coolant runs through the blade guides, a built-in self-propelled blade brush extends blade life, and the carbide guides use parallel double-row ball bearing support for straight cuts. It sits in the fabrication and metalworking sawing lineup from JET.
Key Features
- Electronic variable speed - Blade speed is electronically controlled from 82 to 330 SFPM for a wide material range.
- 10 in round capacity - Cuts round stock up to 10 inches at 90 degrees and 7-1/2 inches at 45 degrees.
- Carbide blade guides - Carbide guides with parallel double-row ball bearing support hold the blade true.
- Integrated coolant - Standard coolant system distributes coolant through the blade guides at the cut.
- Self-propelled blade brush - Built-in blade brush clears chips and extends blade life.
- Hydraulic downfeed - Fully adjustable hydraulic downfeed with a separate on/off control valve.
Specifications
| Brand | JET |
|---|---|
| Type | Electronic Variable Speed Horizontal Bandsaw |
| Model | HBS-1018EVS |
| Round at 90 Degrees | 10 in |
| Round at 45 Degrees | 7-1/2 in |
| Rectangle at 90 Degrees | 10 x 16 in and 6-1/2 x 18 in |
| Blade Speed | EVS 82 to 330 SFPM |
| Blade Wheel Diameter | 14 in |
| Blade Size | 1 x .035 x 130 in |
| Vise Swivel | 45 deg |
| Power | 115V (6.5 Amp) |
| Overall Dimensions (Bow Lowered) | 68 x 28 x 70 in |
| Net Weight | 776 lb |
| Shipping Weight | 874 lb |
| Warranty | 2 Year |
How It Compares
| Model | Round Cap at 90 deg | Blade Speed | Net Weight |
|---|---|---|---|
| HVBS-712 Standard | 7 in | 86 to 260 SFPM | 374 lb |
| HVBS-712DV Variable | 7 in | 88 to 270 SFPM | 374 lb |
| HBS-1018EVS | 10 in | EVS 82 to 330 SFPM | 776 lb |
Key Facts
- Cuts round stock up to 10 in at 90 degrees.
- Electronic variable speed from 82 to 330 SFPM.
- Coolant distributed through the carbide blade guides.
- Net weight 776 lb, shipping weight 874 lb.
- Backed by a 2 year JET warranty.
Who It's For
This is a production-grade horizontal saw for fabrication shops, machine shops, and steel service work cutting larger bar, tube, and structural stock daily. It wires for 115V service and needs floor space and a dock for delivery.
Shipping and Freight
The HBS-1018EVS ships as LTL freight at about 874 pounds. A forklift or loading dock is recommended at delivery. Request a freight quote with liftgate for limited-access or residential sites.
About JET
JET has built metalworking and woodworking machinery for professional and serious shops for decades, and backs its industrial tools with a multi-year warranty.
Frequently Asked Questions
How thick can the HBS-1018EVS cut?
It cuts round stock up to 10 inches at 90 degrees and 7-1/2 inches at 45 degrees, with rectangular capacity up to 10 x 16 inches.
How is blade speed set?
Blade speed is electronically controlled from 82 to 330 SFPM, with no belt changes.
Does it have a coolant system?
Yes. A standard coolant system distributes coolant through the carbide blade guides at the cut.
What power does it need?
It is prewired for 115V and draws about 6.5 amps.
How does it ship?
It ships as LTL freight at about 874 pounds, so a forklift or dock is recommended at delivery.
Talk to a specialist about power, blade selection, and freight before ordering. See the full JET sawing lineup.
