Description
Overview

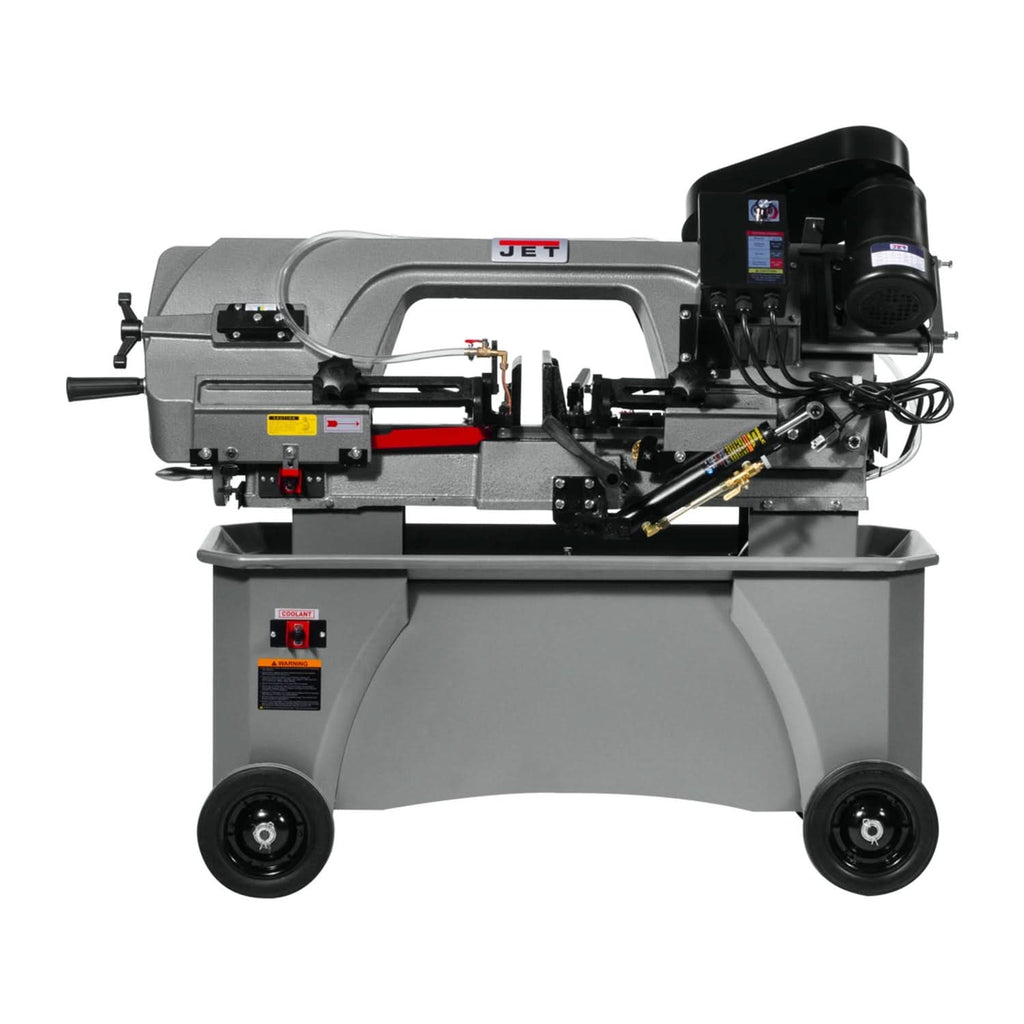

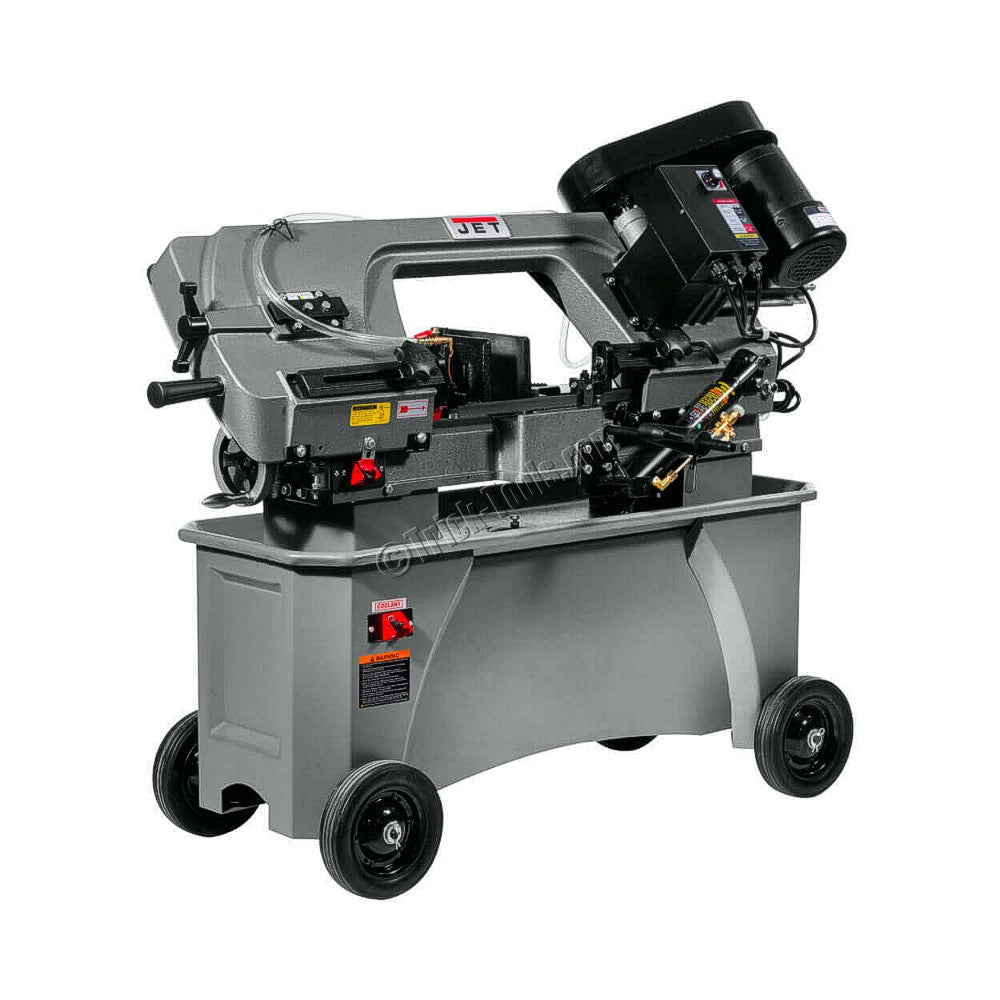

The JET HVBS-712DV is the variable speed deluxe version of JET's 7-inch by 12-inch horizontal and vertical metalworking bandsaw. A DC motor with knob-turn speed control replaces belt changes, so you set blade speed for the material without stopping the machine.
The 1 HP DC motor produces blade speeds from 88 to 270 SFPM and lets the operator dial in the right speed for steel, aluminum, or harder alloys. The multi-position blade guide raises vertical throat capacity from 4 inches to 8 inches, and a 9-1/16 x 11-7/8 inch worktable supports vertical work. It sits in the fabrication and metalworking sawing lineup from JET.
Key Features
- Variable speed drive - DC motor delivers 88 to 270 SFPM with knob-turn speed changes, no belt swapping.
- 1 HP DC motor - Three-step gear, 1 HP DC motor rated 7.5 amps at 115V for strong torque.
- 7 in round capacity - Cuts round stock up to 7 inches at 90 degrees and 5 inches at 45 degrees.
- Expanded vertical throat - Multi-position blade guide increases vertical throat capacity from 4 in to 8 in.
- Hydraulic downfeed - Hydraulic downfeed controls the cut rate for clean, unattended cutoff.
- Heavy cast construction - Heavy cast iron bow and bed with a sealed hardened and ground gear drive.
Specifications
| Brand | JET |
|---|---|
| Type | Variable Speed Horizontal / Vertical Bandsaw |
| Model | HVBS-712DV |
| Round at 90 Degrees | 7 in |
| Round at 45 Degrees | 5 in |
| Square at 90 Degrees | 7 x 7 in |
| Blade Speeds | 88 to 270 SFPM (variable) |
| Blade Wheel Diameter | 11-3/4 in |
| Vise Swivel | 45 deg |
| Motor | 1 HP DC, 7.5 Amp |
| Power | 115V, Single Phase |
| Overall Dimensions | 48 x 17 x 44 in |
| Net Weight | 374 lb |
| Shipping Weight | 418 lb |
| Warranty | 2 Year |
How It Compares
| Model | Speed Control | Blade Speed Range | Motor |
|---|---|---|---|
| HVBS-712 Standard | 4-step pulley | 86 to 260 SFPM | 3/4 HP |
| HVBS-712D Deluxe | 4-step pulley | 86 to 260 SFPM | 3/4 HP |
| HVBS-712DV Variable Speed | Variable knob | 88 to 270 SFPM | 1 HP DC |
Key Facts
- Variable blade speed from 88 to 270 SFPM, set with a knob.
- 1 HP DC motor rated 7.5 amps at 115V.
- Vertical throat capacity expands to 8 in.
- Net weight 374 lb, shipping weight 418 lb.
- Backed by a 2 year JET warranty.
Who It's For
This saw fits fabrication and machine shops that cut a wide mix of metals and want to match blade speed to material without stopping to change belts. It wires for 115V single-phase service.
Shipping and Freight
The HVBS-712DV ships as LTL freight at about 418 pounds. Plan for a commercial dock or liftgate, and request a freight quote for residential or limited-access delivery.
About JET
JET has built metalworking and woodworking machinery for professional and serious shops for decades, and backs its industrial tools with a multi-year warranty.
Frequently Asked Questions
How does the variable speed work?
A DC motor lets you set blade speed from 88 to 270 SFPM by turning a knob, with no belt changes required.
How thick can it cut?
It cuts round stock up to 7 inches at 90 degrees and 5 inches at 45 degrees, and square stock up to 7 x 7 inches.
What is the vertical throat capacity?
The multi-position blade guide raises vertical throat capacity from 4 inches to 8 inches.
What power does it need?
The 1 HP DC motor is rated 7.5 amps and wires for 115V single-phase power.
How does it ship?
It ships as LTL freight at about 418 pounds, so plan for a dock or liftgate delivery.
Talk to a specialist about power, blade selection, and freight before ordering. See the full JET sawing lineup.
