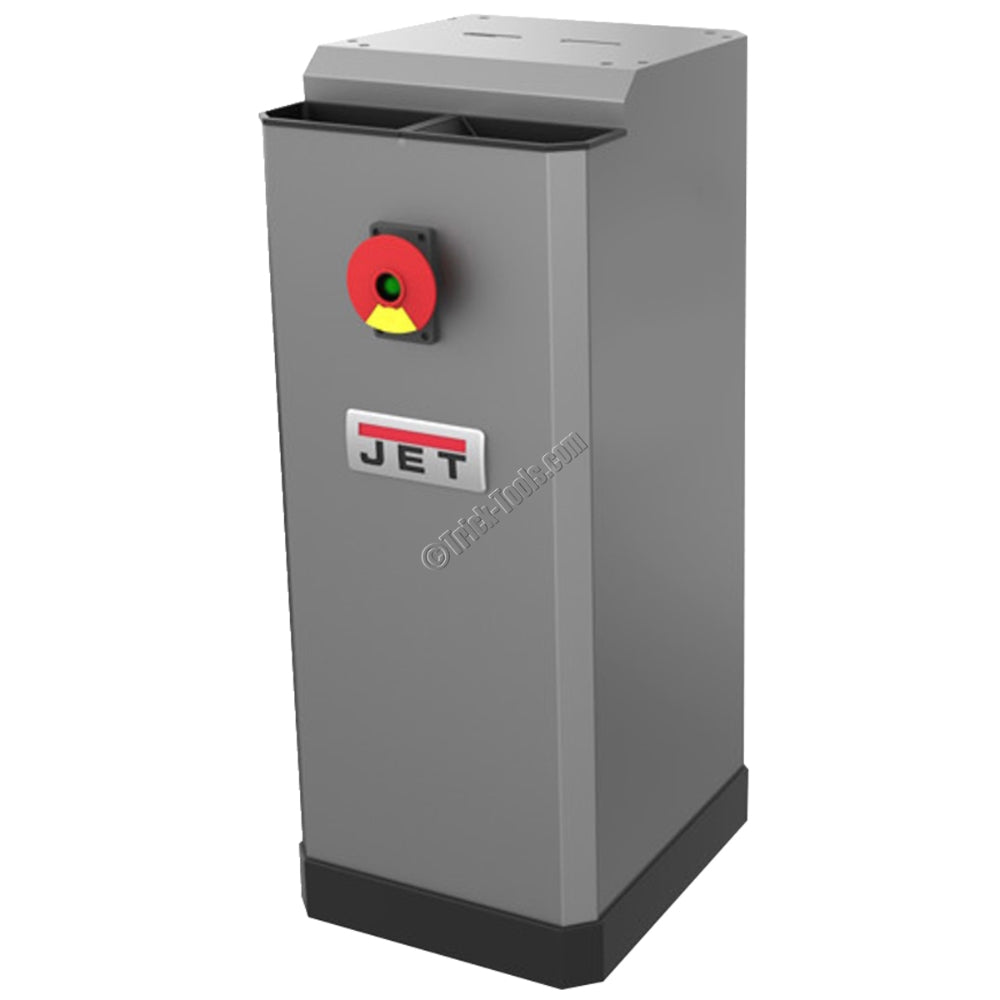

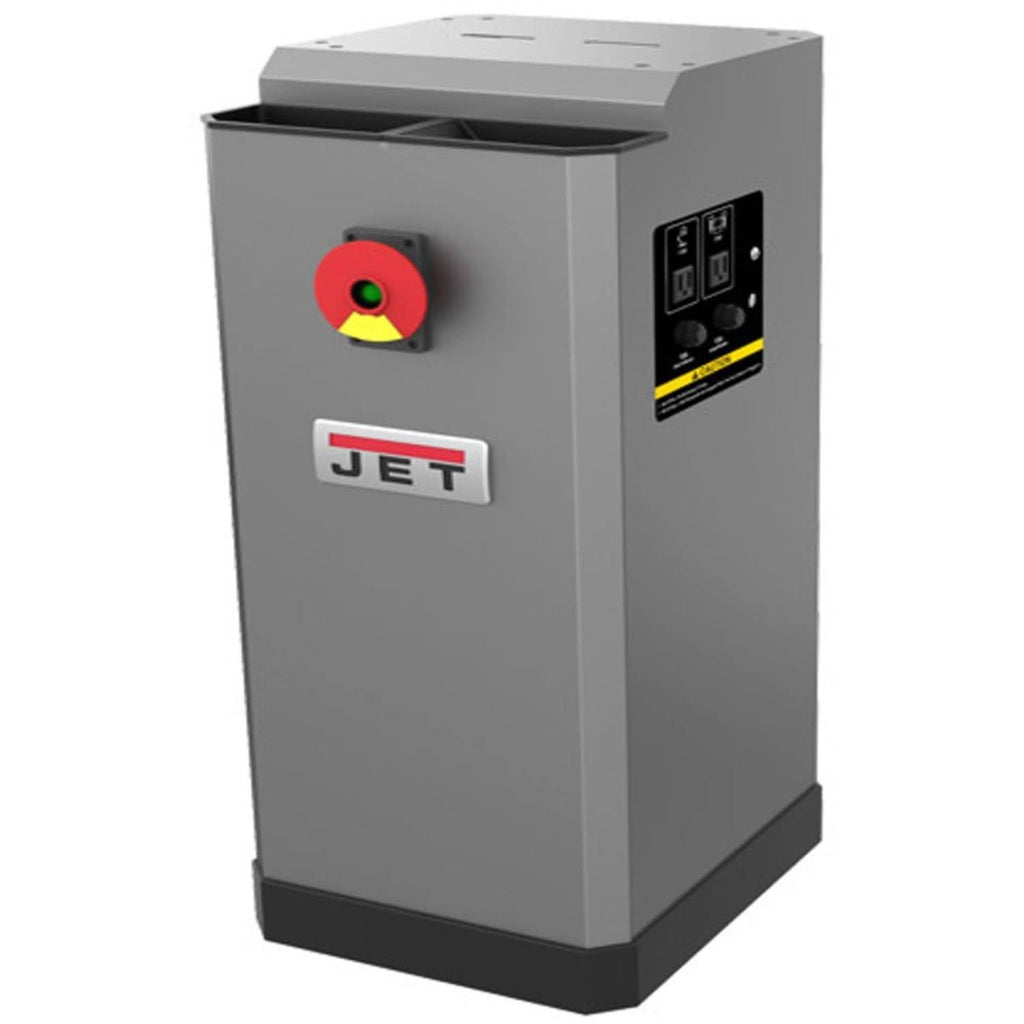

The JET JDCS-505 is a metal dust collector stand that doubles as a pedestal for any brand of bench grinder or bench-top belt and disc sander. It pulls abrasive dust into a clean-out drawer while serving as the machine stand, so one unit handles mounting and collection.
A turbo fan moves up to 472 CFM through a non-sparking aluminum fan blade and housing to reduce fire risk during abrasive collection. The stand fits any brand bench grinder and bench-top finishing machine with the optional universal adapter plate, and two water pots add quench capability. It belongs in the fabrication and metalworking grinding and finishing lineup from JET.
Key Features
- Stand plus collector - Serves as a pedestal stand for bench grinders and finishers while collecting dust.
- Universal fit - Mounts any brand bench grinder or bench-top belt and disc sander with the optional adapter plate.
- 472 CFM turbo fan - Turbo fan design moves up to 472 CFM for effective metal dust collection.
- Non-sparking construction - Aluminum fan blade and housing reduce fire risk during abrasive collection.
- Clean-out drawer - Chips and dust collect into a metal drawer with replaceable high-temperature filters.
- Heavy-duty steel - 16-gauge steel construction with four adjustable leveling pads and two water pots.
Specifications
| Brand | JET |
|---|---|
| Type | Metal Dust Collector Stand |
| Model | JDCS-505 |
| Maximum CFM | 472 CFM |
| Maximum Hose Velocity | 3,465 SFPM |
| Sound Rating | 75 dB at 10 ft |
| Style | Stand |
| Motor | 1/2 HP (20A) |
| Power | 115V, Single Phase |
| Weight | 86 lb |
| Warranty | 2 Year |
How It Compares
| Model | Style | Maximum CFM | Motor |
|---|---|---|---|
| JDCS-505 | Stand | 472 CFM | 1/2 HP |
| JDC-501 | Cabinet | 490 CFM | 1-1/2 HP |
| IAFS-2400 | Ambient air filter | Up to 2,097 CFM | 3/4 HP |
Key Facts
- Turbo fan moves up to 472 CFM.
- Fits any brand bench grinder or bench-top finisher with the adapter plate.
- Non-sparking aluminum fan blade and housing.
- 16-gauge steel stand with two water pots.
- Backed by a 2 year JET warranty.
Who It's For
The JDCS-505 fits shops that want a single pedestal stand that mounts a bench grinder or finishing machine and captures abrasive dust at the source. It wires for 115V single-phase service on a 20-amp circuit.
Shipping and Freight
The JDCS-505 ships as LTL freight at about 86 pounds. Plan for standard freight handling, and request a freight quote with liftgate for residential or limited-access delivery.
About JET
JET has built metalworking and woodworking machinery for professional and serious shops for decades, and backs its industrial tools with a multi-year warranty.
Frequently Asked Questions
Does the JDCS-505 work as a stand?
Yes. It is a pedestal stand and dust collector in one. It mounts a bench grinder or bench-top finisher and collects abrasive dust at the same time.
Will it fit my grinder?
It fits any brand bench grinder and bench-top belt and disc sander using the optional universal adapter plate.
How much air does it move?
The turbo fan moves up to 472 CFM.
What power does it need?
It runs on 115V single-phase power and a 20-amp circuit with a 1/2 HP motor.
How does it ship?
It ships as LTL freight at about 86 pounds with standard freight handling.
