Description
Overview

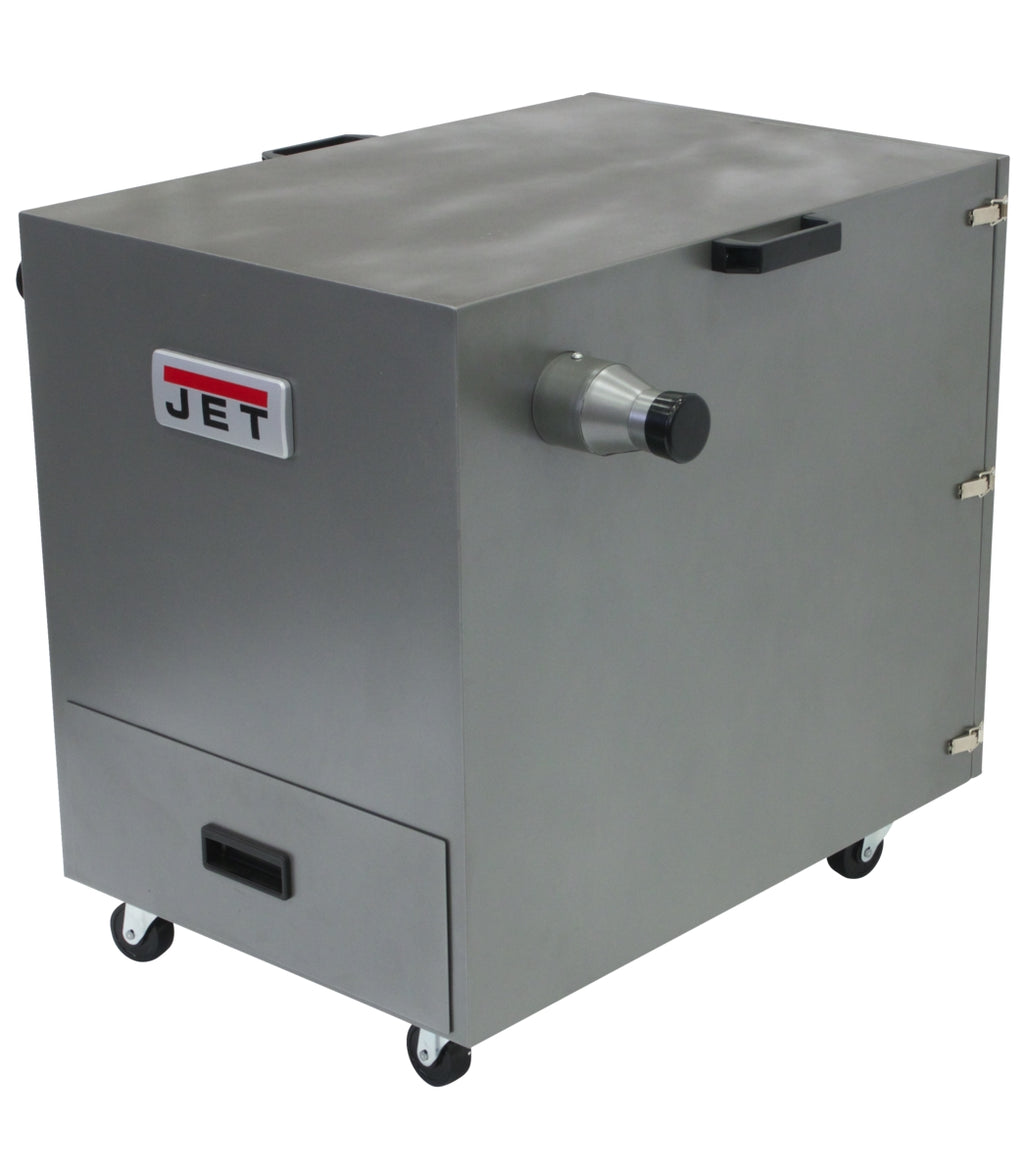

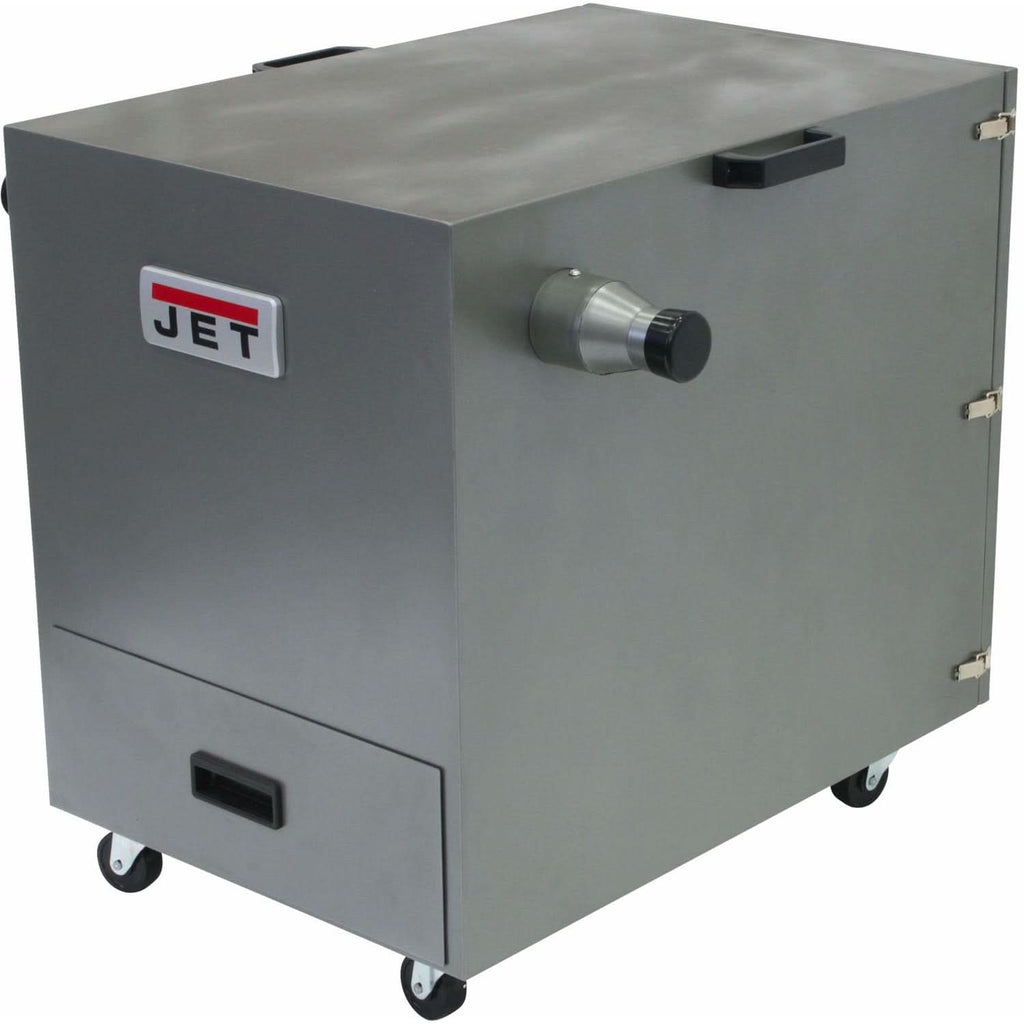

The JET JDC-501 is a cabinet-style metal dust collector built to pull abrasive dust and chips from belt and disc finishing and grinding machines. It collects metal dust into a clean-out drawer instead of cloth bags, which makes it safer for sparking and abrasive work.
A non-sparking aluminum housing and fan blade reduce fire risk when collecting hot metal dust, and two 3-inch chutes let you connect two machines to one collector. The unit rolls on four casters with two handles so it moves around the shop. It belongs in the fabrication and metalworking grinding and finishing lineup from JET.
Key Features
- Non-sparking construction - Aluminum housing and fan blade reduce fire risk when collecting abrasive metal dust.
- 490 CFM airflow - Pulls up to 490 CFM with a maximum hose velocity of 5,610 SFPM.
- Clean-out drawer - Chips and dust collect into a metal drawer that empties easily, no cloth bags.
- Dual machine hookup - Two 3-inch chutes let you connect two finishing or grinding machines.
- Mobile cabinet - Rolls on four casters with two handles for shop mobility.
- 1-1/2 HP motor - 1-1/2 HP, 115V single-phase motor for steady collection.
Specifications
| Brand | JET |
|---|---|
| Type | Cabinet Metal Dust Collector |
| Model | JDC-501 |
| Maximum CFM | 490 CFM |
| Maximum Hose Velocity | 5,610 SFPM |
| Sound Rating | 75 dB at 5 ft |
| Style | Cabinet |
| Motor | 1-1/2 HP |
| Power | 115V, Single Phase |
| Weight | 157 lb |
| Warranty | 2 Year |
How It Compares
| Model | Style | Maximum CFM | Motor |
|---|---|---|---|
| JDCS-505 | Stand | 472 CFM | 1/2 HP |
| JDC-501 | Cabinet | 490 CFM | 1-1/2 HP |
| IAFS-2400 | Ambient air filter | Up to 2,097 CFM | 3/4 HP |
Key Facts
- Pulls up to 490 CFM for metal grinding and finishing dust.
- Non-sparking aluminum housing and fan blade.
- Two 3-inch chutes connect two machines at once.
- Sound rating of 75 dB at 5 feet.
- Backed by a 2 year JET warranty.
Who It's For
The JDC-501 fits metal shops running belt and disc finishers and grinders that produce abrasive dust and chips. It is not intended for surface grinders. It wires for 115V single-phase service.
Shipping and Freight
The JDC-501 ships as LTL freight at about 157 pounds. Plan for a commercial dock or liftgate, and request a freight quote for residential or limited-access delivery.
About JET
JET has built metalworking and woodworking machinery for professional and serious shops for decades, and backs its industrial tools with a multi-year warranty.
Frequently Asked Questions
What is the JDC-501 designed to collect?
It collects abrasive dust and chips from belt and disc finishing and grinding machines into a metal clean-out drawer.
Can it connect to more than one machine?
Yes. It has two 3-inch chutes so you can connect two different machines to one collector.
Why an aluminum housing and fan?
The non-sparking aluminum housing and fan blade reduce fire risk when collecting hot metal dust.
Can I use it with a surface grinder?
No. JET states the JDC-501 is not to be used with surface grinders.
How does it ship?
It ships as LTL freight at about 157 pounds, so plan for a dock or liftgate delivery.
Talk to a specialist about machine hookup and freight before ordering. See the full JET grinding and finishing lineup.
