Description
Overview

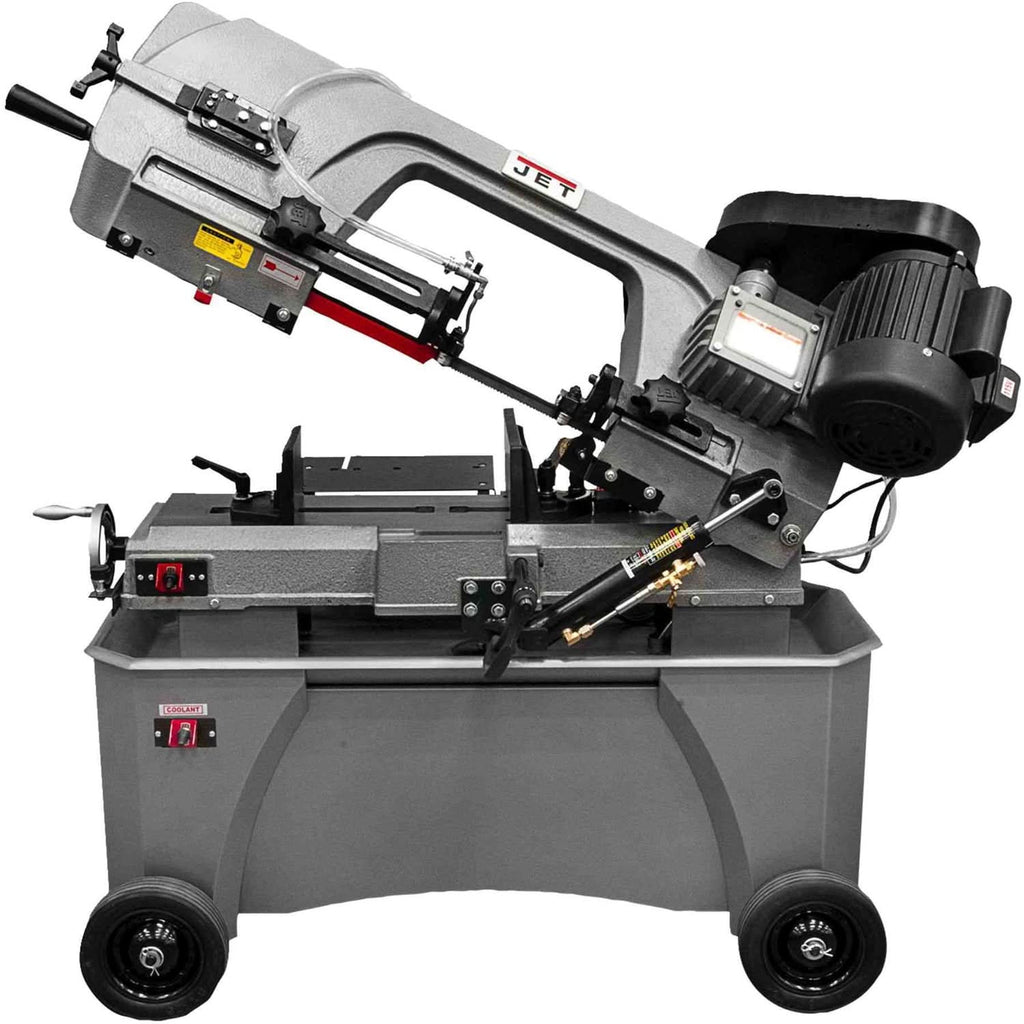

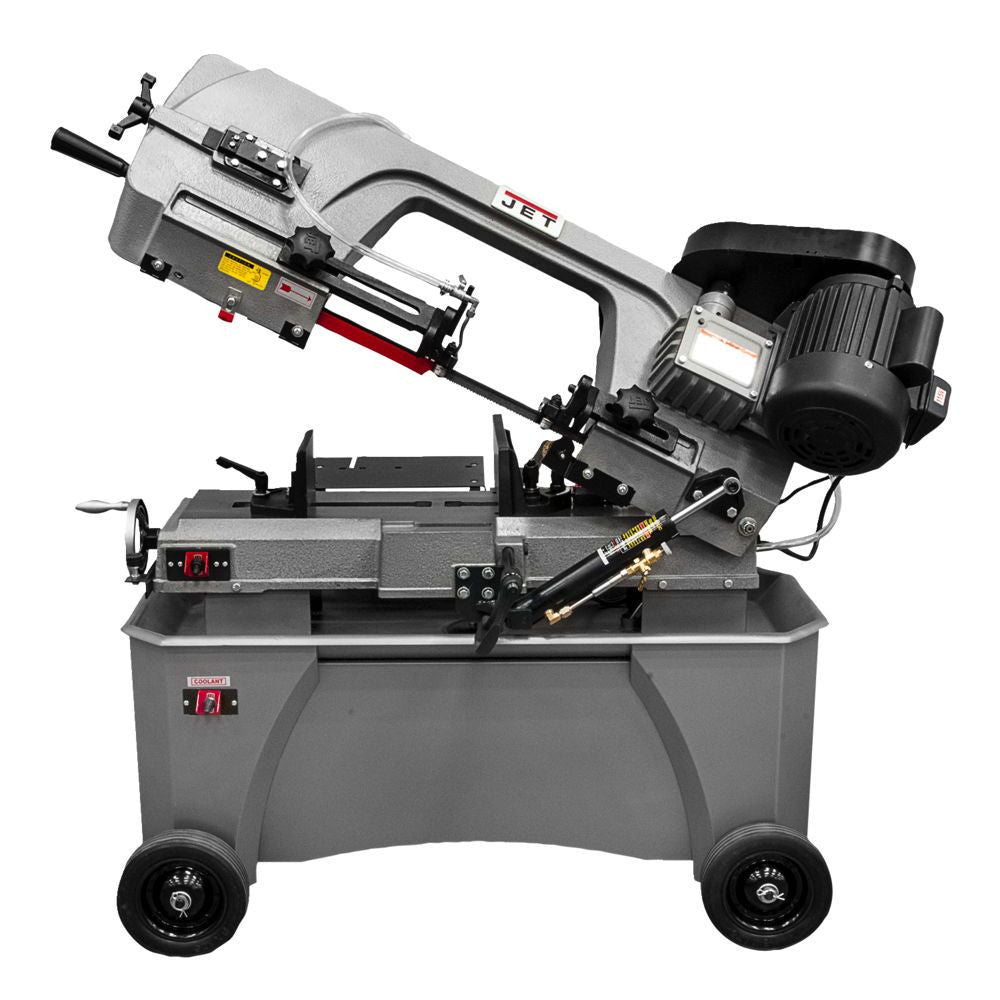

The JET HVBS-712D is the deluxe version of JET's 7-inch by 12-inch horizontal and vertical metalworking bandsaw. It adds multi-position blade guides and a toolless quick-lock vise to the same belt-to-gear drive platform built for daily cutoff work.

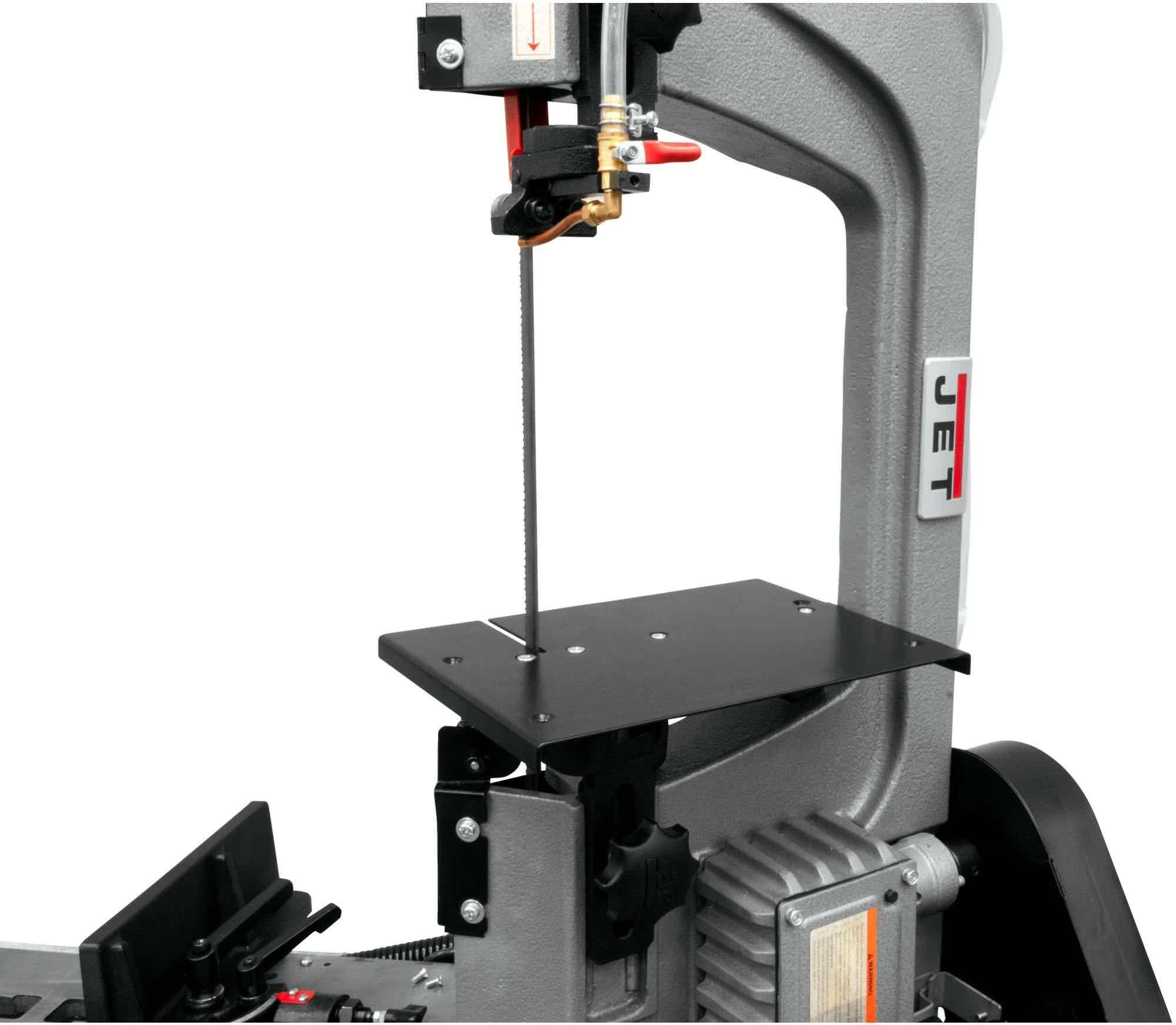

In the vertical position the multi-position blade guides increase throat capacity from 4 inches to 8 inches, which opens up larger contour cuts than the standard model. A large 9 x 12 inch infeed table extends support, and the toolless vise presets at 15, 30, and 45 degrees for repeatable miters. It sits in the fabrication and metalworking sawing lineup from JET.
Key Features
- Deluxe blade guides - Multi-position blade guides increase vertical throat capacity from 4 in to 8 in.
- 7 in round capacity - Cuts round stock up to 7 inches at 90 degrees and 5 inches at 45 degrees.

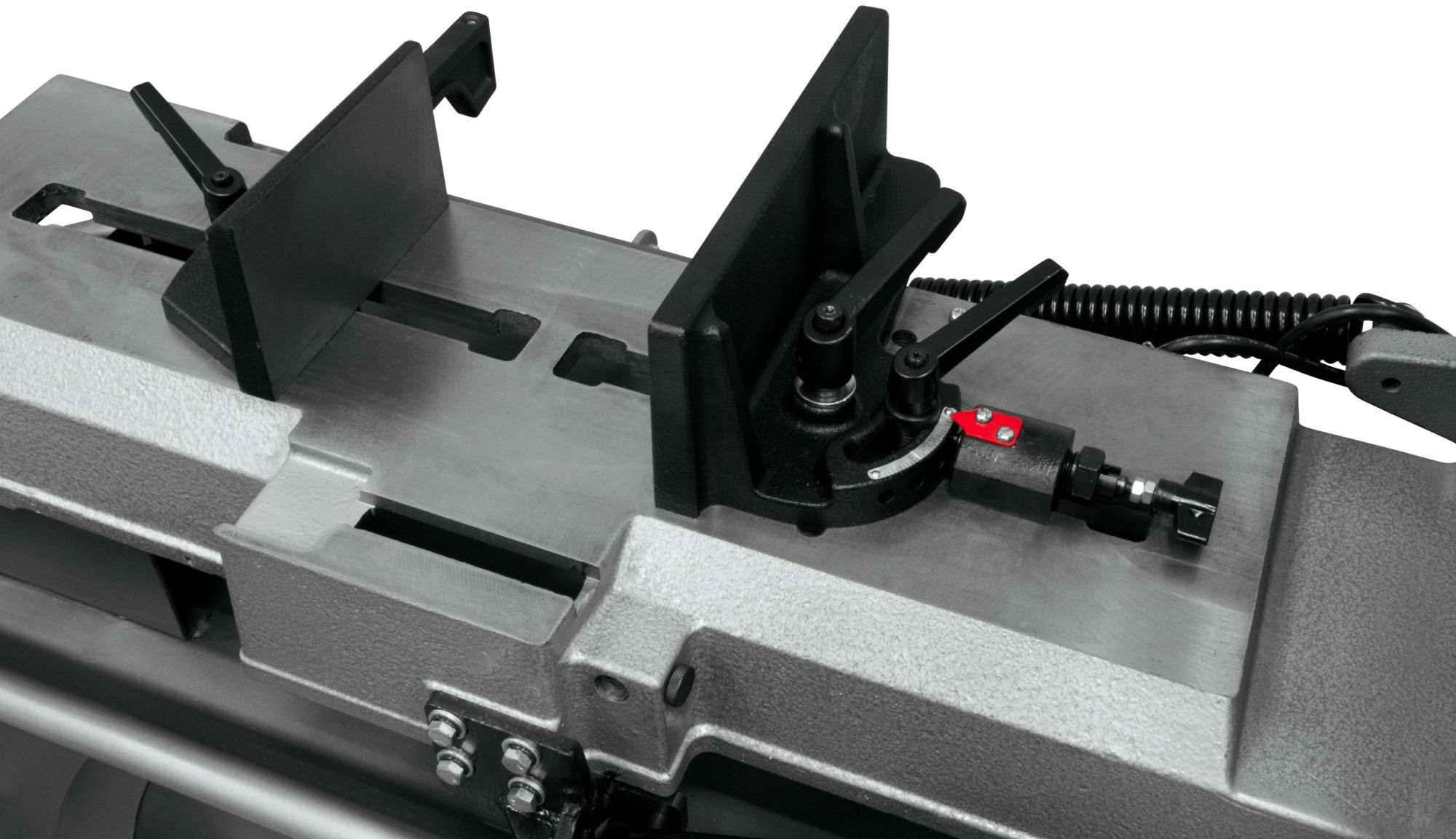

- Toolless quick-lock vise - Preset mitering positions at 15, 30, and 45 degrees for repeatable angled cuts.
- Hydraulic downfeed - Cast-mounted adjustable hydraulic downfeed controls cut rate for unattended cutoff.
- Large infeed table - 9 x 12 in infeed table assembly works in horizontal or vertical positions.

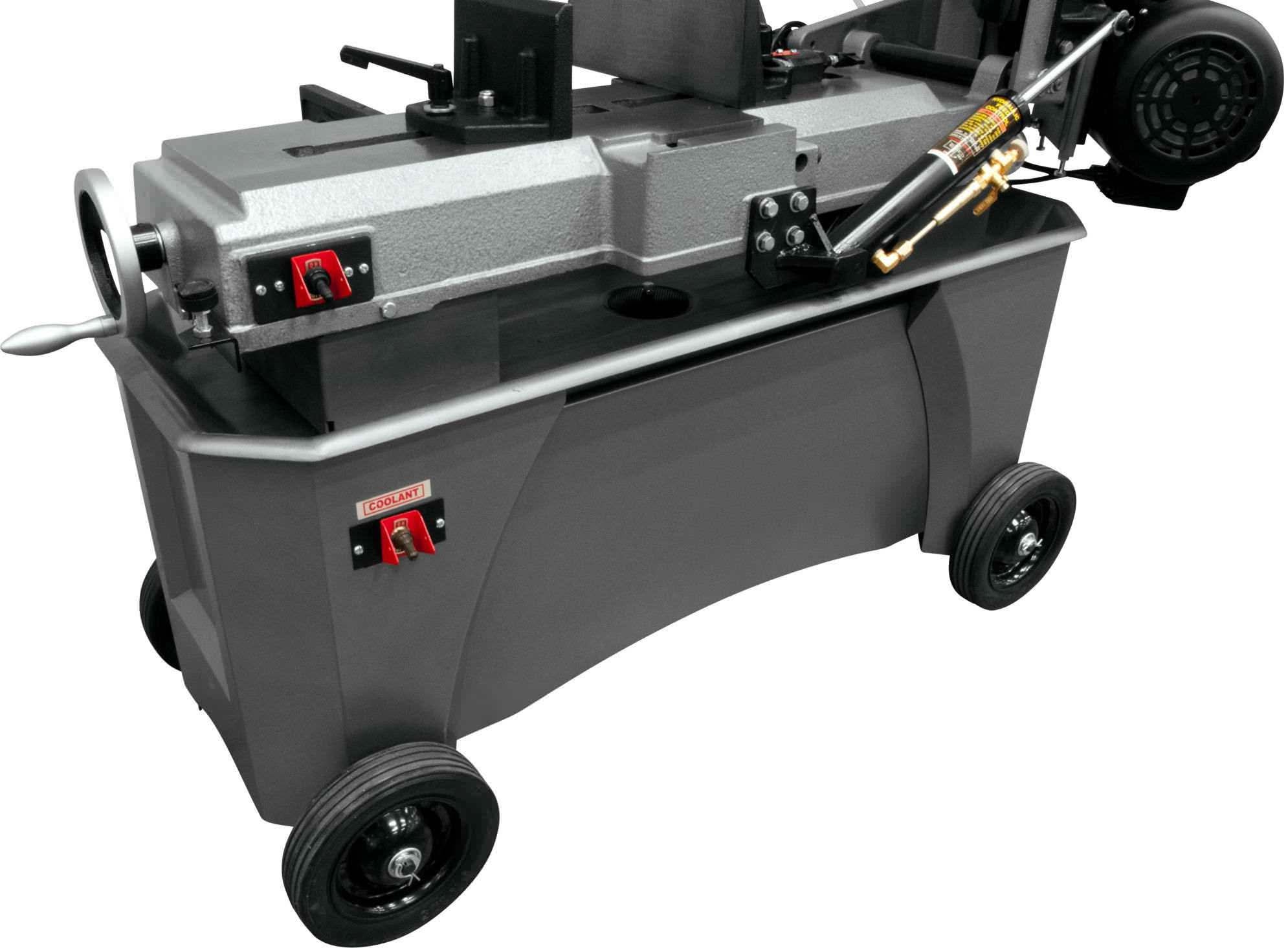

- Mobile stand - Four 8-inch rubber wheels with a built-in storage cabinet and chip tray.
Specifications
| Brand | JET |
|---|---|
| Type | Deluxe Horizontal / Vertical Bandsaw |
| Model | HVBS-712D |
| Round at 90 Degrees | 7 in |
| Round at 45 Degrees | 5 in |
| Rectangle at 90 Degrees | 4 x 11 / 7 x 10-1/4 in |
| Blade Speeds | 86, 132, 178, 260 SFPM |
| Blade Wheel Diameter | 11-3/4 in |
| Vise Swivel | 45 deg |
| Motor | 3/4 HP |
| Power | 115/230V, Single Phase |
| Overall Dimensions | 48 x 17 x 44 in |
| Net Weight | 374 lb |
| Shipping Weight | 418 lb |
| Warranty | 2 Year |
How It Compares
| Model | Vertical Throat | Vise Presets | Drive |
|---|---|---|---|
| HVBS-712 Standard | 4 in | 45 deg swivel | Step Pulley |
| HVBS-712D Deluxe | 8 in | 15 / 30 / 45 deg | Step Pulley |
| HVBS-712DV Variable Speed | 8 in | 45 deg swivel | Variable Speed DC |
Key Facts
- Multi-position guides raise vertical throat capacity to 8 in.
- Cuts round stock up to 7 in at 90 degrees.
- Toolless vise presets at 15, 30, and 45 degrees.
- Net weight 374 lb, shipping weight 418 lb.
- Backed by a 2 year JET warranty.
Who It's For
The deluxe model fits fabrication and weld shops that want larger vertical contour capacity and faster vise setup than the standard HVBS-712. It wires for 115V or 230V single-phase service.
Shipping and Freight
The HVBS-712D ships as LTL freight at about 418 pounds. Plan for a commercial dock or liftgate, and request a freight quote for residential or limited-access delivery.
About JET
JET has built metalworking and woodworking machinery for professional and serious shops for decades, and backs its industrial tools with a multi-year warranty.
Frequently Asked Questions
What does the Deluxe model add over the standard HVBS-712?
Multi-position blade guides that raise vertical throat capacity from 4 to 8 inches, a toolless quick-lock vise with preset miters, and a large infeed table.
How thick can it cut?
It cuts round stock up to 7 inches at 90 degrees and 5 inches at 45 degrees.
What miter angles does the vise preset to?
The toolless quick-lock vise presets at 15, 30, and 45 degrees and swivels to 45 degrees.
What power does it need?
The motor is rated 3/4 HP and wires for 115V or 230V single-phase power.
How does it ship?
It ships as LTL freight at about 418 pounds, so plan for a dock or liftgate delivery.
Talk to a specialist about power, blade selection, and freight before ordering. See the full JET sawing lineup.
