Description
Overview

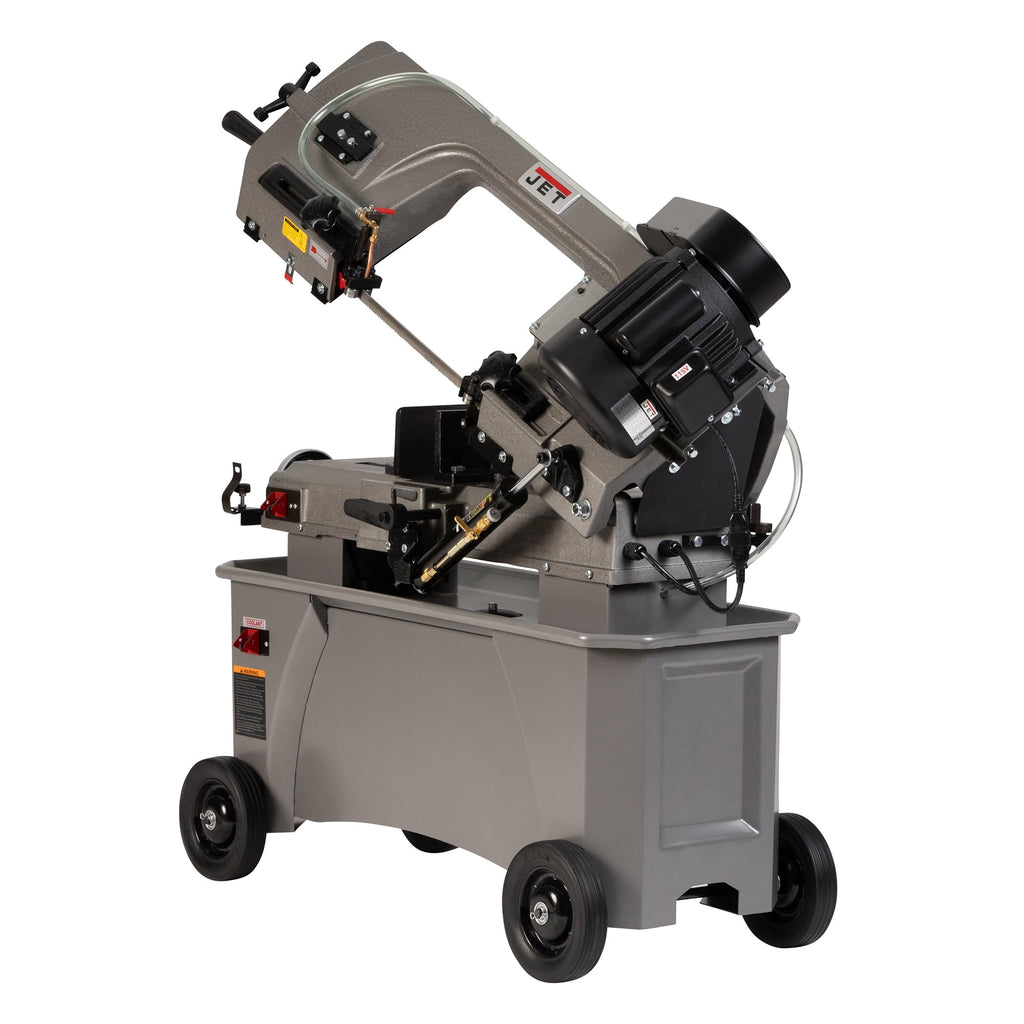

The JET HVBS-712 is a 7-inch by 12-inch horizontal and vertical metalworking bandsaw built for shops that cut bar stock, tube, and angle on a daily basis. It cuts in the horizontal position for stock cutoff and converts to vertical for contour and detail work.
The HVBS-712 runs a belt-to-gear drive into flanged cast iron blade wheels for durability under repeated cuts, and a hydraulic downfeed controls the cut rate so you can walk away during a long cutoff. The wider, taller stand adds a storage cabinet and a chip tray. It belongs in the fabrication and metalworking sawing lineup from JET.
Key Features
- Horizontal and vertical cutting - Cuts off bar stock horizontally and converts to a 9 x 12 in worktable for vertical contour work.
- 7 in round capacity - Cuts round stock up to 7 inches at 90 degrees and 4-1/2 inches at 45 degrees.

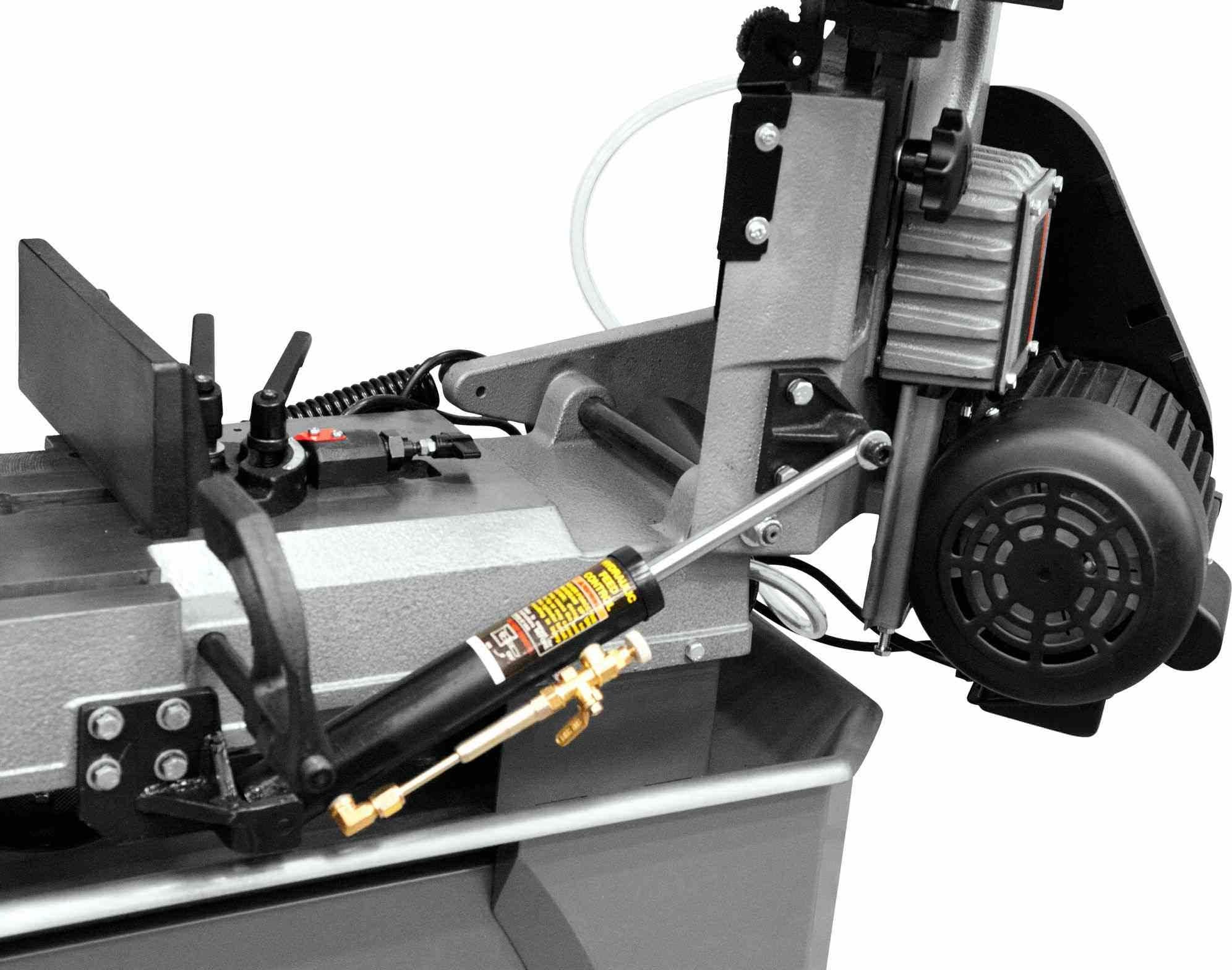

- Hydraulic downfeed - Cast-mounted adjustable hydraulic downfeed controls the cut rate for unattended cutoff.
- Sealed gear drive - Belt to a sealed, hardened, and ground gear drive with flanged cast iron blade wheels.
- Mitering vise - Vise swivels to 45 degrees for angled cuts.

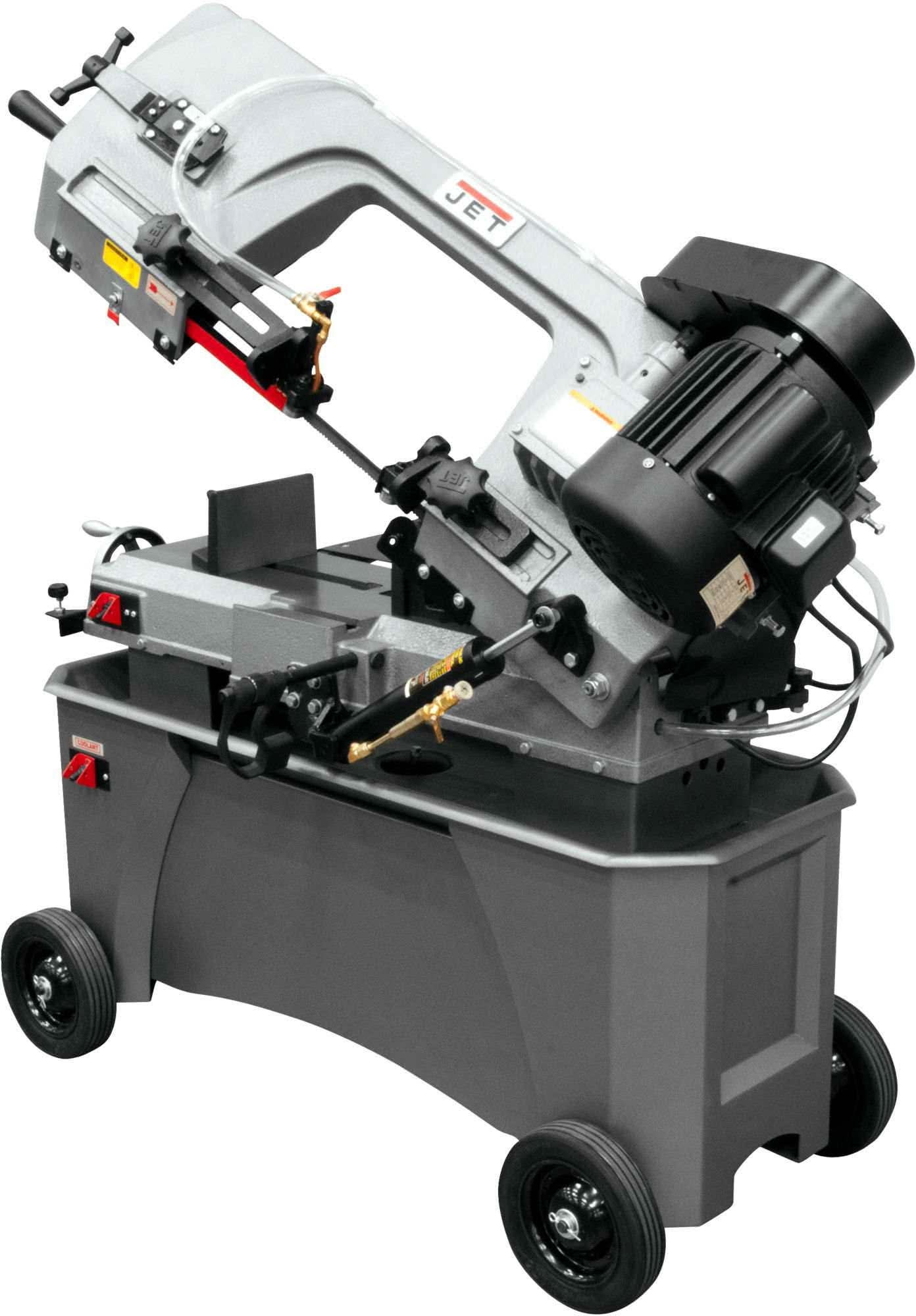

- Mobile stand - Four 8-inch rubber wheels and a built-in storage cabinet with chip tray.
Specifications
| Brand | JET |
|---|---|
| Type | Horizontal / Vertical Bandsaw |
| Model | HVBS-712 |
| Round at 90 Degrees | 7 in |
| Round at 45 Degrees | 4-1/2 in |
| Rectangle at 90 Degrees | 4 x 11 / 7 x 10-3/8 in |
| Blade Speeds | 86, 132, 178, 260 SFPM |
| Blade Wheel Diameter | 11-3/4 in |
| Vise Swivel | 45 deg |
| Motor | 3/4 HP |
| Power | 115/230V, Single Phase |
| Overall Dimensions | 48 x 17 x 40 in |
| Net Weight | 374 lb |
| Shipping Weight | 418 lb |
| Warranty | 2 Year |
How It Compares
| Model | Round Cap at 90 deg | Drive | Motor |
|---|---|---|---|
| HVBS-712 | 7 in | Step Pulley | 3/4 HP |
| HVBS-712D Deluxe | 7 in | Step Pulley | 3/4 HP |
| HVBS-712DV Variable Speed | 7 in | Variable Speed DC | 1 HP |
Key Facts
- Cuts round stock up to 7 in at 90 degrees.
- Four blade speeds: 86, 132, 178, and 260 SFPM.
- Hydraulic downfeed supports unattended cutoff.
- Net weight 374 lb, shipping weight 418 lb.
- Backed by a 2 year JET warranty.
Who It's For
This saw fits fabrication shops, weld shops, and maintenance departments that cut steel bar, tube, and angle regularly and also want vertical capability for contour work. It wires for 115V or 230V single-phase service.
Shipping and Freight
The HVBS-712 ships as LTL freight at about 418 pounds. Plan for a commercial dock or liftgate, and request a freight quote for residential or limited-access delivery.
About JET
JET has built metalworking and woodworking machinery for professional and serious shops for decades, and backs its industrial tools with a multi-year warranty.
Frequently Asked Questions
How thick can the HVBS-712 cut?
It cuts round stock up to 7 inches at 90 degrees and 4-1/2 inches at 45 degrees, with rectangular capacity up to 7 x 10-3/8 inches.
Can it cut vertically?
Yes. It converts to a vertical position with a 9 x 12 inch worktable for contour and detail cutting.
How many blade speeds does it have?
Four blade speeds: 86, 132, 178, and 260 SFPM, set with the step pulley.
What power does it need?
The motor is rated 3/4 HP and wires for 115V or 230V single-phase power.
How does it ship?
It ships as LTL freight at about 418 pounds, so plan for a dock or liftgate delivery.
Talk to a specialist about power, blade selection, and freight before ordering. See the full JET sawing lineup.
