Description
Overview

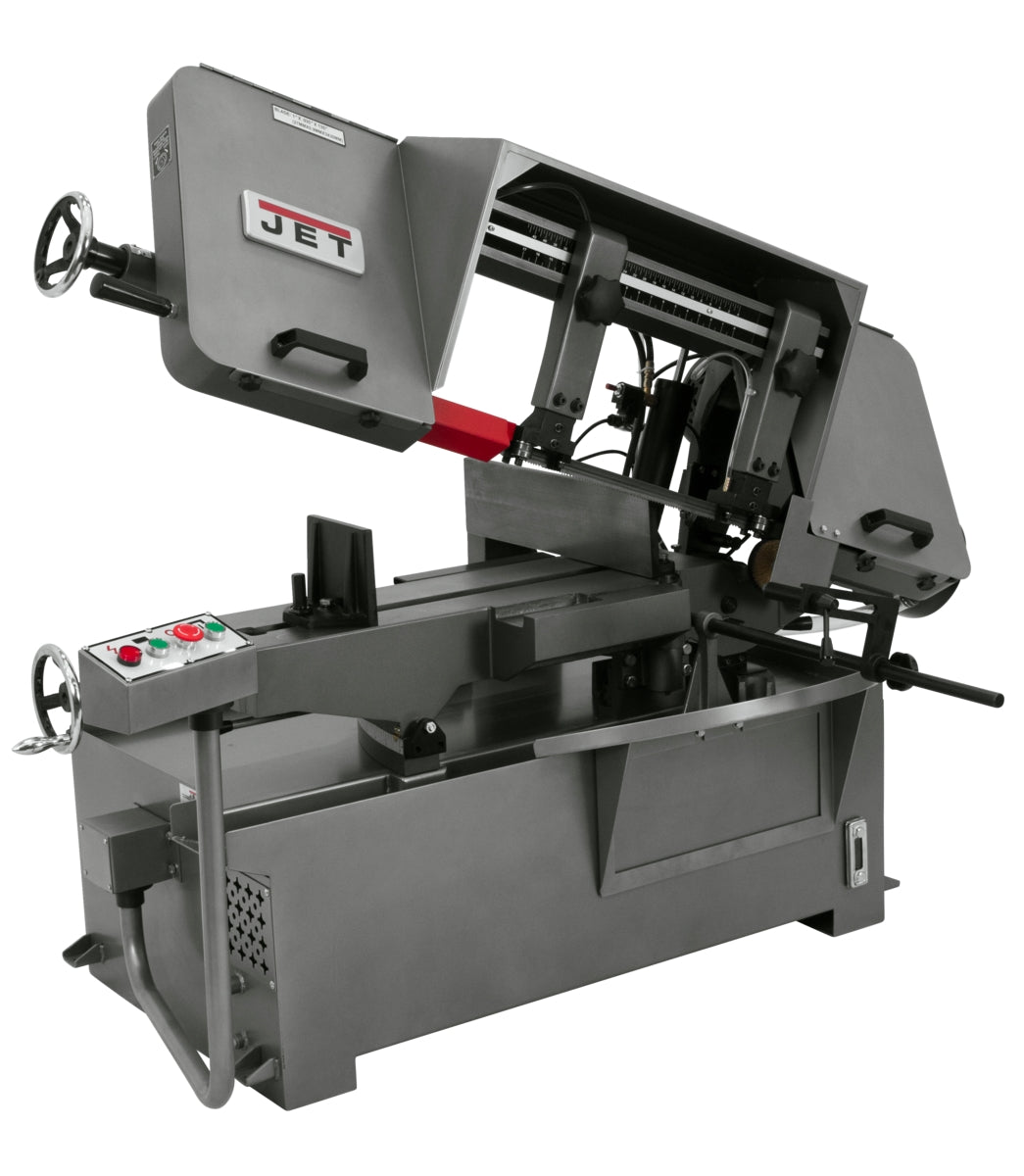

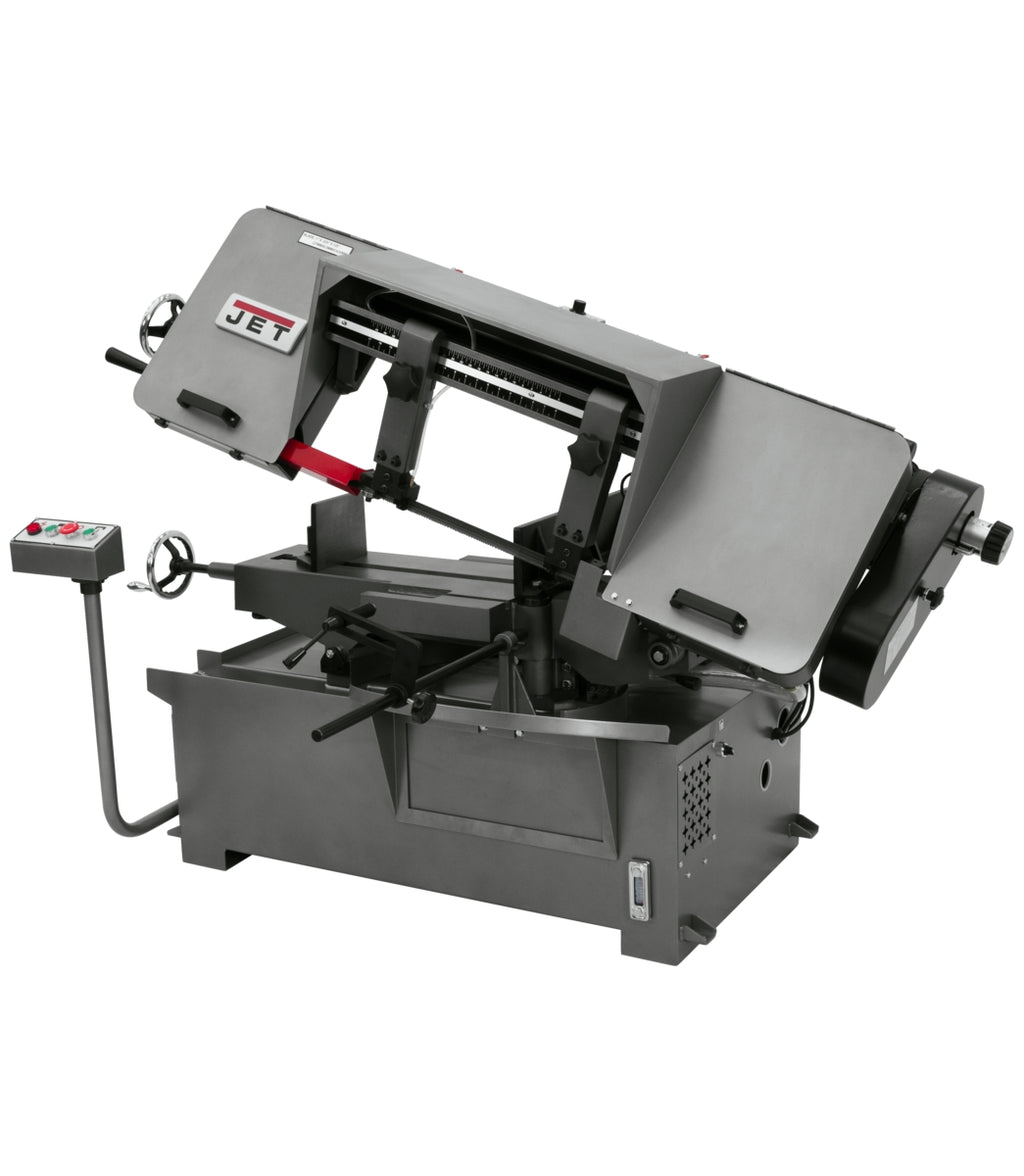

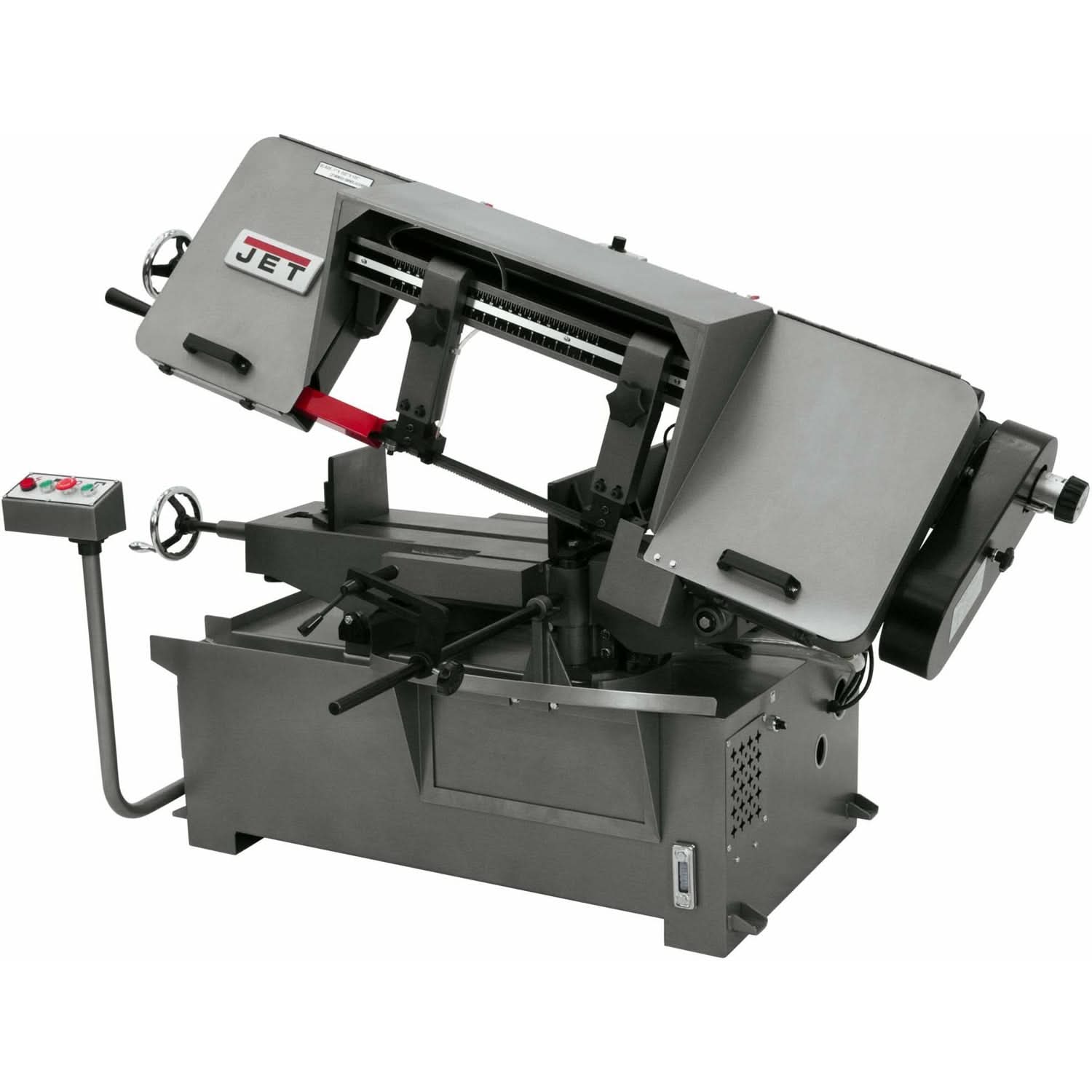

The JET J-7040M is a 10 in x 16 in horizontal mitering bandsaw built for fabrication shops that cut angles all day. A swiveling head lets the saw cut any angle from 0 to 45 degrees while the base and the secured workpiece stay put, which keeps miters accurate and repeatable.
This saw cuts up to 10 in round and 10 x 14 in rectangular stock at 90 degrees, with an 8-1/2 in round capacity at 45 degrees. A 2 HP three-phase motor drives a variable speed system through a hardened gear transmission running in an oil bath, and a six contact point blade guide keeps the band tracking through heavy cuts.
Key Features
- Swivel head mitering - the head swivels 0 to 45 degrees while the workpiece stays secured for accurate, repeatable miters.
- 10 x 16 in capacity - cuts 10 in round and 10 x 14 in rectangular stock at 90 degrees.
- Variable speed drive - sets blade speed to match material and section size.
- Six contact point blade guides - cam follower bearings on eccentric shafts on both sides of the blade keep it square.
- Oil bath transmission - hardened and ground gears run in an oil bath for durable, quiet power.
- Controlled downfeed - dual counterbalance springs work with a hydraulic cylinder to control the rate of descent.
Specifications
| Brand | JET Tools |
|---|---|
| Type | Horizontal Mitering Bandsaw |
| Model | J-7040M |
| Round Capacity at 90 | 10 in |
| Rectangular Capacity at 90 | 10 x 14 in (and 2 x 16 in) |
| Round Capacity at 45 | 8-1/2 in |
| Rectangular Capacity at 45 | 8-1/2 x 9 in |
| Miter Range | Head swivels 0 to 45 degrees |
| Motor | 2 HP |
| Power | 230/460V / Three Phase |
| Drive | Variable Speed |
| Blade Wheel Diameter | 14 in |
| Orientation | Horizontal |
| Dimensions (W x D x H) | 36 x 71.5 x 26 in |
| Weight | 643 lb (gross) |
| Warranty | 2 Year |
How It Compares
| Model | Capacity at 90 | Miter | Drive |
|---|---|---|---|
| HBS-1018W | 10 in round / 10 x 16 in | Vise to 45 degrees | Belt |
| J-7040M | 10 in round / 10 x 14 in | Head swivels 0 to 45 degrees | Variable Speed |
Key Facts
- Head swivels 0 to 45 degrees while the workpiece stays clamped.
- Cuts 10 in round and 10 x 14 in rectangular stock at 90 degrees.
- Variable speed drive on a 2 HP three-phase motor.
- Six contact point blade guide system with cam follower bearings.
- Backed by a 2 year warranty.
Who It's For
This saw fits fabrication shops cutting structural steel, tube, and bar that run a high share of angle and miter cuts. It requires three-phase power, so confirm your service before installation.
What's Included
- The J-7040M mitering bandsaw
- Quick-positioning vise and adjustable material stop
- Blade and six contact point blade guides
- Operator manual and documentation
Shipping and Freight
This bandsaw ships LTL freight at roughly 643 lb gross. Plan for liftgate or forklift offload and confirm receiving access before the pallet arrives.
About JET
JET is a JPW Industries brand of metalworking and woodworking machinery. The JET sawing line covers manual, geared head, mitering, and semi-automatic horizontal bandsaws for shops cutting metal stock.
Frequently Asked Questions
How does the J-7040M cut miters?

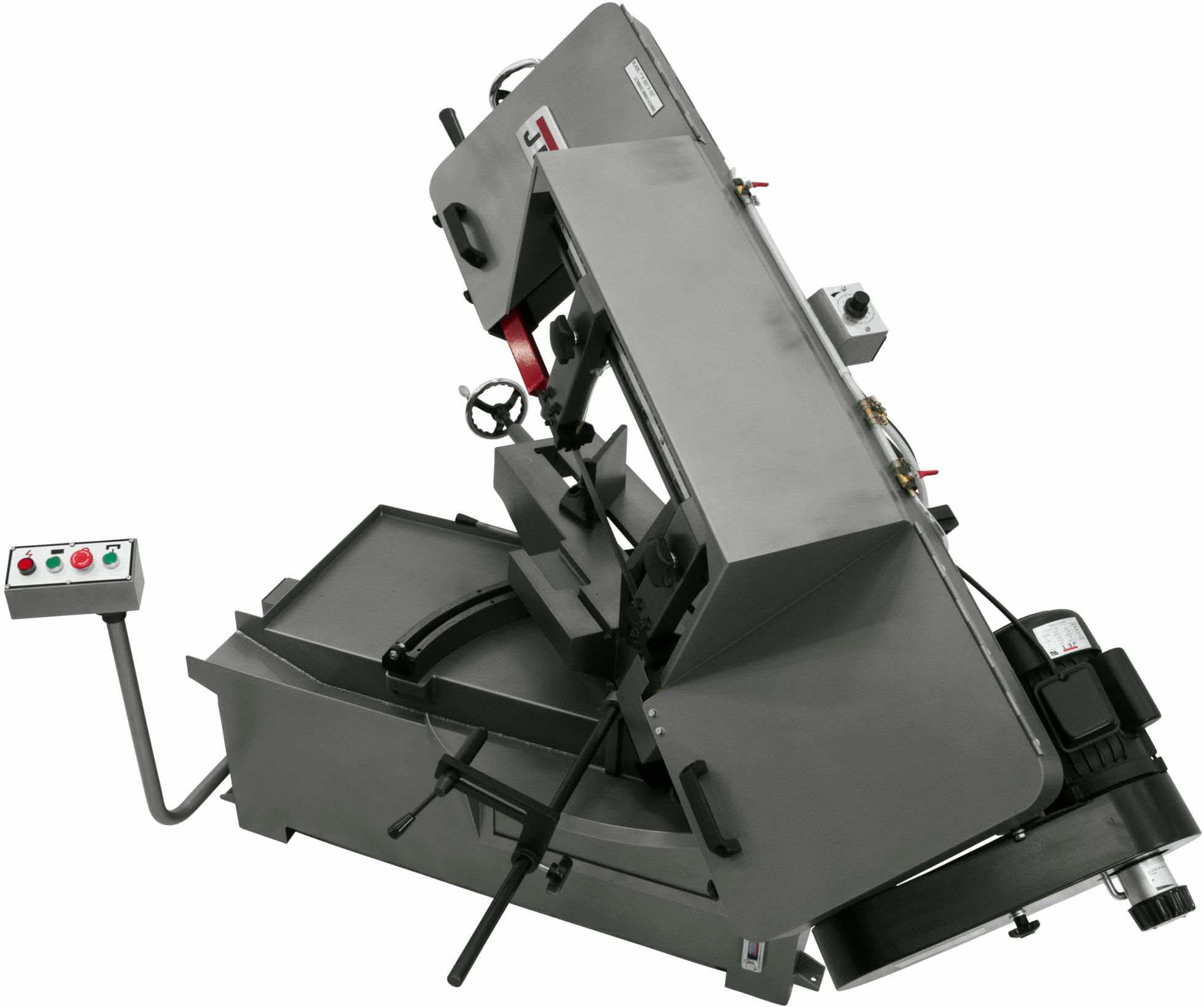

The head swivels from 0 to 45 degrees while the base and the clamped workpiece stay in place. This keeps angle cuts accurate without repositioning the stock.
What can it cut?
At 90 degrees it cuts up to 10 in round and 10 x 14 in rectangular stock. At 45 degrees it cuts up to 8-1/2 in round.
What power does it require?
It uses a 2 HP three-phase motor rated for 230/460V. Confirm your three-phase service before installation.
How is the blade speed set?
The J-7040M uses a variable speed drive, so you can dial in the blade speed for the material and section being cut.
How are the blade guides built?
The adjustable guides use a six contact point system with cam follower bearings on eccentric shafts on both sides of the blade, plus side bearings and carbide pads to distribute the load.
