Description
Overview

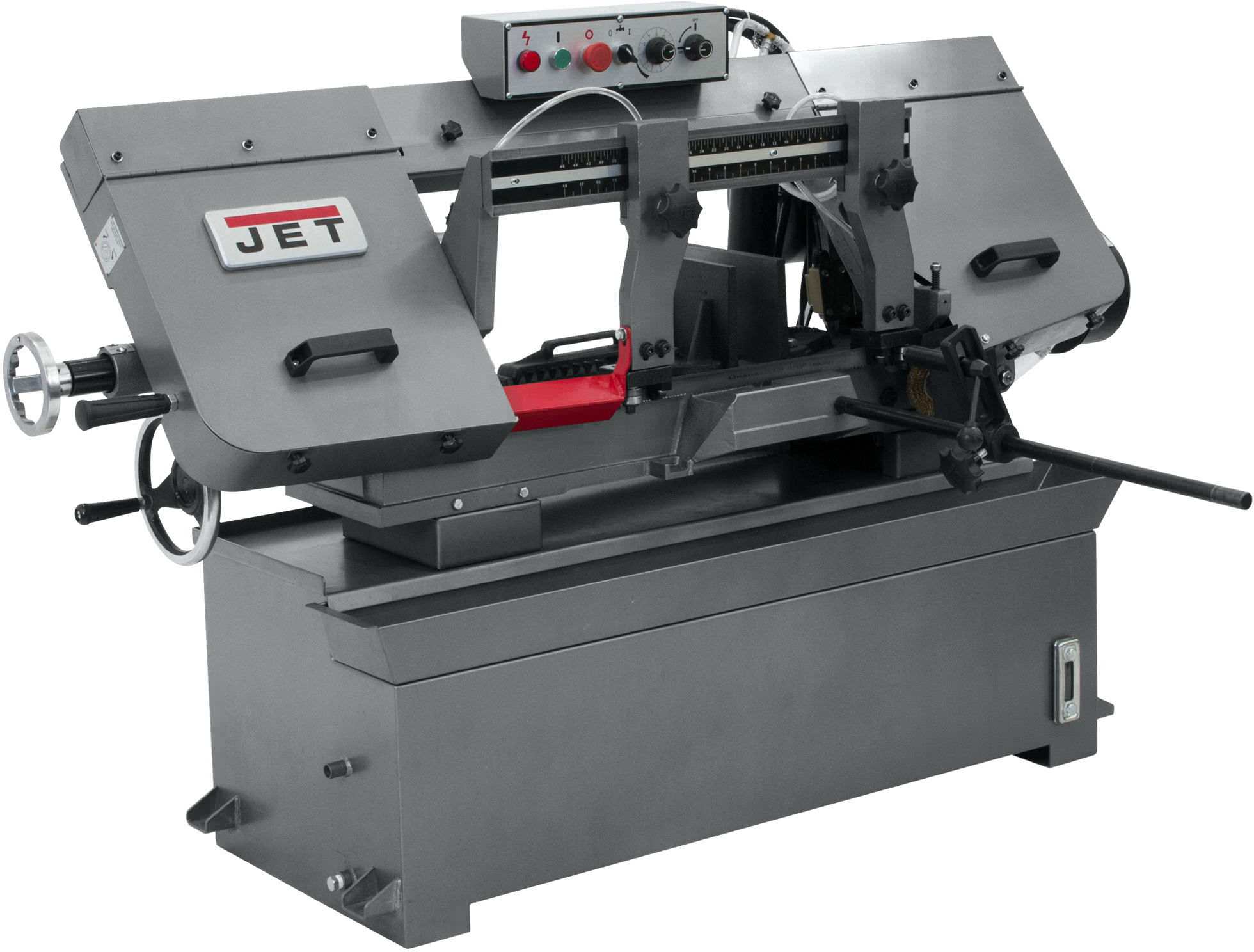

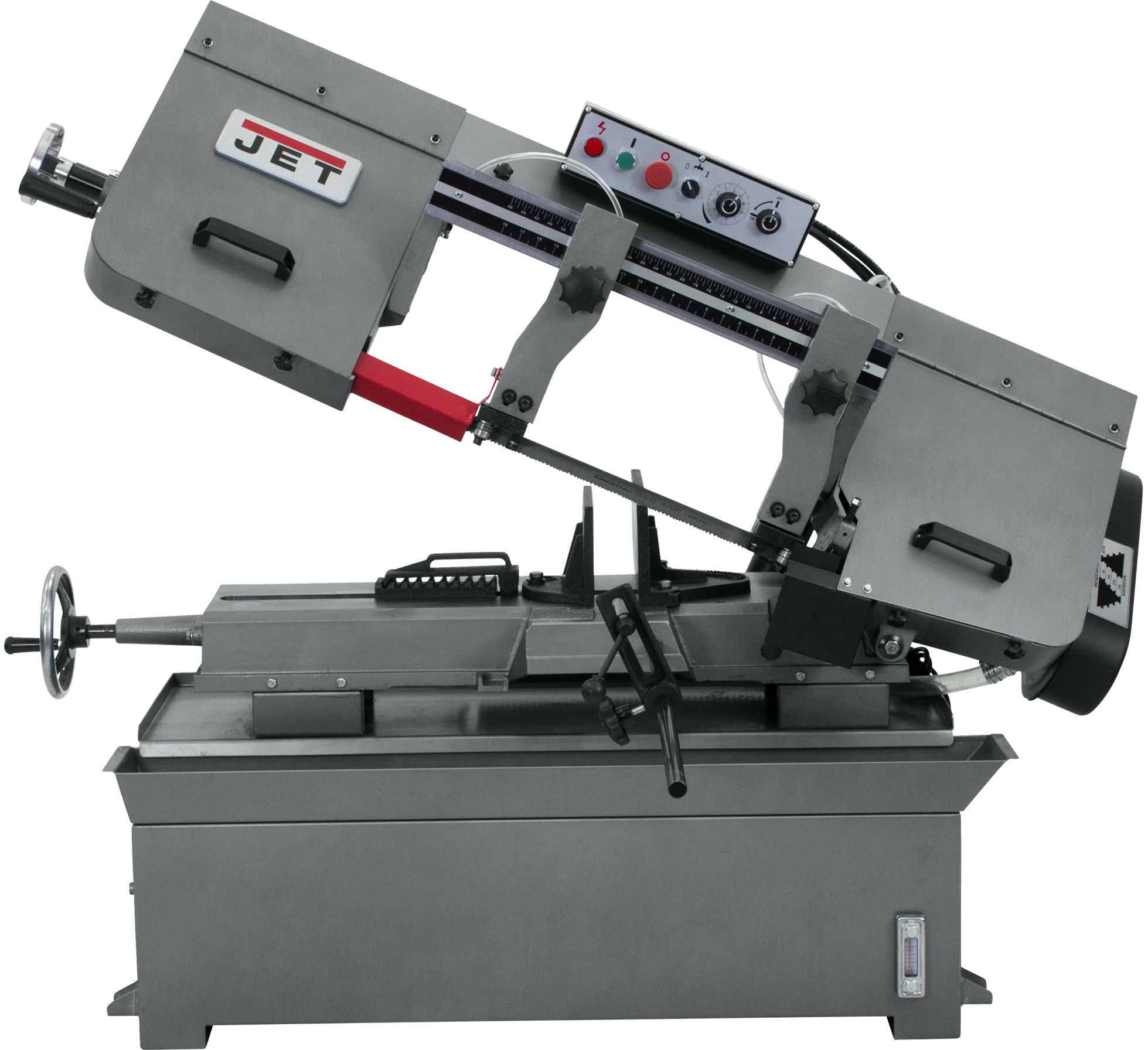

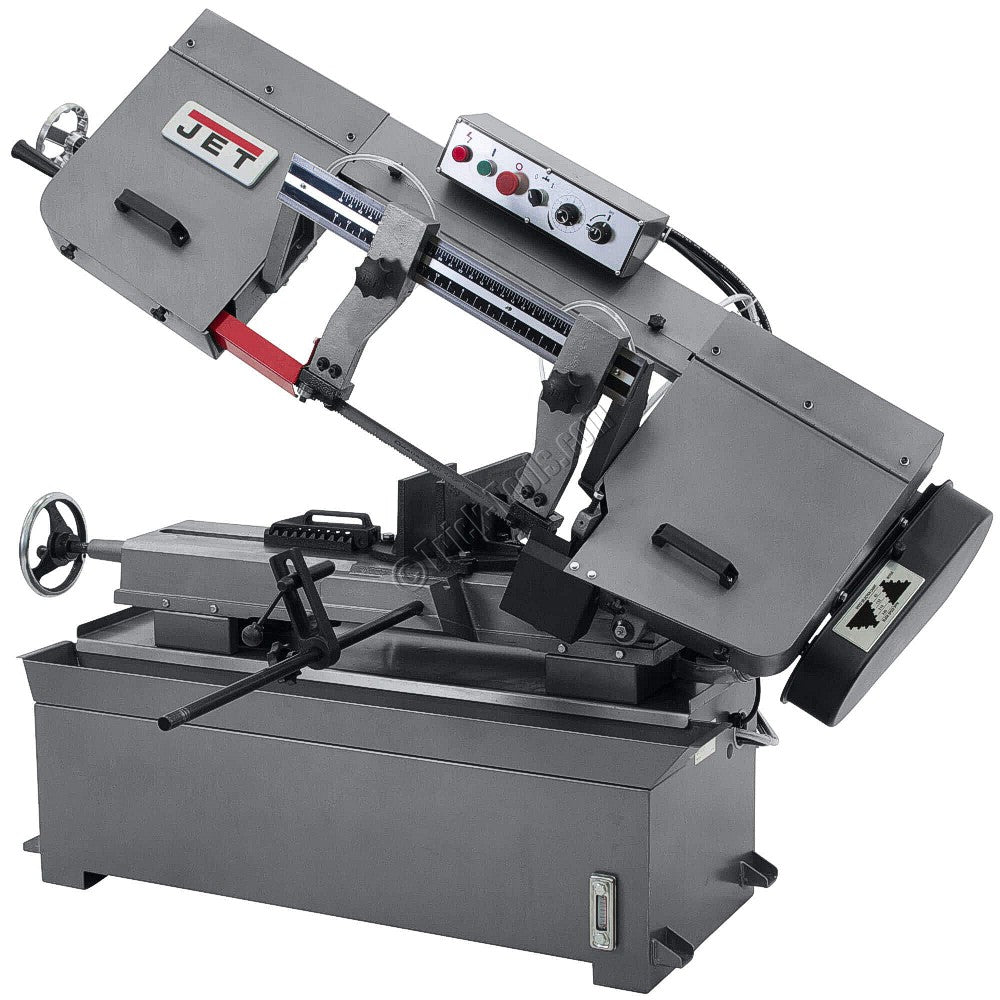

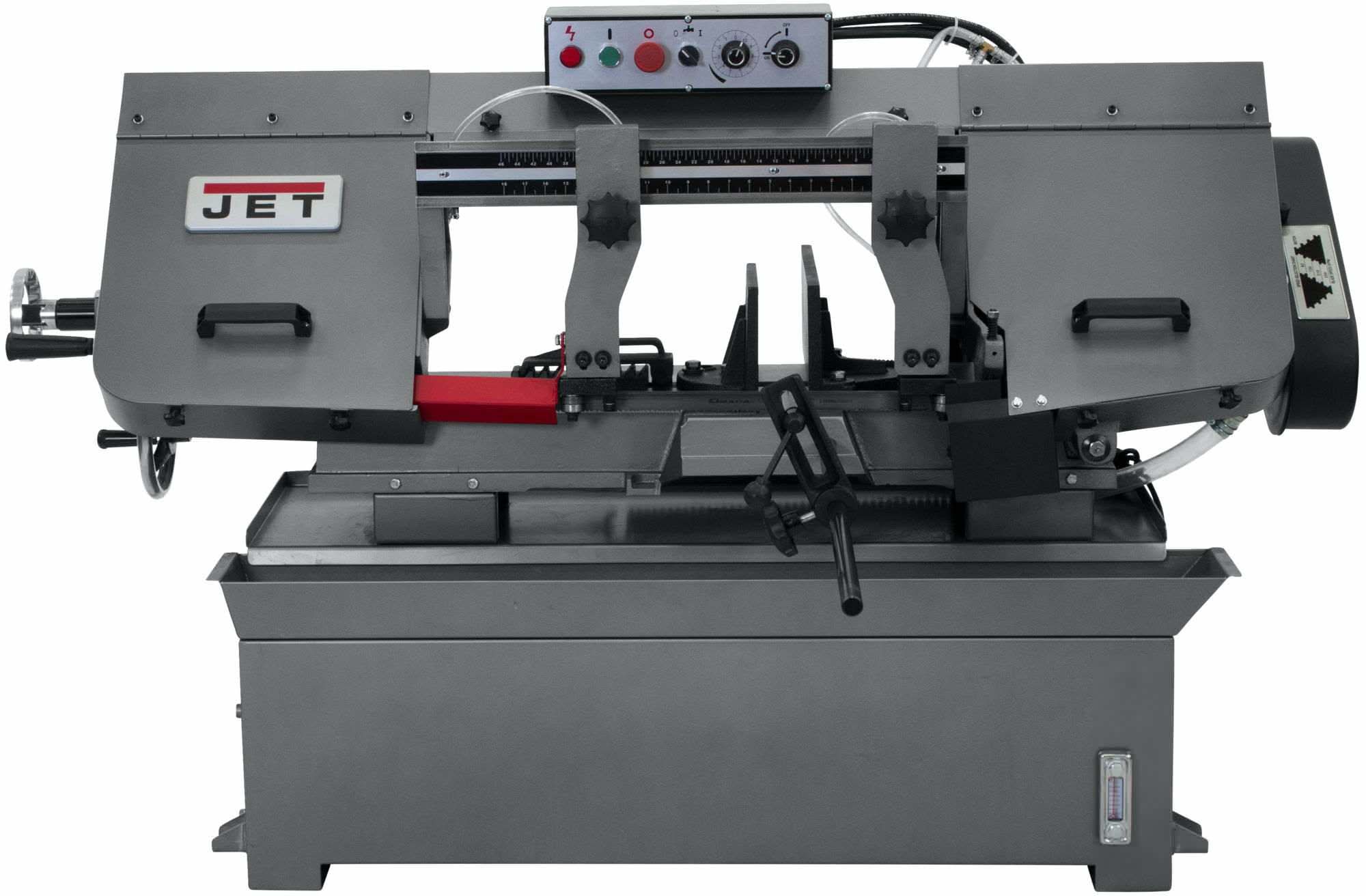

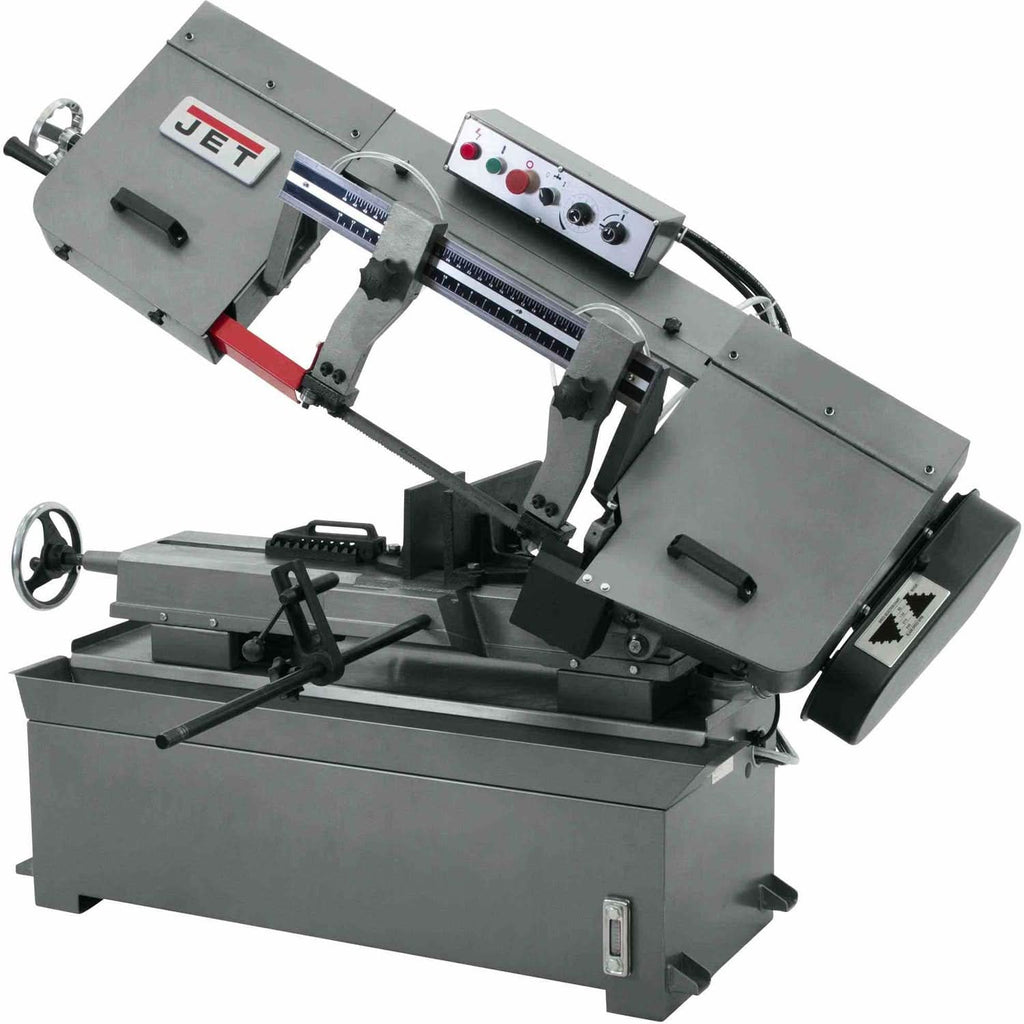

The JET HBS-1018W is a 10 in x 18 in horizontal bandsaw built for metal cutting in fabrication and machine shops. A heavy duty machined bed limits vibration so the saw holds a clean, repeatable cut over long runs.
This saw cuts up to 10 in round and 10 x 16 in rectangular stock at 90 degrees. A 2 HP single-phase motor drives a belt with four blade speeds, carbide blade guides keep the band square, and coolant feeds through the guides with an oversized chip tray to cut cleanup.
Key Features
- Four blade speeds - a belt drive sets 82, 132, 210, and 330 SFPM to match the material.
- 10 x 18 in capacity - cuts 10 in round and 10 x 16 in rectangular stock at 90 degrees.
- Machined bed - a heavy duty machined table bed limits vibration for precise cuts.
- Carbide blade guides - parallel double-row ball bearing support holds the blade square through the cut.
- Mitering vise to 45 degrees - quick-positioning vise with fully adjustable jaws swivels to 45 degrees.
- Hydraulic downfeed - fully adjustable feed with a separate on/off control valve and coolant through the guides.
Specifications
| Brand | JET Tools |
|---|---|
| Type | Horizontal Bandsaw |
| Model | HBS-1018W |
| Round Capacity at 90 | 10 in |
| Rectangular Capacity at 90 | 10 x 16 in (and 6-1/2 x 18 in) |
| Round Capacity at 45 | 7-1/2 in |
| Rectangular Capacity at 45 | 10 x 7-1/2 in |
| Miter Range | Vise swivels to 45 degrees |
| Motor | 2 HP |
| Power | 230V Only / Single Phase |
| Amperage | 13A |
| Drive | Belt Drive |
| Number of Speeds | 4 |
| Blade Speed | 82, 132, 210, 330 SFPM |
| Blade Size | 130 in |
| Blade Wheel Diameter | 14 in |
| Bed Height | 23.5 in |
| Orientation | Horizontal |
| Dimensions (L x W x H) | 69 x 28 x 42-3/4 in |
| Weight | 906 lb (gross) |
| Warranty | 2 Year |
How It Compares
| Model | Capacity at 90 | Motor | Speeds |
|---|---|---|---|
| HBS-916 | 9 in round / 8-1/2 x 14 in | 1-1/2 HP | 4 |
| HBS-1018W | 10 in round / 10 x 16 in | 2 HP | 4 |
| HBS-1321W | 13 in round / 10 x 21 in | 3 HP | Variable |
Key Facts
- Cuts 10 in round and 10 x 16 in rectangular stock at 90 degrees.
- Four belt-driven blade speeds at 82, 132, 210, and 330 SFPM.
- Carbide blade guides with double-row ball bearing support.
- 2 HP motor on 230V single phase, drawing 13A.
- Backed by a 2 year warranty.
Who It's For
This saw fits fabrication and machine shops cutting bar, tube, and structural stock up to 10 in round that want carbide guides and a vibration-damping machined bed. It runs only on 230V single phase, so confirm your service before installation.
What's Included
- The HBS-1018W bandsaw
- Quick-positioning swivel vise
- Blade, carbide blade guides, and self propelled blade brush
- Operator manual and documentation
Shipping and Freight
This bandsaw ships LTL freight at roughly 906 lb gross. Plan for liftgate or forklift offload and confirm receiving access before the pallet arrives.
About JET
JET is a JPW Industries brand of metalworking and woodworking machinery. The JET sawing line covers manual, geared head, and semi-automatic horizontal bandsaws for shops cutting metal stock.
Frequently Asked Questions
What can the HBS-1018W cut?
At 90 degrees it cuts up to 10 in round and 10 x 16 in rectangular stock. At 45 degrees it cuts up to 7-1/2 in round.
How many blade speeds does it have?
It has four belt-driven speeds at 82, 132, 210, and 330 SFPM.
What power does it require?
It uses a 2 HP single-phase motor wired for 230V only, drawing 13A. Confirm your service before installation.
Does it have coolant?
Yes. Coolant is distributed through the blade guides, and an oversized chip tray reduces over spray and cleanup.
What blade length does it use?
It runs a 130 in blade. JET offers replacement bi-metal blades in coarse and fine tooth pitches for this saw.
