Description
Overview

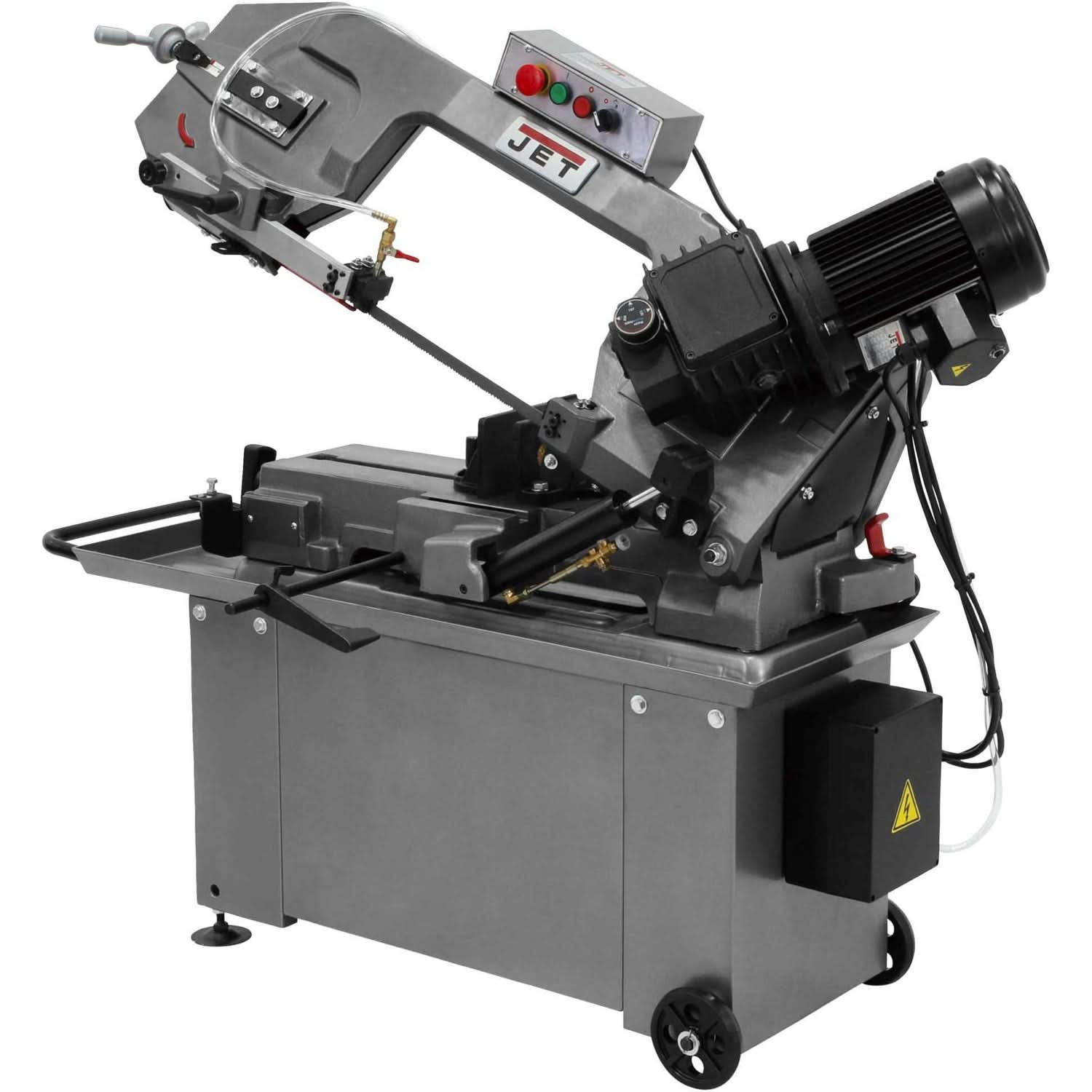

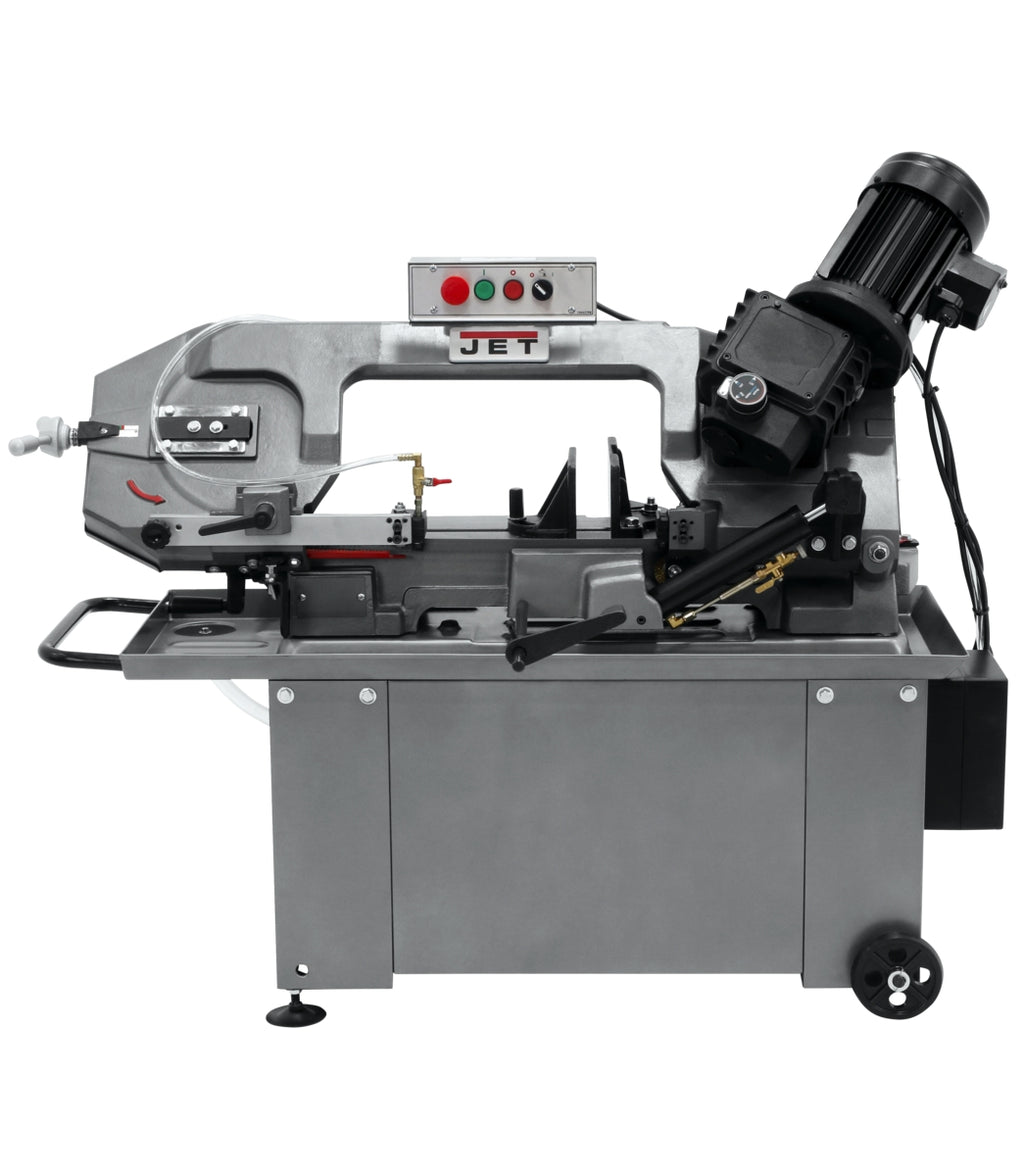

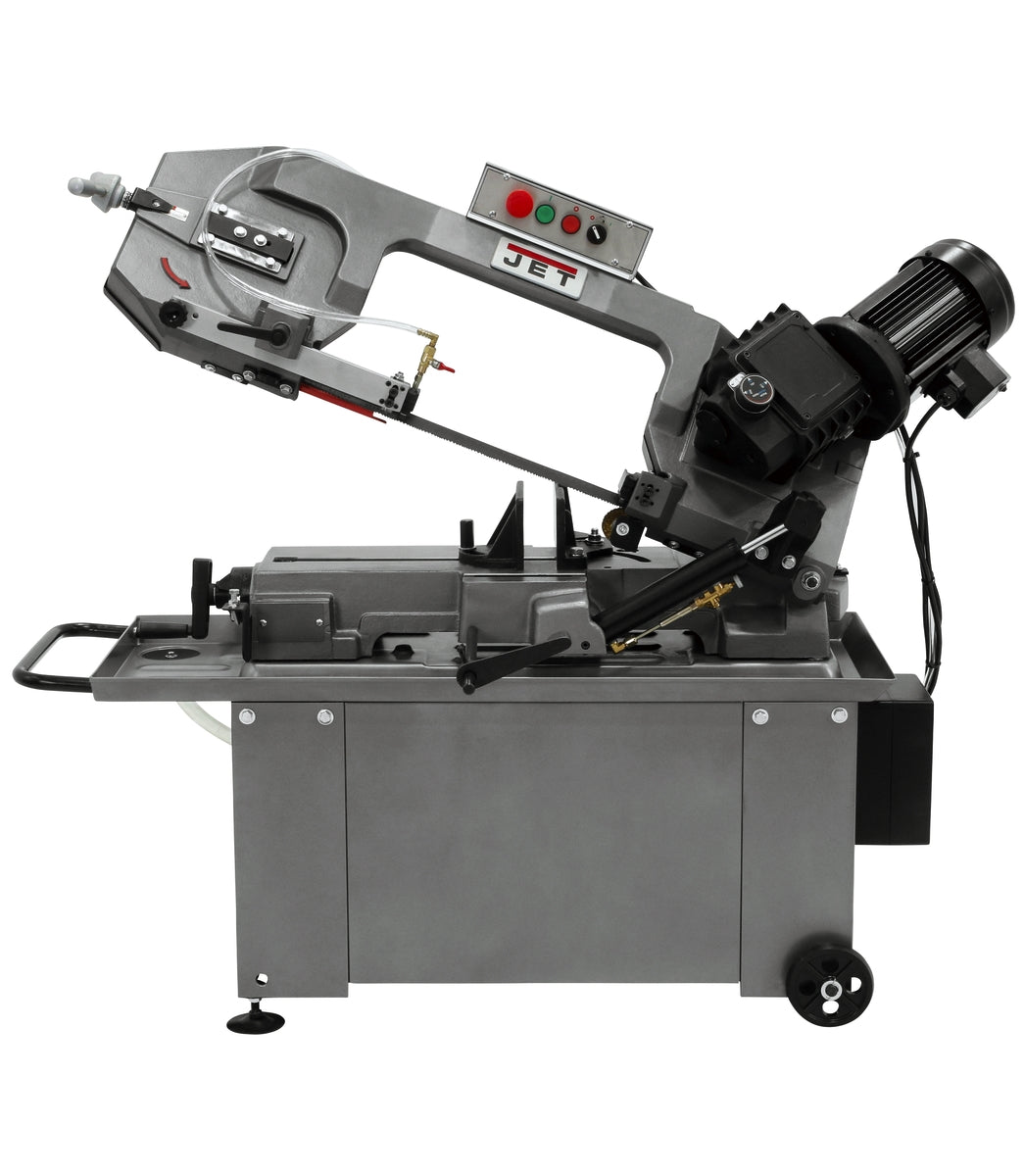

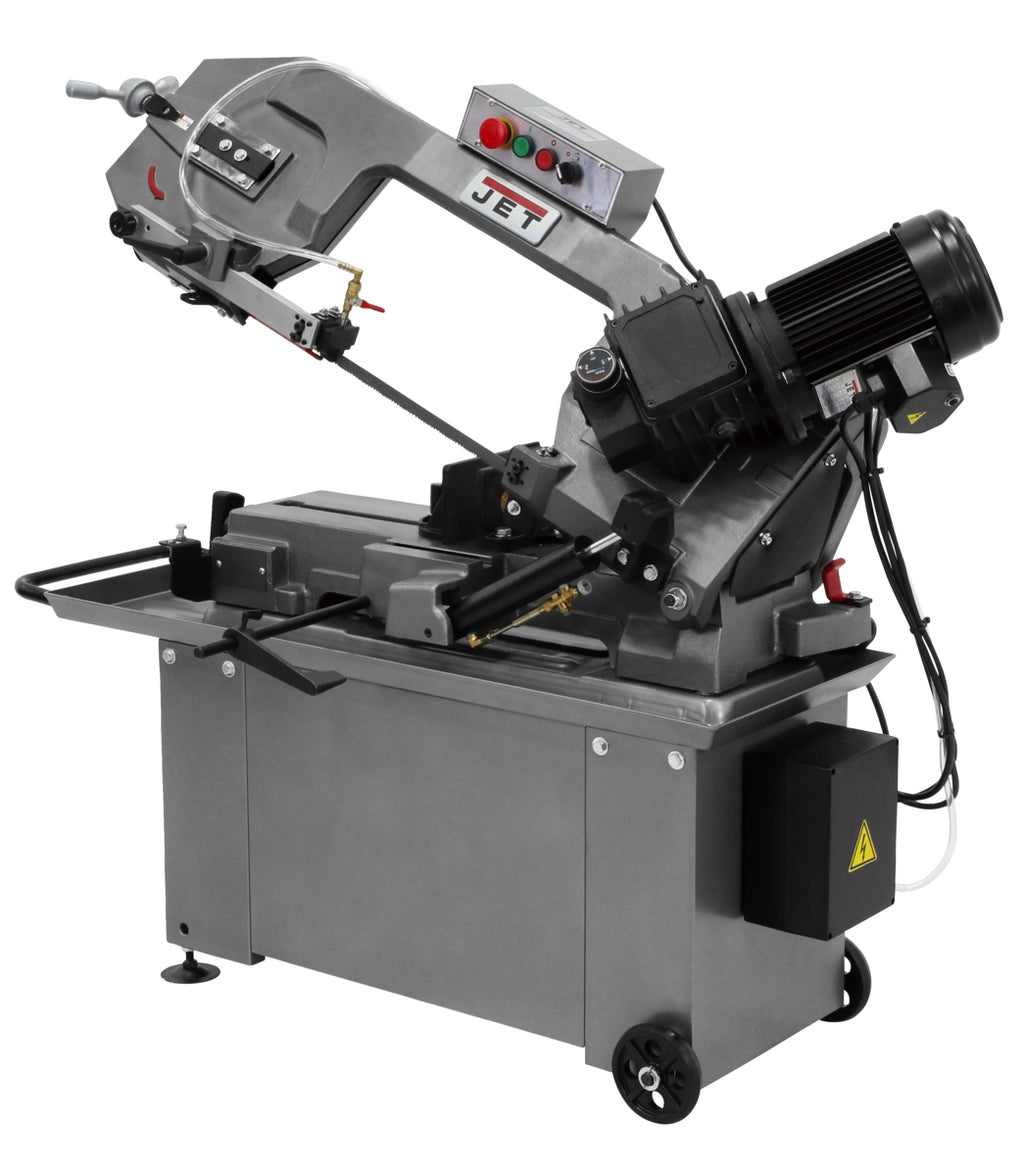

The JET HBS-814GH is an 8 in x 14 in horizontal geared head bandsaw built for metal cutting in fabrication and machine shops. A heavy duty geared head transmission gives quick speed changes, and a hydraulic downfeed controls the cut.

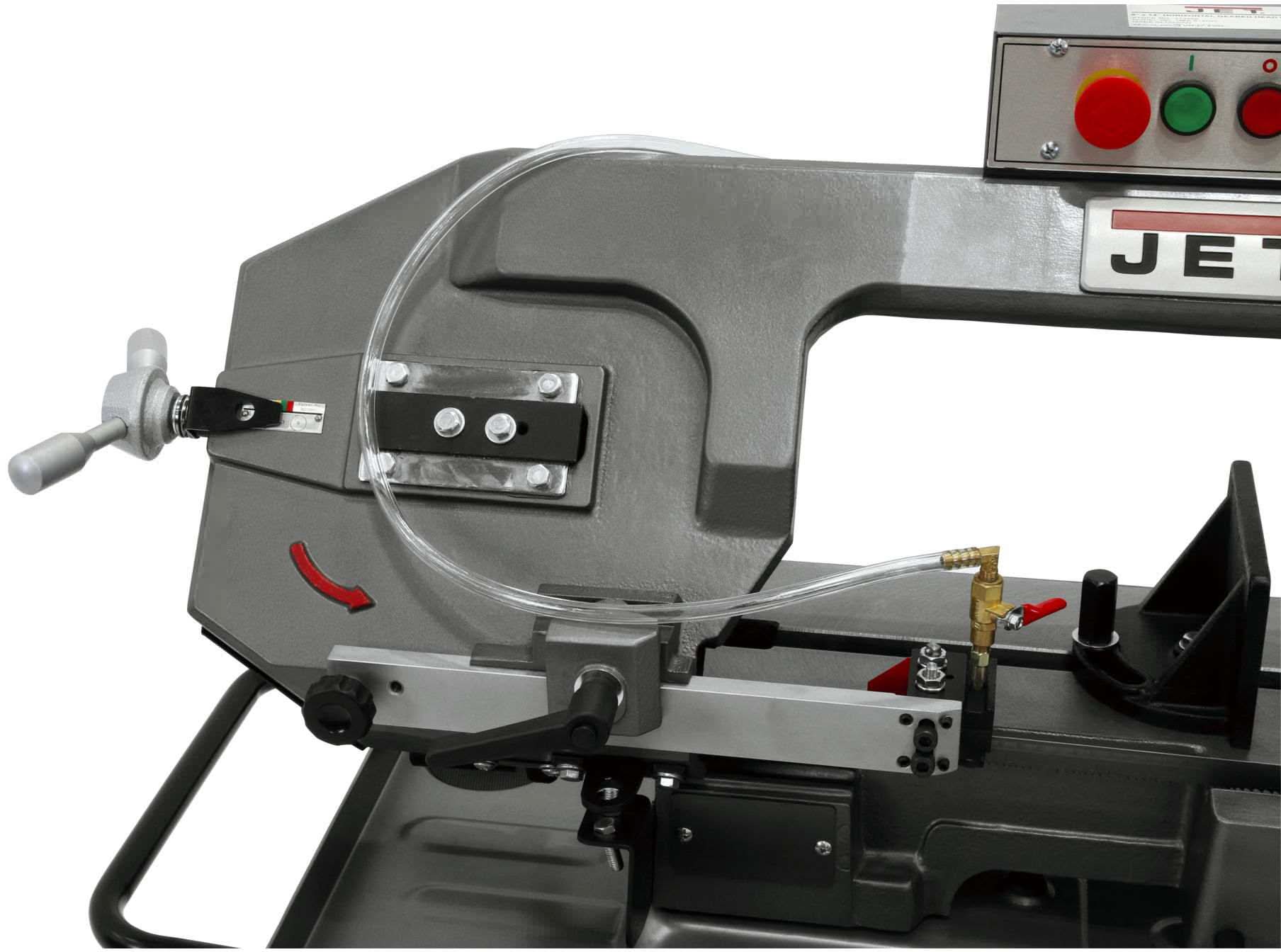

This saw cuts up to 8 in round and 14 x 8 in rectangular stock at 90 degrees, and the vise swivels to 45 degrees for miter work. Hardened and ground drive shaft and worm gears transmit torque to the 12 in blade wheels, while a self propelled blade brush keeps chips clear and extends blade life.
Key Features
- Geared head transmission - a heavy duty geared drive gives three blade speeds at 135, 197, and 256 SFPM for quick changes by material.
- 8 x 14 in capacity - cuts 8 in round and 14 x 8 in rectangular stock at 90 degrees.
- Mitering vise to 45 degrees - quick positioning vise with fully adjustable jaws swivels to 45 degrees.
- Hydraulic downfeed - a fully adjustable hydraulic feed controls blade descent for clean, consistent cuts.
- Self propelled blade brush - keeps the blade clear of chips to extend blade life.
- Mobile base - built-in wheels make storage and repositioning straightforward.
Specifications
| Brand | JET Tools |
|---|---|
| Type | Horizontal Geared Head Bandsaw |
| Model | HBS-814GH |
| Round Capacity at 90 | 8 in |
| Rectangular Capacity at 90 | 14 x 8 in (and 2 x 14 in) |
| Round Capacity at 45 | 6-1/2 in |
| Rectangular Capacity at 45 | 6-1/2 x 6 in (and 2 x 7 in) |
| Miter Range | Vise swivels to 45 degrees |
| Motor | 1 HP |
| Power | 115/230V / Single Phase |
| Drive | Geared Head |
| Number of Speeds | 3 |
| Blade Speed | 135, 197, 256 SFPM |
| Blade Size | 97 in |
| Blade Wheel Diameter | 12 in |
| Bed Height | 26 in |
| Orientation | Horizontal |
| Dimensions (L x W x H) | 51-1/2 x 18-1/8 x 44 in |
| Weight | 342 lb (gross) |
| Warranty | 2 Year |
How It Compares
| Model | Capacity at 90 | Motor | Drive |
|---|---|---|---|
| HBS-814GH | 8 in round / 14 x 8 in | 1 HP | Geared Head |
| HBS-916 | 9 in round / 16 x 9 in | 1-1/2 HP | Belt |
Key Facts
- Cuts 8 in round and 14 x 8 in rectangular stock at 90 degrees.
- Three blade speeds at 135, 197, and 256 SFPM from a geared head drive.
- Vise swivels to 45 degrees for miter cuts.
- Runs on a 1 HP motor wired for 115V or 230V single phase.
- Backed by a 2 year warranty.
Who It's For
This saw fits fabrication and machine shops cutting bar, tube, and structural stock up to 8 in round who want geared head durability and quick speed changes. It runs on single-phase service and rolls on a built-in base for flexible placement.
What's Included
- The HBS-814GH bandsaw with mobile base
- Quick-positioning swivel vise
- Blade and self propelled blade brush
- Operator manual and documentation
Shipping and Freight
This bandsaw ships LTL freight at roughly 342 lb gross. Plan for liftgate or forklift offload and confirm receiving access before the pallet arrives.
About JET
JET is a JPW Industries brand of metalworking and woodworking machinery. The JET sawing line covers manual, geared head, and semi-automatic horizontal bandsaws for shops cutting metal stock.
Frequently Asked Questions
What can the HBS-814GH cut?
At 90 degrees it cuts up to 8 in round and 14 x 8 in rectangular stock. At 45 degrees it cuts up to 6-1/2 in round.
How many blade speeds does it have?
It has three speeds at 135, 197, and 256 SFPM, changed through the geared head transmission.
Does it cut miters?
Yes. The quick-positioning vise has fully adjustable jaws and swivels to 45 degrees for miter cuts.
What power does it require?
It uses a 1 HP single-phase motor that can be wired for 115V or 230V. Confirm your service before installation.
What blade length does it use?
It runs a 97 in blade. JET offers replacement bi-metal and carbon blades sized for this saw.
