Description
Overview

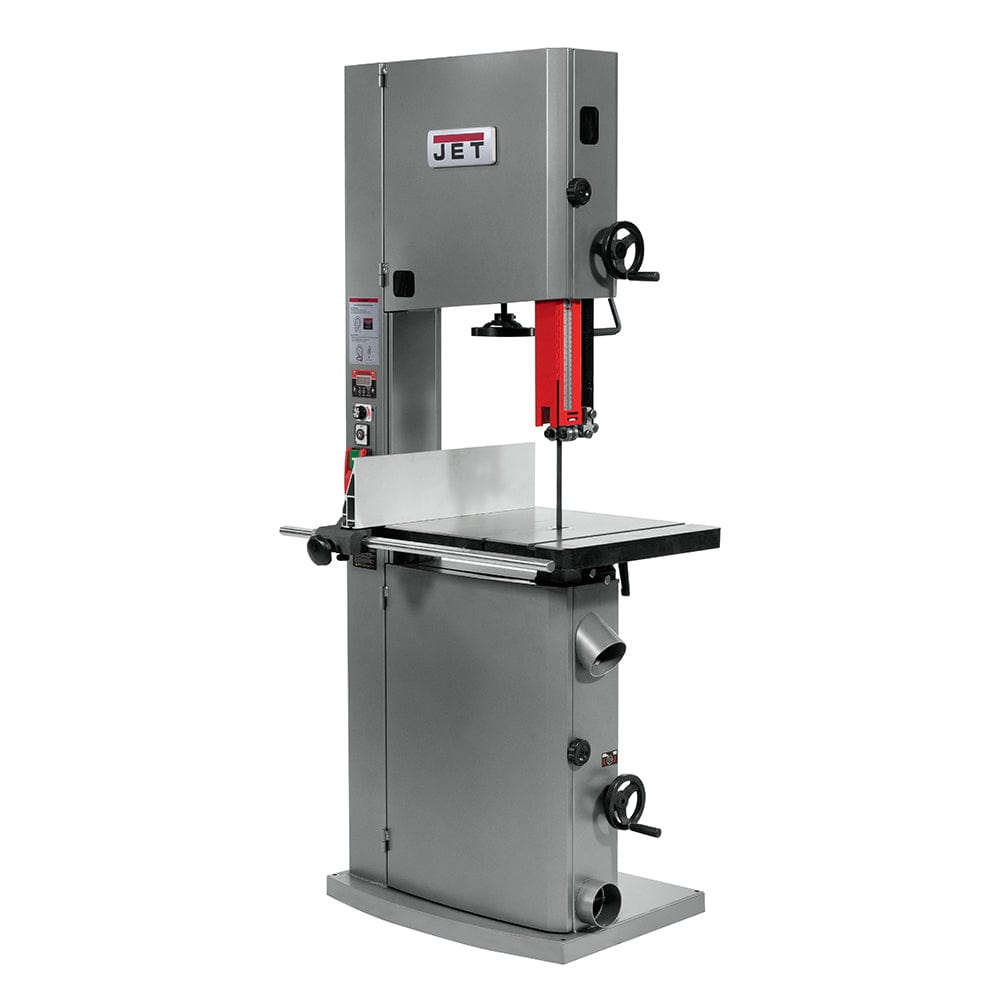

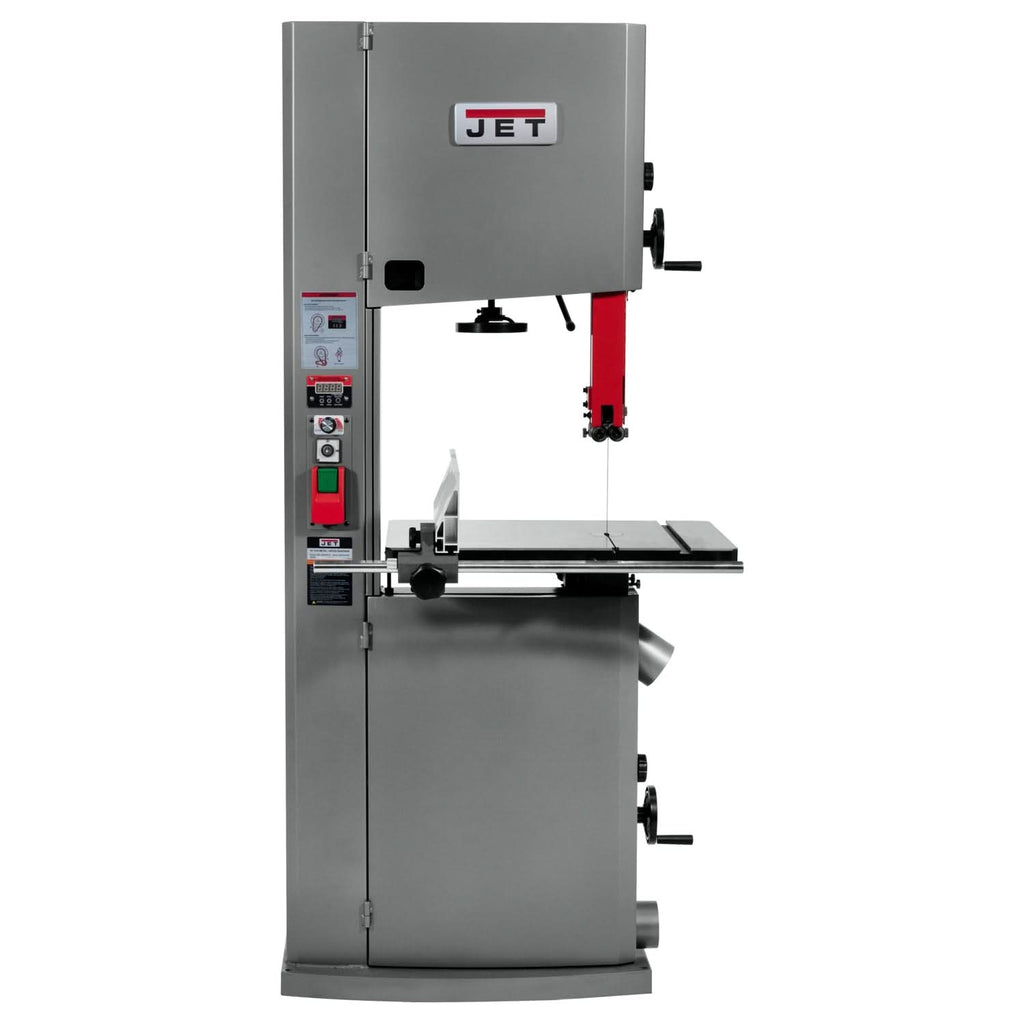

The JET VBS-18MWEVS is an 18 in vertical metal and wood bandsaw with a 2 HP motor on 230V single-phase power. An electronic variable speed inverter drive sets blade speed across the full range so one saw handles steel, aluminum, and wood.
This saw is built for fabrication and machine shops that cut mixed materials and want speed control without changing pulleys. The 18 in throat and 16 in height capacity open up large stock, and the cast iron frame, trunnion, and balanced wheels keep the cut stable under load.
Key Features
- Electronic variable speed - an EVS inverter sets blade speed from 100 to 3,600 SFPM for metal, wood, and other materials.
- 18 in throat capacity - cuts wide stock with a 16 in maximum height under the guides.
- Precision ground table - 27-1/4 x 20 in cast iron table that tilts 45 degrees right and 5 degrees left.
- Rack and pinion blade guide - adjusts the upper blade guide support quickly and holds its setting.
- Cast iron wheels and trunnion - fully balanced wheels with rubber tires and a cast iron trunnion for a steady cut.
- Wide blade range - accepts 1/8 to 1-1/4 in blades on a 150 in blade loop.
Specifications
| Brand | JET Tools |
|---|---|
| Type | Vertical Metal/Wood Bandsaw |
| Model | VBS-18MWEVS |
| Throat Capacity | 18 in |
| Height Capacity (Max.) | 16 in |
| Motor | 2 HP |
| Power | 230V / Single Phase |
| Blade Speed | 100 to 3,600 SFPM (variable) |
| Blade Size | 150 in |
| Blade Width (Min. to Max.) | 1/8 to 1-1/4 in |
| Table Size (L x W) | 27-1/4 x 20 in |
| Table Height | 37 in |
| Table Tilt | 45 degrees right, 5 degrees left |
| Orientation | Vertical |
| Weight | 572 lb (gross) |
| Warranty | 2 Year |
Key Facts
- Variable blade speed from 100 to 3,600 SFPM via EVS inverter drive.
- 18 in throat capacity with a 16 in maximum cut height.
- Accepts blades from 1/8 to 1-1/4 in wide on a 150 in loop.
- Cast iron table tilts 45 degrees right and 5 degrees left for angled cuts.
- Backed by a 2 year warranty.
Who It's For
This saw fits fabrication and machine shops that cut both metal and wood and need to dial in blade speed by material. It requires 230V single-phase service and a stable floor area for the cast iron frame.
What's Included
- The VBS-18MWEVS bandsaw with cast iron table and trunnion
- Blade and blade guides
- Operator manual and documentation
Shipping and Freight
This bandsaw ships LTL freight at roughly 572 lb gross. Plan for liftgate or forklift offload and confirm bay access before the pallet arrives.
About JET
JET is a JPW Industries brand of metalworking and woodworking machinery. The JET sawing line covers vertical and horizontal bandsaws for shops cutting steel, aluminum, and wood.
Frequently Asked Questions
Can the VBS-18MWEVS cut both metal and wood?
Yes. The electronic variable speed drive sets blade speed from 100 to 3,600 SFPM, so you can run slow speeds for steel and faster speeds for wood and aluminum.
What is the cutting capacity?
The throat capacity is 18 in and the maximum height under the guides is 16 in.
What power does it need?
It runs on 230V single-phase power with a 2 HP motor. Confirm your service before installation.
What blade does it use?
It takes a 150 in blade loop and accepts widths from 1/8 to 1-1/4 in. Match the blade to the material and cut for best results.
Does the table tilt for angled cuts?
Yes. The precision ground table tilts 45 degrees to the right and 5 degrees to the left.
